0.69 inch small white 96x16 dots OLED display GDOA0069W

SKU: GDOA0069W
(0)
7 Sold
$2.89 $3.61
20% OFF
This is a white OLED display folding type panel, 0.69 inch with 96x16 pixels. The drive IC is SSD1306. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The brightness is 150(Typ) cd/m².
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
0 in stock
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
1/1
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • 0.69 inch small white 96x16 dots OLED display GDOA0069W
Frequently Bought Together
more
Frequently Bought Together
  • Description

Any questions, just feel free to contact me, my email is: info@good-display.com

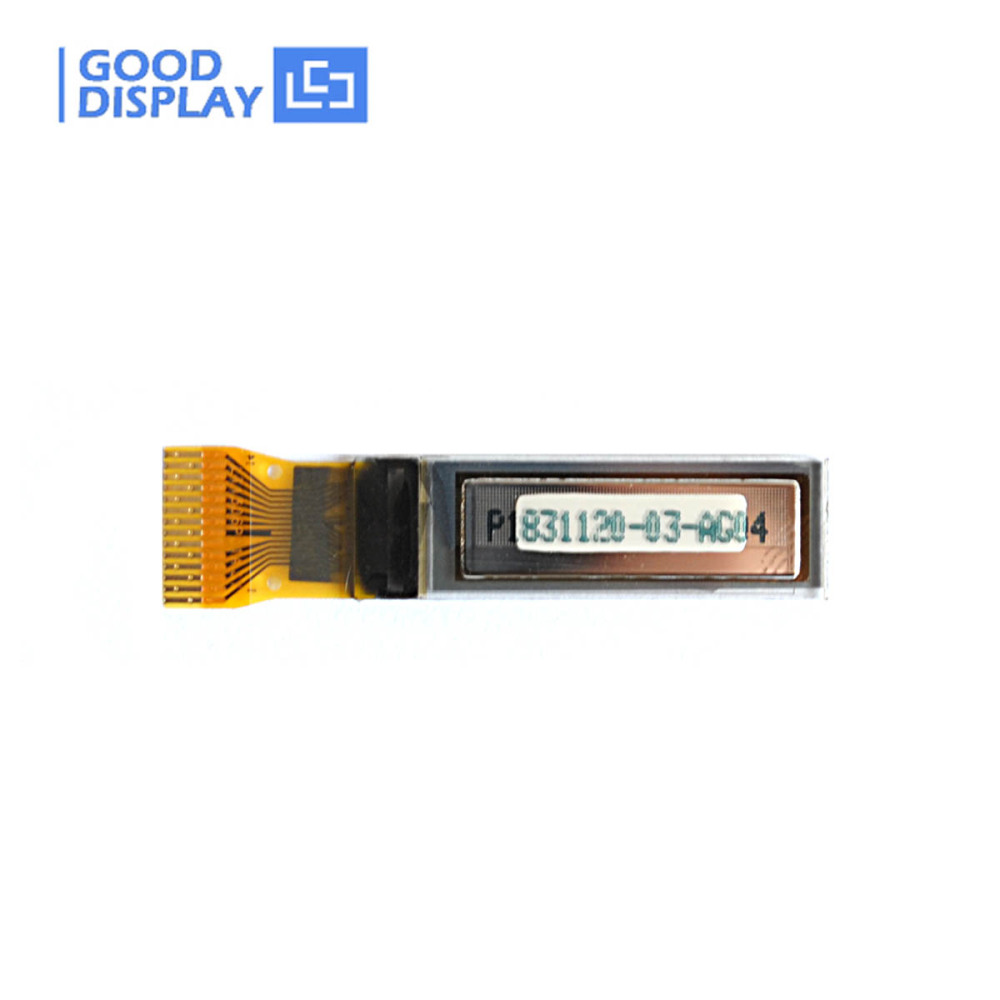

☆ INTRODUCTION




This is a white OLED display folding type panel, 0.69 inch with 96x16 pixels. The drive IC is SSD1306. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The brightness is 150(Typ) cd/m².


This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




●  Self-luminous, no backlight is required

●  Ultra low power consumption.

●  Wide operating temperature: -40℃~70℃






 THE ABOVE PRICE INCLUDE



1) 0.69 inch small white 96x16 dots OLED display * 1pc

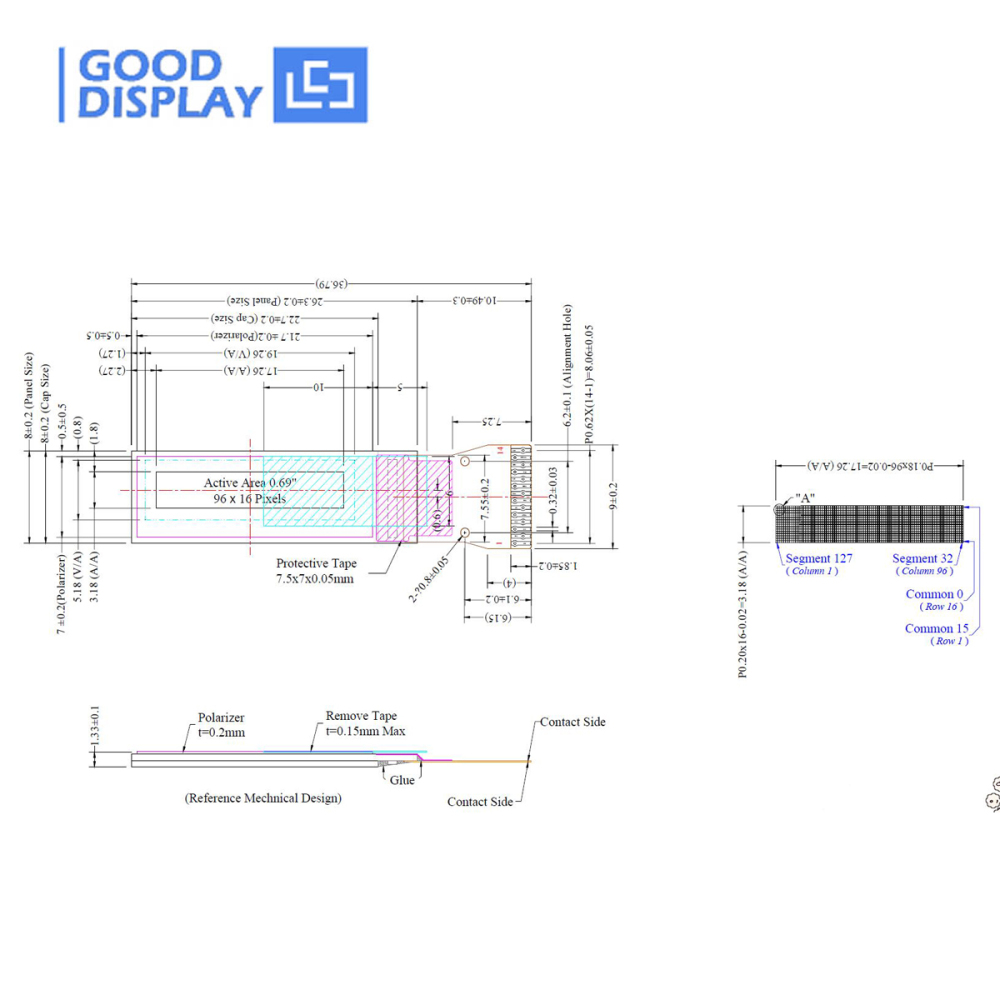

 MAIN PARAMETERS



PART NUMBER GDOA0069W
DIAGONAL SIZE 0.69 inch
DISPLAY MODE Passive Matrix
DISPLAY COLOR Monochrome (White)
DRIVE DUTY 1/16 Duty
NUMBER OF PIXELS 96x16
INTERFACE I2C
DRIVER IC SSD1306
OUTLINE DIMENSION(mm) 26.3 × 8× 1.3
ACTIVE AREA(mm)  17.26 ×3.18
PIXEL PITCH(mm) 0.18 × 0.2
PIXEL SIZE(mm)  0.16 × 0.18
BRIGHTNESS(Typ) 150 cd/m²(Typ)
OPERATING TEMP. -40℃~70℃
STORAGE TEMP. -40℃~85℃
