☆ INTRODUCTION

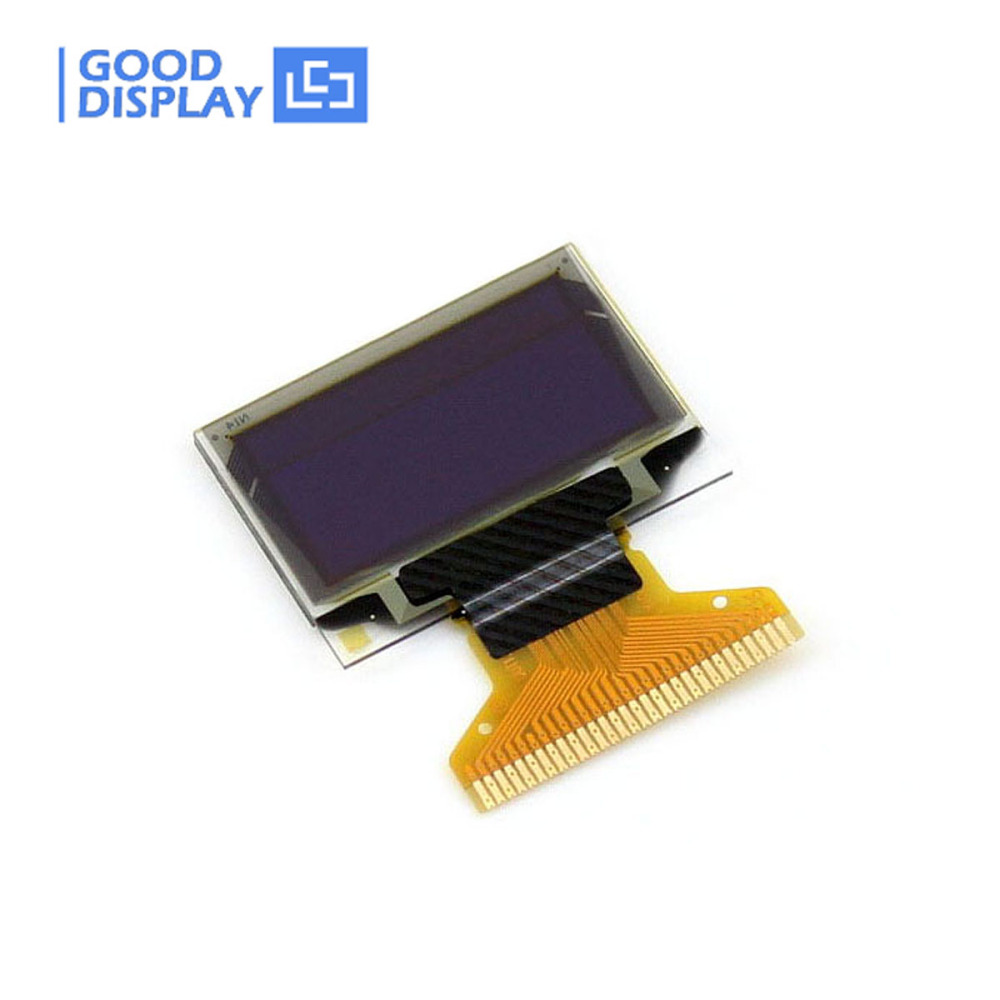

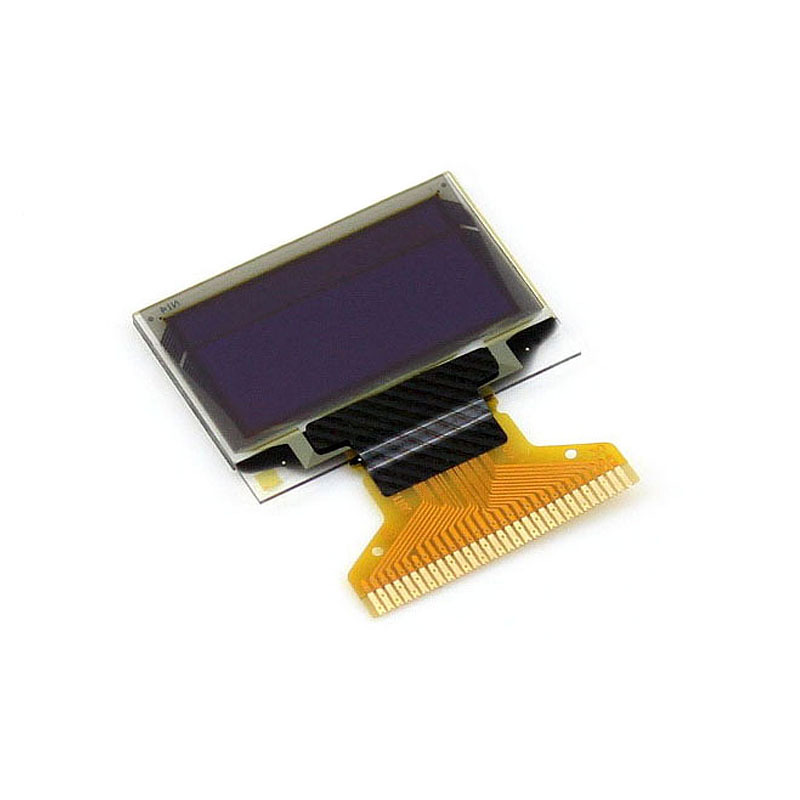

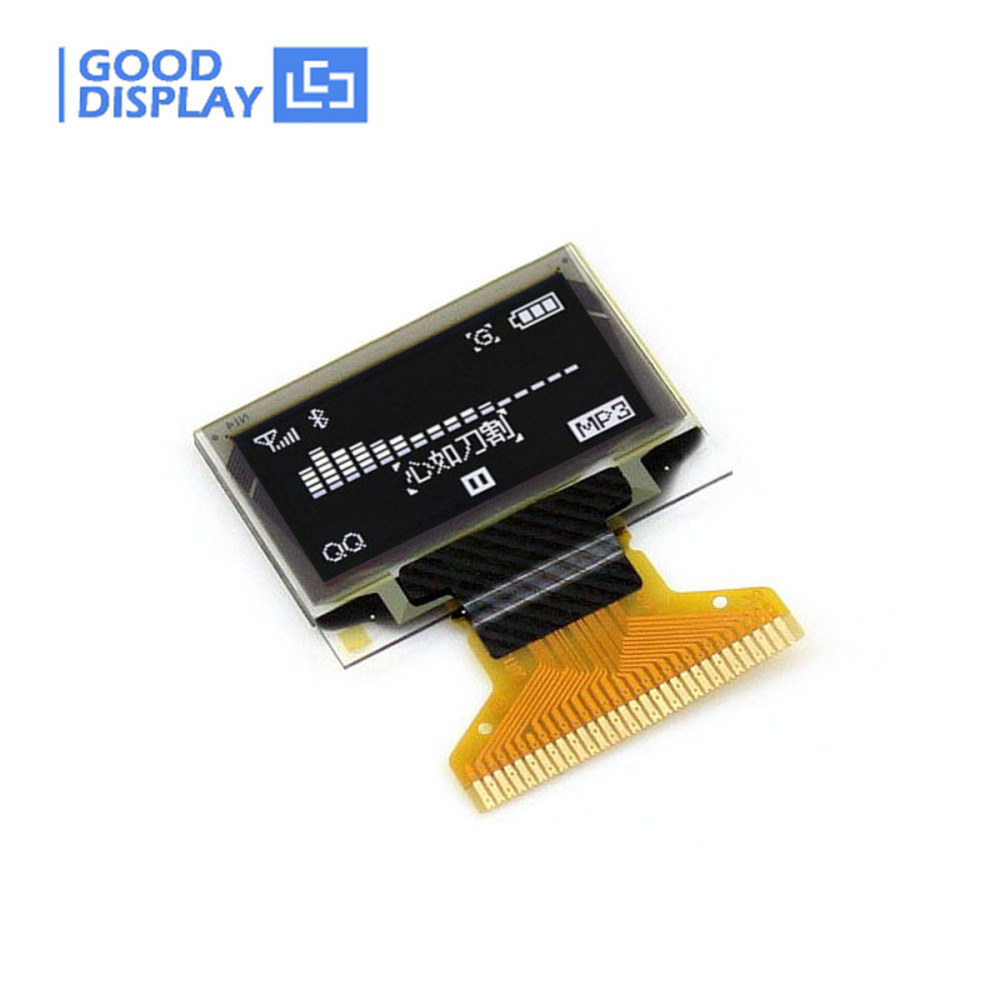

GDON0096PGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1315, communicates via 3-/4-wire SPI, I2C. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.

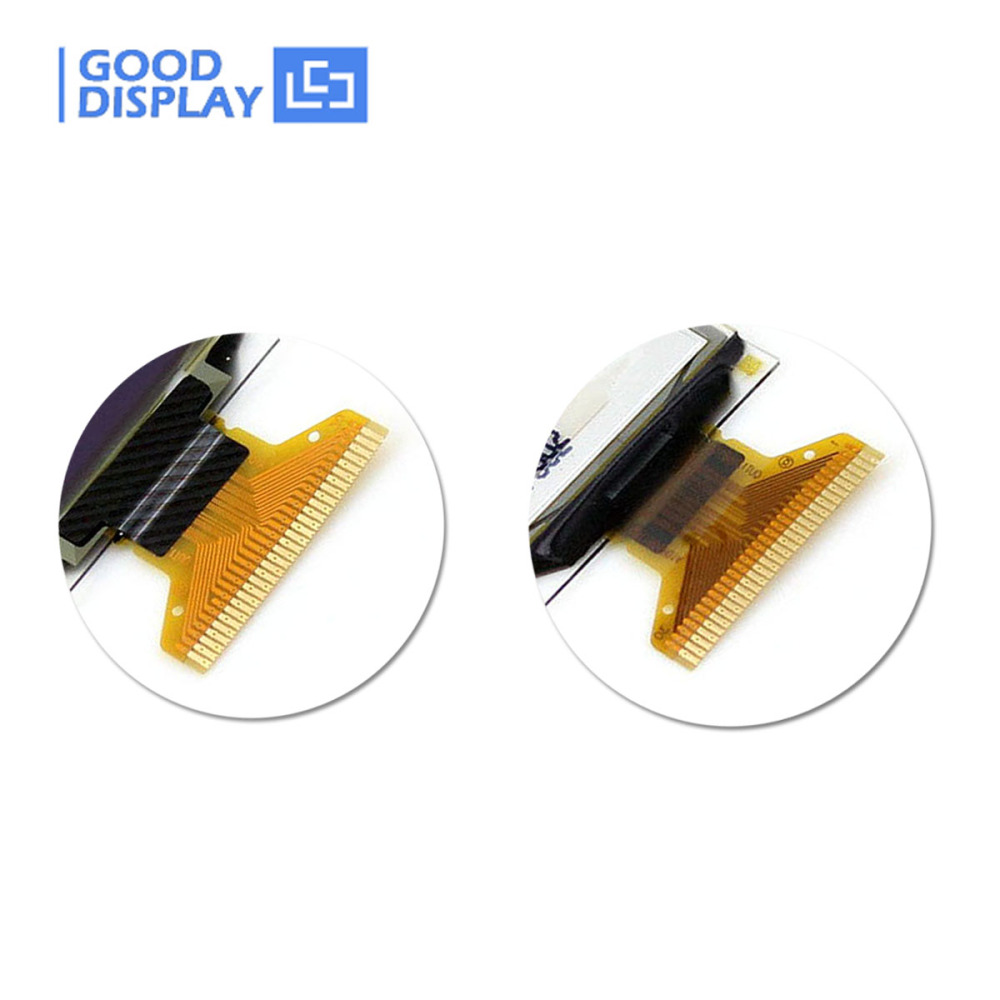

The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle
● It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi
● Wide operating temperature: -40℃~85℃
☆ THE ABOVE PRICE INCLUDE
1) 0.96 inch 128x64 mini oled display wide temperature -40~85C SSD1315 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDON0096PGW |
| DIAGONAL SIZE |
0.96" |
| DISPLAY MODE |
Passive Matrix |
| DISPLAY COLOR |
White |
| DRIVE DUTY |
1/64 Duty |
| NUMBER OF PIXELS |
128x64 |
| INTERFACE |
3-/ 4-wire SPI, I2C |
| Driver IC |
SSD1315 |
| CONNECTION |
FPC-Soldering |
| OUTLINE DIMENSION(mm) |
24.74x16.9x1.42 |
| ACTIVE AREA(mm) |
21.74x10.86 |
| PIEXL PITCH(mm) |
0.17x0.17 |
| PIXEL SIZE(mm) |
0.15x0.15 |
| BRIGHTNESS(Typ) |
100 cd/m2 |
| VIEW ANGLE |
Free |
| POWER SUPPLY(Typ) |
3.3V |
| OPERATING TEMP. |
-40℃~85℃ |
| STORAGE TEMP. |
-40℃~85℃ |
