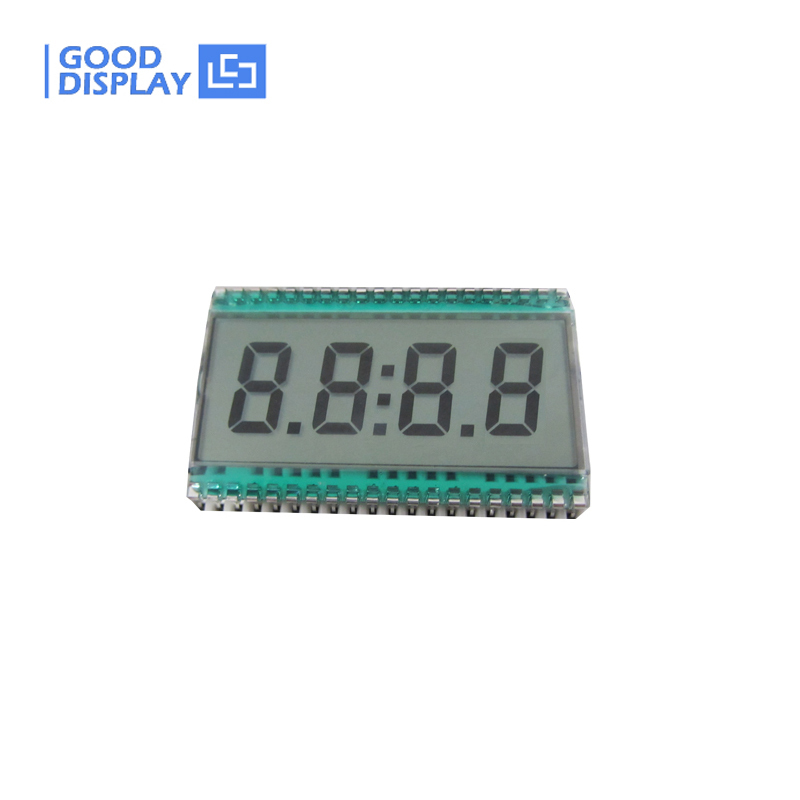

10 pieces, 4 Digits Pin LCD Panel Reflective/Transflective/Transmissive LCD Display, EDC190

SKU: EDC190-Reflective

(0)

1 Sold

$11.20 ~~$14.00~~

20% OFF

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

☆ MAIN PARAMETERS

Part Number	EDC190

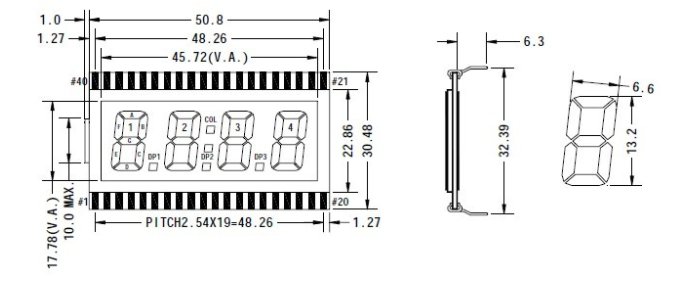

Display content	4-digits	Outline Dimension	50.8x30.48x2.8mm
Viewing Direction	6:00/12:00 o'clock	Active Area	45.72x17.78mm
Backlight Color	White ,(Optional)	Display Type	TN Positive
Operating Voltage	3.0V/5.0V	Net Weight	10g
Drive method	Static	Connector	Pin (40 Pins) Pin Length is optional
Operating Temp	Normal temp LCD：-10℃—60℃ Extended temp LCD: -20℃—70℃ Super-extended temp LCD: -40℃—80℃
Storage Tempe	Normal temp LCD：-20℃—70℃ Extended temp LCD: -30℃—80℃ Super-extended temp LCD: -45℃—85℃
Polarizer Mode	Reflective/Transflective/Transmissive

* If you need the EDC190(Semi-transparent), please click EDC190(Semi-transparent)
