☆ INTRODUCTION

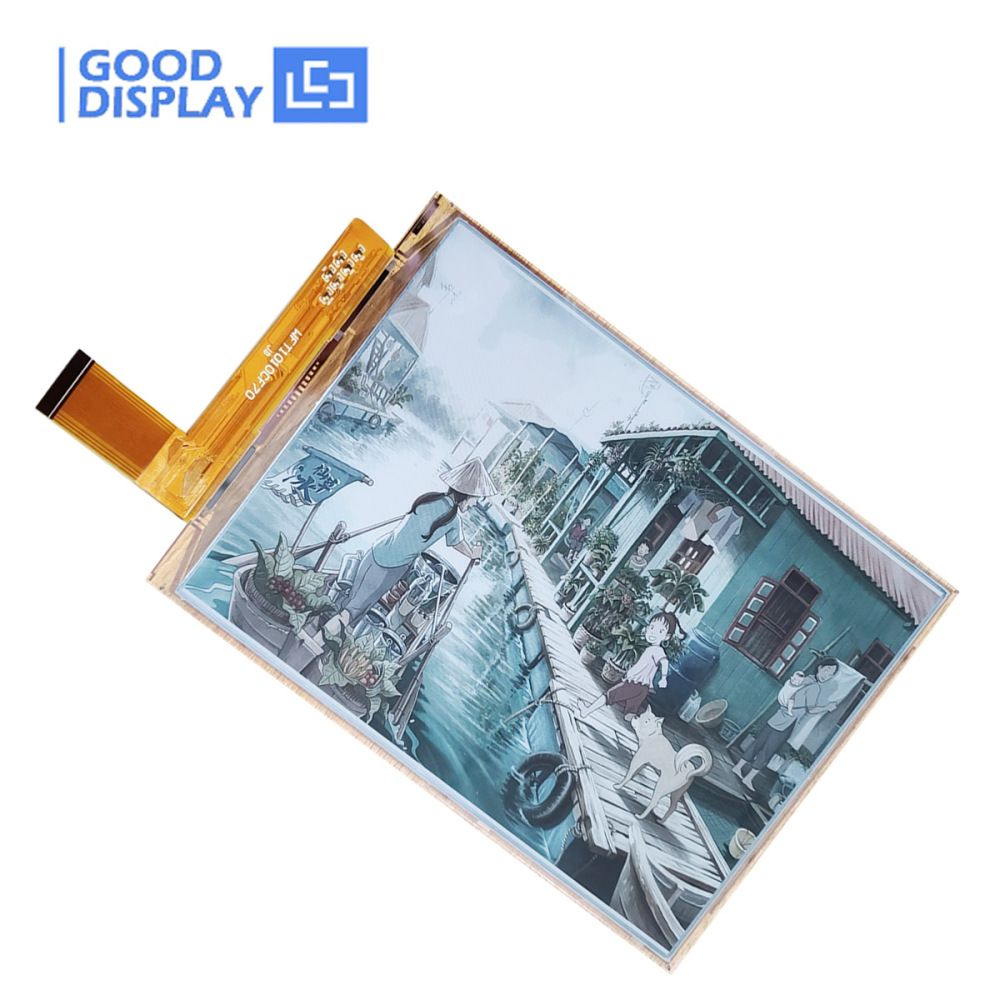

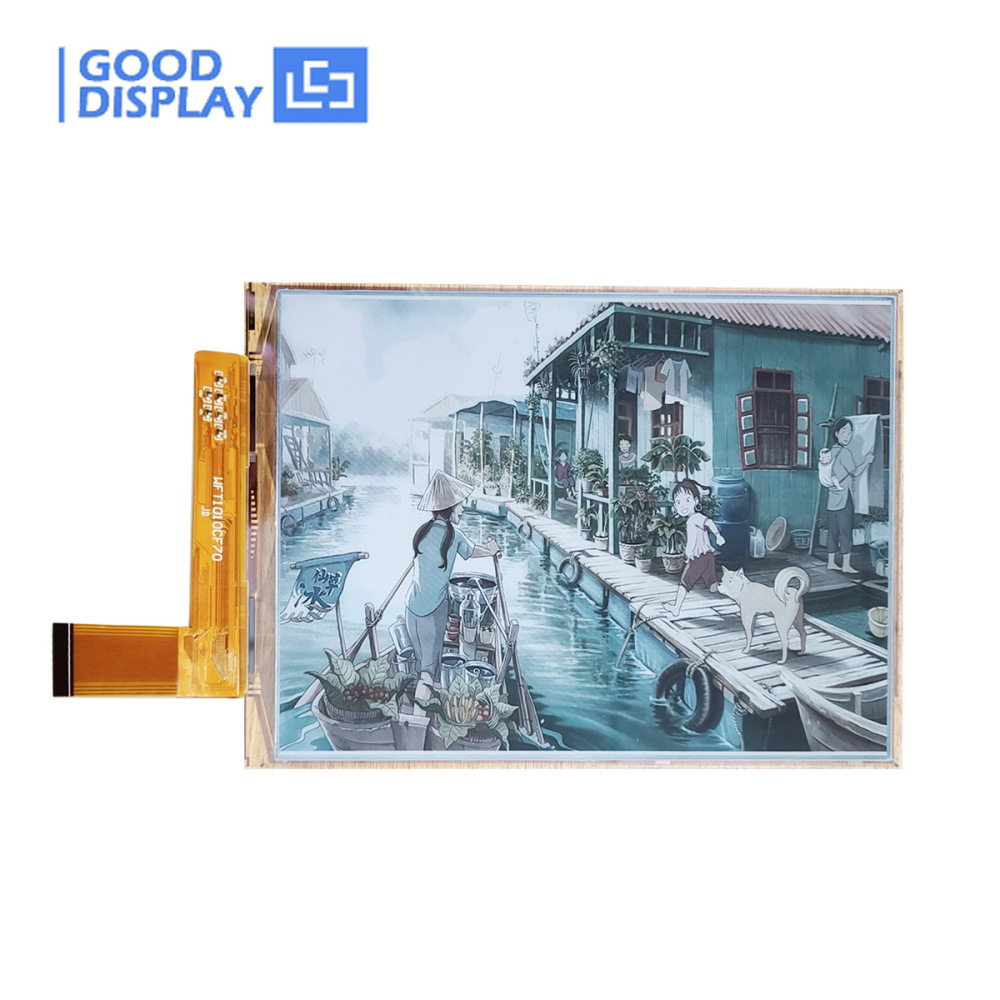

This is a DES (what is DES?) 10.1 inch large color epaper display 2232x1680 ebook full electronic paper eink display, and the display is capable to display images with 4096 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● It is manufactured using a new process: DES
● Versatile. Use in portrait or landscape format
● Contrast Ratio is higher than normal e-paper display
● Parallel interface, for connecting with controller boards
● Power consumption is lower than normal e-paper display
● With color filter, it supports a full color model with 4096 colors display
● Wide working temperature range: -10℃~60℃ (Normal black-white e-ink display: 0℃~50℃, Normal color e-ink display: 0℃~40℃, low temperature e-ink display:-20℃~25℃)
● Development platform available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE
1) 10.1 inch large color epaper display full electronic paper eink display GDEW101C01*1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDEW101C01 |
| TPYE |
DES |
| SIZE |
10.1 inch |
| RESOLUTION |
2232x1680 |

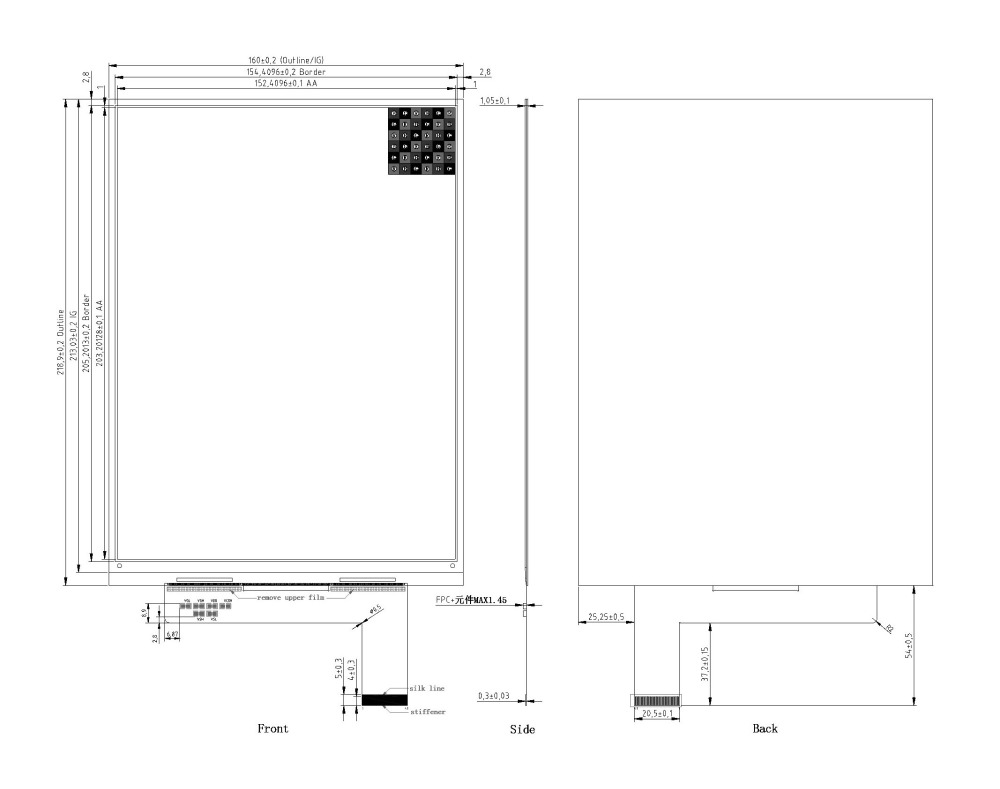

| OUTLINE SIZE(mm) |
152.4096x203.2013 |
| ACTIVE SIZE(mm) |
118.638x158.184 |
| PIXEL PITCH(mm) |
0.09072x0.09104 |
| OPERATING TEMP. |
-10℃~60℃ |
| STORAGE TEMP. |
-25℃~70℃ |
| CONNECTOR |
40 Pin |
| FEATURE |
Color |
| INTERFACE |
Parallel |
| MAX GRAYSCALE |
16 |
| POWER CONSUMPTION OF THE REFRESH (mW) |
285 |
| STANDBY POWER CONSUMPTION (mW) |
1.3 |
| TIME OF REFRESH(s) |
1 |
☆ RELATED PRODUCTS
DES series
(Wide Working Temperature Range -20℃~60℃, Can Be Used In Sunlight And Cold Environments)
|
Part Number
|
Size/Color
|
Refresh Time
|
Feature
|
|
GDEW0154M10
|
1.54 inch/BW
|
3S (full refresh) |
IC UC8151D, Resolution 152x152
|
|
GDEW0213M21
|
2.13 inch/BW
|
3S (full refresh) |
IC UC8151D, Resolution 212x104
|
|
GDEW026M01
|
2.6 inch/BW
|
3S (full refresh) |
IC UC8151D, Resolution 296x152
|
|
GDEW029M06
|
2.9 inch/BW
|
3S (full refresh)
|
IC UC8151D, Resolution 296x128
|
|
GDEW042M01
|
4.2 inch/BW
|
3S (full refresh)
|
IC UC8176, Resolution 400x300
|
|
GDEW0583M09
|
5.83 inch/BW
|
3S (full refresh)
|
IC UC8179, Resolution 648x400
|
|
GDEW060C01
|
6.0 inch/Full Color
|
1S (full refresh)
|
Full color, Parallel interface, 16 Grayscale, Resolution 1072x1448
|
| GDEW075M10 |
7.5 inch/BW |
3S (full refresh) |
IC UC8179, Resolution 800x400 |
|
GDEW078C01
|
7.8 inch/Full Color
|
1S (full refresh)
|
Full color, Parallel interface, 16 Grayscale, Resolution 1872x1404
|
| GDEW101C01 |
10.1 inch/Full Color |
1S (full refresh) |
Full color, Parallel interface, 16 Grayscale, Resolution 2232x1680 |
