12.48 inch E-paper Display STM32 Driving Board Epaper Development Kit

DESPI-L(C1248)
DESPI-L(C1248) evaluation kit is used to help users develop Good Display's 12.48 inch e-paper display projects with provided source code to create more differentiated solutions.
Sold:4
Have a question?
Price:
USD
$29.78
Quantity:
-
+
(46 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


Supporting 12.48 inch e-paper display




DESPI-L(1248) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's three-color (black, white and red) e-paper display: 12.48 inch. And it is added the functions of USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.

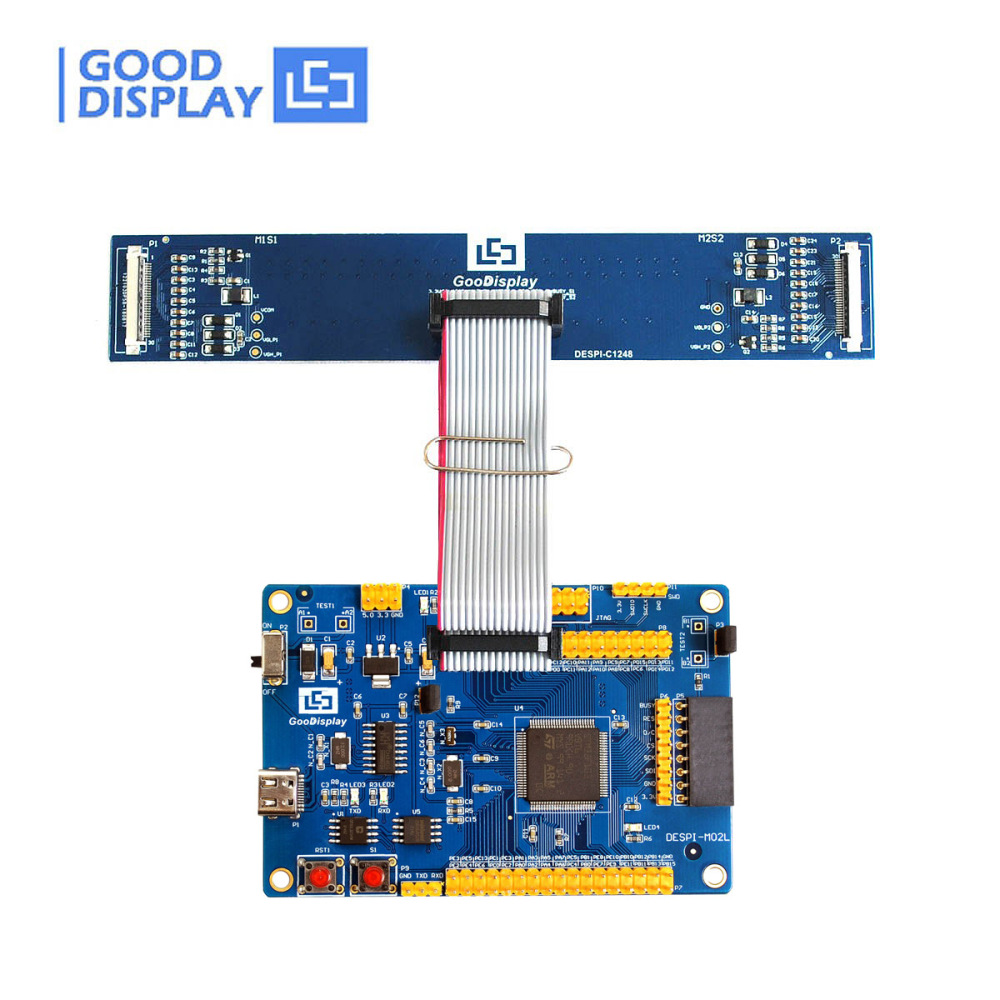

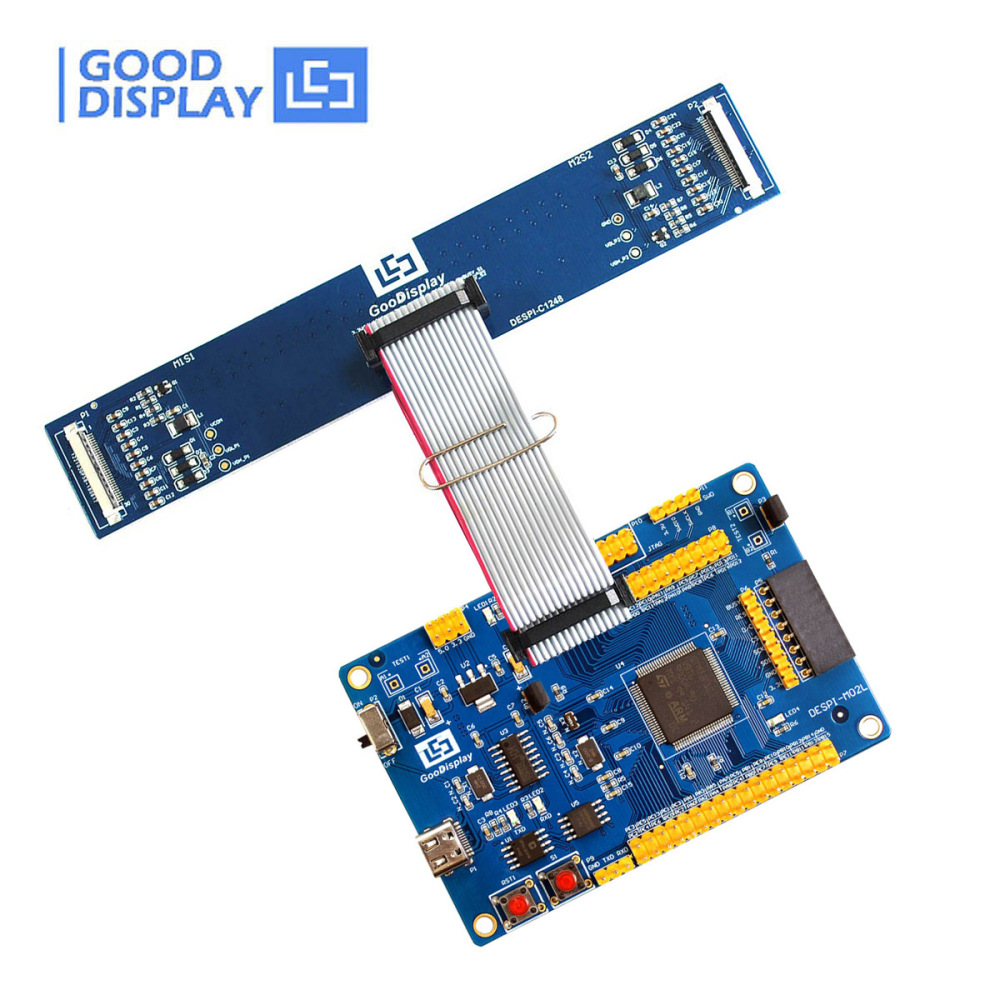

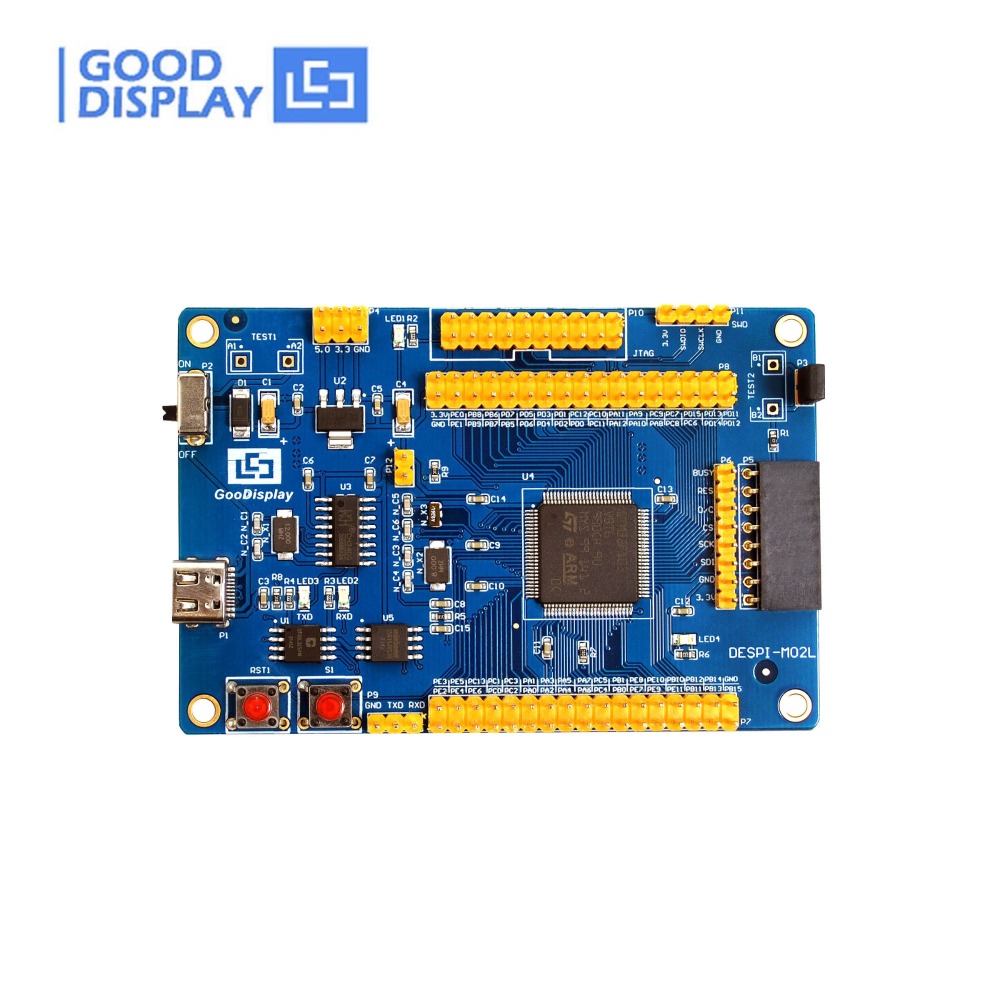

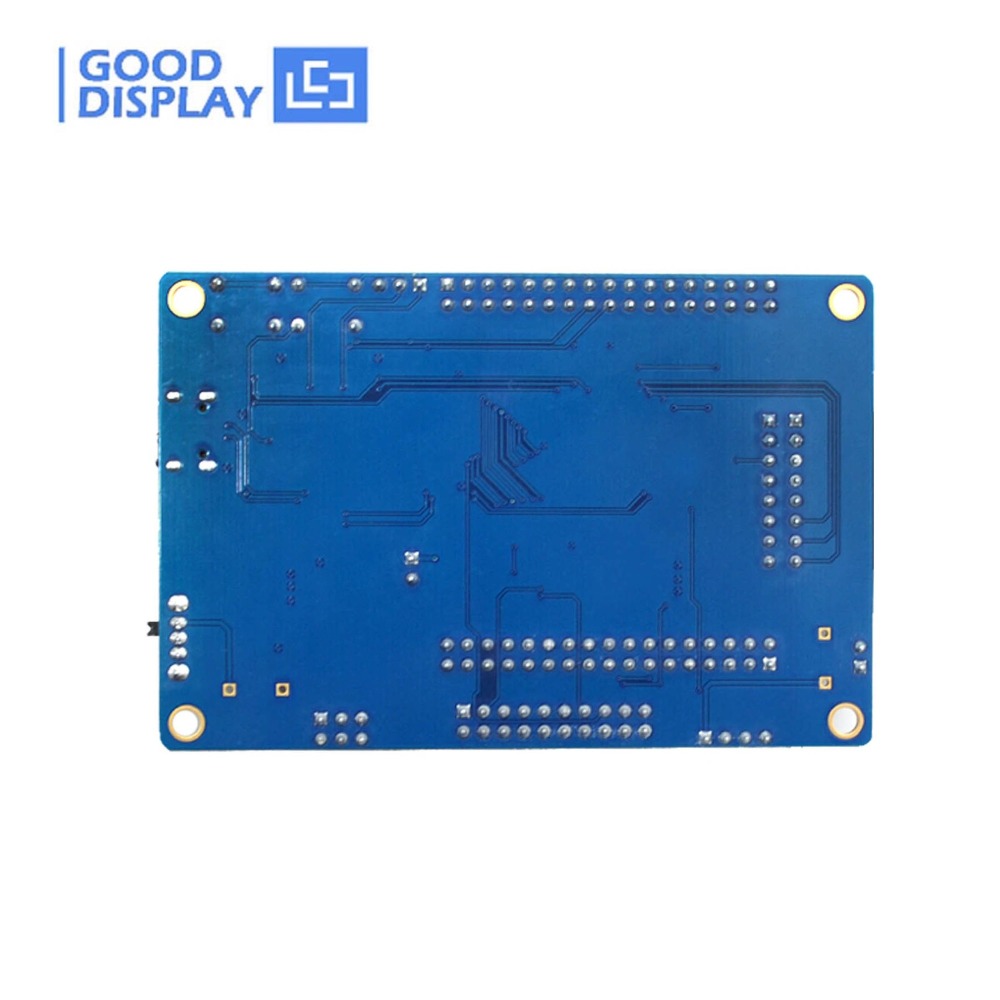

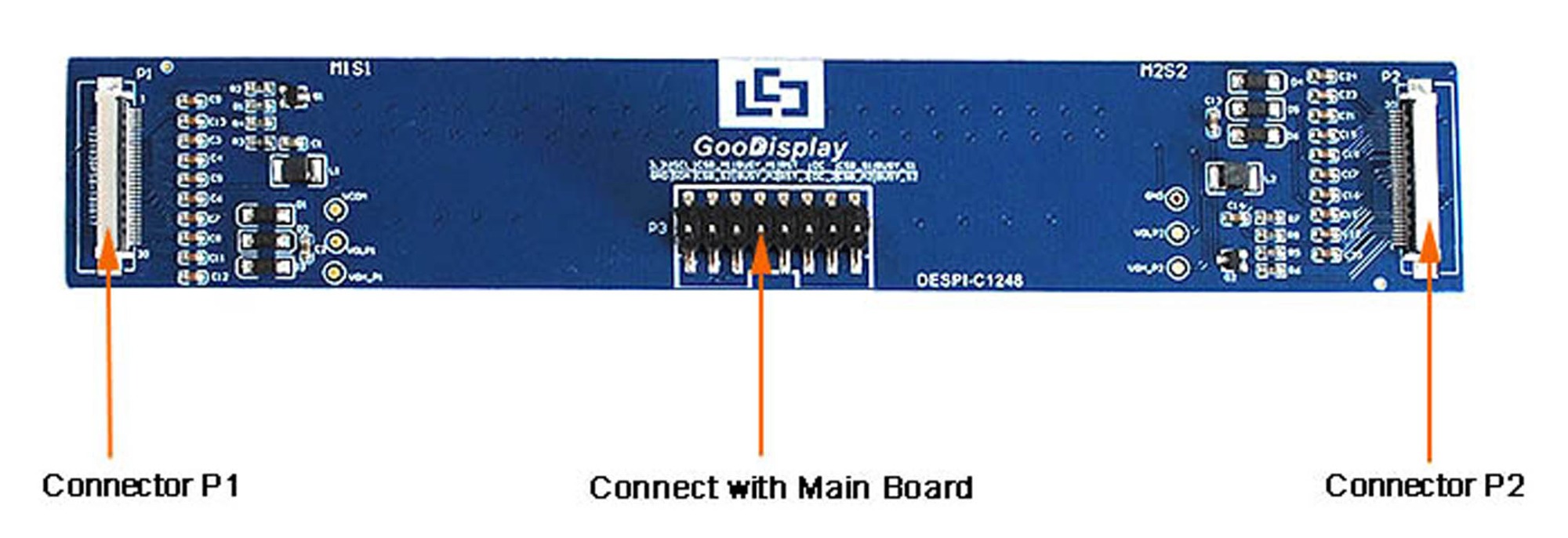

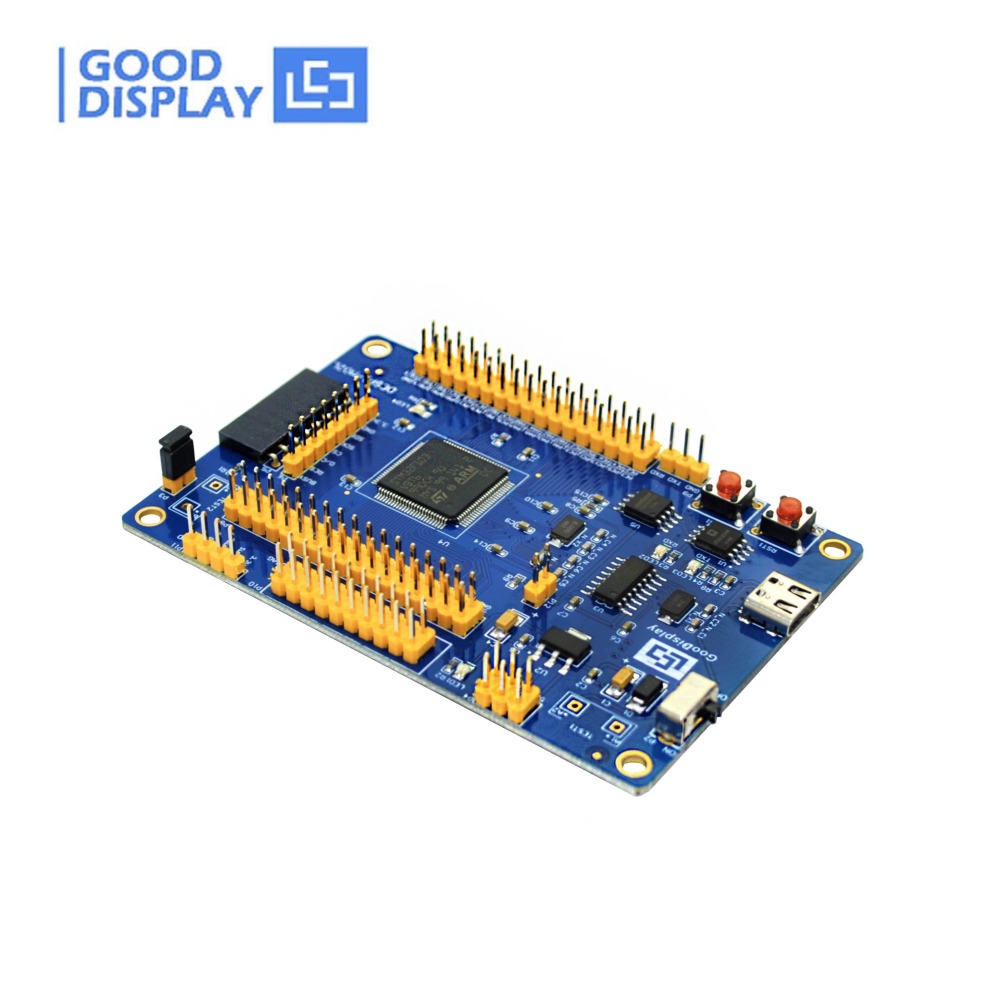

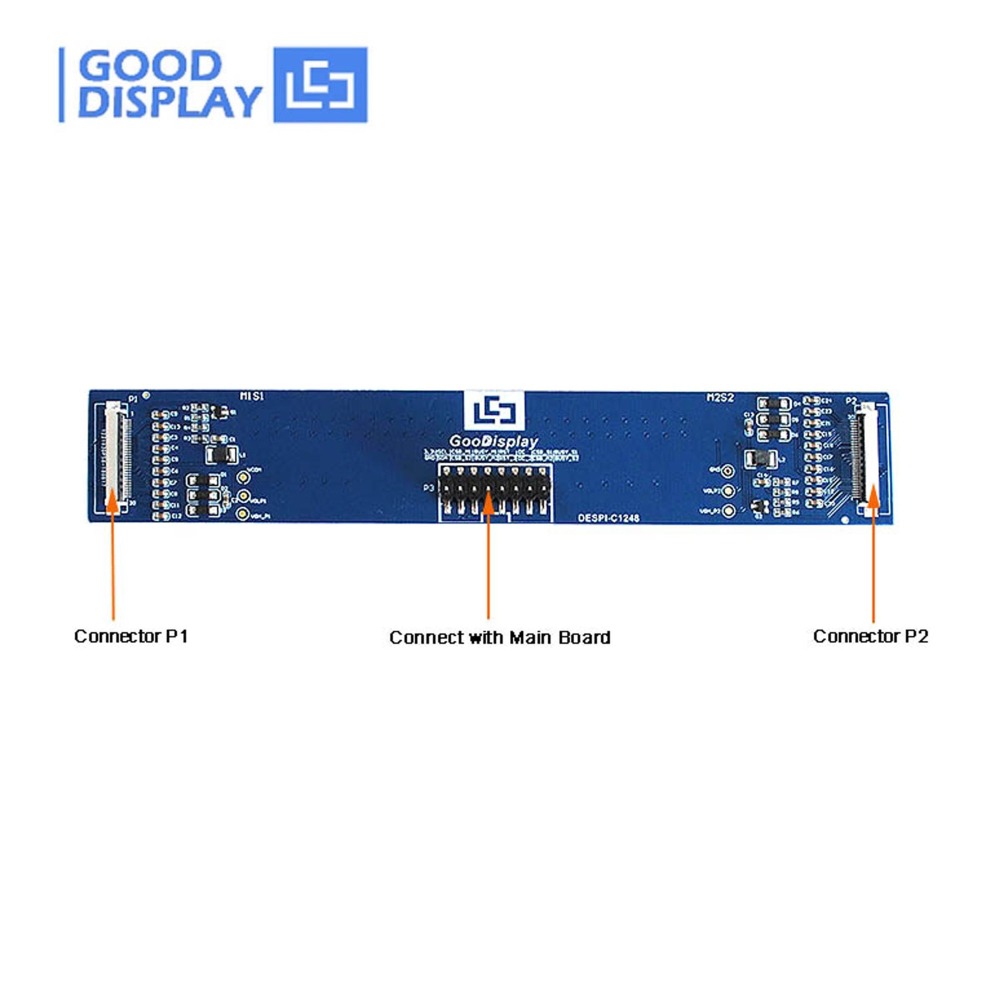

DESPI-L(C1248) evaluation kit consists of motherboard DESPI-M02L and connector board DESPI-C1248.

* Note: Compared with DESPI-1248, it has Type-C interface, reset button and font chip.








Special Features


    Our product boasts distinctive features that set it apart from the competition
    The STM32 series of 32-bit microcontrollers are based on the Cortex-M processor, which can support high-performance, real-time functionality, digital signal processing, and low-power, low-voltage operation. It also has a perfect integration and easy-to-use development. The product line with STM32 as its application is very extensive, mainly due to its industrial standard based core, a large number of tools and software support, making this series of chips an ideal choice for many products.

GooDisplay has launched the following full series of development kits based on STM32, aiming to make it easier for users to learn how to drive electronic paper displays based on STM32, design related driving circuits, and understand product performance. If customers want to use touch screens and front lights, we have also configured relevant driver circuits on the driver board for their convenience.








Technical Details


    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details


PARAMETER

DESPI-L(C1248)
IC STM32F103VET6
PLATFORM STM32

FUNCTION

Drive E-paper Display

SUITABLE SIZE

 12.48''
OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
150.2x26mm (DESPI-C1248)

INTERFACE

Type-C

POWER INPUT

DC5V

FEATURE

Support fully refresh, fast refresh and partial refresh

GRAYSCALE LEVEL

Max 16 Grayscale

OPERATING TEMP.

-20℃~70℃

RESERVED FUNCTION

Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection

MAIN FUNCTION

Learn to drive E-paper display;

Test and evaluate e-paper display;

Support secondary development

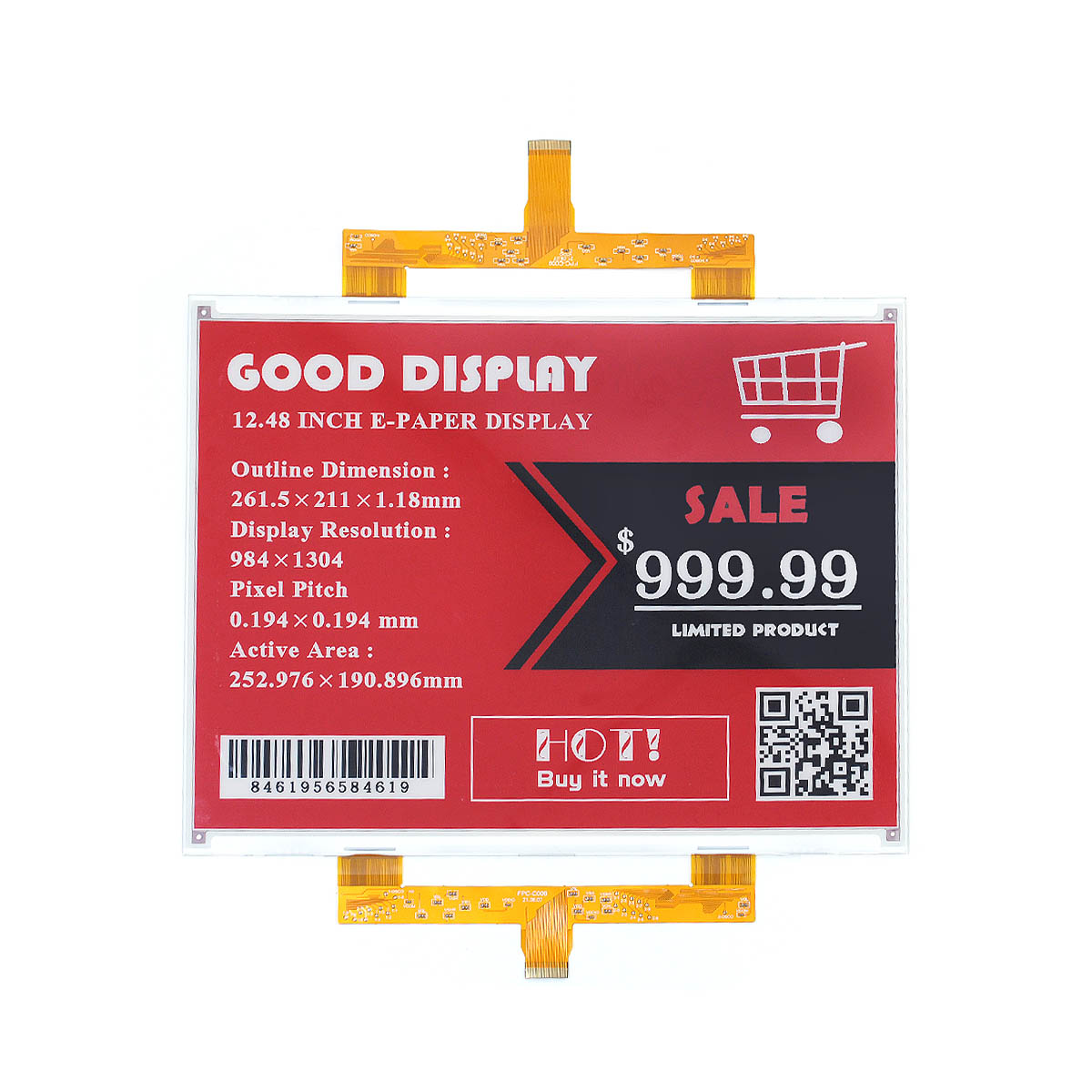

Compatible 12.48 inch E-INK



  12.48 inch Large E-ink Display UC8179 Big Epaper
Color Screen 1304x984, GDEY1248Z51








Related Information Download

Click on the subheadings below to download

  ● DESPI-L(C1248) Specification ● DESPI-C1248 Specification
  ● DESPI-M02L-SCH ● DESPI-C1248-SCH
