☆ INTRODUCTION

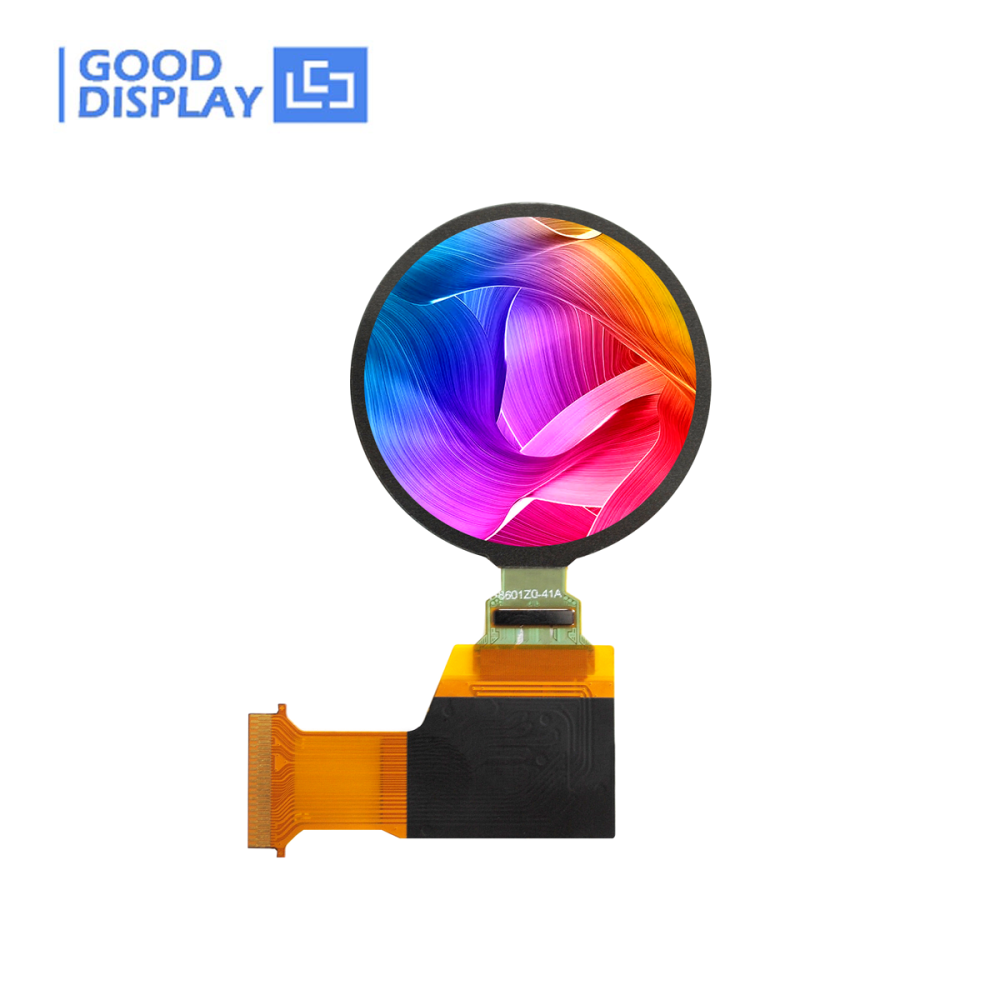

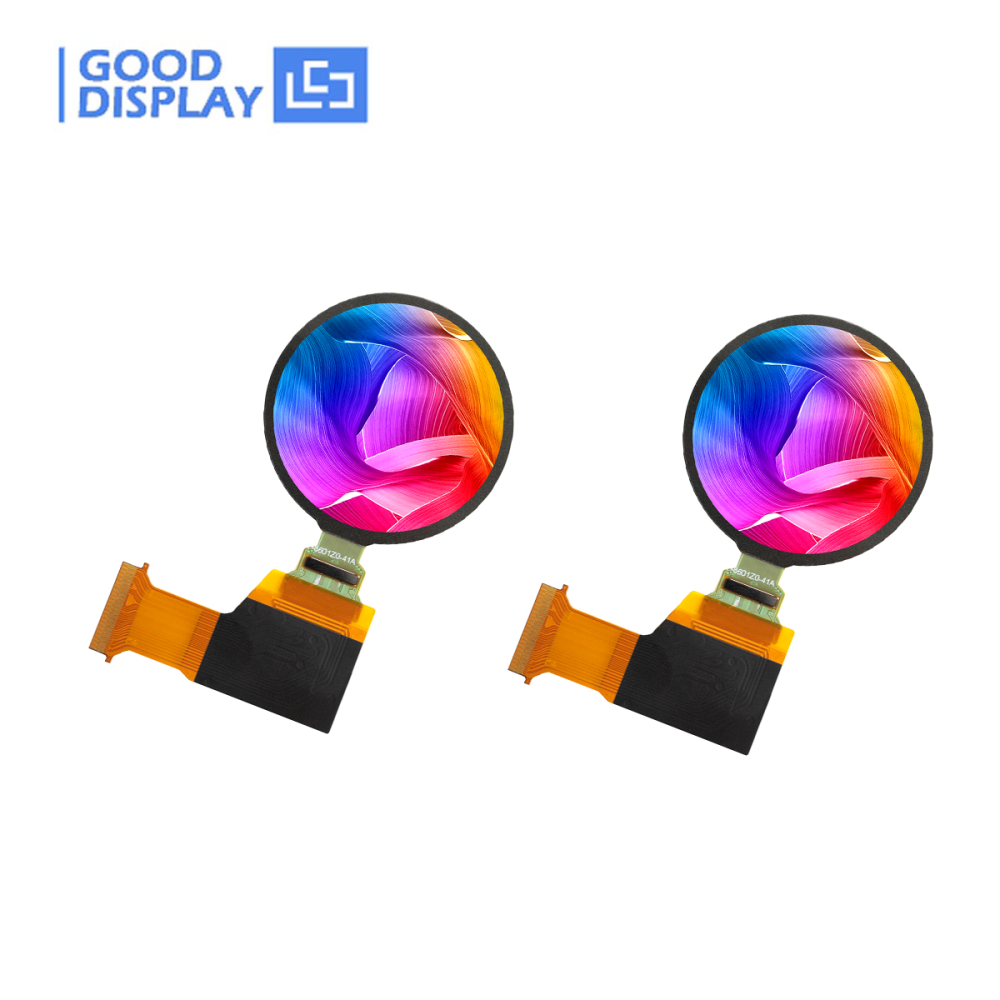

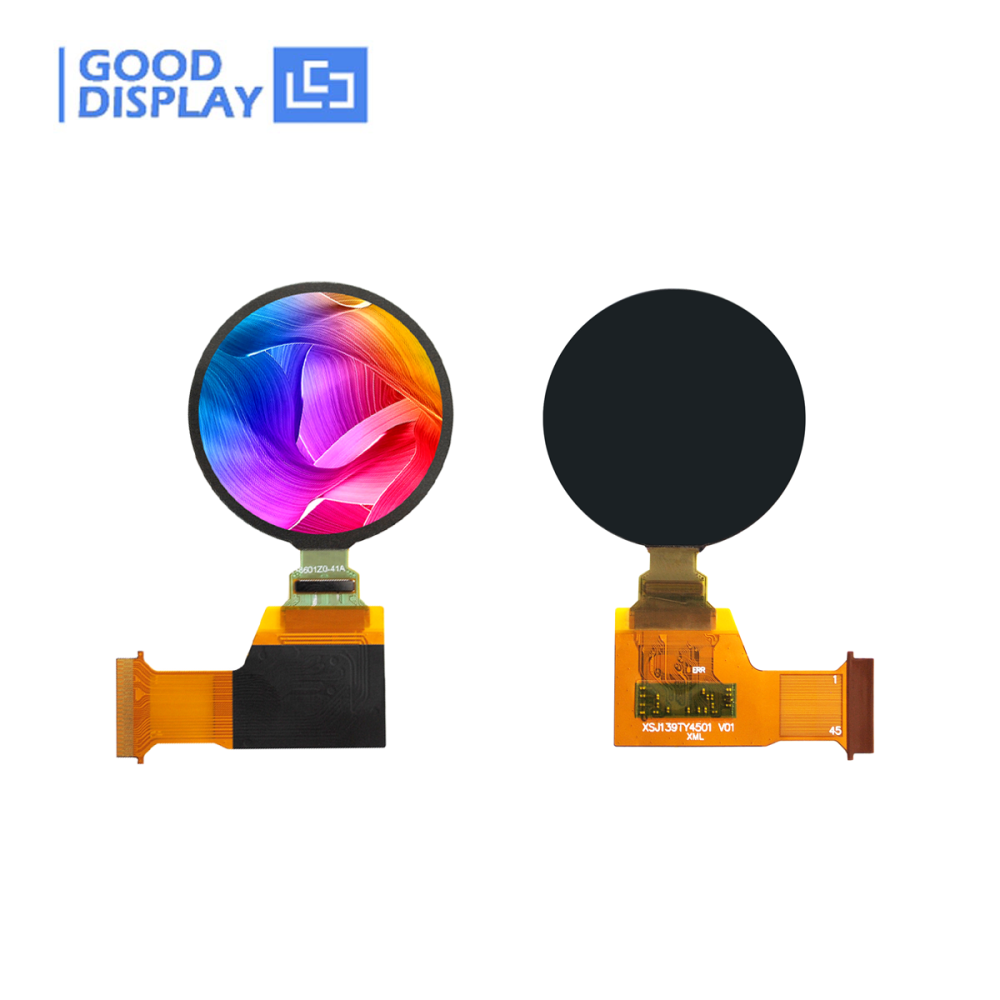

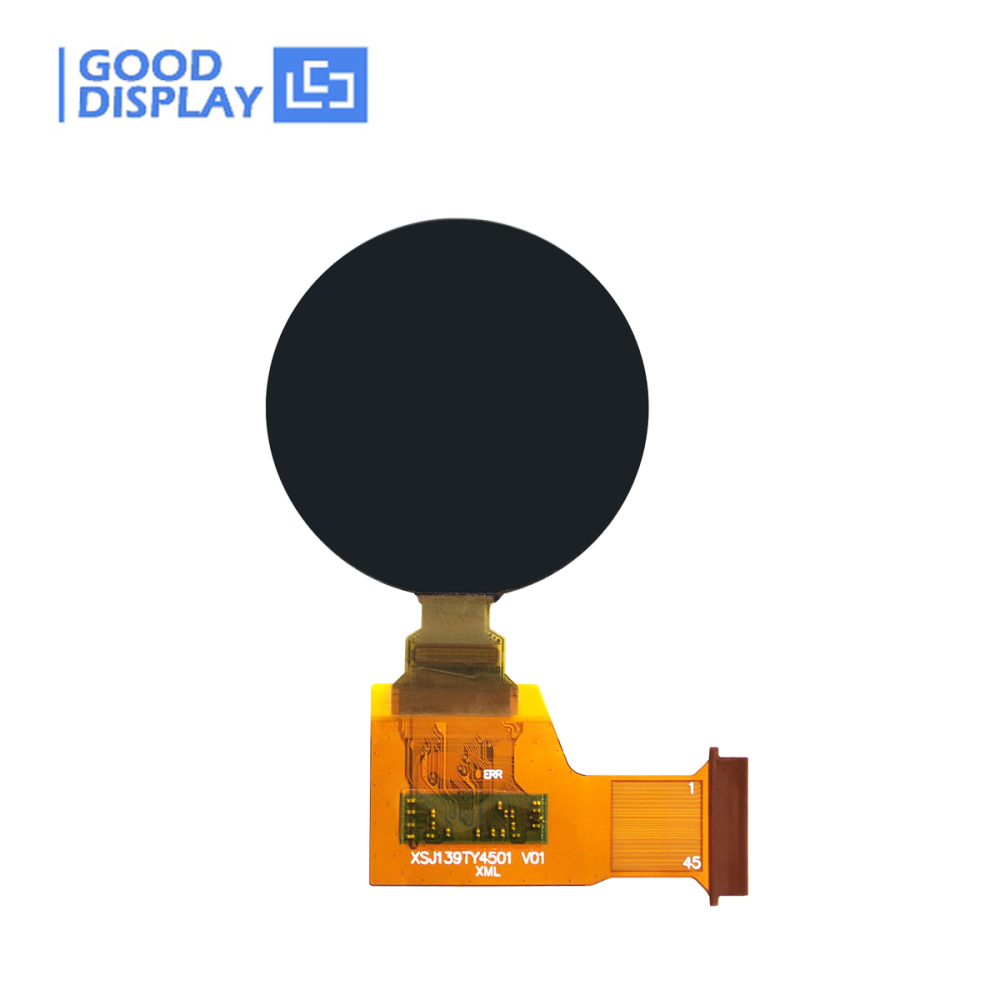

 GDOD0139CP45 is a 1.39 inch circular full color AM OLED display, and has a 454x454 pixels. Display color 16.7M(RGB x 24bits).the display uses QSPI&MIPI interfaces, making it easy for users to connect and use with various devices.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOD0139CP45 is a very good choice for various applications.

Relevant manual about this product on Library or you could go to our official website (www.e-paper-display.com), contact us please.



☆ THE ABOVE PRICE INCLUDE

1) 1.39 inch AMOLED display panel, 454x454 resolution,GDOD0139CP45 * 1pc

☆ MAIN PARAMETERS

☆ FEATURE

● Wide temperature range(Operating temperature: -20℃~70℃)
● AM OLED display
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle 88/88/88/88
● Lightweight and thin, 1.39 inch 454x454
● Polarizer: Hard-coated polarizer
● Driver IC: SH8601
● Interface: QAD-SPI&MIPI
● 16.7M (24-bit) color depth


☆ DETAILS

☆ RELATED INFORMATION DOWNLOAD

● GDOD0139CP45 Specification
● RM690B0 Datasheet
● Sample Code
