1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20

SKU: GDOR0140CP20
(0)
0 Sold
$19.20 $24.00
20% OFF
GDOR0140CP20 is a round OLED display, and has a 400x400 resolution,diagonal is 1.39 inch. Display color 16.7M(RGB x 8bits), MIPI 1-lane interface, pixel arrangement is Real RGB arrangement. In view of so many advantages, is a very good choice for applicat
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
2-4
12% Off
5-9
15% Off
10-max
    Please select the information you wantX
Quantity:
0 in stock
1 * $19.2 = $19.2
save $0.00
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
1/1
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
  • 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution, GDOR0140CP20
Frequently Bought Together
more
Frequently Bought Together
  • Description



☆ INTRODUCTION




GDOR0140CP20 is a round OLED display, and has a 400x400 resolution,diagonal is 1.39 inch. Display color 16.7M(RGB x 8bits), MIPI 1-lane interface, pixel arrangement is Real RGB arrangement.

Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOR0140CP20 is a very good choice for applications like Smart Watch.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




● Display color: 16.7M(RGB x 8bits)

● Self-luminous, no backlight is required.

● High contrast,extremely wide viewing angle 85/85/85/85

● Wide operating temperature: -20℃~60℃






 THE ABOVE PRICE INCLUDE



1) 1.39 inch round OLED display panel, 16.7M color, 400x400 resolution * 1pc




 MAIN PARAMETERS




PART NUMBER GDOR0140CP20
DIAGONAL SIZE 1.39"
DISPLAY MODE Passive Matrix
DISPLAY COLOR 16.7M
NUMBER OF PIXELS 400xRGBx400
INTERFACE MIPI 1-lane

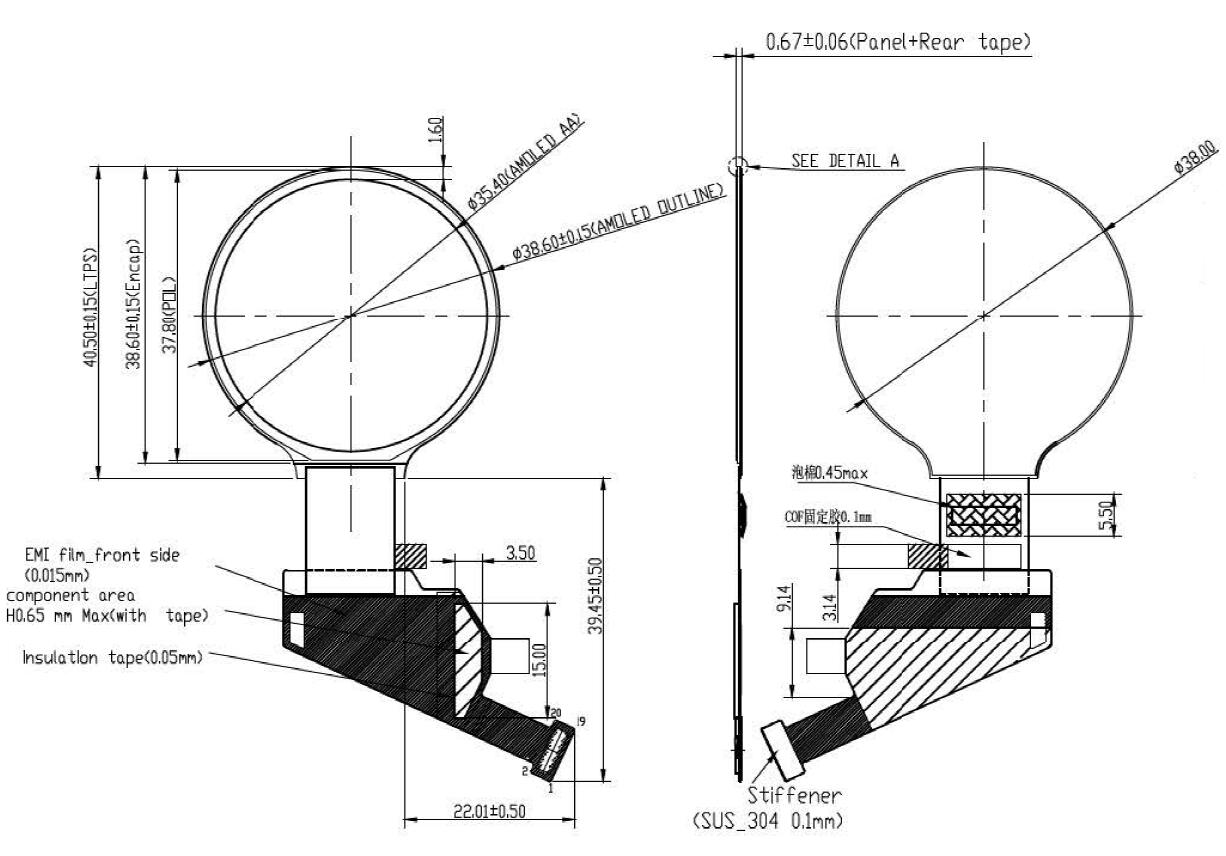

OUTLINE DIMENSION(mm) 38.6 x 40.5 x 0.67
ACTIVE AREA(mm) φ35.4

PIXEL PITCH(mm)

29.5 x 88.5

BRIGHTNESS(Typ) 300 cd/m2
VIEW ANGLE 85/85/85/85
OPERATING TEMP. -20℃~60℃
STORAGE TEMP. -30℃~70℃
