☆ INTRODUCTION

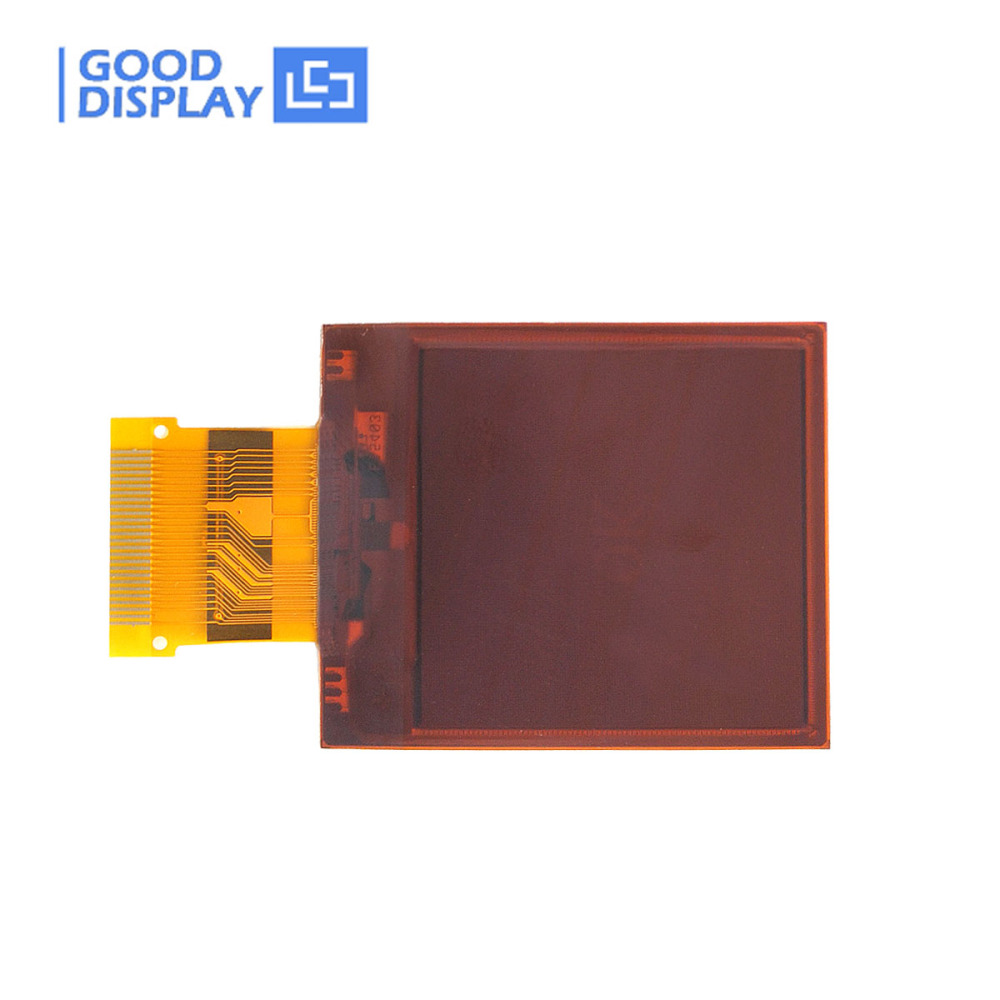

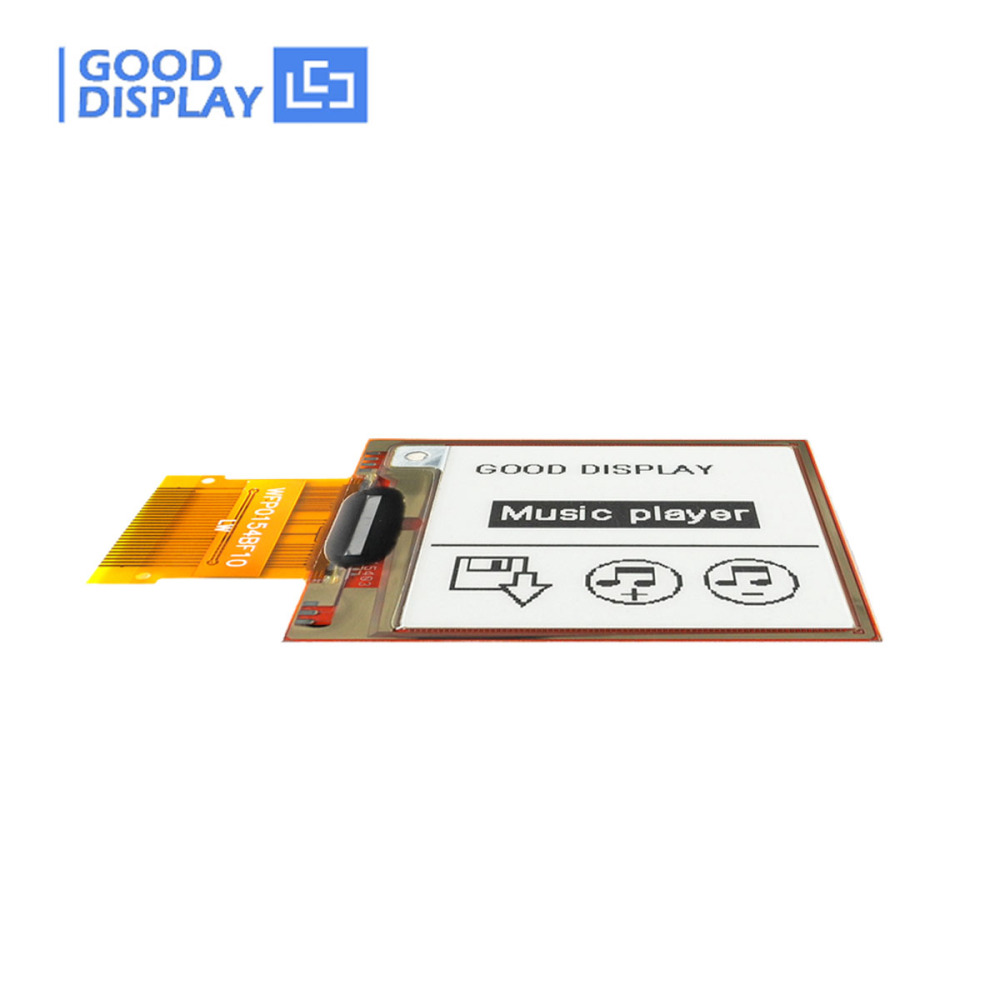

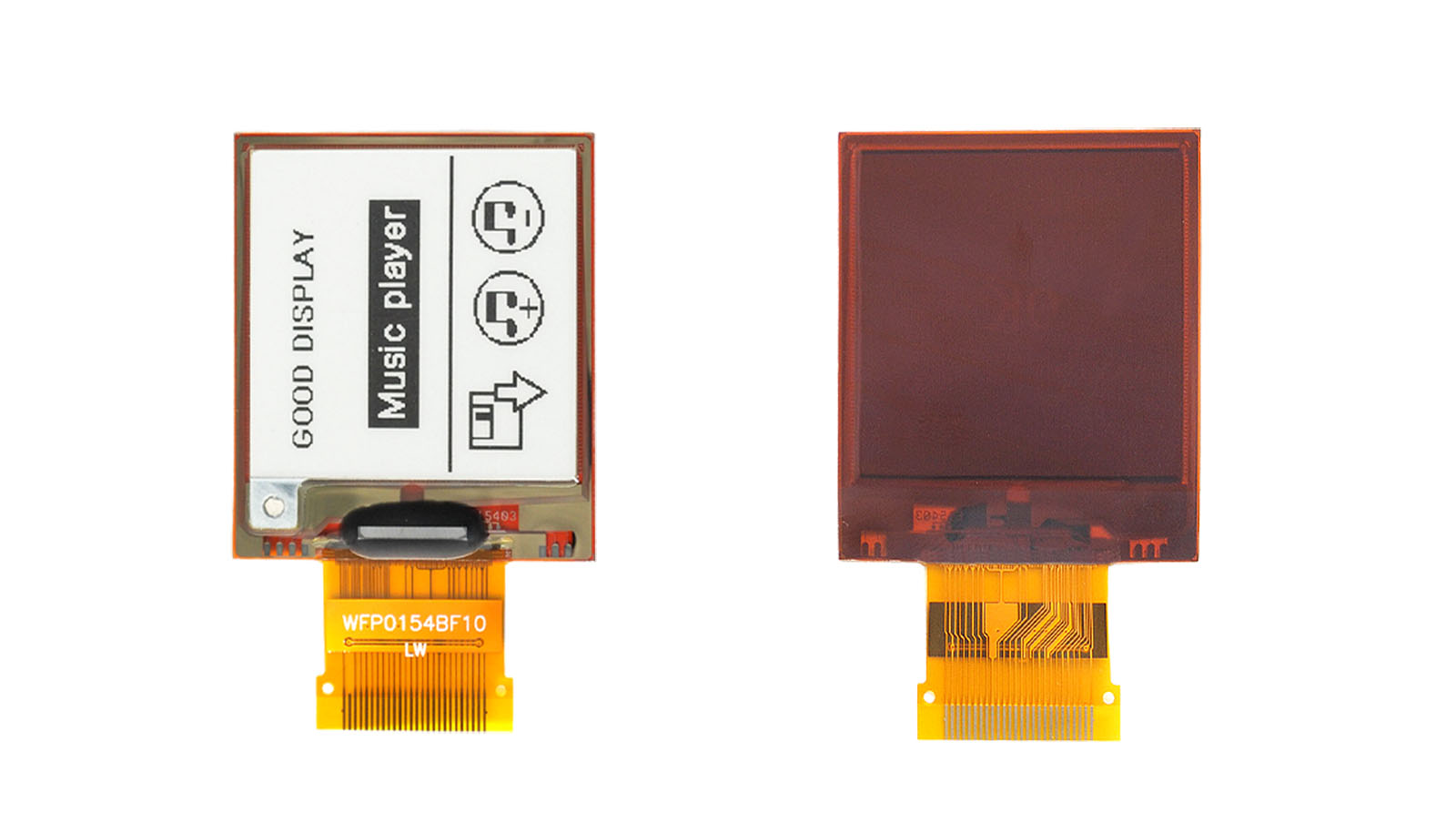

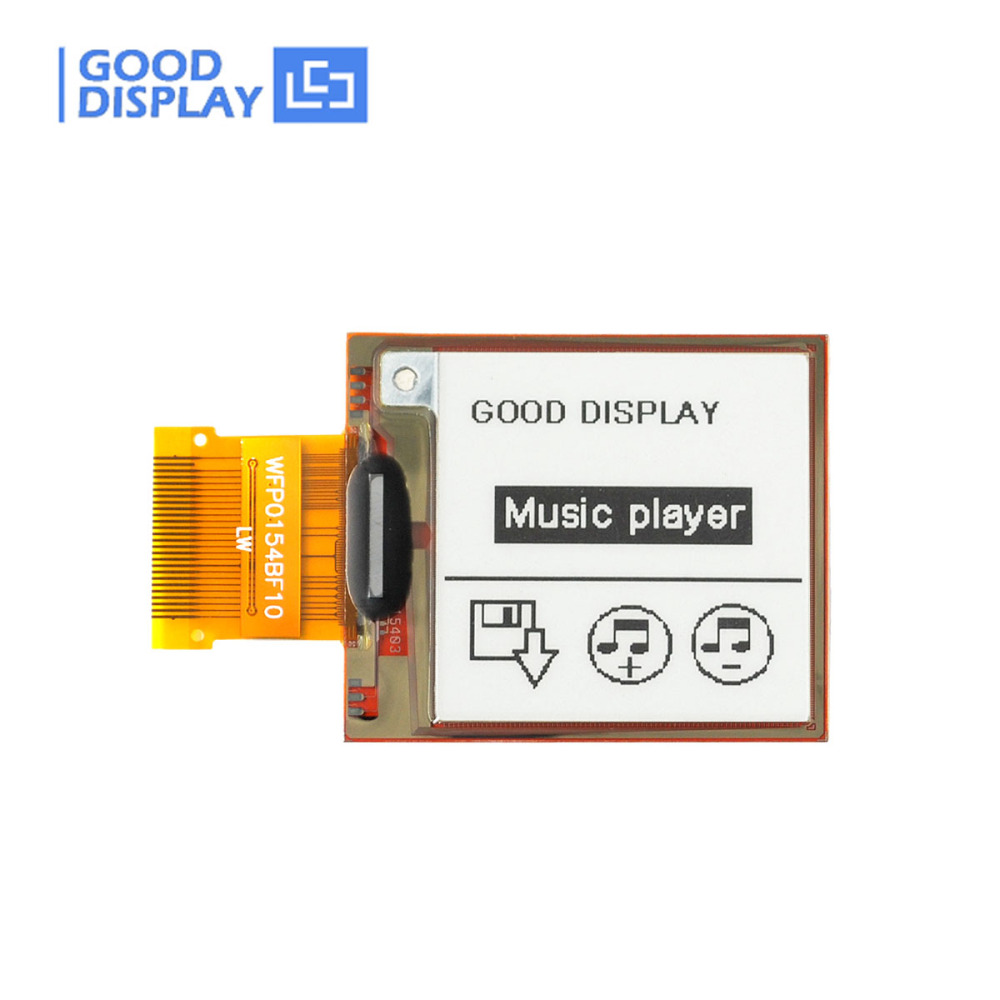

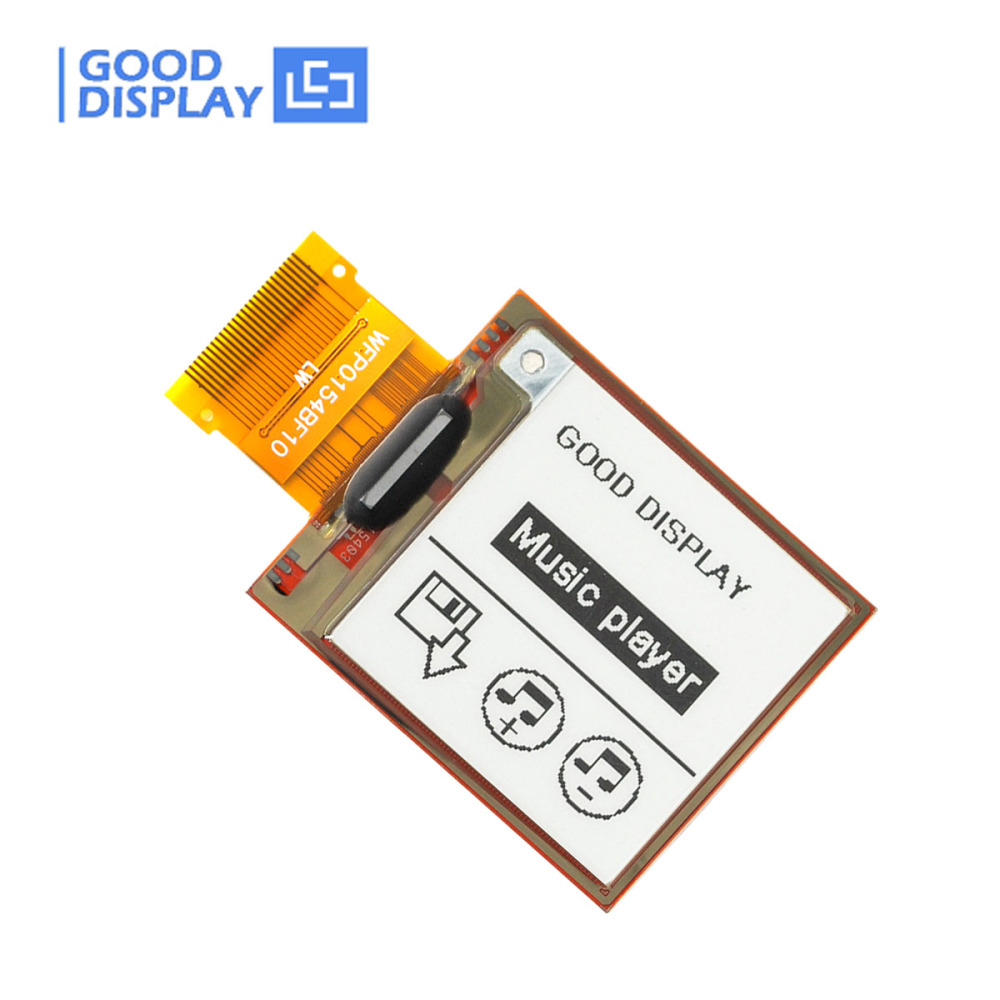

This is a 1.54 inch flexible e-ink panel which use the flexible substrate as base plate, with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. It support 3s full refresh and 0.3s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0154I9FC is perfect for low power devices powered by solar or batteries.

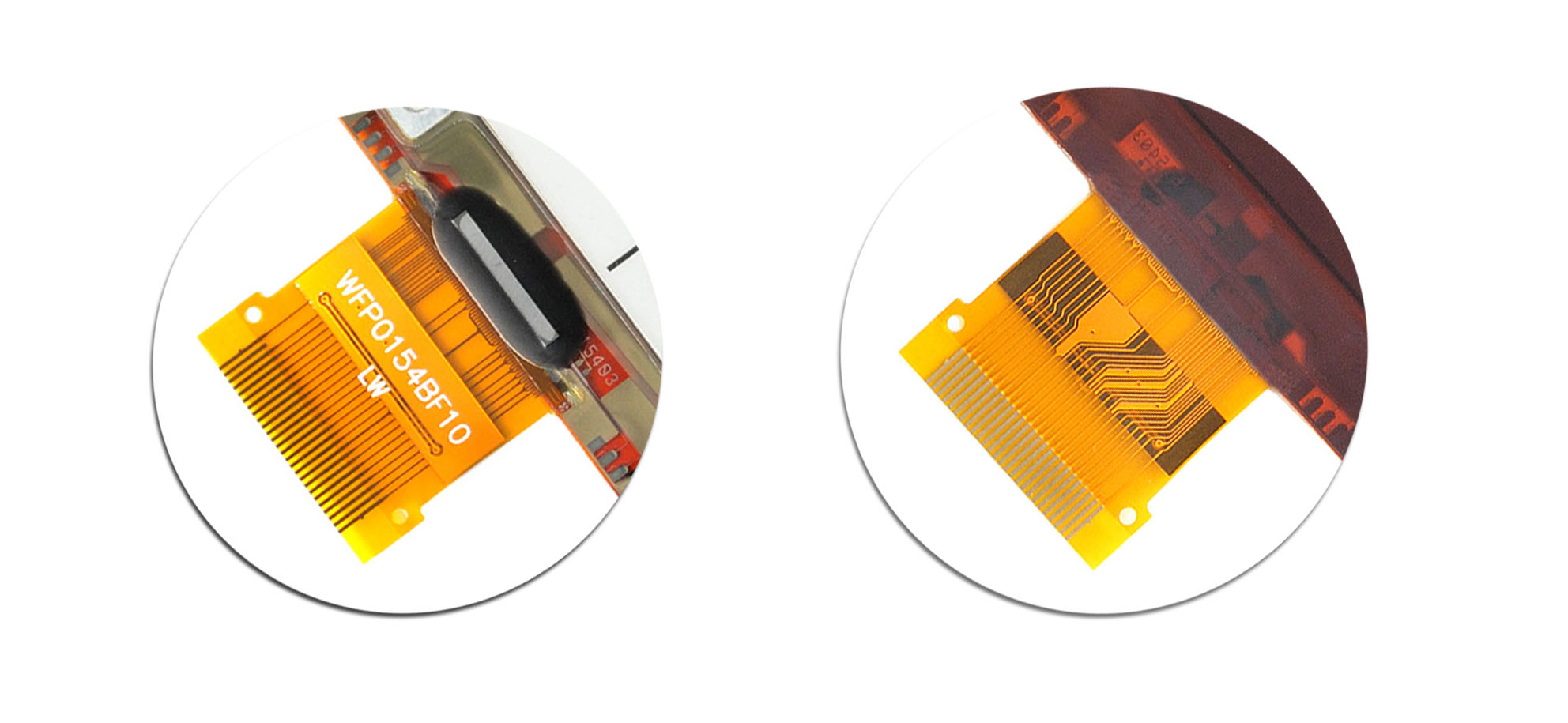

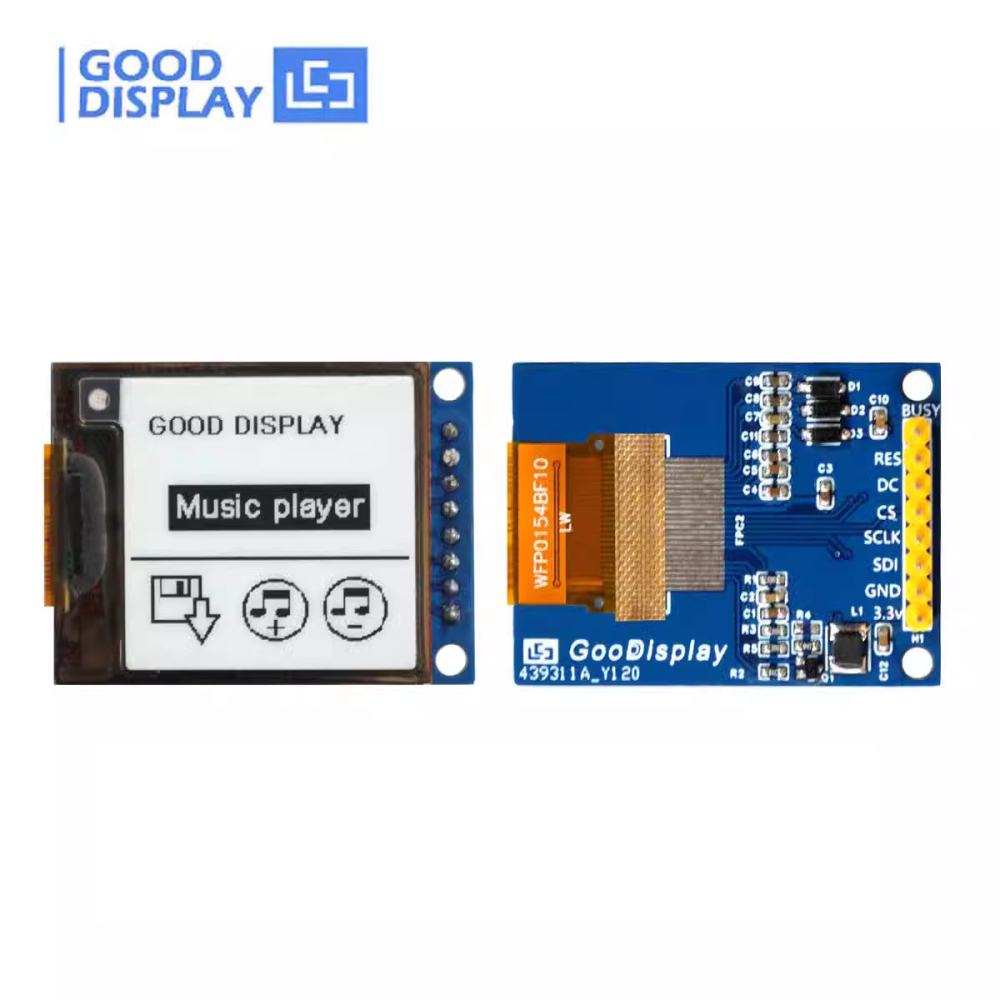

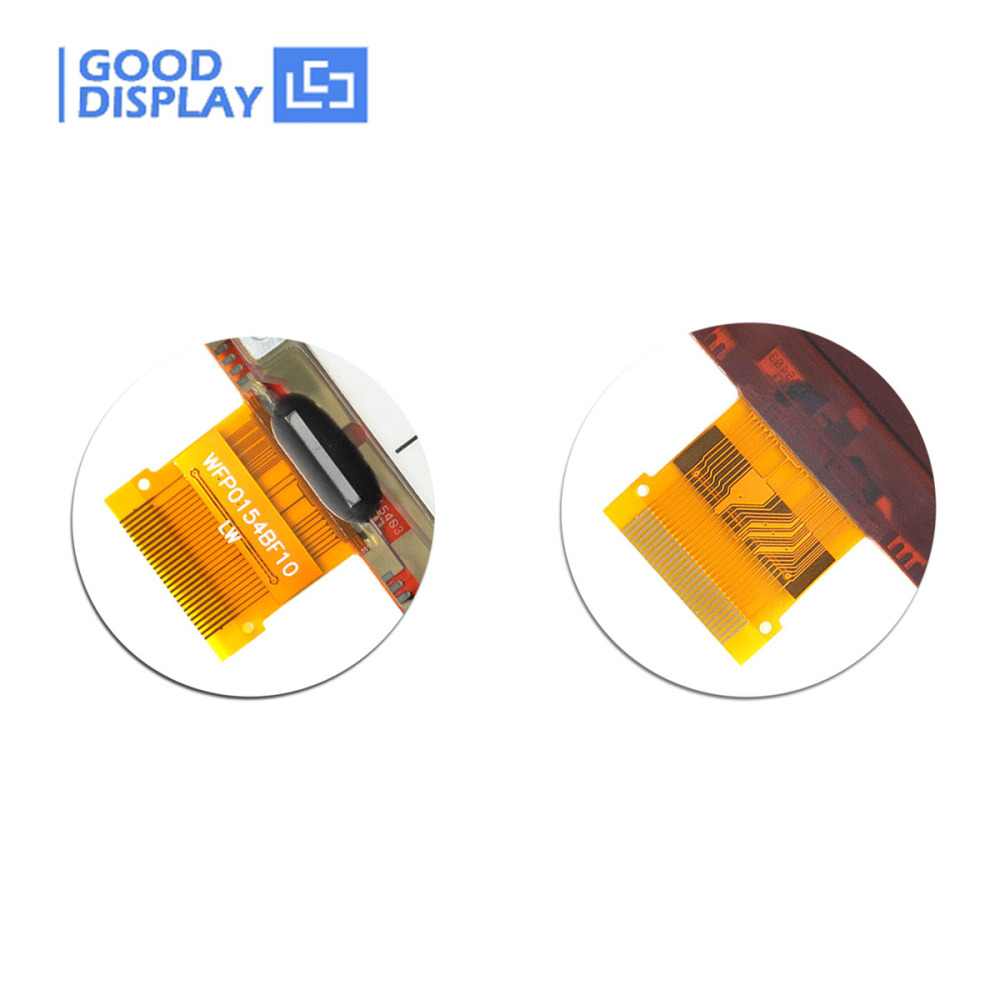

Usually, the e-paper display is mostly plugged into the FPC, but this 1.54 inch epd screen GDEW0154I9FC is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the display side is facing up. We can offer the adapter board for test.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array



☆ THE ABOVE PRICE INCLUDE

☆ MAIN PARAMETERS

☆ FEATURE

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports small bending because its flexible feature

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  Ultra-thin. It is thinner than the normal electronic paper display

●  I²C Signal Master Interface to read external temperature sensor.



☆ DETAILS



☆ RELATED INFORMATION DOWNLOAD

---

● GDEW0154I9FC Specification

● IC Driver UC8151D

● Picture Production and Bitmap Convert for GDEW0154I9FC

● GDEW0154I9FC STM32 Sample Code

● GDEW0154I9FC Arduino Sample Code

● GDEW0154I9FD ESP32 Sample Code

● GDEW0154I9FC ESP32 Sample Code
