1.54 inch e-paper display high resolution 200x200 partial refresh fast speed with adapter board

GDEW0154M09 & DESPI-C02
1.54 inch e-ink display with 200x200 resolution, 24 pins FPC connection, SPI interface, supports partial refresh. Fast speed, full refresh: 0.82S, partial refresh: 0.3S. With adapter board DESPI-C02.
Price:
USD
$3.10
  • Product:
    EPD with adapter board

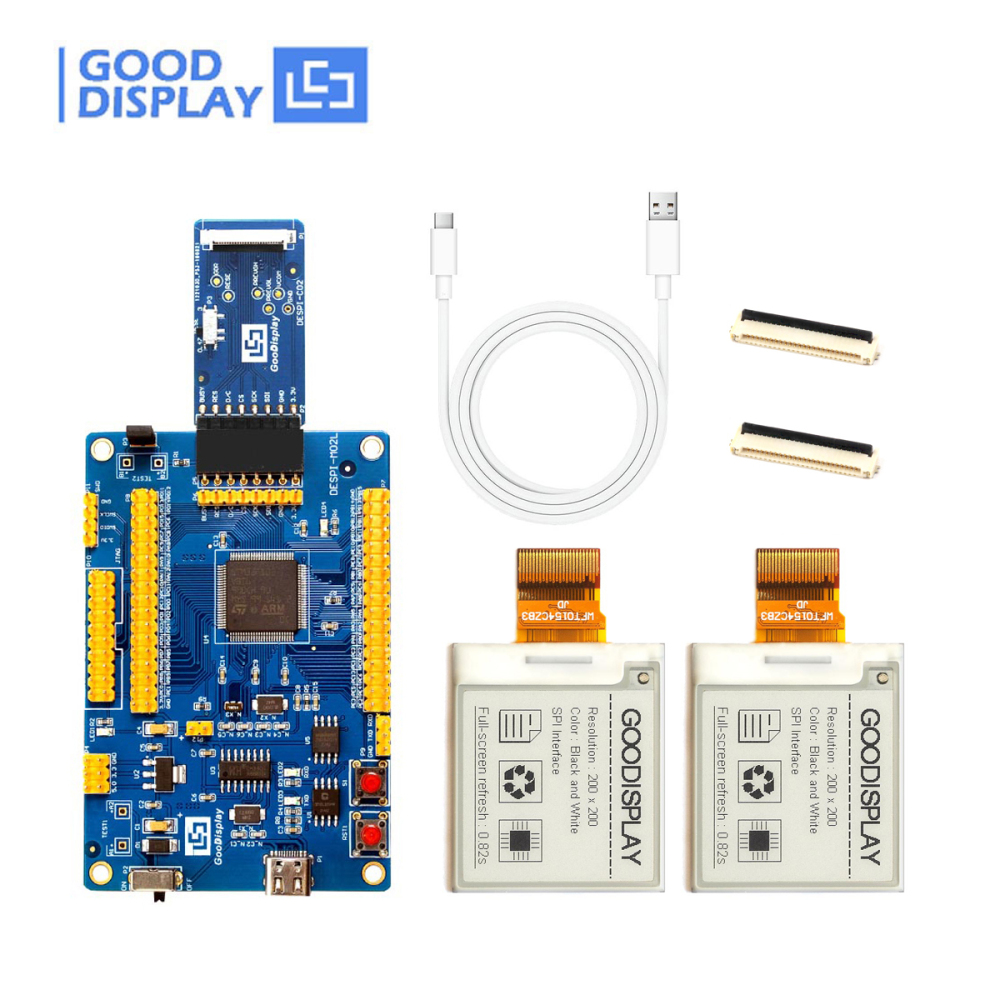

    EPD with STM32 Demo Kit

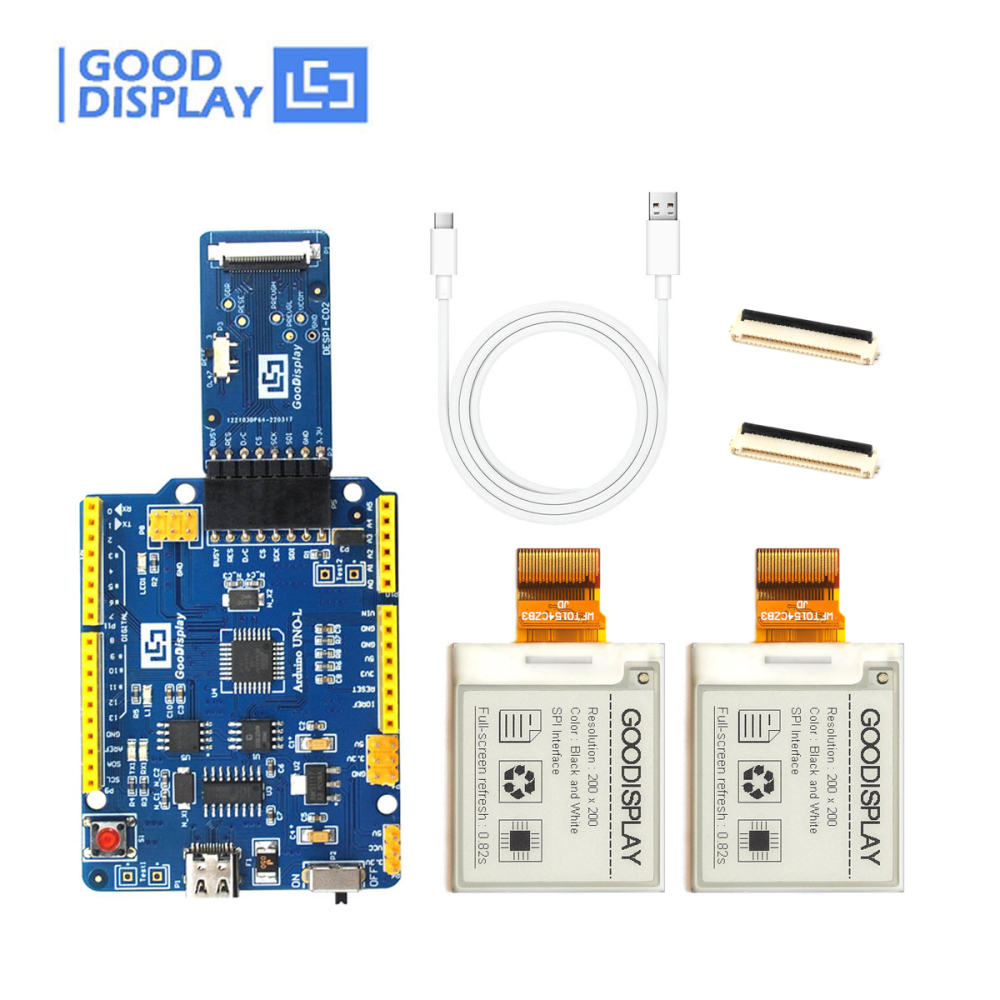

    EPD with Arduino Demo Kit
    EPD with ESP8266 Demo Kit
    EPD with ESP32 Demo Kit
    EPD
Quantity:
-
+
(2199 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

Important Notice:

This product is still available in limited quantities for sampling, but as it has been discontinued, bulk orders are no longer possible. If you're looking for alternatives in larger quantities, please feel free to contact our customer service team for assistance. Thank you for your understanding and support!


☆ INTRODUCTION

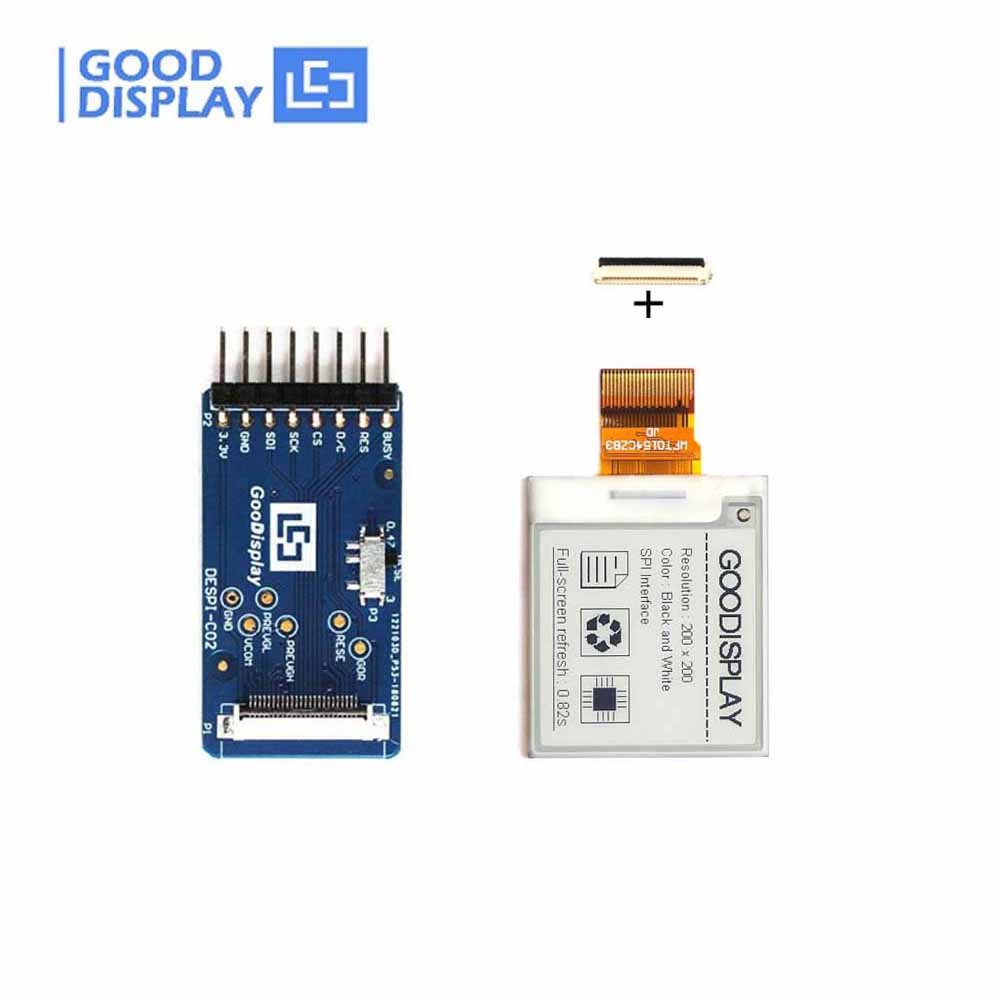

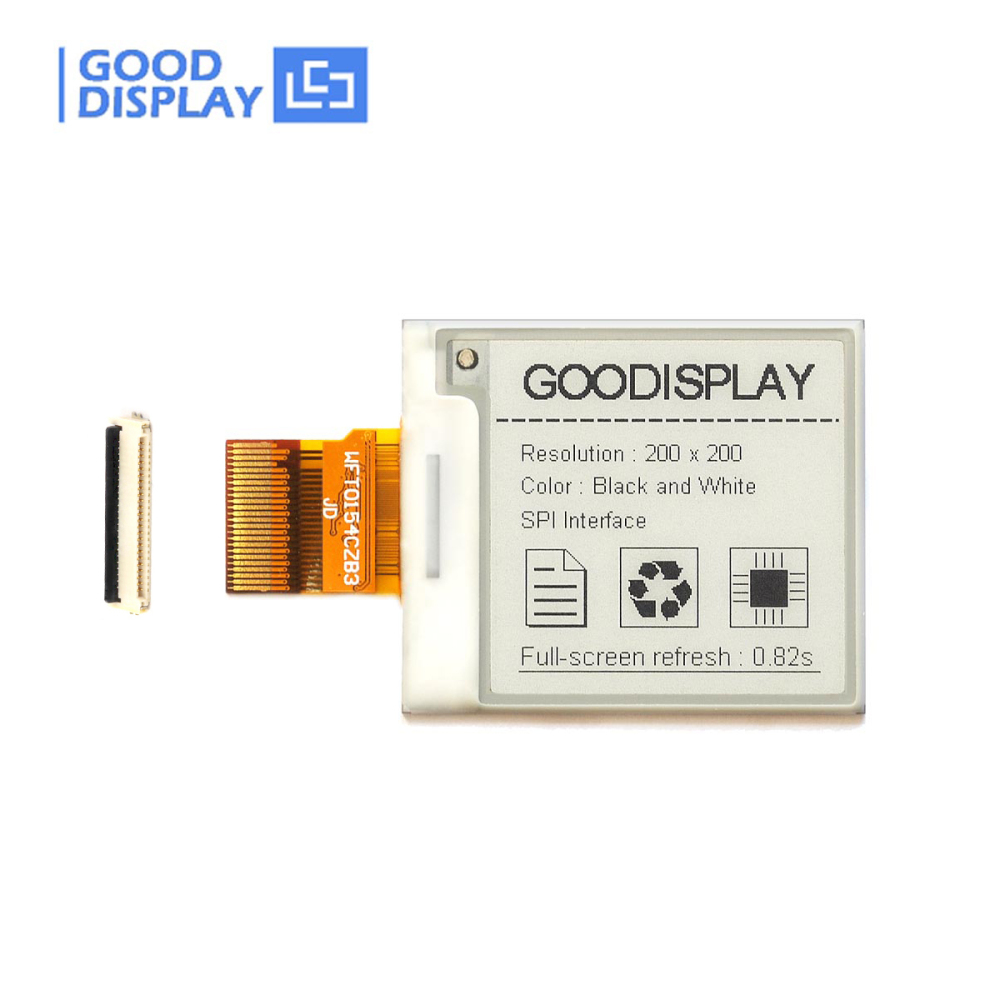

This is a set of E-PAPER HAT with1.54 inch e-paper screen, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0154M09 is perfect for low power devices powered by solar or batteries.

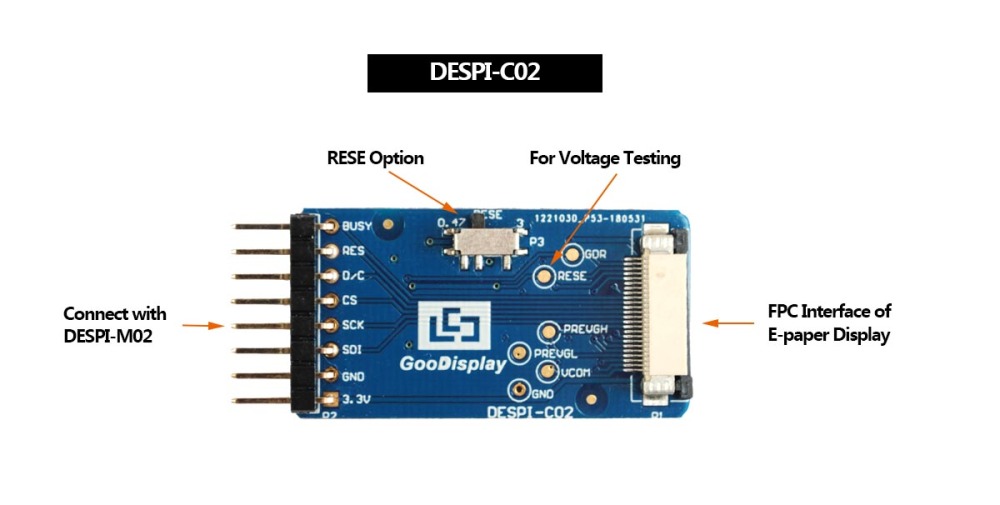

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)



We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.



☆ MAIN PARAMETERS




PART NUMBER

GDEW0154M09

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

SIZE

1.54 inch

MAX GRAYSCALE 2

IC

JD79653

COLOR Black,White

RESOLUTION

200x200

INTERFACE SPI

OUTLINE SIZE(mm)

31.8x37.32x0.98

FULL REFRESH(s) 0.82

ACTIVE SIZE(mm)

27.6x27.6

PARTIAL REFRESH TIME(s) 0.3

PIXEL PITCH(mm)

0.138x0.138

POWER CONSUMPTION OF THE REFRESH(mW) 6.6

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.0165

STORAGE TEMP.

-25℃~70℃



PART NUMBER DESPI-C02
PLATFORM STM32 OUTSIDE DIMENSION 41mm x 22mm
POWER INPUT DC3.3V OPERATING TEMP. -20~70℃
FEATURE Fully and Partial Refresh


☆ FEATURE




●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32

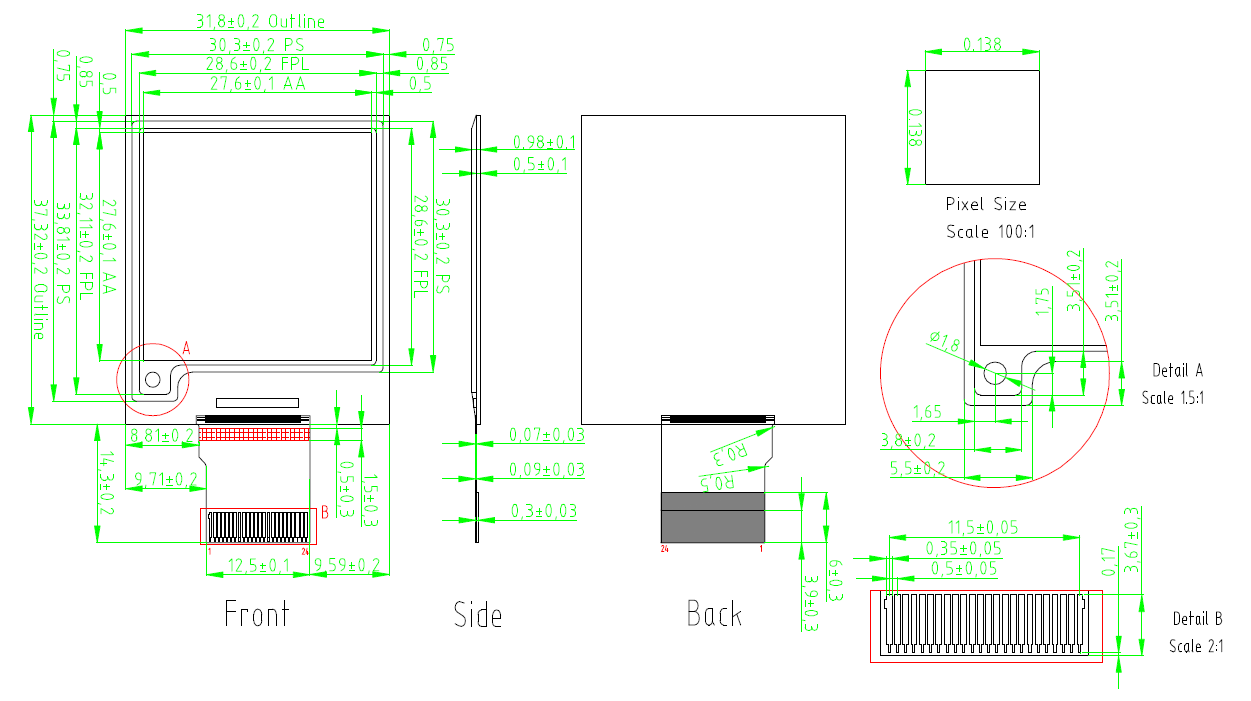

☆ DRAWING
