☆ INTRODUCTION

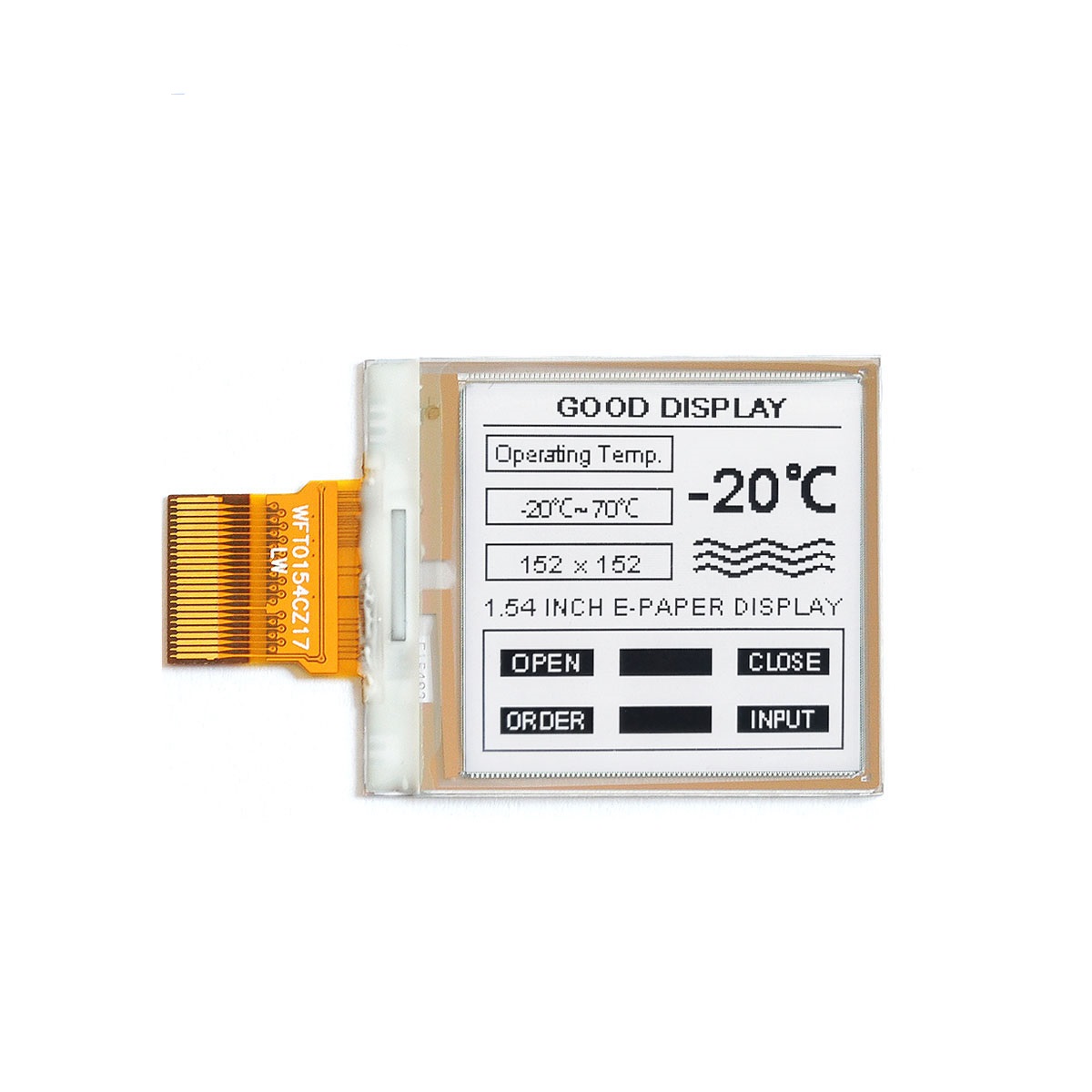

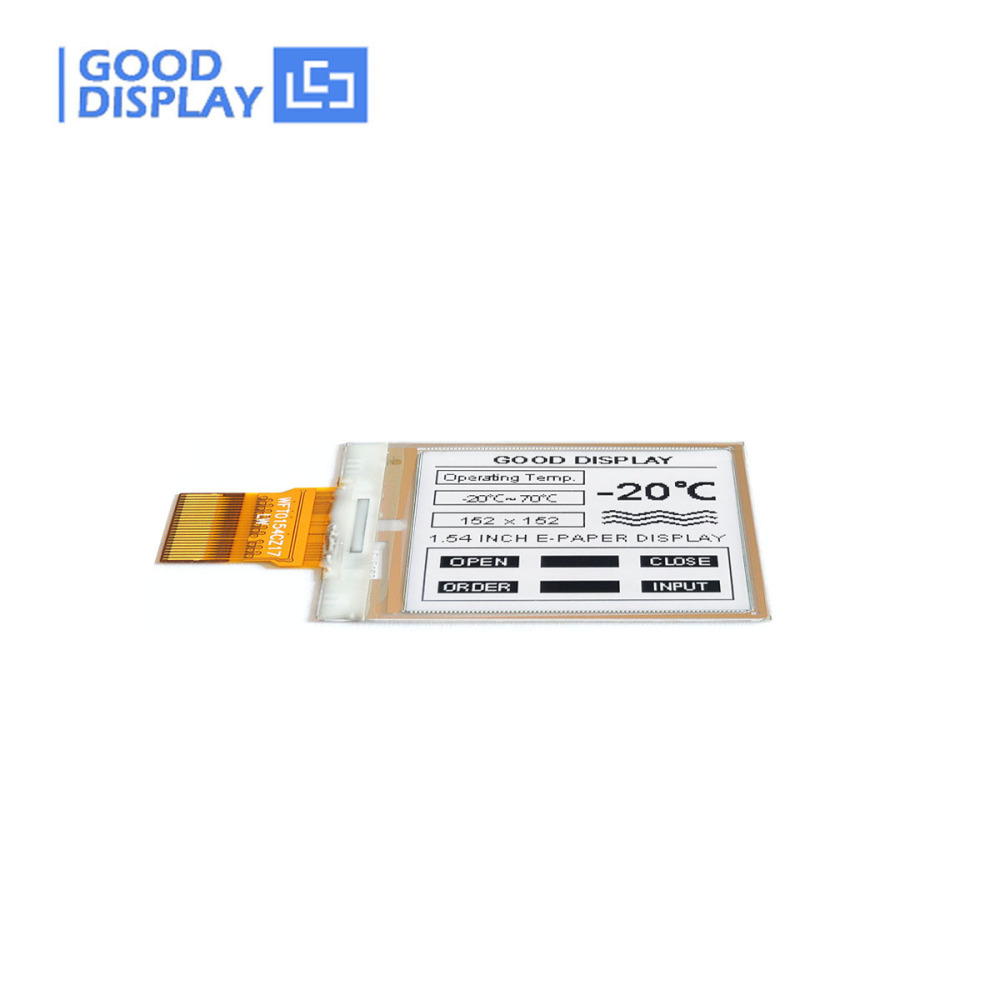

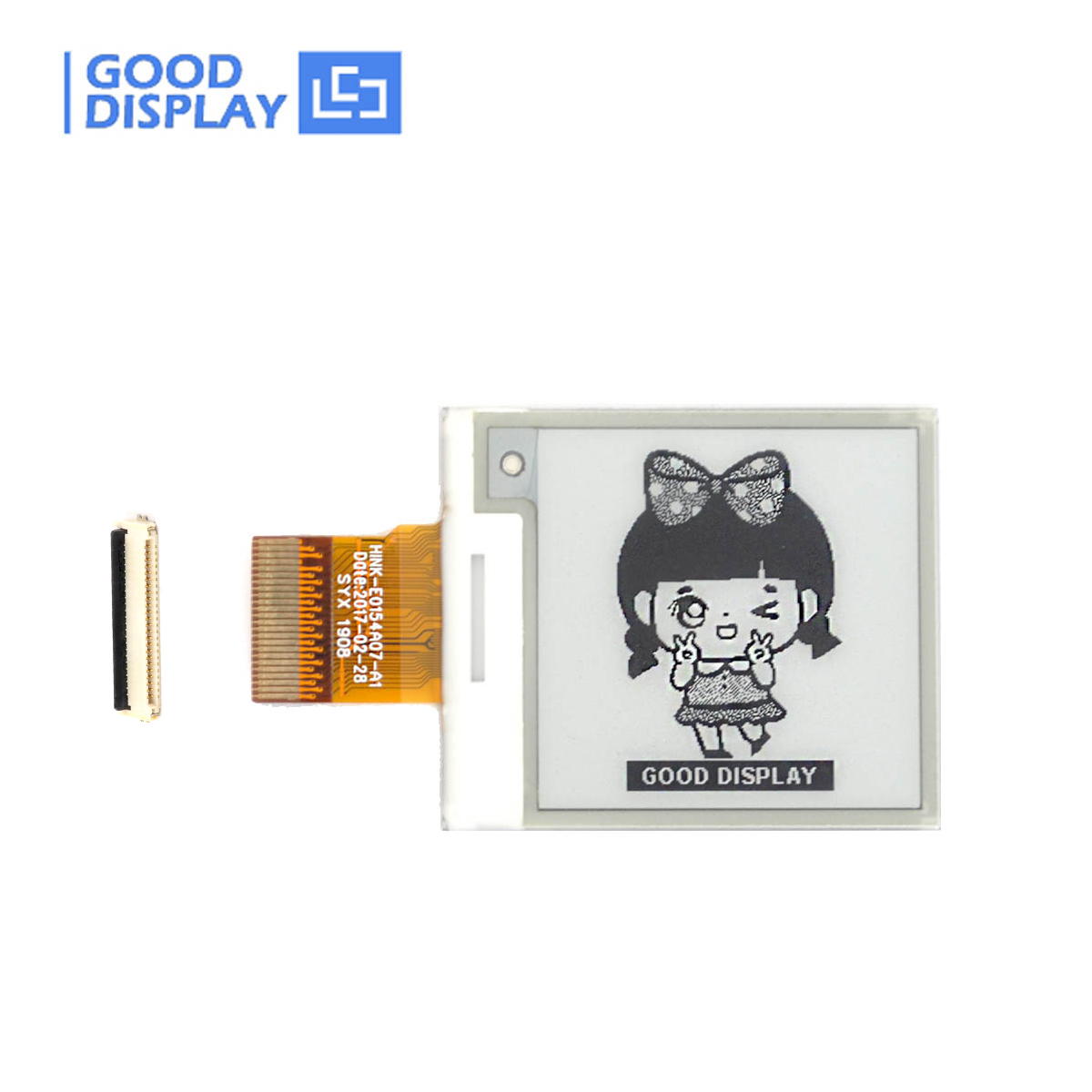

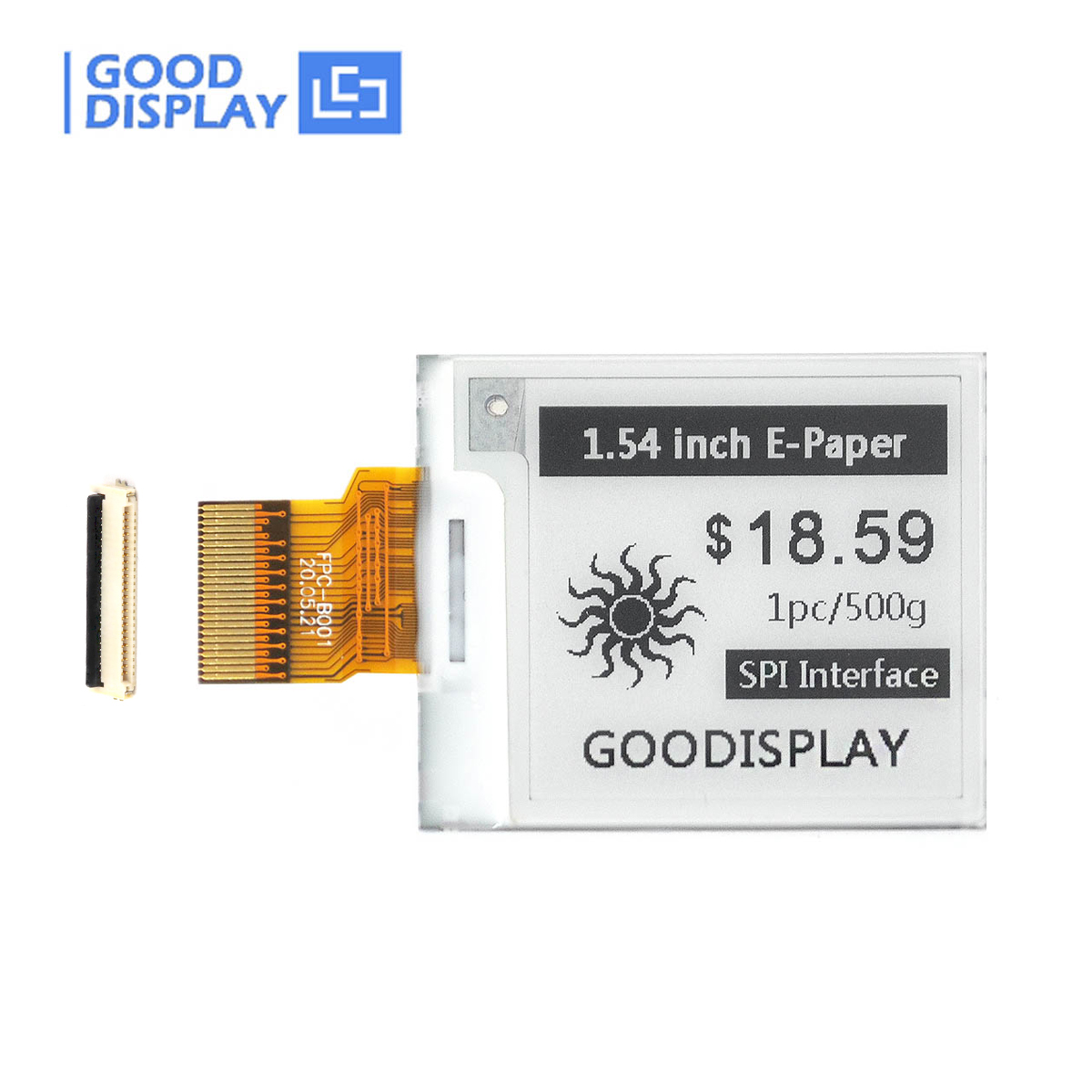

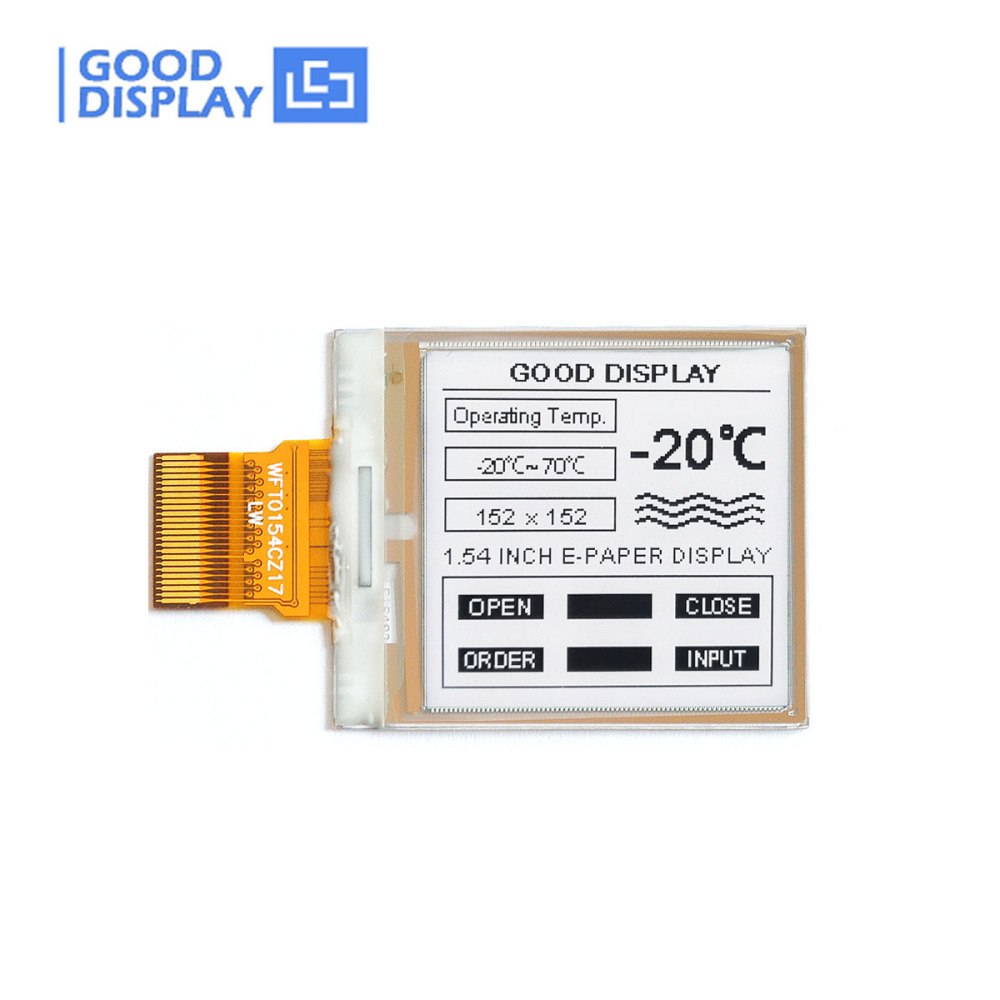

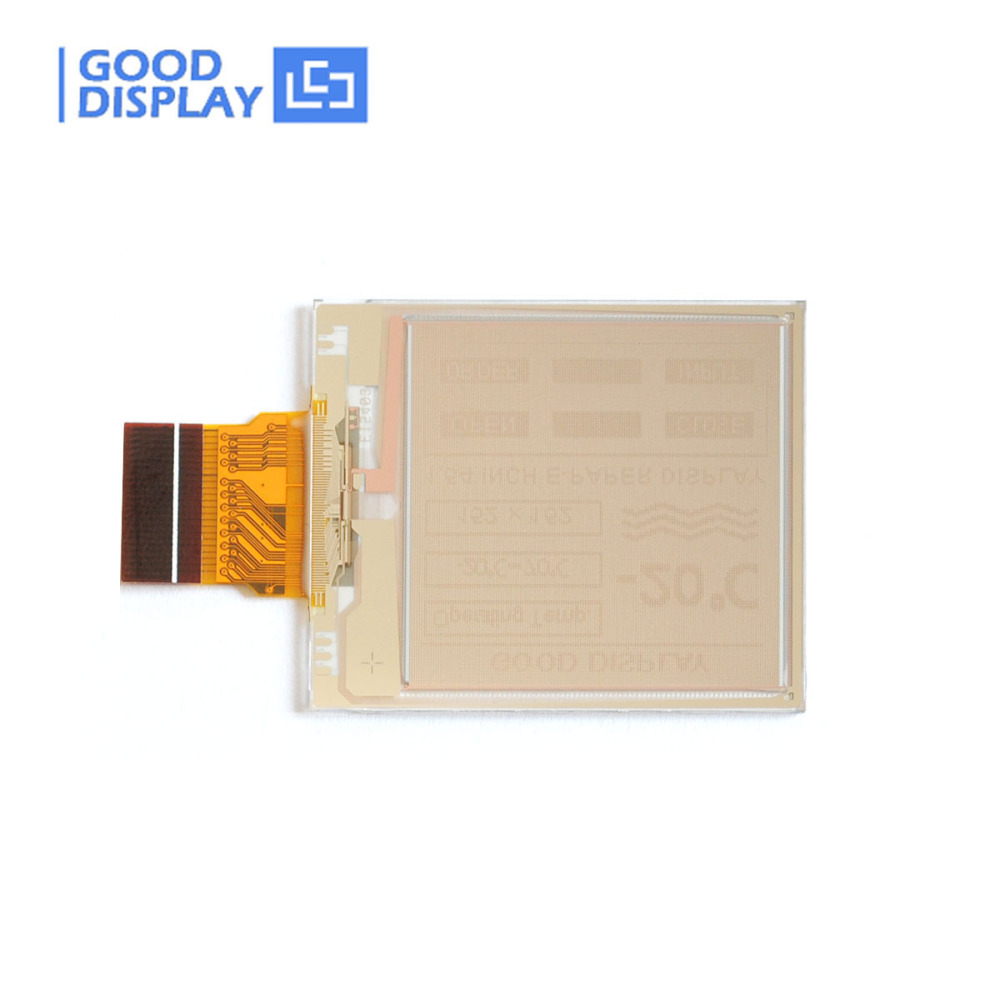

This is a set of E-PAPER HAT with DES 1.54 inch e-paper display with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. This 1.54 inch DES electronic paper display GDEW0154M10 breaks the limitations of traditional e-paper display on the working environment, apply to more projects.

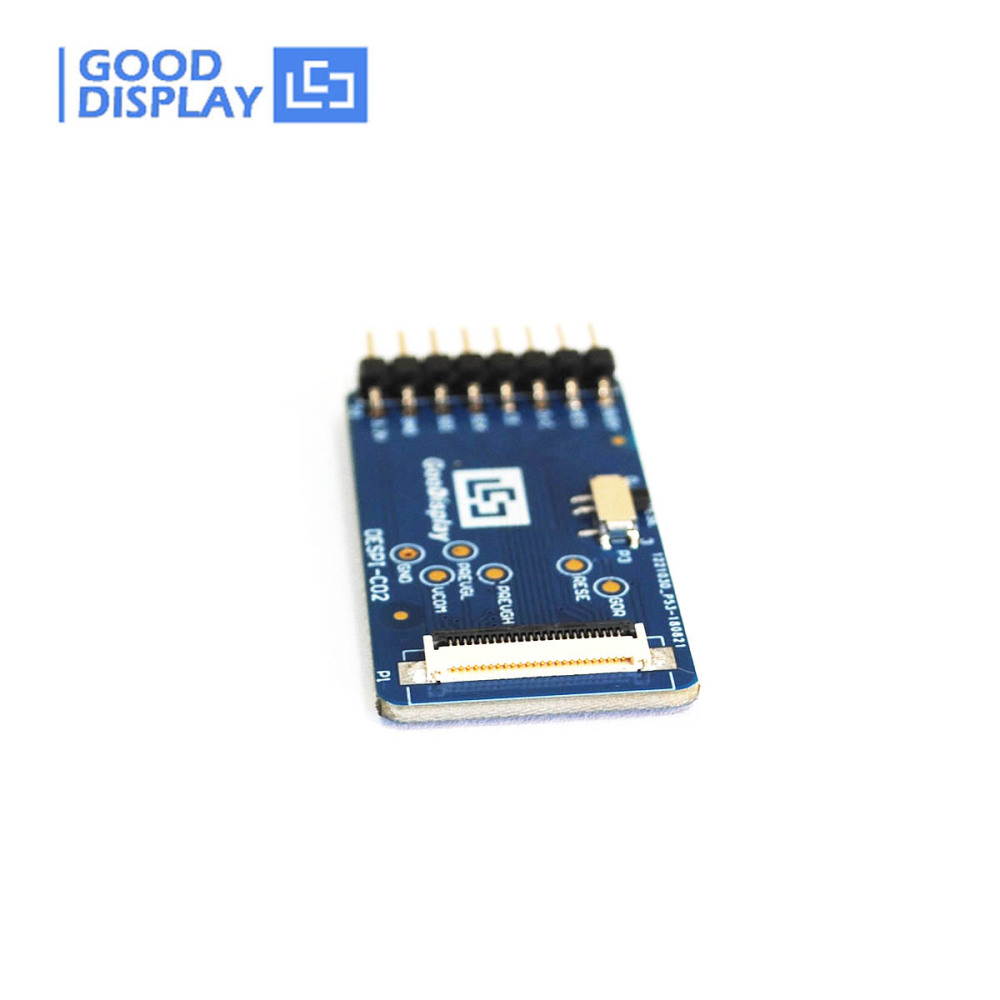

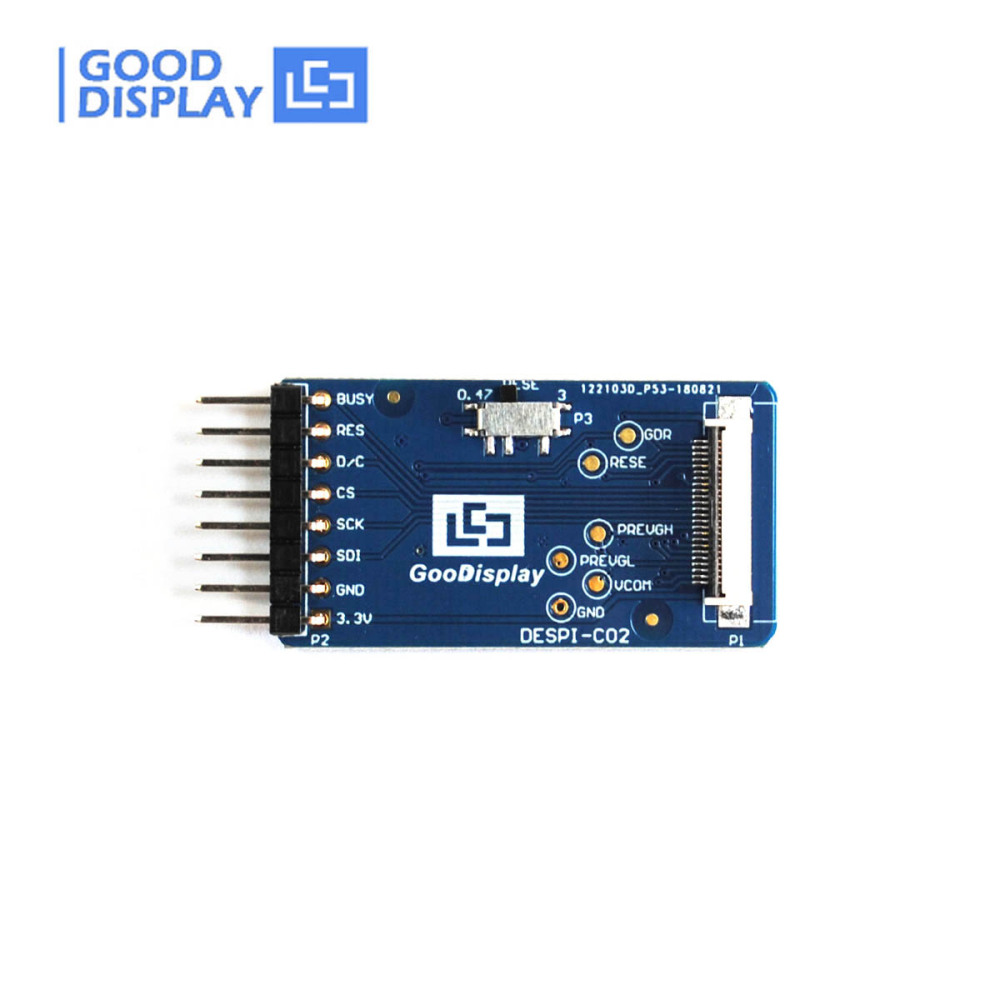

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

TIPS: Pressing the DES product may cause a black shadow on the display screen, which is considered a normal occurrence. The original display can be restored by update again. The product is currently undergoing research and improvement. For more information, please consult customer service.



☆ THE ABOVE PRICE INCLUDE

---

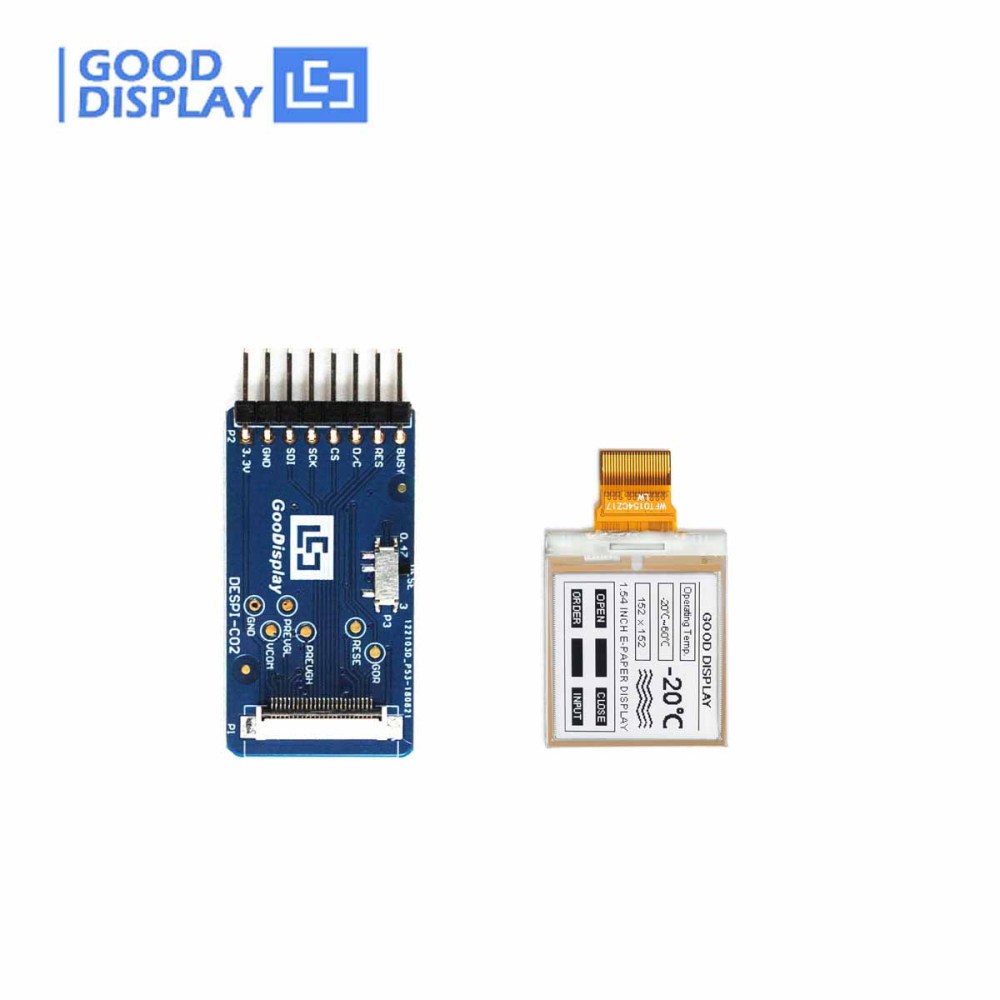

Package A		+
	a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 1pc		b. FPC Connector * 1pc		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

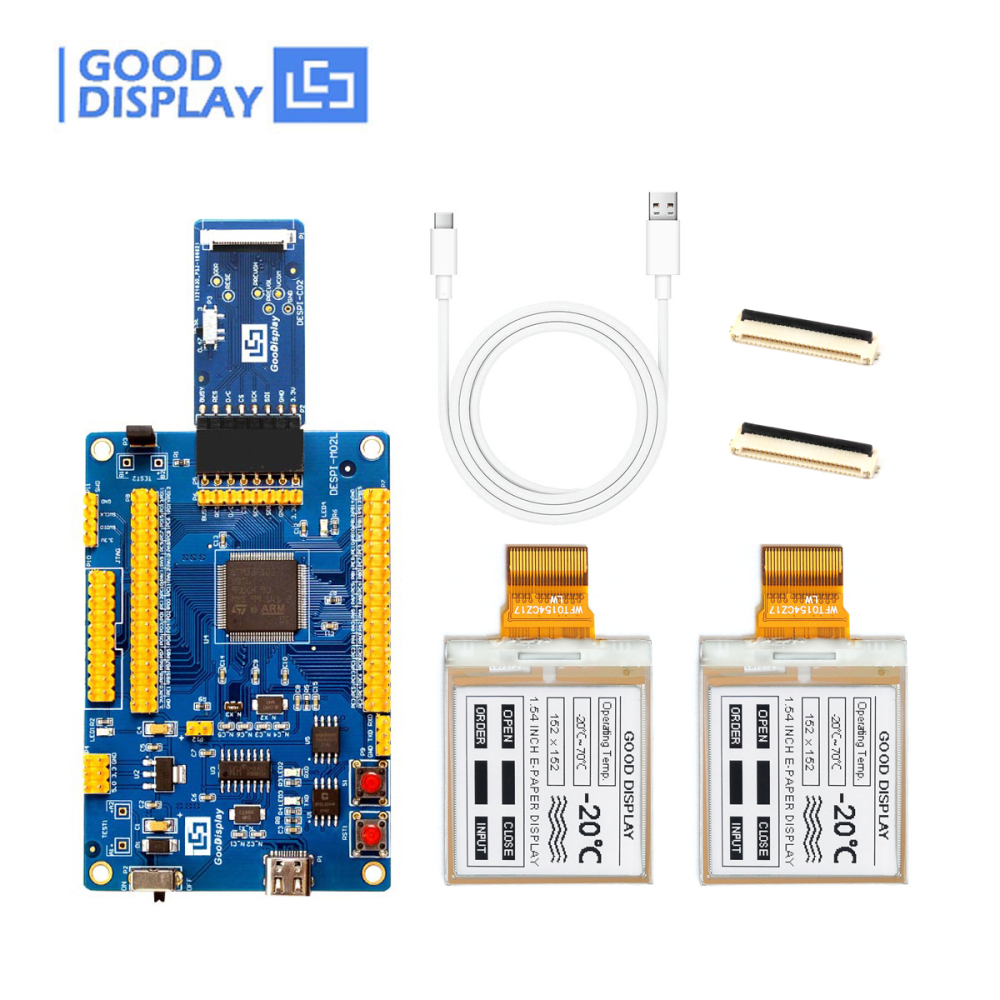

Package B		+		+
	a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 2pcs		b. FPC Connector * 2pcs		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc		d. USB Cable* 1pc
Package C		+		+
	a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 2pcs		b. FPC Connector * 2pcs		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc		d. USB Cable* 1pc

Package D		+
	a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 1pc		b. FPC Connector * 1pc

☆ MAIN PARAMETERS

☆ FEATURE

●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.26s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

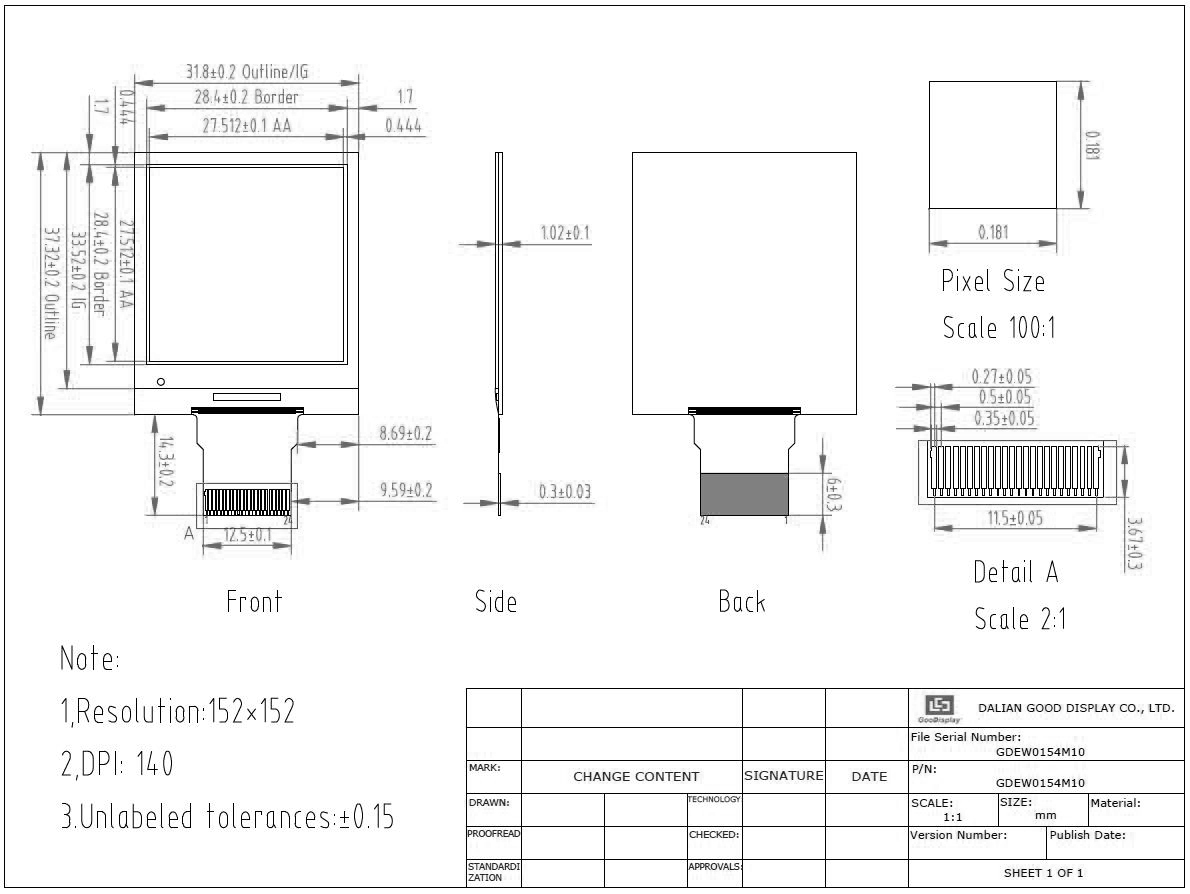

☆ DRAWING

☆ MATCHED DEVELOPMENT KIT

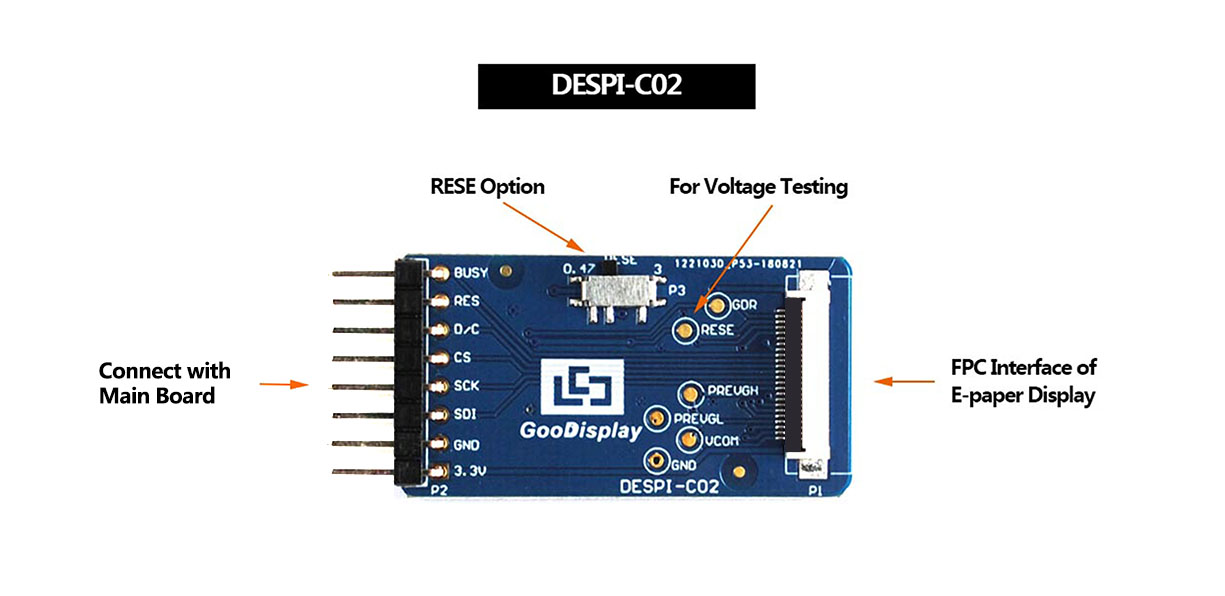

● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)


● DESPI-PICO (Rasberry Pi Epaper HAT)

☆ RELATED INFORMATION DOWNLOAD

● GDEW0154M10 Specification

● IC Driver UC8151D

● GDEW0154M10 STM32 Sample Code

● GDEW0154M10 Arduino Sample Code

● GDEW0154M10 ESP8266 Sample Code

● GDEW0154M10 ESP32 Sample Code

● GDEW0154M10 Raspberry Pi Pico Sample Code

● DESPI-C02 Specification

● DESPI-C02-SCH



☆ WE ALSO SUGGEST...

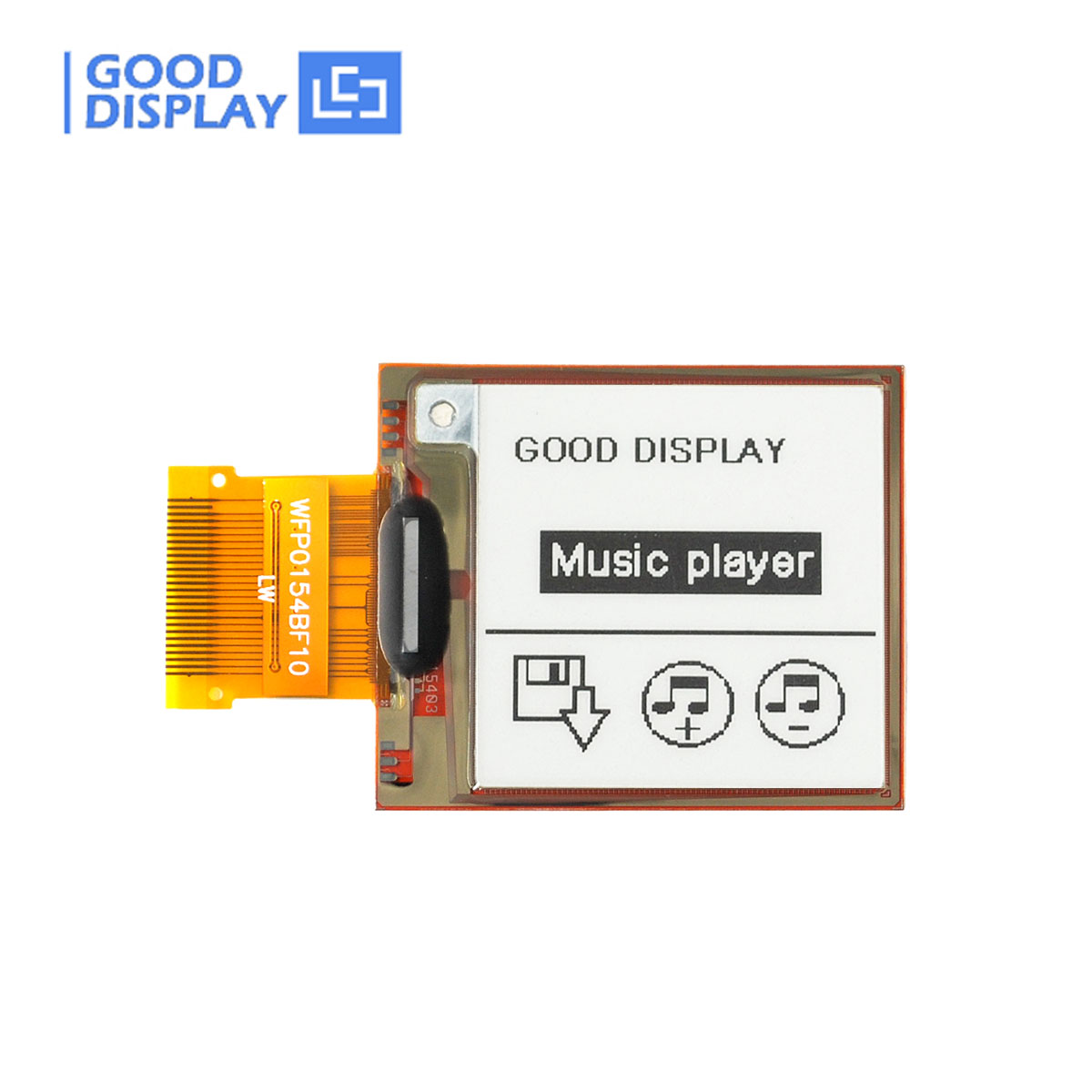

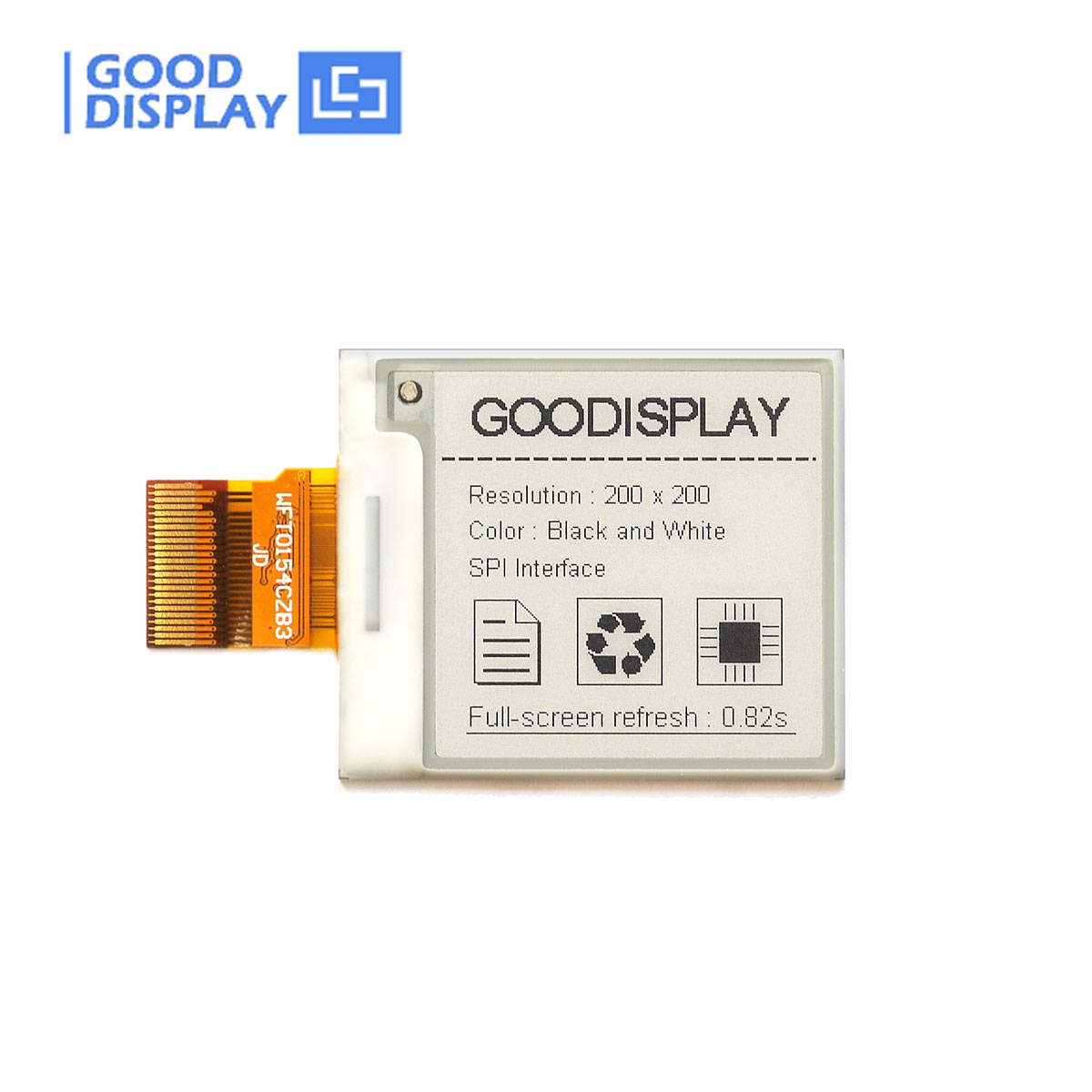

1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09	Small 1.54inch Epaper 200x200 SPI Cheap E ink Display, GDEW0154T11	1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch small eink display for support partial update E-paper screen module GDEH0154D67

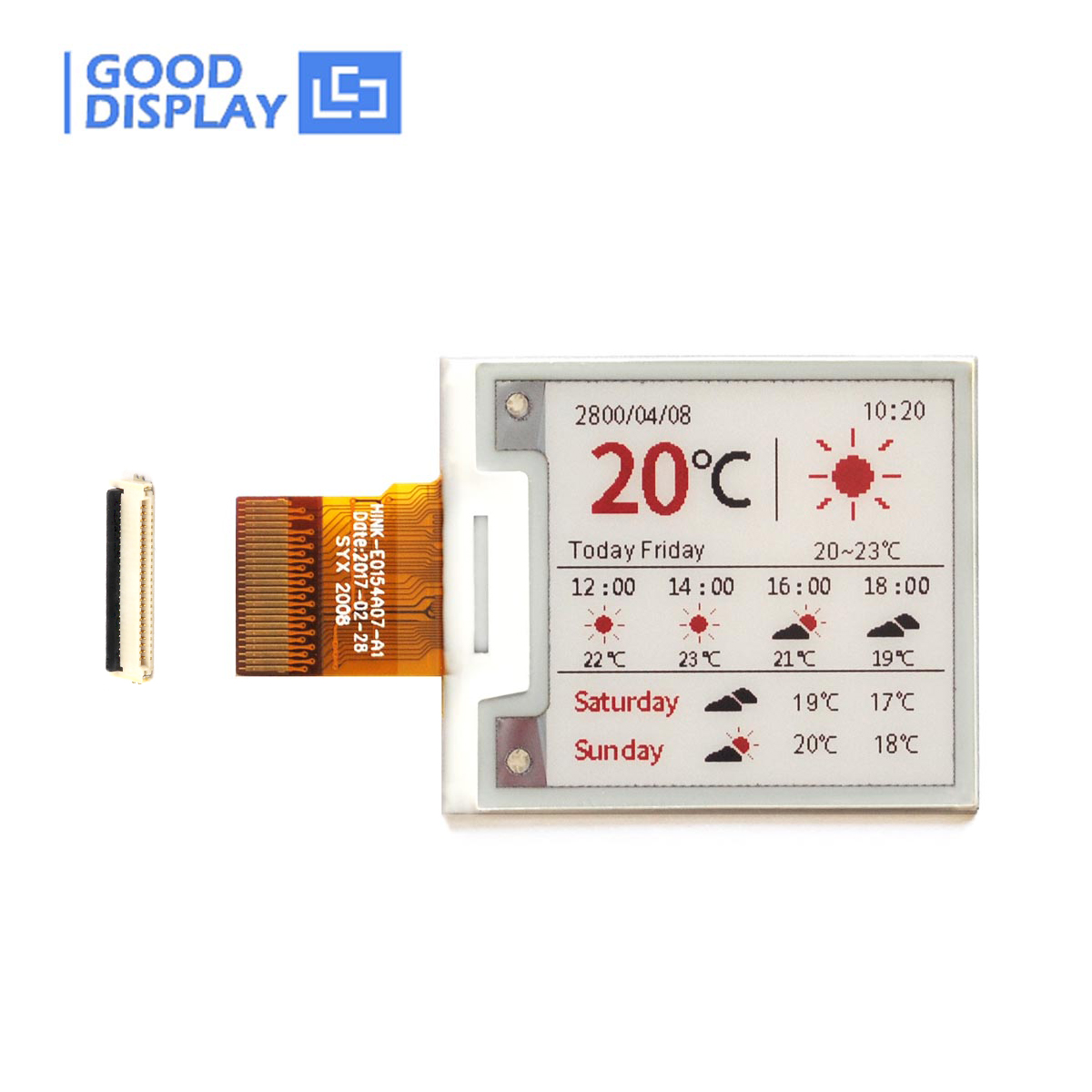

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54 inch colorful red e-paper display panel, GDEH0154Z90	1.54 inch e-ink panel 152x152 flexible partial refresh epaperdisplay ACF Thermal Compression Bonding, GDEW0154I9FC	e-paper display 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh GDEW0154T8D
