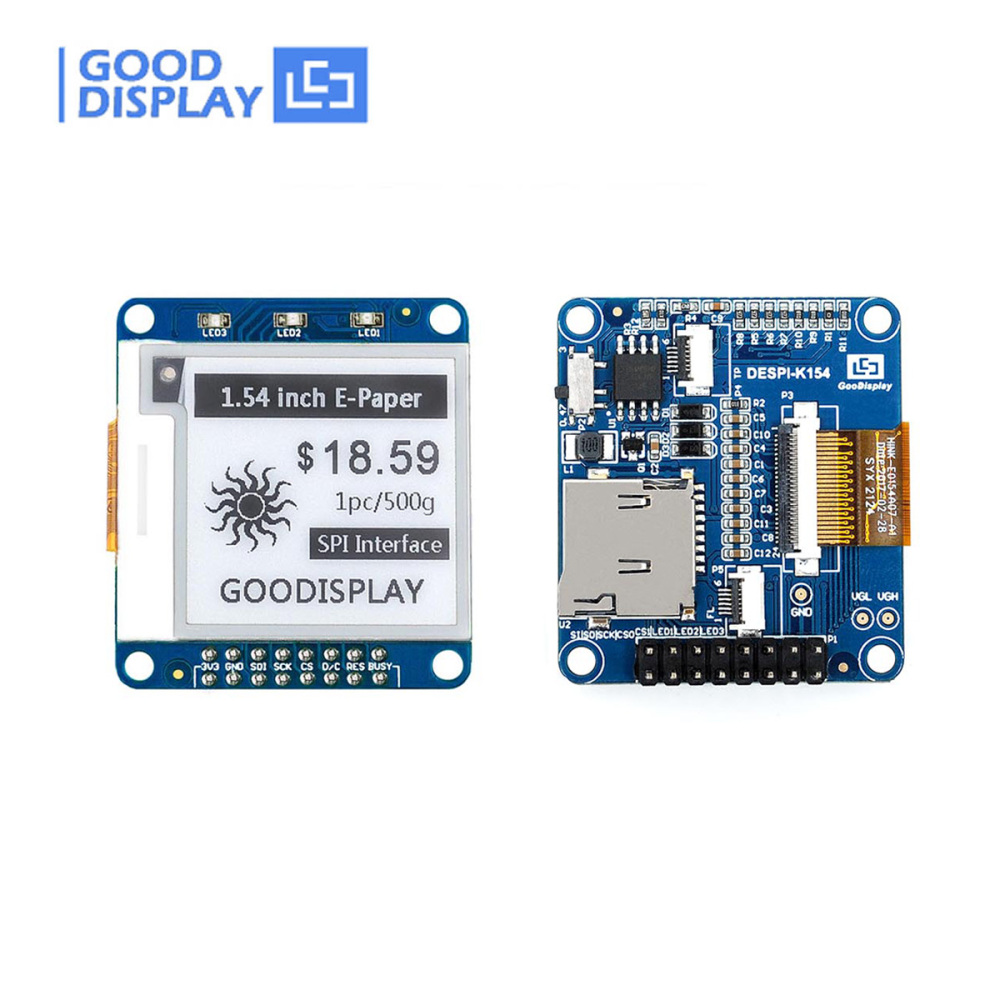

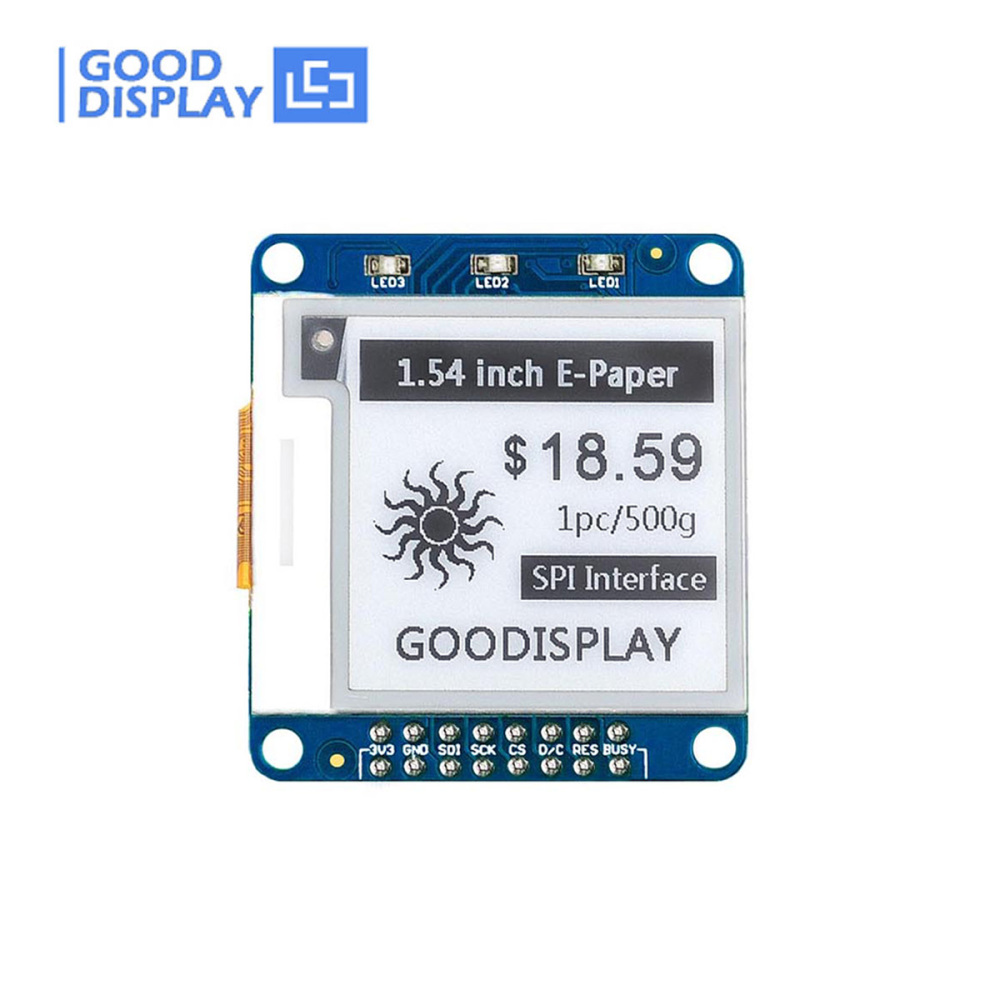

☆ INTRODUCTION
DESPI-K154D67 is designed for 1.54 inch e-paper e-ink 200x200 display GDEY0154D67. It can boost the driving voltage of Good Display's 1.54 inch e-paper display. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

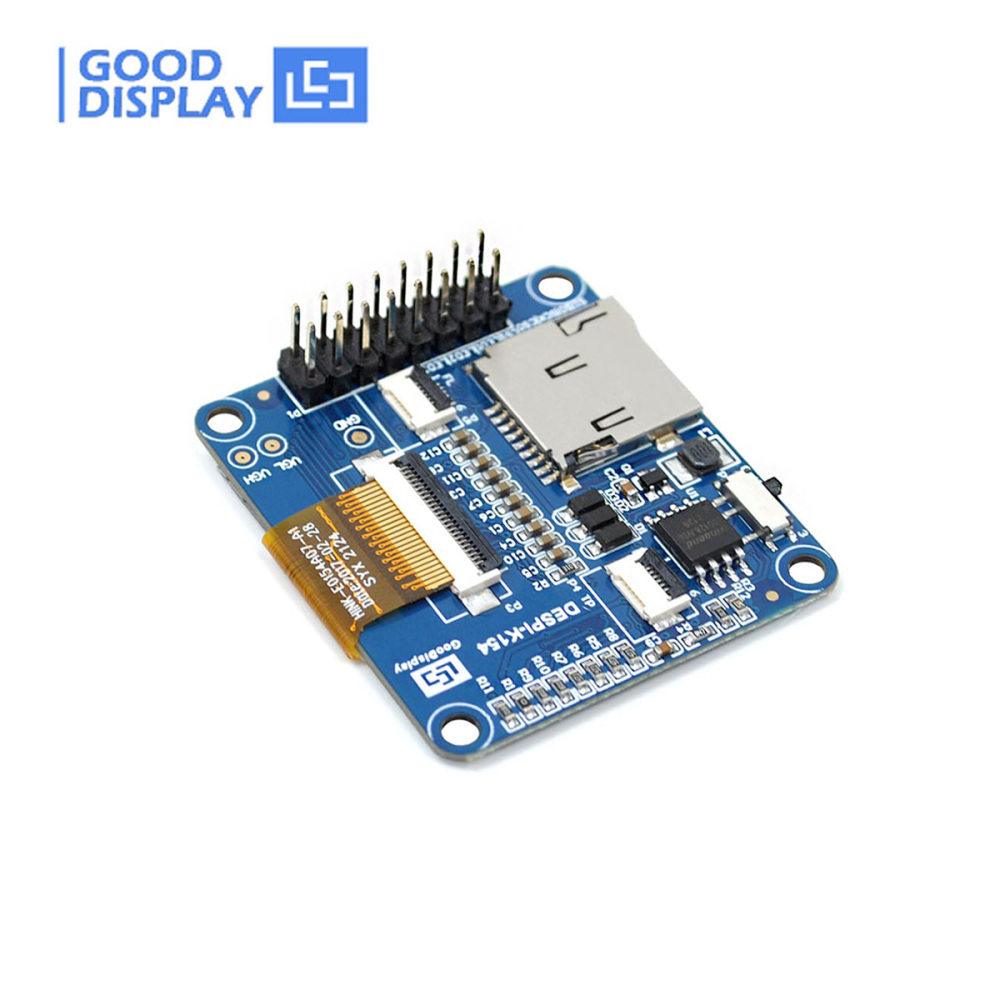

Also it preserves interfaces for 6 Pin touch panel and 6 Pin front light, which users can test. And this module board contains a Flash chip W25Q128 which is a serial NOR Flash memory with capacity of 128M-bit(16M-byte), making it easier for users to store pictures, libraries and other related data. And SD card slot is also reserved in the module, which users can choose to add an extra micro SD card. Therefore, Flash chip and SD card slot address the user need for more storage.
We also have other 24 Pin 1.54 e-paper display modules, if you have any needs, please contact us.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 1.54 inch 200x200 small e-paper display module, DESPI-K154D67 * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
DESPI-K154D67
|
|
PLATFORM
|
STM32、Arduino、ESP32、ESP8266、Raspberry Pi、Raspberry Pi Pico
|
MAIN FUNCTION |
Provide driving voltage for e-paper, touch panel and front light panel;
Help users operate e-paper quickly. |
|
OUTSIDE DIMENSION
|
41.8x37.32mm
|
ADDITIONAL FUNCTION |
Flash; Micro SD; LED;
|
|
IC
|
SSD1681
|
MAX GRAYSCALE |
4 |
|
RESOLUTION
|
200x200
|
COLOR |
Black,White |
|
POWER INTERFACE
|
3.3V
|
INTERFACE |
SPI |
|
ACTIVE SIZE
|
27x27mm
|
FULL REFRESH(s) |
2 |
|
OPERATING TEMP.
|
0℃~50℃
|
PARTIAL REFRESH TIME(s) |
0.26 |
☆ FEATURE
● SPI interface. It can be used on STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32 Platform. We could provide the driving board, if you need, contact us please.
● It integrated Flash chip and SD card slots for expanded development
● Help users to learn how to drive the EPD with 6 PIN touch panel and 6 PIN front light
● It has 3 LED lights, each LED light can be directly controled by the expansion pins. (Please refer to the PIN description.)
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● DESPI-K154 Specification

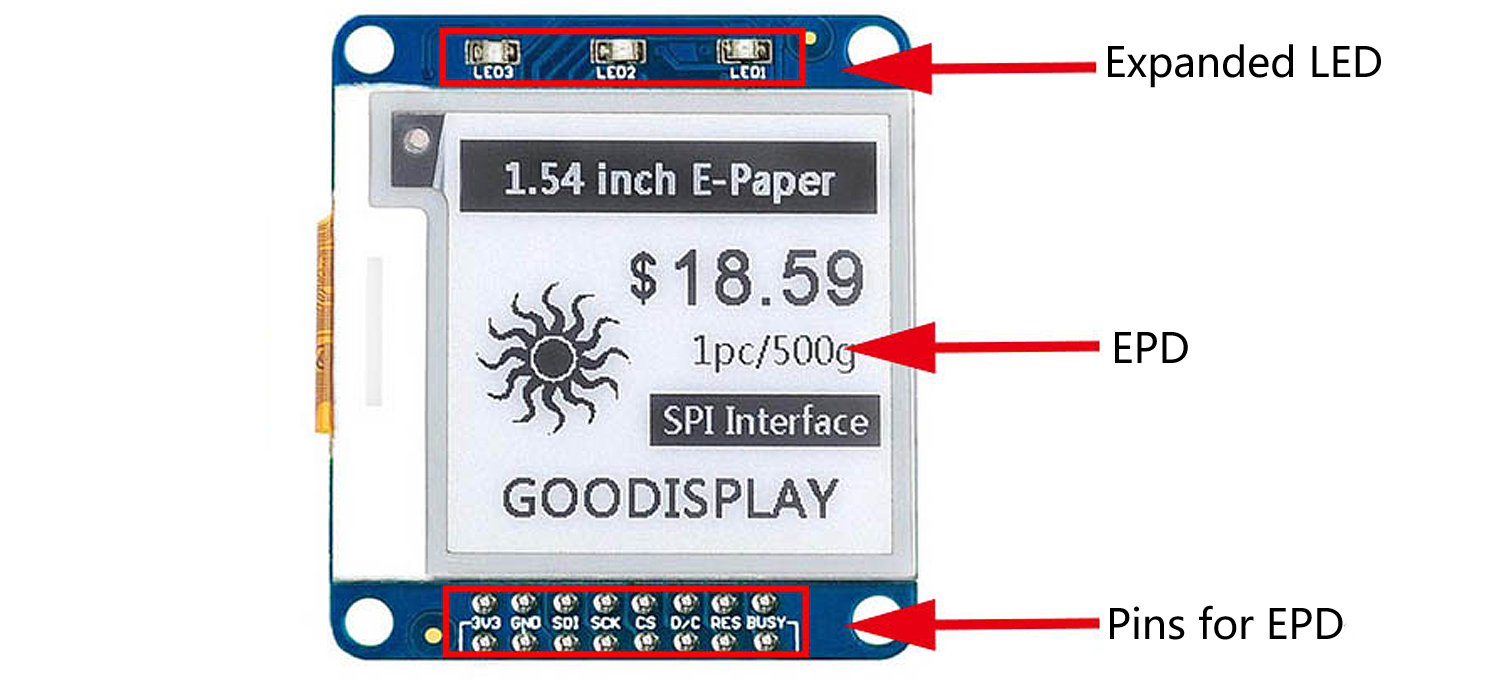

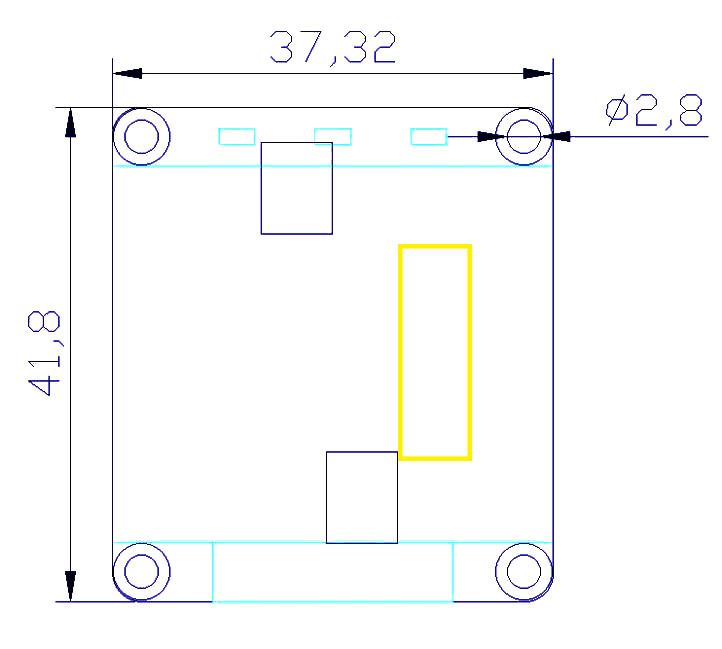

● DESPI-K154D67 CAD Drawing
● DESPI-K154-SCH
● IC Driver SSD1681
● GDEY0154D67 Specification
● GDEY0154D67 Picture Production and Bitmap Conversion
● GDEY0154D67 STM32 Sample Code
● GDEY0154D67 ESP32 Sample Code
● GDEY0154D67 ESP8266 Sample Code
● GDEY0154D67 Arduino Sample Code
● GDEY0154D67 Raspberry Pi Pico Sample Code
