☆ INTRODUCTION
This is a 1.54 inch color epaper small e-ink, 200x200 resolution, SPI interface,Fast refresh for 1.5s and the color e-paper display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink screen modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This tri-color epaper screen display GDEY0154Z90 is perfect for low power devices powered by solar or batteries.

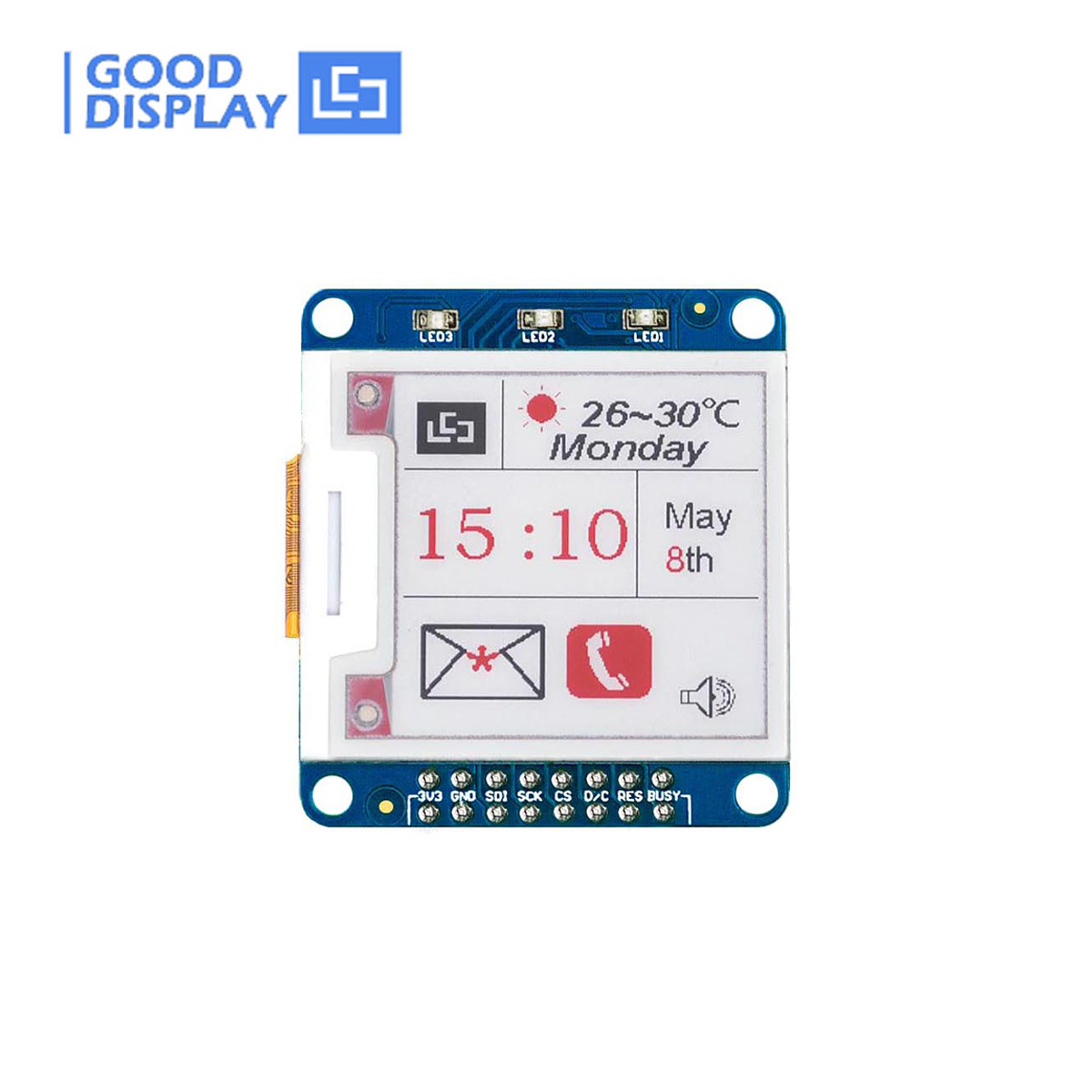

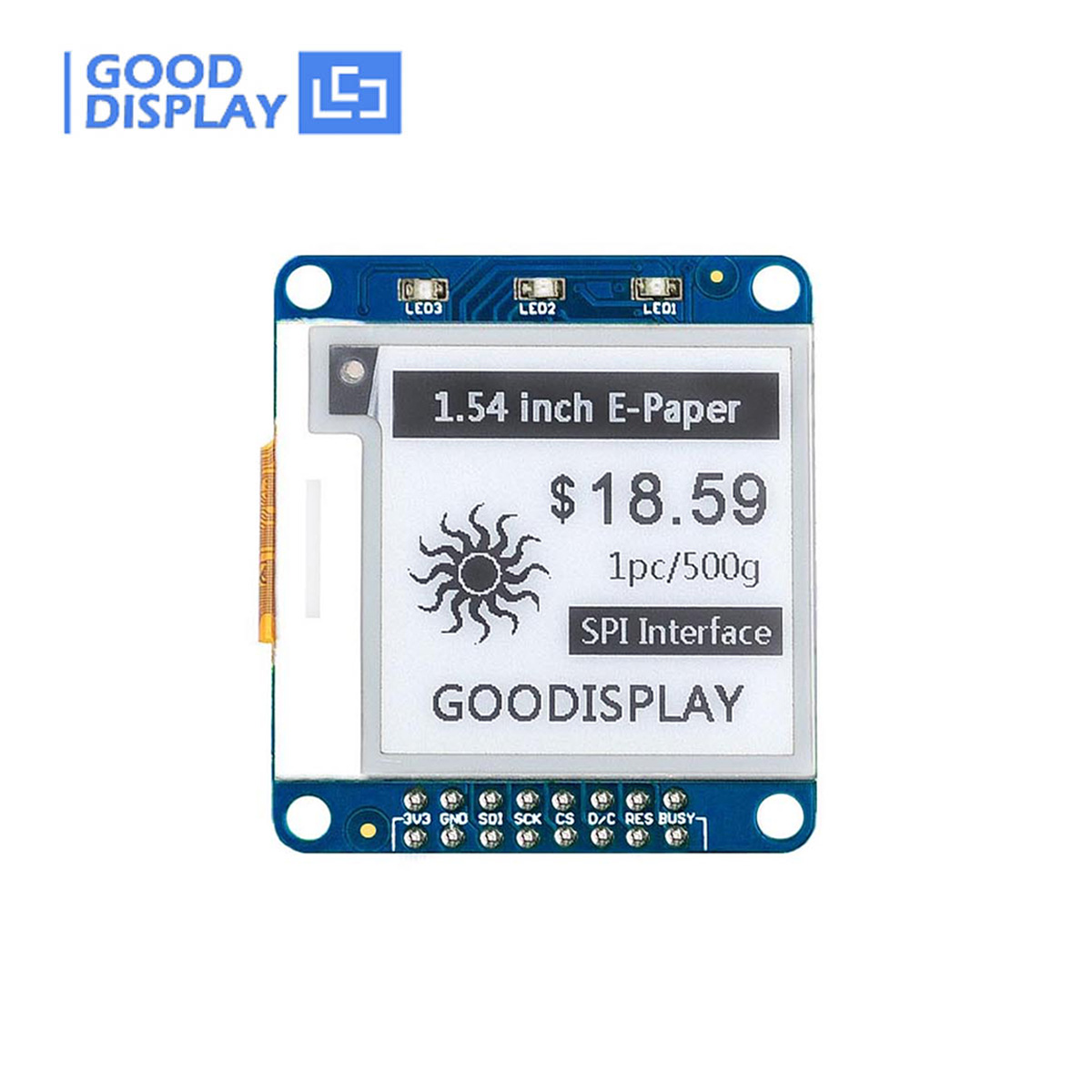

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates.
☆ THE ABOVE PRICE INCLUDE

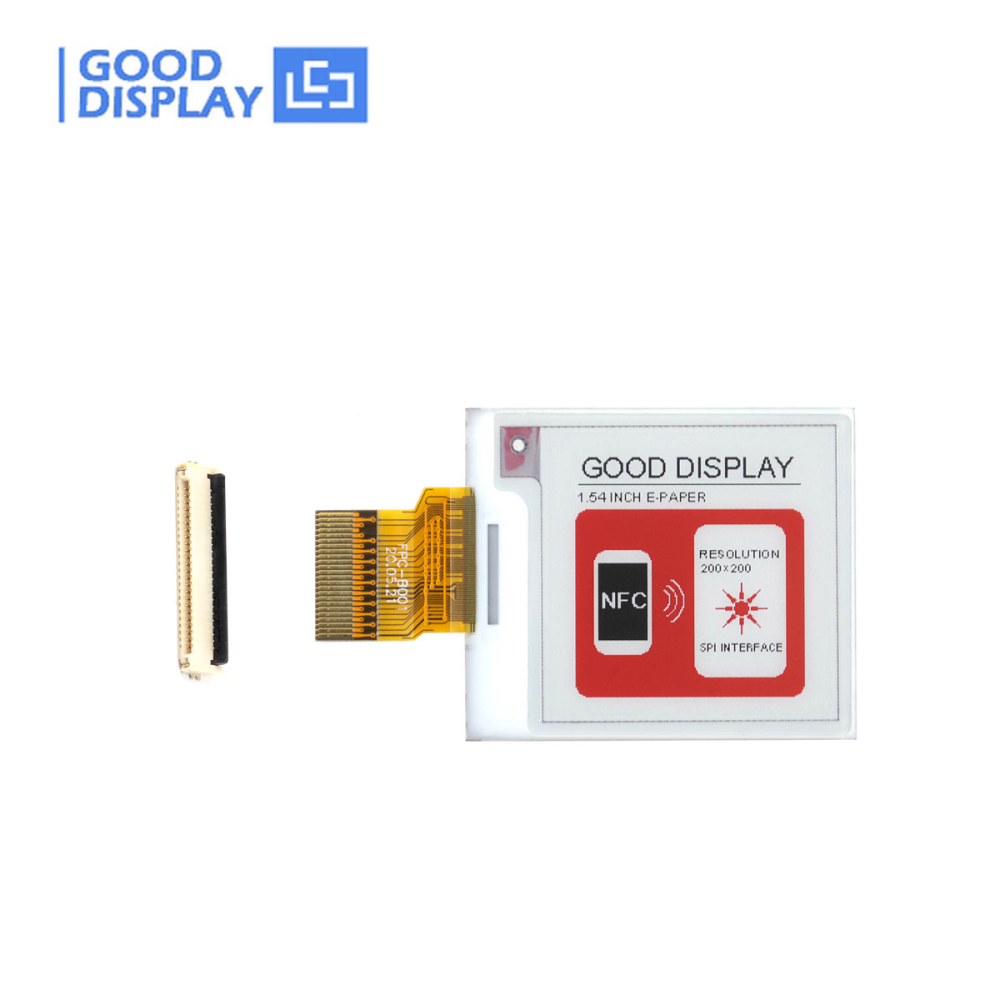

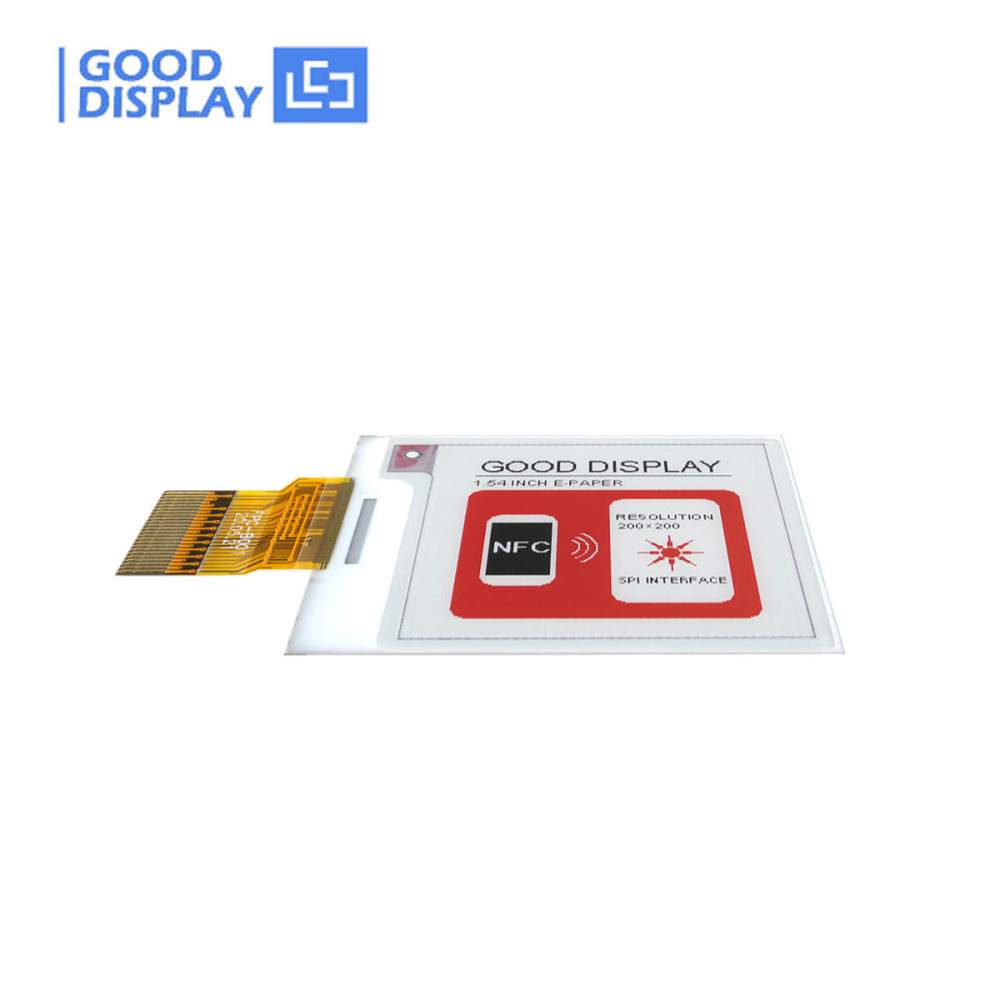

1) 1.54 inch tri-color Epaper E-ink Display 200x200 SPI Screen, GDEY0154Z90 * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY0154Z90
|
|
TYPE
|
Dot Matrix
|
STORAGE TEMP. |
-25℃~60℃ |
|
SIZE
|
1.54 inch
|
CONNECTOR |

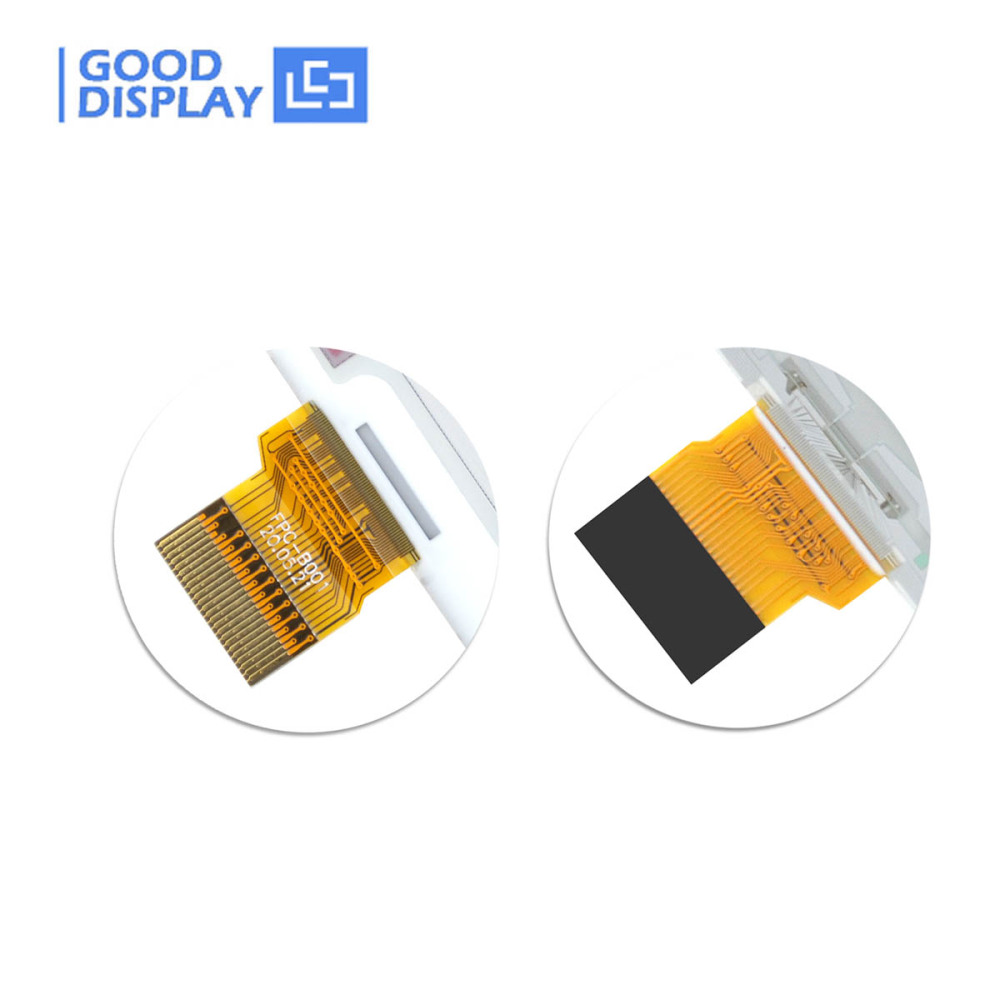

24 Pin FPC |
|
IC
|
SSD1681
|
MAX GRAYSCALE |
2 |
|
RESOLUTION
|
200x200
|
COLOR |
Black, White, Red |
|

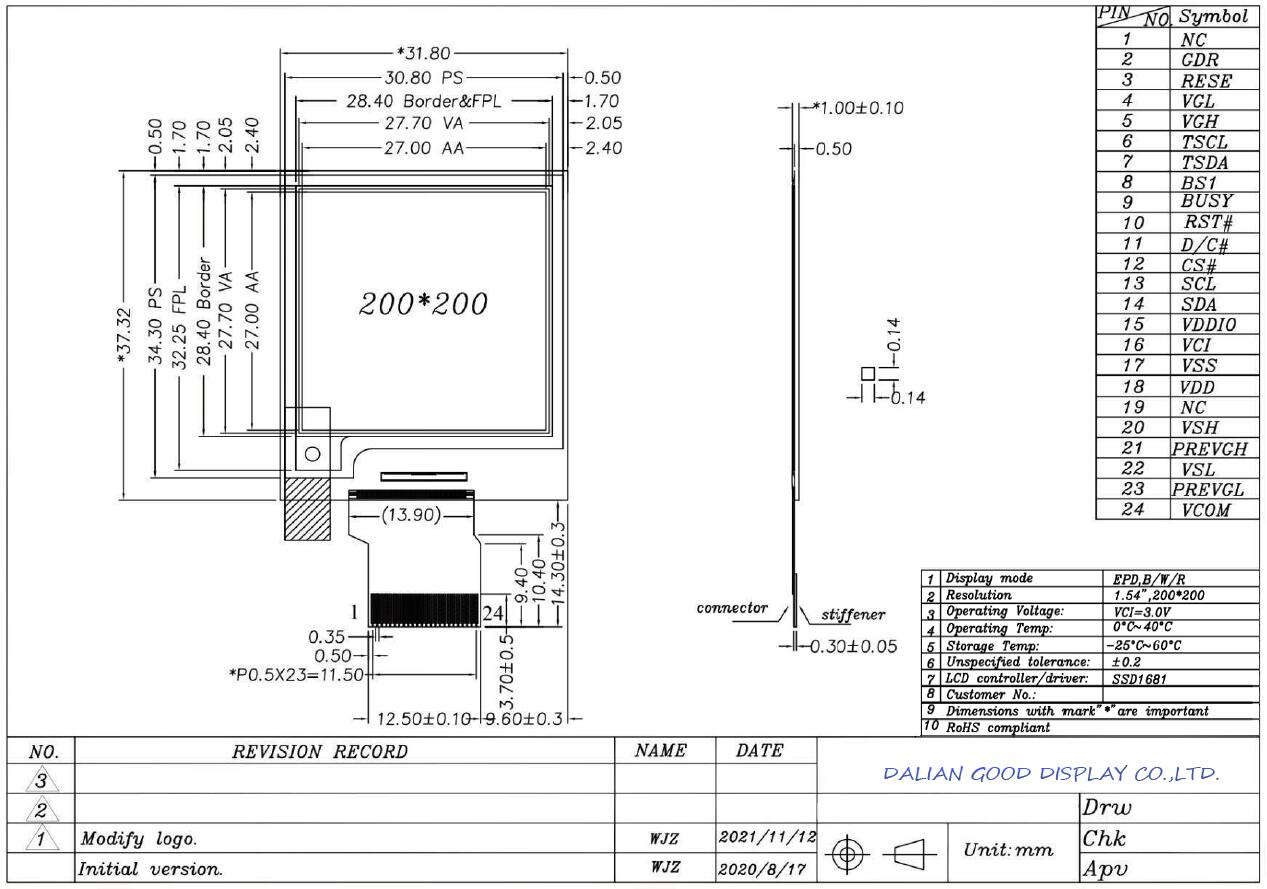

OUTLINE SIZE(mm)
|
37.32x31.80x0.98
|
INTERFACE |
SPI |
|
ACTIVE SIZE(mm)
|
27x27
|
FULL REFRESH(s) |
16 |
|
PIXEL PITCH(mm)
|
0.14x0.14
|
POWER CONSUMPTION OF THE REFRESH(mW) |
7.5 |
|
OPERATING TEMP.
|
0℃~40℃
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino / ESP8266 / ESP32

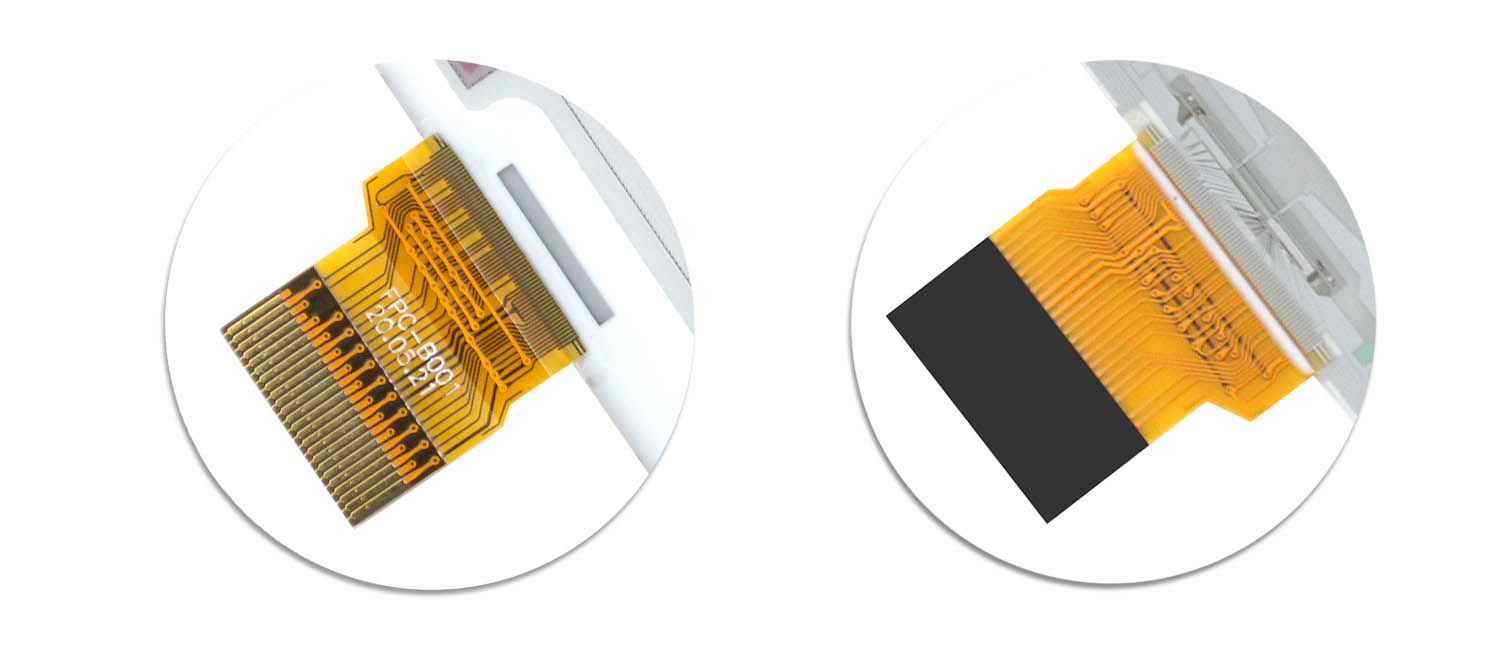

☆ DETAILS
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
● GDEY0154Z90 Specification
● IC Driver SSD1681
● GDEY0154Z90 STM32 Sample Code
● GDEY0154Z90 Arduino Sample Code
● GDEY0154Z90 ESP8266 Sample Code
● GDEY0154Z90 ESP32 Sample Code
