10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693

SKU: GDC02693 × 10pcs
(0)
266 Sold
$3.17 $4.40
28% OFF

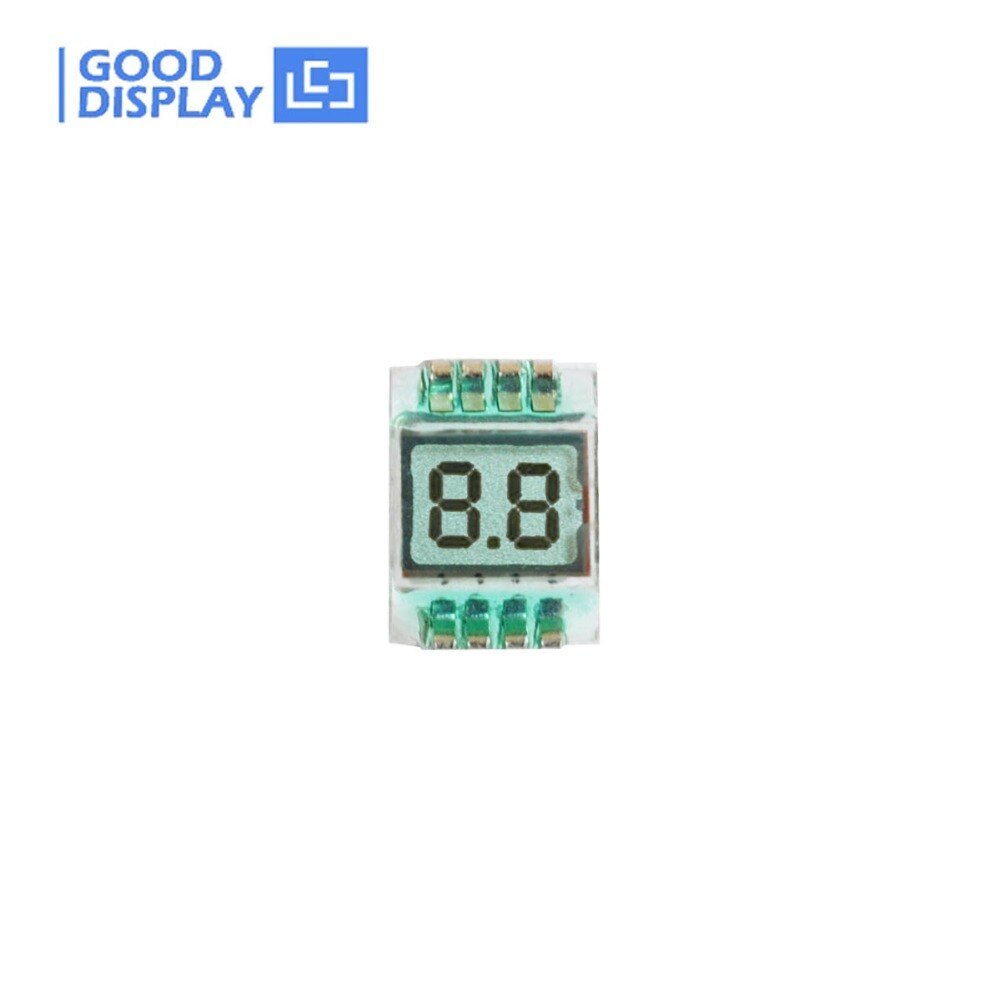

This is a TN Positive Segment LCD glass, with 2 digits and a dot. Reflective type, so without backlight. The size is very small, especially designed for e cigarette.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
0 in stock
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
1/1
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
  • 10 pieces, 2 Digit small mini TN Positive LCD glass Panel GDC02693
Frequently Bought Together
more
Frequently Bought Together
  • Description



☆ INTRODUCTION



This is a TN Positive Segment LCD glass, with 2 digits and a dot. Reflective type, so without backlight.
The size is very small, especially designed for e cigarette.



☆ THE ABOVE PRICE INCLUDE


1)  2 digits reflective lcd panel, GDC02693 *10pcs

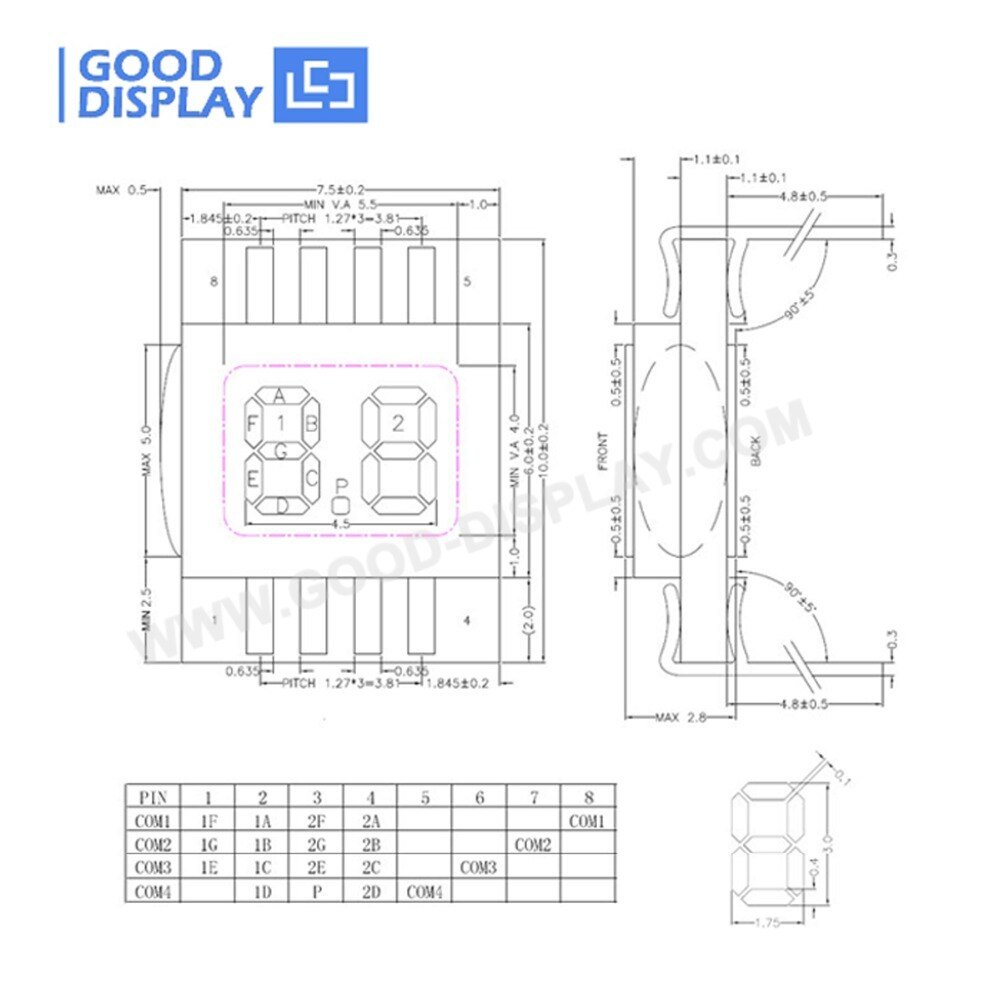

☆ MAIN PARAMETERS




Part Number GDC02693
Display Type TN Operating Temperature -20~70C
Diagonal Content 2-digits Storage Temperature -30~80C
Outline Dimension 7.5*10*1.1mm Drive method 1/4D,1/2B
Active Area 5.5*4.0mm Polarizer Mode Reflective
View Angle 6 o'clock Connector PIN
Operating Voltage 3.0V


☆ FEATURE



●  Low power consumption
●  With pin connection and easy driving
●  Wider operating temperature -20~70C
●  Low cost and plenty stock





☆ DETAILS




02693

GDC02693 - (1)+

GDC02693 - (4)+
