☆ INTRODUCTION
This is a 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0213U23 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product , contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE

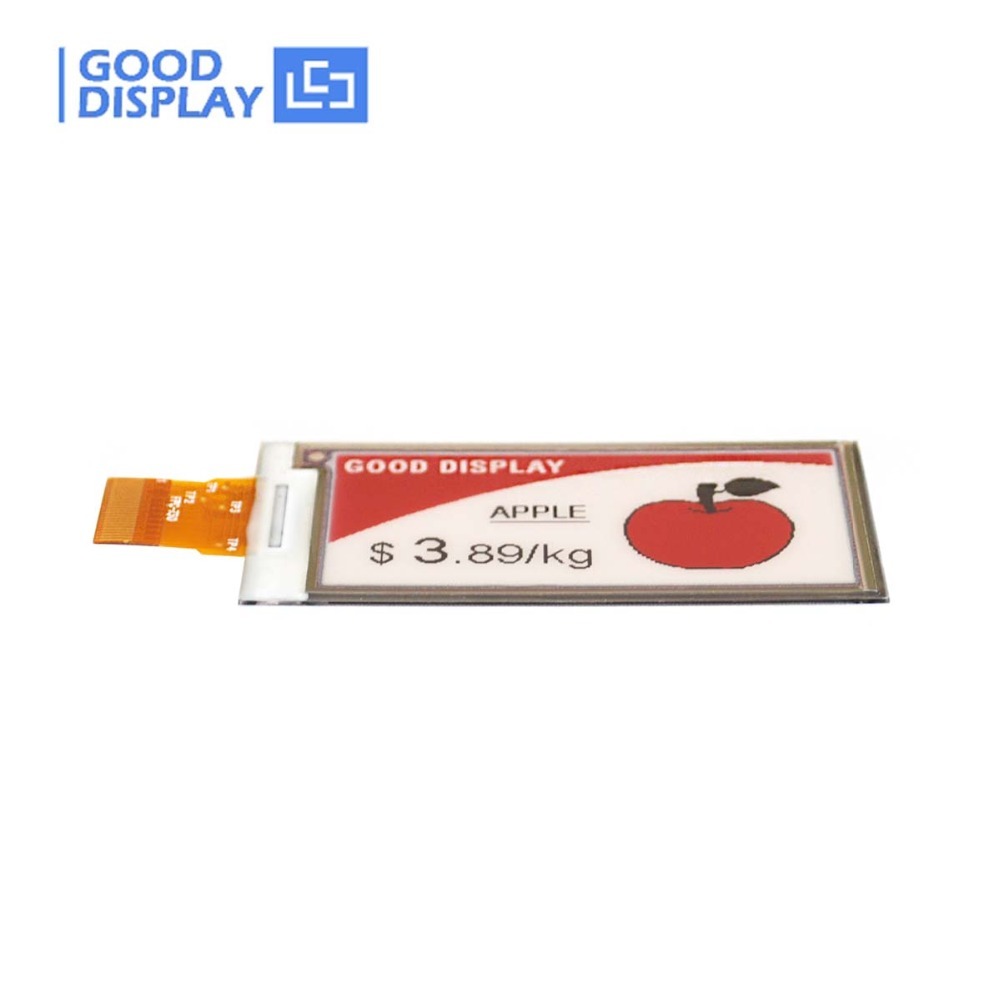

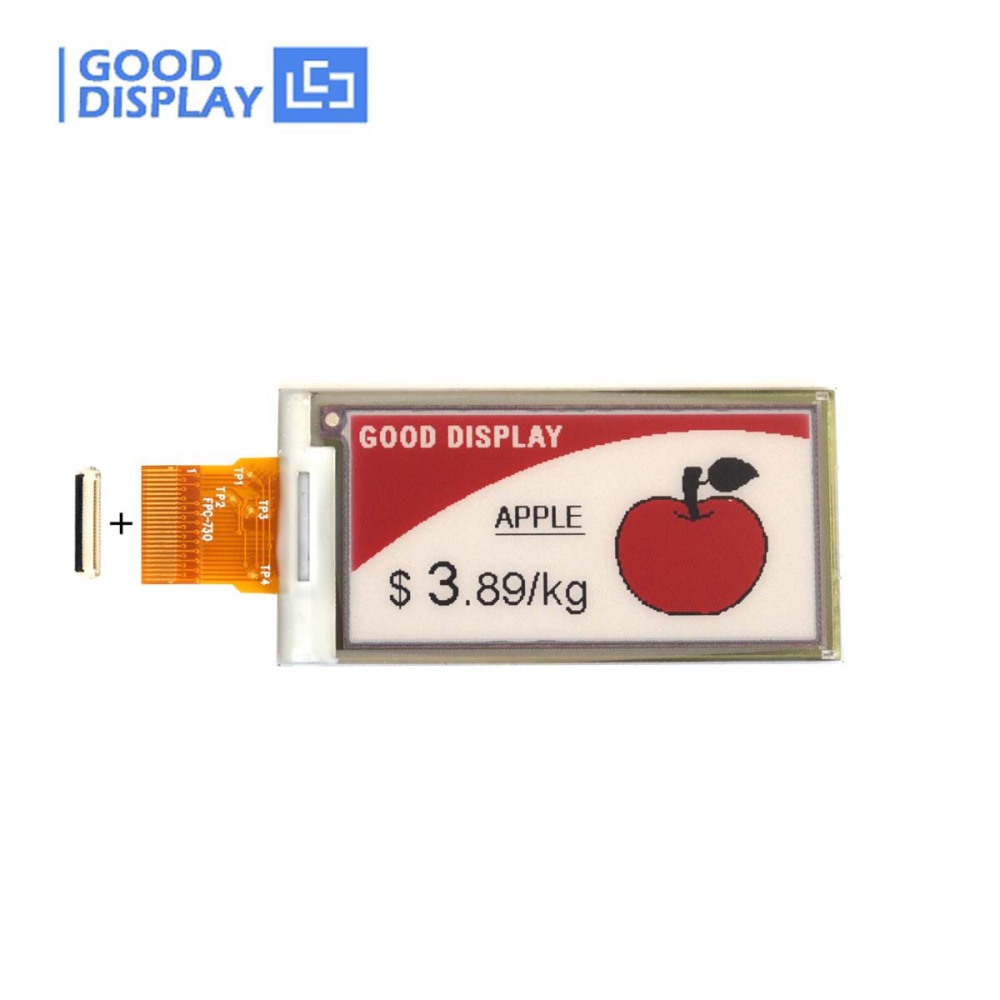

1) 2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23 * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM0213U23
|
|
|
|
TYPE
|
Dot Matrix
|
OPRATING TEMP. |
0℃~25℃ |
|
RESOLUTION
|
250x122
|
STORAGE TEMP. |
-25℃~70℃ |
|

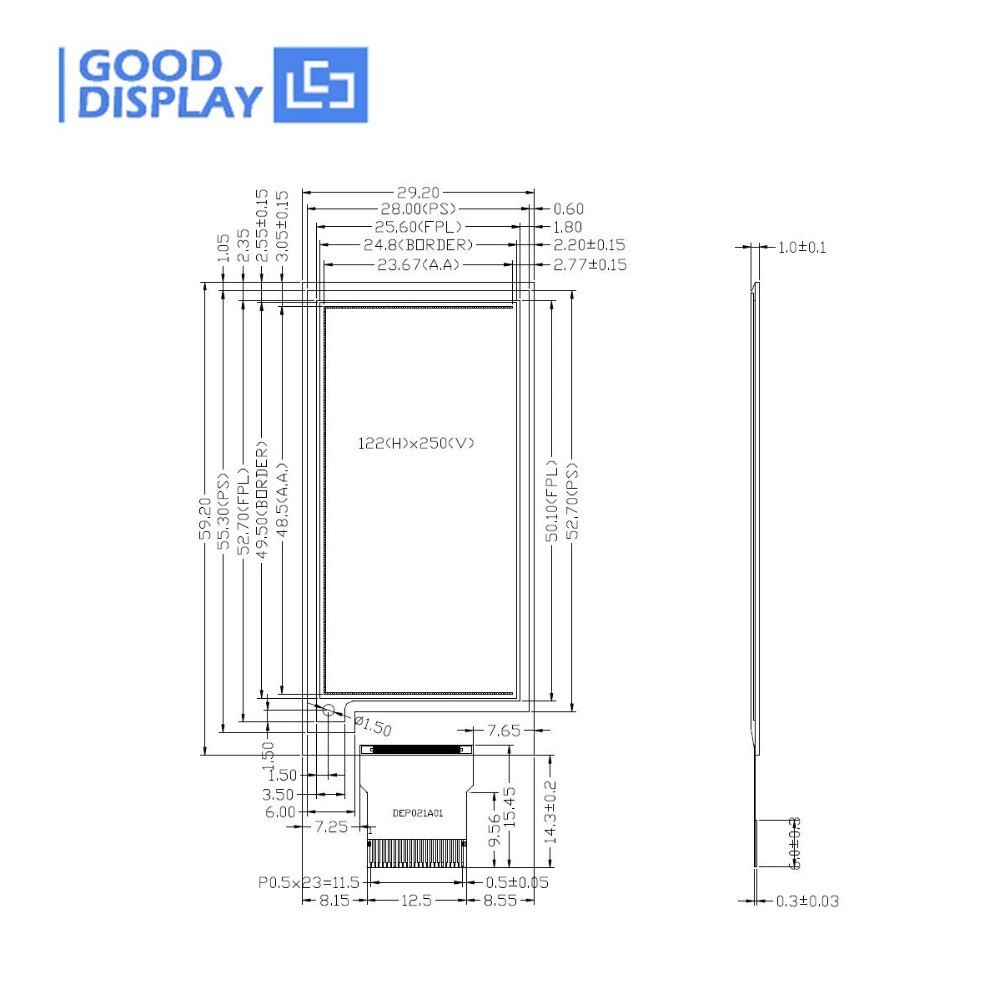

OUTLINE SIZE(mm)
|
29.2x59.2x1.05
|
CONNECTOR |
24 Pin FPC |
|
ACTIVE SIZE(mm)
|
23.67x48.50
|
MAX GRAYSCALE |
2 |
|
PIXEL PITCH(mm)
|
0.194x0.194
|
COLOR |
Black,White,Red |
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)

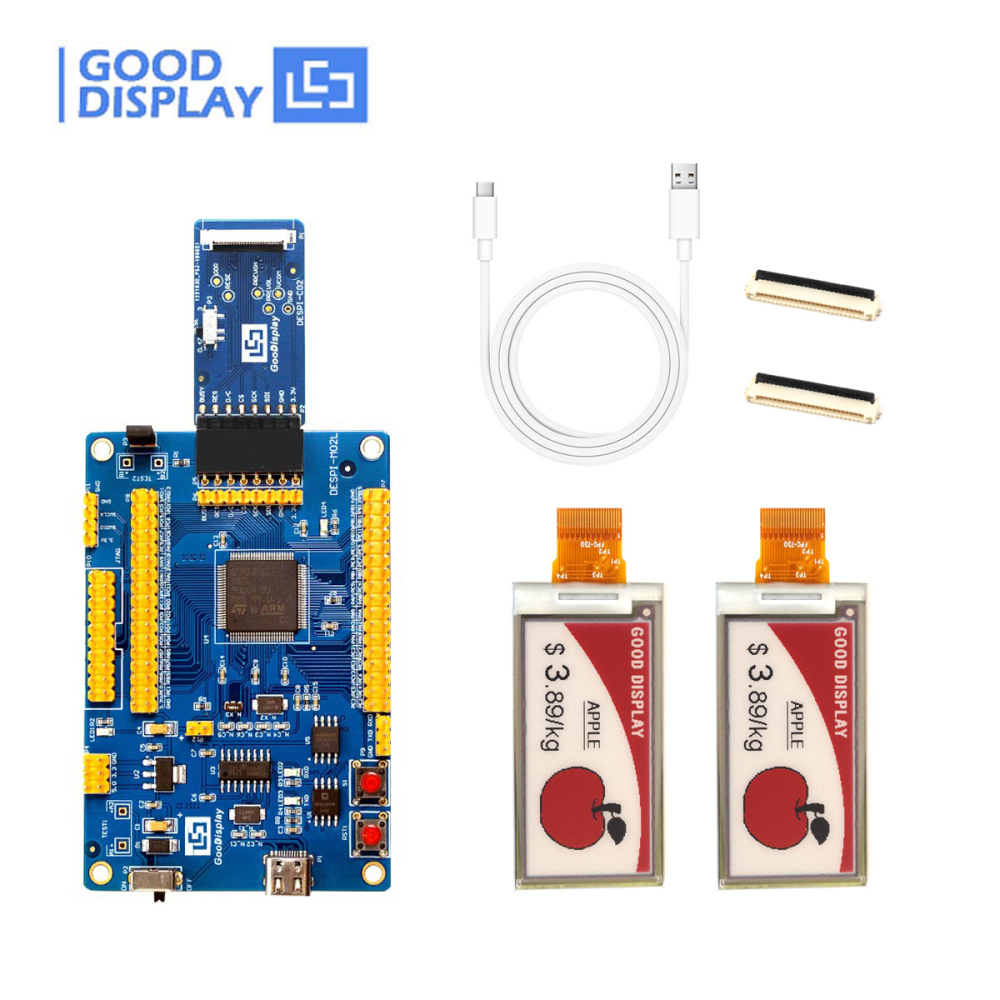

● DESPI-L(C02) (STM32 Platform/Universal)

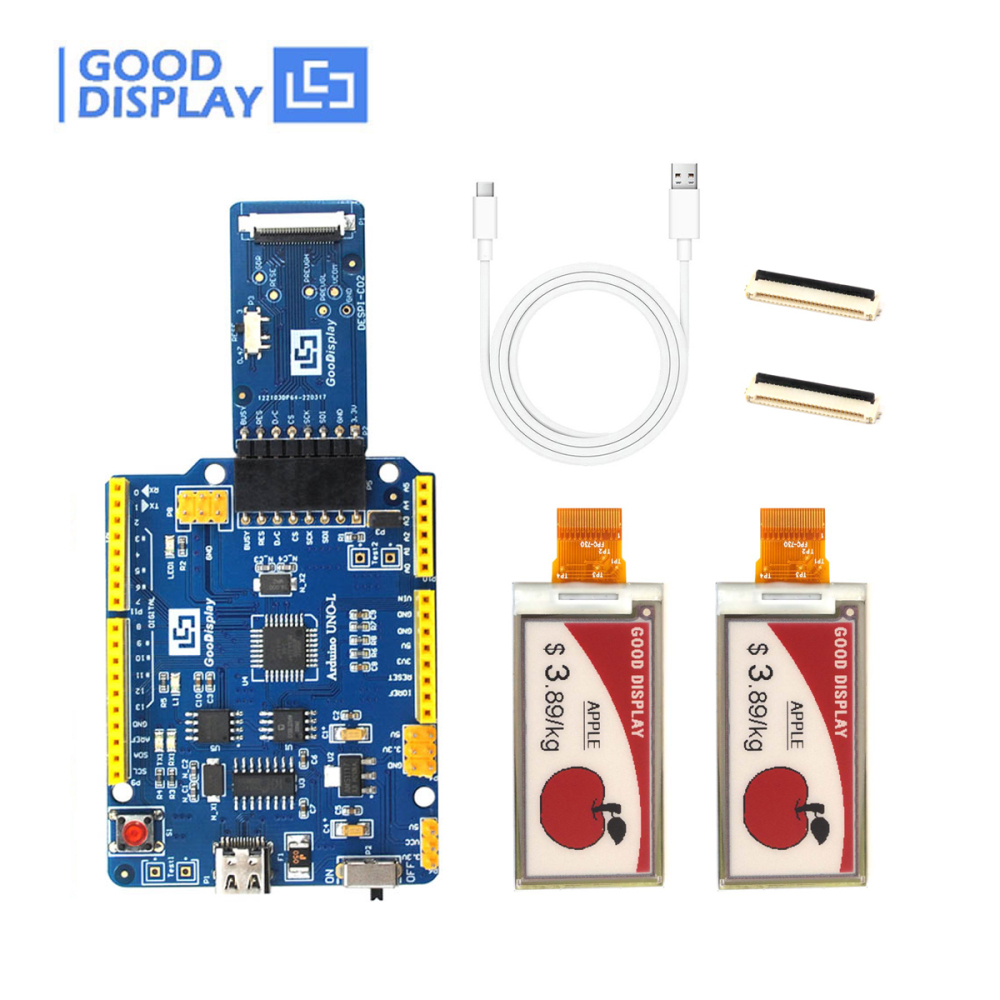

● DEArduino-L(C02) (Arduino Platform)

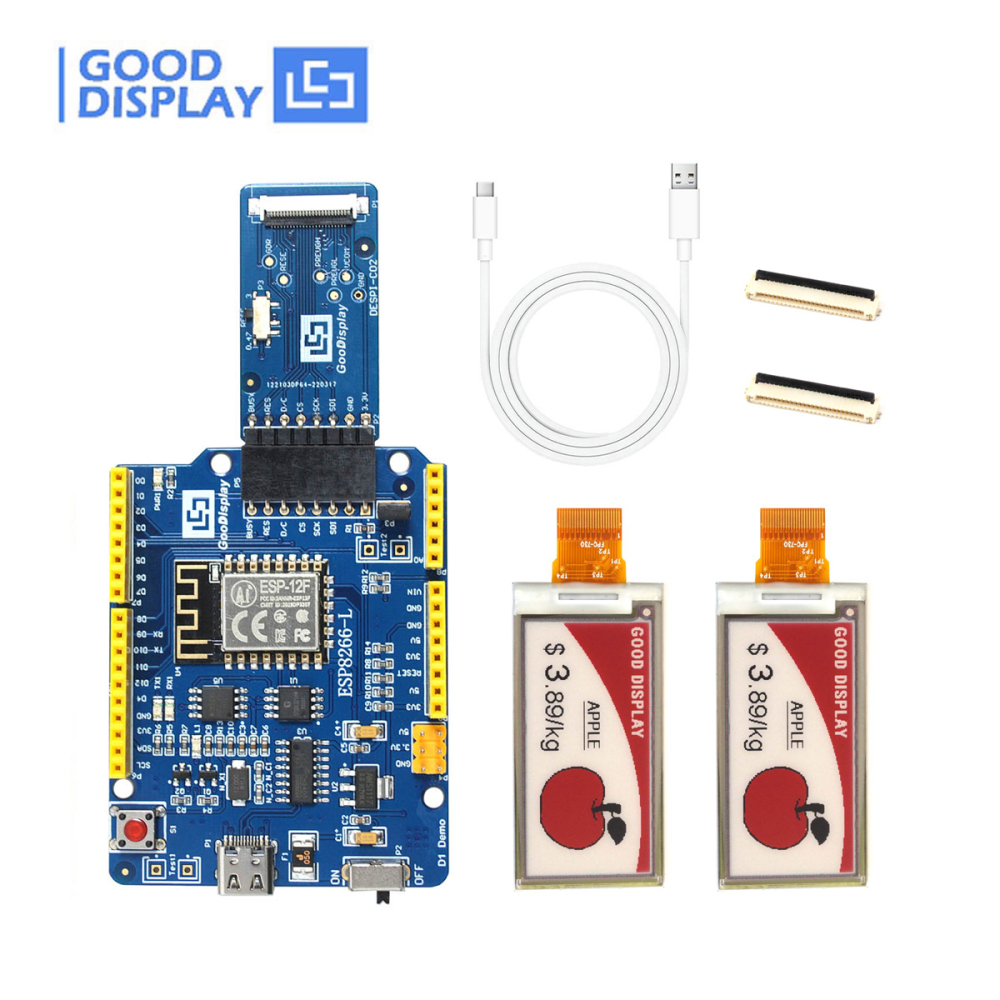

● ESP8266-L(C02) (WiFi)

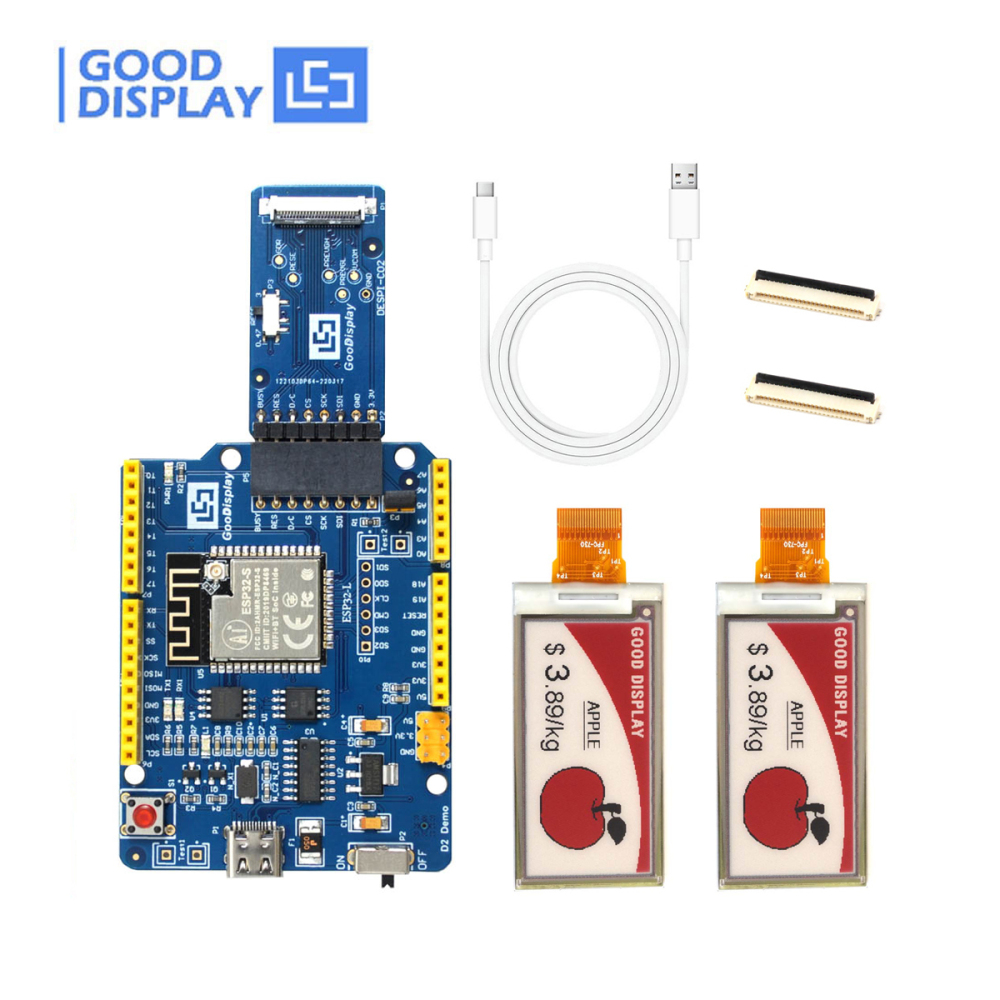

● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
