☆ INTRODUCTION
GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch.The controller ic is SSD1305, communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Relevant manual about this product on Library or you could go to our official website (www.einkpro.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 2.4 inch green 128x64 dots OLED display, GDOE0240G * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDOE0240G |
| DIAGONAL SIZE |
2.4" |
DISPLAY MODE |
Passive Matrix |
| DISPLAY COLOR |
Green |
BRIGHTNESS(Typ) |
120 cd/m2 |
| Driver IC |
SSD1305 |
DRIVE Duty |
1/64 Duty |
| OUTLINE DIMENSION(mm) |
60.50x37.00x2.00 |
NUMBER OF PIXELS |
128x64 |
| ACTIVE AREA(mm) |
55.01x27.49 |
VIEW ANGLE |
＞160° |
| PIXEL PITCH(mm) |
0.43x0.43 |
OPERATING TEMP. |
-40℃~70℃ |
| PIXEL SIZE(mm) |
0.40x0.40 |
STORAGE TEMP. |
-40℃~85℃ |
| INTERFACE |
6800 8-bit Parallel, 8080 8-bit Parallel, I2C, 4-Wire Serial SPI |
CONNECTION |

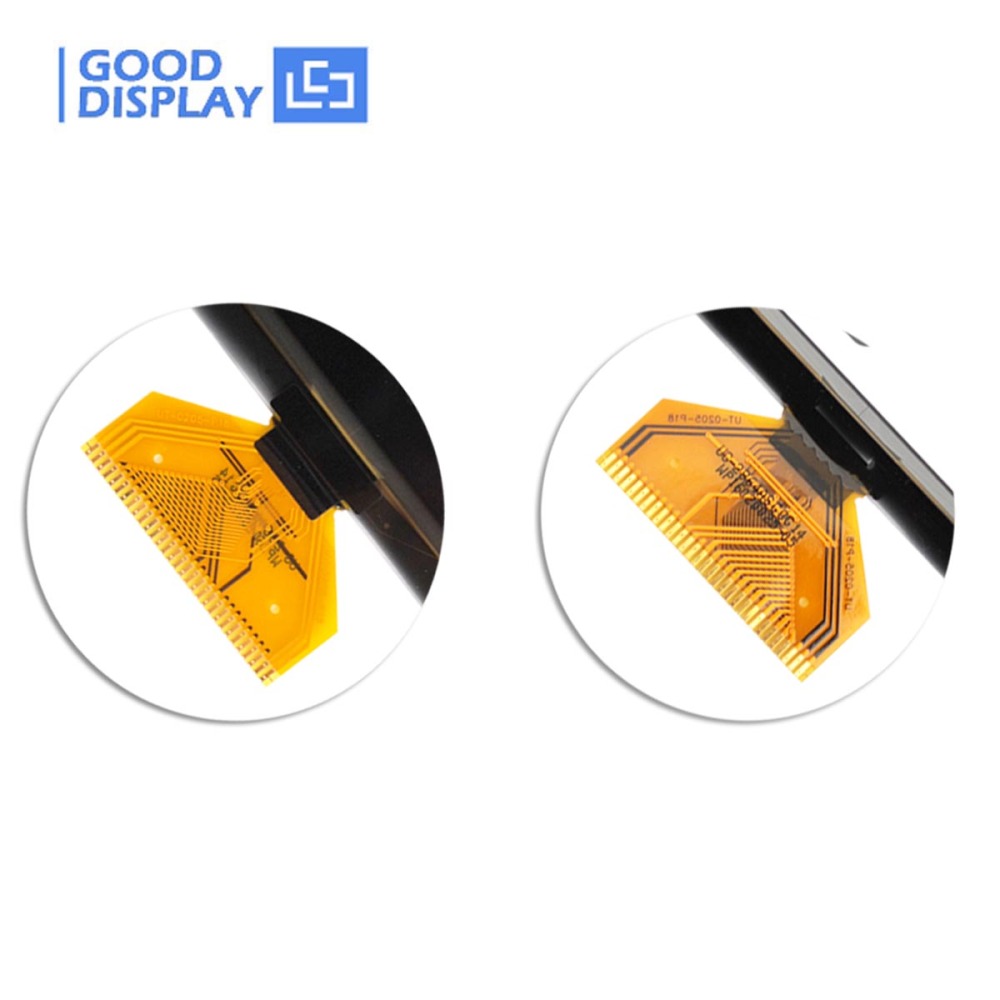

FPC-Soldering |
☆ FEATURE
● Self-luminous, no backlight is required.
● 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
● FPC-Soldering
● Wide operating temperature: -40℃~70℃
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● GDOE0240G Specification
● IC Driver SSD1305
