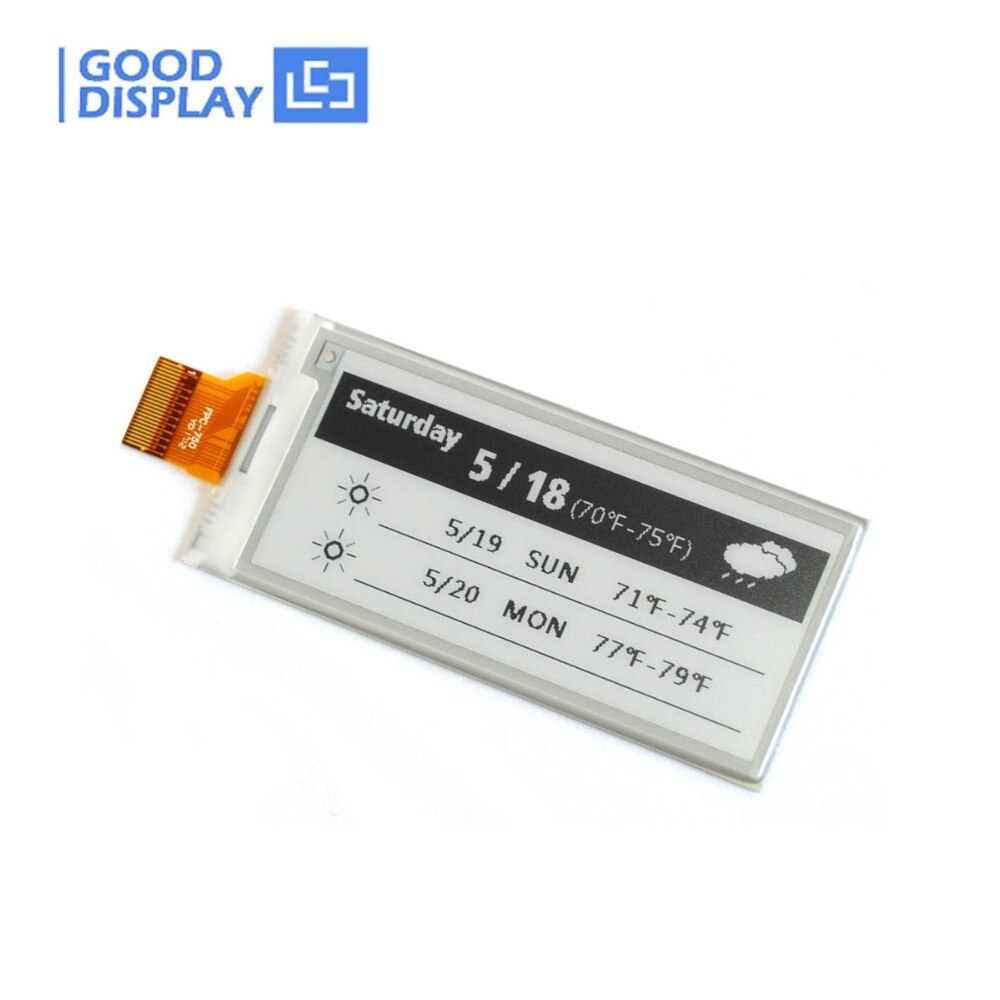

2.9 inch Black and white partial refresh e-paper display module, GDEM029E97

(0)

69 Sold

$5.58 ~~$6.97~~

20% OFF

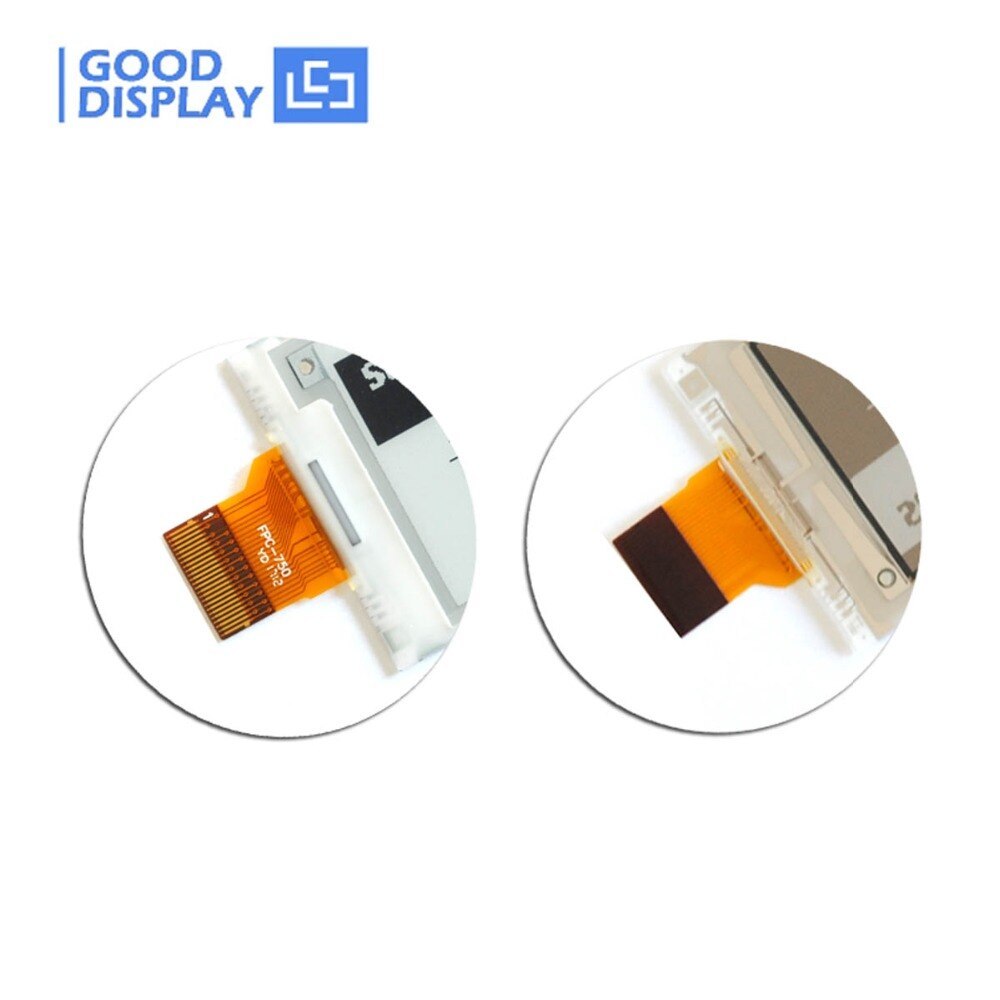

This is a 2.9 inch E ink E paper display panel, 296*128 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

0 in stock

Add to Favorites (2)

1/1

Description

☆ INTRODUCTION

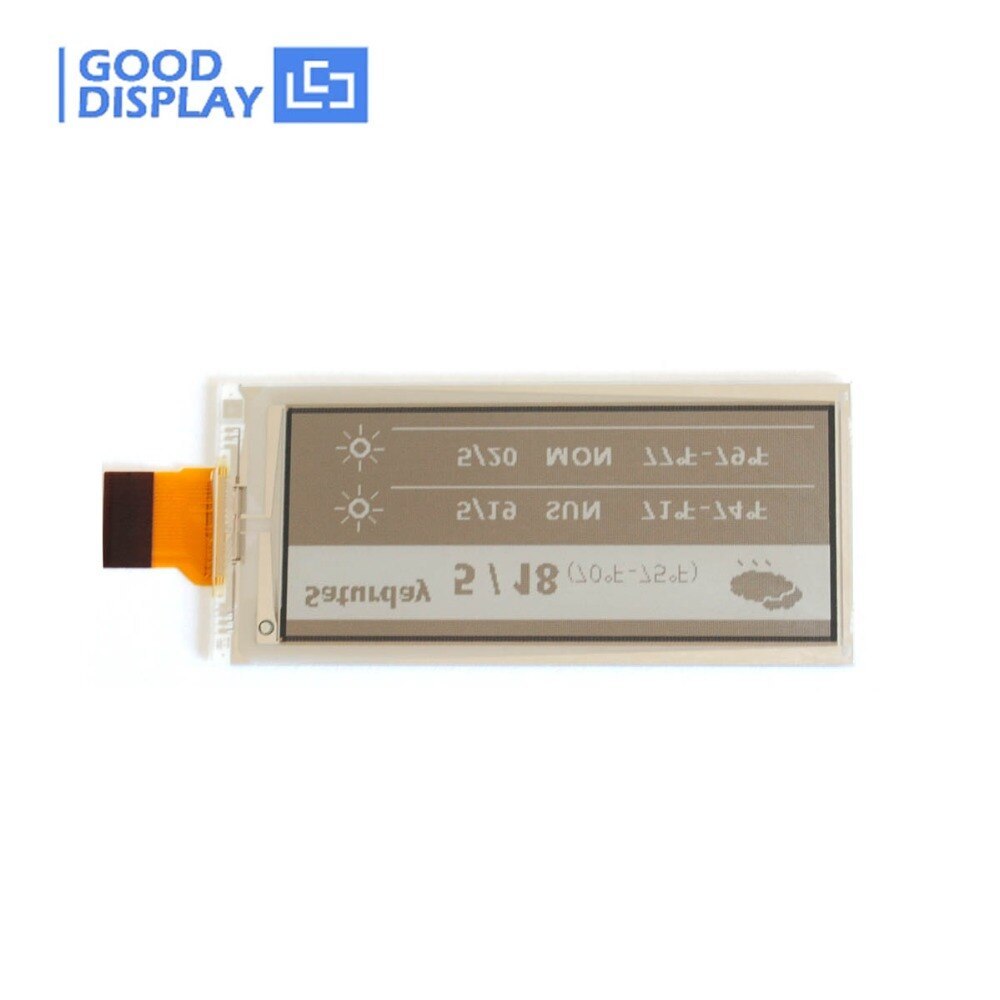

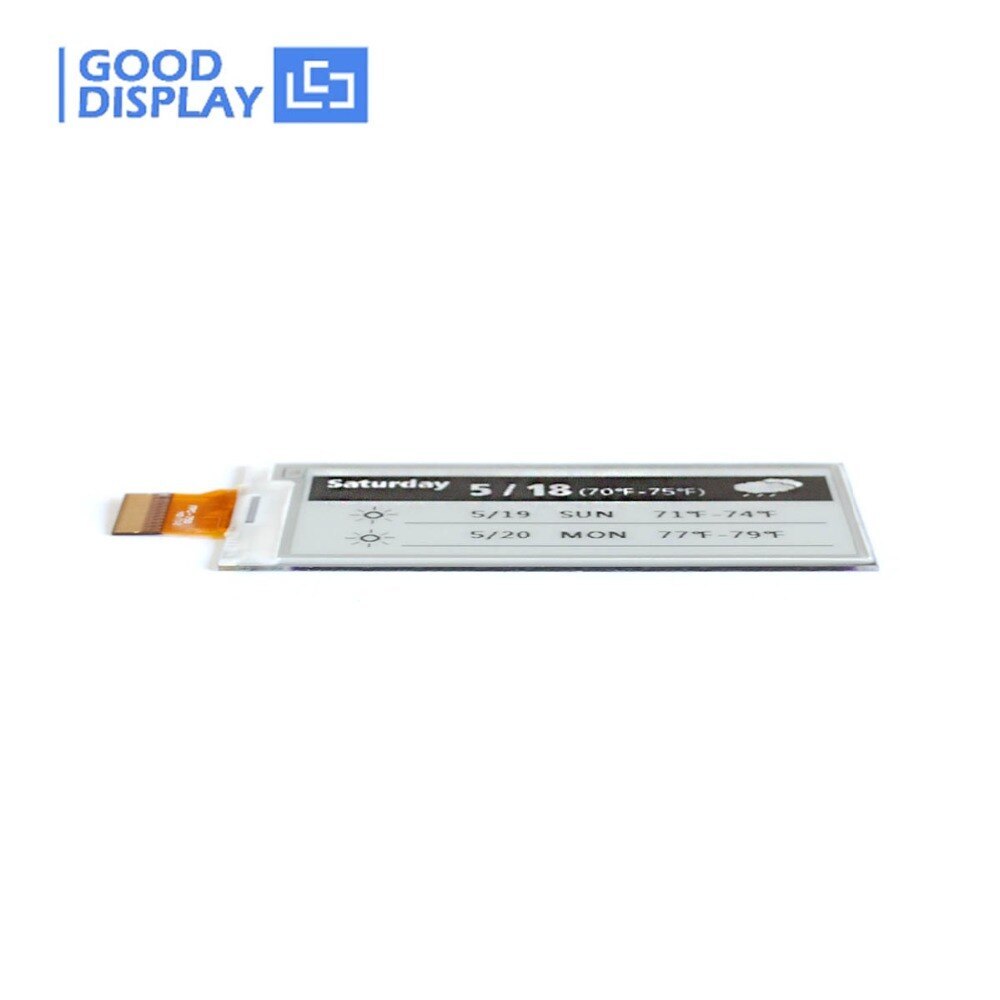

This is a 2.9 inch e-paper display with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e ink e paper screen GDEM029E97 is perfect for low power devices powered by solar or batteries.

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

Package A		+

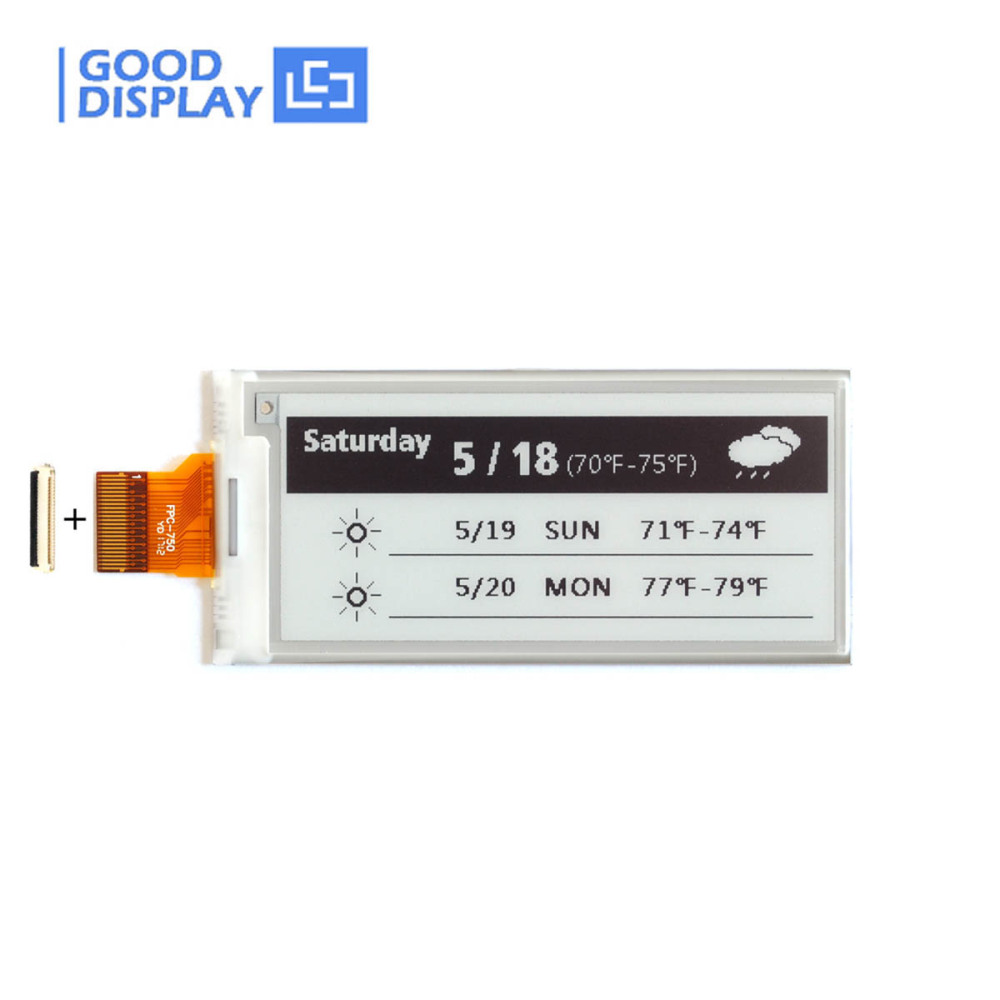

	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 1pc**		*b. FPC Connector 1pc**

Package B		+		+

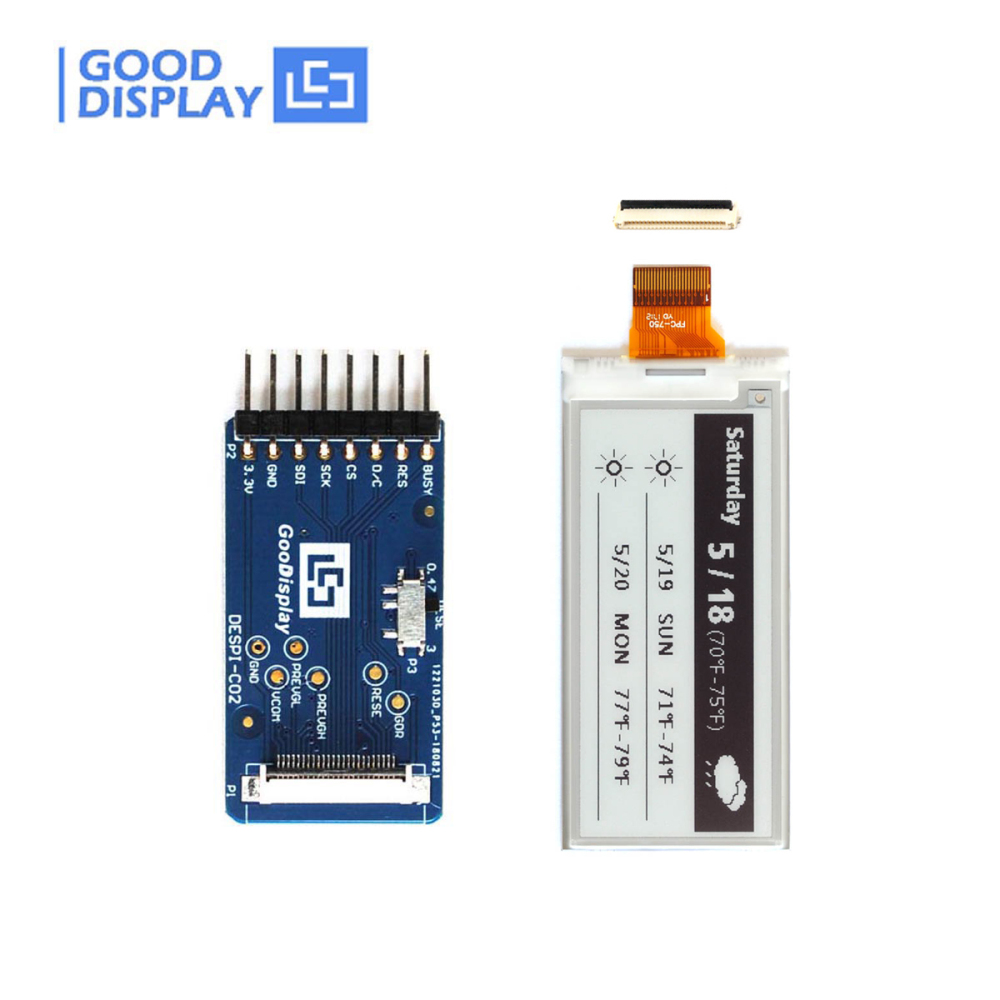

	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 1pc**		*b. FPC Connector 1pc**		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 *1pc

Package C		+		+		+

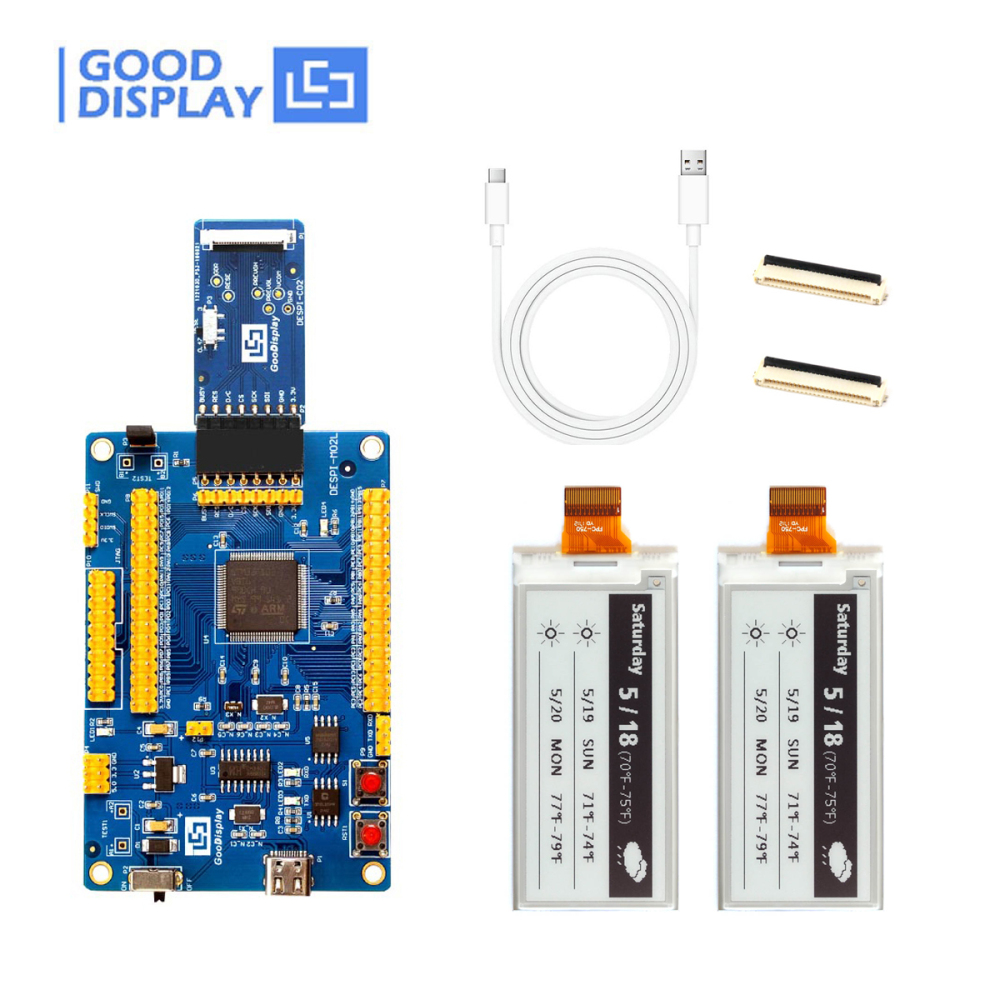

Package C	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 2pcs**		*b. FPC Connector 2pcs**		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) *1pc		d. USB Cable *1pc

Package D		+		+		+

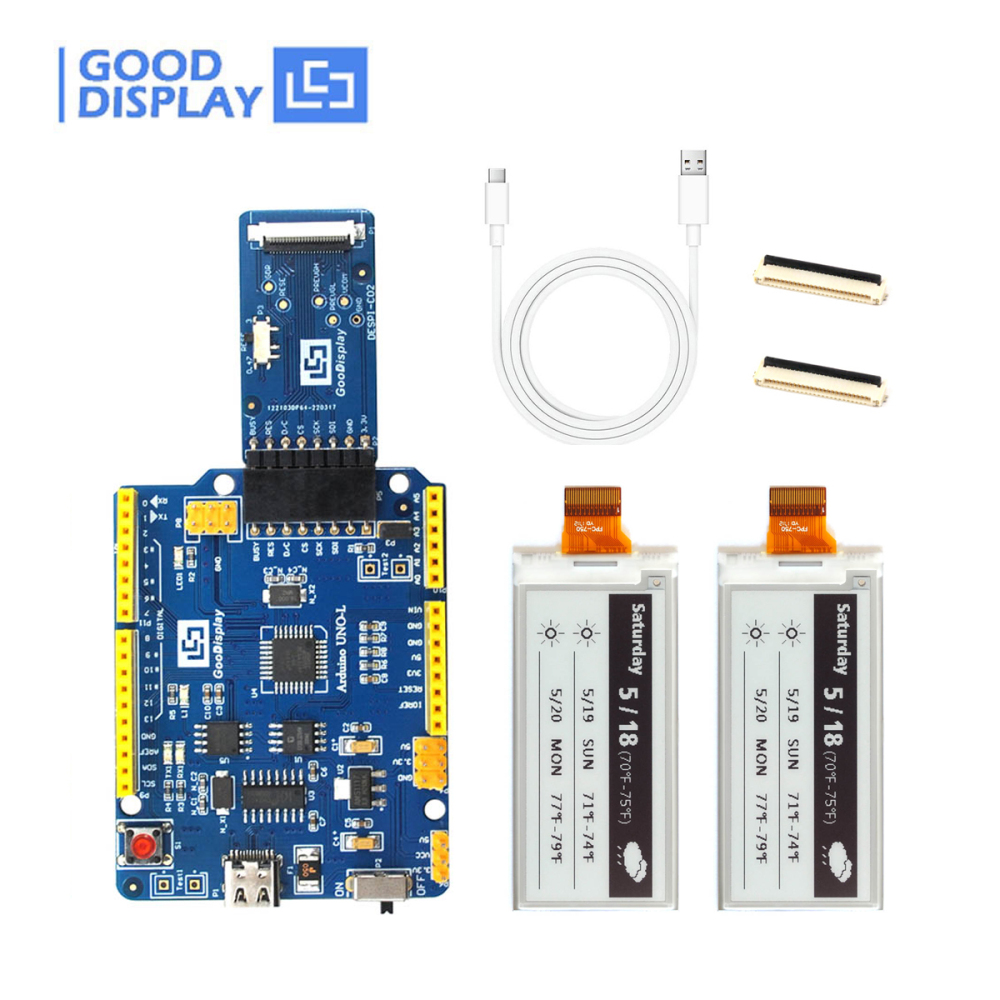

Package D	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 2pcs**		*b. FPC Connector 2pcs**		c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) *1pc		d. USB Cable *1pc

Package E		+		+		+

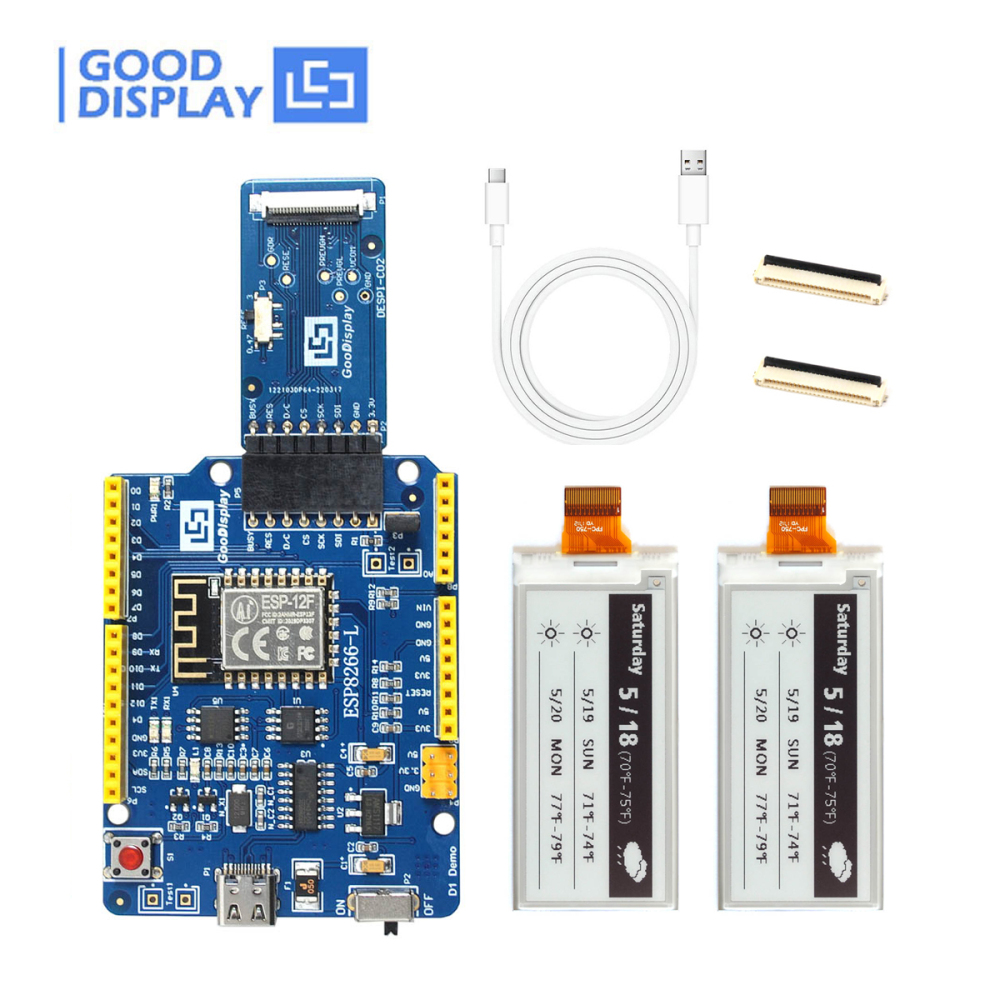

Package E	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 2pcs**		*b. FPC Connector 2pcs**		c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) *1pc		d. USB Cable *1pc

Package F		+		+		+
Package F	*a. 2.9 inch Black and white partial refresh e-paper display module, GDEM029E97 2pcs**		b. FPC Connector * 2pcs		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc		d. USB Cable *1pc

☆ MAIN PARAMETERS

PART NUMBER	GDEM029E97
SIZE	2.9 inch	OPERATING TEMP.	0℃~50℃
TYPE	Dot Matrix	STORAGE TEMP.	-25℃~70℃
IC	SSD1675A	CONNECTOR	24 Pin FPC
RESOLUTION	296x128	MAX GRAYSCALE	2
OUTLINE SIZE(mm)	79x36.7x1.2	COLOR	Black, White
ACTIVE SIZE(mm)	66.9x29.06	INTERFACE	SPI
PIXEL PITCH(mm)	0.227x0.226	FULL REFRESH(s)	3

☆ FEATURE

● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)

☆ DRAWING

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT )

● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-PICO (Rasberry Pi Epaper HAT )
