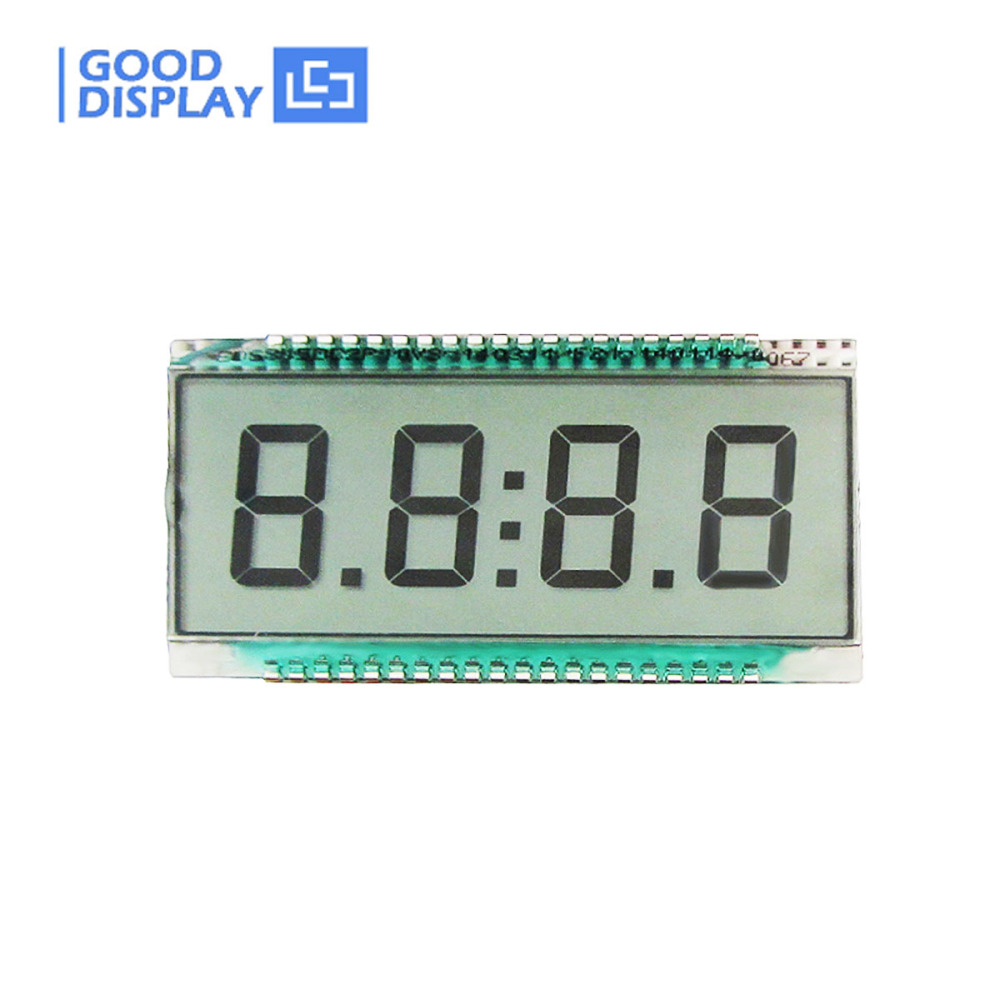

| PART NUMBER | EDS805 | ||
| DISPLAY CONTENT | 4-digits | OPERATING TEMP. | Extended temp LCD: -20~70℃ Super-extended temp LCD: -40~80℃ |

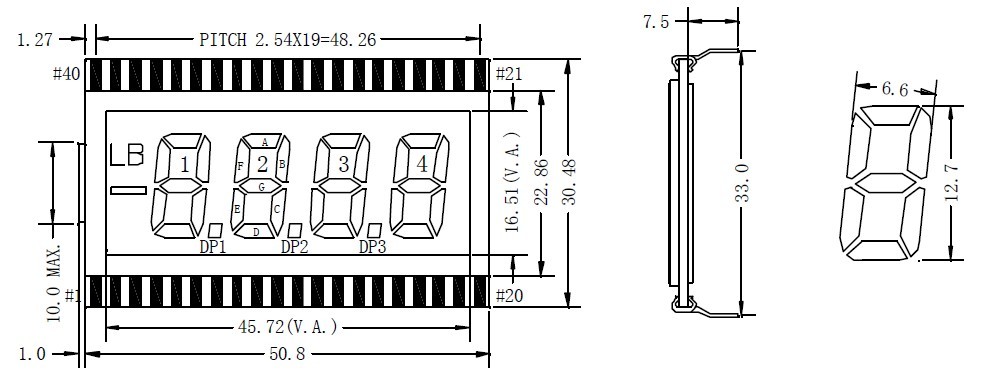

| OUTLINE DIMENSION(mm) | 50.8x30.48x2.8 | STORAGE TEMP. | Extended temp LCD: -30~80℃ Super-extended temp LCD: -45~85℃ |
| ACTIVE AREA(mm) | 45.72x16.51 | DRIVE METHOD | Static |
| VIEWING DIRECTION | 6:00/12:00 o'clock | DISPLAY TYPE | TN Positive |
| OPERATING VOLTAGE | 3.3V/5.0V | POLARIZER MODE | Transflective |
|
Part Number |
Digit |
Outline Dimension |
Active(View) Area |
Drive method |
|
2 |
7.5x10x1.1mm |
5.5x4.0mm |
1/4D,1/2B |
|
|
4 |
23x10x2.8mm |
20x6mm |
1/4D,1/3B |
|
|
11 |
-- |
-- |
1/4D,1/3B |
|
|
-- |
36.00x36.00x2.00mm |
33.00x31.00mm |
Static |
|
|
2 |
30x21x2.8mm |
27x16mm |
1/4D,1/3B |
|
|
5 |
81.0×37.5×2.8mm |
78.0×27.5mm |
Static |
|
|
-- |
98x34.3x2.8mm |
92.64x24.94mm |
1/4D,1/3B |
|
|
4 |
51.0x34.0x2.8mm |
48.0x25.0mm |
1/4 D, 1/3 B |
|
| GDC1156 | 6 | 253x65.5x2.8mm | 250x60mm | 1/4 D, 1/3 B |
| GDM0689 | 6 | 58.0x28.0x6.70mm | 39.0x17.0mm | 1/4Duty |
|
8 |
55.8x37x2.8mm |
45x27mm |
1/4D,1/3B |
|
|
6 |
42x25x2.8mm |
39.0x17.0mm |
1/4 D, 1/3 B |
|
| GDC9188 | 12 | 156x99x2.8mm | 148x87mm | Static |
|
4 |
72.8x35.5x10.7mm |
54.2x24mm |
Static |
|
|
8 |
64x22.0x2.8mm |
60.5x13.5mm |
1/4D,1/3B |
|
|
4 |
50.8x30.48x2.8mm |
45.72x17.78mm |
Static |
|
|
2-1/2 |
30.0x26.17mm |
26.0x17.17mm |
Static |
|
|
4 |
93.98x45.72x2.8mm |
86.36x30.48 mm |
Static |
|
|
4 |
69.85x38.1x2.8mm |
62.23x22.86mm |
Static |
|
| EDS805 | 4 | 50.8x30.48x2.8mm | 45.72x16.51mm | Static |
|
6 |
69.85x30.48x2.8mm |
64.77x16.51mm |
Static |
|
|
6 |
93.85x38.1x2.8mm |
86.36x24.13mm |
Static |
|
|
-- |
55.0x17.0x8.5mm |
39.5x8.0mm |
-- |
|
|
-- |
58.0x32.0x13.0mm |
38.0x16.0mm |
-- |
|
|
-- |
58x32x13.2mm |
39x16mm |
-- |
|
|
-- |
78x70x13mm |
62x44mm |
-- |
|
|
-- |
80.0x36.0x13.0mm |
64.5x14.0mm |
-- |
|
|
-- |
77.0x51.0x13.0 mm |
61.7x25.2 mm |
-- |
|
|
-- |
80.0x36.0x12.5mm |
64.5x15.8mm |
-- |
|
|
-- |
122.0x44.0x14.0mm |
99.0x24.0 mm |
-- |
|
|
-- |
46.5x56.7x4.0mm |
39.64x46.04mm |
-- |
|
|
-- |
139.0x120.0x13.2mm |
103.0x79.0mm |
-- |
|
|
-- |
130.0x65.0x13.0mm |
104.0x39.0mm |
-- |
|
|
-- |
70.0x50.0x5.8mm |
67.0x37.0mm |
-- |
|
|
-- |
40.0x35.8x12.0mm |
25.74x9.48mm |
-- |
|
|
-- |
80.2x51.2x5.6mm |
66.52x33.24mm |
-- |
|
|
-- |
93.0x70.0x14.0mm |
70.7x38.8mm |
-- |
|
|
-- |
93x70x13.5mm |
72x40mm |
-- |
|
| YM240128A-11 | -- | 144.0x105.5x15.0mm | 107.95x57.55mm | -- |
