☆ INTRODUCTION

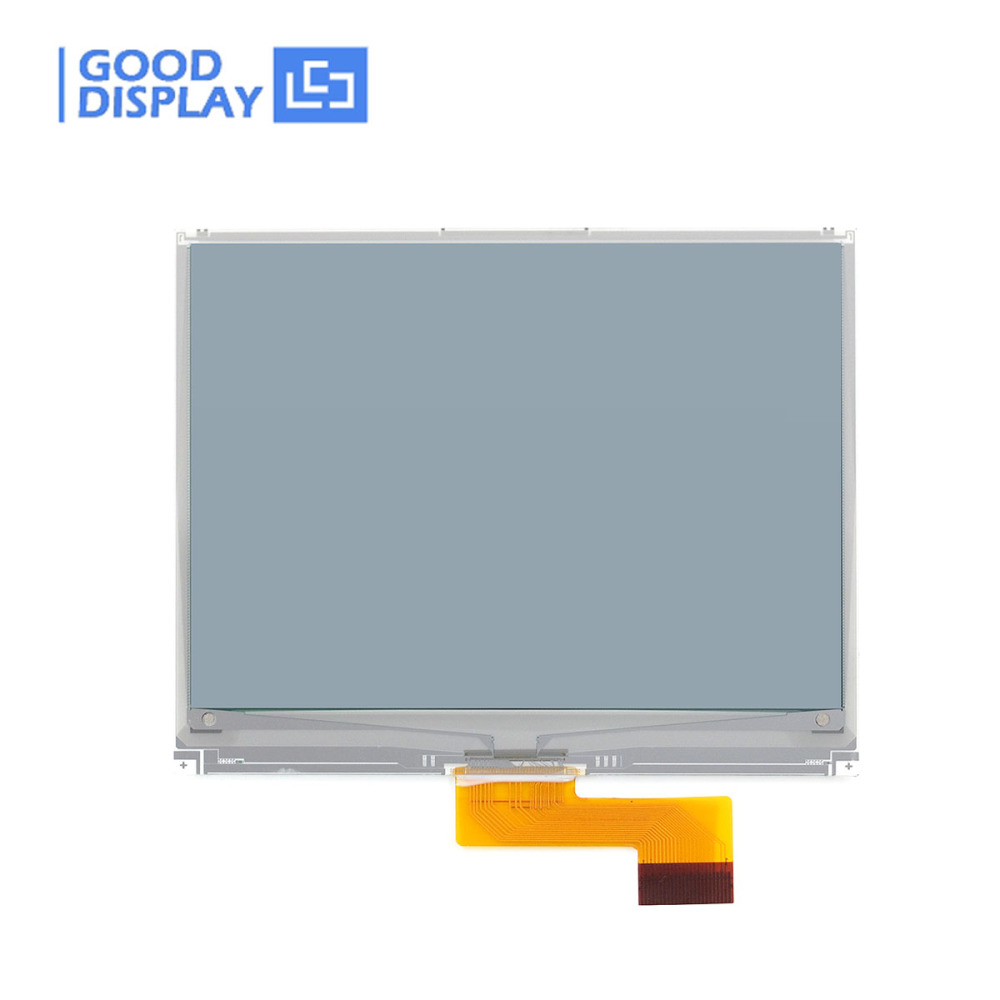

This is a 4.2 inch color e-ink display e-paper screen with 400x300 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 4.2 inch e-ink display GDEQ042Z21 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates
☆ THE ABOVE PRICE INCLUDE

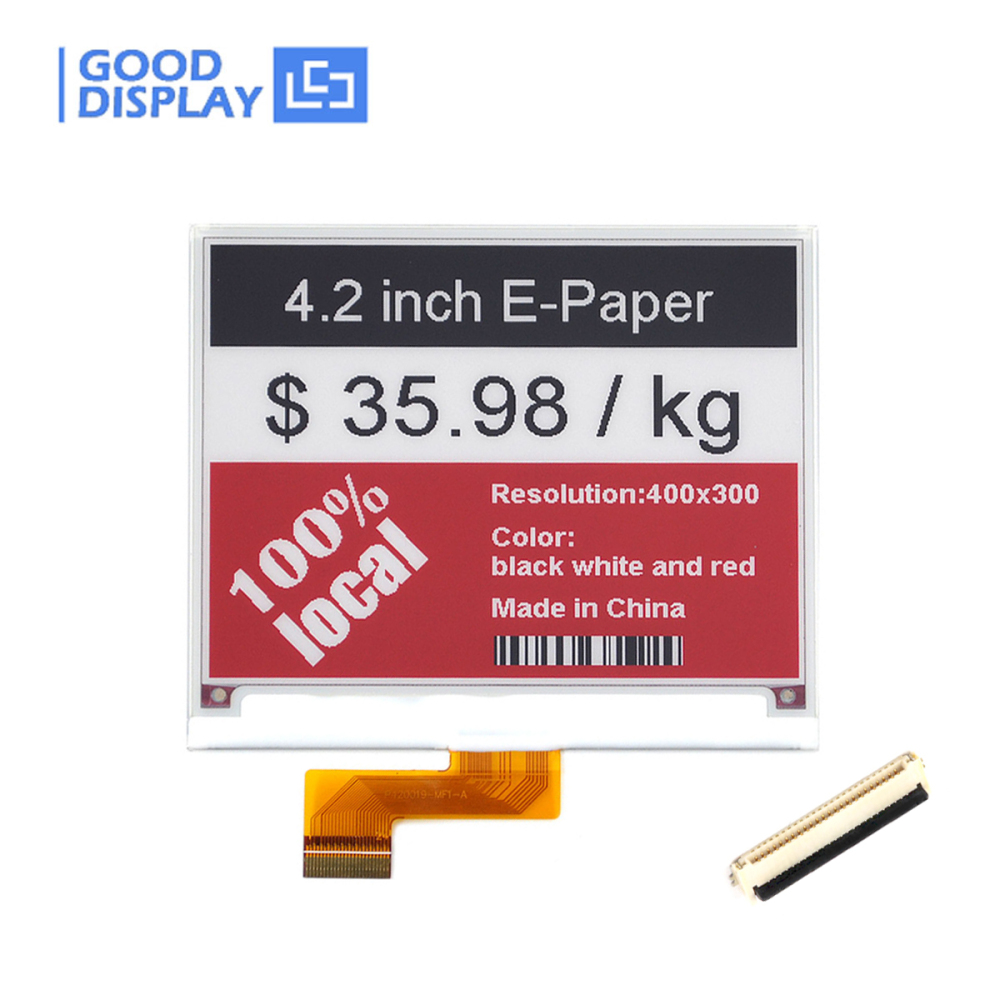

1) 4.2 inch tri-color e-paper display SPI 400x300 EPD, GDEQ042Z21 * 1pc
2) FPC Connector * 1pc

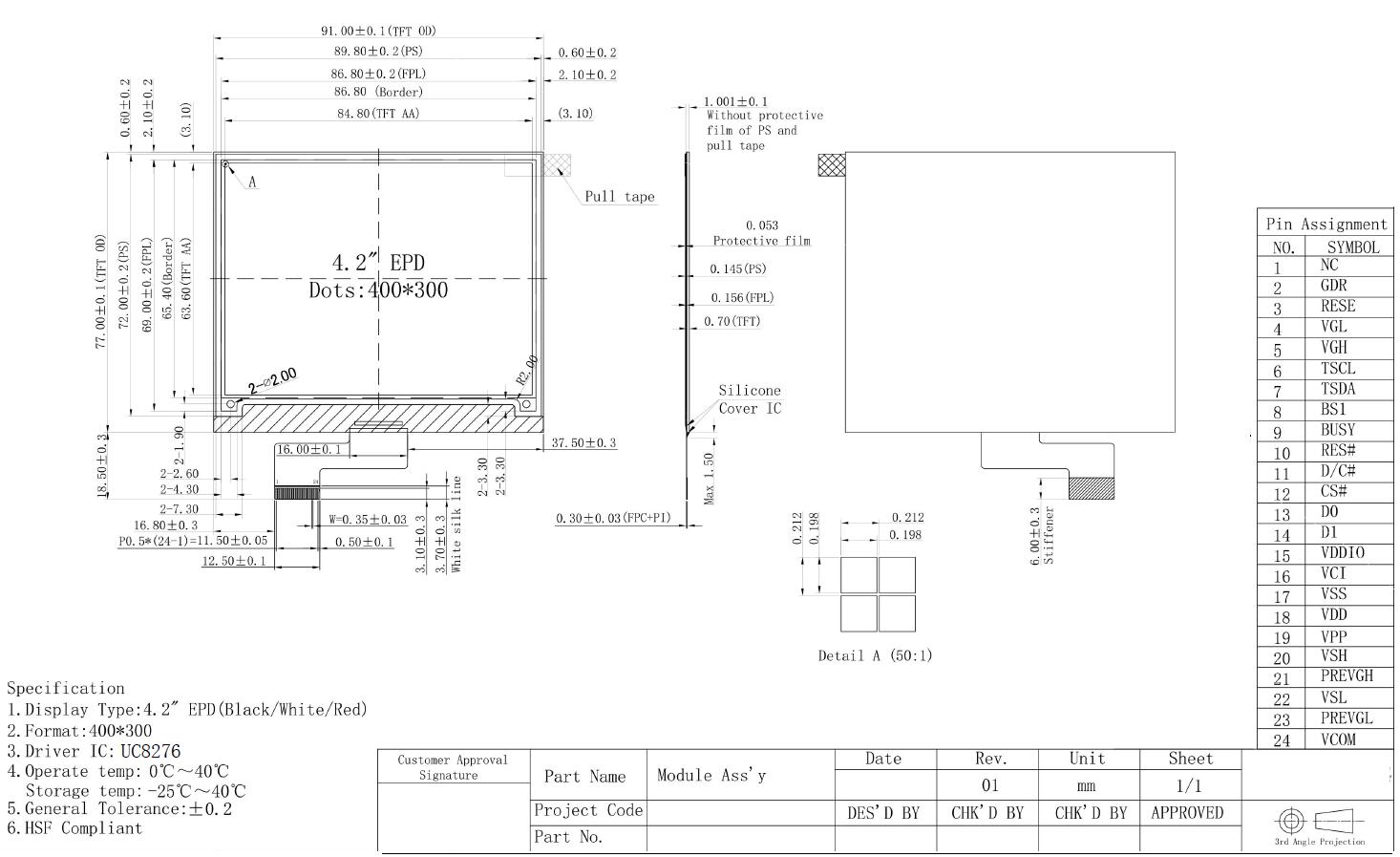

☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEQ042Z21
|
|
|
SIZE
|
4.2 inch
|
STORAGE TEMP. |
-25℃~40℃ |
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
IC
|
UC8276
|
MAX GRAYSCALE |
2 |
|
RESOLUTION
|
400x300
|
COLOR |
Black,White, Red |
|
OUTLINE SIZE(mm)
|
91x77x1.001
|
INTERFACE |
SPI |
|
ACTIVE SIZE(mm)
|
84.8x63.6
|
FULL REFRESH(s) |
19 |
|
PIXEL PITCH(mm)
|
0.212x0.212
|
POWER CONSUMPTION OF THE REFRESH(mW) |
13.2 |
|
OPERATING TEMP.
|
0℃~40℃
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

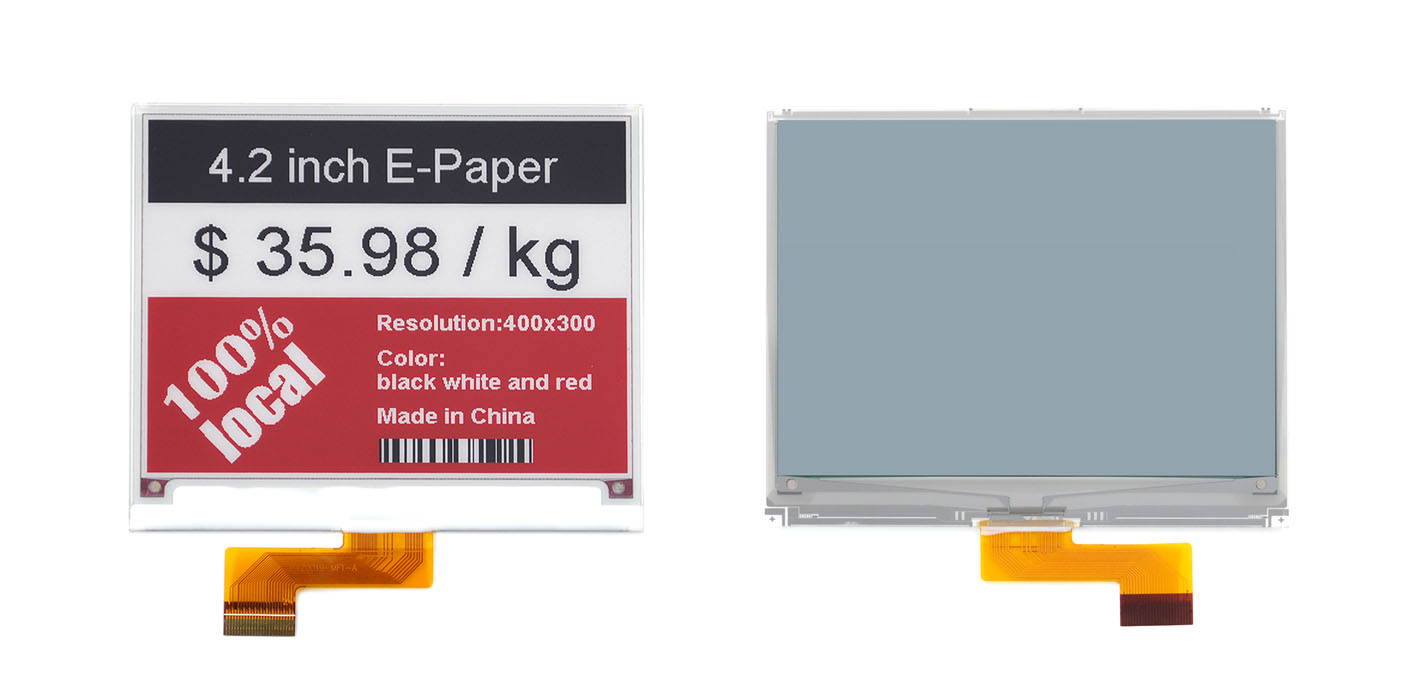

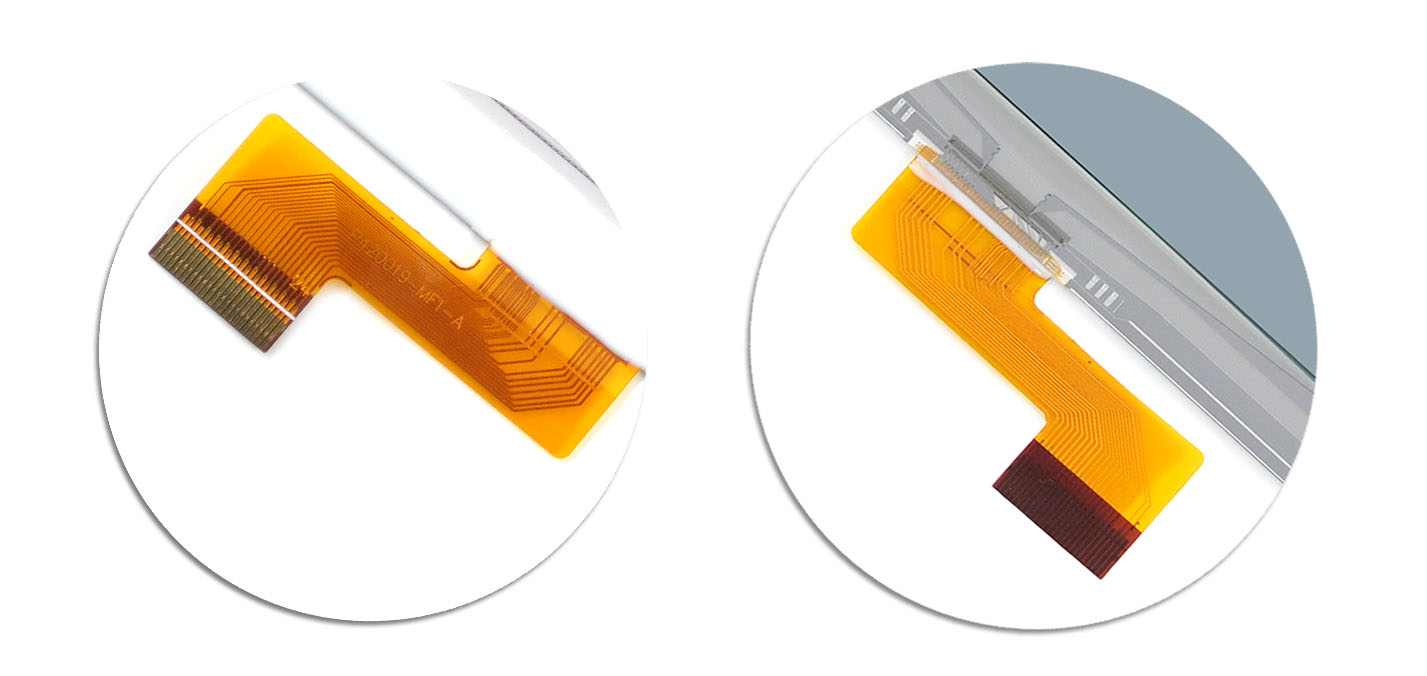

☆ DETAILS
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
