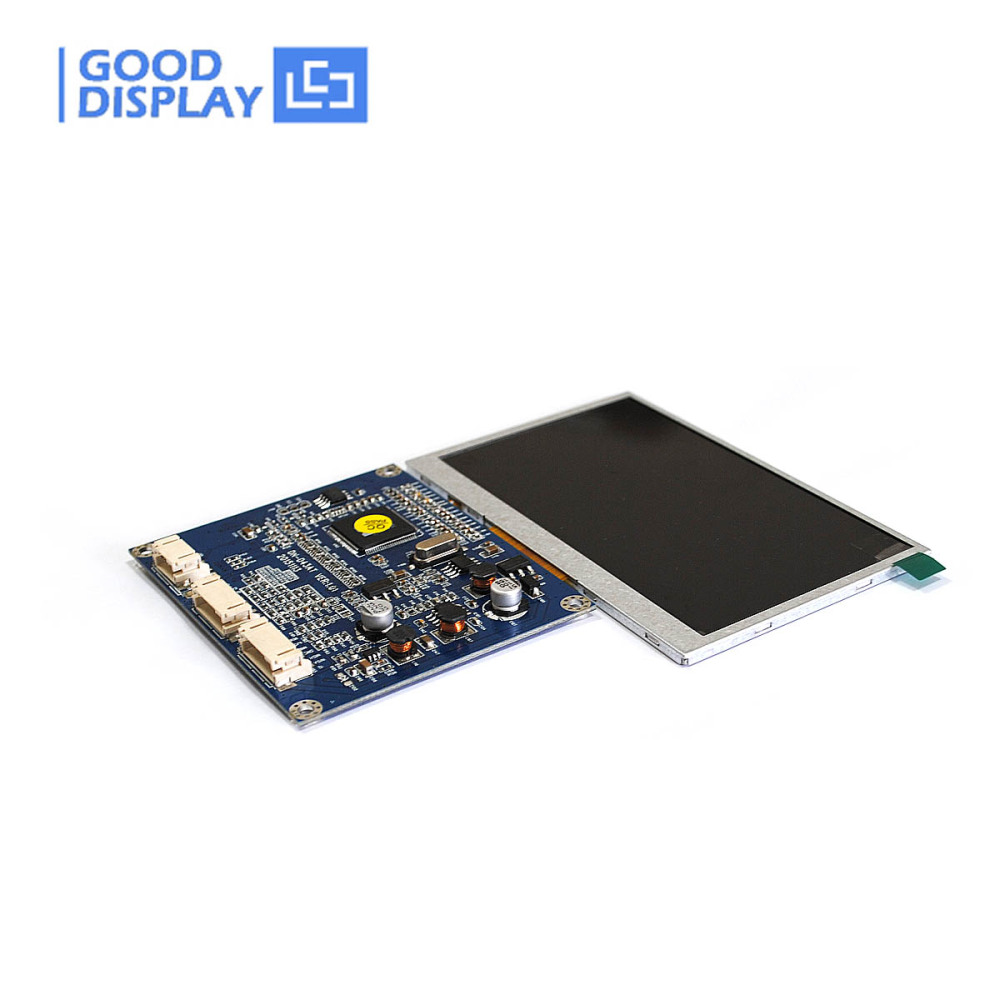

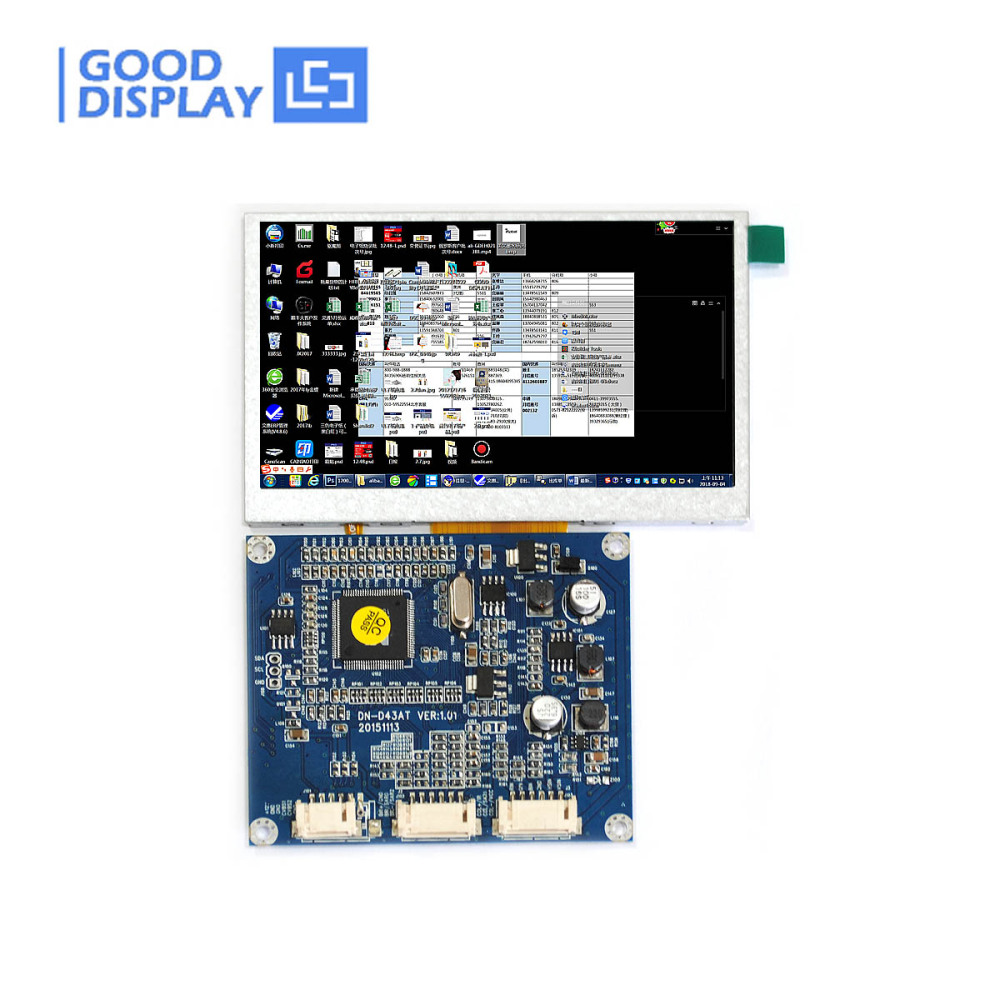

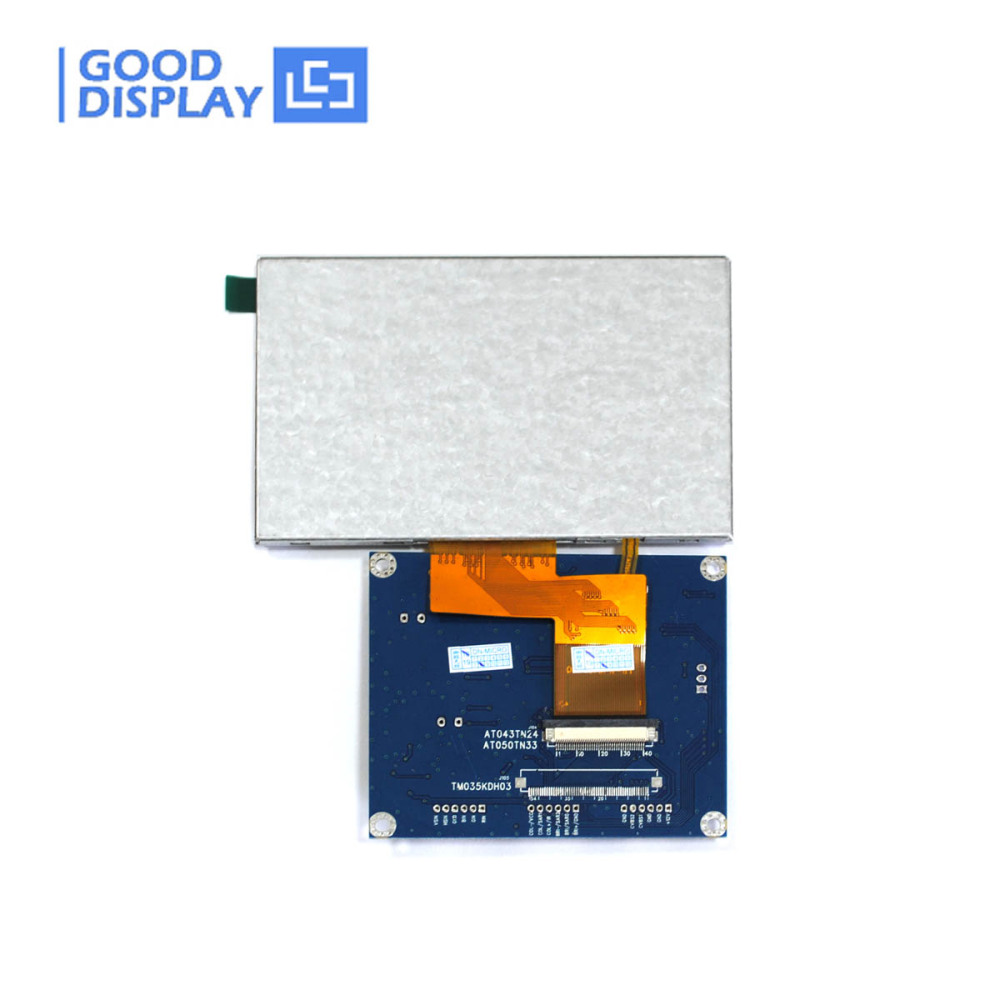

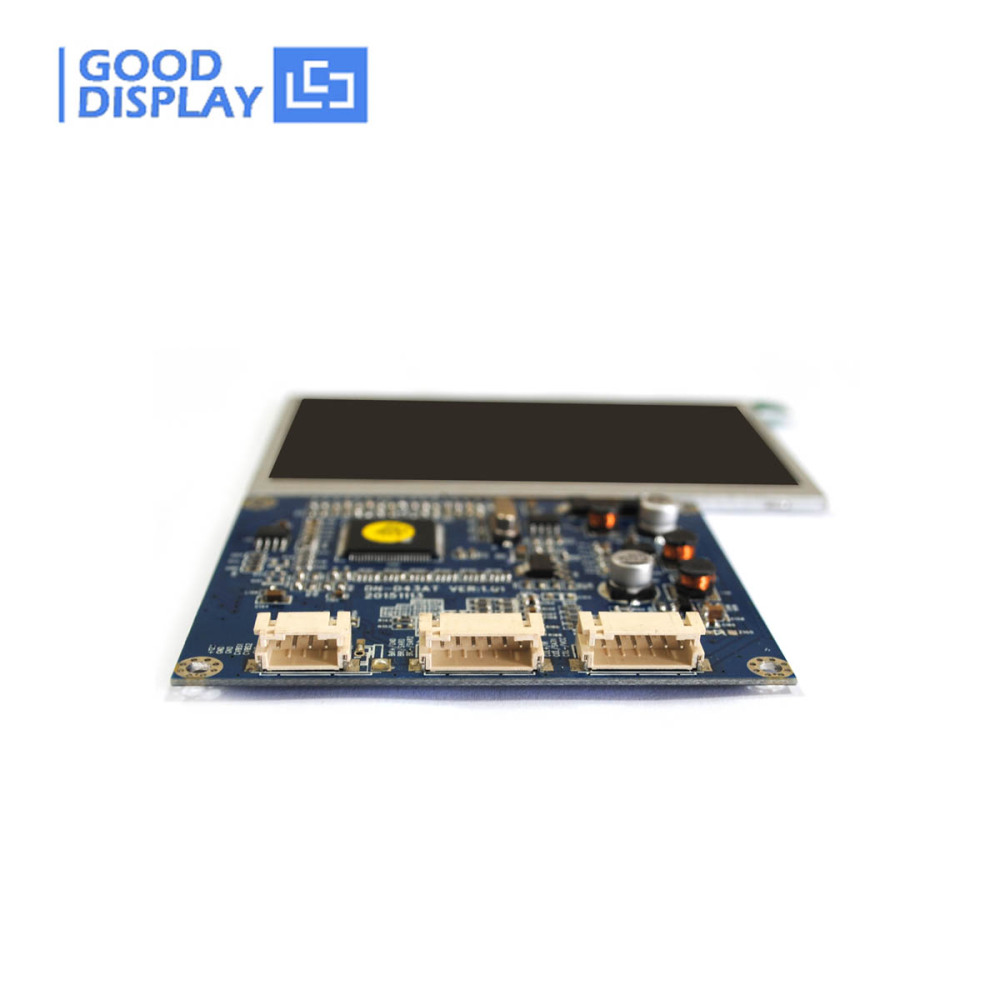

4.3 inch TFT Module 480x272 Resolution VGA, Video Color LCD Panel, GDN-D43AT-W043W03Q

SKU: GDN-D43AT-W043W03Q

(1)

6 Sold

$25.92 ~~$32.40~~

20% OFF

This 4.3 inch 480x272 color TFT-LCD module display, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

☆ INTRODUCTION

Relevant manual about this product, contact us please.

☆ FEATURE

● 480x272 resolution

● Video&VGA driver board

● Viewing Angle 50°/70°/70°/70°（U/D/R/L）

● Operating temperature -20℃~70℃

☆ THE ABOVE PRICE INCLUDE

1) 4.3 inch TFT 480x272 Resolution VGA, Video Color LCD Module * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDN-D43AT-W043W03Q
SIZE	4.3''
RESOLUTION	480x272

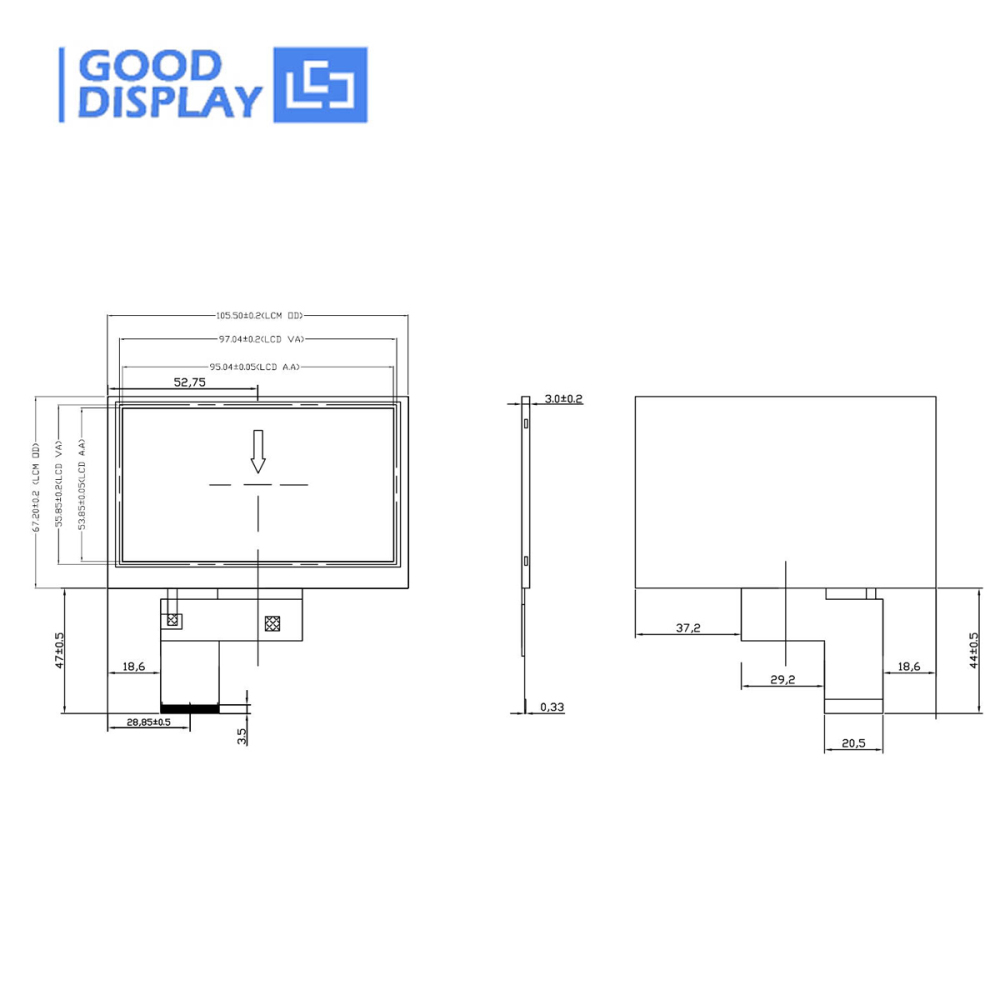

OUTSIDE DIMENSION OF LCD PANEL(mm)	105.6(W) x67.3(H) x2.85(D)
ACTIVE AREA OF LCD PANEL(mm)	95.04W) x 53.86(H)

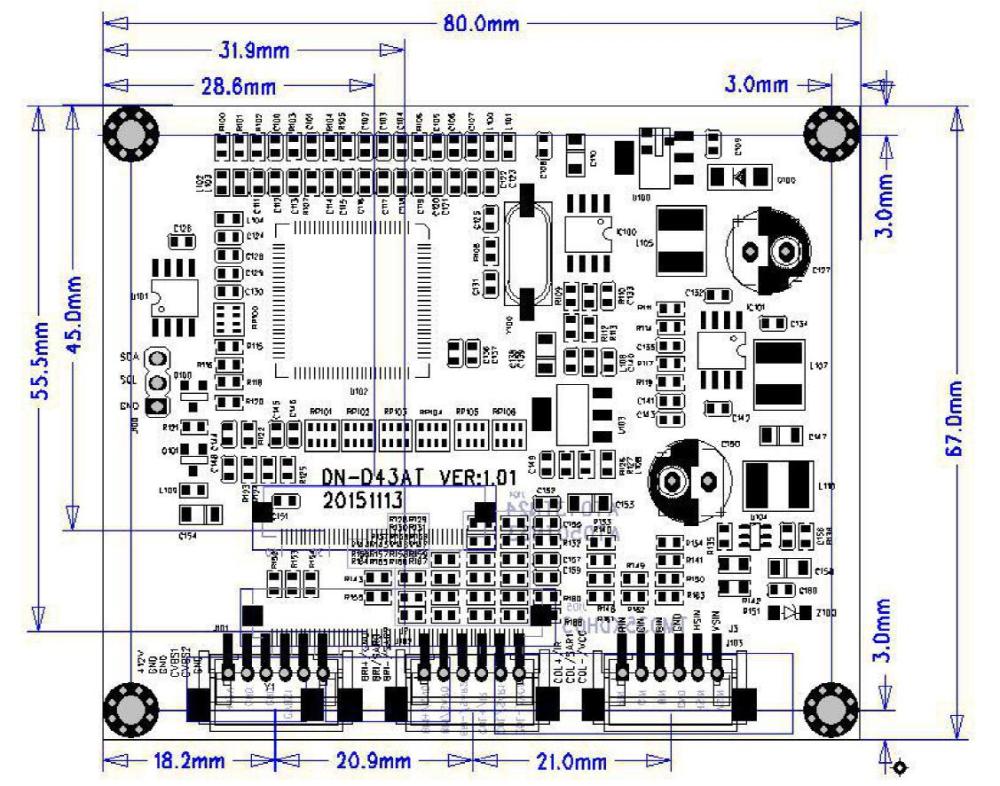

STRUCTURAL DIMENSION OF PCBA(mm)	80.0 (W) x 66.9 (H)) x 9.1(D)
SIGNAL INPUT	Video, VGA
VIEWING ANGLE (U/D/L/R)	50°/70°/70°/70°
OPERATING TEMP.	-20℃~70℃
STORAGE TEMP.	-30℃~80℃
WORKING VOLTAGE	DC12.0(Typ.)
BRIGHTNESS	500cd/m2
BACKLIGHT	LED

☆ PRECAUTIONS

1. When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.

2. The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.

3. The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
