☆ THE ABOVE PRICE INCLUDE

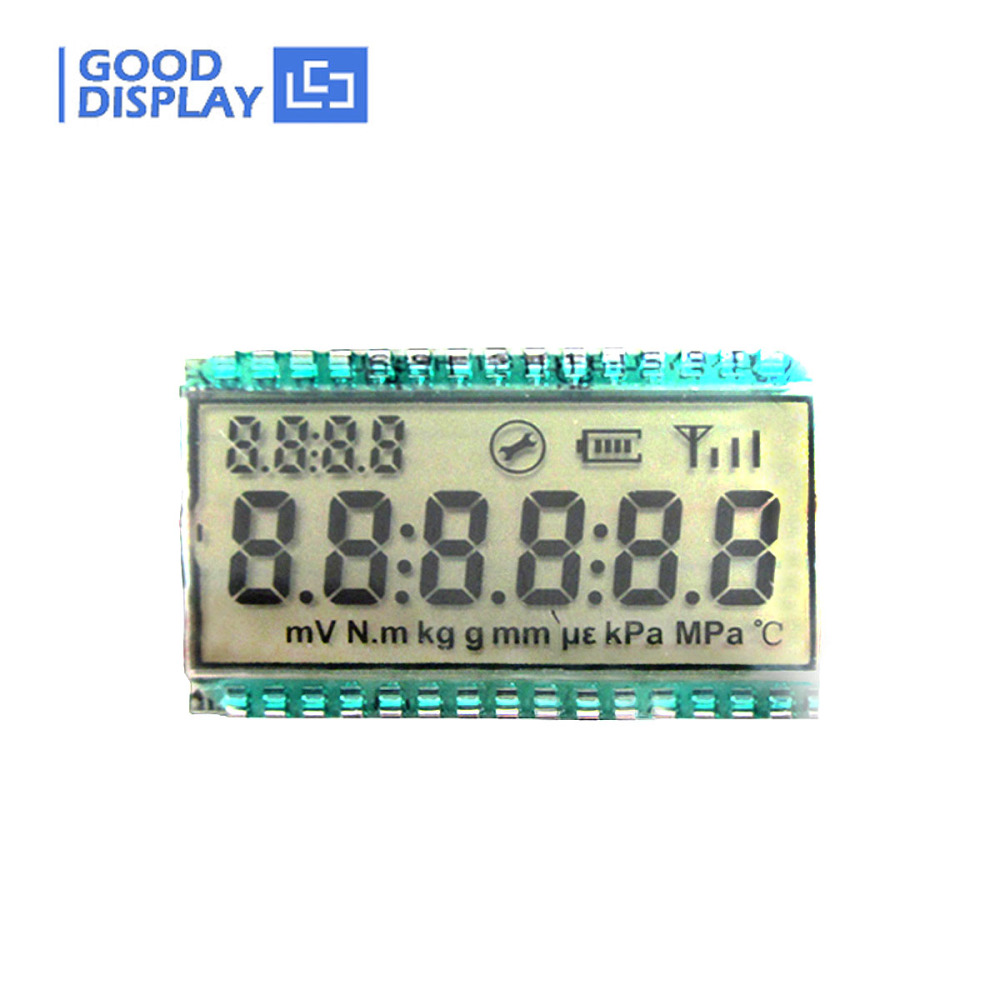

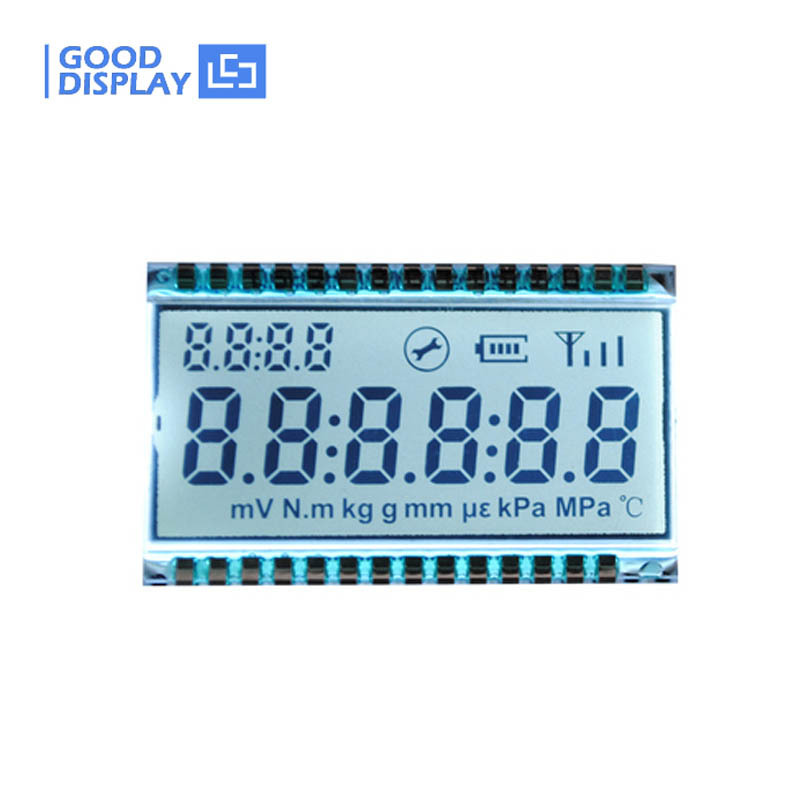

1) 6 digit low temperature TN Positive LCD screen ,GDC0689 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDC0689 |
| DISPLAY CONTENT |
6 Digits |
OPERATING TEMP. |
Super Extended temp: -40℃~80℃ |
| OUTLINE DIMENSION |
42x25x2.8 |
STORAGE TEMP. |
Super Extended temp: -45℃~85℃ |
| ACTIVE AREA |
39x17 |
MULTIPLEX LEVEL |
1/4 Duty, 1/3 Bias |
| VIEWING DIRECTION |
6 o'clock |
DISPLAY TYPE |
TN Positive |
| OPERATING VOLTAGE |
3.0V |
POLARIZER MODE |
Reflective/Transflective |
| CONNECTOR |
29 Pins, Pin Length is 10mm(Optional) |
|
|
☆ FEATURE
● Low power consumption
● With pin connection and easy driving
● Wider operating temperature -20℃~70℃
● Low cost and plenty stock
☆ DETAILS
☆ ABOUT US
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
|
PART NUMBER
|
DIGIT
|
OUTLINE DIMENSION
|
ACTIVE(VIEW) AREA
|
DRIVE METHOD
|
|
GDC02693
|
2
|
7.5x10x1.1mm
|
5.5x4.0mm
|
1/4D,1/2B
|
|
GDC0209
|
4
|
23x10x2.8mm
|
20x6mm
|
1/4D,1/3B
|
|
GDC0178
|
11
|
--
|
--
|
1/4D,1/3B
|
|
GDC8811D
|
--
|
36.00x36.00x2.00mm
|
33.00x31.00mm
|
Static
|
|
GDC21310
|
2
|
30x21x2.8mm
|
27x16mm
|
1/4D,1/3B
|
|
GDC03828
|
5
|
81.0×37.5×2.8mm
|
78.0×27.5mm
|
Static
|
|
GDC6375
|
--
|
98x34.3x2.8mm
|
92.64x24.94mm
|
1/4D,1/3B
|
|
GDC130
|
4
|
51.0x34.0x2.8mm
|
48.0x25.0mm
|
1/4 D, 1/3 B
|
| GDC1156 |
6 |
253x65.5x2.8mm |
250x60mm |
1/4 D, 1/3 B |
| GDM0689 |
6 |
58.0x28.0x6.70mm |
39.0x17.0mm |
1/4Duty |
|
GDM0328
|
8
|
55.8x37x2.8mm
|
45x27mm
|
1/4D,1/3B
|
|
GDC0689
|
6
|
42x25x2.8mm
|
39.0x17.0mm
|
1/4 D, 1/3 B
|
| GDC9188 |
12 |
156x99x2.8mm |
148x87mm |
Static |
|
EDM1190-03
|
4
|
72.8x35.5x10.7mm
|
54.2x24mm
|
Static
|
|
EDC103
|
8
|
64x22.0x2.8mm
|
60.5x13.5mm
|
1/4D,1/3B
|
|
EDC190
|
4
|
50.8x30.48x2.8mm
|
45.72x17.78mm
|
Static
|
|
EDS819
|
2-1/2
|
30.0x26.17mm
|
26.0x17.17mm
|
Static
|
|
EDS816
|
4
|
93.98x45.72x2.8mm
|
86.36x30.48 mm
|
Static
|
|
EDS815
|
4
|
69.85x38.1x2.8mm
|
62.23x22.86mm
|
Static
|
| EDS805 |
4 |
50.8x30.48x2.8mm |
45.72x16.51mm |
Static |
|
EDS809
|
6
|
69.85x30.48x2.8mm
|
64.77x16.51mm
|
Static
|
|
EDS810
|
6
|
93.85x38.1x2.8mm
|
86.36x24.13mm
|
Static
|
|
YM0801B
|
--
|
55.0x17.0x8.5mm
|
39.5x8.0mm
|
--
|
|
YM0802B
|
--
|
58.0x32.0x13.0mm
|
38.0x16.0mm
|
--
|
|
YM0802SYG-3
|
--
|
58x32x13.2mm
|
39x16mm
|
--
|
|
YM12864C
|
--
|
78x70x13mm
|
62x44mm
|
--
|
|
YM1601A
|
--
|
80.0x36.0x13.0mm
|
64.5x14.0mm
|
--
|
|
YM1604C
|
--
|
77.0x51.0x13.0 mm
|
61.7x25.2 mm
|
--
|
|
YM1602C
|
--
|
80.0x36.0x12.5mm
|
64.5x15.8mm
|
--
|
|
YM1602L
|
--
|
122.0x44.0x14.0mm
|
99.0x24.0 mm
|
--
|
|
YM128128G-3
|
--
|
46.5x56.7x4.0mm
|
39.64x46.04mm
|
--
|
|
YM320240B-3
|
--
|
139.0x120.0x13.2mm
|
103.0x79.0mm
|
--
|
|
YM19264A
|
--
|
130.0x65.0x13.0mm
|
104.0x39.0mm
|
--
|
|
YM12864FS-655
|
--
|
70.0x50.0x5.8mm
|
67.0x37.0mm
|
--
|
|
YM0802A-1
|
--
|
40.0x35.8x12.0mm
|
25.74x9.48mm
|
--
|
|
YM12864-G35
|
--
|
80.2x51.2x5.6mm
|
66.52x33.24mm
|
--
|
|
YM12864J
|
--
|
93.0x70.0x14.0mm
|
70.7x38.8mm
|
--
|
| YM12864J-7 |
-- |
93x70x13.5mm |
72x40mm |
-- |
