☆ INTRODUCTION

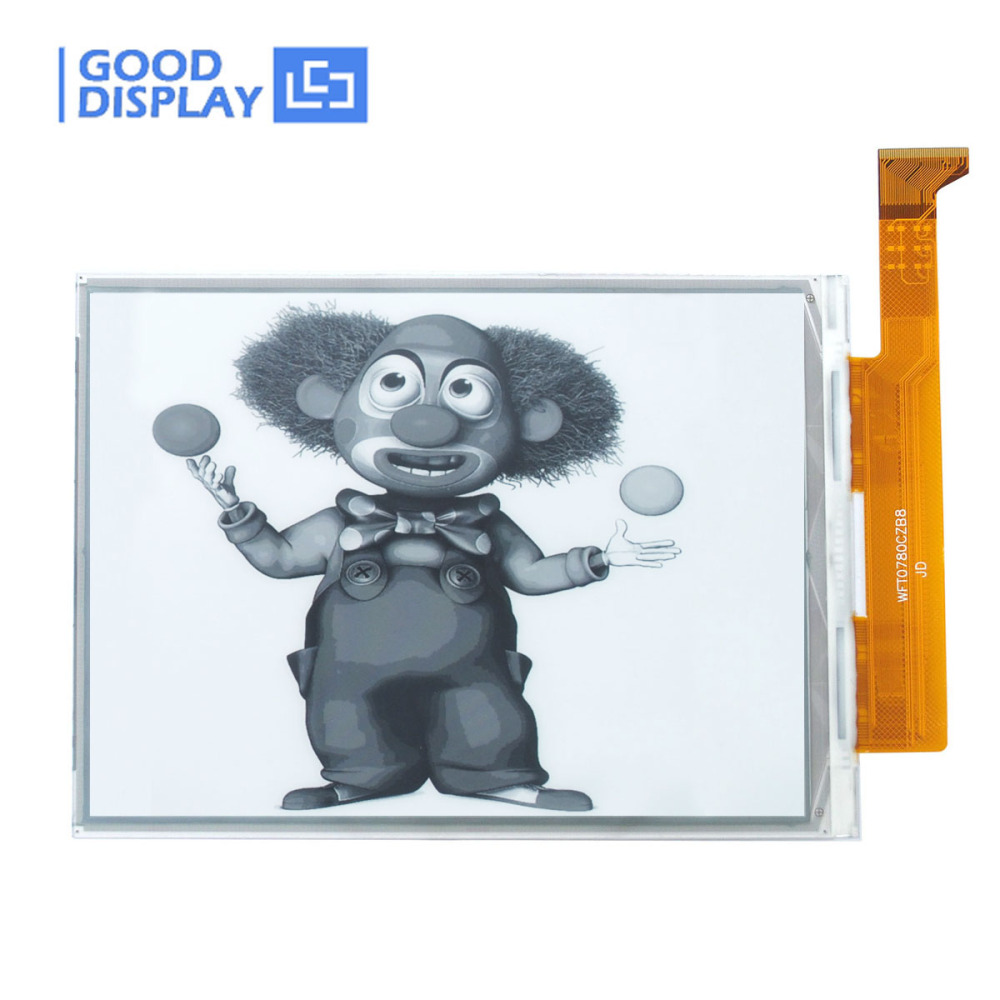

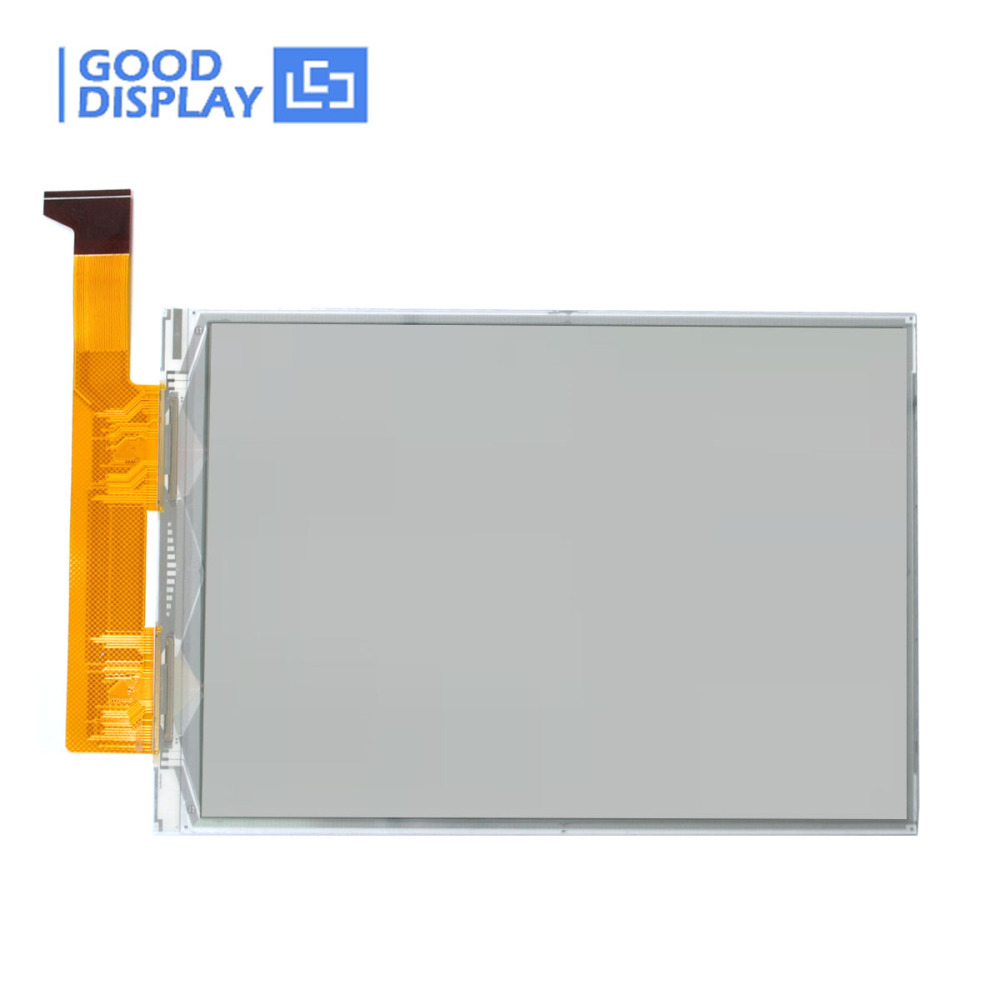

This is a DES (what is DES?) 7.8 inch epaper screen with 1872x1404 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Contrast Ratio is higher than normal e-paper display.
● Bistable. (Will continue to display with no power source)
● Wide operating temperature range: -10℃~60℃ (Normal epaper screen: 0~50℃, Normal color eepaper screen: 0℃~40℃, low temperature epaper screen:-20℃~25℃).
☆ THE ABOVE PRICE INCLUDE
1) 7.8 inch DES electronic ink display black-white 1872x1404 e-paper display * 1pc

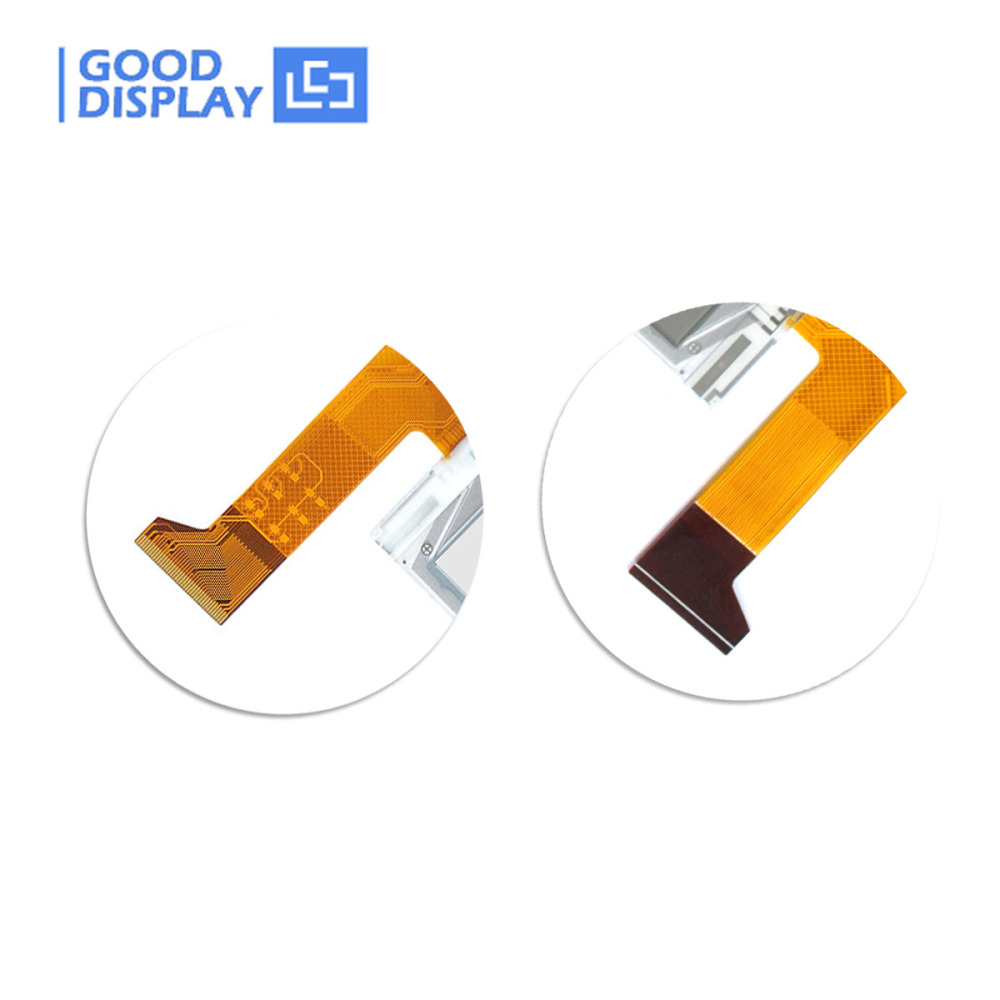

2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW078M01
|
|
SIZE
|
7.8 inch
|
|
TECHNOLOGY
|
DES
|
|
RESOLUTION
|
1872x1404
|
|

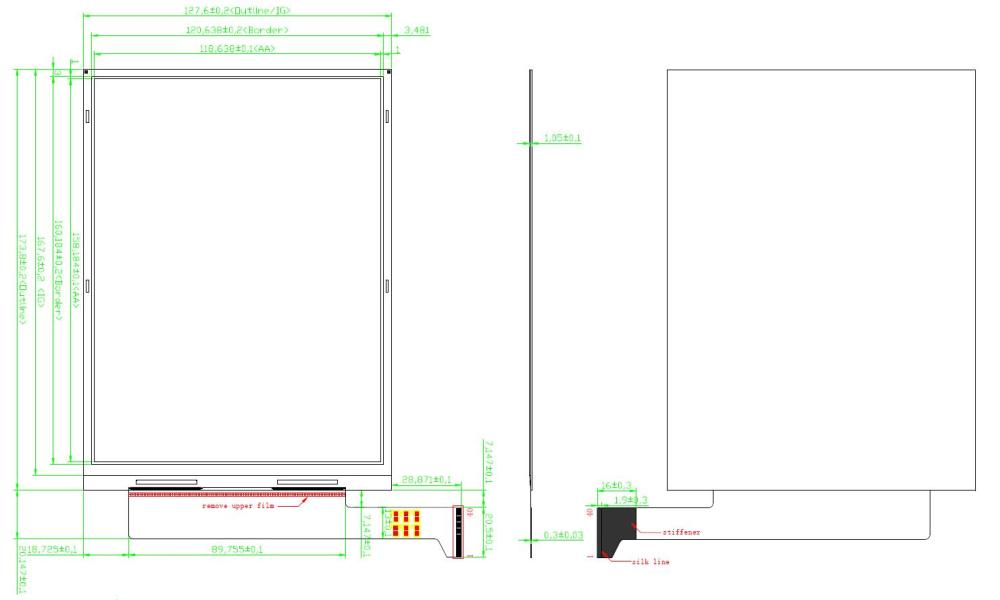

OUTLINE SIZE(mm)
|
127.6x173.8x1.05
|
|
ACTIVE SIZE(mm)
|
118.638x158.184
|
|
PIXEL PITCH(mm)
|
0.0845x0.0845
|
|
OPERATING TEMP.
|
-10℃~60℃
|
|
STORAGE TEMP.
|
-25℃~75℃
|
|
CONNECTOR
|
40 Pin
|
|
MAX GRAYSCALE
|
16
|
|
COLOR
|
Black, White
|
|
INTERFACE
|
Parallel
|
|
FULL REFRESH(s)
|
1
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
285
|
|
STANDBY POWER CONSUMPTION (mW)
|
1.3
|
