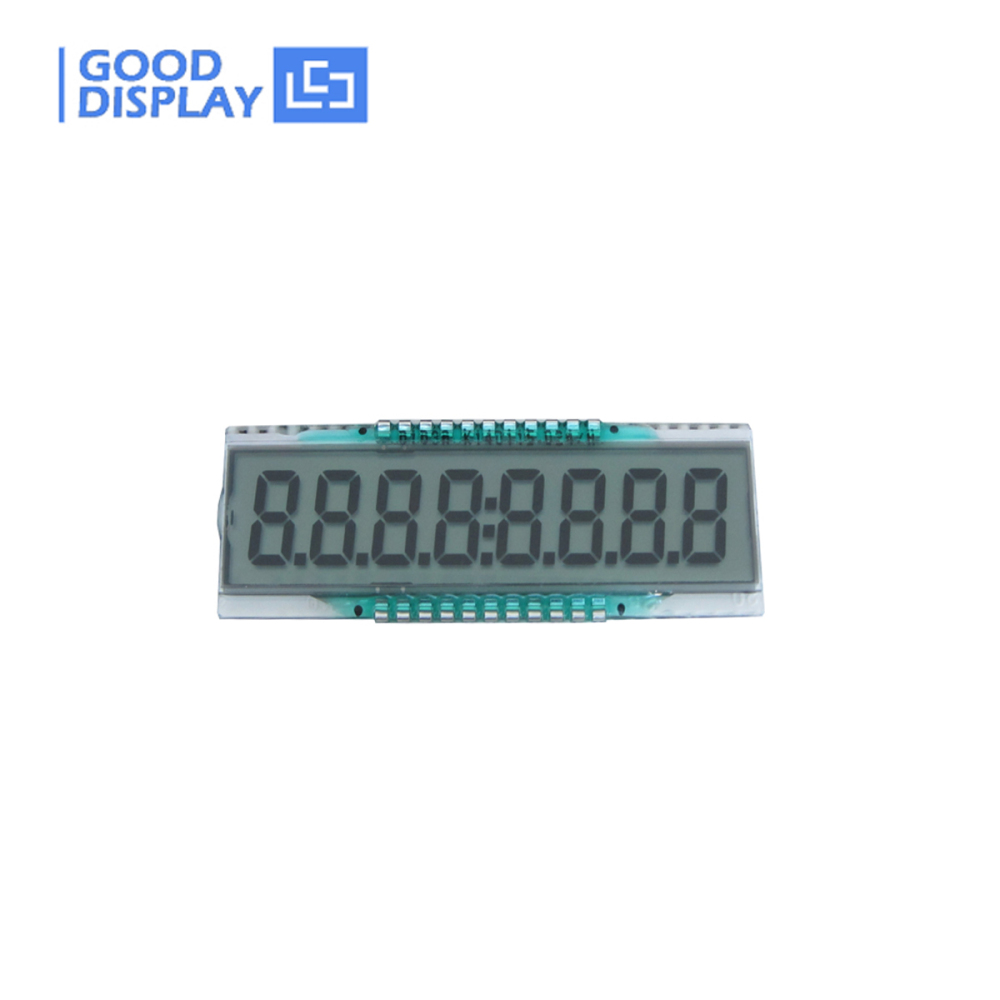

10 pieces 8-digit LCD Panel Graphic Dot Matrix 5V 12 o'clock LCD, EDC103

SKU: EDC103(10 pieces)
(0)
0 Sold
$10.08 $12.60
20% OFF
10 pieces 8-digit LCD Panel EDC103(5V, 12 o'clock)
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
2-4
12% Off
5-9
15% Off
10-1000000
    Please select the information you want X
  • EDC103KDCCP7:
    12:00 O'CLOCK
    5.0V
  • EDC103DC2P13:
    6:00 O'CLOCK
    3.3V
    Please select the information you wantX
Quantity:
0 in stock
1 * $10.08 = $10.08
save $0.00
  • 10 pieces 8-digit LCD Panel Graphic Dot Matrix 5V 12 o'clock LCD, EDC103
  • 10 pieces 8-digit LCD Panel Graphic Dot Matrix 5V 12 o'clock LCD, EDC103
1/1
  • 10 pieces 8-digit LCD Panel Graphic Dot Matrix 5V 12 o'clock LCD, EDC103
Frequently Bought Together
more
Frequently Bought Together
  • Description





☆ MAIN PARAMETERS




Part Number EDC103
Display content 8-digits Operating Temp. Extended temp LCD: -20℃—70℃

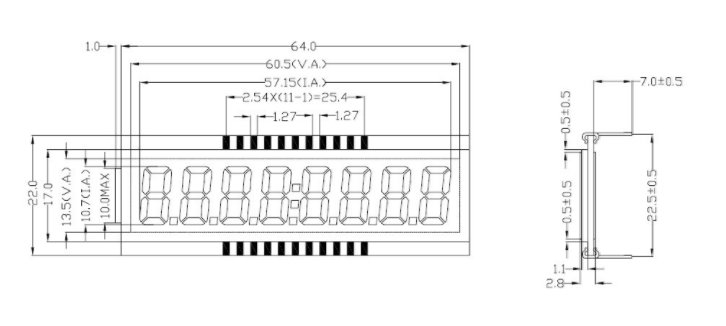

Outline Dimension 64x22.0x2.8mm Storage Tempe. Extended temp LCD: -30℃—80℃
Active Area 60.5x13.5mm Drive method 1/4Duty  1/3Bias
Viewing Direction 6:00  o'clock Display Type TN Positive
Backlight Color White ,(Optional) Polarizer Mode Transflective/
Operating Voltage 3.3 V Connector Pin (16 Pins) Pin Length is optional
