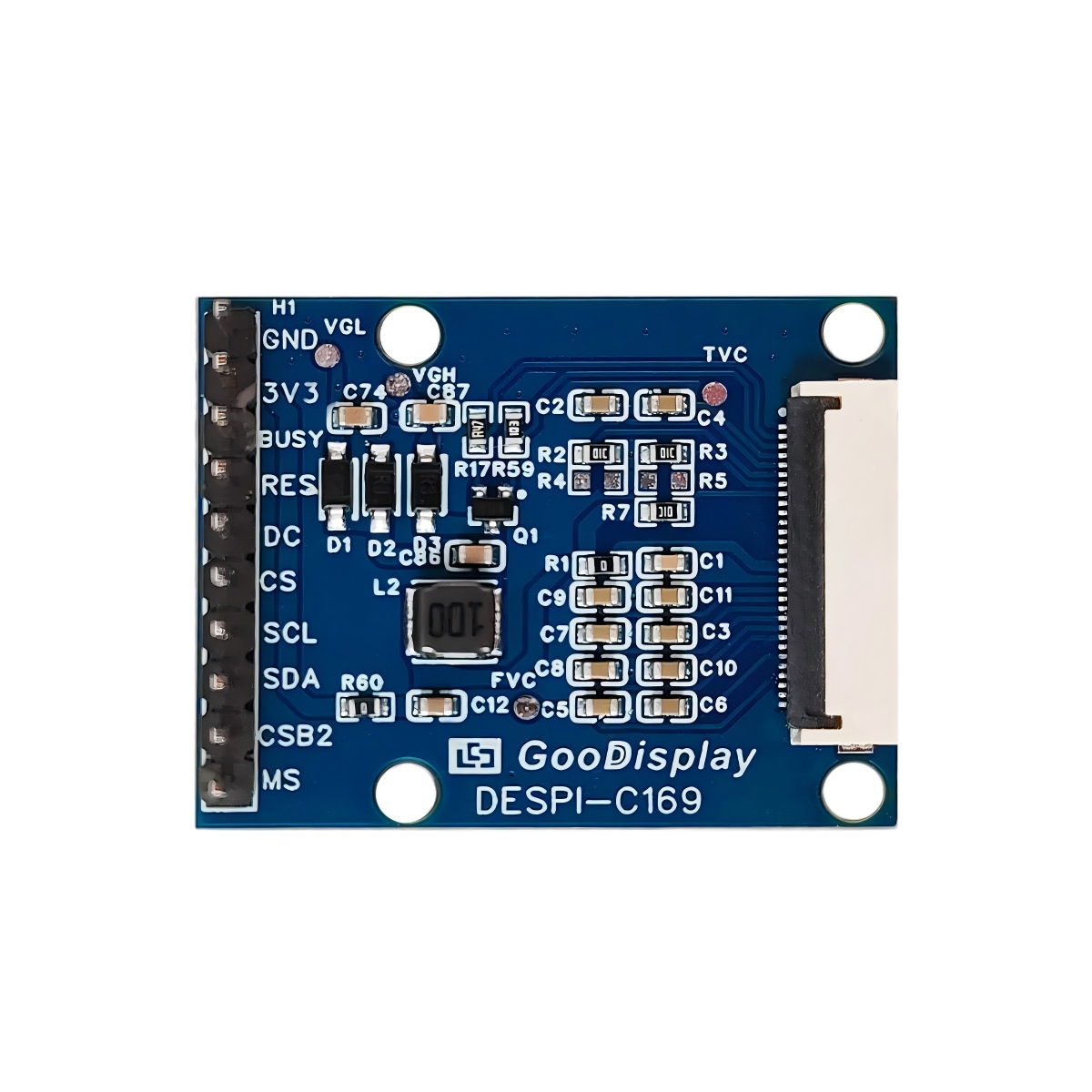

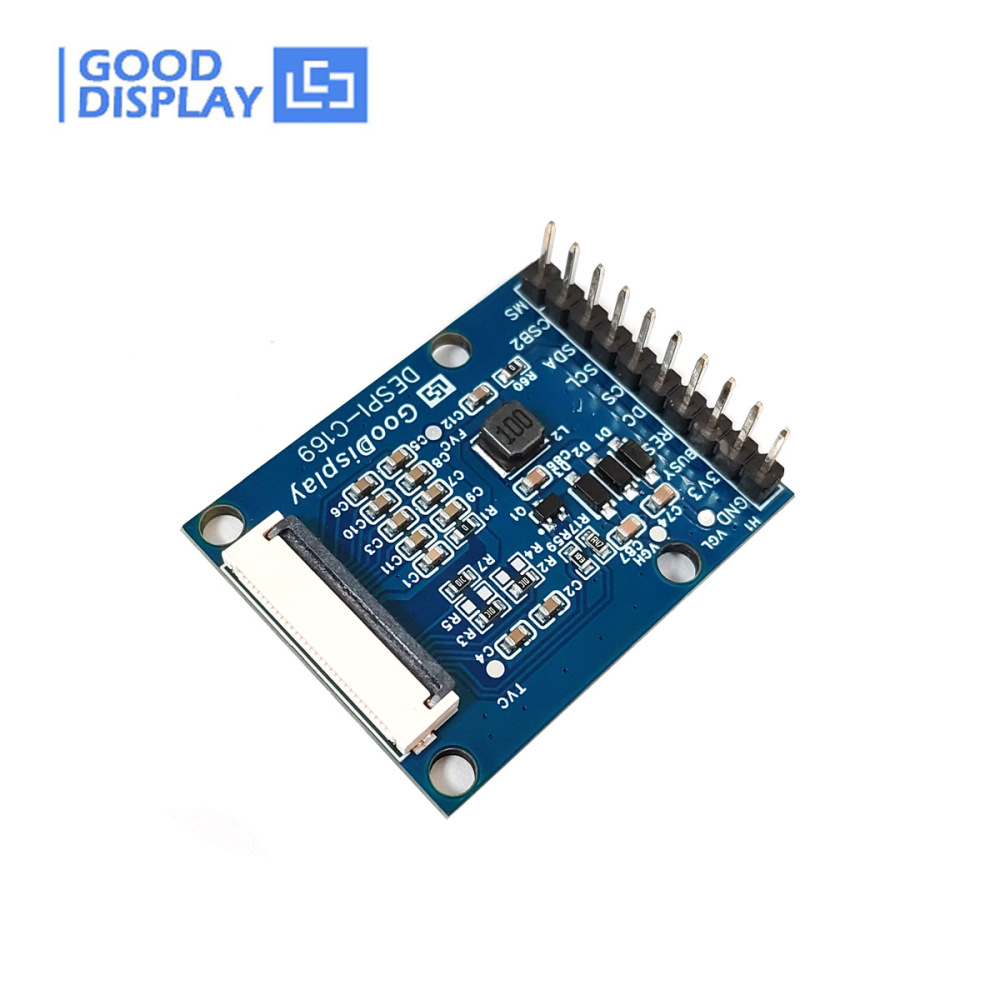

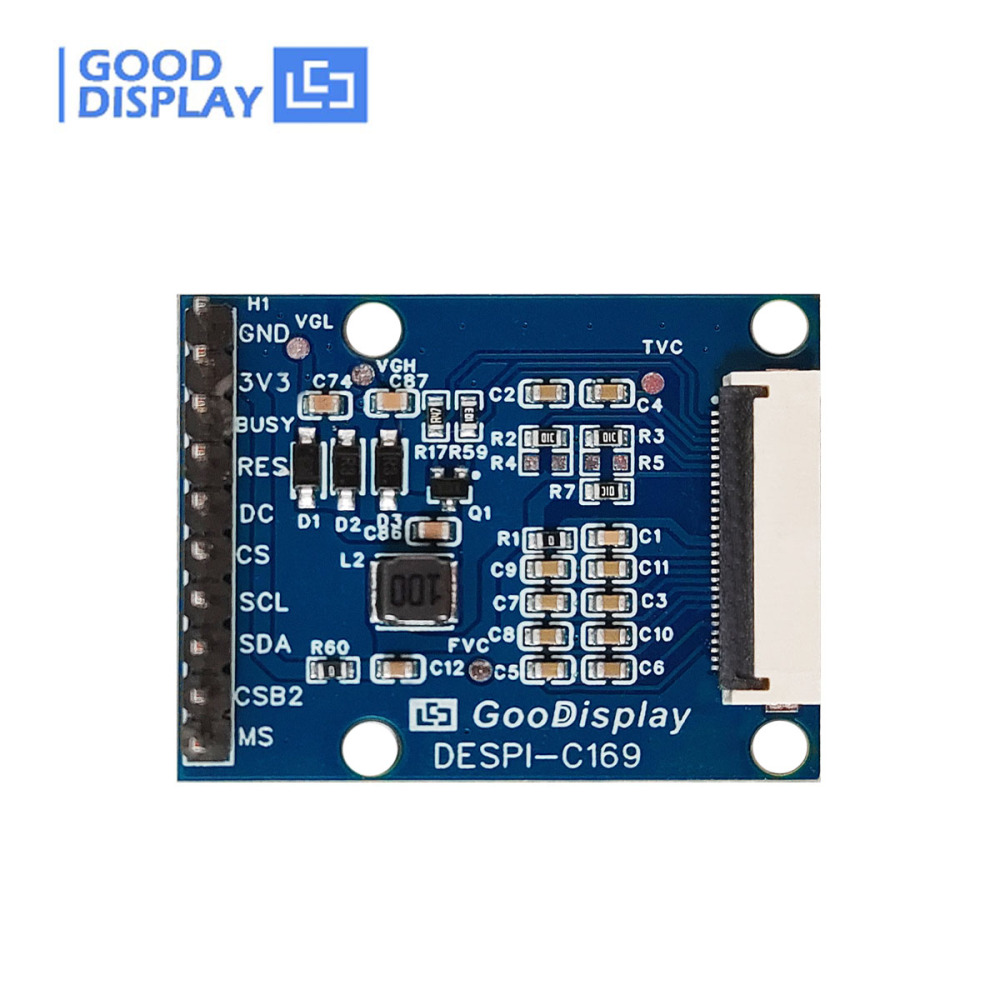

The DESPI-C169 is a high-performance adapter board specifically engineered for the 1.69-inch E-Ink Spectra 6 display. Designed for developers, hobbyists, and engineers, this E-Ink HAT eliminates the complexity of direct interfacing.

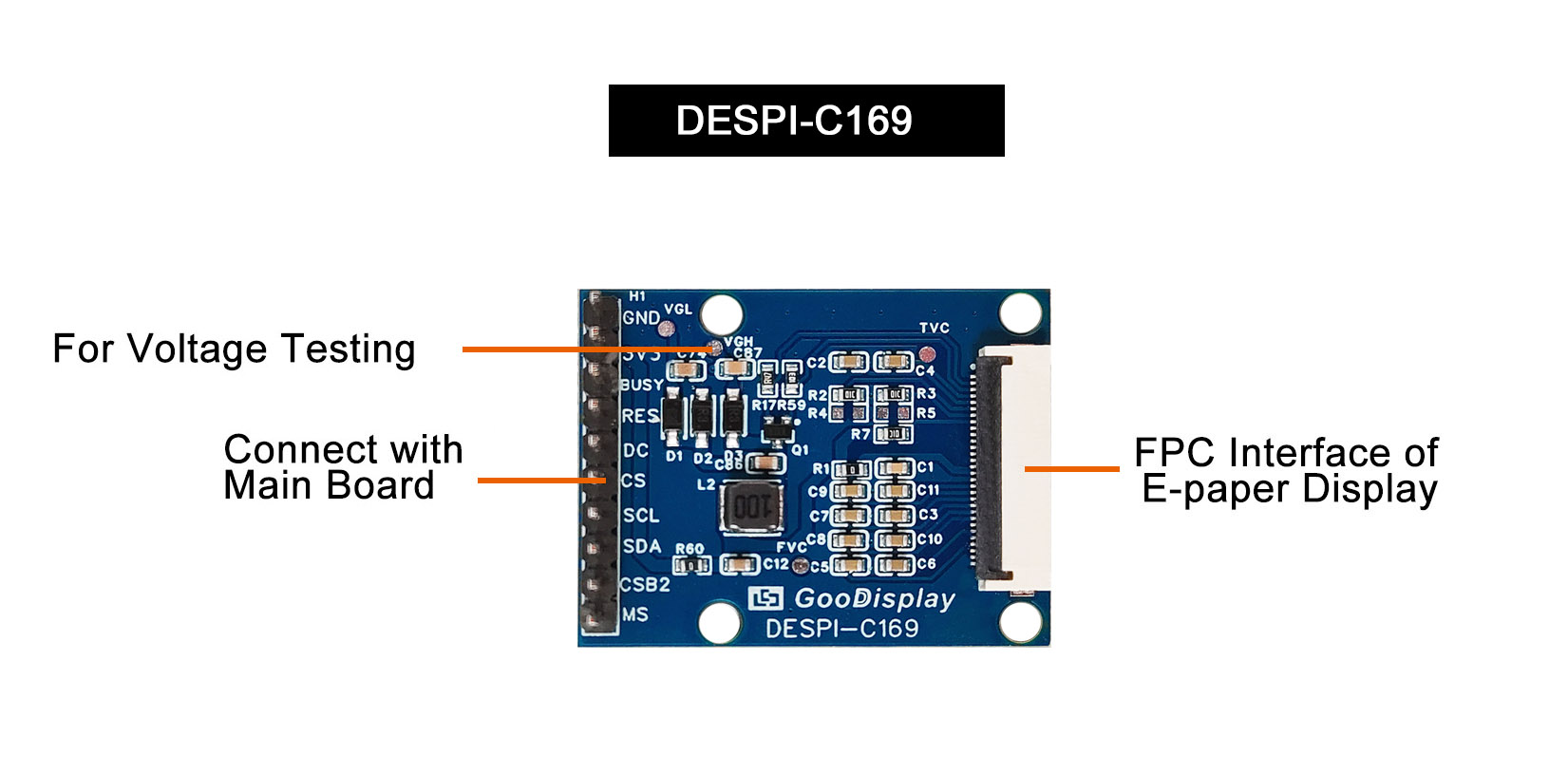

Arrives fully assembled and ready to use. Simply connect the 1.69" Spectra 6 display to the 30-pin FPC connector (0.5mm pitch) and start developing immediately.
Perfectly compatible with popular development platforms including STM32 (via SPI) and various Arduino models. A single board serves all your prototyping needs.

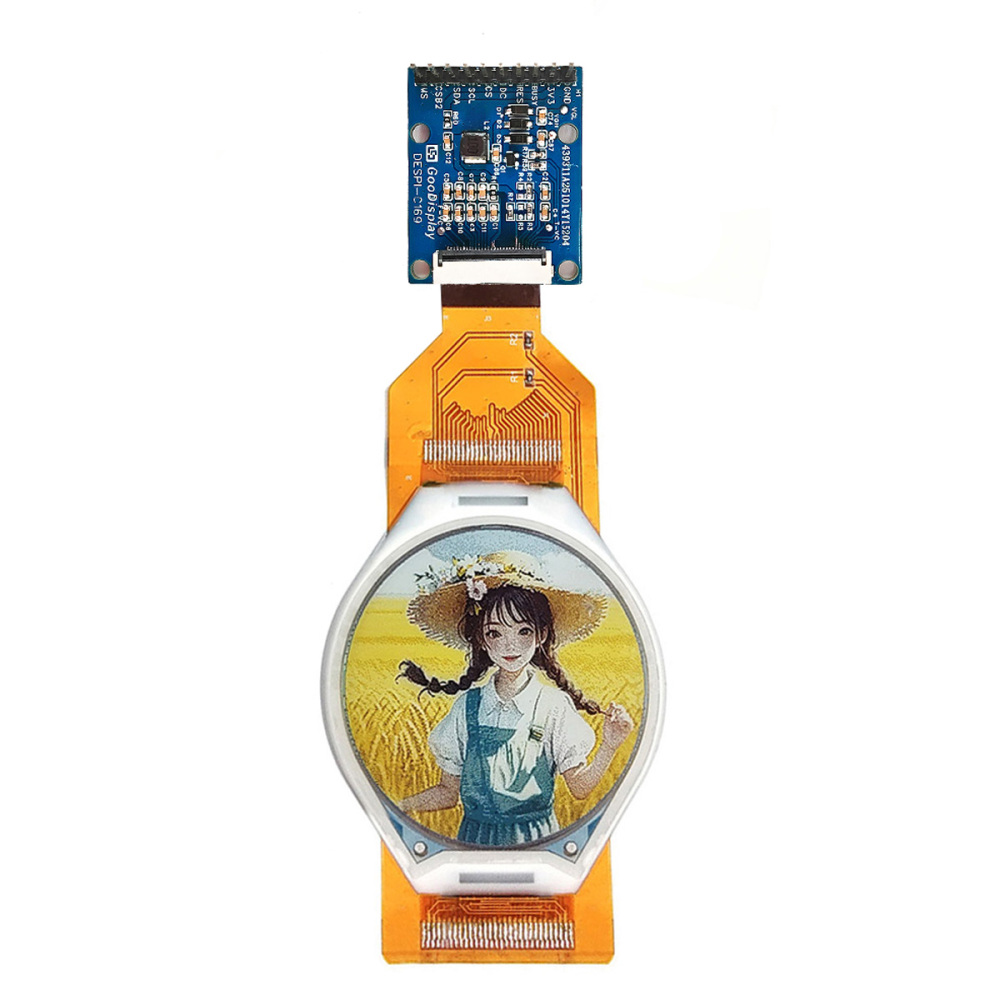

Reliably drives the high-resolution 1.69" E-Ink Spectra 6 panel, ensuring sharp contrast and stable performance for your e-paper applications.
Direct connection with various mainstream development boards for seamless development experience:
| Pin Functions | Function Description |
|---|---|
| BUSY | Busy status indicator (active low) |
| RES | Reset signal (active low) |
| DC | Data/Command selection |
| CS/CSB2 | Chip select signals |
| SCL/SDA | SPI communication |
| MS | Master/Slave cascading |
| Power Management | Function Description |
|---|---|
| VGH | Positive gate voltage (+20V) |
| VGL | Negative gate voltage (-20V) |
| TVC/FVC | VCOM voltage test points |
| Power Efficiency | Ultra-low deep sleep current |
| Converters | Integrated boost converters |
Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.
95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.
90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.
ISO 14001 Environmental Management
RoHS Compliant | Energy Star Certified

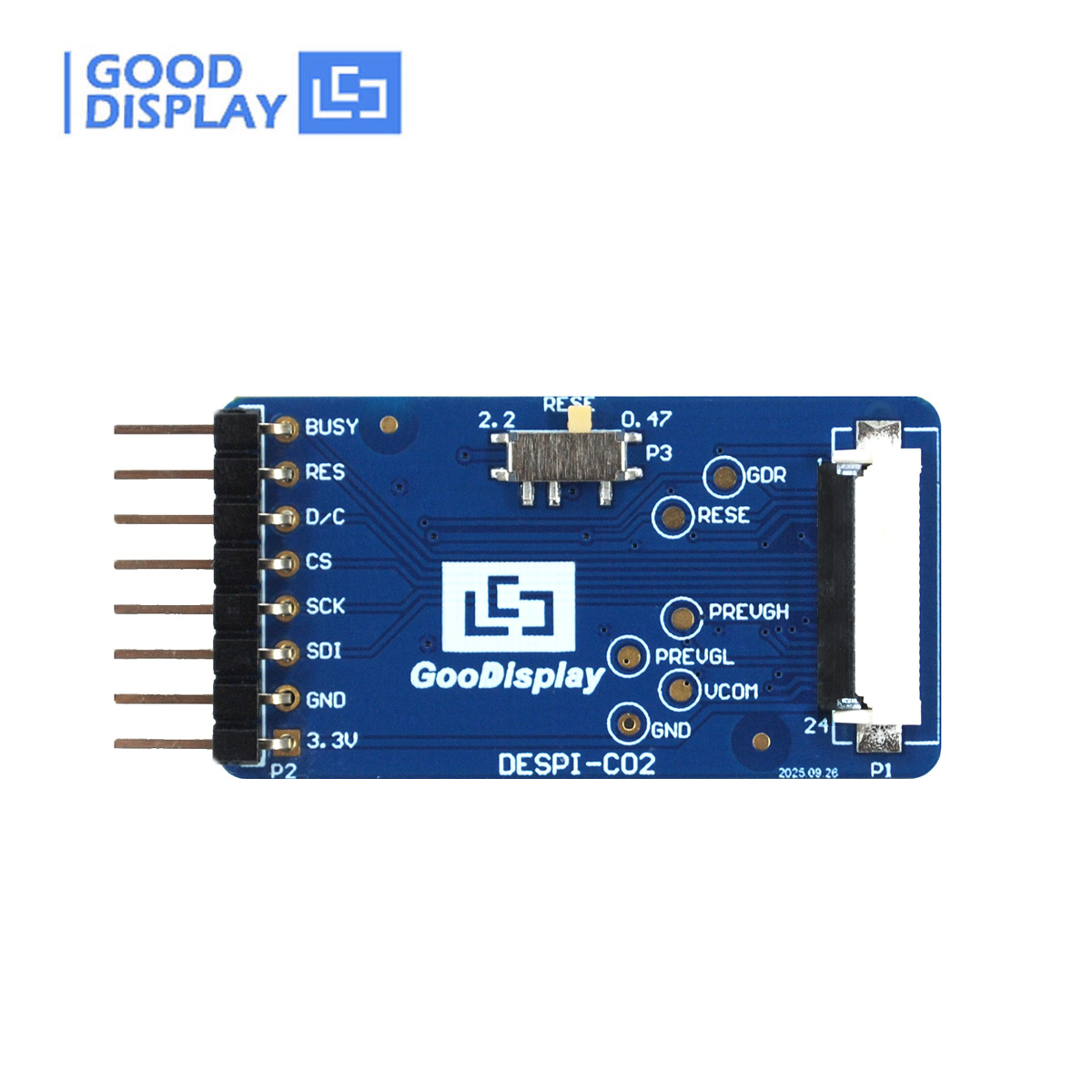

DESPI-C02 Adapter Board

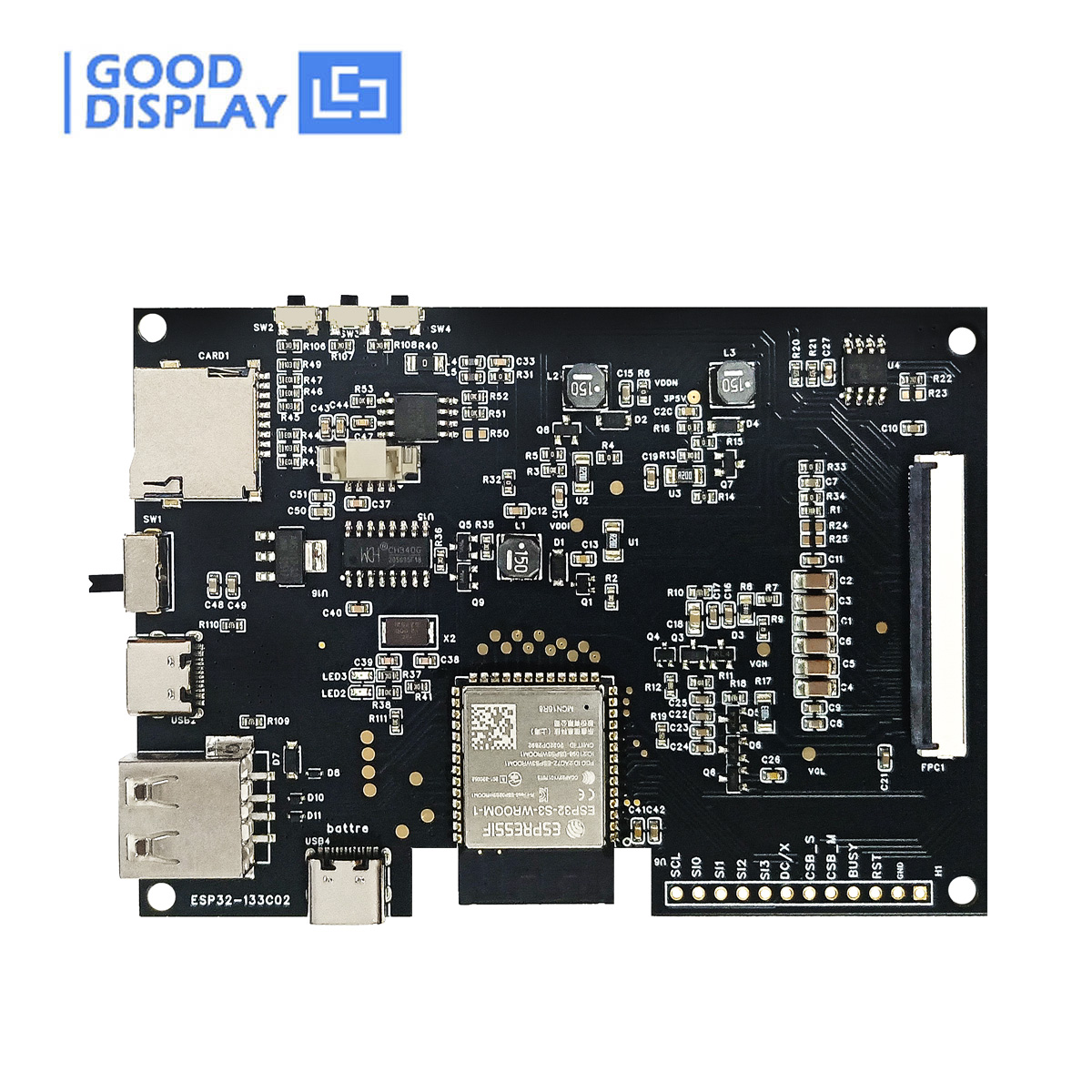

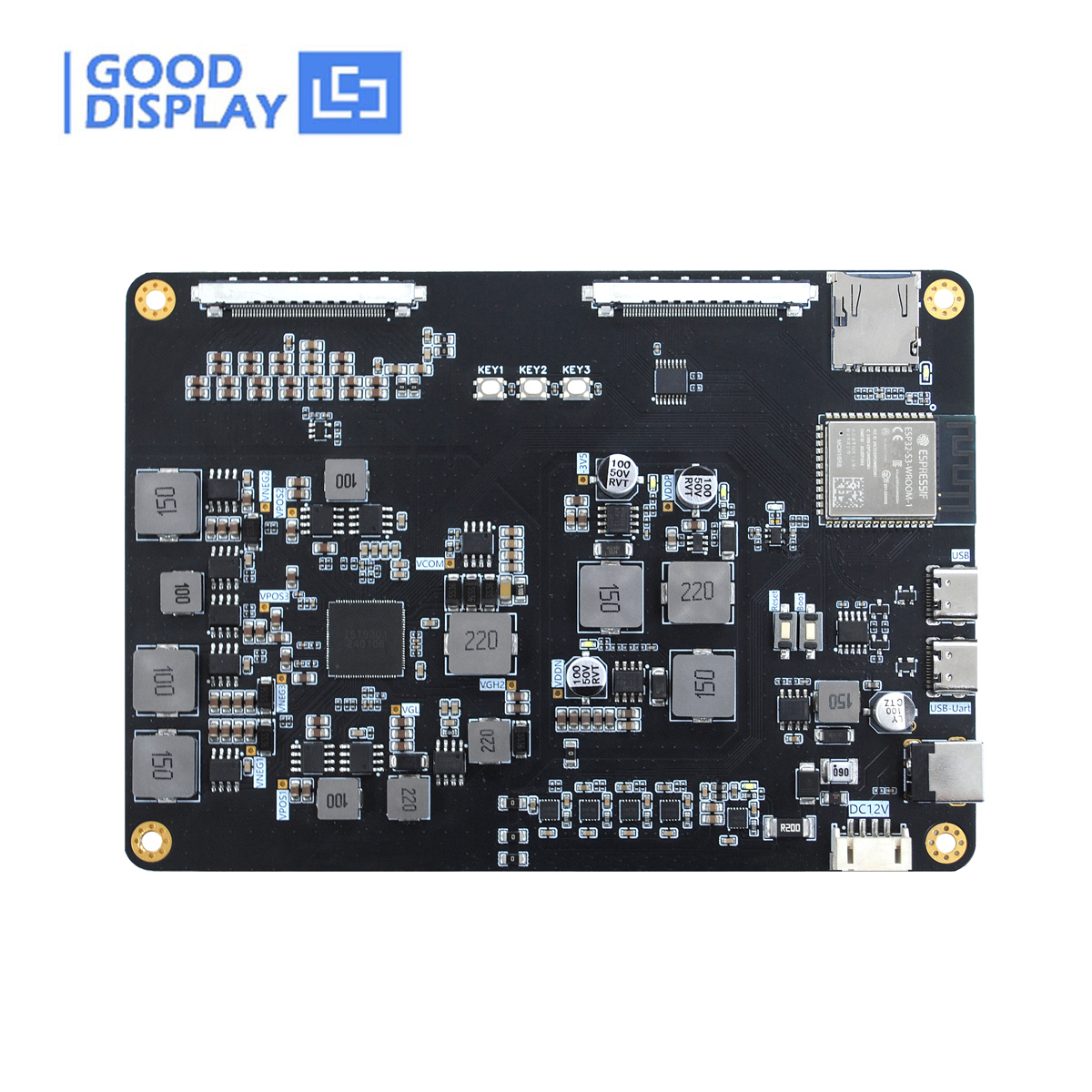

4 & 7.3" E6 Driver Board
