☆ INTRODUCTION
ESP32-L(T01) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers. And it is added the functions of LED indicator light, Reset button, font chip, Flash chip and etc.

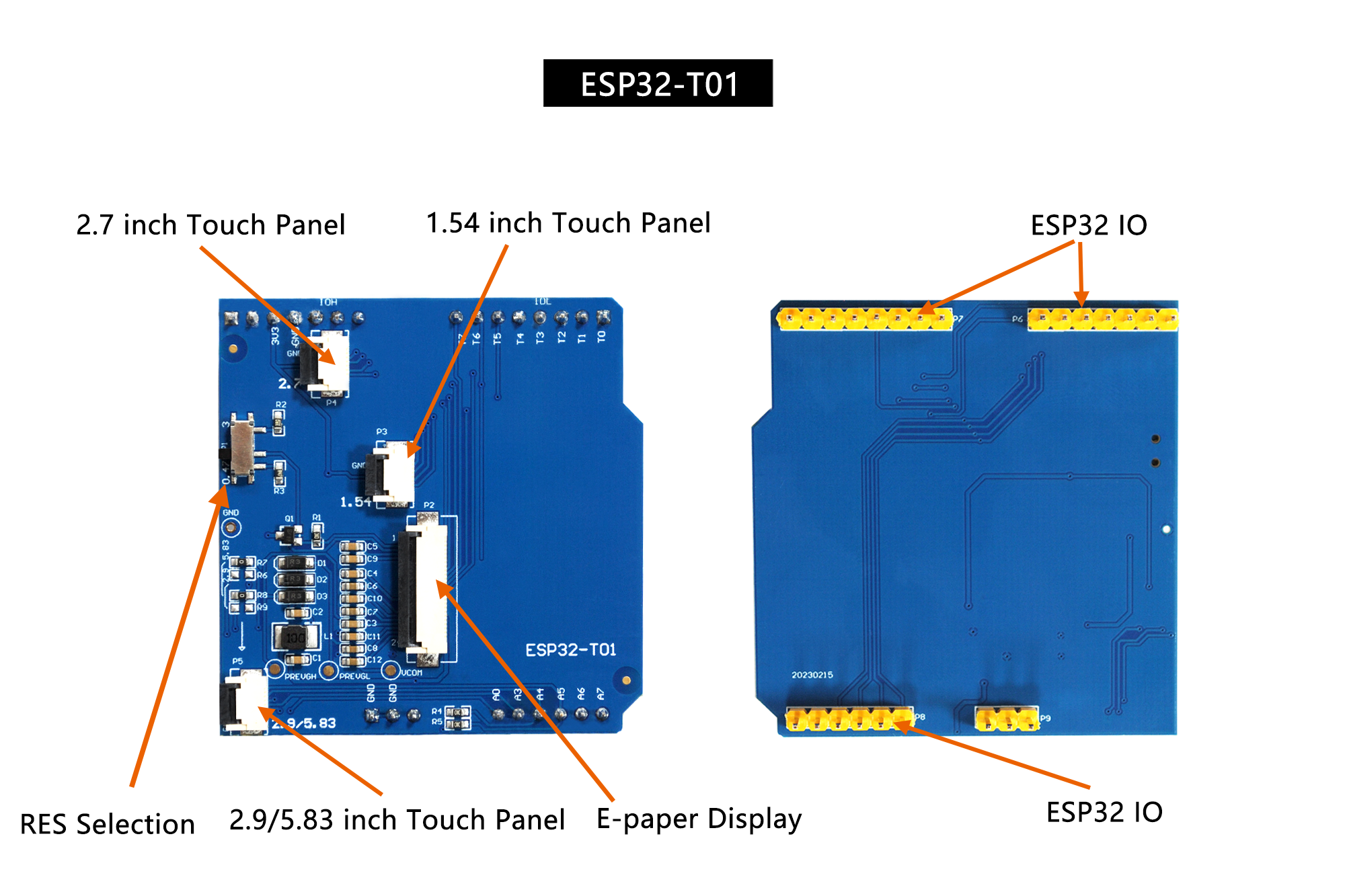

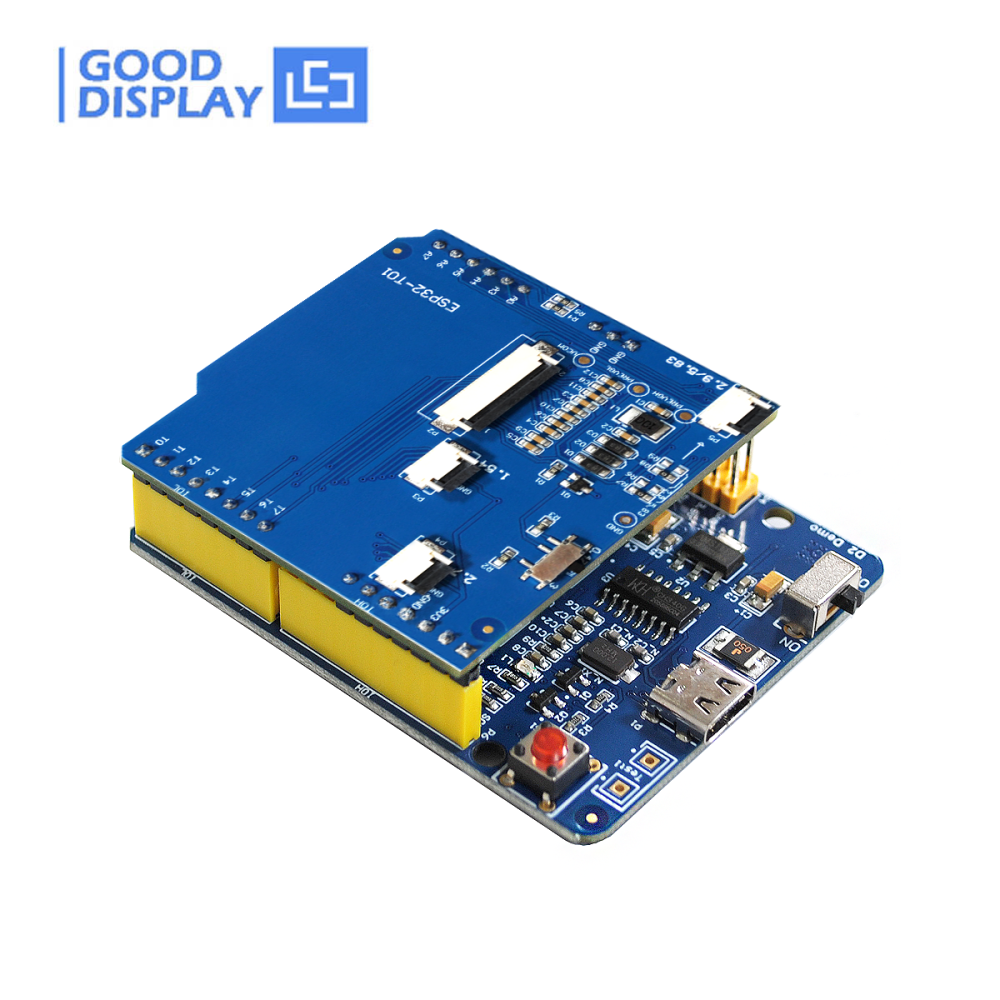

ESP32-L(T01) development kit consists of motherboard ESP32-L for EPD and connector board ESP32-T01.
ESP32-L(T01) development kit is only for driving the e-paper and touch panel. WIFI, BLE and other functions need to be developed by users according to the project.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board ESP32-L * 1pc
2) Connector board ESP32-T01 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
ESP32-L(T01) |
| PLATFORM |
Arduino |
| OUTSIDE DIMENSION |
70mm x 54mm (ESP32-L)
53mm x51mm (ESP32-T01) |
| POWER INTERFACE |
Type-C |
| OPERATING TEMP. |
-20~70℃ |
| Main Function |
Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development |
| Additional Funtion |
Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving.
|
☆ MATCHED DEVELOPMENT KIT
● ESP32-L(T01) Specification
● ESP32-T01 Specification
● ESP32-L_SCH
● ESP32-T01_SCH

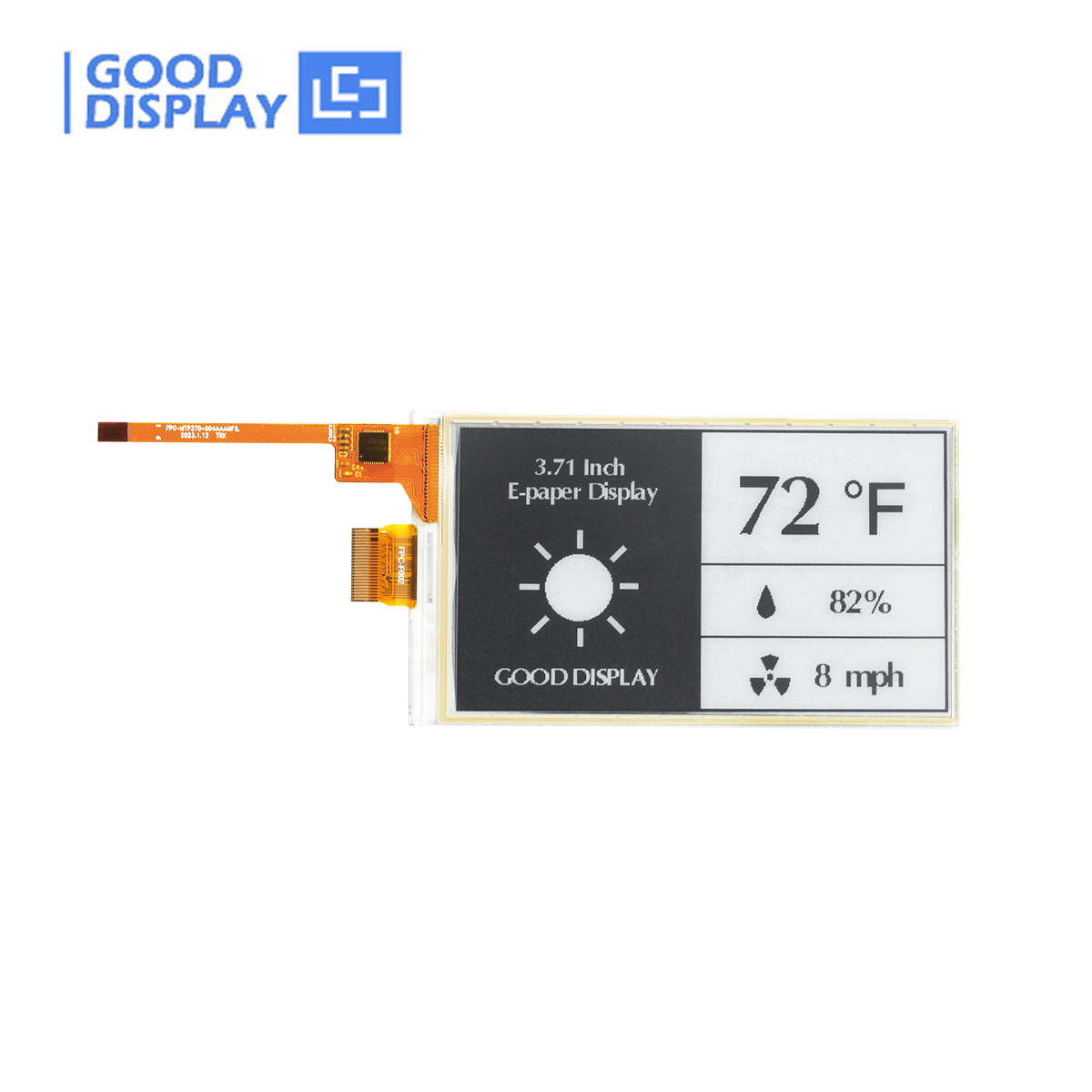

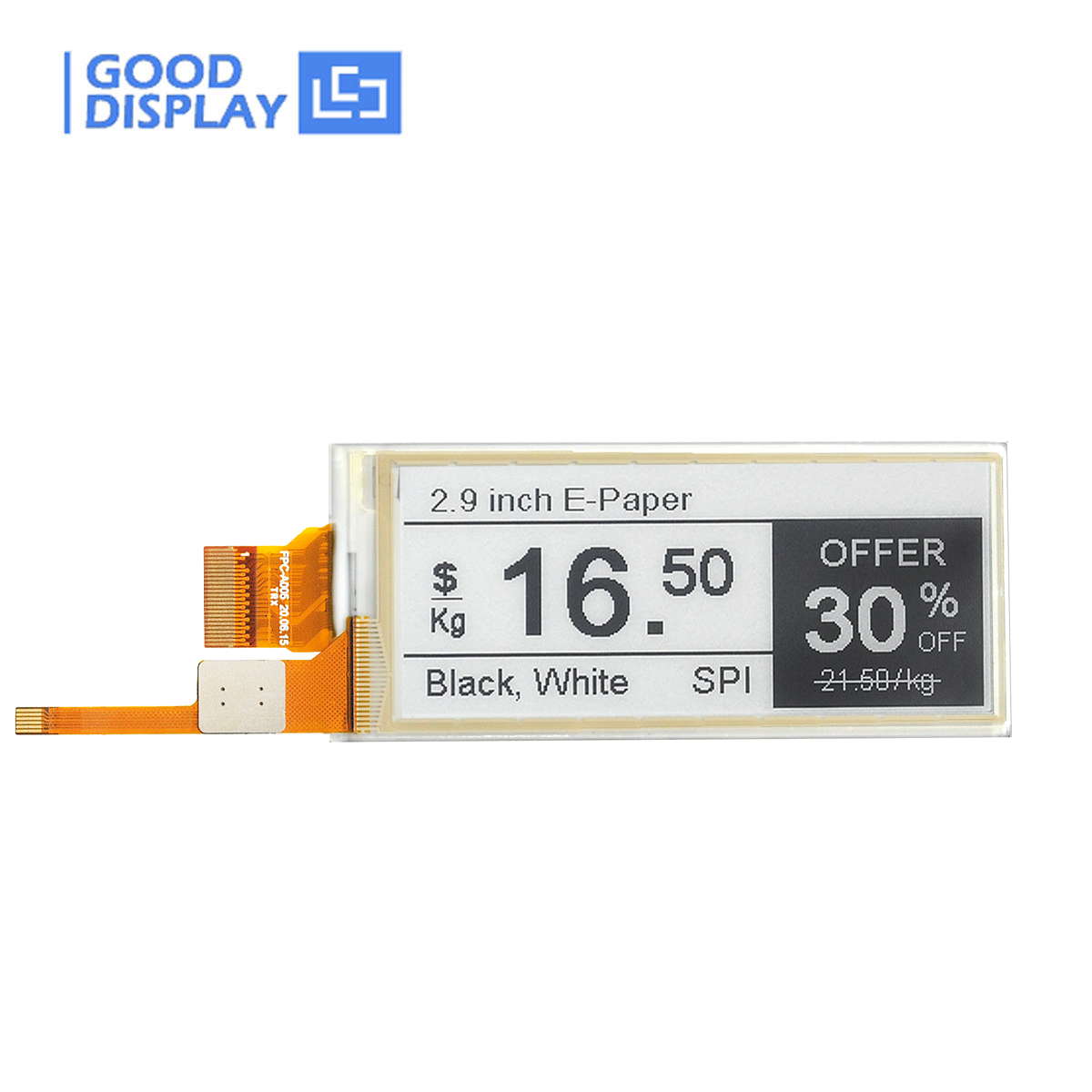

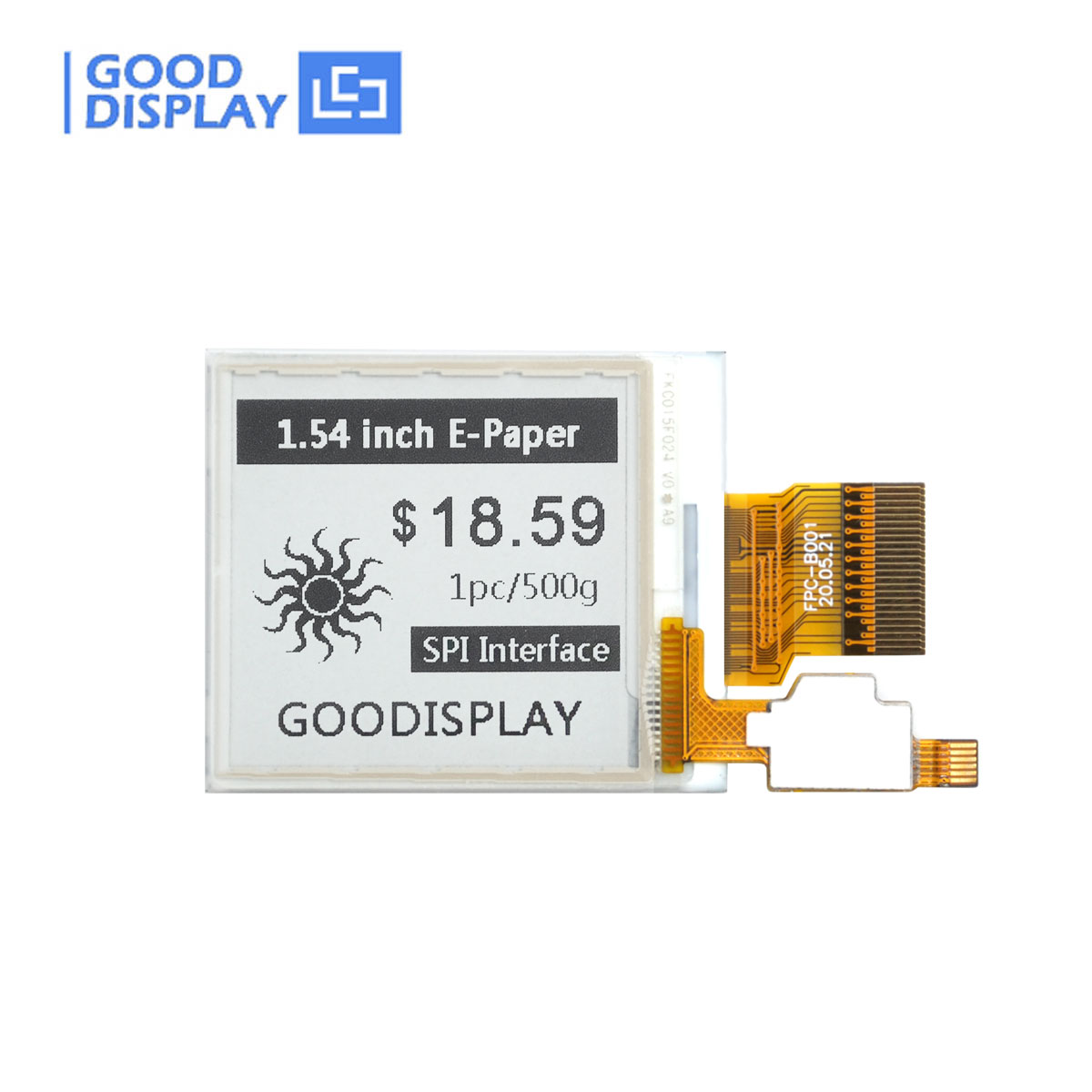

☆ SUITABLE E-PAPER DISPLAY
