10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board

SKU: ESP32-PAR
(0)
0 Sold
$31.84 $39.80
20% OFF
Powered by the ESP32-S3 chip, this board delivers high performance and ultra-low power consumption, with built-in support for Wi-Fi and Bluetooth. Perfect for IoT projects, smart devices, and anything that demands both power and efficiency!
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
0 in stock
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
1/1
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
  • 10.3-Inch E-Ink Development Board: Wi-Fi / Bluetooth-Enabled ePaper Display Driver Board
Frequently Bought Together
more
Frequently Bought Together
  • Description


e-Paper Display Testing & Evaluation Board (for 10.3" TTL E Ink Display)

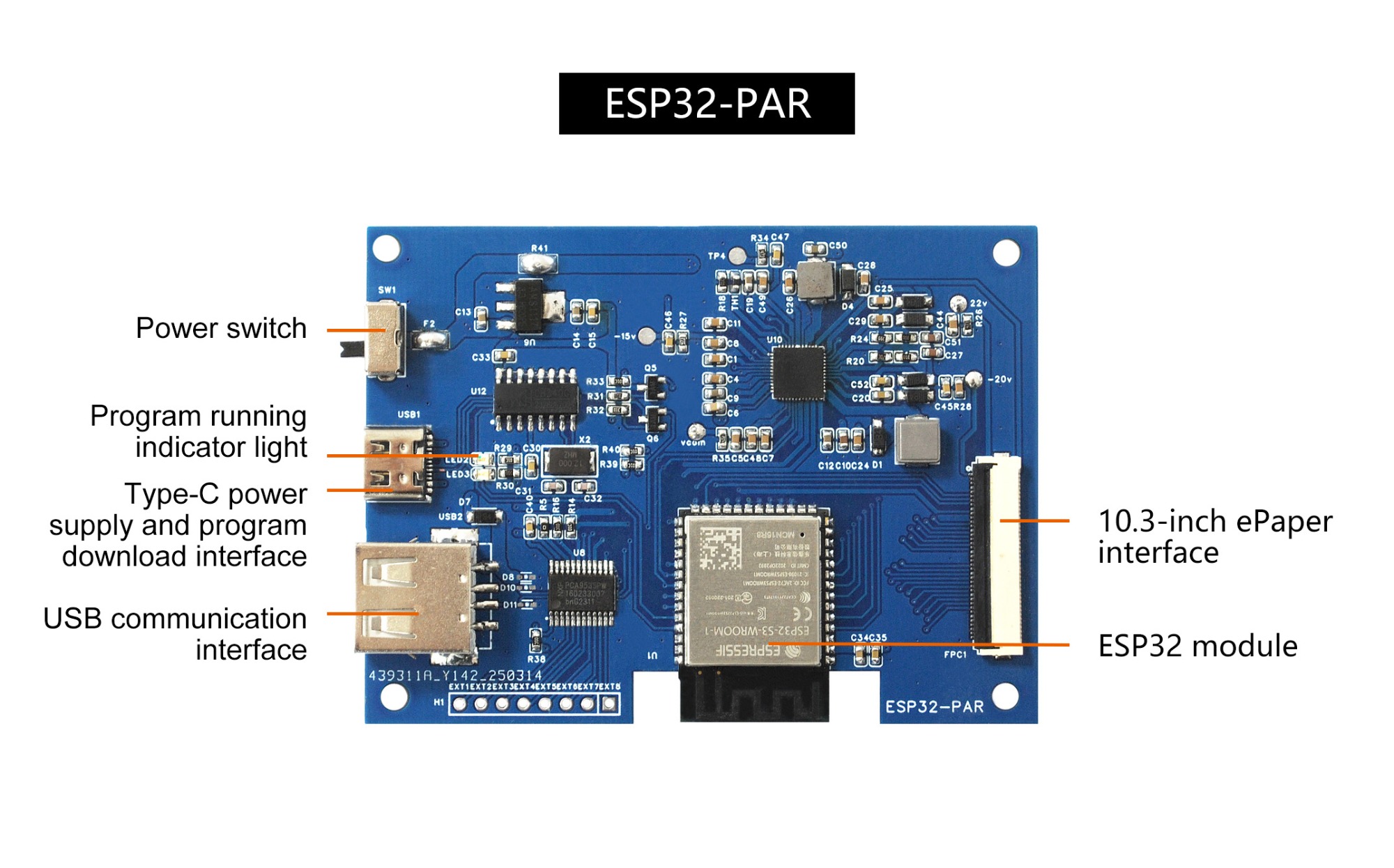

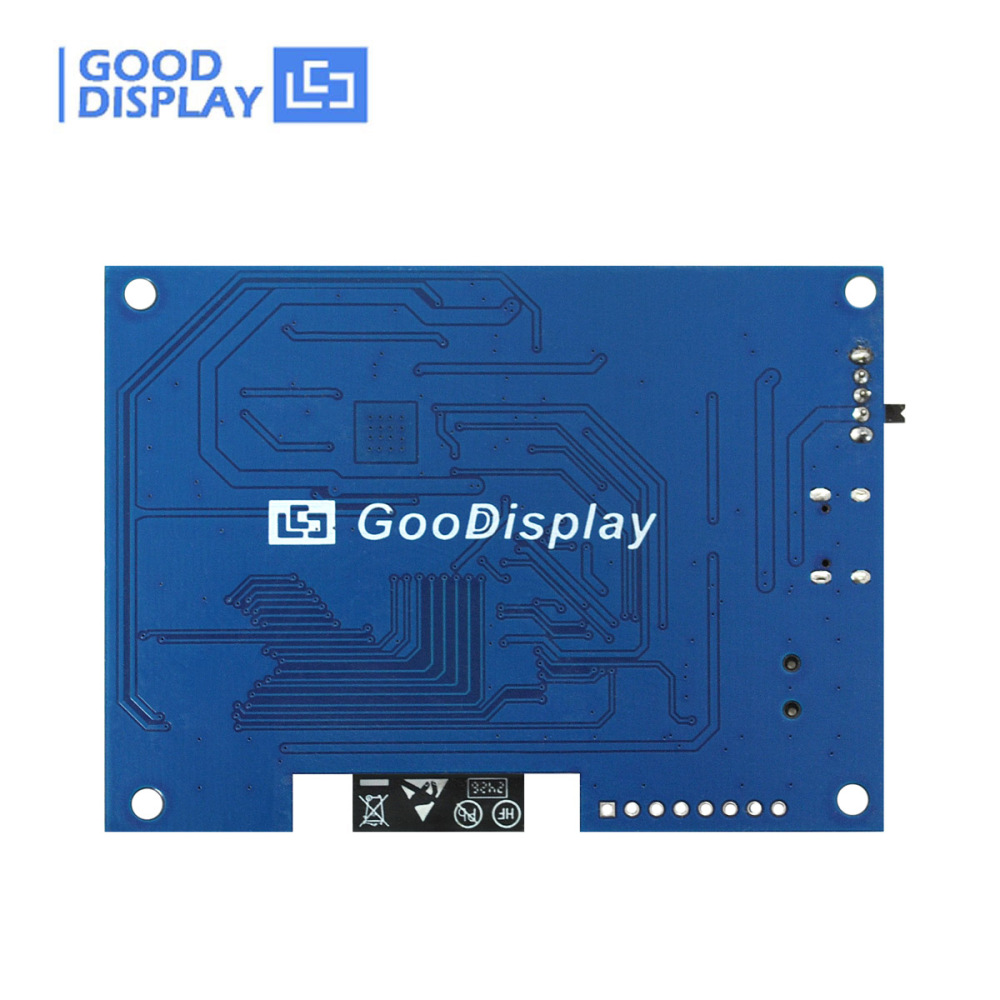

The ESP32-PAR is a powerful development board specifically designed to drive EINK TTL interface e-paper displays. At its core is the ESP32-S3 microcontroller by Espressif, a high-performance, low-power dual-core processor with built-in Wi-Fi and Bluetooth 5.0 connectivity. Perfect for IoT applications and low-power display projects, the ESP32-PAR leverages the ESP32-S3's robust computing power and versatile GPIOs to deliver efficient and reliable e-paper display support.









  Integrated Wi-Fi Bluetooth Supports Secondary Development Provides Screen Driver Code Powerful ESP32-S3 Processing Capability





Special Features

      ● Main Controller: ESP32-S3 dual-core processor with Wi-Fi and Bluetooth 5.0 support.
      ● Design Purpose: Optimized for driving EINK TTL interface e-paper displays, compatible with a wide range of e-paper screens.
      ● Development Support: Built on the FastEPD library for fast, stable e-paper refresh performance.
      ● Applications: Ideal for low-power display projects, such as smart displays, IoT devices, and more.










Product Specifications


PART NUMBER ESP32-PAR
COMPATIBLE PLATFORM ESP-IDF
DIMENSIONS

80.5mm x 60mm

COMPATIBLE DISPLAY SIZE 10.3-inch ePaper Display
INTERFACE Type-C interface
EXAMPLE CODE Provided
EFRESH FEATURES Supports full refresh, partial refresh, and 16 grayscale levels
MAIN FUNCTIONS Learn how to drive ePaper displays;
Test and evaluate ePaper displays;
Develop secondary applications based on this board.
OPERATING TEMPERATURE -20℃ to +70℃
ADDITIONAL FEATURES USB communication, indicator LEDs, current detection, etc.








Technical Details




Compatible E-Paper

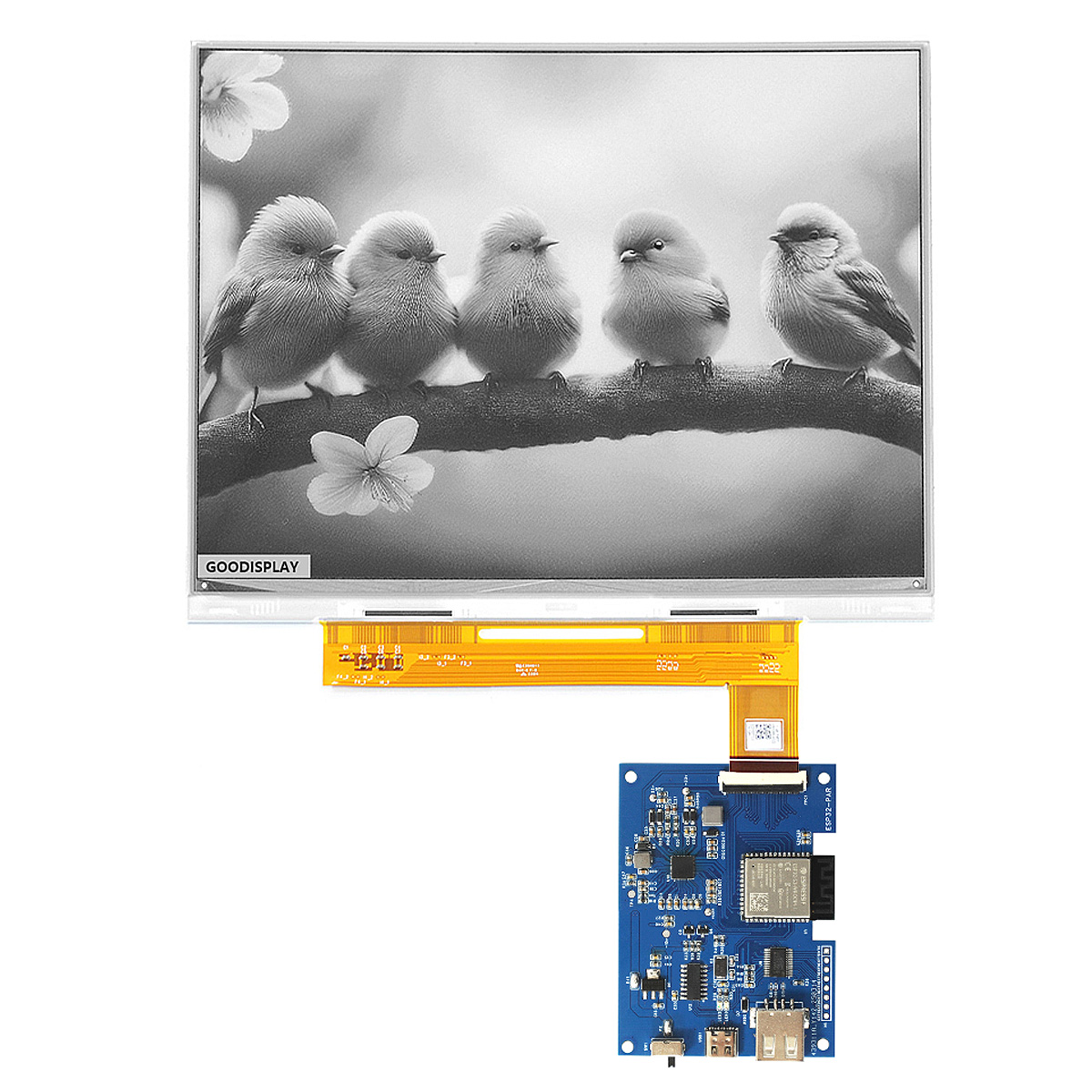

10.3-inch color ePaper Display with Development Boards



Files And Download






E Ink Product Application

E-Book Reading

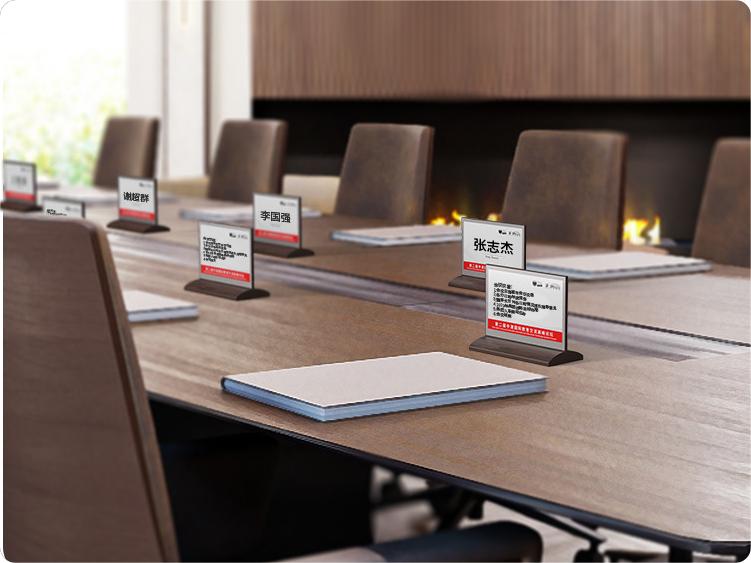

Digital Nameplates

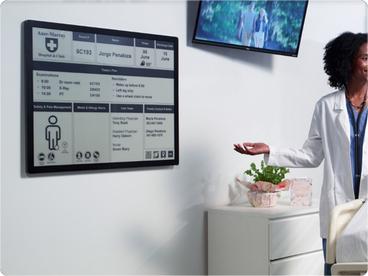

Hospital Patient Cards

Smart Scheduling Boards








About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at
[buyepaper@good-display.com].
