3.5" Industrial ePaper Price Tag
IP65/IP68 Waterproof | Multi-protocol Connectivity

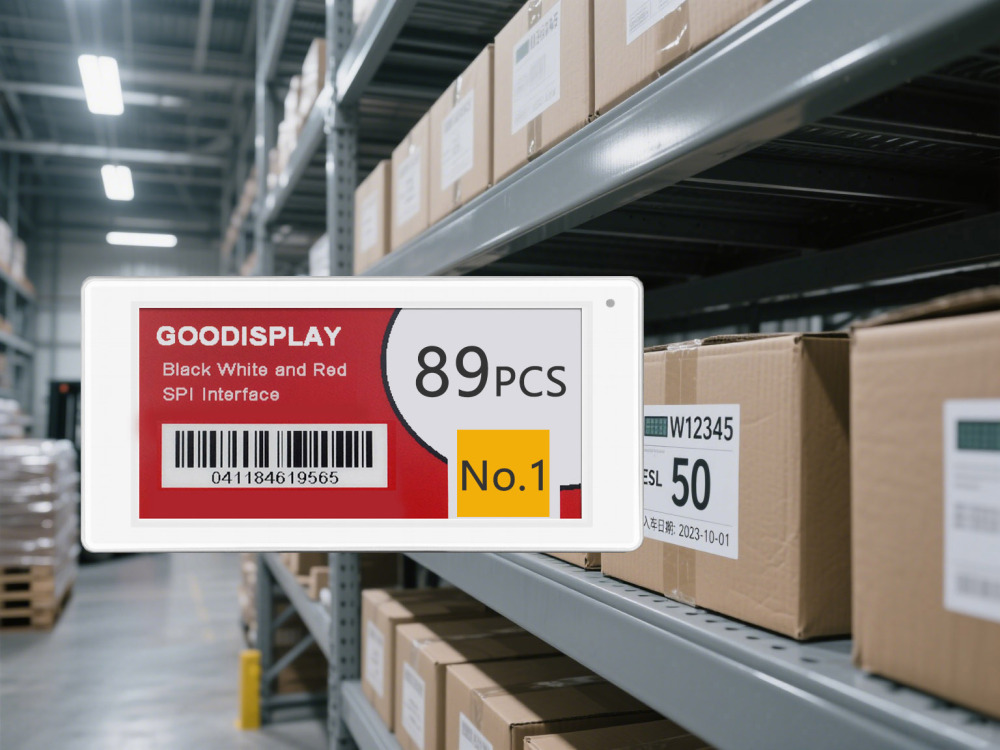

This 3.5-inch Electronic Shelf Label (ESL) redefines intelligent retail management through advanced eInk technology and military-grade durability. Engineered for global retail chains, logistics centers, and smart facility applications, this IoT-enabled solution delivers real-time data synchronization with near-zero operational overhead.

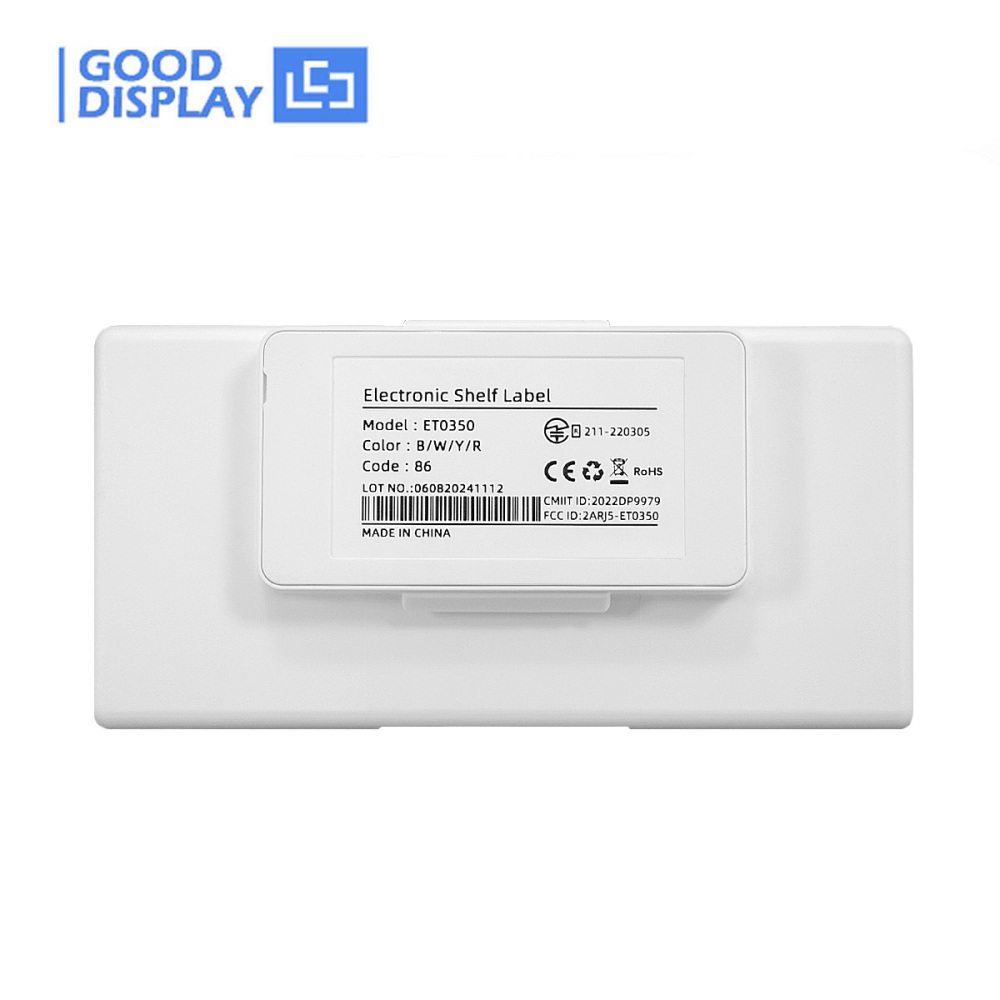

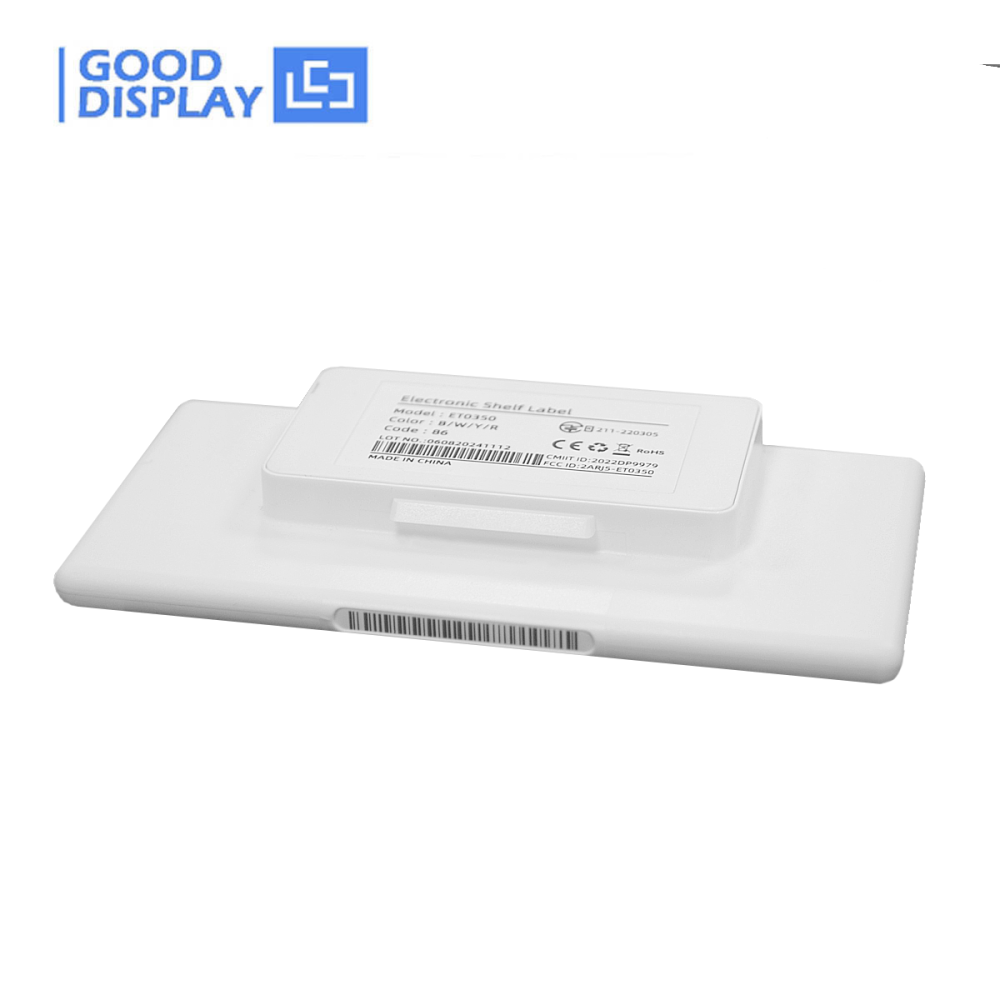

Model: ET0350-86

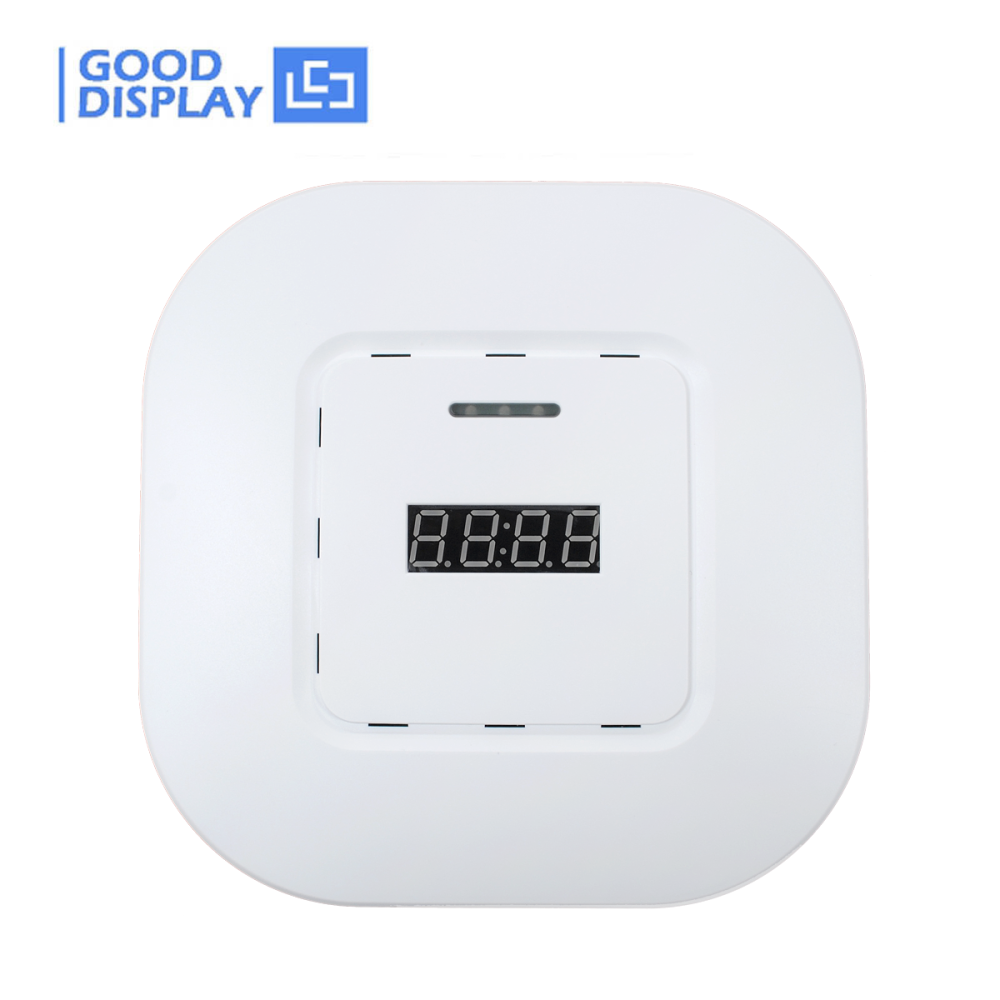

Gateway Version
Four Color Display
Centralized management solution
Model: ET0350-55B
Mobile APP Control
Three Color Display
Seamless mobile integration
Premium Hardware Performance

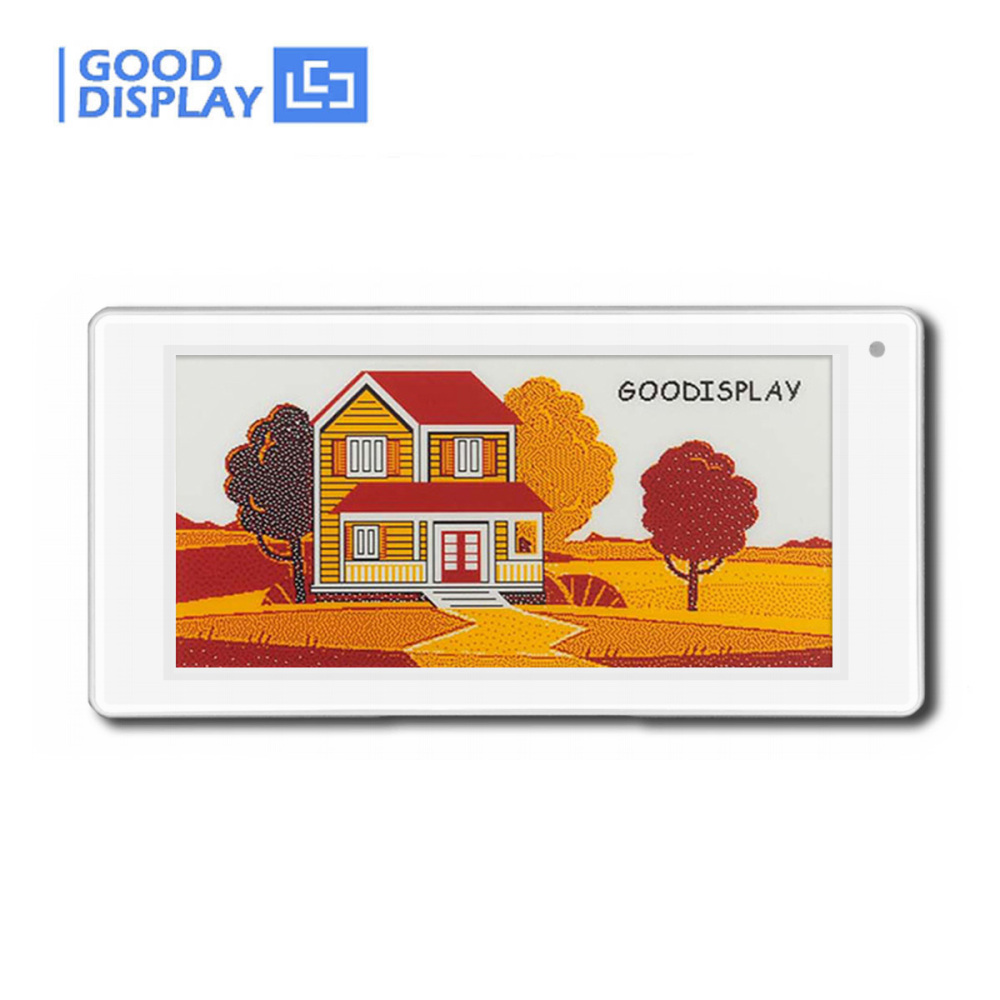

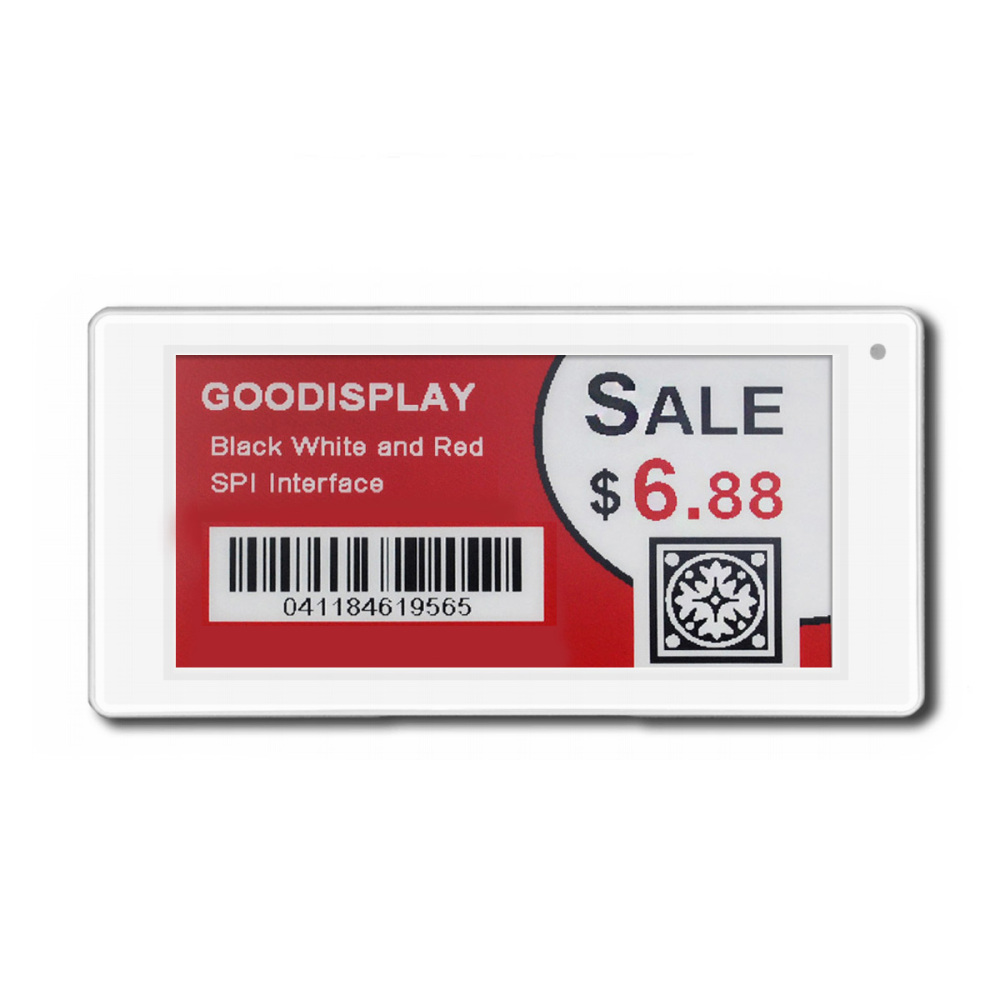

● Ultra-Clear E Ink Display: 3.5" screen with 384×184 resolution, tri/four-color options, glare-free 180° viewing.
● 7-Year Battery Life: Coin-cell powered, wireless Mesh tech for zero maintenance.

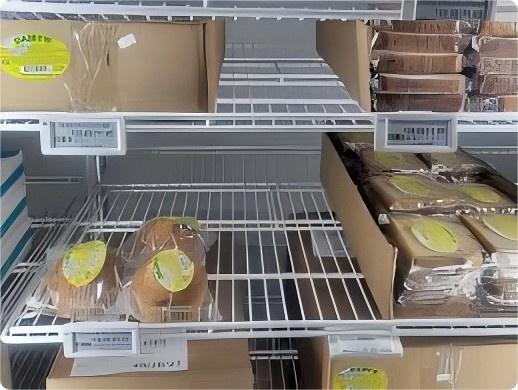

● Rugged Design: IP65/IP68 durability, built for cold storage/outdoor harsh conditions.
Smart Management Ecosystem
● Real-Time Sync: Update prices/promotions/inventory instantly across thousands of tags via wireless gateway.
● ERP/POS Integration: Optional temp/humidity sensors for perishables.
● Custom Branding: Flexible sizes, colors, and templates to align with store aesthetics.
| Technical Features |

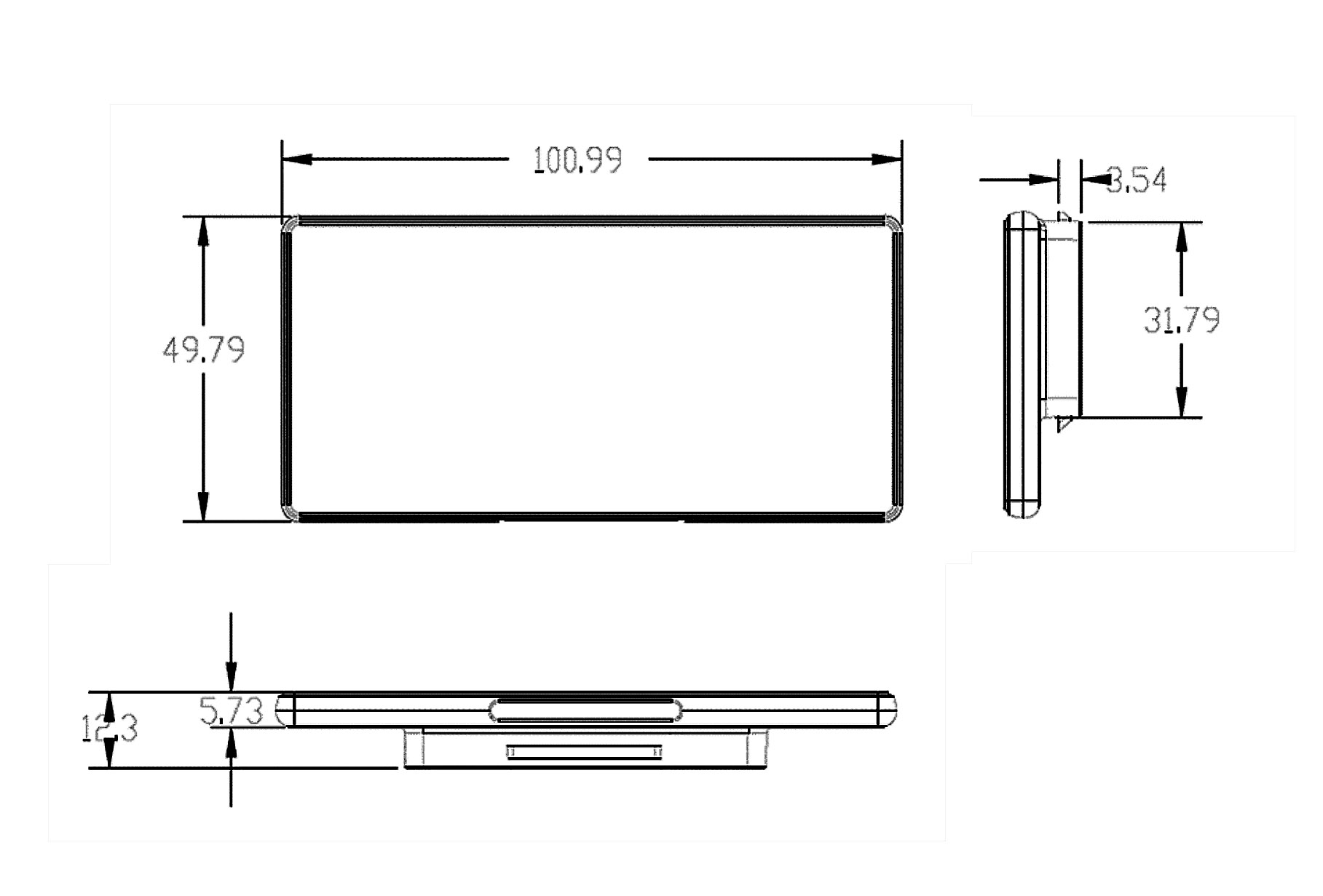

Outline Dimension: 100.99mm(H)×49.79mm(V)×12.3mm(D)
Weight: 46g
Operating temperature: 0~40℃
Operating humidity: 45%~70%RH
Protection rating （Optional）:IP65(Default) IP68(Optional)
LED: Red, Green, Blue, three primary colors, Support 7 colors
Image Update: Over 30 000 labels / hour (500 / min)
Communication Band: 2.400-2.480 GHz
Communication Distance: Within 30 meters (50 meters in open areas) |
| Display |
Size: 10.2 inch
Resolution: 960(H)×640(V)
DPI: 113
Active Area: 215.52mm(H)×143.68mm(V)
View Angle: >170°
Shell Color (optional): Black/White
Screen Display Color (optional): Black, White, and Red (tri-color) / Black, White, Red, and Yellow (four-color) |
| Battery |
Batteries: CR2430 x 12
Battery life time: Up to 7 years (industry leader) |
| Features |
NFC (Optional): Yes
Wireless Firmware Update: Yes
Usable Pages: 8 Pages Compliance CE, RoHS, FCC, MIC, SRRC |
| Packaging Information |
Quantity per Box: 270 pcs
Gross Weight per Box: 13.43 kg
Outer Box Dimensions: 390mm x 350mm x 240mm |
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
