☆ INTRODUCTION

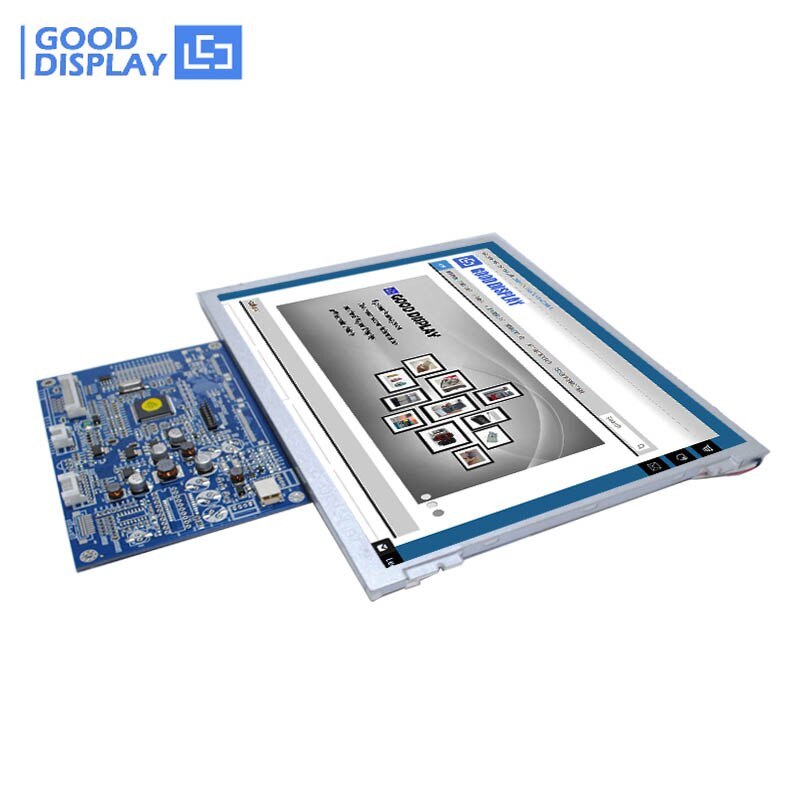

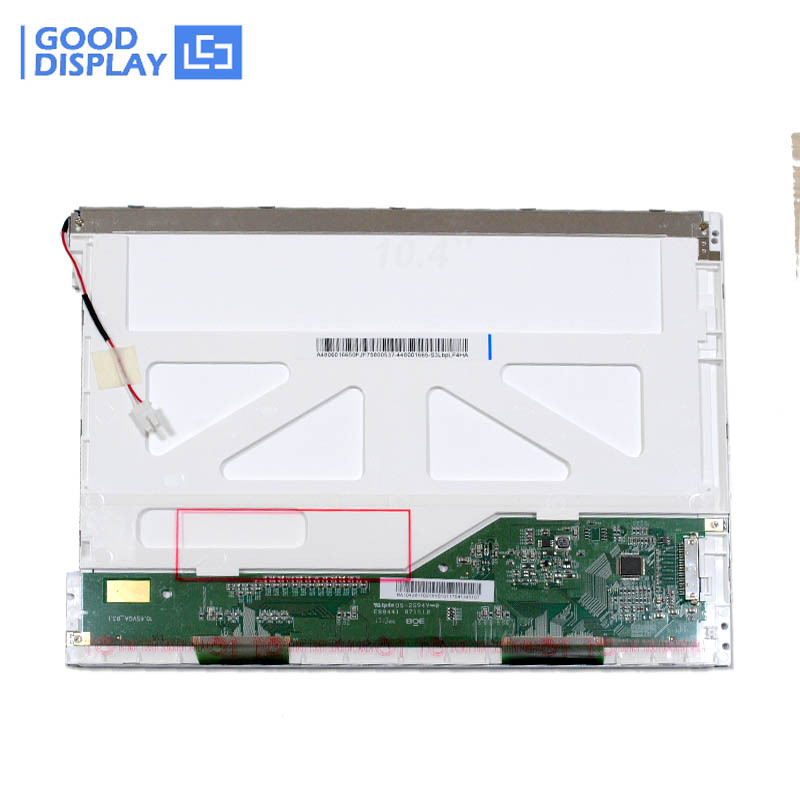

GD102M03/GDN-D102AT-GTT104SDH01 is 800 x (RGB) x 480 dots 10.4 inch color TFT-LCD module display with video & VGA driver board, 10.4” Touch Screen (Option), superior display quality, super wide view angle, and very high brightness. It can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● 800x480 resolution
● Video&VGA driver board
● Viewing Angle 45°/65°/65°/65°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 10.4 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
☆ THE ABOVE PRICE INCLUDE
1) 10.4 inch TFT LCD Module * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDN-D102AT-GTT104SDH01 |
| SIZE |
10.4’’(4:3) |
| RESOLUTION |
800X600 |
| BRIGHTNESS |
400cd/m2 |
| WORKING VOLTAGE |
DC12V(Typ.) (Min.9V, Max.15V) |
| VIEWING ANGLE(U/D/L/R) |
45/65/65/65° |
| CONTRAST RATIO |
400 |
| SIGNAL INPUT |
VIDEO/VGA |
| OUTSIDE DIMENSION OF LCD PANEL |
236.0( W)*176.9( H)*5.6(D)mm |
| ACTIVE AREA OF LCD PANEL |
211.2(W)*158.4(H)mm |
| STRUCTURAL DIMENSION OF PCBA |
128.8(W)*85.4(H)*16.0(D)mm |
| BACKLIGHT |
LED |
| OPERATING TEMP. |
-10C~+60C |
| STORAGE TEMP. |
-20C~+70C |
☆ PRECAUTIONS
1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.
2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.
3. Due to this product is electronic product, please notice prevent static.
4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.
5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
