Light It Up: The Magic of Epaper HAT Frontlight Drive Board
|
|
|
| |
|

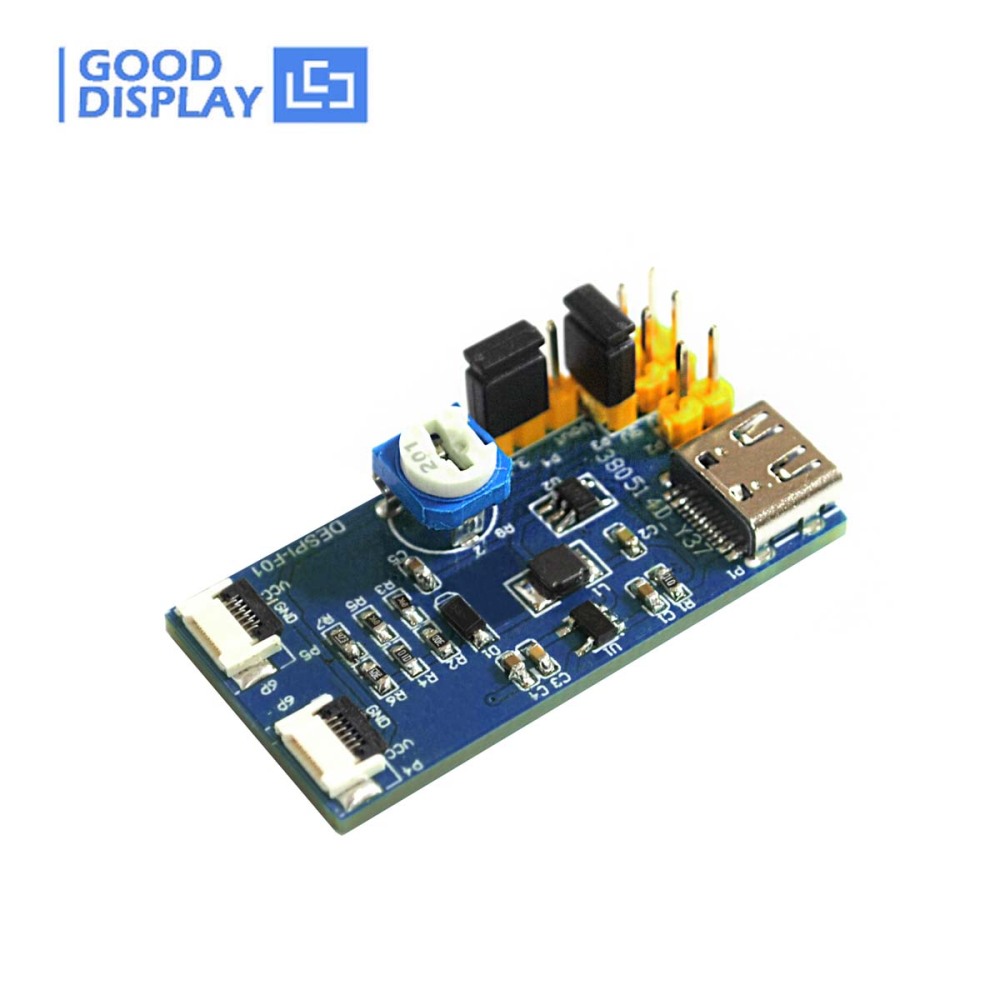

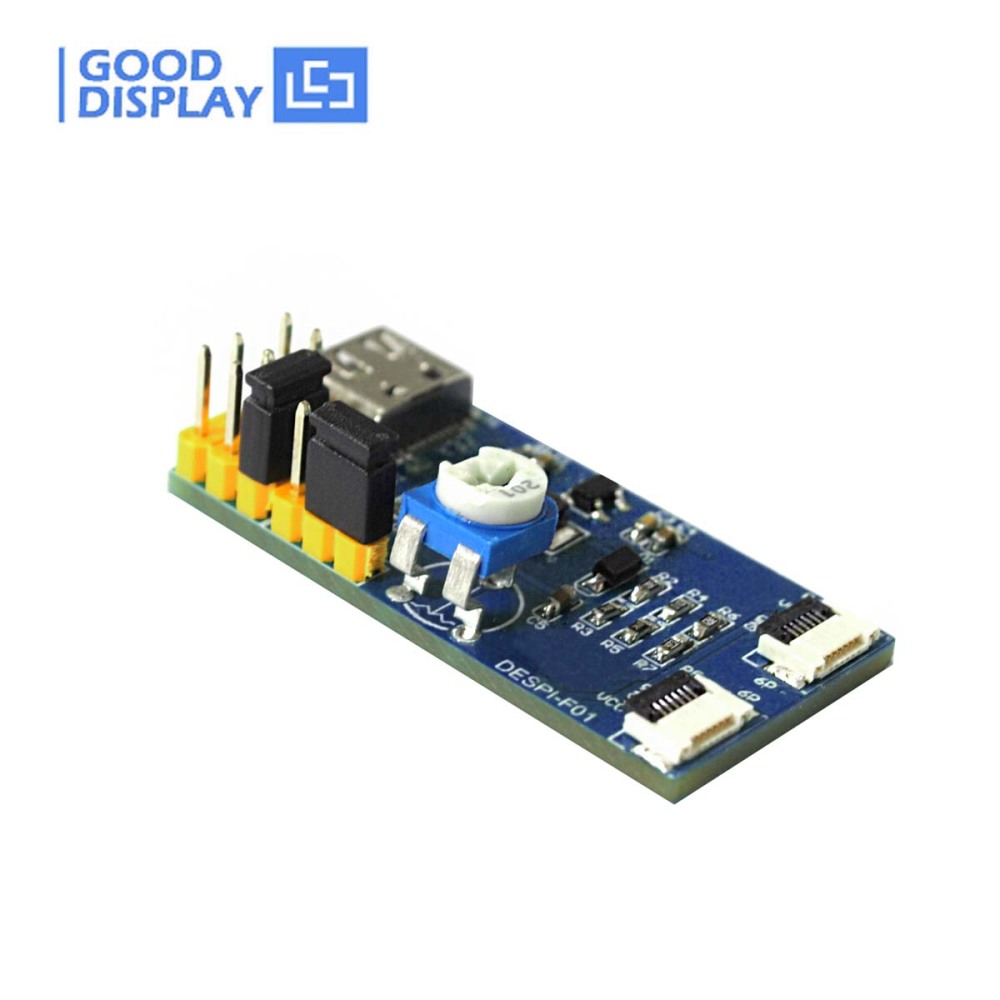

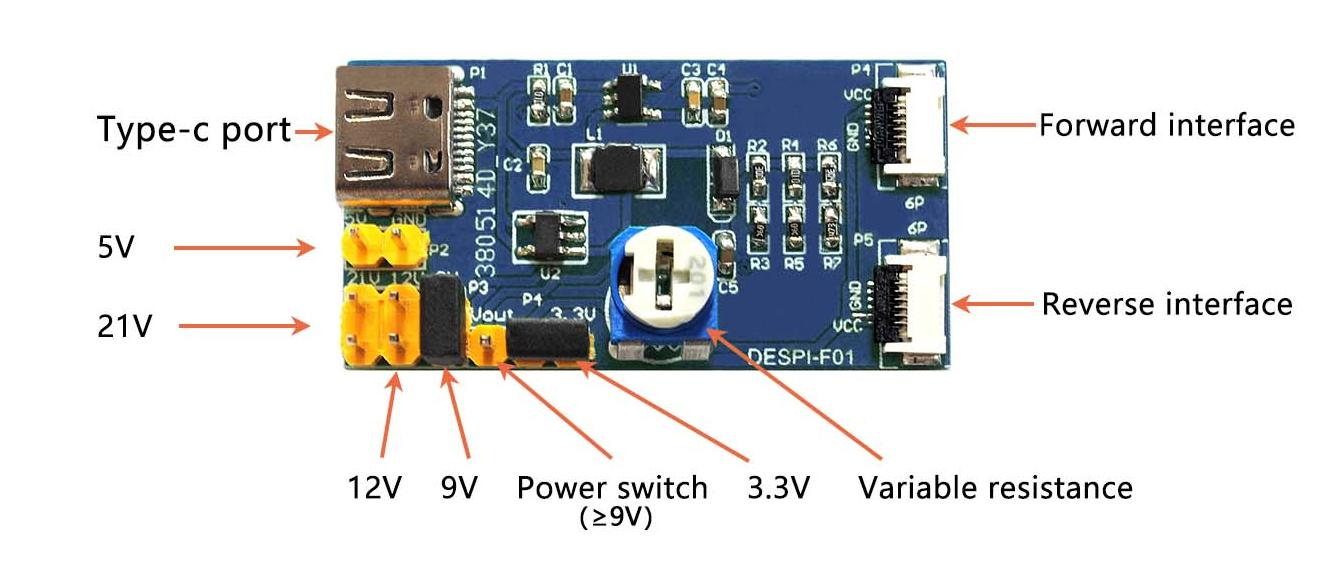

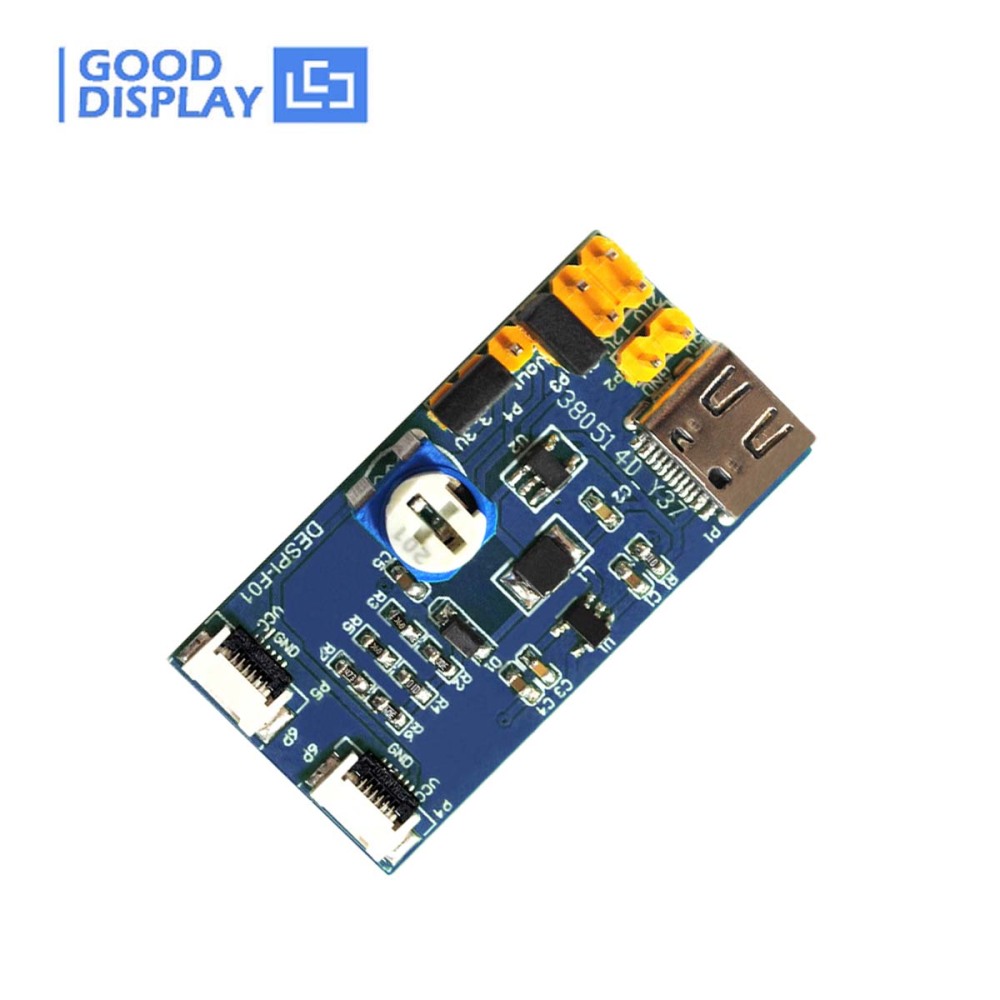

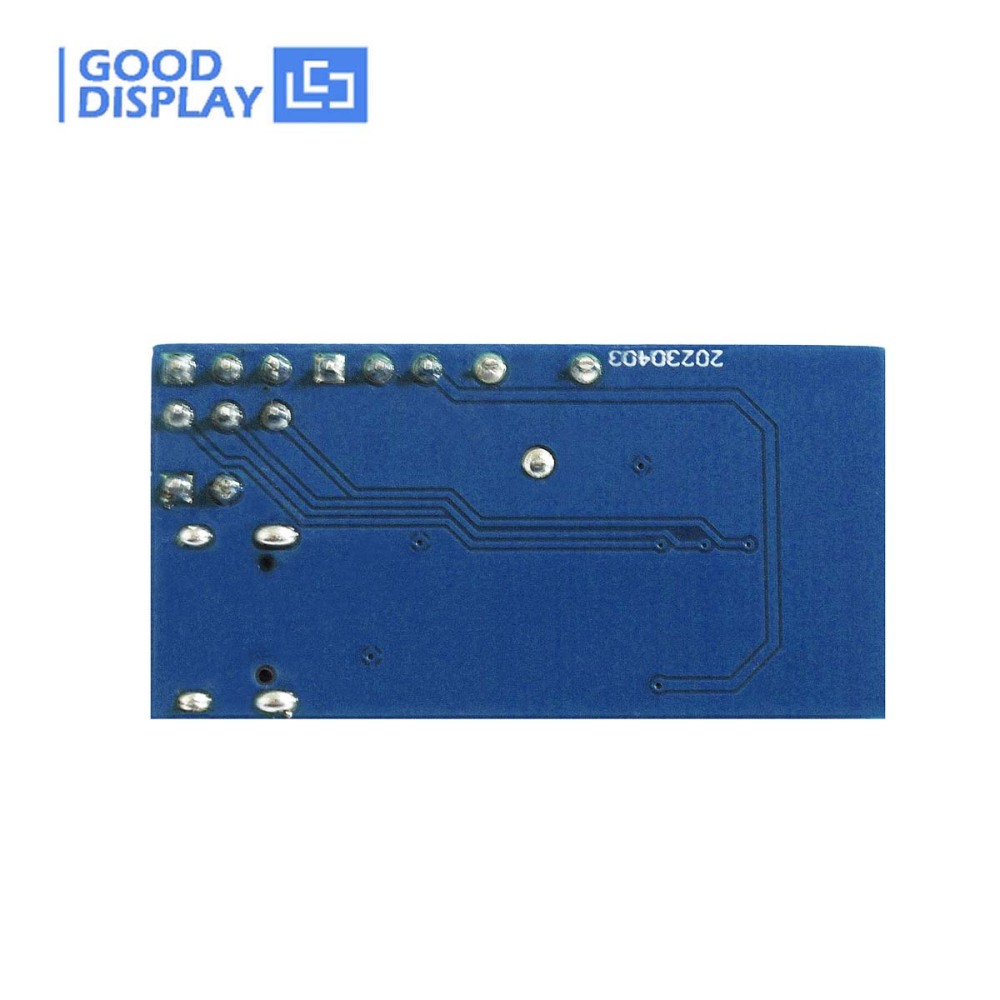

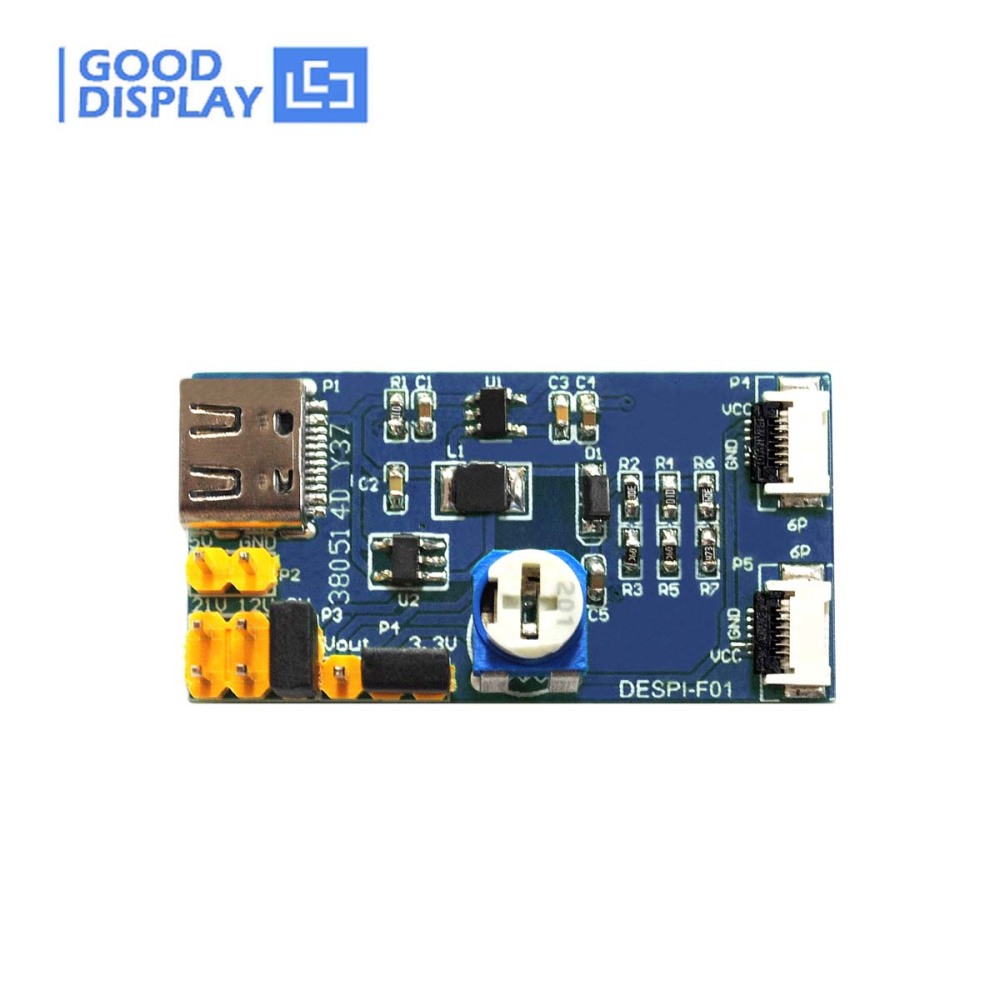

DESPI-F01 is designed specifically for the front light FPC interface (6Pin) and supports driving front light for SPI ePaper Displays (below 4.2 inch). It can help you directly drive front light with voltage values of 3.3V, 9V, 12V, and 21V.
|
|
|
| |
Special Features
|
|
● Dedicated 6-Pin Interface: Features a 6-pin FPC interface specifically designed for front lights, ensuring simple and efficient connections with reduced wiring complexity.
● Strong SPI ePaper Compatibility: Fully supports SPI ePaper displays, catering to a wide range of application scenarios.
● Developer-Friendly Design: Compatible with existing development kits, making it easier to learn driver design and perform performance testing. |
| |
| |
Technical Details
|
|
 |
| |
Product Specifications
|
|
| PART NUMBER |
DESPI-F01 |
OUTLINE SIZE(mm) |
20x39mm |
| POWER SUPPLY |
3.3V, 9V, 12V, 21V |
OPERATING TEMP. |
-20℃~70℃ |
| MAIN FUNCTION |
Supporting front light panels with 4 different voltages: 3.3V, 9 v, 12V, and 21V. |
| |
|
|
|

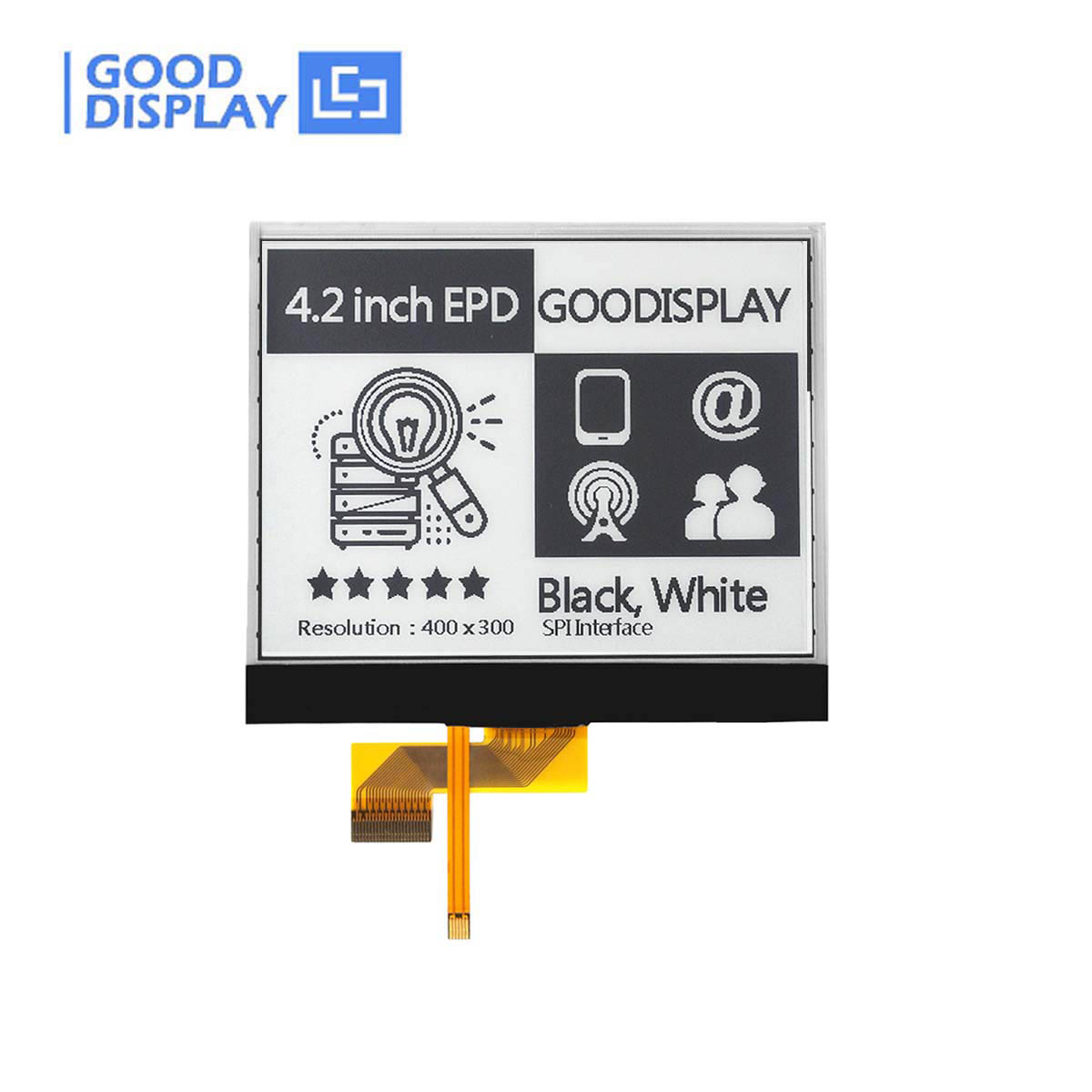

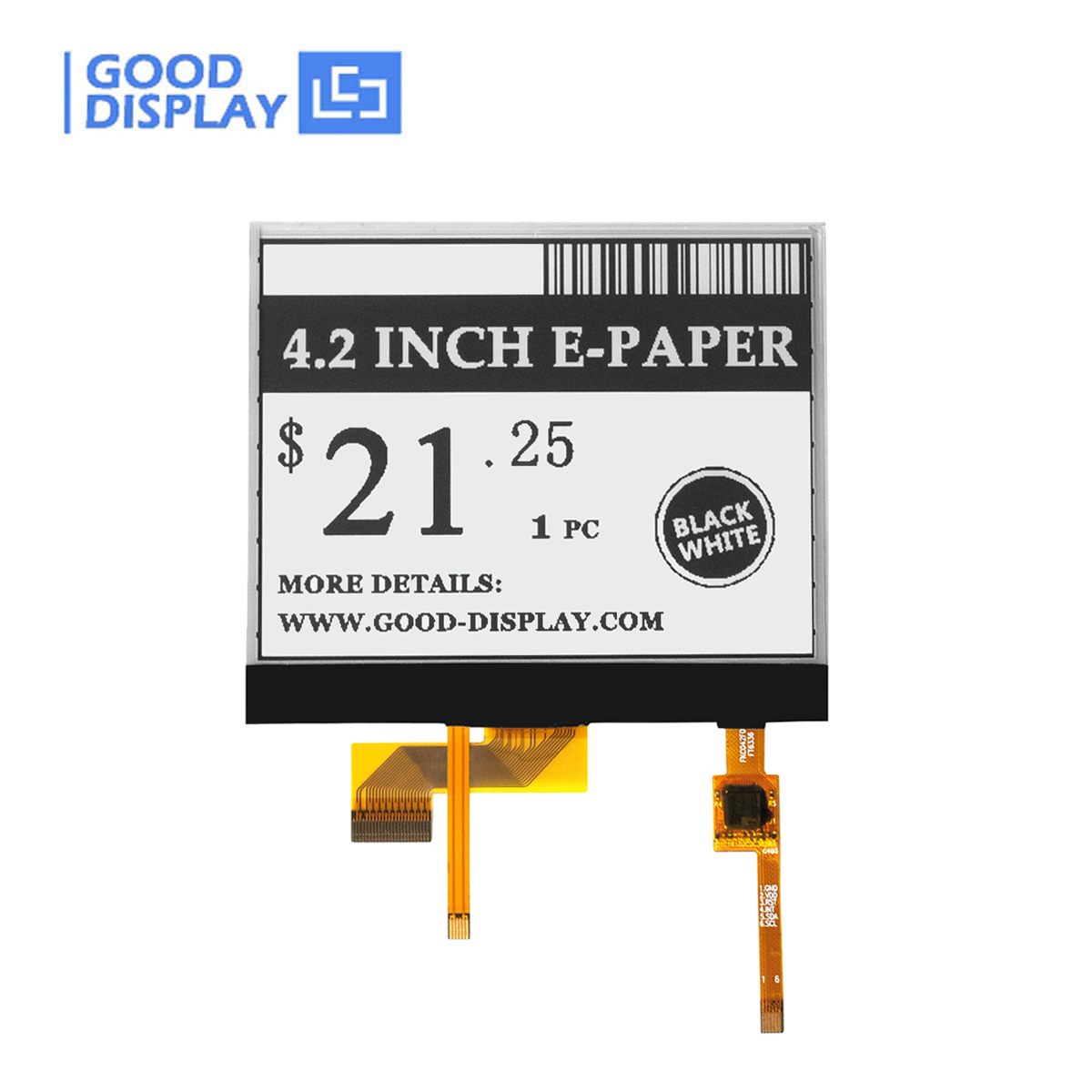

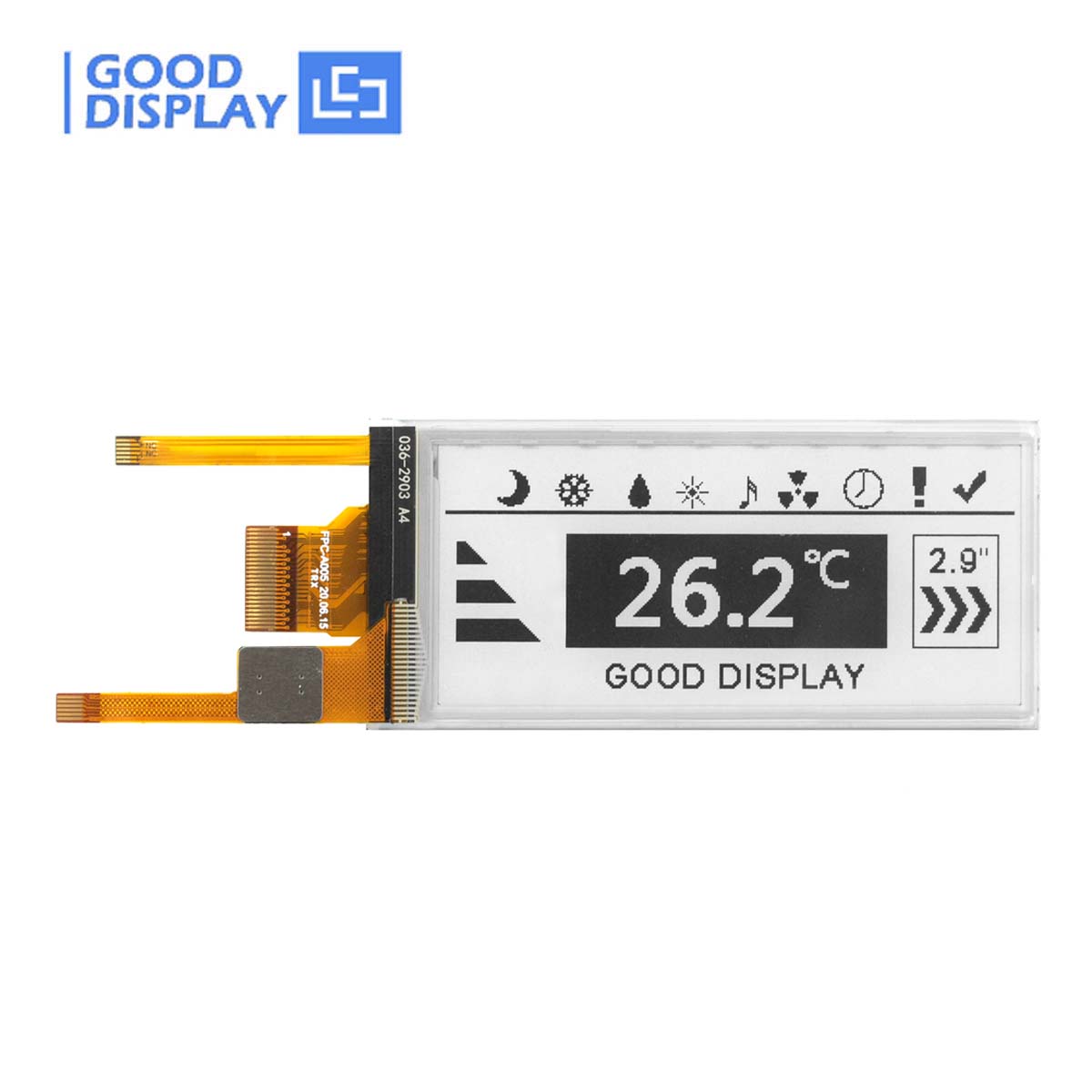

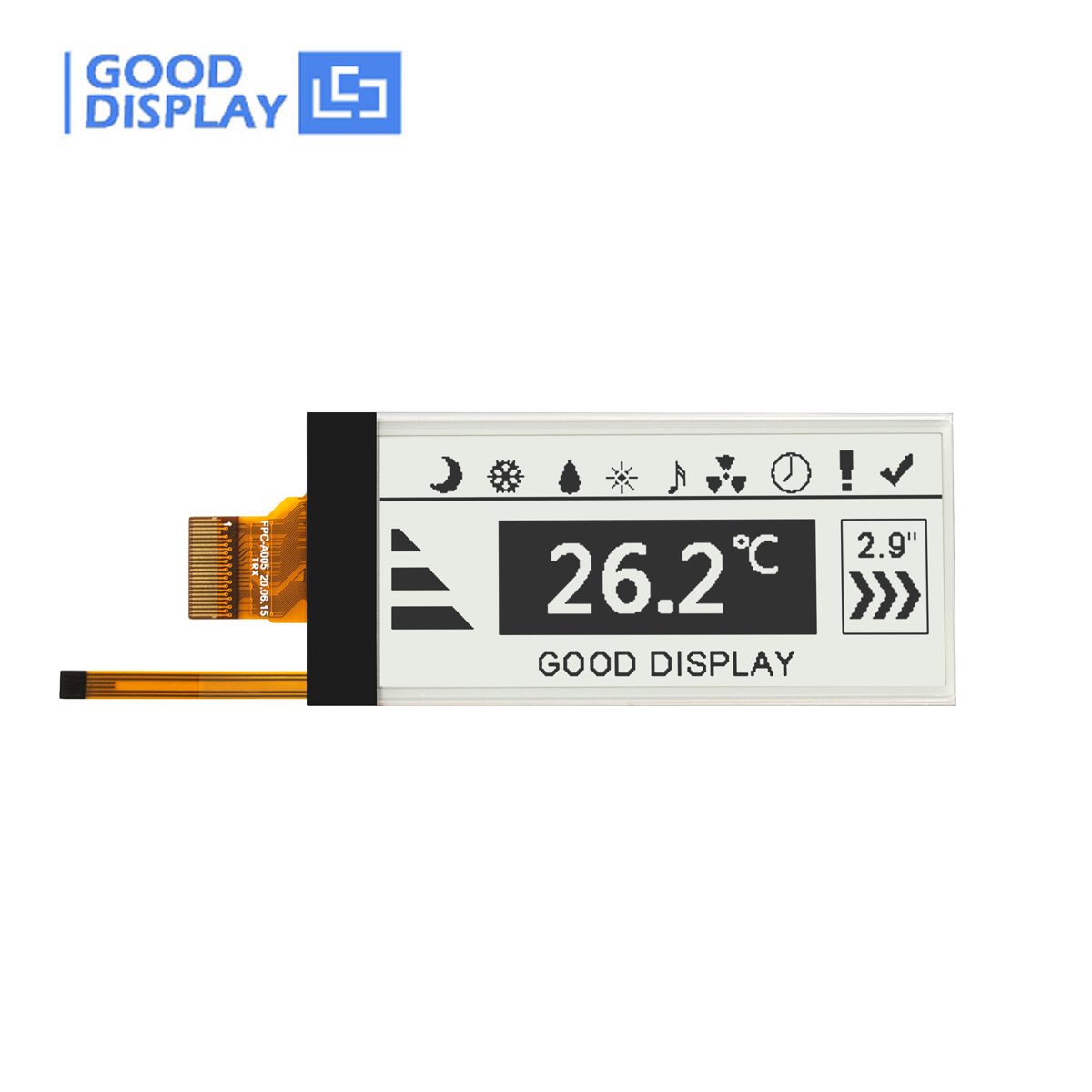

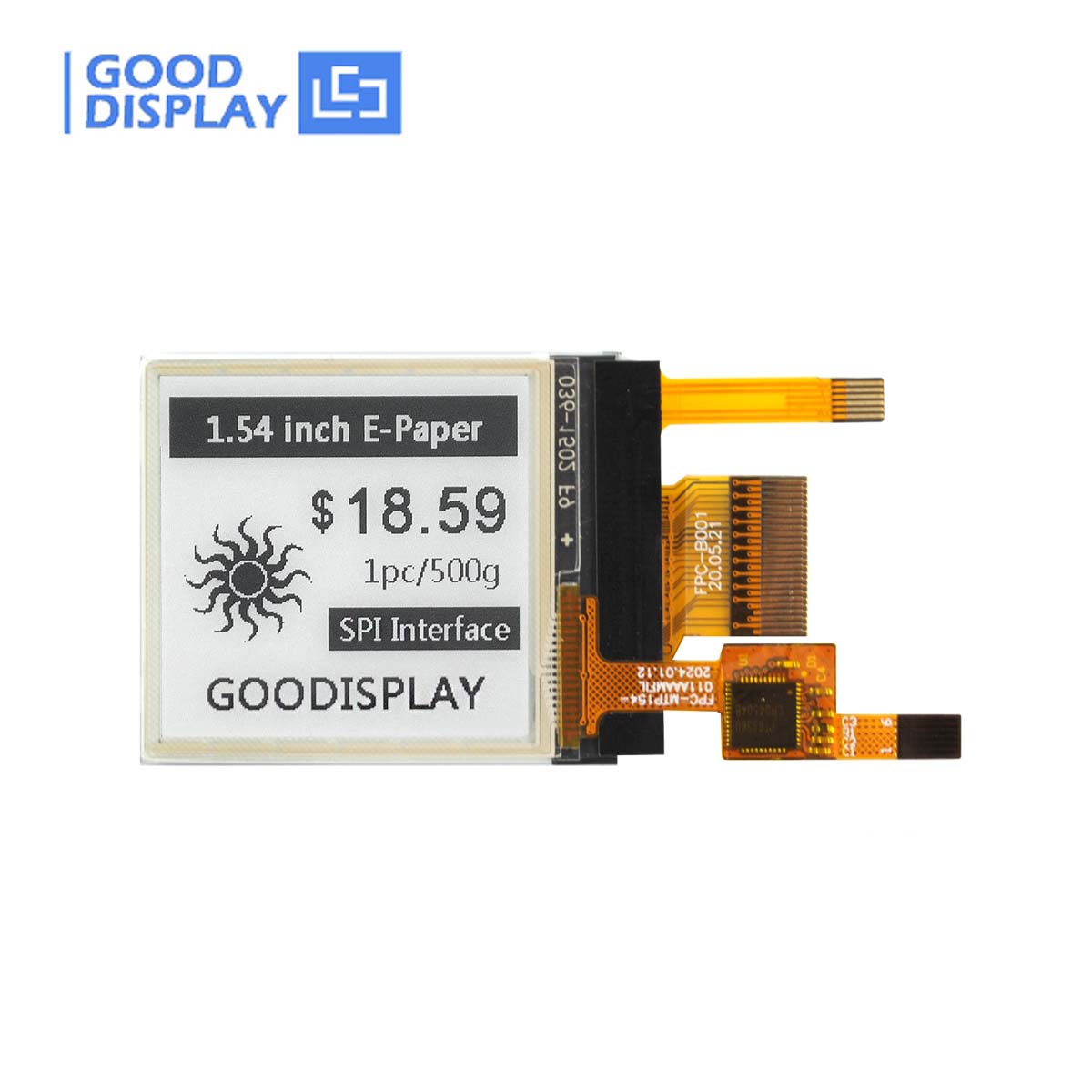

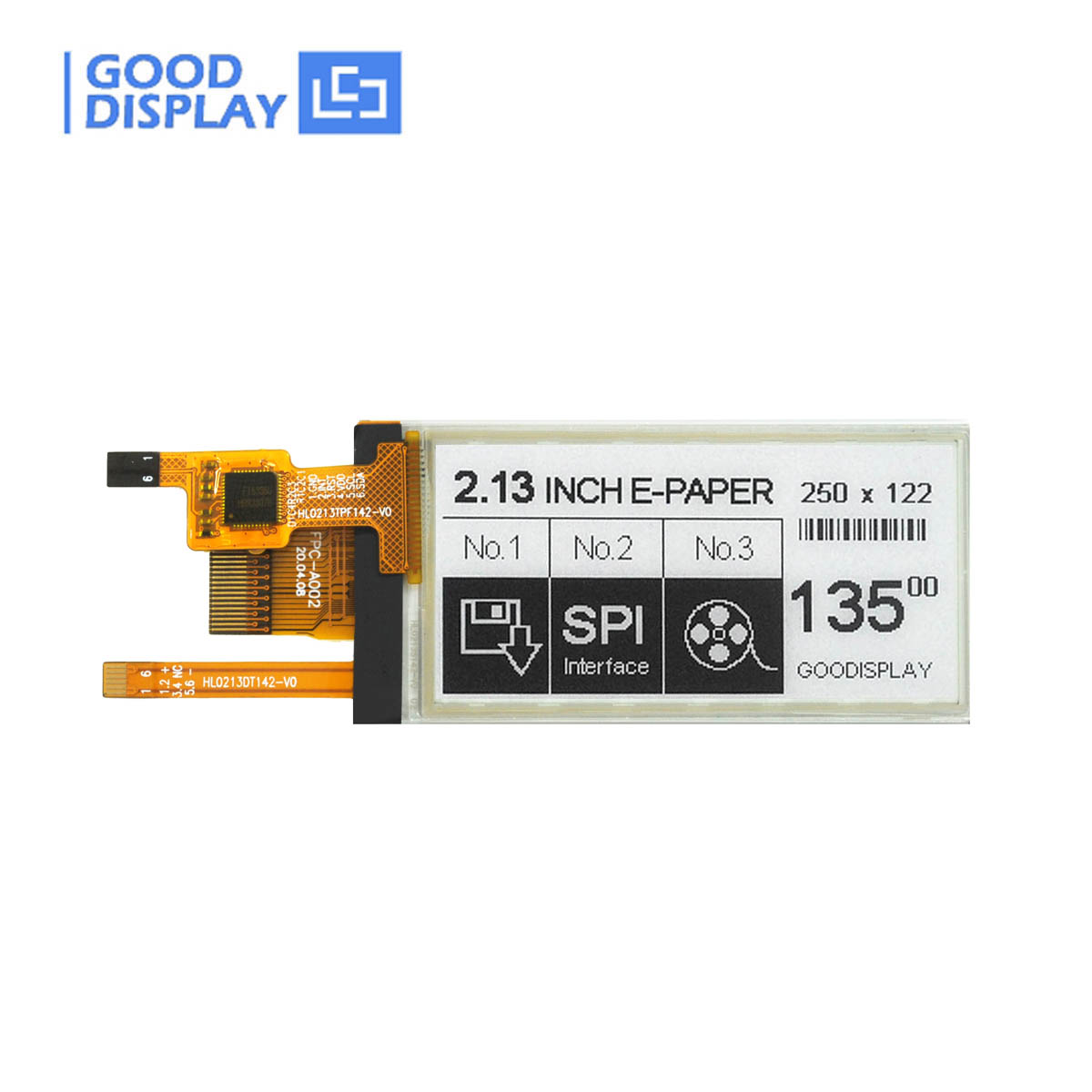

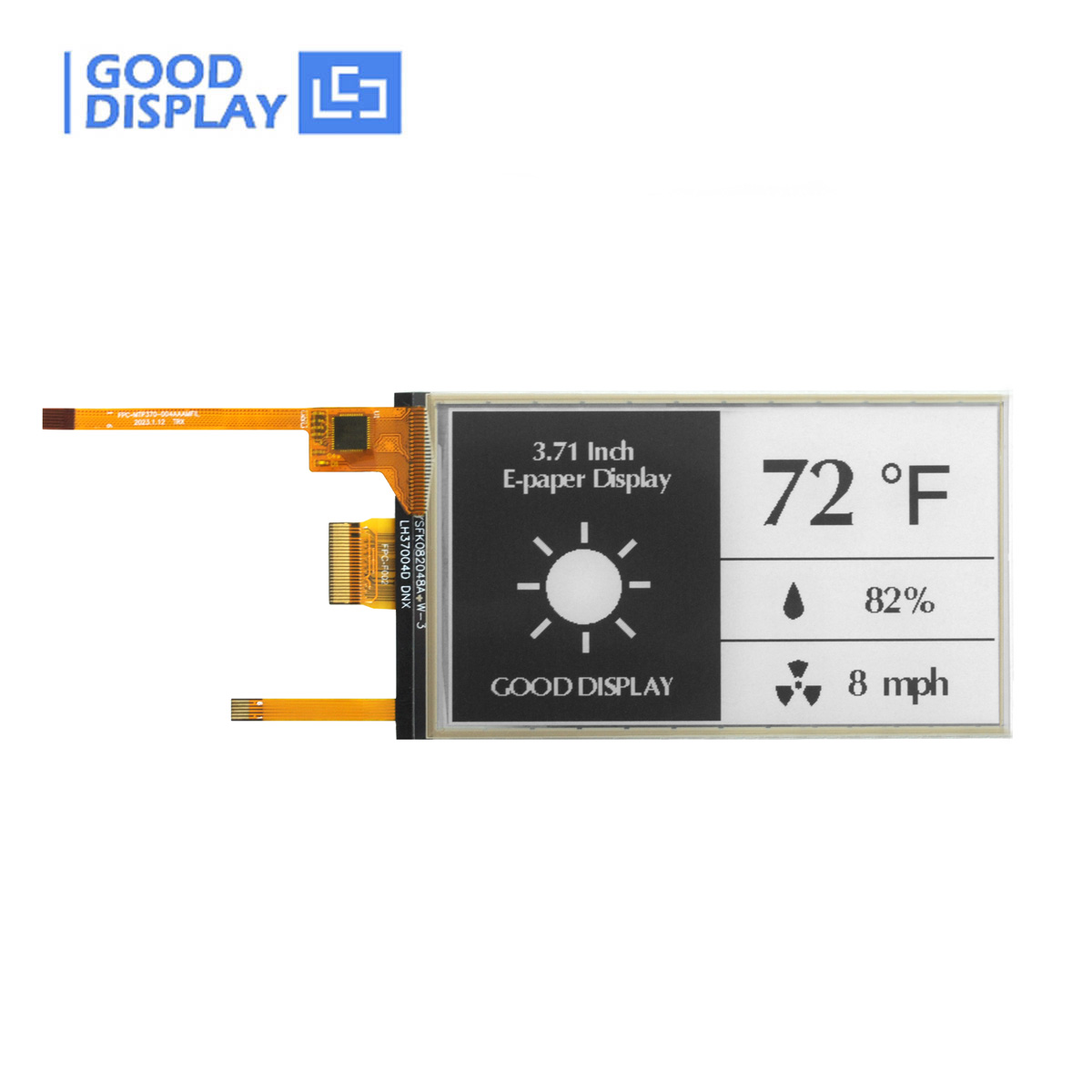

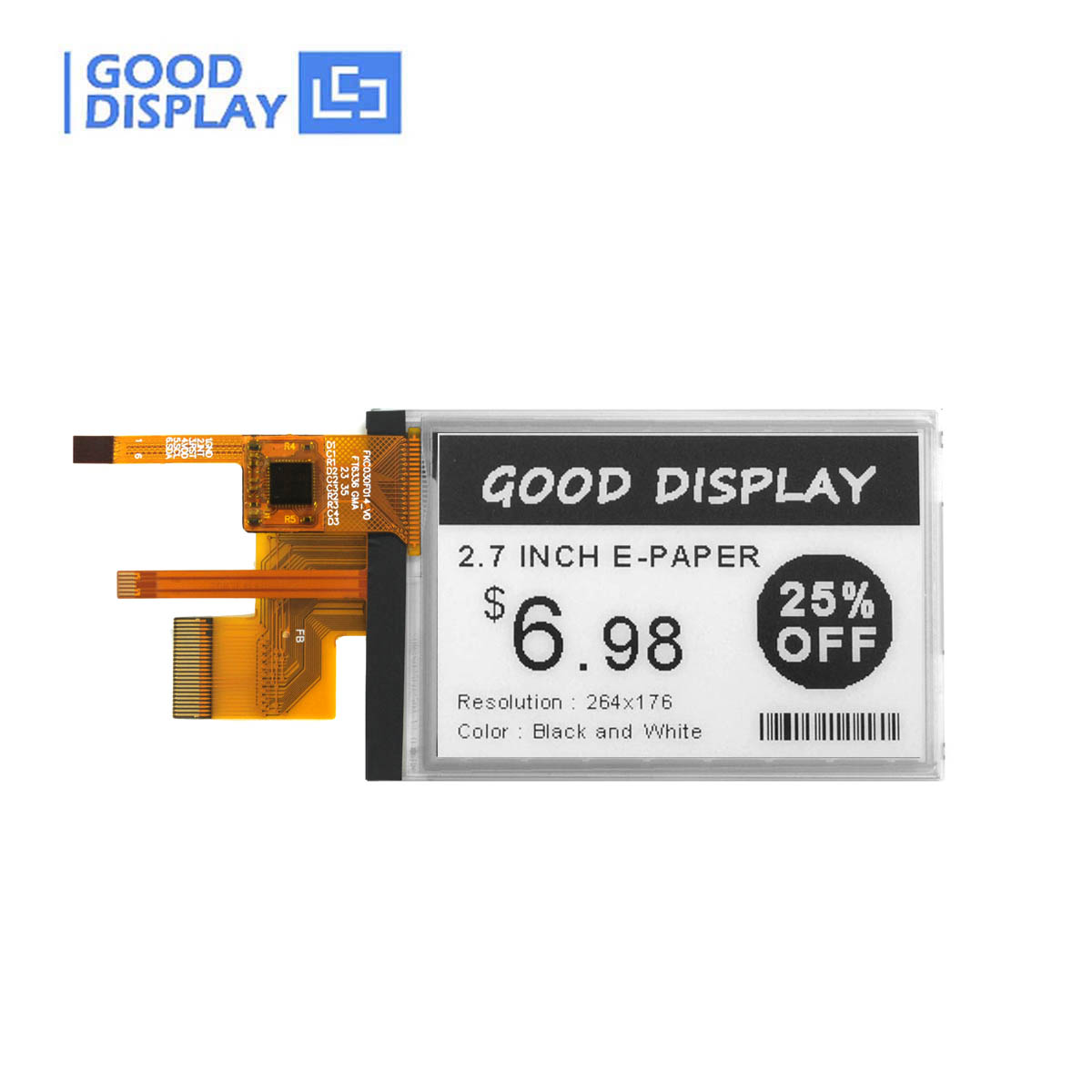

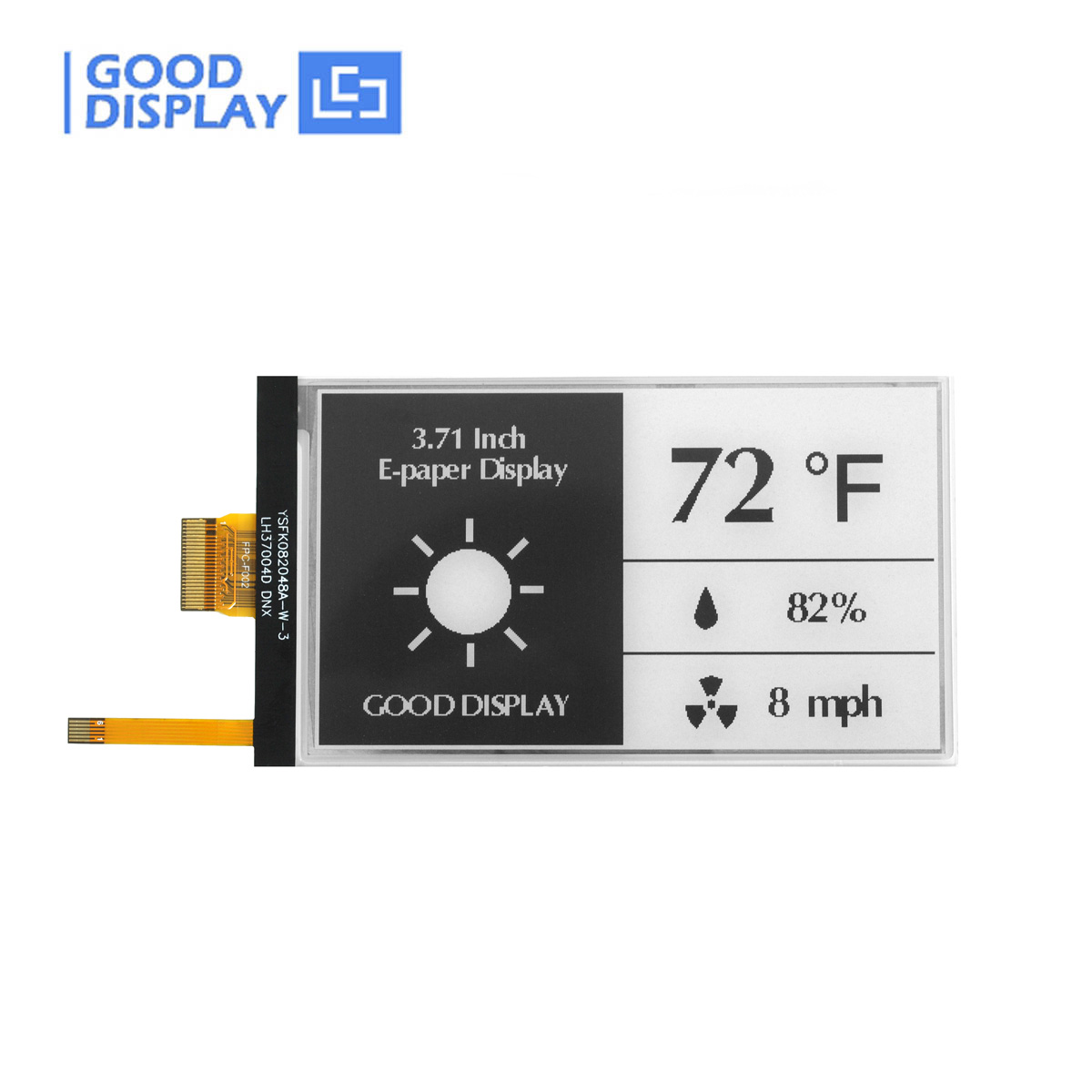

Compatible Frontlight E-Ink
|
|
