☆ INTRODUCTION

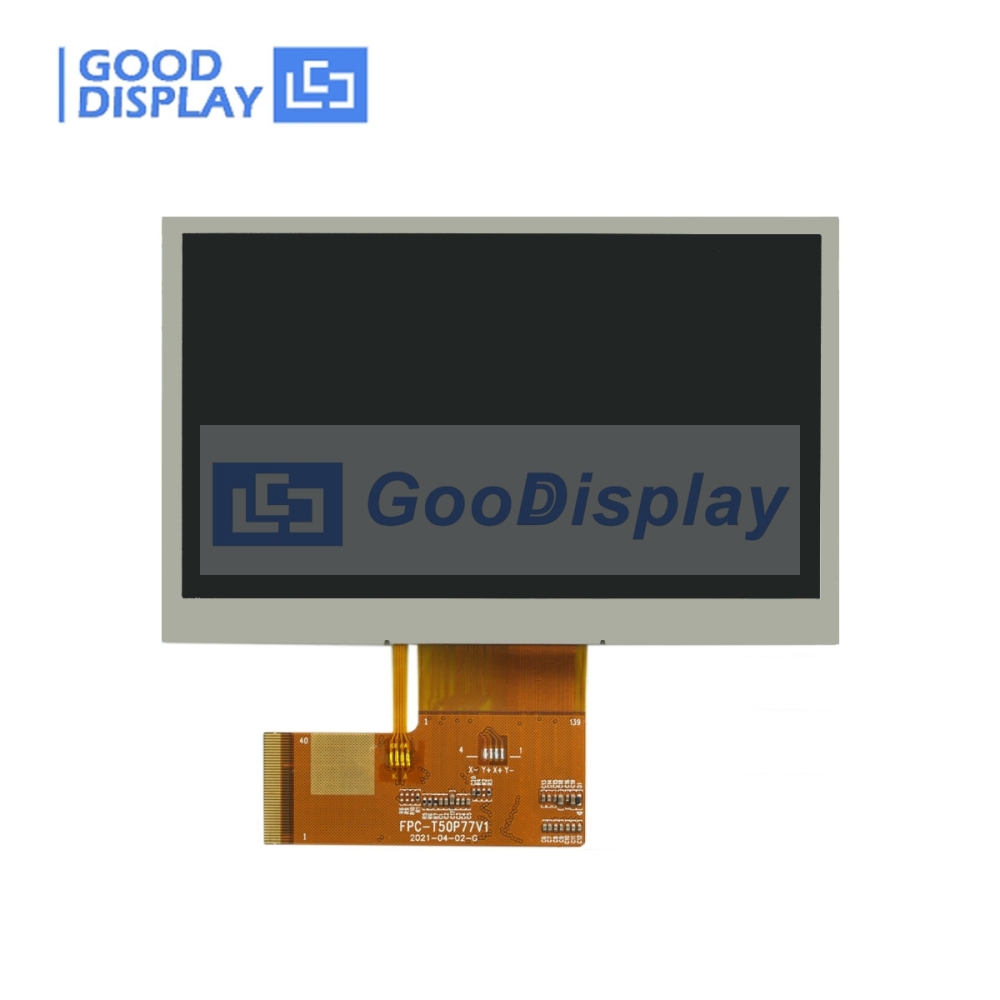

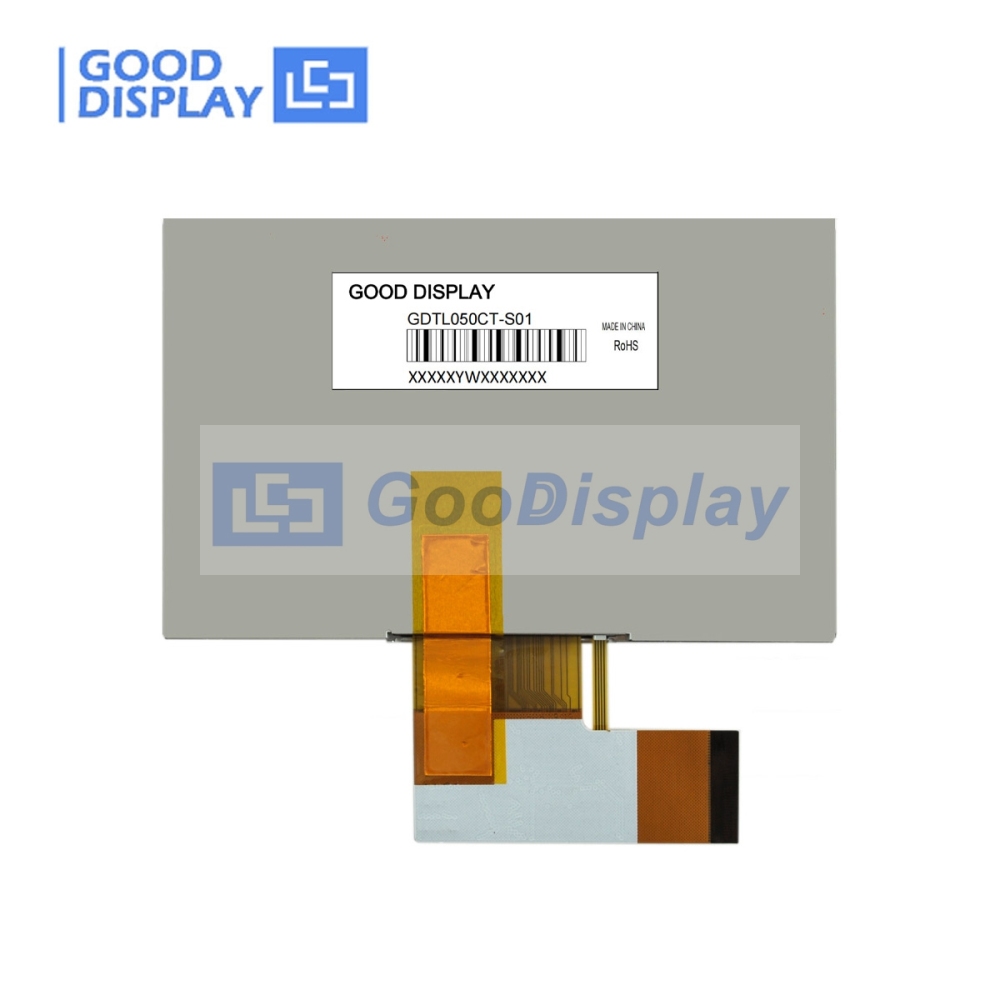

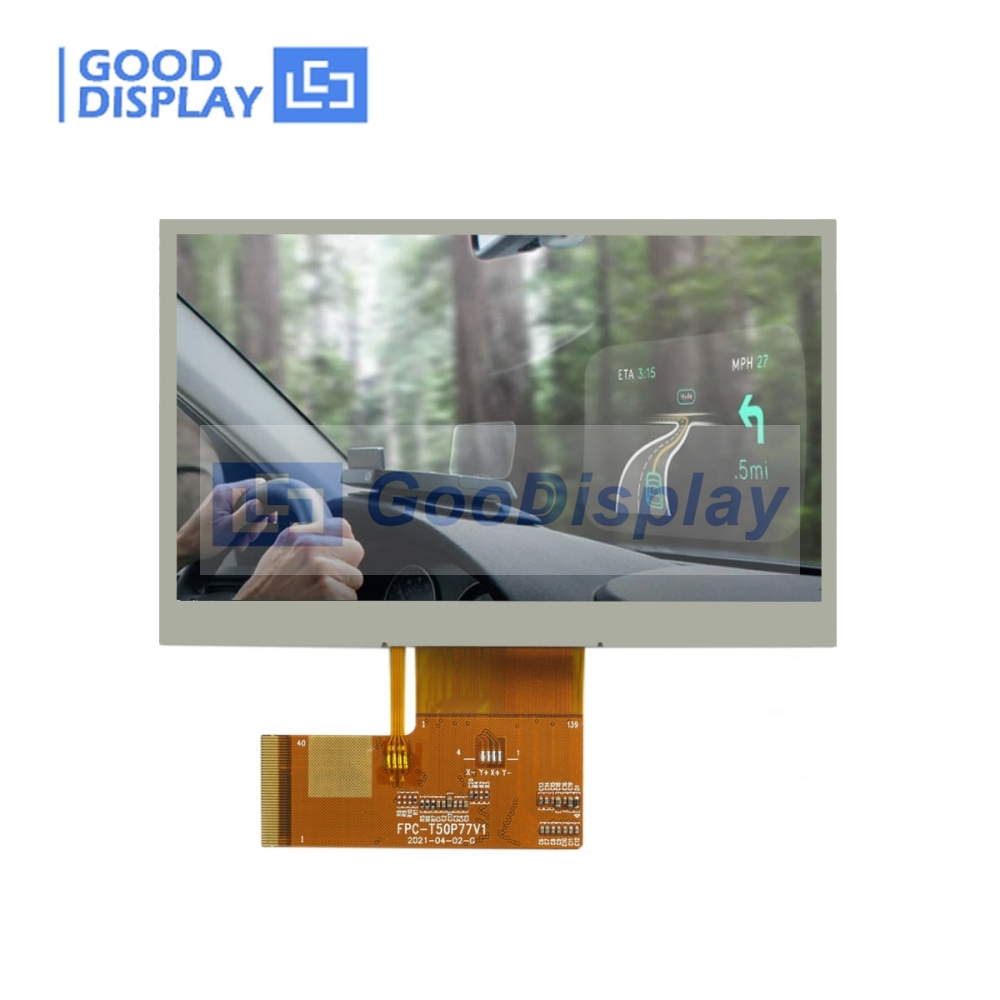

GDTL050CT-S01 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.
Relevant manual about this product on our official website (www.einkpro.com),contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 5 inch TFT LCD Display Panel, GDTL050CT-S01 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDTL050CT-S01 |
| PANEL SIZE |
5 inch |
TYPE |
TN |
| DRIVER IC |
ILI6480H |
CONTRAST RATIO |
500 |
| NUMBER OF DOTS |
480×272 pixels |
BACKLIGHT |
White LED |
| LUMINANCE |
400cd/m2 |
OPERATION TEMPERATURE |
-20℃~70℃ |
| Number of LED |
10 Piece |
STORAGE TEMPERATURE |
-30℃~80℃ |
| OUTLINE DIMENSION(mm) |
120×76.45×3.7 |
DISPLAY MODE |
Normally White |
| ACTIVE AREA(mm) |
110.88×62.83 |
VIEWING DIRECTION |
12 O'clock |
| PIXEL PITCH(mm) |
0.231×0.231 |
INTERFACE TYPE |
RGB |
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● GDTL050CT-S01 Specification
☆ PRECAUTIONS
● Store them in a sealed polyethylene bag. If properly sealed, there is no need for the desiccant.
● Store them in a dark place. Do not expose to sunlight or fluorescent light, keep the temperature between 0℃ and 35℃, and keep the relative humidity between 40%RH and 60%RH.
● The polarizer surface should not come in contact with any other objects (We advise you to store them in the anti-static electricity container in which they were shipped).
