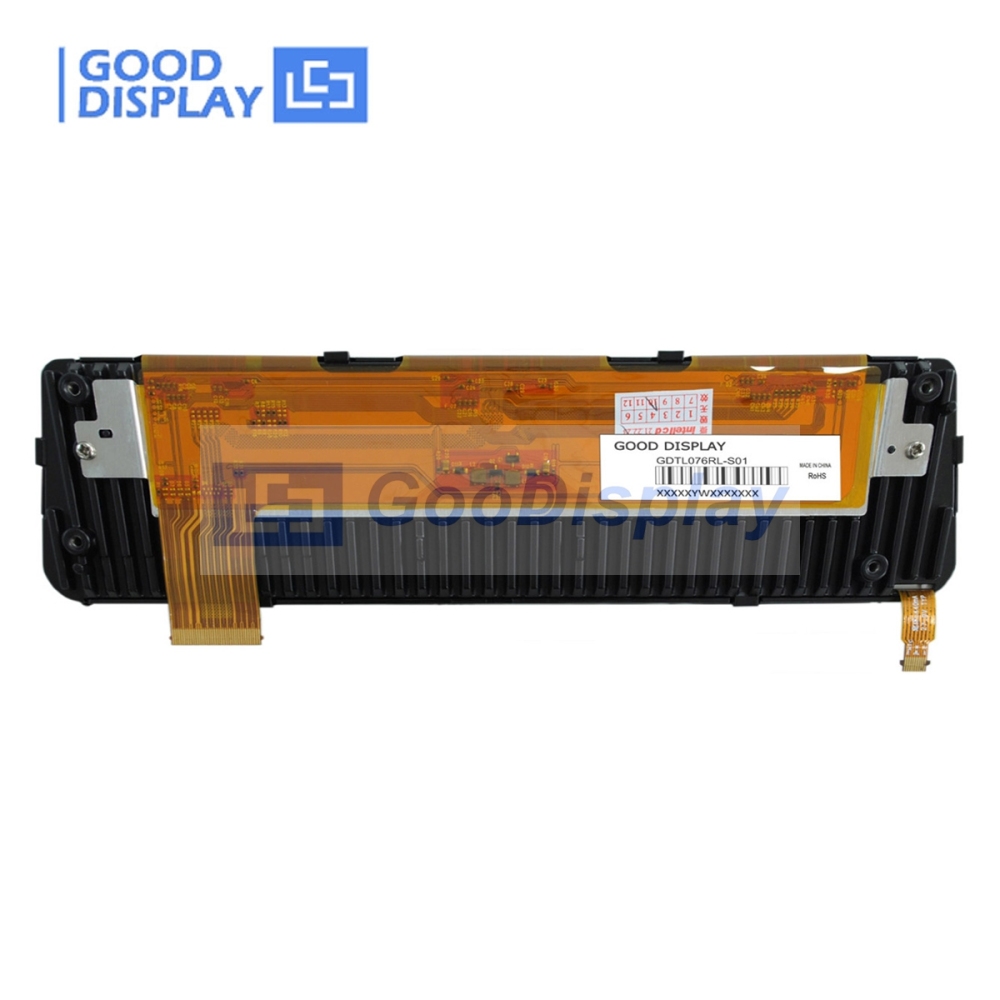

7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01

SKU: GDTL076RL-S01
(0)
0 Sold
$37.22 $46.52
20% OFF
GDTL076RL-S01 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
2-4
12% Off
5-9
15% Off
10-max
    Please select the information you wantX
Quantity:
0 in stock
1 * $37.22 = $37.22
save $0.00
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
1/1
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
  • 7.6 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~80℃, High-brightness 6500Nit,GDTL076RL-S01
Frequently Bought Together
more
Frequently Bought Together
  • Description



☆ INTRODUCTION




GDTL076RL-S01 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.



Relevant manual about this product on our official website (www.einkpro.com),contact us please.




☆ THE ABOVE PRICE INCLUDE




1)  7.6 inch TFT LCD Display Panel, High-brightness display, Wide-temperature display, GDTL076RL-S01 * 1pc




☆ MAIN PARAMETERS



PART NUMBER GDTL076RL-S01
PANEL SIZE 7.6 inch TYPE IPS
BACKLIGHT White LED CONTRAST RATIO 1000
NUMBER OF DOTS 1280×240 pixels OPERATION TEMPERATURE -30℃~80℃
LUMINANCE 6500cd/m2 STORAGE TEMPERATURE -40℃~85 ℃
OUTLINE DIMENSION(mm) 206.24×51.93×15.05 VIEWING DIRECTION ALL
ACTIVE AREA(mm) 191.62×35.93 INTERFACE TYPE LVDS
PIXEL PITCH(mm) 0.1497×0.1497

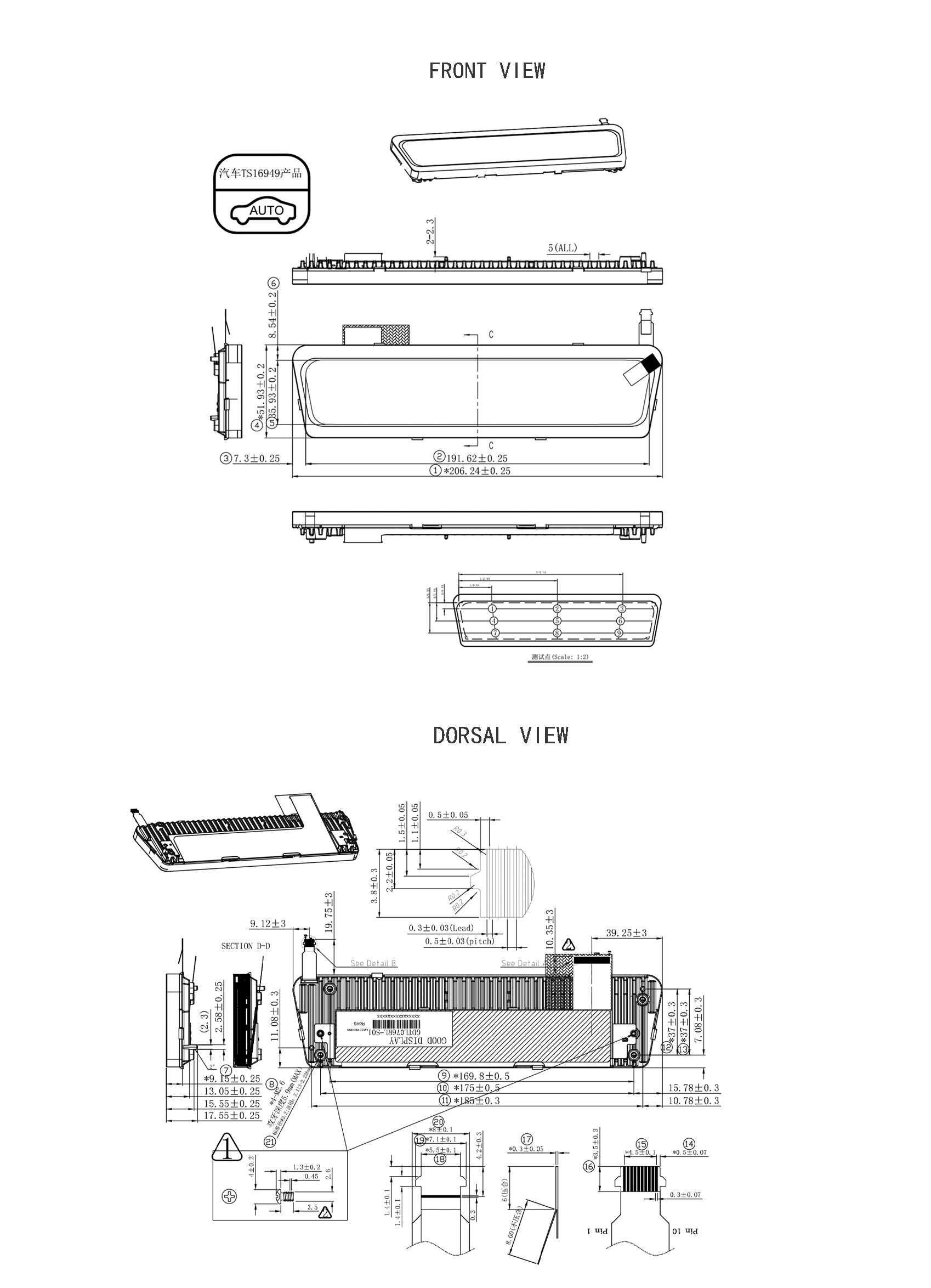

☆ DETAILS






☆ RELATED INFORMATION DOWNLOAD



●  GDTL076RL-S01 Specification



☆ PRECAUTIONS



●  Do not disassemble the module or insert anything into the Backlight unit.

●  If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

●  After the module’s end of life, it is not harmful in case of normal operation and storage.
