10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01

SKU: GDTL101LL-S01
(0)
0 Sold
$83.48 $104.35
20% OFF
GDTL101LL-S01 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
2-4
12% Off
5-9
15% Off
10-max
    Please select the information you wantX
Quantity:
0 in stock
1 * $83.48 = $83.48
save $0.00
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
1/1
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
  • 10.1 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, GDTL101LL-S01
Frequently Bought Together
more
Frequently Bought Together
  • Description



☆ INTRODUCTION




GDTL101LL-S01 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.



Relevant manual about this product on our official website (www.einkpro.com),contact us please.




☆ THE ABOVE PRICE INCLUDE




1)  10.1 inch TFT LCD Display Panel, Wide-temperature display, GDTL101LL-S01 * 1pc




☆ MAIN PARAMETERS



PART NUMBER GDTL101LL-S01
PANEL SIZE 10.1 inch TYPE IPS
CONTRAST RATIO 1000 OPERATION TEMPERATURE -30℃~85℃
NUMBER OF DOTS 1280×720 pixels STORAGE TEMPERATURE -30℃~85℃
LUMINANCE 700cd/m2 DISPLAY MODE Normally Black

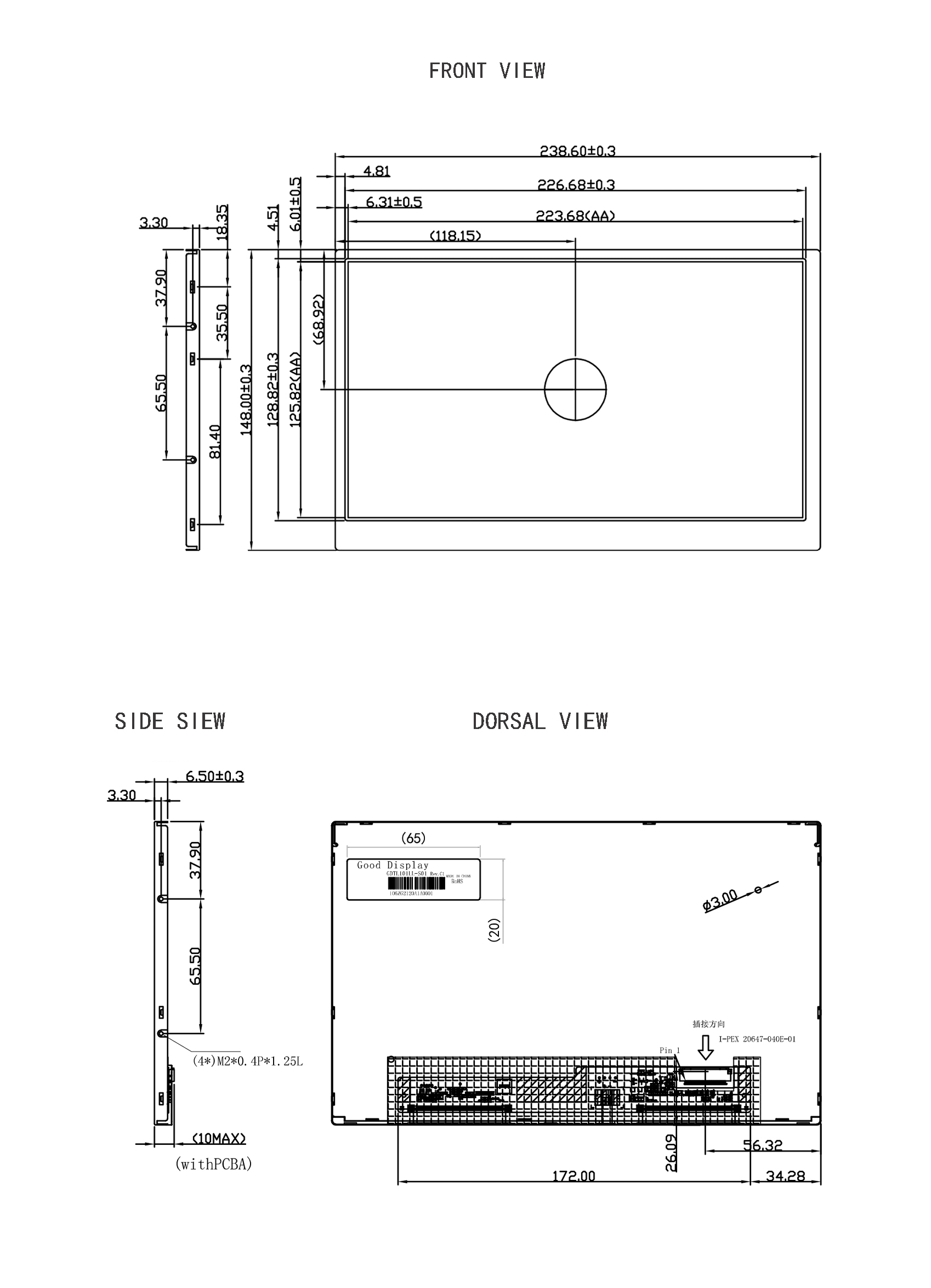

OUTLINE DIMENSION(mm) 238.6×148.00×6.5 SURFACE TREATMENT Anti-glare
ACTIVE AREA(mm) 223.68×125.82 INTERFACE TYPE LVDS
PIXEL PITCH(mm) 0.17475×0.17475




☆ DETAILS






☆ RELATED INFORMATION DOWNLOAD



●  GDTL101LL-S01 Specification



☆ PRECAUTIONS



●  Store the module in a dark room where must keep at 25±10℃ and 65%RH or less.

●  Do not store the module in surroundings containing organic solvent or corrosive gas.

●  Store the module in an anti-electrostatic container or bag.
