☆ INTRODUCTION

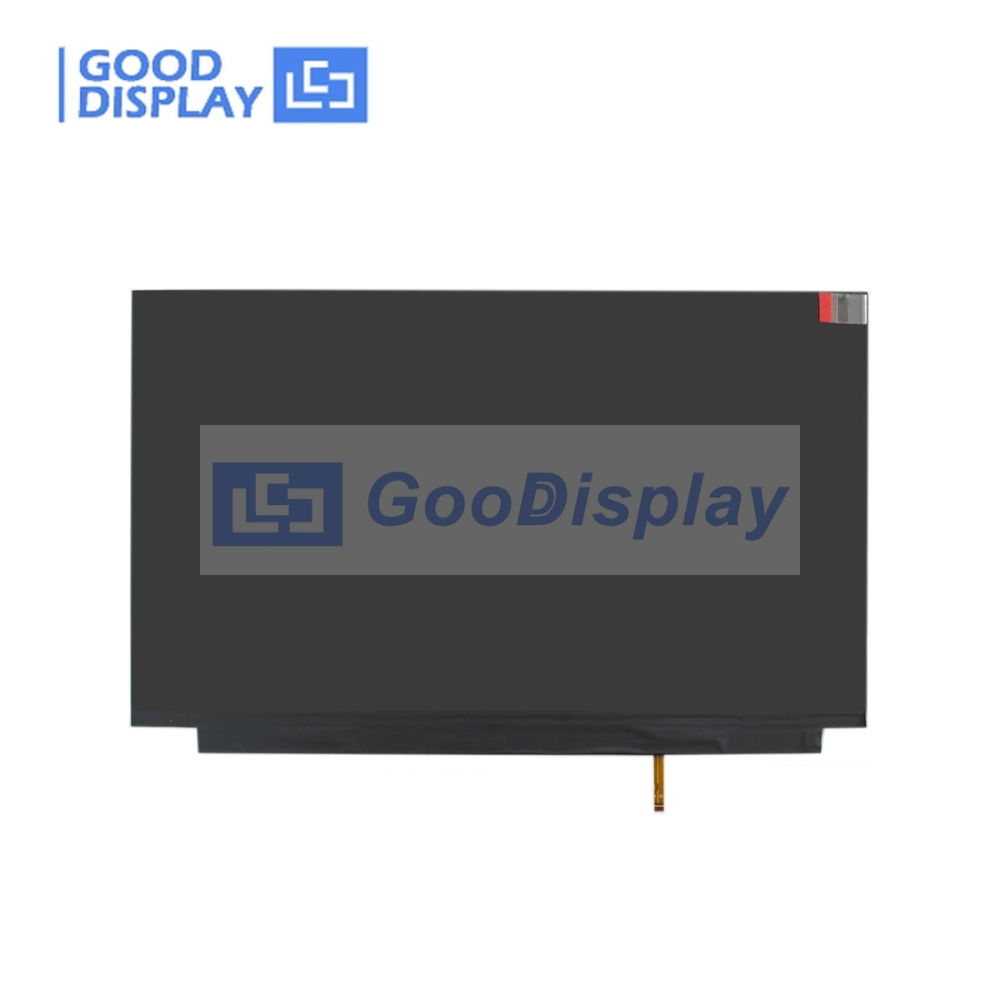

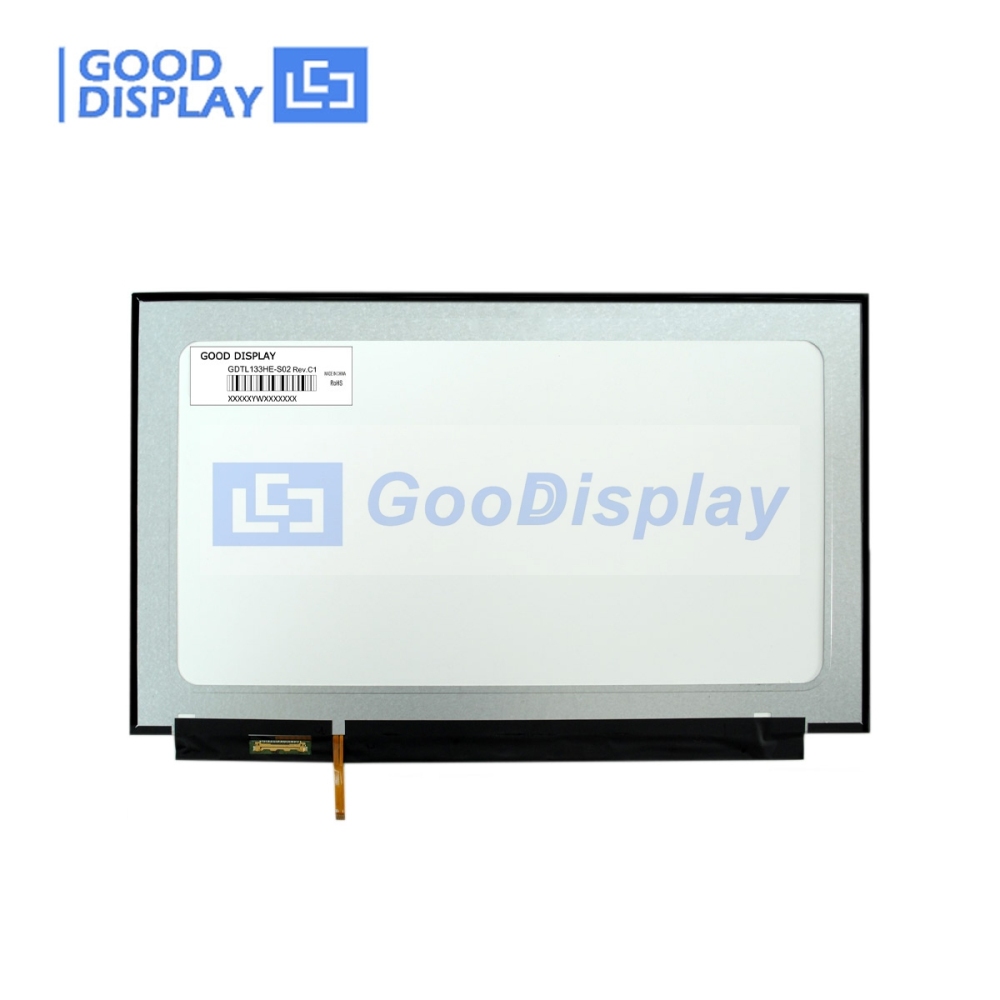

The GDTL133HE-S02 is a Color Active Matrix Liquid Crystal Display with a back light system. The matrix uses a-Si Thin Film Transistor as a switching device. This TFT LCD has a 13.3 inch diagonally measured active display area with FHD resolution (1920horizontal by1080 vertical pixels array).
Relevant manual about this product on our official website (www.einkpro.com),contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 13.3 inch TFT LCD Display Panel, GDTL133HE-S02 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDTL133HE-S02 |
| PANEL SIZE |
13.3 inch |
TYPE |
IPS |
| BACKLIGHT |
White LED |
OPERATION TEMPERATURE |
0℃~50℃ |
| CONTRAST RATIO |
1200 |
STORAGE TEMPERATURE |
-20℃~60℃ |
| NUMBER OF DOTS |
1920×1080 pixels |
DISPLAY MODE |
Normally Black |
| LUMINANCE |
320cd/m2 |
DISPLAY FORMAT |
RGB vertical stripe |
| NUMBER OF COLORS |
262K/16.7M |
SURFACE TREATMENT |
Hard coating (3H), Anti-Glare |

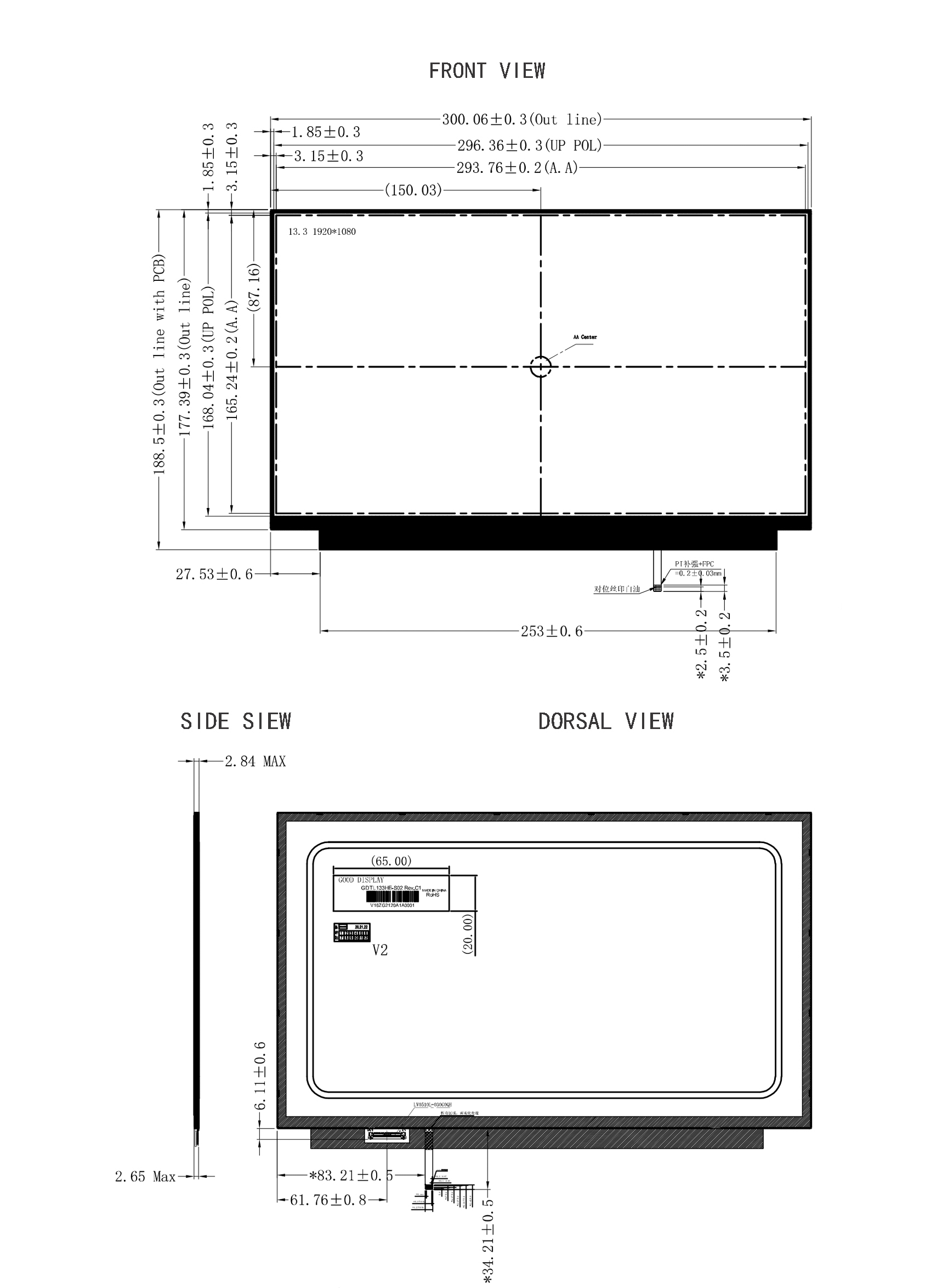

| OUTLINE DIMENSION(mm) |
300.06×188.5×2.84 |
VIEWING DIRECTION |
ALL |
| ACTIVE AREA(mm) |
293.76×165.24 |
INTERFACE TYPE |
edp |
| PIXEL PITCH(mm) |
0.1530×0.1530 |
|
|
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● GDTL133HE-S02 Specification
☆ PRECAUTIONS
● Static electricity will generate between the film and polarizer, when the protection film is peeled off. It should be peeled off slowly and carefully by operators who are electrically grounded and with Ion-blown equipment turning on. Besides, it is recommended to peel off the film from the bonding area.
● The protection film is attached to the polarizer with a small amount of glue. When the module with protection film attached is stored for a long time, a little glue may remain after peeling.
● If the liquid crystal material leaks from the panel, keep it away from the eyes and mouth. In case of contact with hands, legs or clothes, it must be clean with soap thoroughly.
