☆ INTRODUCTION

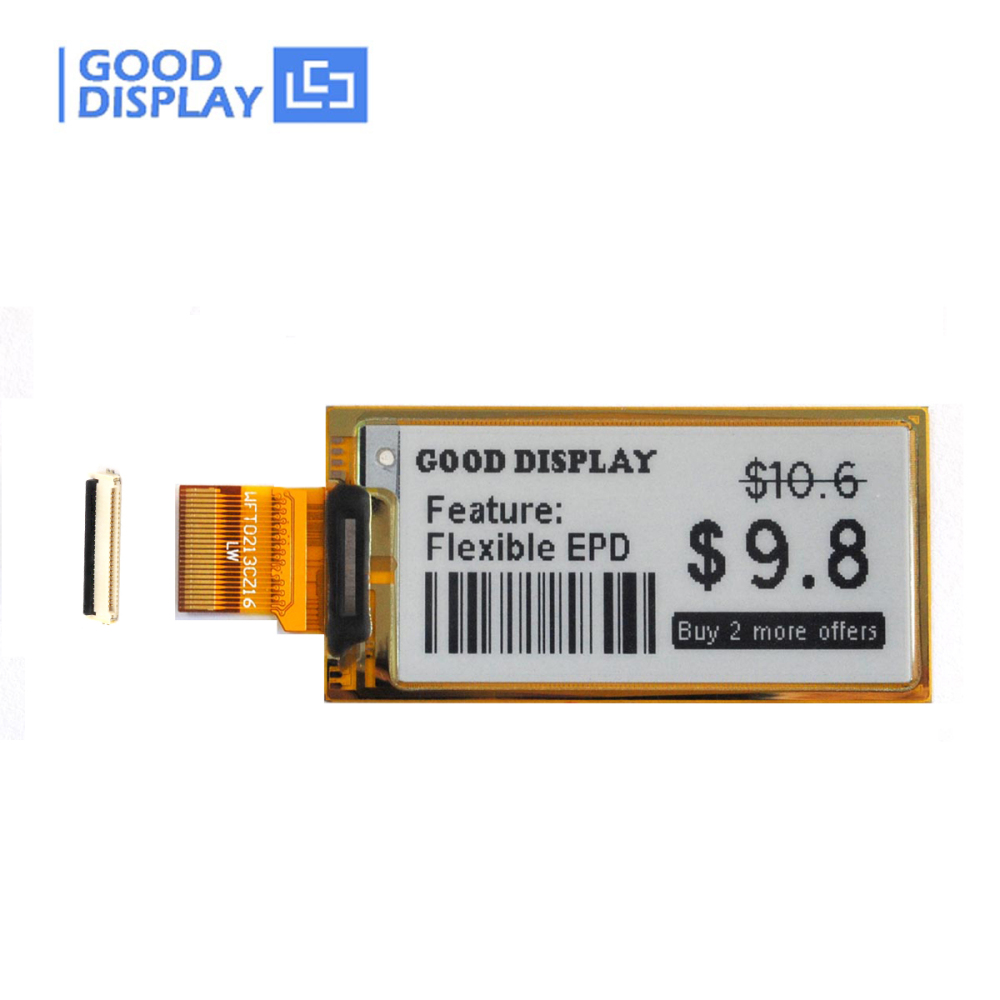

This is a flexible e-ink display, 2.13 inch, use the flexible substrate as base plate, with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213I5F is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap
☆ THE ABOVE PRICE INCLUDE
1) 2.13 inch e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0213I5FD
|
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
SIZE
|
2.13 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
UC8151D
|
COLOR |
Black,White |
|
RESOLUTION
|
212x104
|
INTERFACE |
SPI |
|

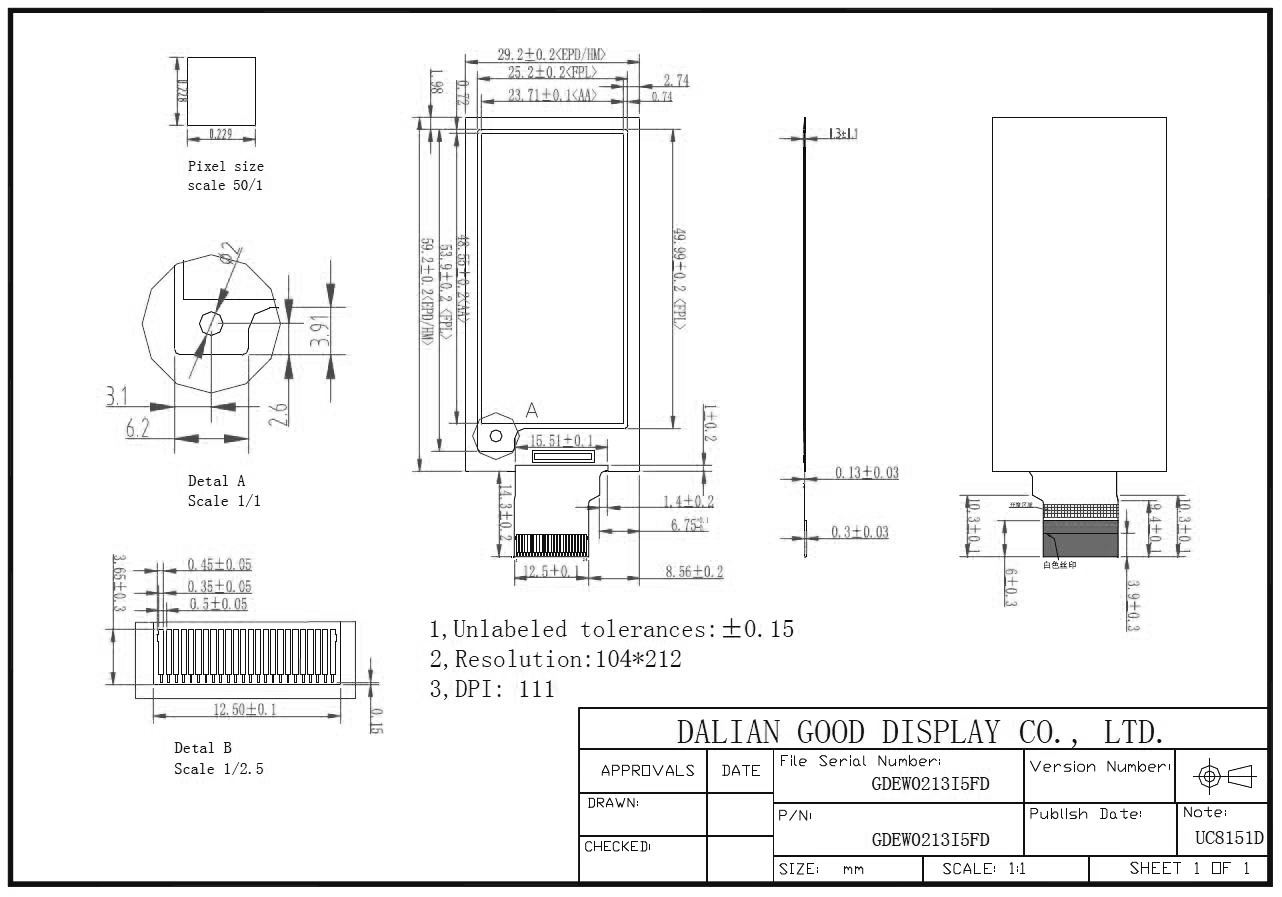

OUTLINE SIZE(mm)
|
59.2x29.2x0.3
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
48.55x23.71
|
PARTIAL REFRESH TIME(s) |
0.3 |
|
PIXEL PITCH(mm)
|
0.229x0.228
|
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
|
OPERATING TEMP.
|
0℃~50℃
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
|
STORAGE TEMP.
|
-25℃~70℃
|
|
|
☆ DETAILS
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ 2.13 INCH E-INK DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW0213T5D |
BW |
UC8151D |
212x104 |
Partial Refresh, 4 Grayscale |
3s |
| GDEW0213I5F |
BW |
UC8151C |
212x104 |
Flexible, Partial Refresh |
3s |
| GDEY0213B74 |
BW |
SSD1680 |
250x122 |
Partial Refresh |
3s |
| GDEY0213Z98 |
BWR |
SSD1680 |
250x122 |
Colorful(Red) |
14s |

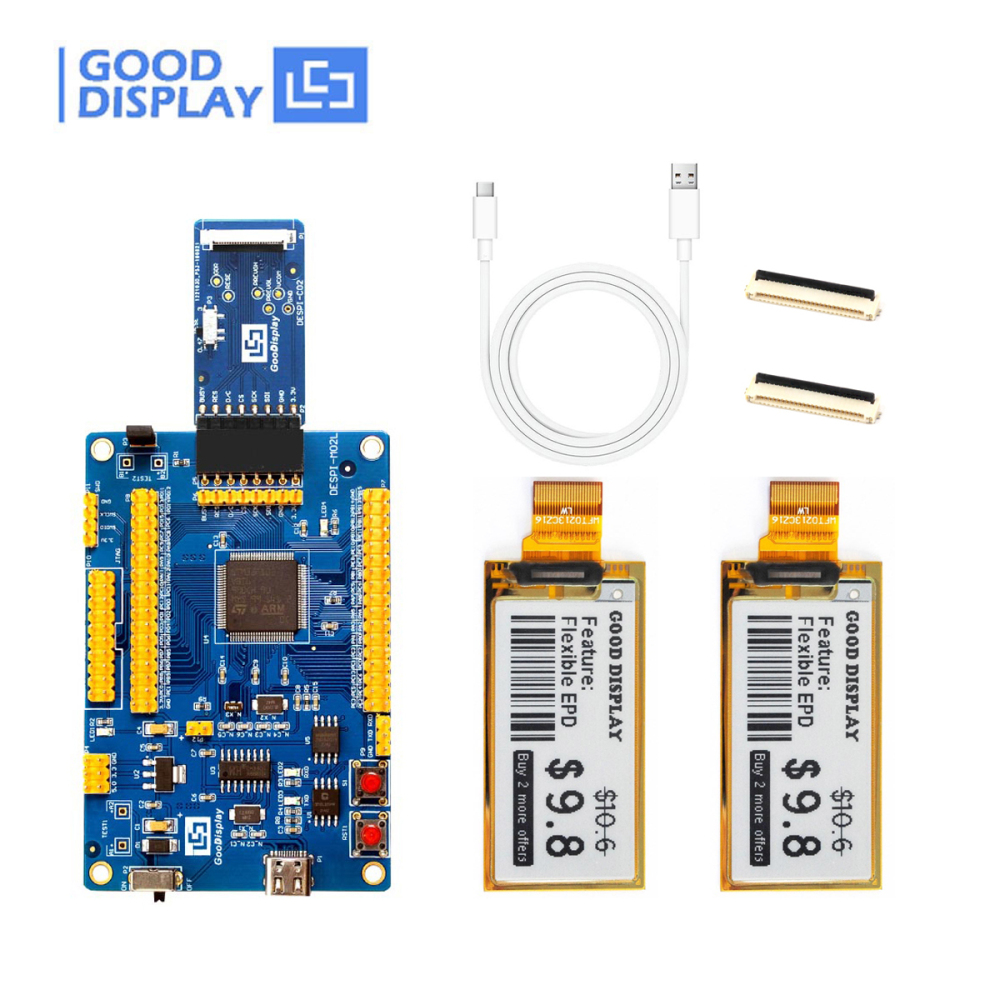

☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
