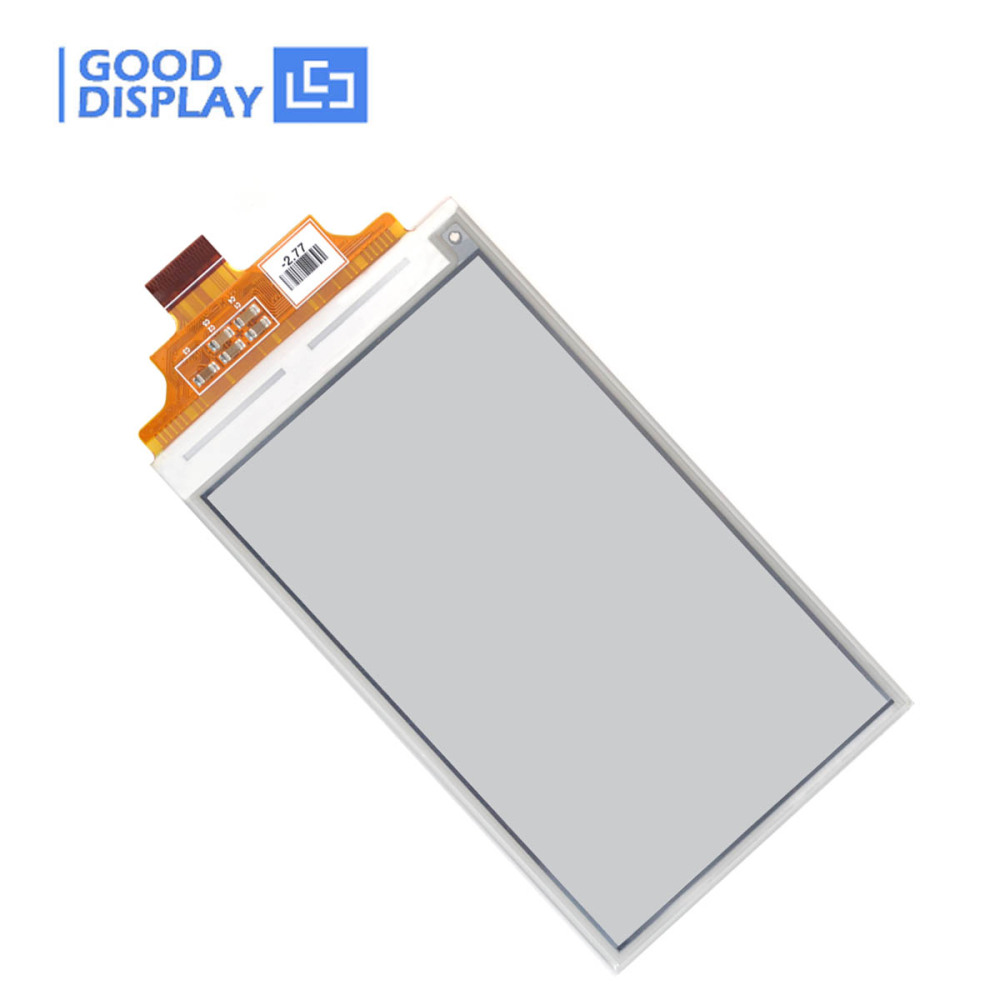

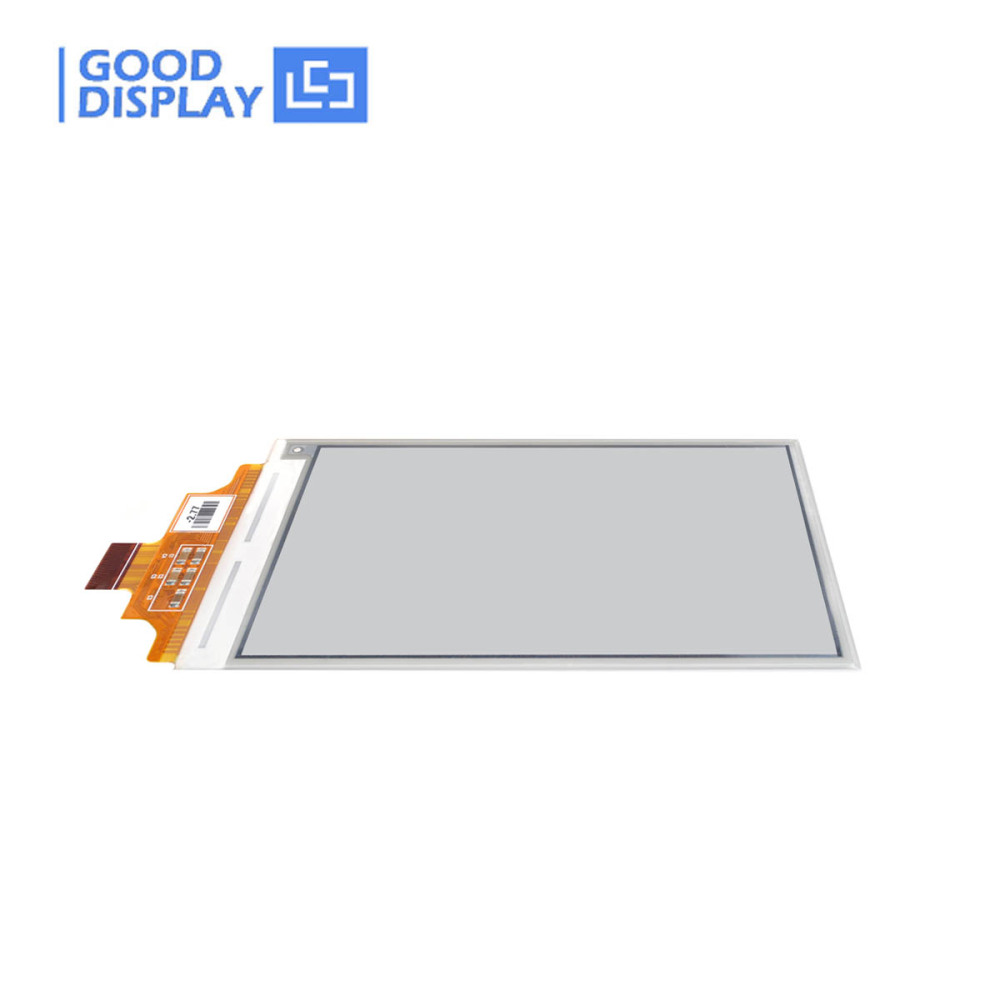

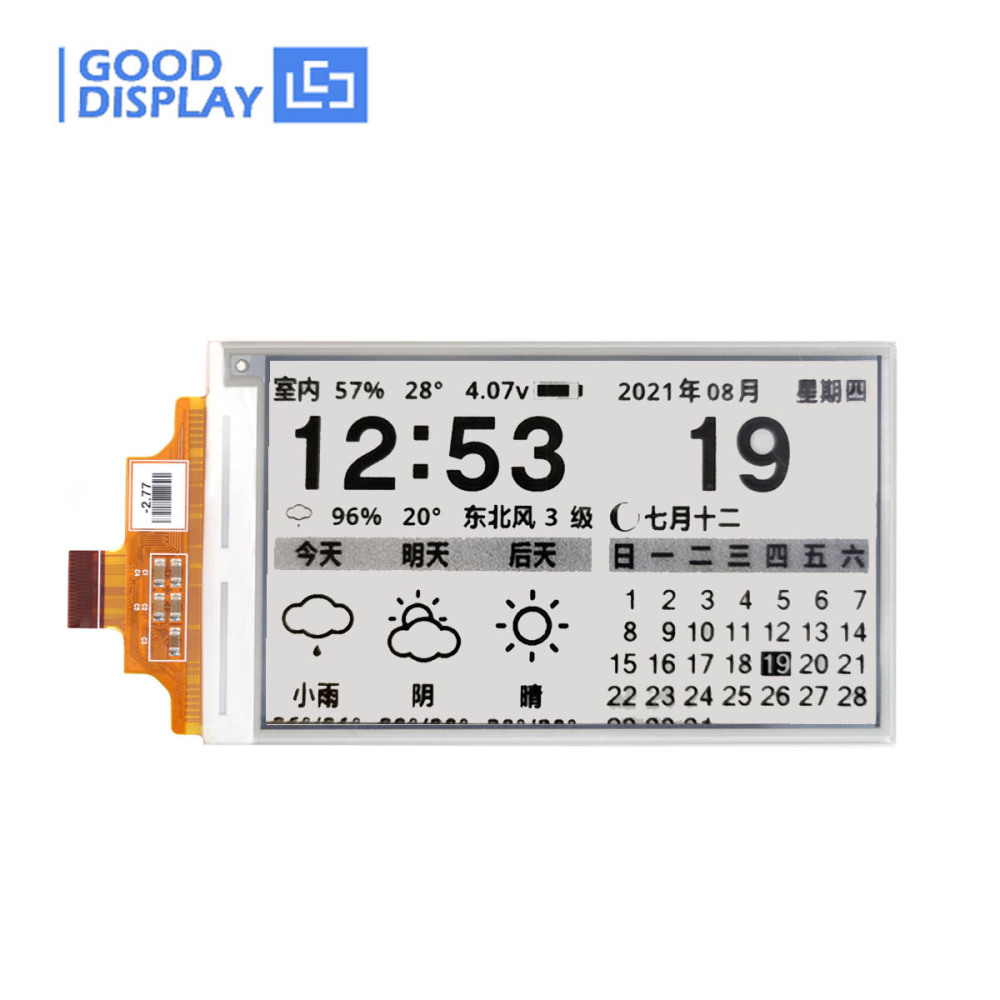

Good Display 4.3 inch E-ink Tablet Parallel E-ink Display 800x480 Buy LCD E-Paper Display Monitor, GDEP043ZF3

SKU: GDEP043ZF3

(0)

1 Sold

$27.20 ~~$34.00~~

20% OFF

GDEP043ZF3 is an Active Matrix Electrophoretic Display(AM EPD), High-Resolution AM TFT Black/White display module can be used in portable electronic devices, such as E-book Reader. The resolution of the module is 800×480.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

☆ INTRODUCTION

This is a 4.3 inch E-ink Tablet Parallel E-ink Display with 800x480 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 4.3 inch e-paper display GDEP043ZF3 is an ideal choice for applications such as shelf label, industrial instrument and so on.

We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd.

☆ THE ABOVE PRICE INCLUDE

1) Good Display 4.3 inch E-ink Tablet Parallel E-ink Display 800x480 Buy LCD E-Paper Display Monitor * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDEP043ZF3
SIZE	4.3 inch	STORAGE TEMP.	-20℃~70℃
TYPE	Dot Matrix	CONSTRAST RATIO	Above 8:1
RESOLUTION	800x480	MAX GRAYSCALE	16

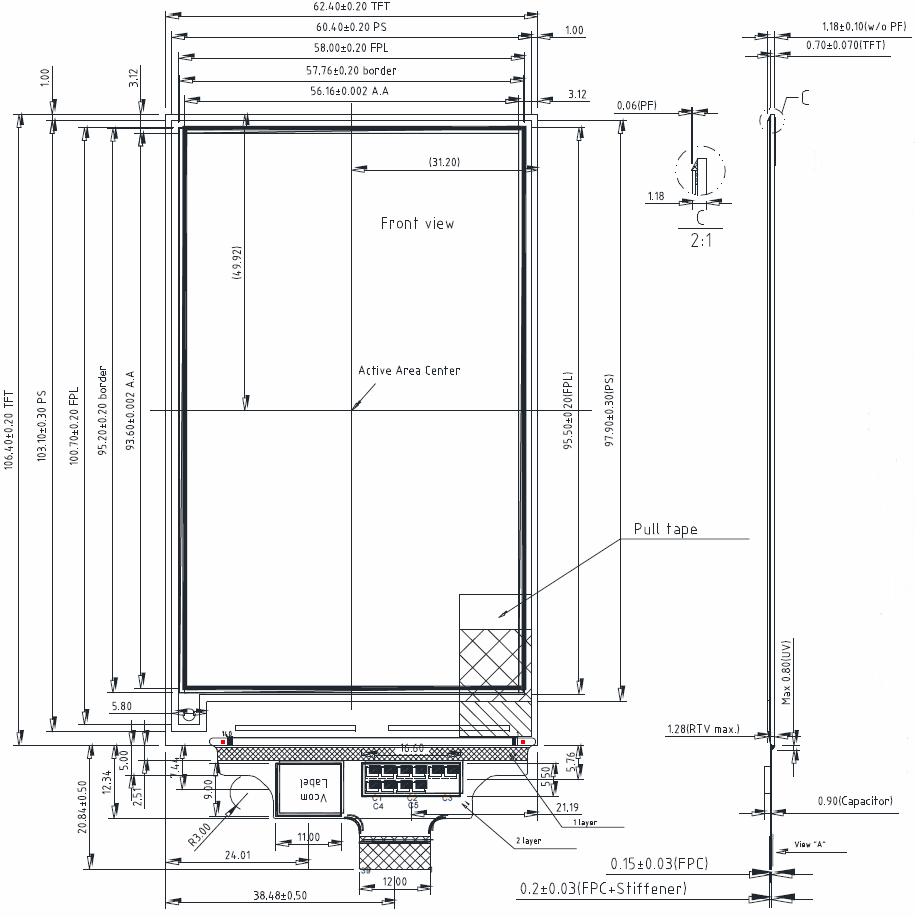

OUTLINE SIZE(mm)	106.4x62.4x1.18	COLOR	Black,White
ACTIVE SIZE(mm)	93.6x56.16	INTERFACE	Parallel
PIXEL PITCH(mm)	0.117x0.117	FULL REFRESH(s)	1
OPERATING TEMP.	0℃~50℃	PARTIAL REFRESH(s)	1

☆ FEATURE

● Black and white monochrome is easy to read

● Versatile. Use in portrait or landscape format

● Bistable. (Will continue to display with no power source)

● Low power consumption, basically power is only required for refreshing
