goodisplay circular 0.75 inch 128x128 oled white small display, GDOR0075W

SKU: GDOR0075W

(0)

1 Sold

$12.72 ~~$15.89~~

20% OFF

This is a white circular OLED display with small molecular organic light emitting diode, 0.75 inch with 128x128 pixels. The drive IC is SSD1327. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The pixel luminance is 80(Typ) cd/m².

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Any questions, just feel free to contact me, my email is: info@good-display.com

☆ INTRODUCTION

This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus. Its circular design is also a good choice for other special application.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

☆ FEATURE

● Self-luminous, no backlight is required.

● Circular.

● Wide operating temperature: -40℃~70℃

☆ THE ABOVE PRICE INCLUDE

1) goodisplay circular 0.75 inch 128x128 oled white small display * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDOR0075W
DIAGONAL SIZE	0.75 inch
DISPLAY MODE	Passive Matrix
DISPLAY COLOR	Monochrome (White)
NUMBER OF PIXELS	128x128
INTERFACE	Serial Peripheral Interface, I2C Interface
DRIVER IC	SSD1327

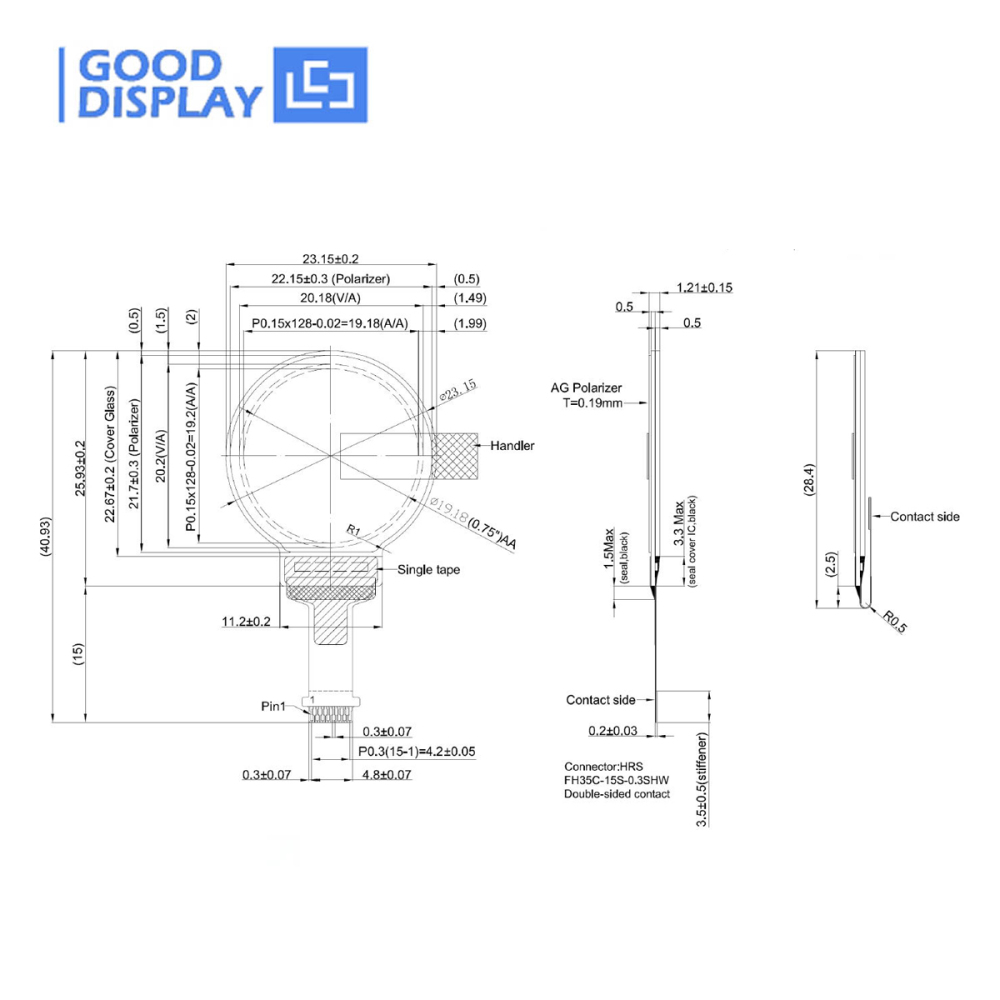

OUTLINE DIMENSION(mm)	23.15x40.93x1.21
ACTIVE AREA(mm)	D=19.18
PIXEL PITCH(mm)	0.15x0.15
PIXEL SIZE(mm)	0.13x0.13
BRIGHTNESS(Typ)	80 cd/m²(Typ)
OPERATING TEMP.	-40℃~70℃
STORAGE TEMP.	-40℃~85℃

☆ ABOUT US

Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
