☆ INTRODUCTION

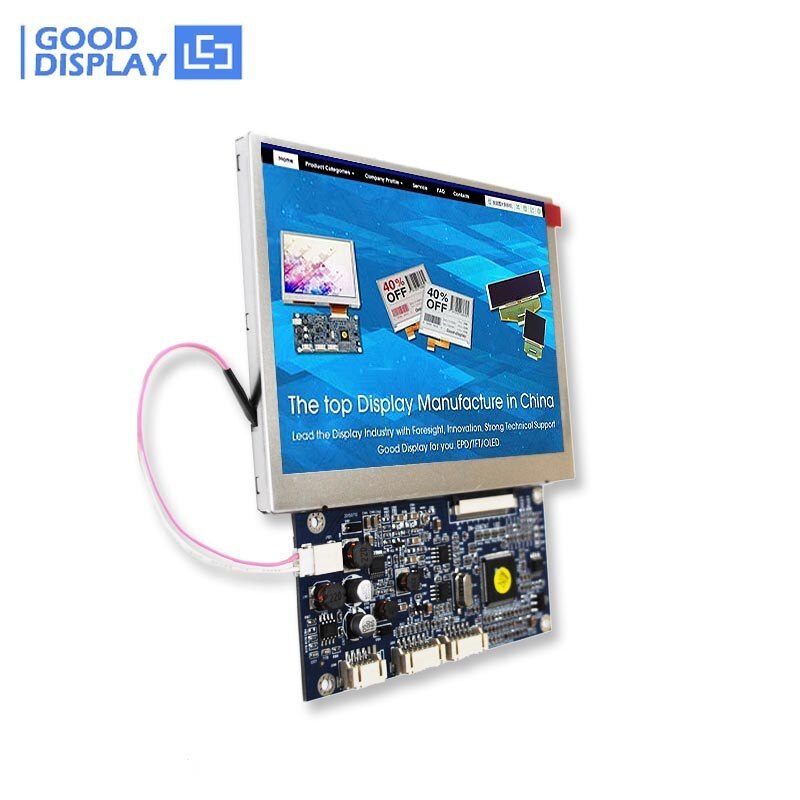

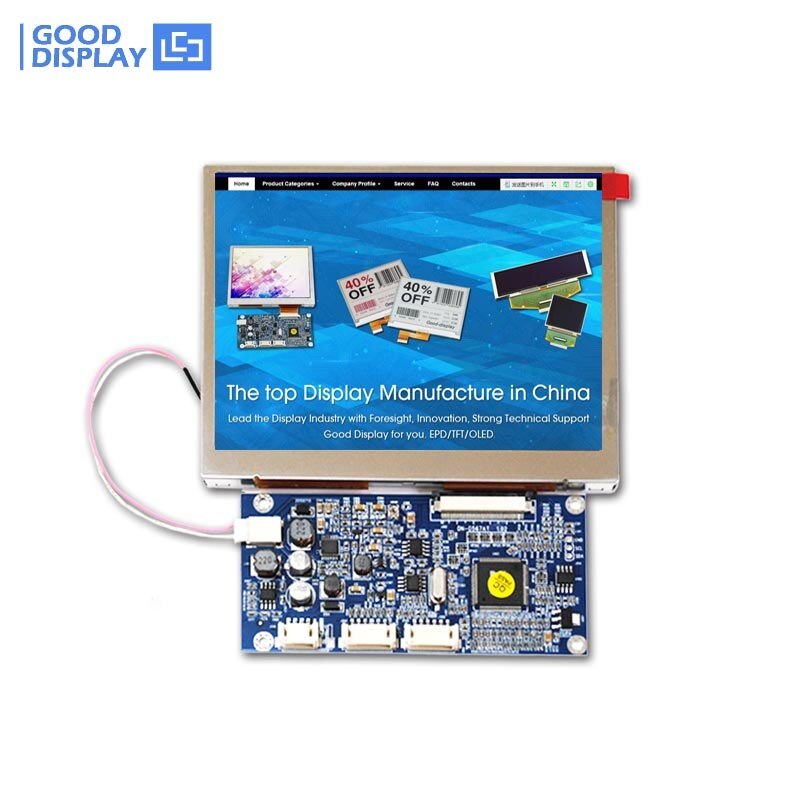

5.6 inch color TFT-LCD module display, 640x480 dots, super high brightness, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● 640x480 resolution
● Super high brightness
● Video&VGA driver board
● Viewing Angle 50°/70°/70°/70°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 5.6 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
☆ THE ABOVE PRICE INCLUDE
1) 5.6'' 640x480 TFT LCD Panel *1
2) DC12V power input AD Board with VGA,Video interface *1
3) Cable with VGA terminal *1
4) Cable with Keypad terminal *1
5) Cable with Power input & Video input terminal *1
☆ MAIN PARAMETERS
| PART NUMBER |
GDN-D567AT-GTI056TN52-U |
| SIZE |
5.6''(4:3) |
| RESOLUTION |
640*480 |
| BRIGHTNESS |
1350cd/m2(800~1600cd/m2) |
| WORKING VOLTAGE |
DC12V(Typ.) (Min.9V, Max.15V) |
| VIEWING ANGLE(U/D/L/R) |
50/70/70/70 |
| CONTRAST RATIO |
500 |
| SIGNAL INPUT |
VGA, VIDEO |
| OUTSIDE DIMENSION OF LCD PANEL |
126.5(W)*100.0(H)*8.0(D)mm |
| ACTIVE AREA OF LCD PANEL |
112.896(W)*84.672(H)mm |
| STRUCTURAL DIMENSION OF PCBA |
105.0(W)*50.0(H)*7.8(D)mm |
| BACKLIGHT |
LED |
| OPERATING TEMP. |
-10~+60C |
| STORAGE TEMP. |
-20~+70C |
