☆ INTRODUCTION

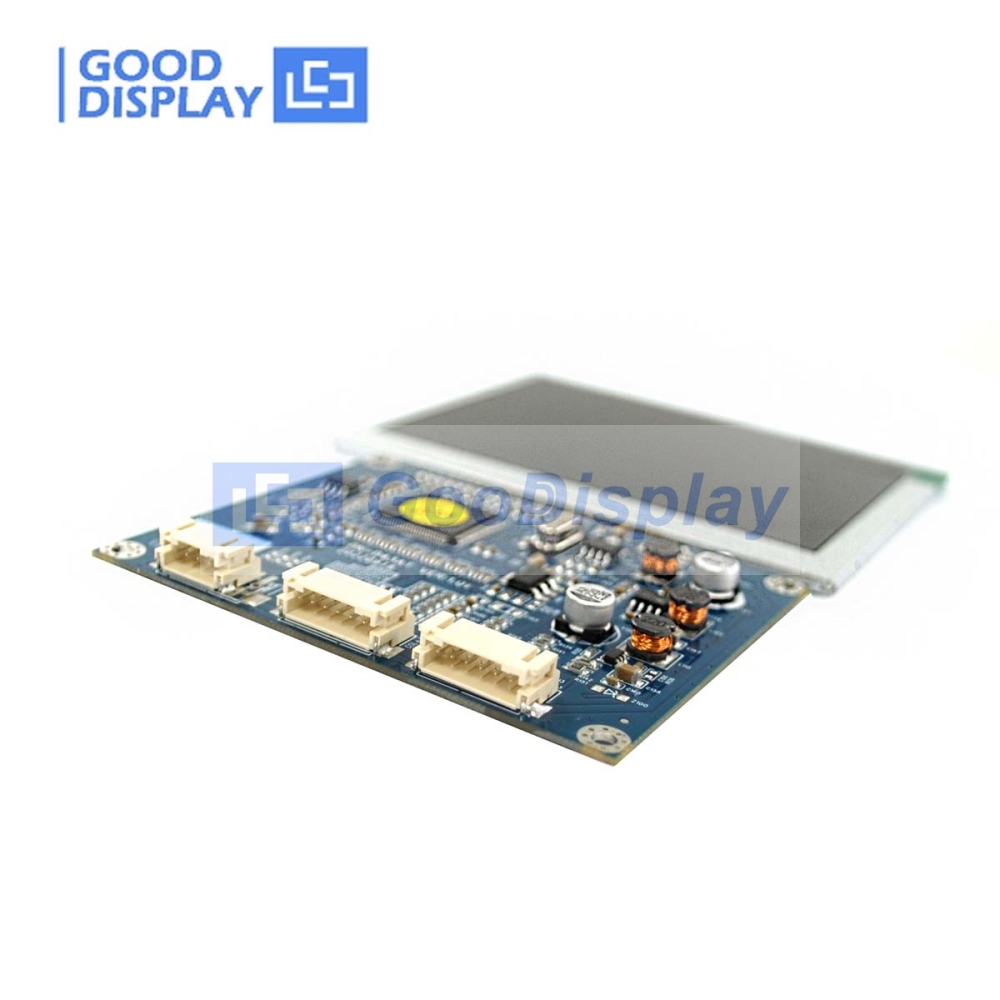

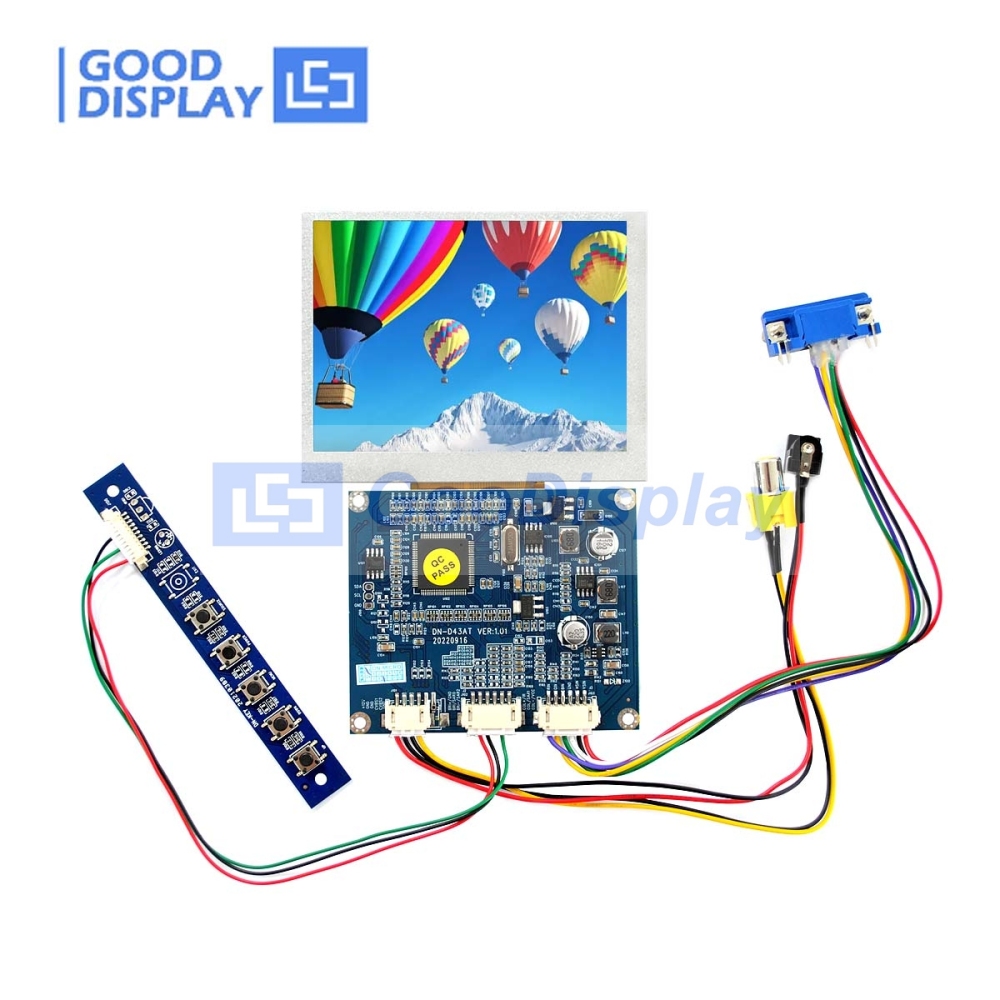

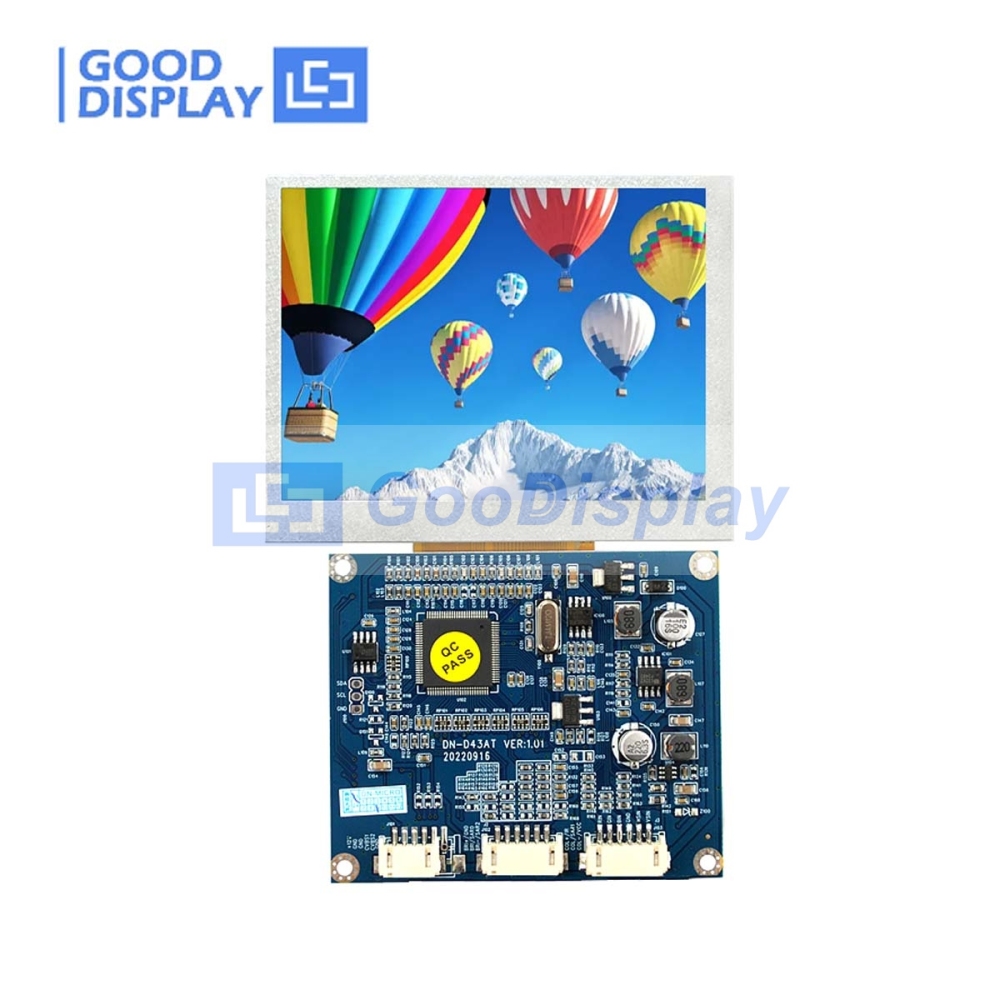

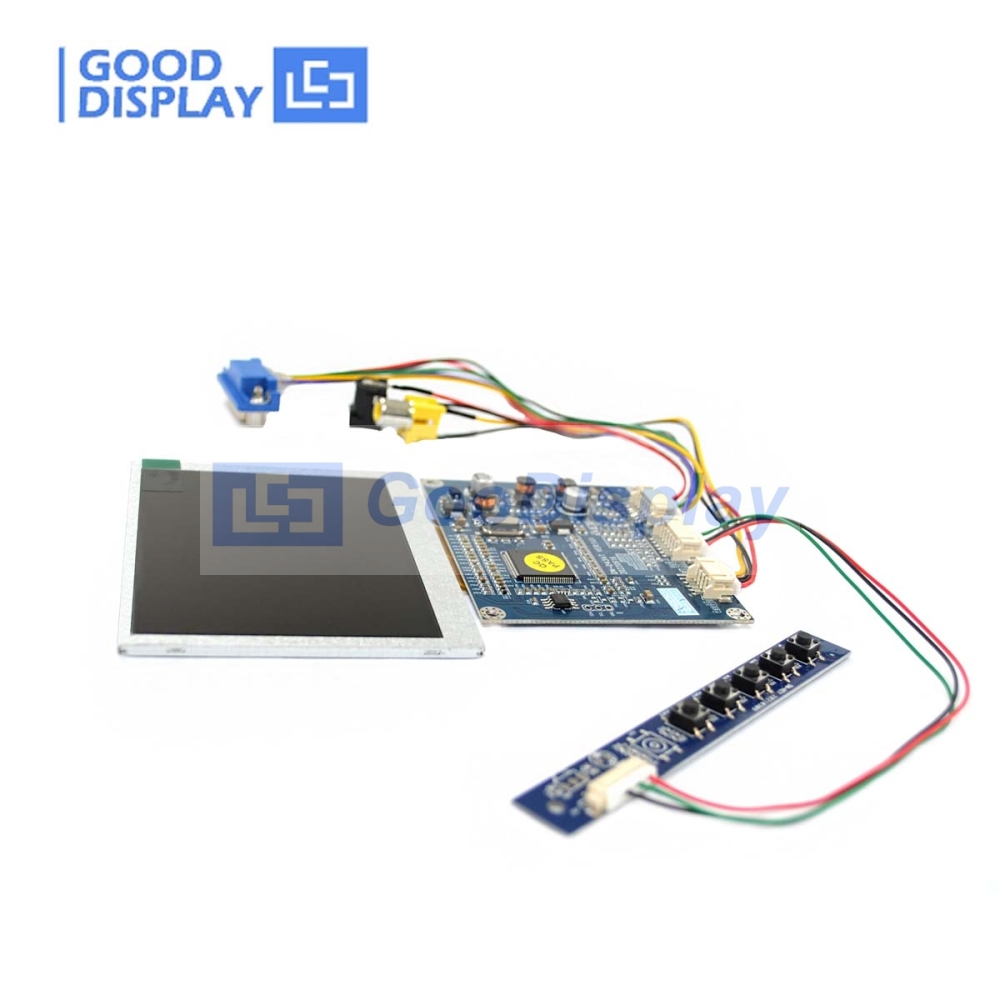

This 4.0 inch color 320x240 TFT-LCD module display, video&VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Relevant manual about this product on our official website (www.einkpro.com), contact us please.
☆ FEATURE
● 240x320 resolution
● Video&VGA driver board
● Viewing Angle 60°/70°/75°/75°（U/D/L/R）
● Operating temperature -20℃~60℃
☆ THE ABOVE PRICE INCLUDE
1) 4'' 320x240 TFT LCD Panel, GDN-D43AT-GTM040HS *1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDN-D43AT-GTM040HS |
| SIZE |
4.0''(4:3) |
OPERATING TEMP. |
-20℃~60℃ |
| RESOLUTION |
320x240 |
STORAGE TEMP. |
-30℃~70℃ |
| OUTSIDE DIMENSION OF LCD PANEL(mm) |
96.0x76.0x3.2 |
WORKING VOLTAGE |
DC12V(Typ.) (Min.9V, Max.15V) |
| ACTIVE AREA OF LCD PANEL(mm) |
82.08x61.56 |
BRIGHTNESS |
300cd/m2 |
| STRUCTURAL DIMENSION OF PCBA(mm) |
105.0x50.0x7.8 |
SIGNAL INPUT |
VGA,VIDEO |
| VIEWING ANGLE (U/D/L/R) |
60°/70°/75°/75° |
BACKLIGHT |
LED |
☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● GDN-D43AT-GTM040HS Specification
☆ PRECAUTIONS
● When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.
● The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.
● The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
