☆ INTRODUCTION

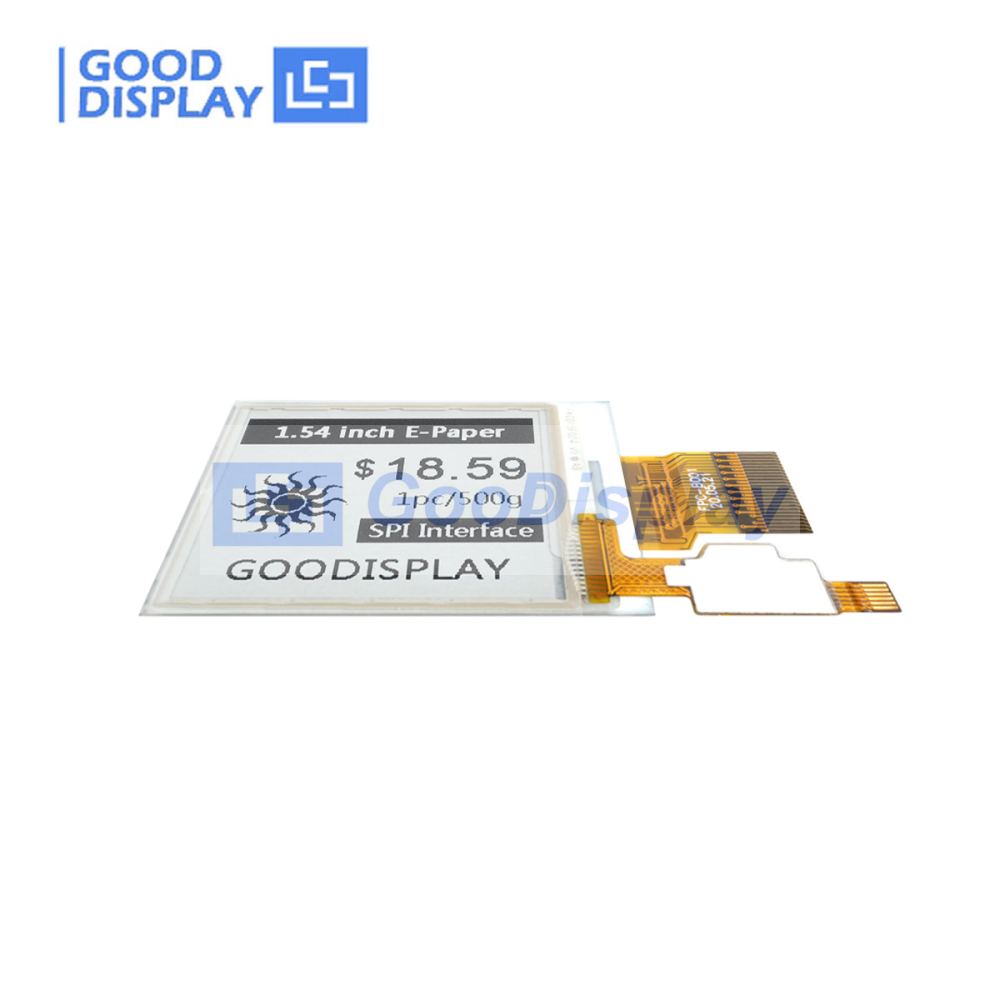

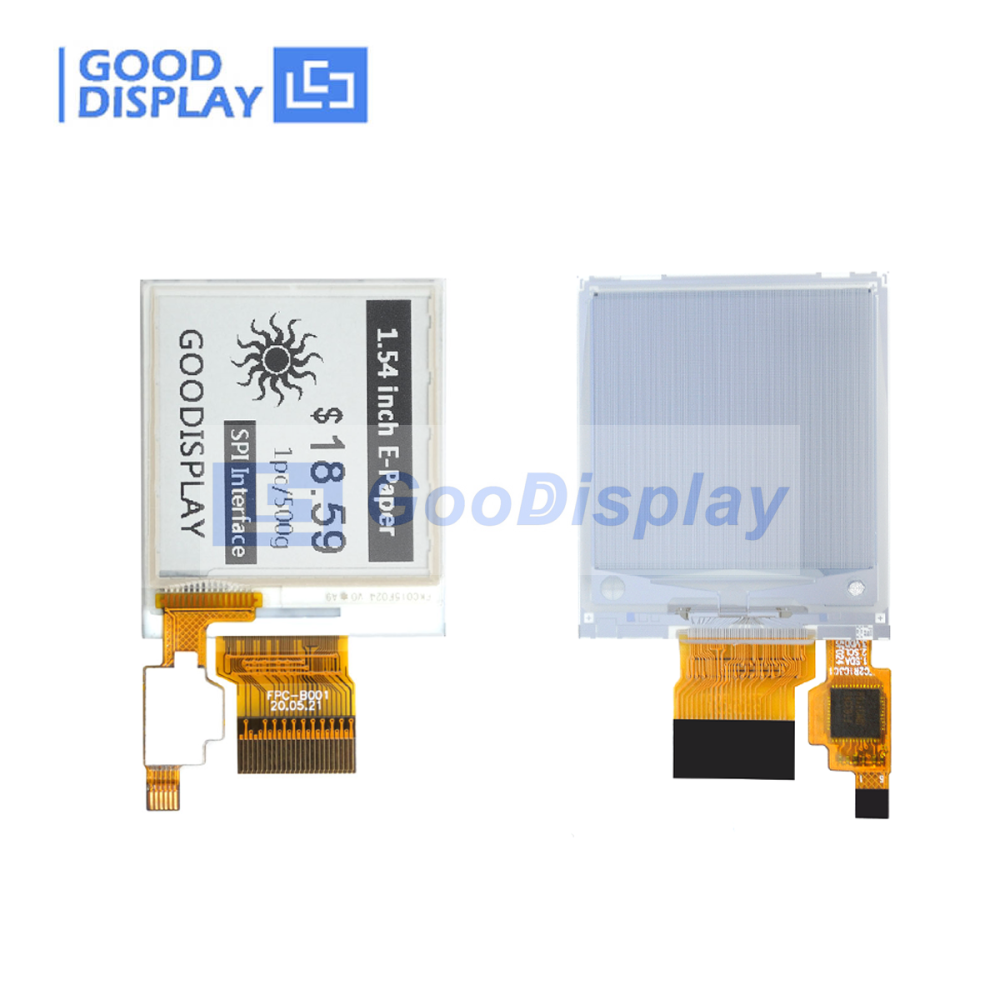

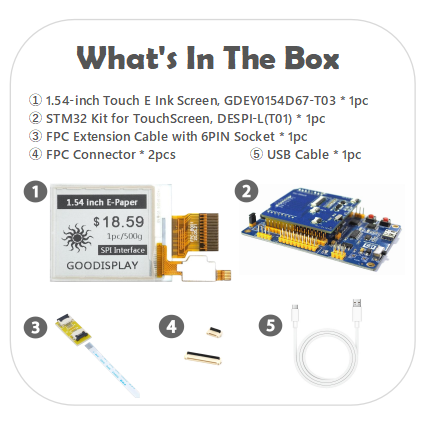

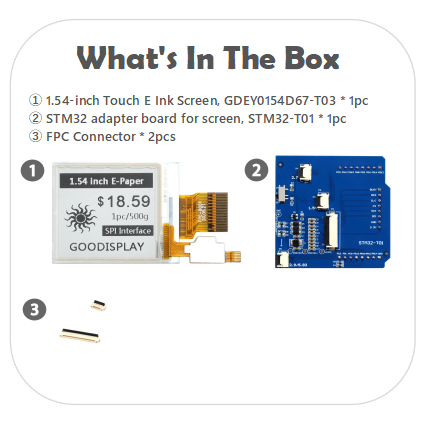

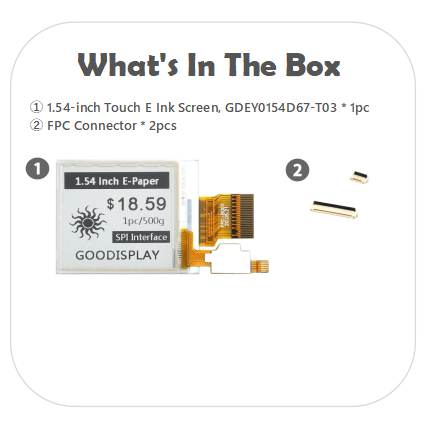

It consist of 1.54 inch 200x200 resolution suqare eink and its adapter board STM32-T01. It is used on Arduino Platform. The 1.54 inch e-ink display with capacitive touch screen, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full screen update, 0.26s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-T03 is perfect for low power devices powered by solar or batteries.

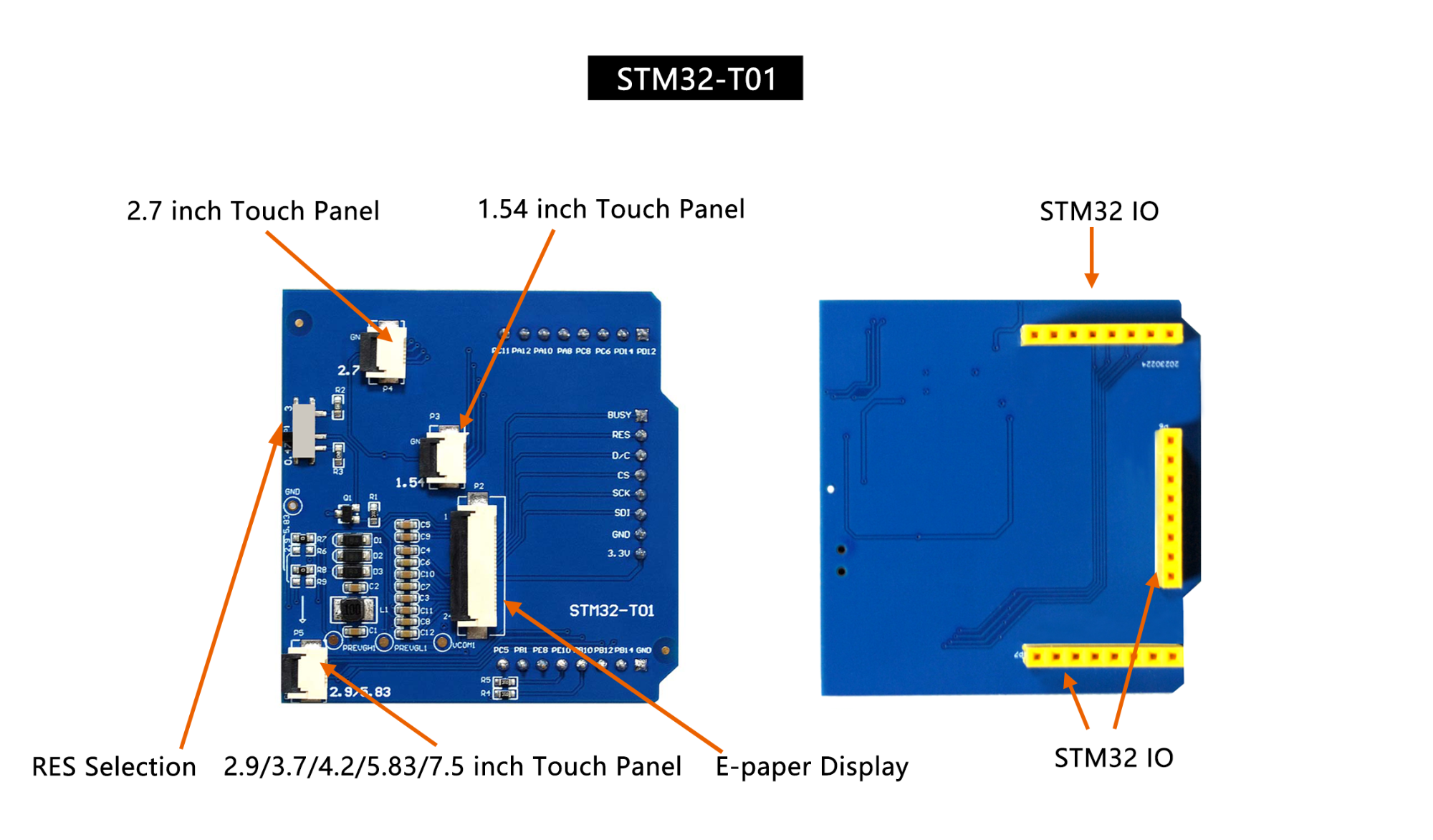

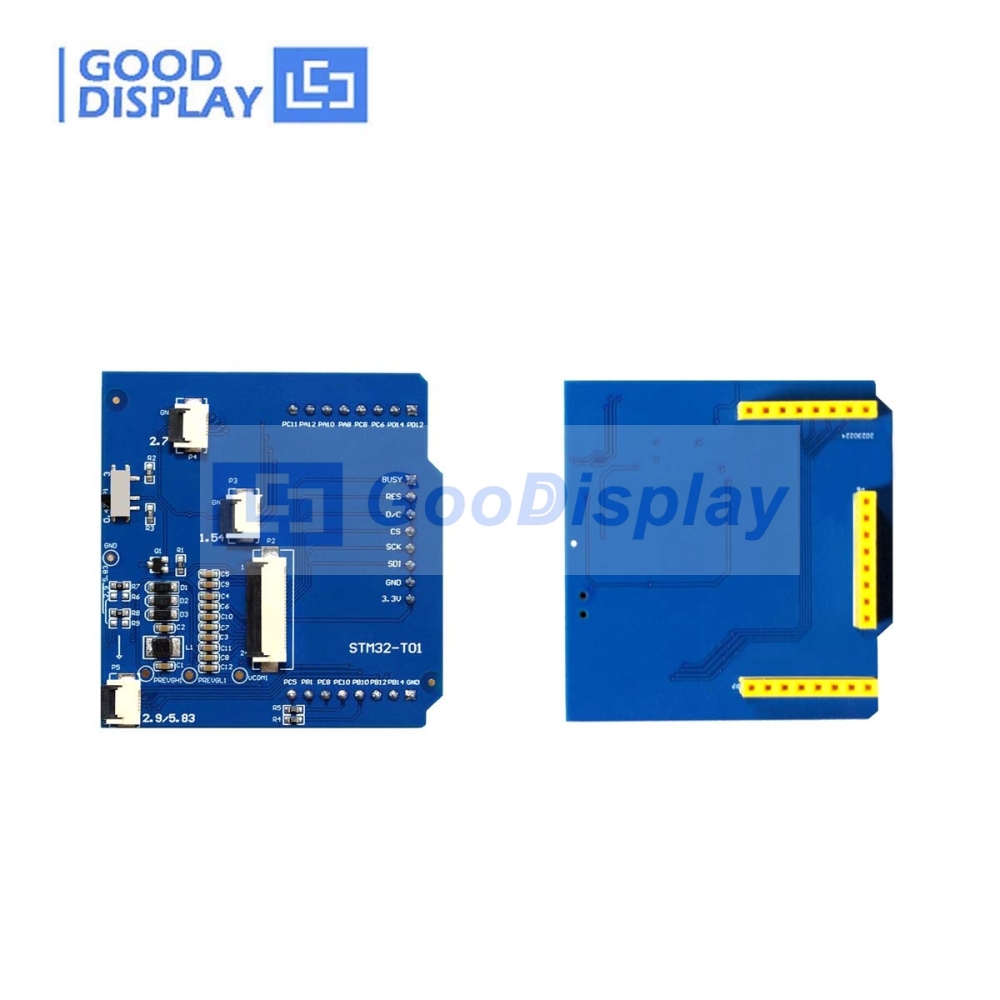

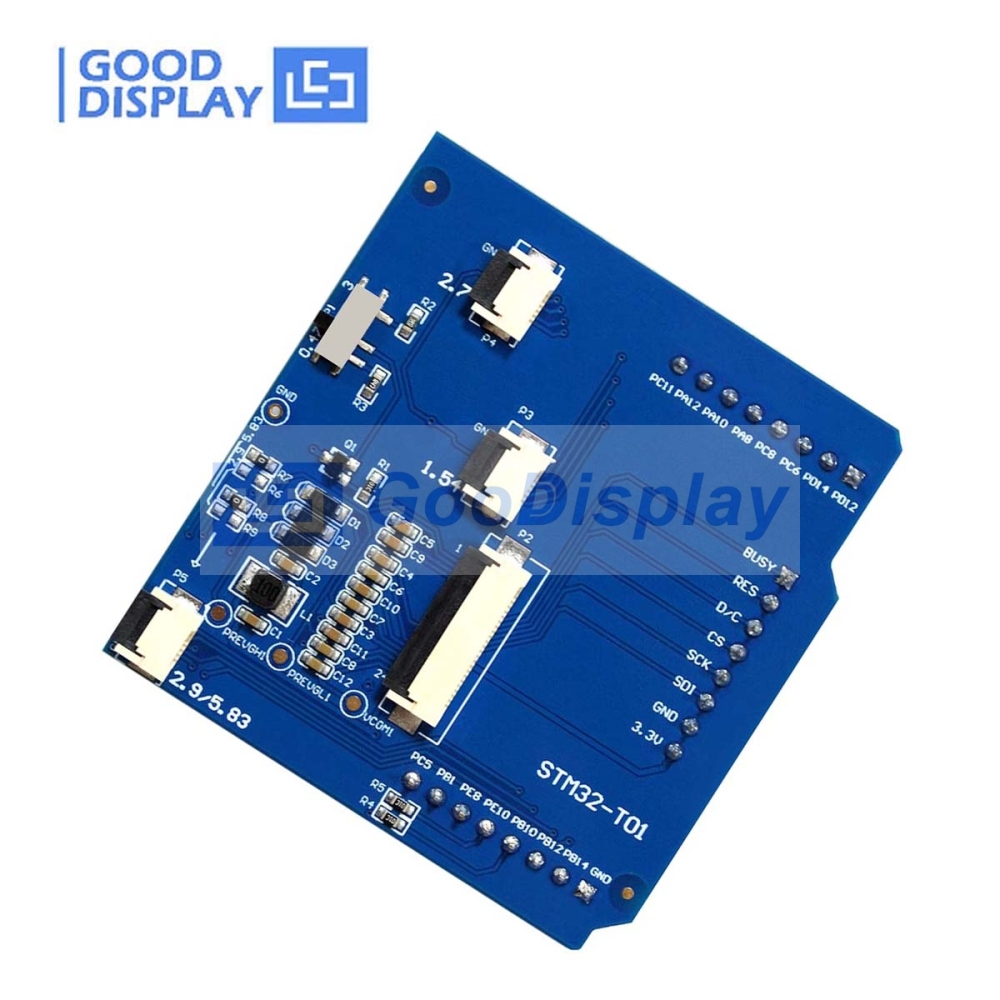

The epaper adapter board STM32-T01 is aim to help users to learen how to use the E-paper Display easier, and it is used for Good Display's SPI interface E-paper Display. It also has interface for touch screen. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY0154D67-T03
|
| SIZE |
1.54 inch |
MAX GRAYSCALE |
4 |
|
DISPLAY FORMAT
|
200x200
|
CHANNEL NUMBER |
14 |
| IC OF EPD |
SSD1681 |
CONNECTOR OF EPD |
24 Pin FPC |
|
IC OF TOUCH PANEL
|
FT6336U
|
CONNECTOR OF TOUCH PANEL |
6 Pin FPC |
|
OUTLINE DIMENSION(mm)
|
37.32x31.8x1.525
|
FULL REFRESH(s) |
2 |
|
ACTIVE AREA(mm)
|
27x27
|
PARTIAL REFRESH TIME(s) |
0.26 |
|
OPERATING ENVIRONMENT
|
0℃~50℃, ≤90%RH
|
COLOR |
Black, White |
| STORAGE ENVIRONMENT |
-20℃~70℃, ≤90%RH |
WORKING VOLTAGE(V) |
2.8V~3.3V |
| PART NUMBER |
STM32-T01 |
| PLATFORM |
Keil4 |
OUTSIDE DIMENSION |
53x51mm |
| POWER INPUT |
DC3.3V |
OPERATING TEMP. |
-20~70℃ |
| MAIN FUNCTION |
Driving e-paper display and touch screen;
Connect e-paper display and the main board;
Convenient for users to grasp the use of e-paper display and touch screen as soon as possible. |
| OTHER FUNCTION |
E-paper display power consumption measurement;
E-paper display working state detection |
● With capacitive touch screen
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● GDEY0154D67-T03_Specification
● STM32-T01 Specification
● STM32-T01_SCH
