☆ INTRODUCTION
This is a e-ink display module including a connector board and a 1.54 inch e-paper display with frontlight, 200x200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white.
This connection board DESPI-C03 is aim to help users to learn how to use the E-paper Display easier. It not only has the interface for touch panel, but also has the power supply interface for frontlight. And the interface for touch panel supports SPI interface e-paper display and Parallel interface e-paper display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Compared with other 1.54 inch electronic paper displays, the power consumption is lower.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE

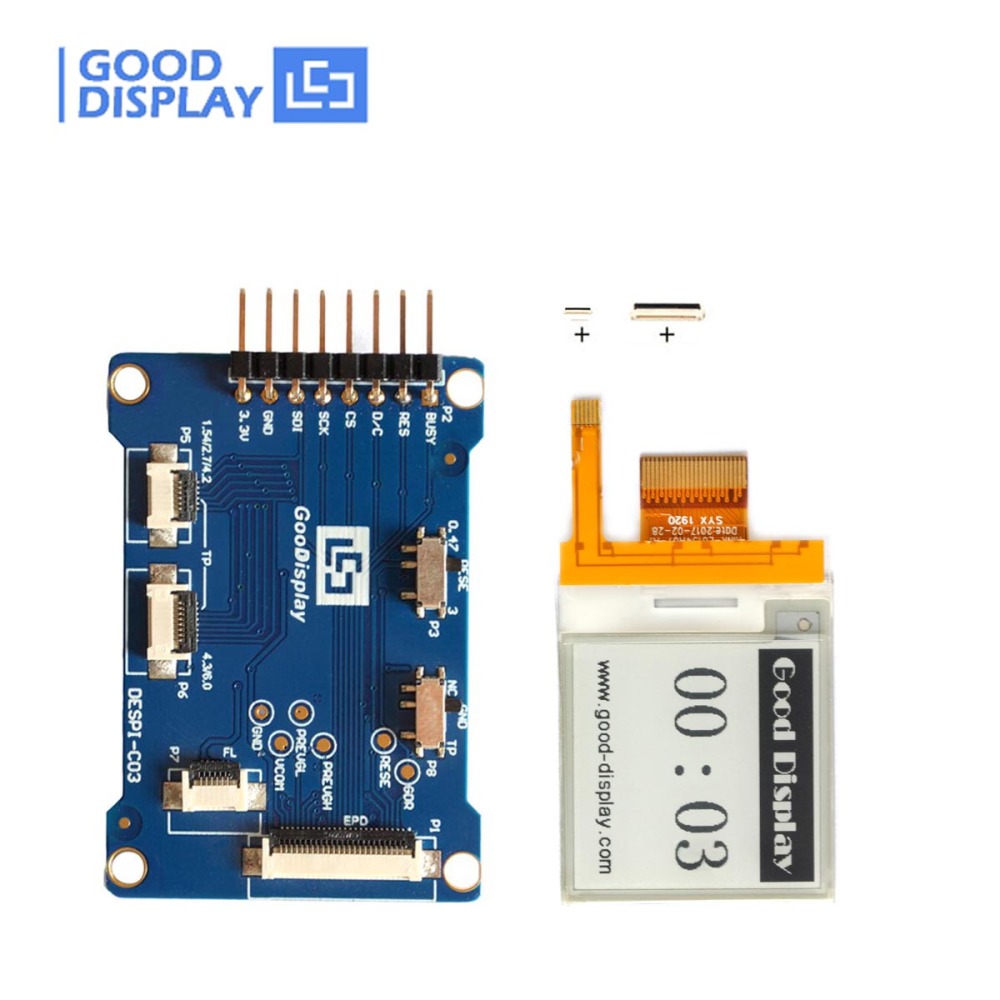

1. 1.54 inch 200x200 e-paper display with frontlight GDEH0154D67-FL*1pc
2. Matched FPC Connector*1pc
3. FPC Connector for frontlight panel*1pc
4. Connector board DESPI-C03 *1pc
5. Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
https://buy-lcd.com/products/new-154-inch-eaper-display-frontlightartial-refresh-e-ink-gdeh0154d67-fl
☆ MAIN PARAMETERS
|
Part Number
|
GDEH0154D67-FL
|
|
Type
|
Dot Matrix
|
|
Resolution
|
200x200
|
|
Outline Size(mm)
|
31.8x37.32x1.8
|
|
Actve Size(mm)
|
27.00x27.00
|
|
Pixel Pitch(mm)
|
0.135x0.135
|
|
Operating Temp.
|
0℃~50℃
|
|
Storage Temp.
|
-25℃~60℃
|
|
Connector
|
24 Pin FPC, Pitch:0.5mm
|
|
Max Grayscale
|
4
|
|
Color
|
Black,White
|
| Time of refresh(s) |
2 |
| Time of partial refresh(s) |
0.26 |
| Interface |
SPI |
| Driving voltage |
2.8V-3V |
| Power consumption of the e-paper only(mW) |
4.95 |
| Power consumption of the front-light(mW) |
43.5 |
|
Part Number
|
DESPI-C03
|
|
Platform
|
STM32, Arduino, Raspberry Pi and so on
|
|
Function
|
Connection E-paper Display with DESPI-M02
|
|
Outside Dimension
|
52x36mm
|
|
Interface
|
USB Interface
|
|
Power Input
|
DC3.3V
|
|
Feature
|
Fully and Partial refresh
|
|
Operating Temp.
|
-20~70℃
|
