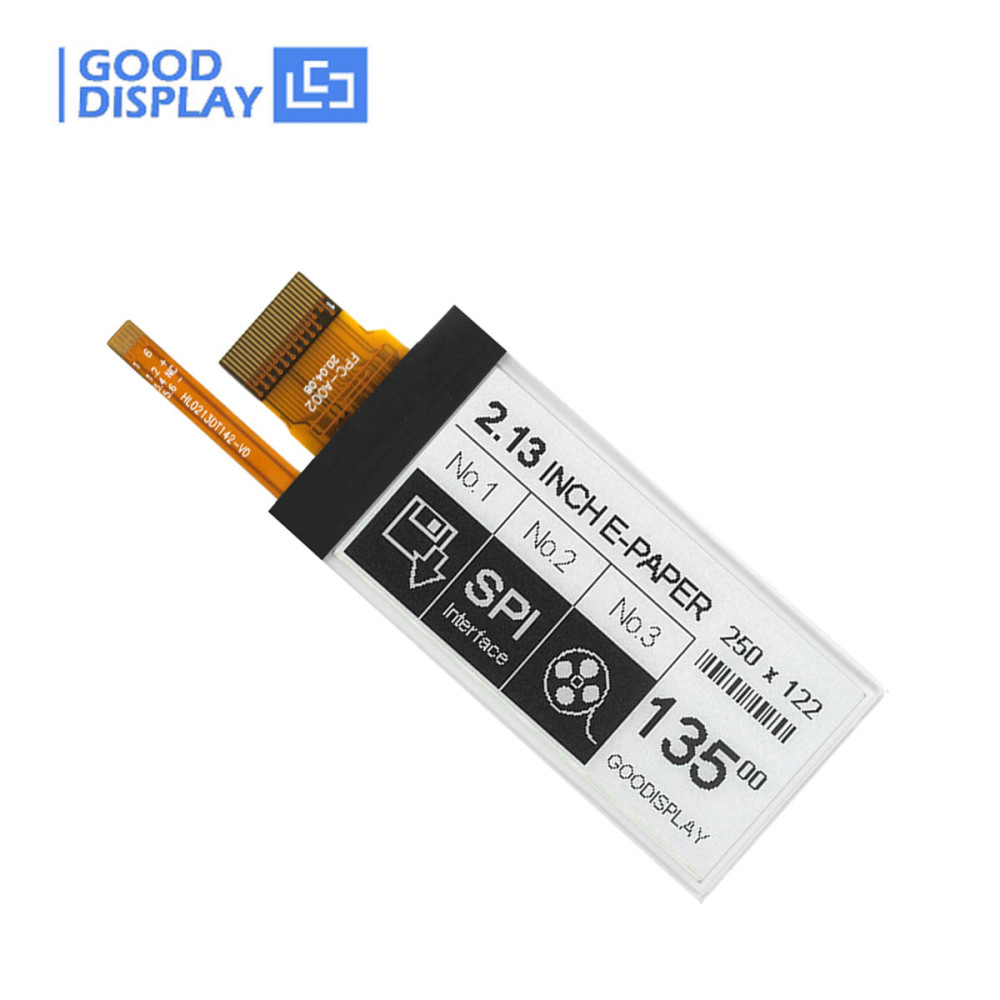

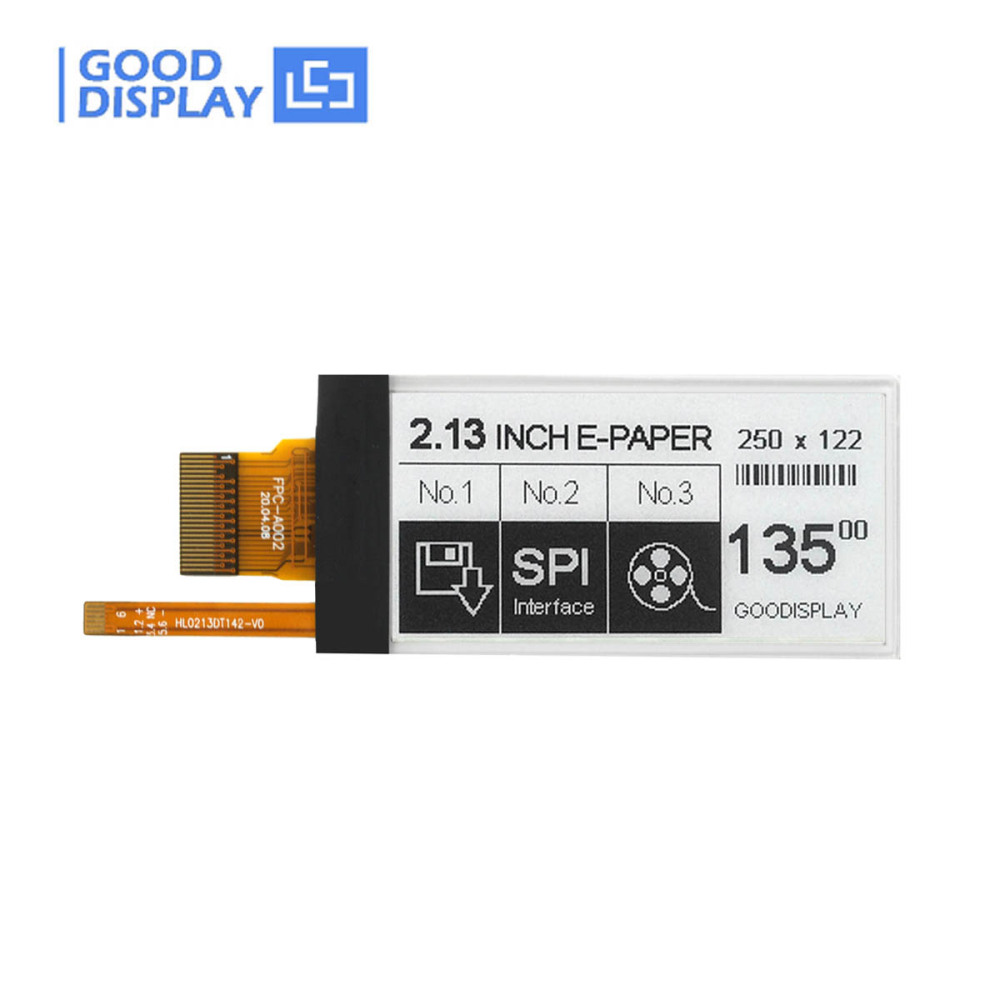

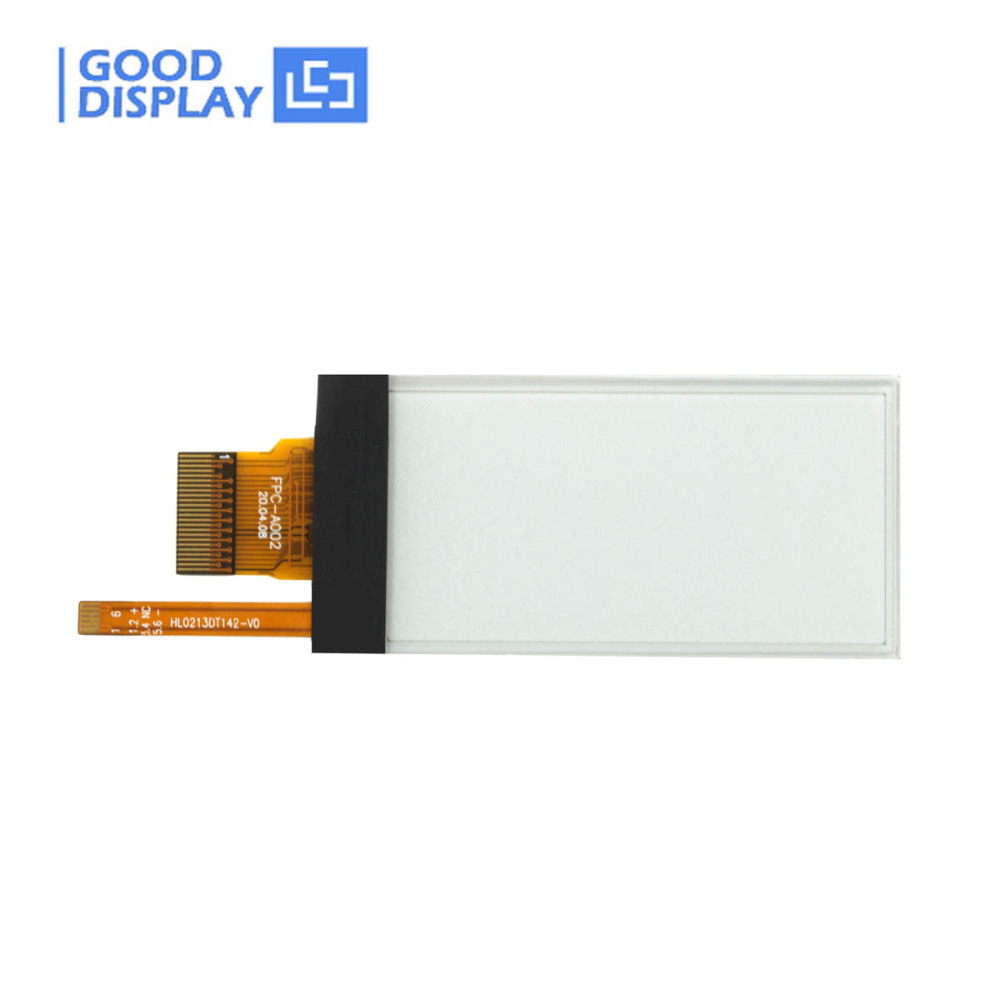

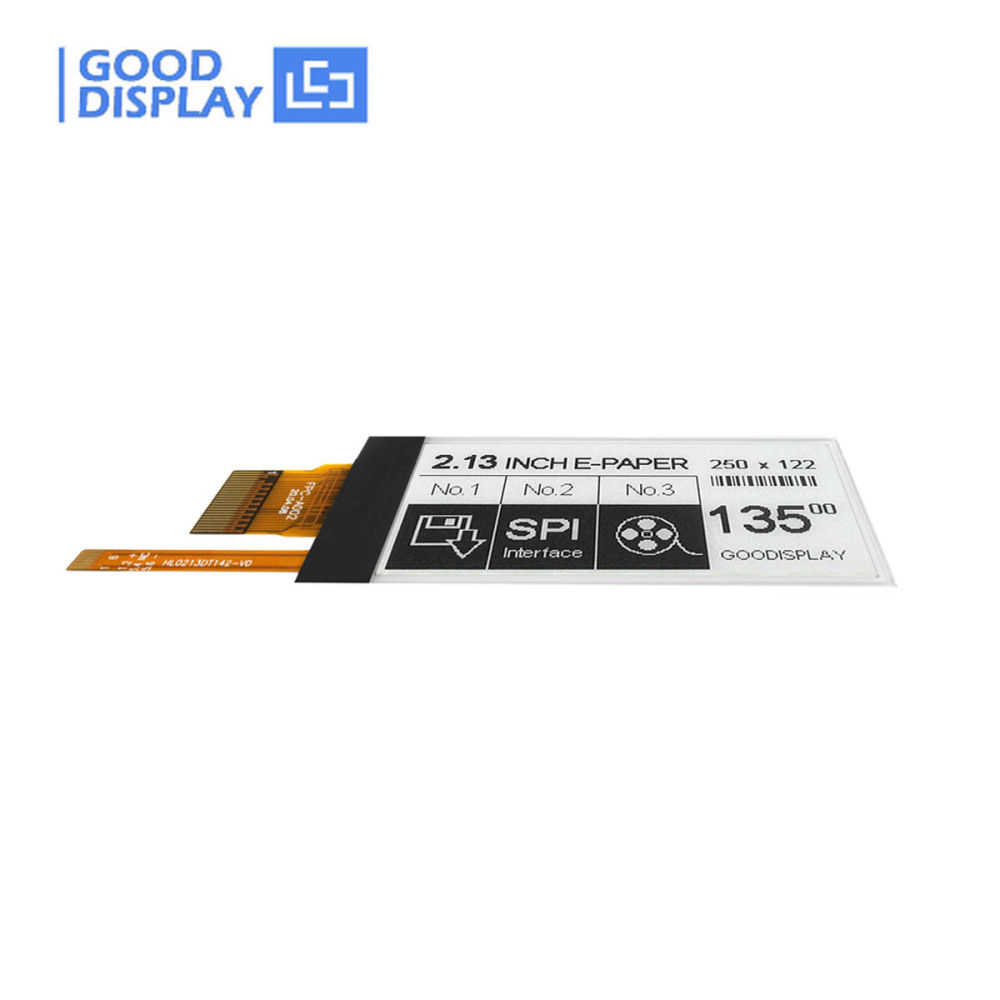

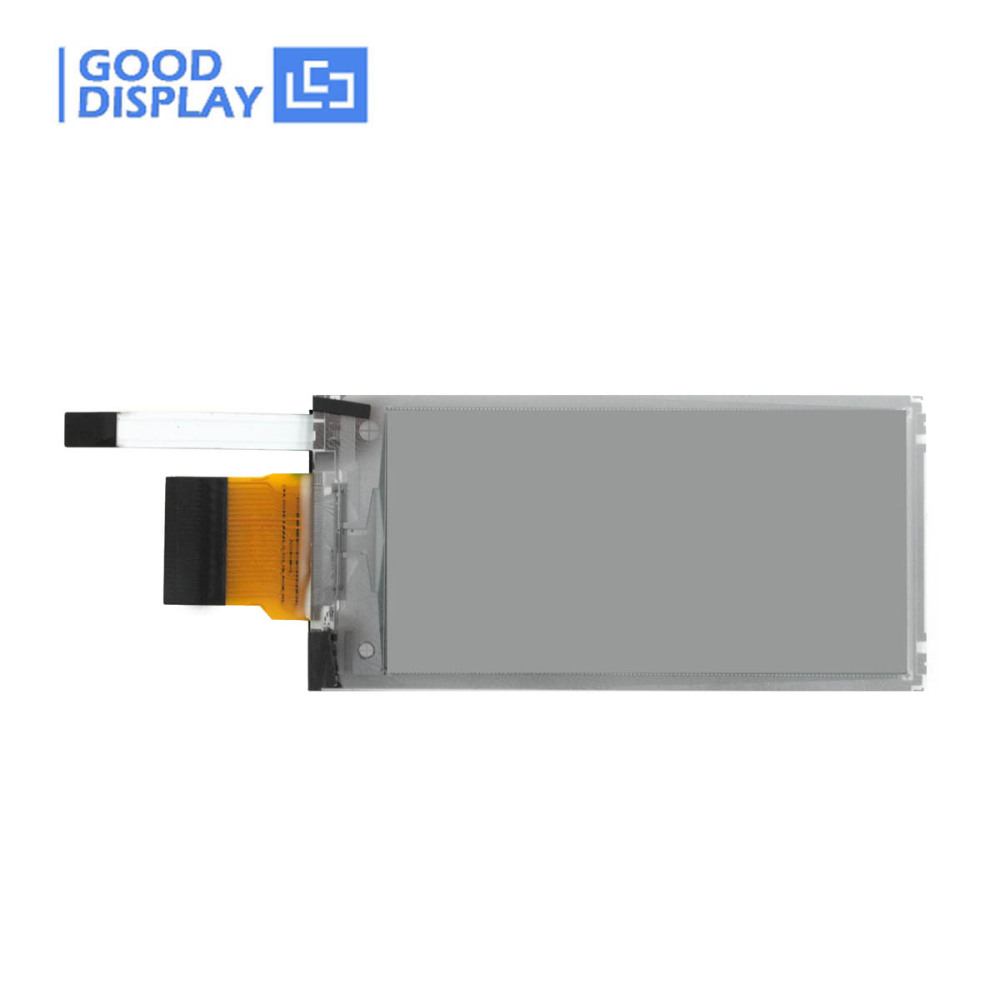

2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen

GDEY0213B74-FL11
This is 2.13 inch E-Paper Eink Display with backlit, 250x122 resolution, 6 pin FPC, Parallel connection , 4 Grayscale,  can be used in dark environment.
1 Review(s) Sold:10
Have a question?
Price:
USD
$9.85

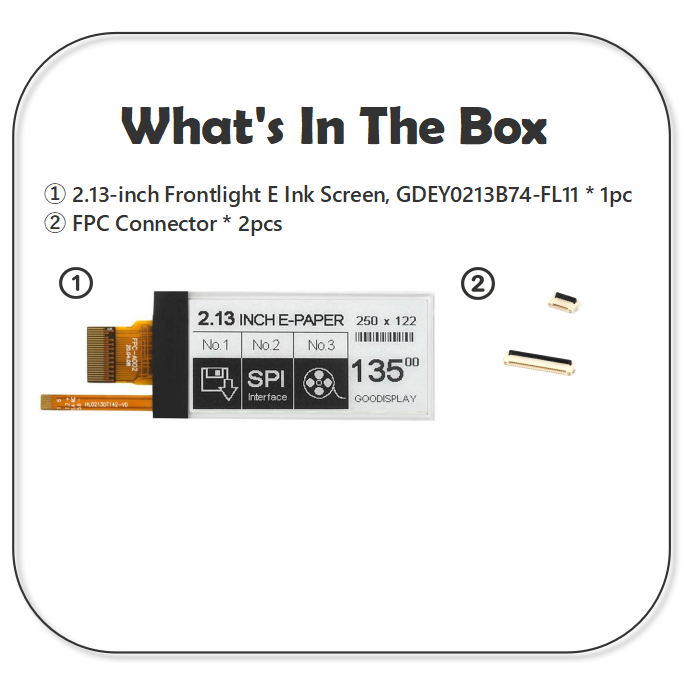

  • Product:
    EPD

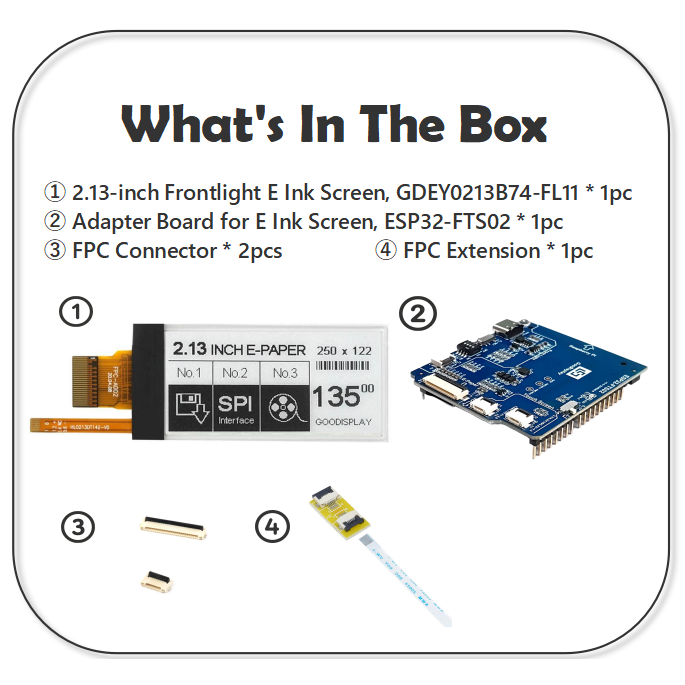

    EPD with adapter board
    EPD with STM32 demo kit

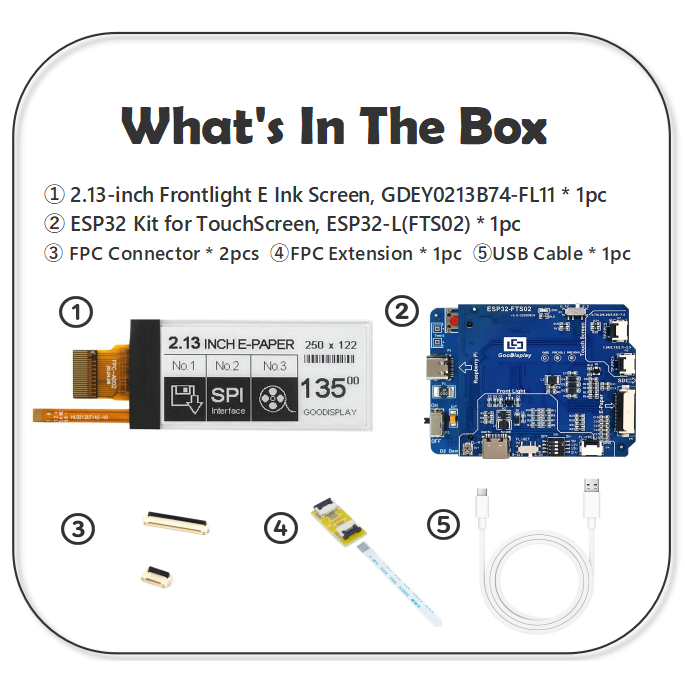

    EPD with ESP32 demo kit
    adapter board
Quantity:
-
+
(155 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(1)

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

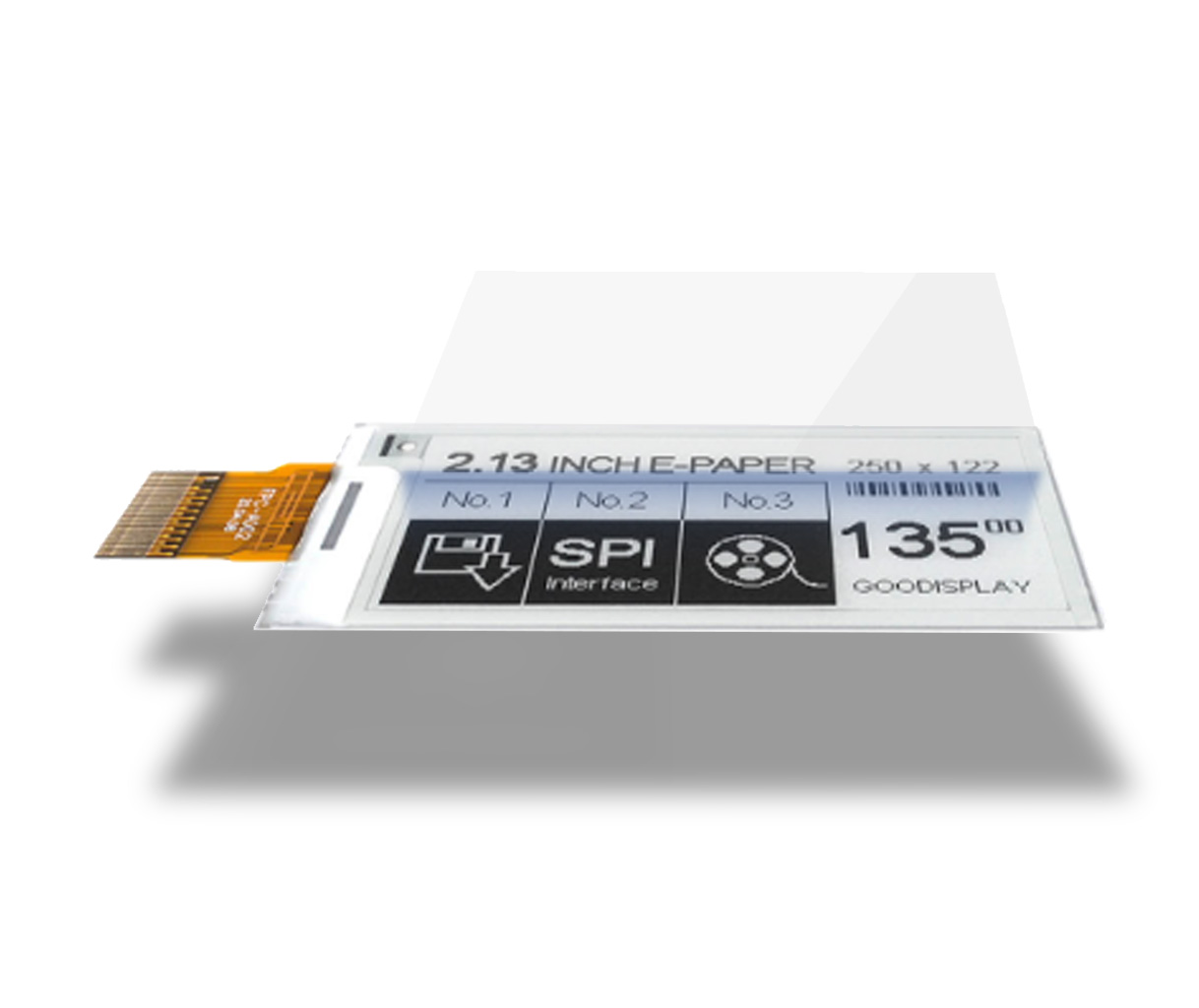

2.13 Inch E-Ink Display with Front Light, SSD1680Z Controller




This 2.13-inch e-paper E-Ink display with backlight, model GDEY0213B74-FL11, offers a resolution of 250x122 pixels. With a fast refresh rate of 1.5 seconds, a full refresh in 3 seconds, and partial refresh in just 0.4 seconds, this display provides efficient performance for various applications. It supports black and white image display, maintaining the image indefinitely without power once updated. This makes it ideal for low-power devices such as solar or battery-powered gadgets, especially in dark environments.

Perfect for a range of practical applications in daily life, this e-paper display is an excellent choice for e-readers, smart labels, electronic shelf tags, and information boards. The front light ensures visibility in all lighting conditions, making it versatile for both indoor and outdoor use. Whether you're creating a low-power digital signage solution or developing innovative smart home devices, the GDEY0213B74-FL11 e-paper display combines low energy consumption with high readability and durability.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Superior Readability in Any Light "See it clearly, anytime, anywhere": The integrated front light ensures crisp visibility even in low-light or dark environments, offering unparalleled readability.
  ●  Ultra-Low Power Consumption "Set it and forget it": Once updated, this e-ink display maintains its image indefinitely without power, making it perfect for battery or solar-powered devices.
  ●  Sharp and clear, every time: With a 200x200 resolution and 4-level grayscale, this display provides precise, easy-to-read text and images, ensuring your information is always clear and detailed.
  ●  Blazing Fast Refresh Rates: Experience ultra-responsive performance with 1.5s quick refresh, 3s full refresh, and a lightning-fast 0.4s partial refresh. Perfect for applications where timely and smooth content updates are crucial.
  ●  Versatile Applications "One display, endless possibilities": Perfect for smart home devices, wearables, portable information screens, and outdoor displays, this versatile e-ink panel adapts to a variety of uses with ease.
  ●  Eco-Friendly and Durable "Built to last, kind to the planet": Made from environmentally friendly materials, this display is durable and long-lasting, reducing maintenance costs and environmental impact.










Technical Details

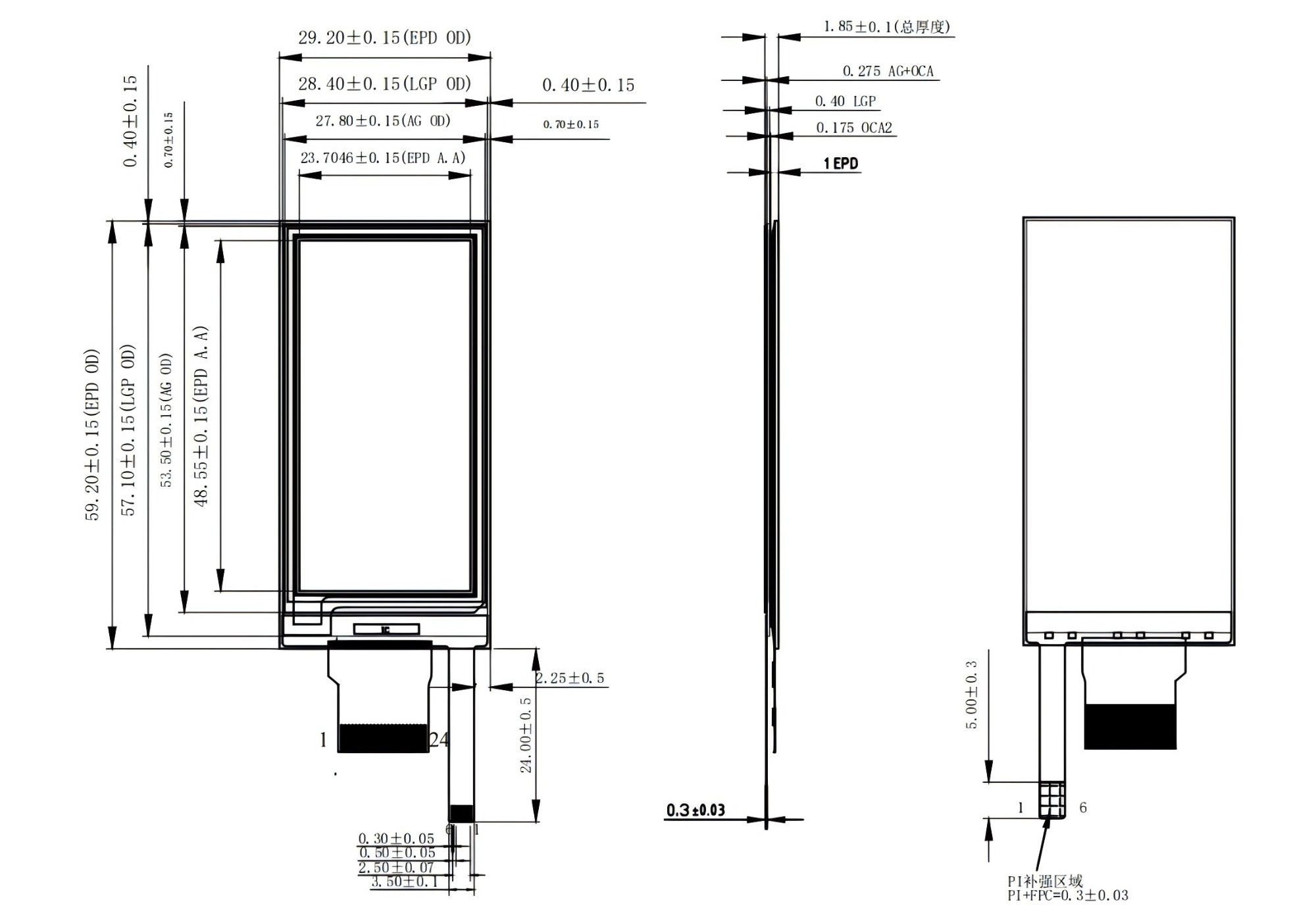

Please refer to the product drawings for detailed dimensions












Product Specifications


    Please refer to the product specifications for more details

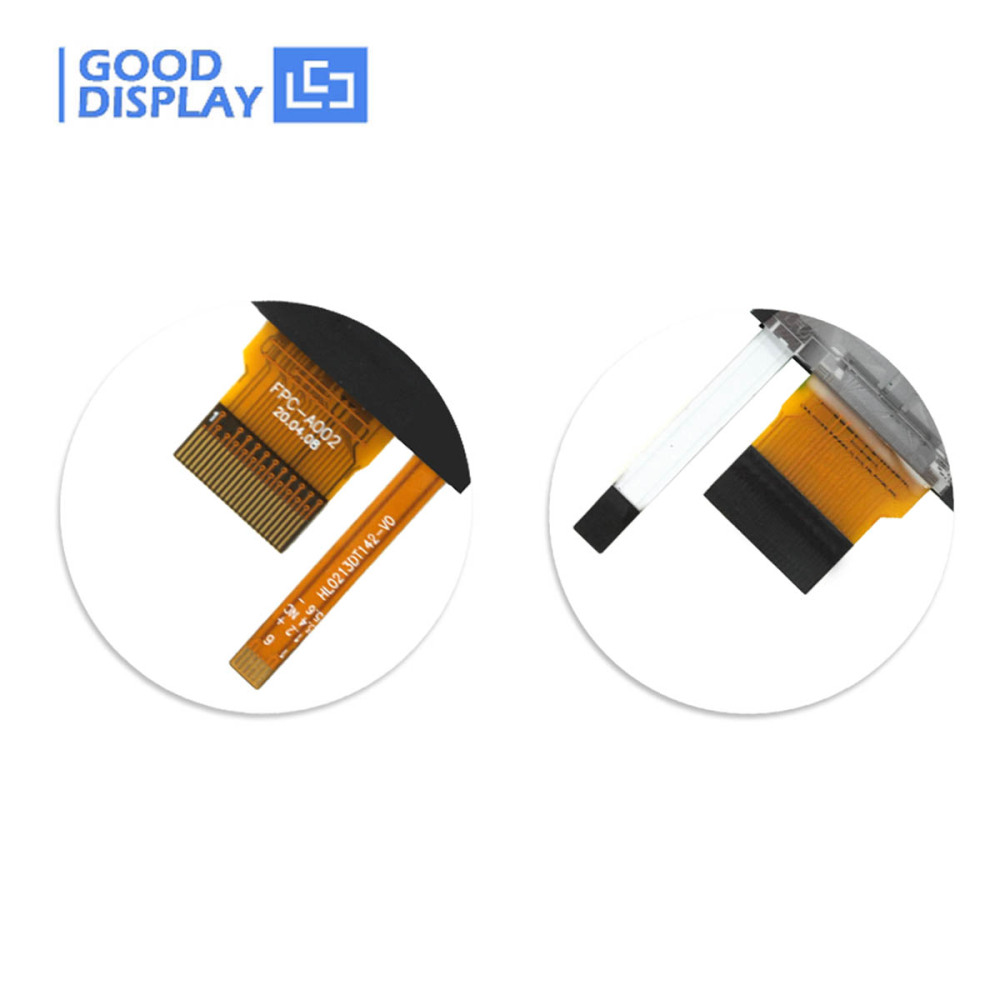

PART NUMBER GDEY0213B74-FL11 CONNECTOR ePaper:24 Pin FPC
Front-light:6 pin FPC
SIZE 2.13 inch QUANTITY OF LED 3pcs LEDs
IC SSD1680Z FRONT LIGHT CONNECTION LED parallel
RESOLUTION 250x122 VOLTAGE OF BACKLIT 2.8V-3.3V
OUTLINE SIZE(mm) 59.2x29.2x1.85 CURRENT OF BACKLIT ≤45mA
ACTIVE SIZE(mm) 48.55x23.7046 TYPE Dot Matrix
PIXEL PITCH(mm) 0.1943x0.1942 COLOR Black,White
OPERATING TEMP. 0℃~50℃ MAX GRAYSCALE 4
STORAGE TEMP. -25℃~70℃ INTERFACE Parallel connection
FULL REFRESH(s) 3 EPD POWER CONSUMPTION OF THE REFRESH(mW) 10.5
FAST REFRESH(s) 1.5 EPD STANDBY POWER CONSUMPTION (mW) 0.003
PARTIAL REFRESH TIME(s) 0.42







Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. DESPI-F01 (Front-light Driver Board) b. DESPI-C02 (E-ink Display adapter Board) c. DESPI-L(C02) (STM32 Demo Kit)
d. DEArduino-L(C02) (Arduino Platform Demo Kit) e. ESP8266-L(C02) (ESP8266 Demo Kit) f. ESP32-L(C02) (ESP32 Demo Kit)







Files and Download

Click on the subheadings below to download


  ● Front-light Drawing of 2.13 inch EPD









Product Application

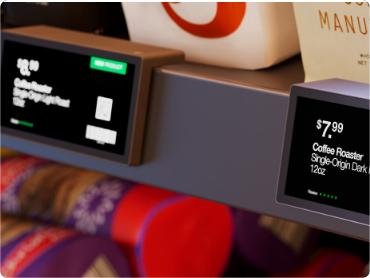

Electronic Shelf Labels

Smart Home Control Panels

Medical Devices

Portable Information Tags

Office Desk Nameplates
