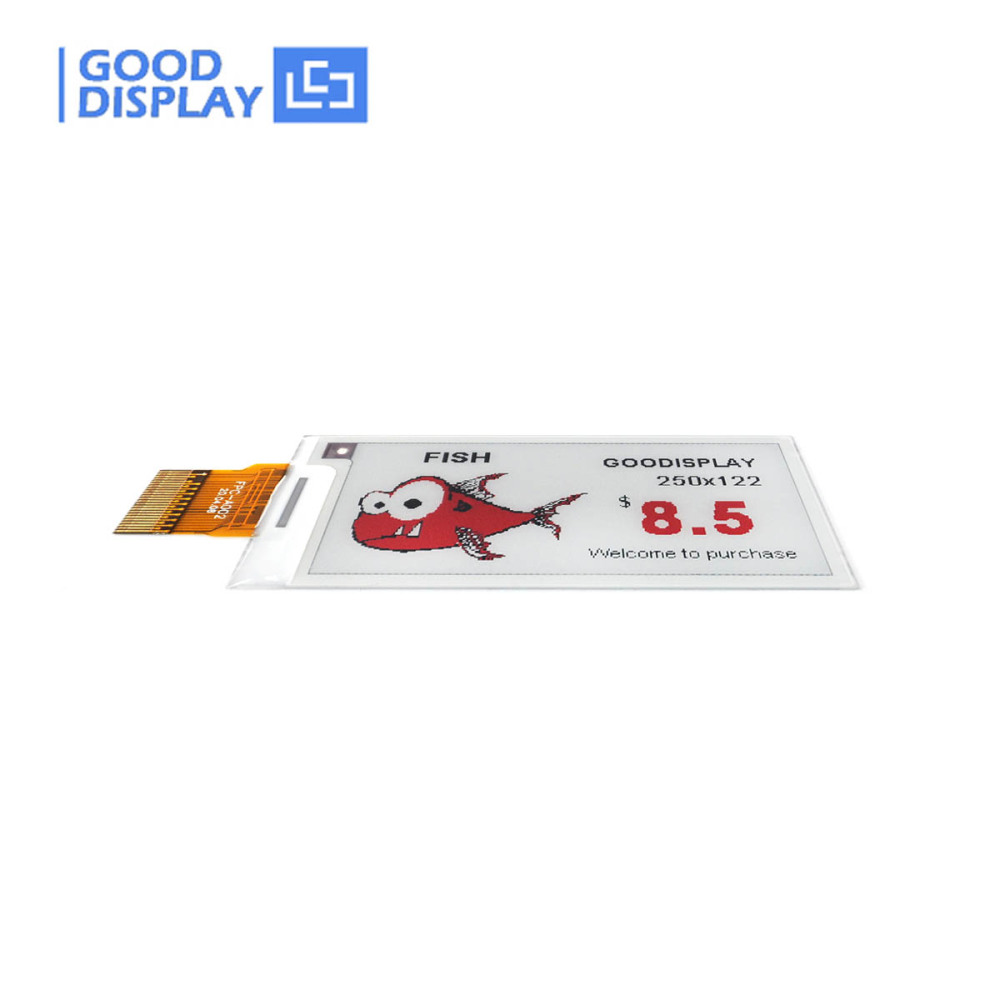

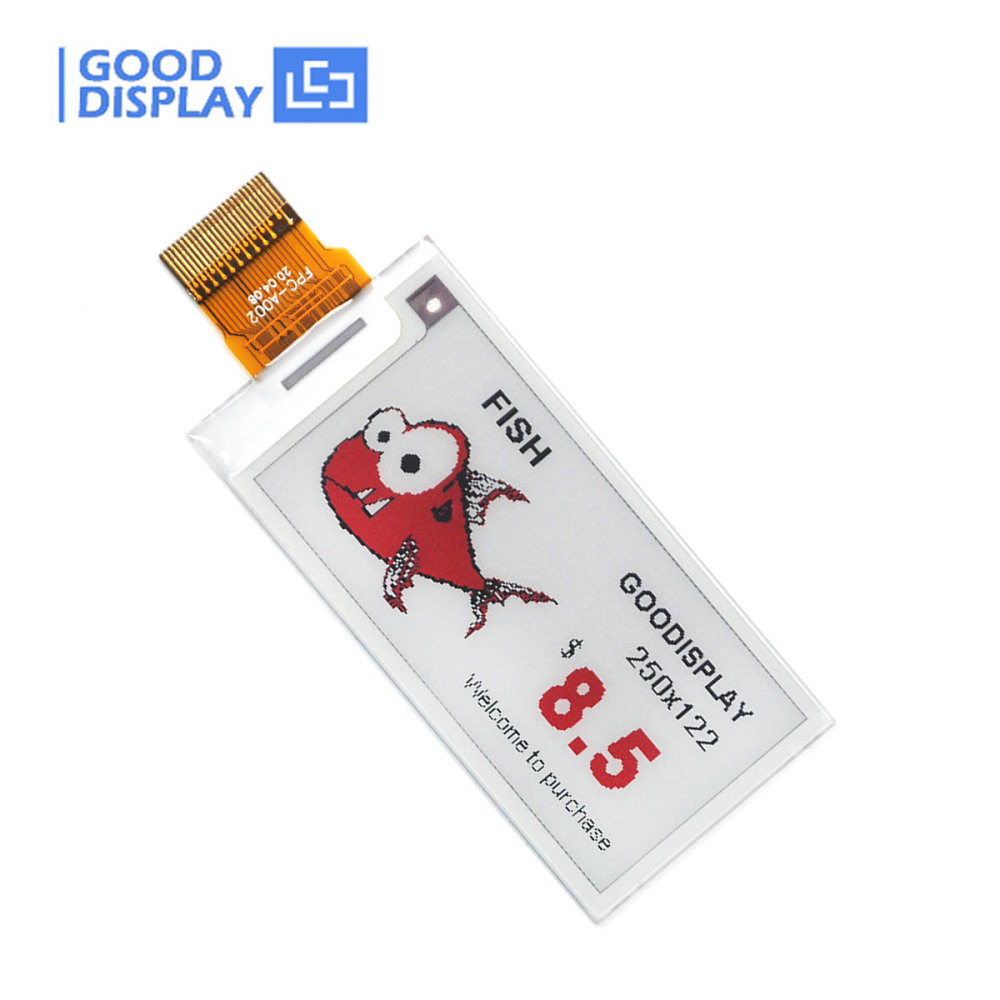

This is a 2.13 inch color e-ink display with 250x122 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEY0213Z98 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
*Tip: This product supports black and white dual-color partial refresh, featuring high resolution, cost-effectiveness, and the advantage of long-term stable supply.

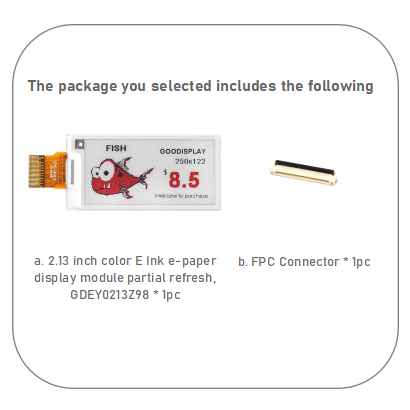

| Package A |  |
+ |  |
||||||

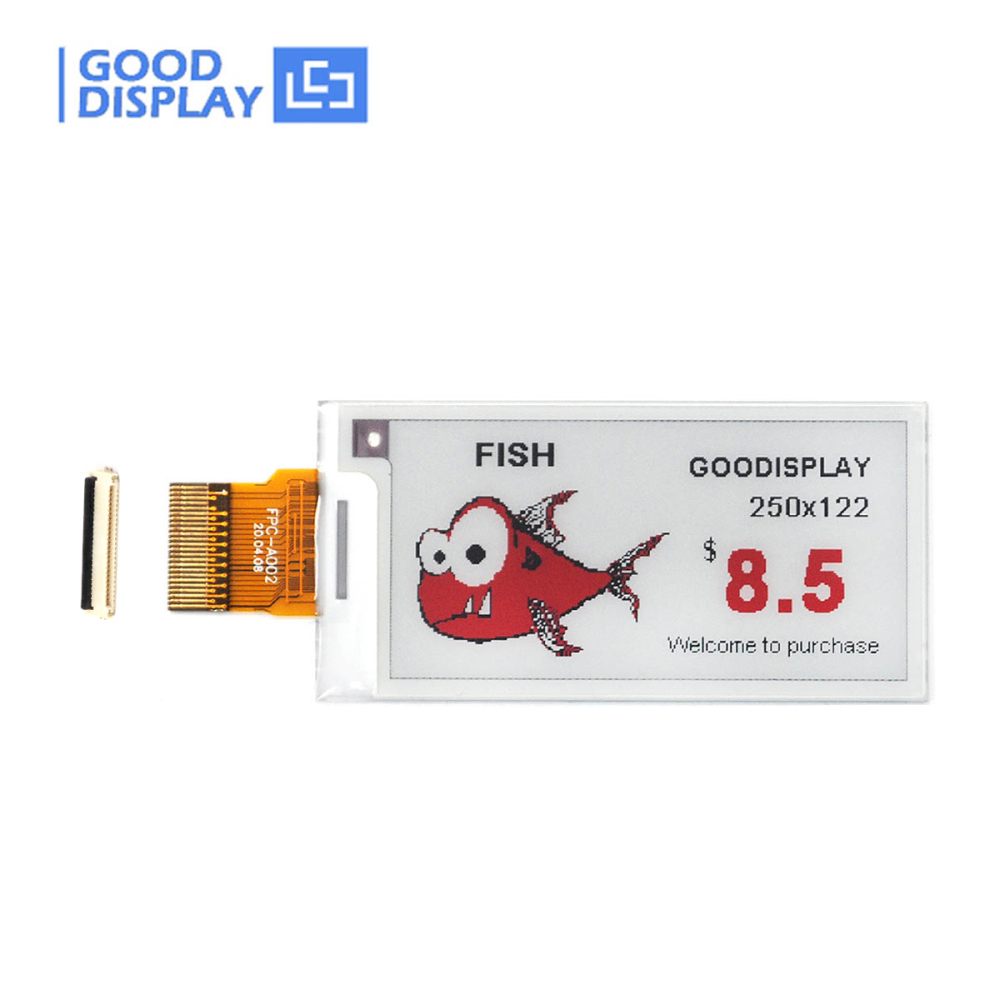

| a. 2.13 inch color E Ink 250x122 HD e-paper display partial update, GDEY0213Z98 *1pc | b. FPC Connector * 1pc | ||||||||
|
|
|||||||||
| Package B | |
+ | |
+ |  |
||||

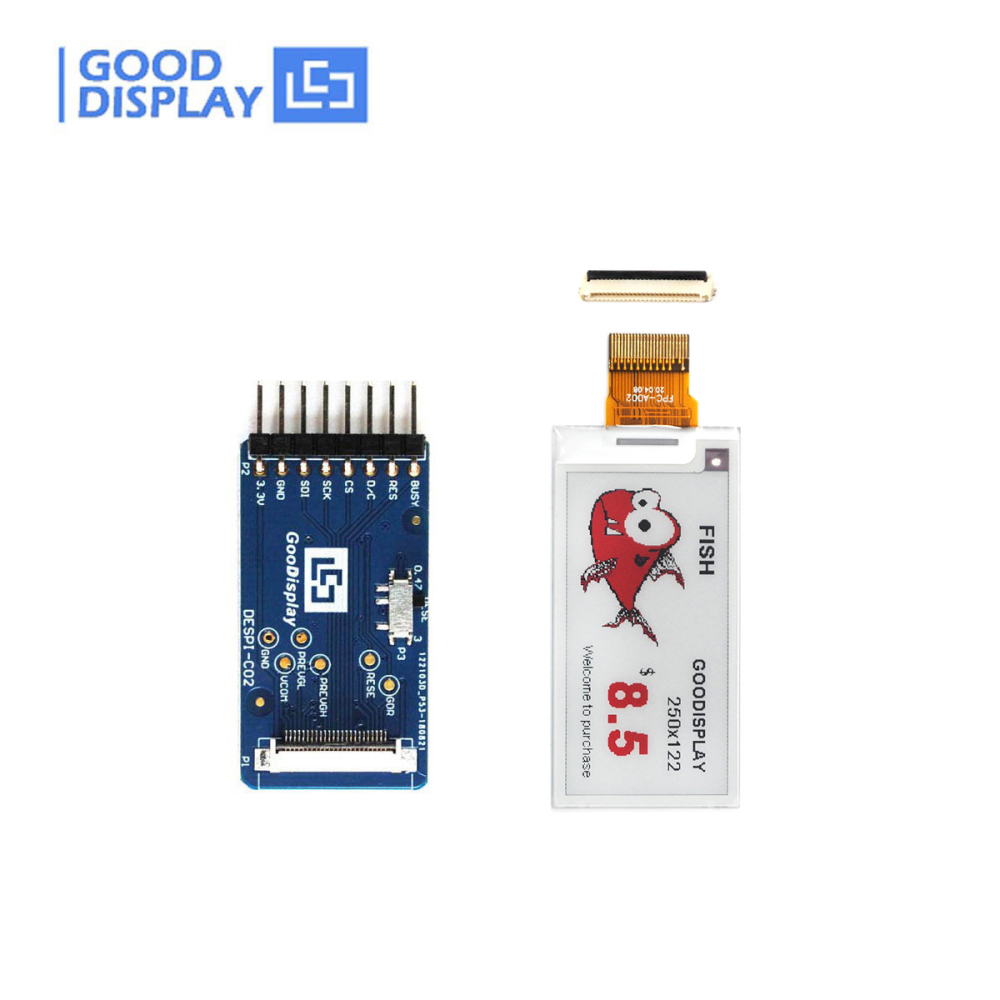

| a. 2.13 inch color E Ink 250x122 HD e-paper display partial update, GDEY0213Z98 *1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|
|||||||||

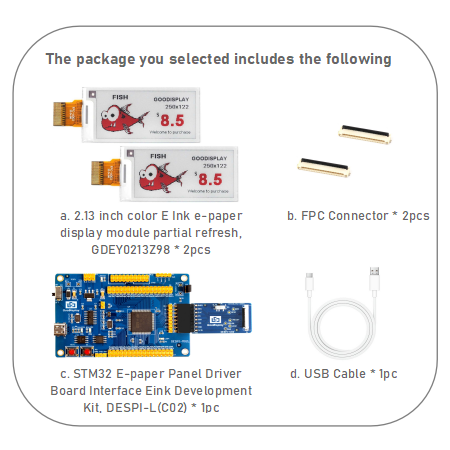

| Package C | |
+ | |
+ |  |
+ |  |
||
| a. 2.13 inch color E Ink 250x122 HD e-paper display partial update, GDEY0213Z98 *2pcs | b. FPC Connector * 2pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|
|
|||||||||

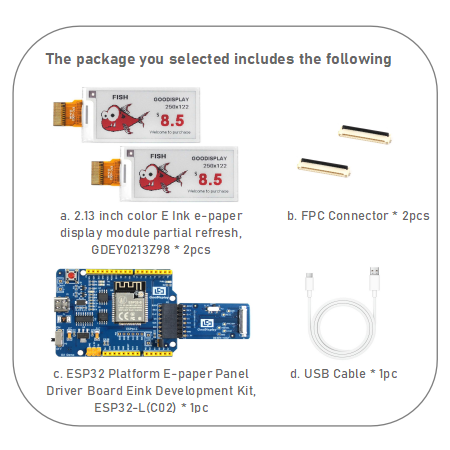

| Package D | |
+ | |
+ |  |
+ | |

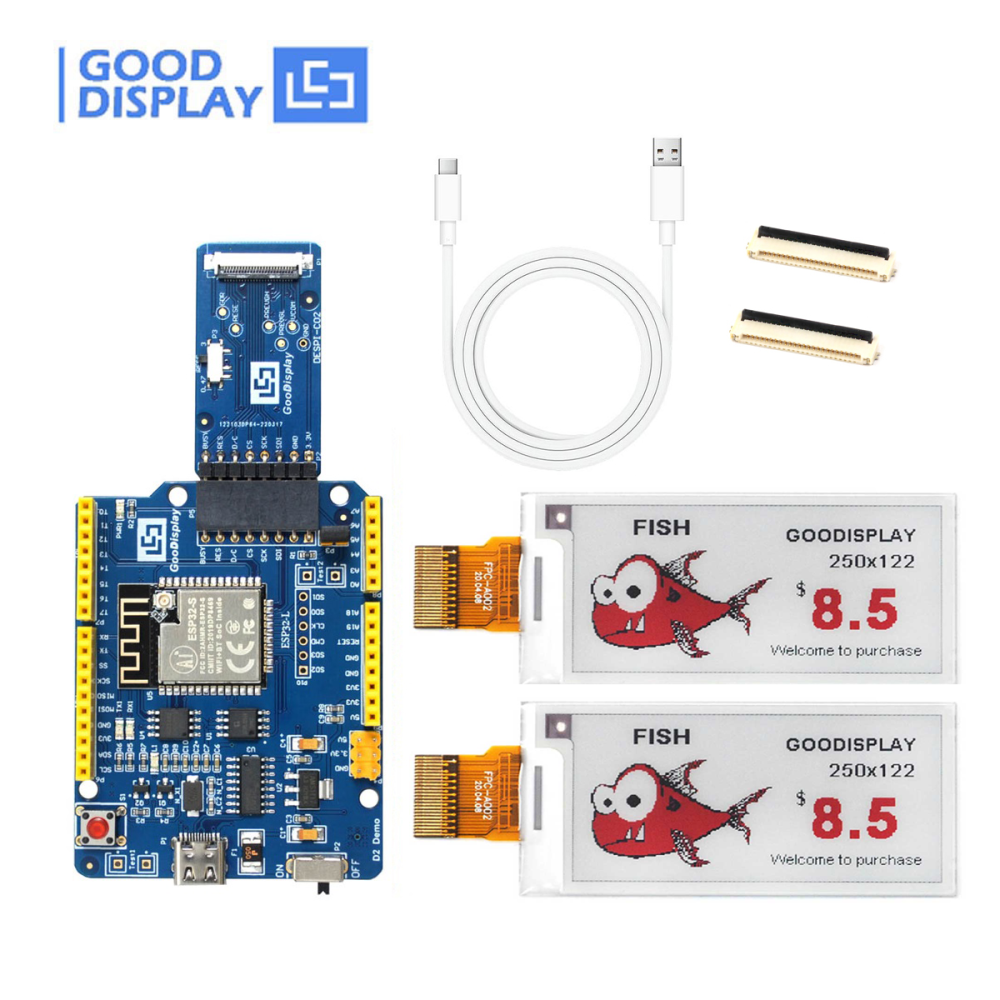

| a. 2.13 inch color E Ink 250x122 HD e-paper display partial update, GDEY0213Z98 *2pcs | b. FPC Connector * 2pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
|

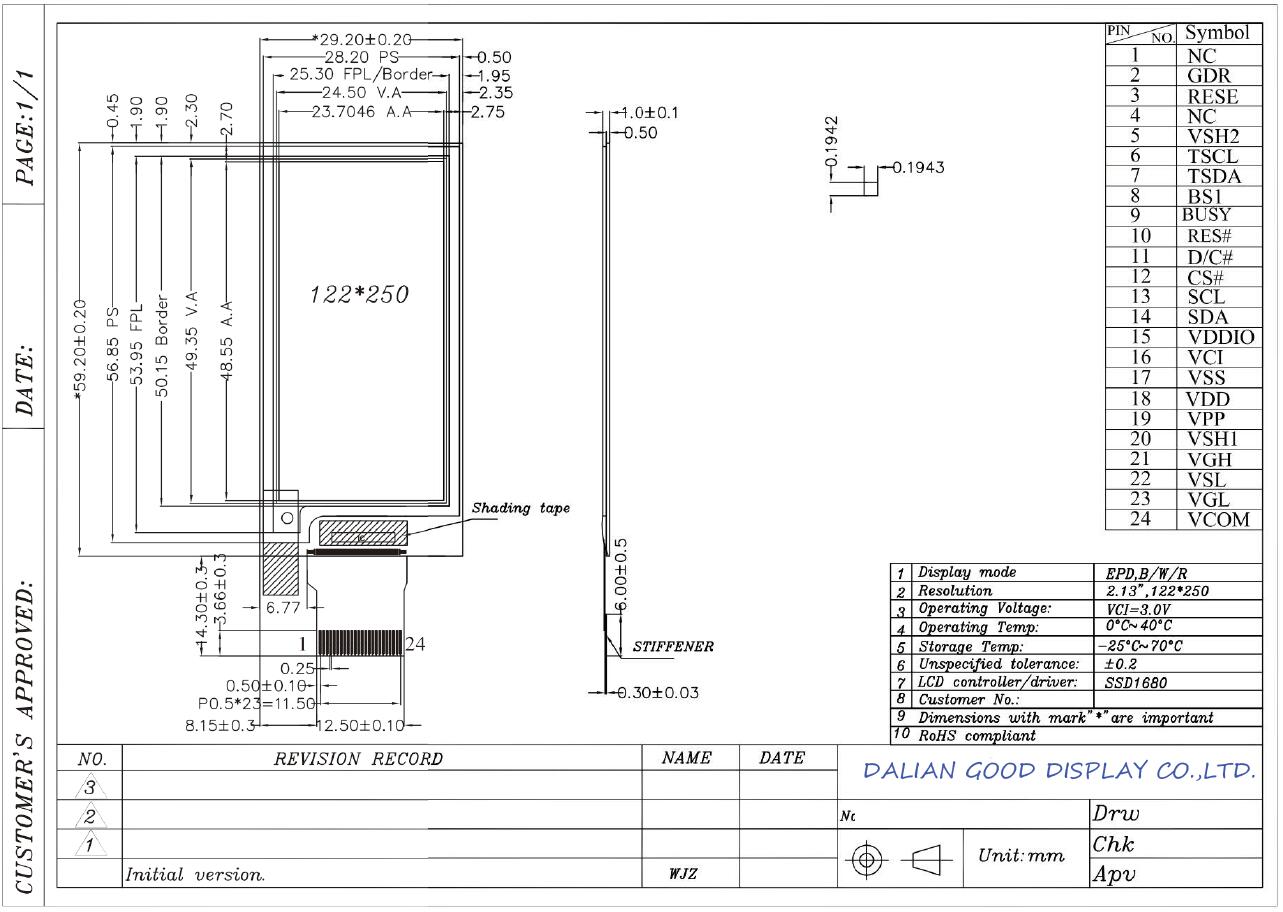

PART NUMBER |
GDEY0213Z98 |
||
|
TYPE |
Dot Matrix |
STORAGE TEMP. | -25℃~70℃ |
|
SIZE |
2.13 inch |

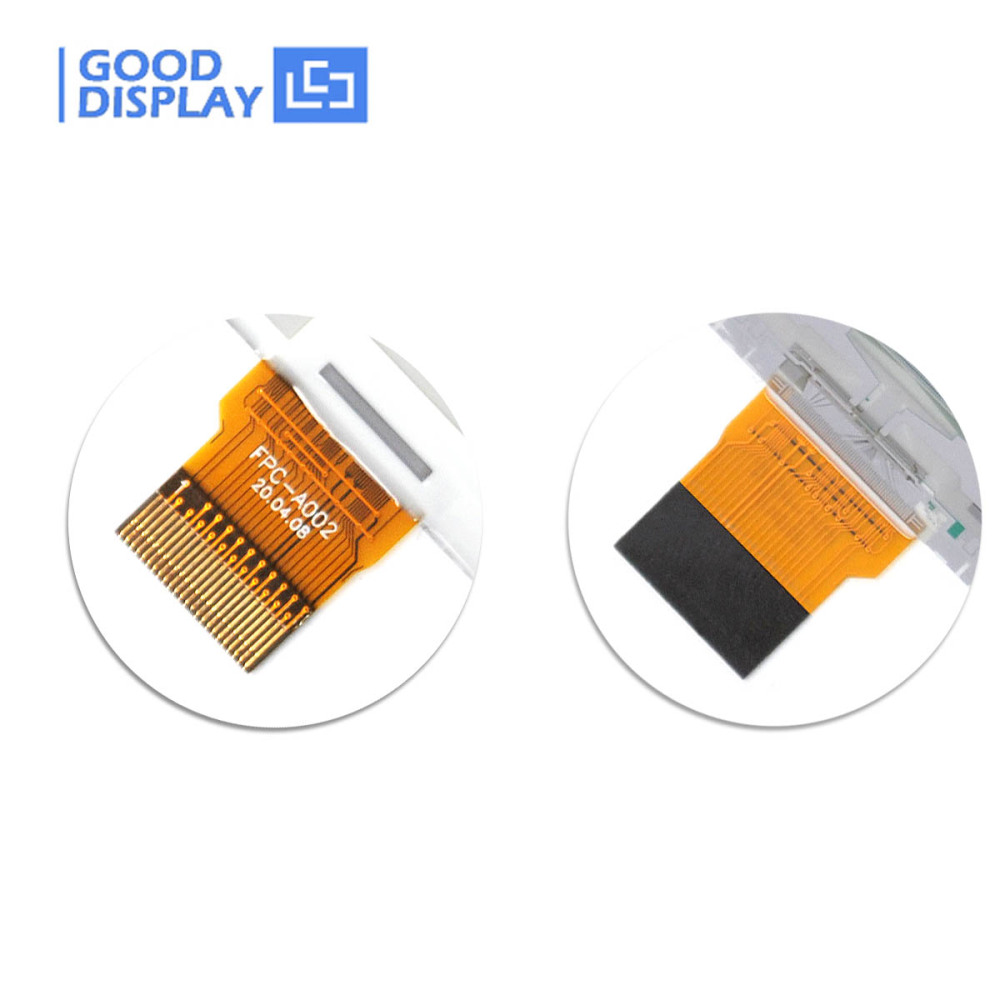

CONNECTOR | 24 Pin FPC |
|
IC |
SSD1680 |
MAX GRAYSCALE | 2 |
|
RESOLUTION |
250x122 |
COLOR | Black, White, Red |
|

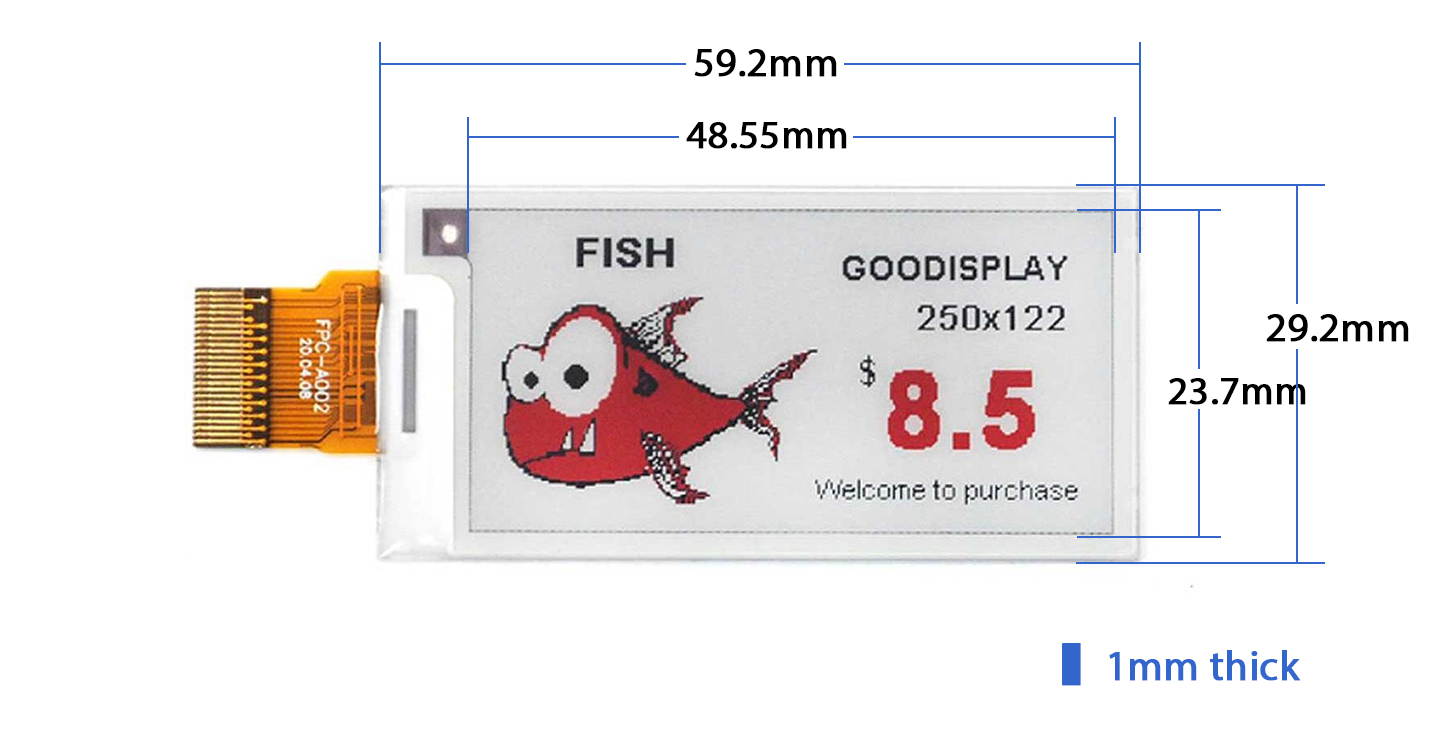

OUTLINE SIZE(mm) |
59.2x29.2x1.0 |
INTERFACE | SPI |
|
ACTIVE SIZE(mm) |
48.55x23.7046 |
FULL REFRESH(s) | 22 |
| PARTIAL REFRESH(s) | 1.8 | FAST REFRESH(s) | 16 |
|
PIXEL PITCH(mm) |
0.1943x0.1942 |
POWER CONSUMPTION OF THE REFRESH(mW) | 5.4 |
|
OPERATING TEMP. |
0℃~40℃ |
STANDBY POWER CONSUMPTION (mW) | 0.003 |

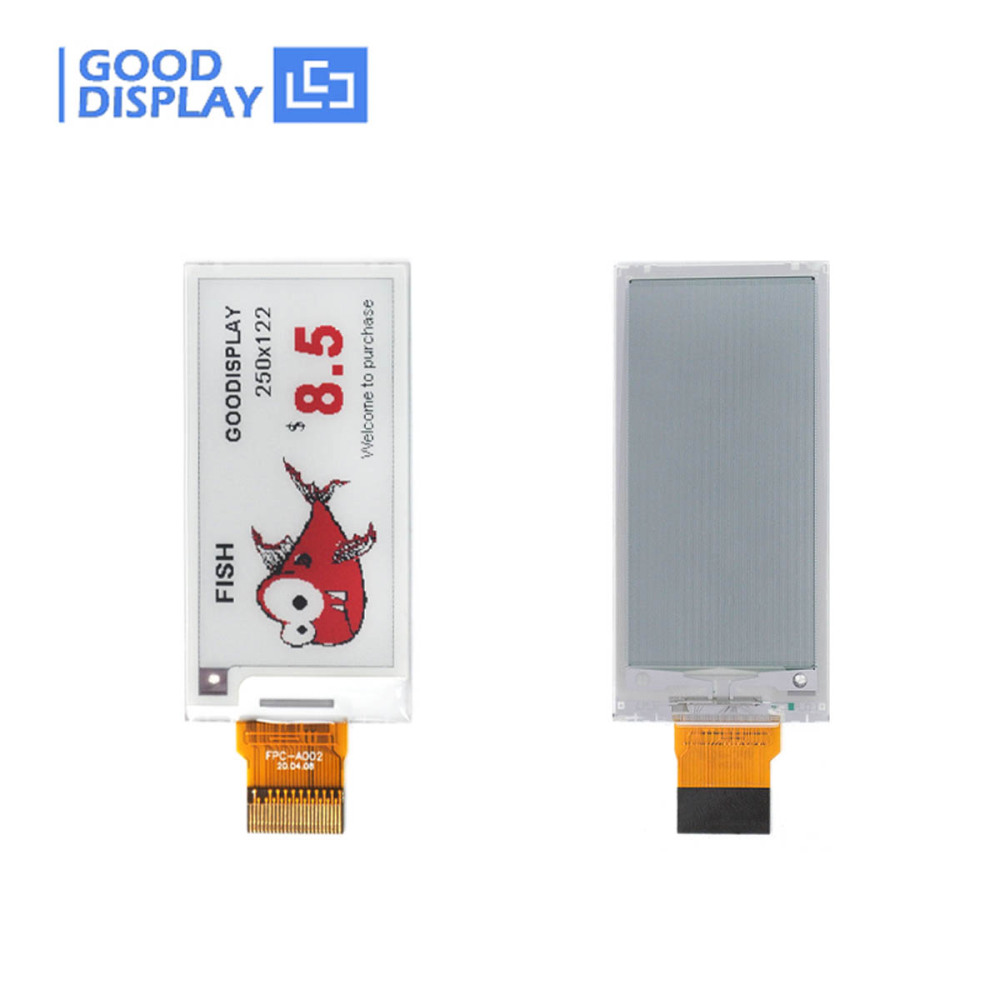

● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino / ESP8266 / ESP32
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)
● GDEY0213Z98 Specification
● IC Driver SSD1680 Datasheet
● GDEY0213Z98 Picture Production and Bitmap Conversion
● GDEY0213Z98 STM32 Sample Code
● GDEY0213Z98 ESP32 Sample Code
● GDEY0213Z98 ESP8266 Sample Code
● GDEY0213Z98 Arduino Sample Code
