☆ INTRODUCTION

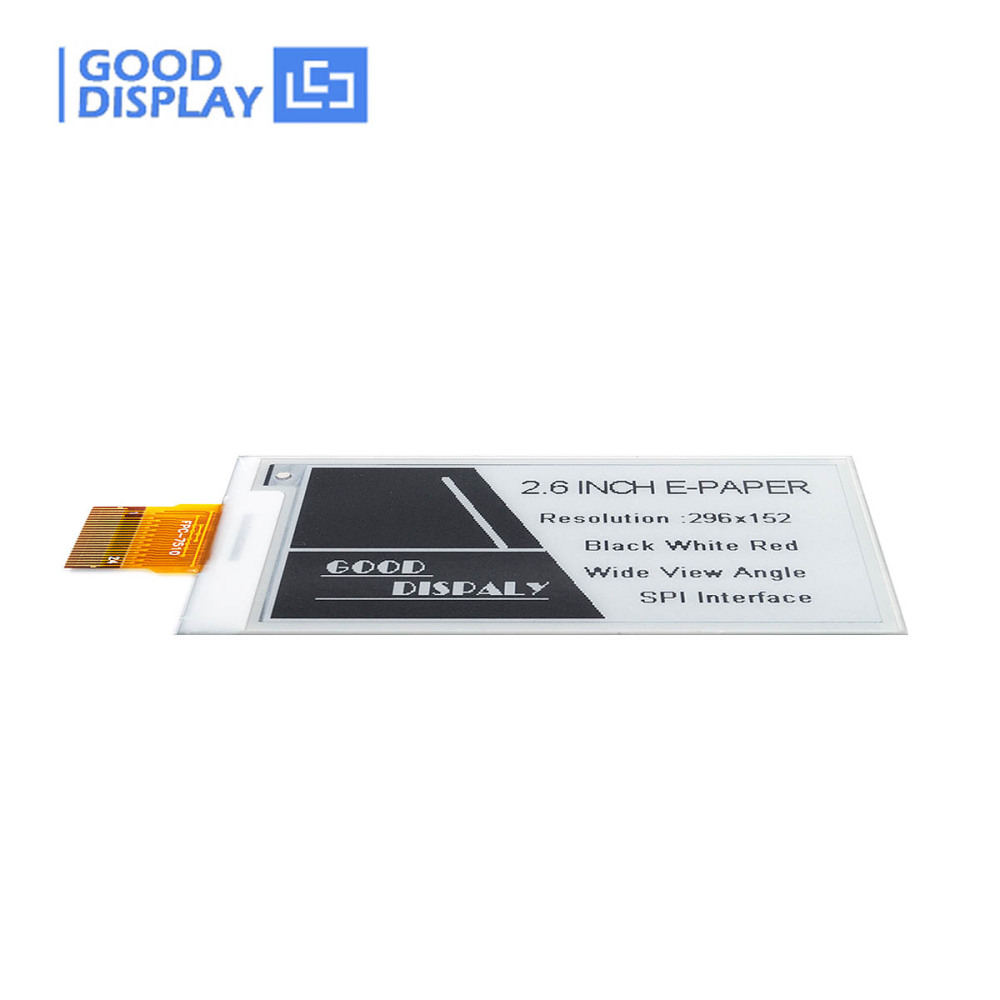

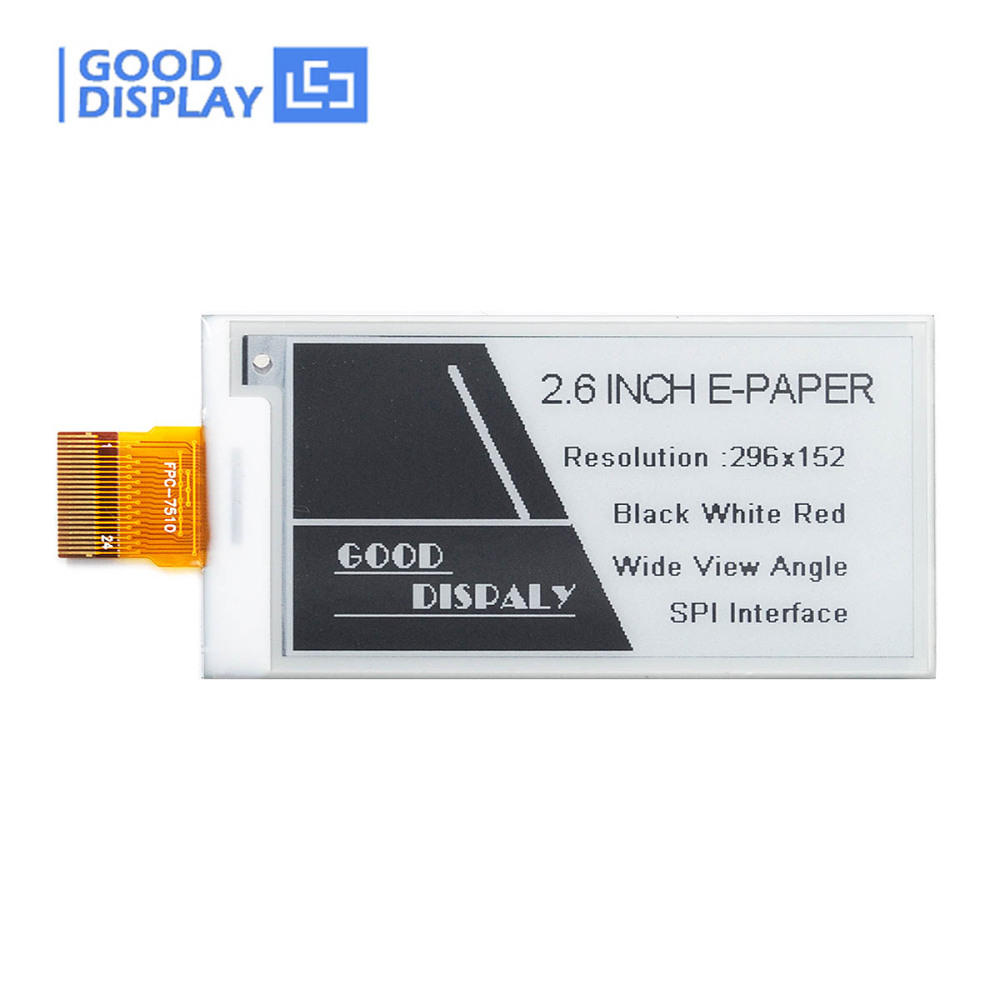

This is a 2.66 inch e-paper screen module with 296x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0266T90 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.4s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE
1) 2.66 inch e-ink-display SPI 296x152 epd screen for electronic tag * 1pc

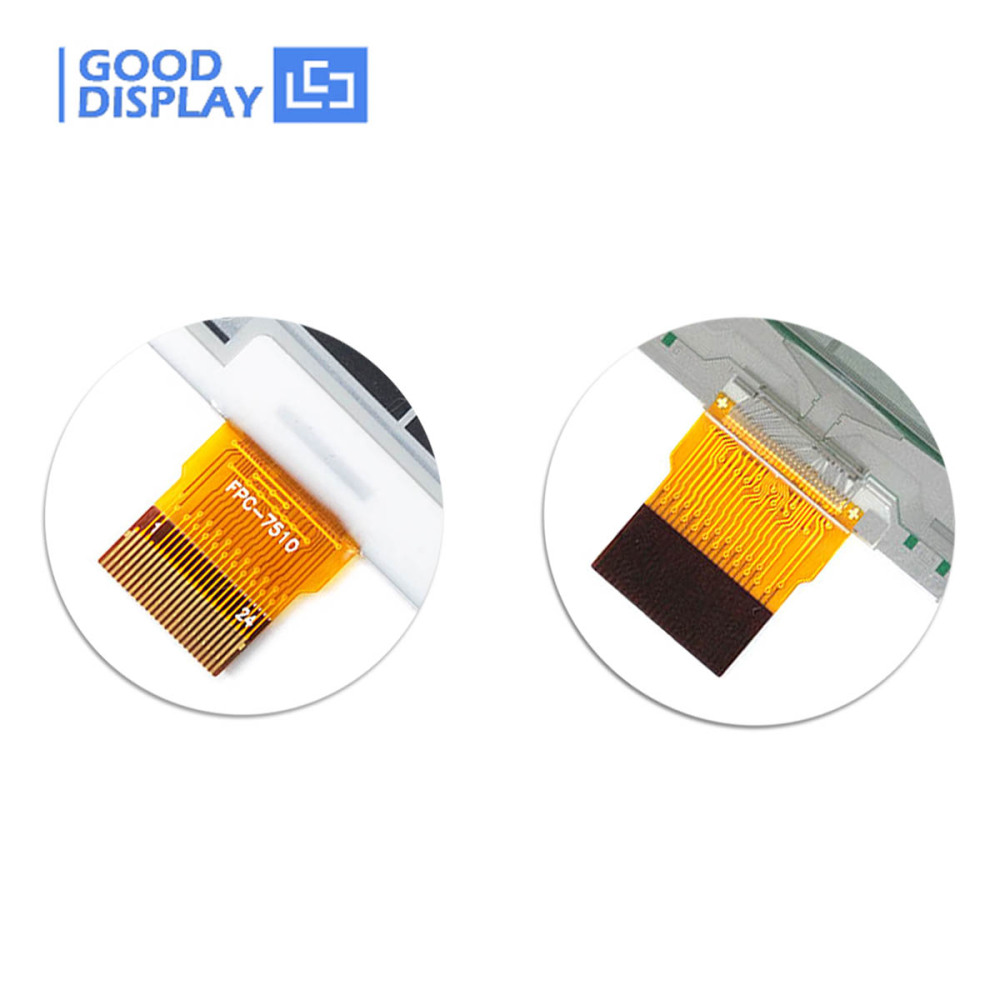

2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM0266T90
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
2.66 inch
|
|
IC
|
SSD1680
|
|
RESOLUTION
|
296x152
|
|

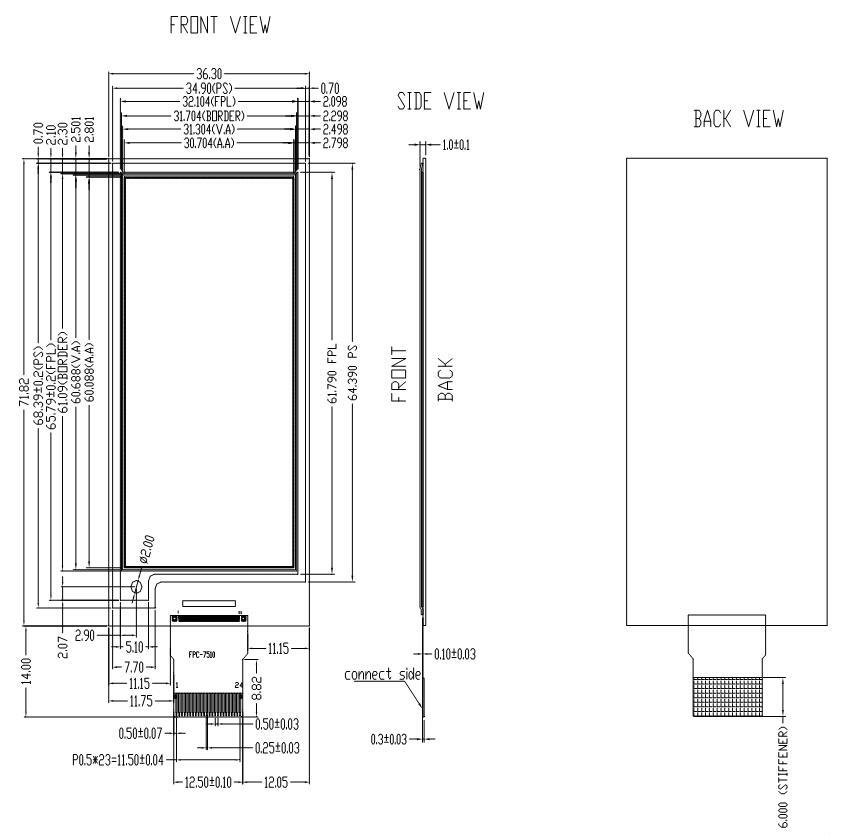

OUTLINE SIZE(mm)
|
71.82x36.304x1.0
|
|
ACTIVE SIZE(mm)
|
60.088x30.704
|
|
PIXEL PITCH(mm)
|
0.203x0.202
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
PARTIAL REFRESH TIME(s)
|
0.4
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
9
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.003
|
☆ 2.6 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW026T0D |
BW |
UC8151D |
296x152 |
Partial Refresh, 4 Grayscale |
3s |
| GDEY0266T90 |
BW |
SSD1680 |
296x152 |
Partial Refresh, 4 Grayscale |
3s |
