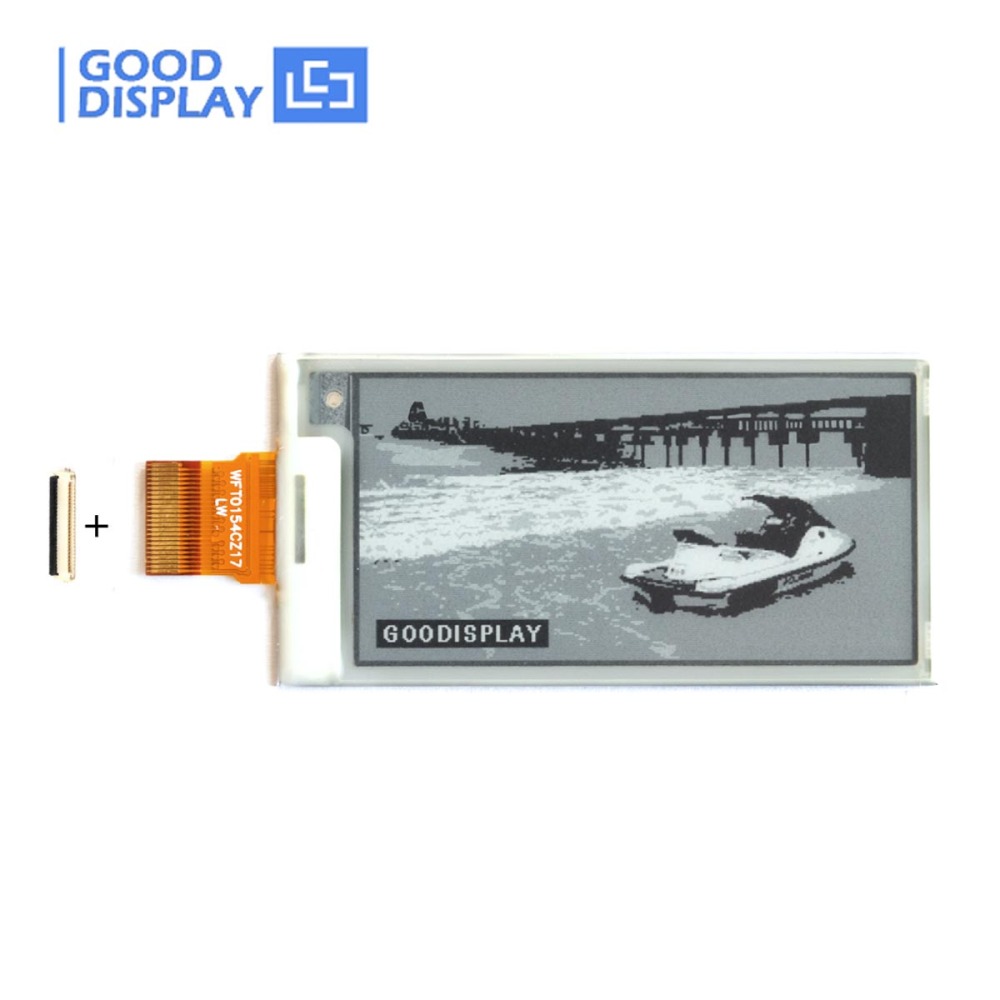

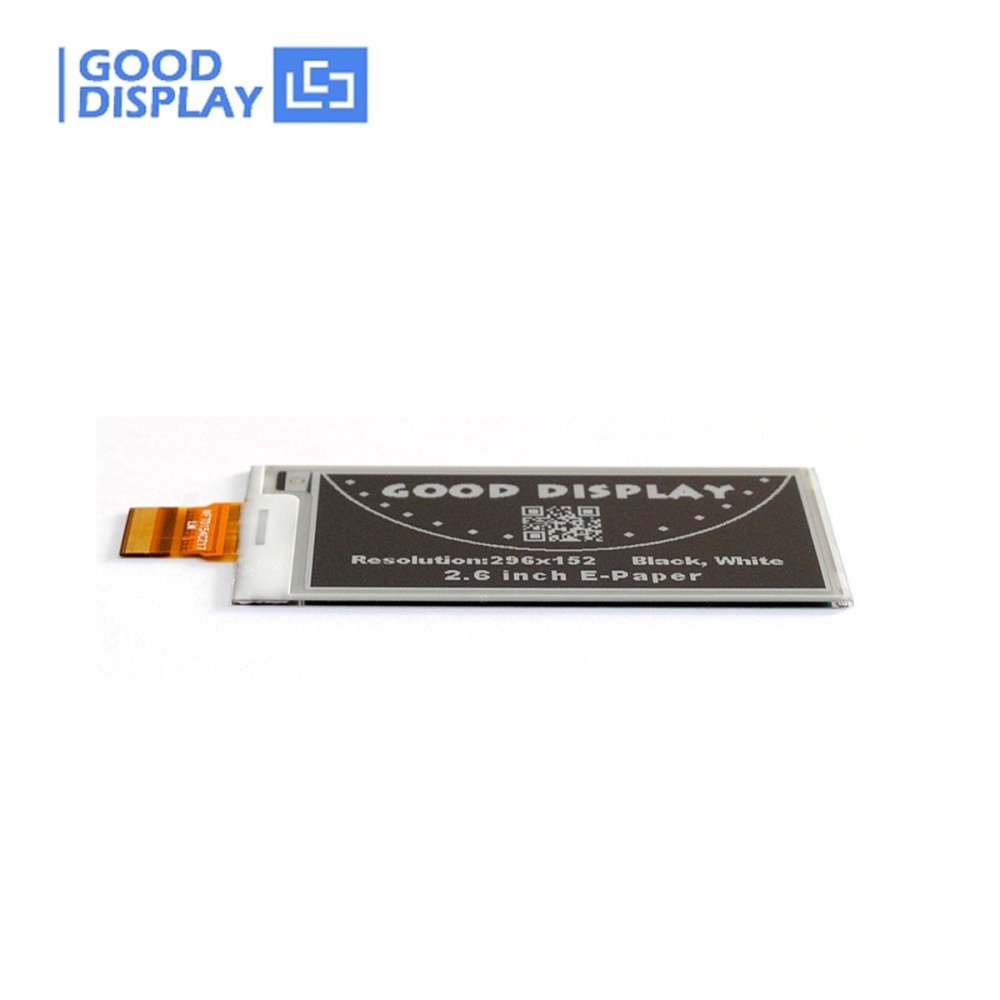

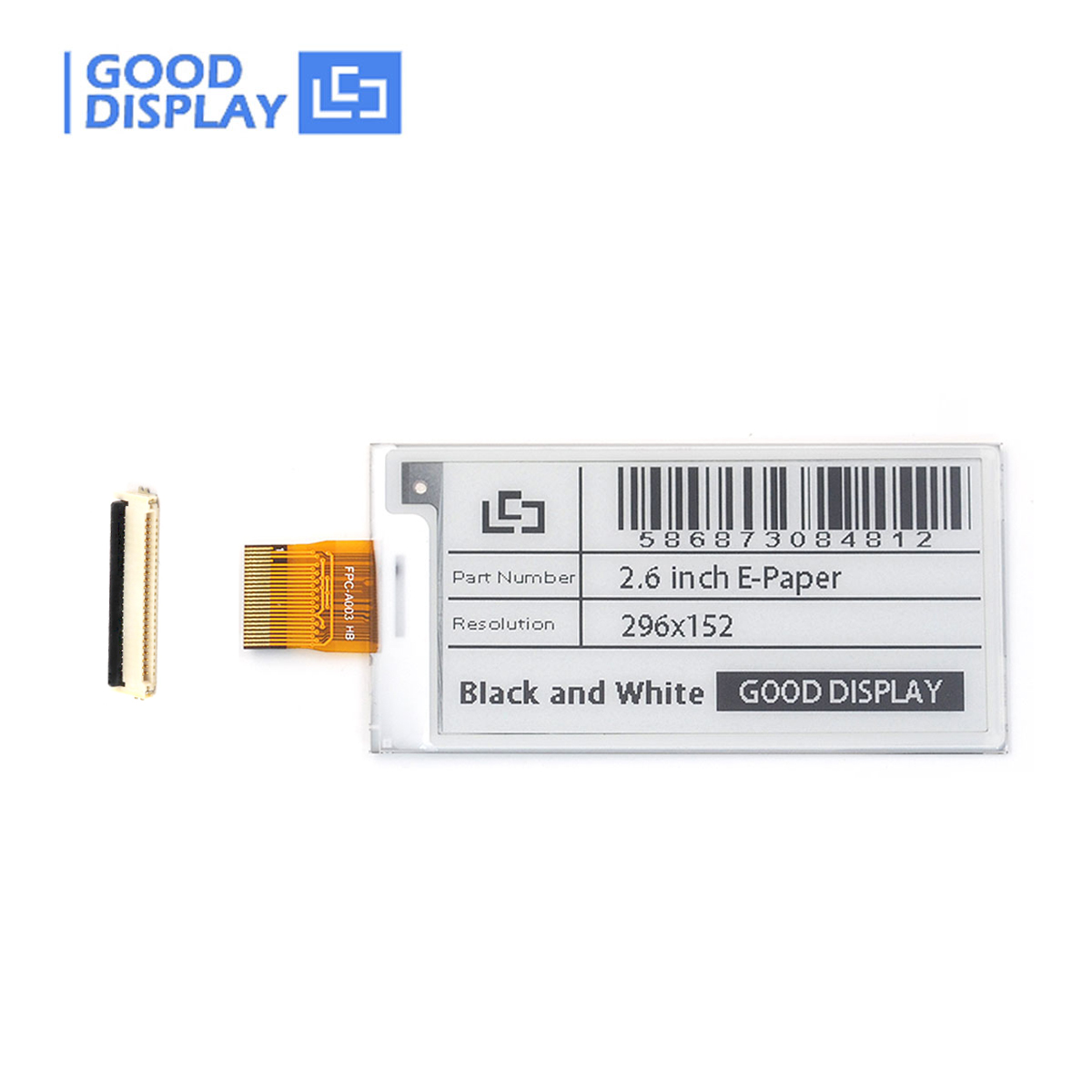

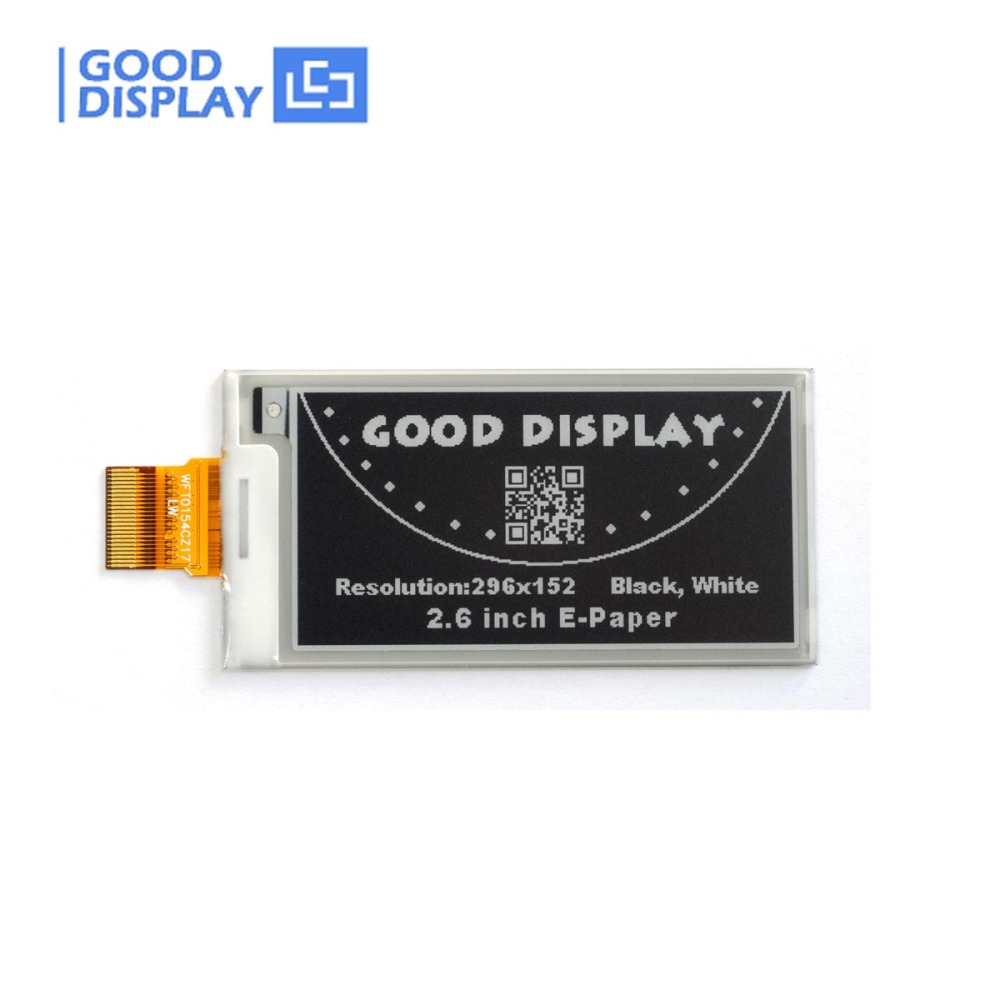

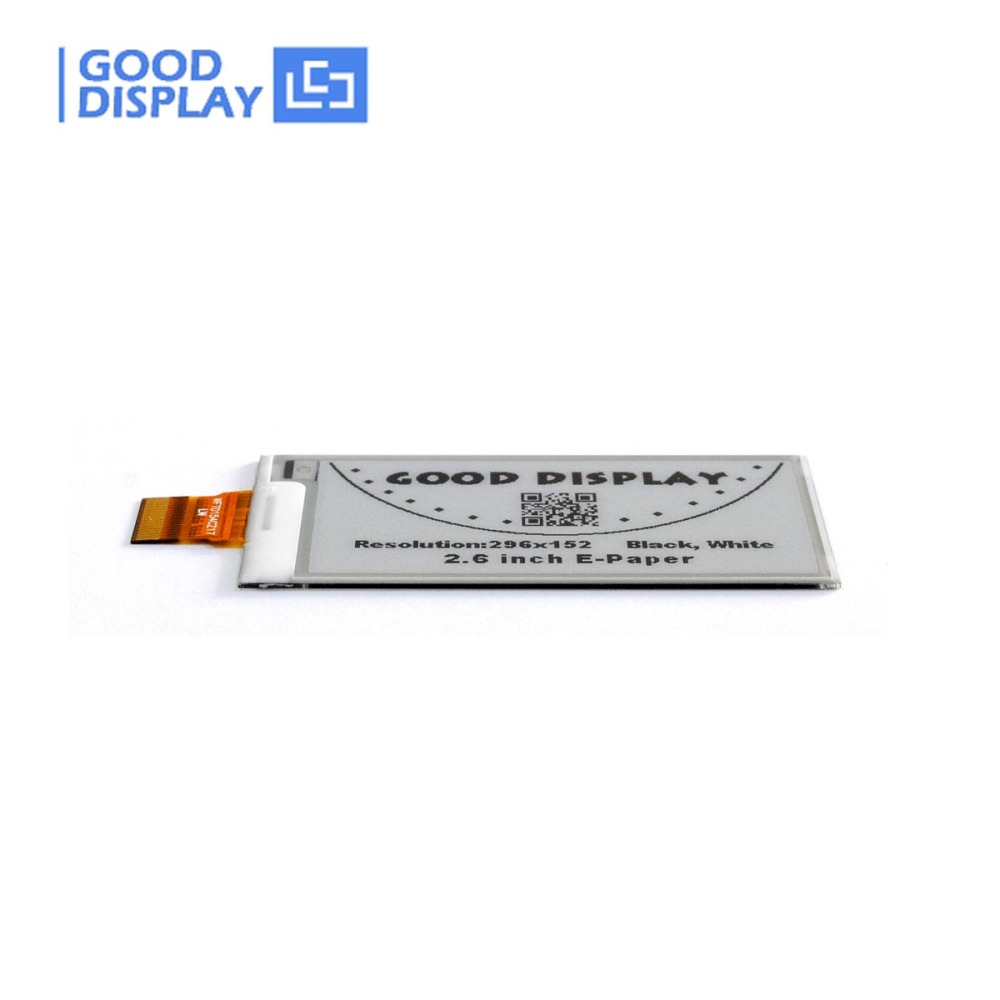

2.6 Inch E-paper Display 0.3s Partial Refresh 4 Grayscale E-ink Screen

GDEW026T0D
E ink E paper display panel, 2.6 inch, 296*152 resolution, 4 Grayscale, 24 pins FPC, supports black and white. very good choice for applications like shelf label, smart tags, smart home application, industrial instrument.
2 Review(s) Sold:65
Have a question?
Price:
USD
$7.59
  • Product:

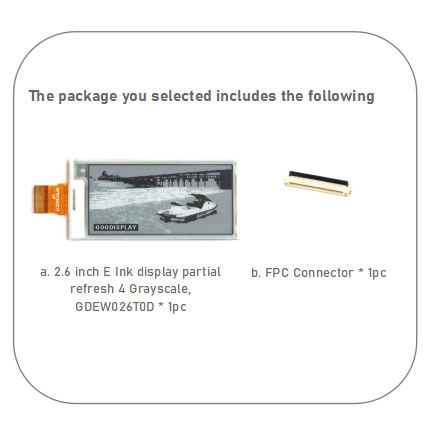

    EPD

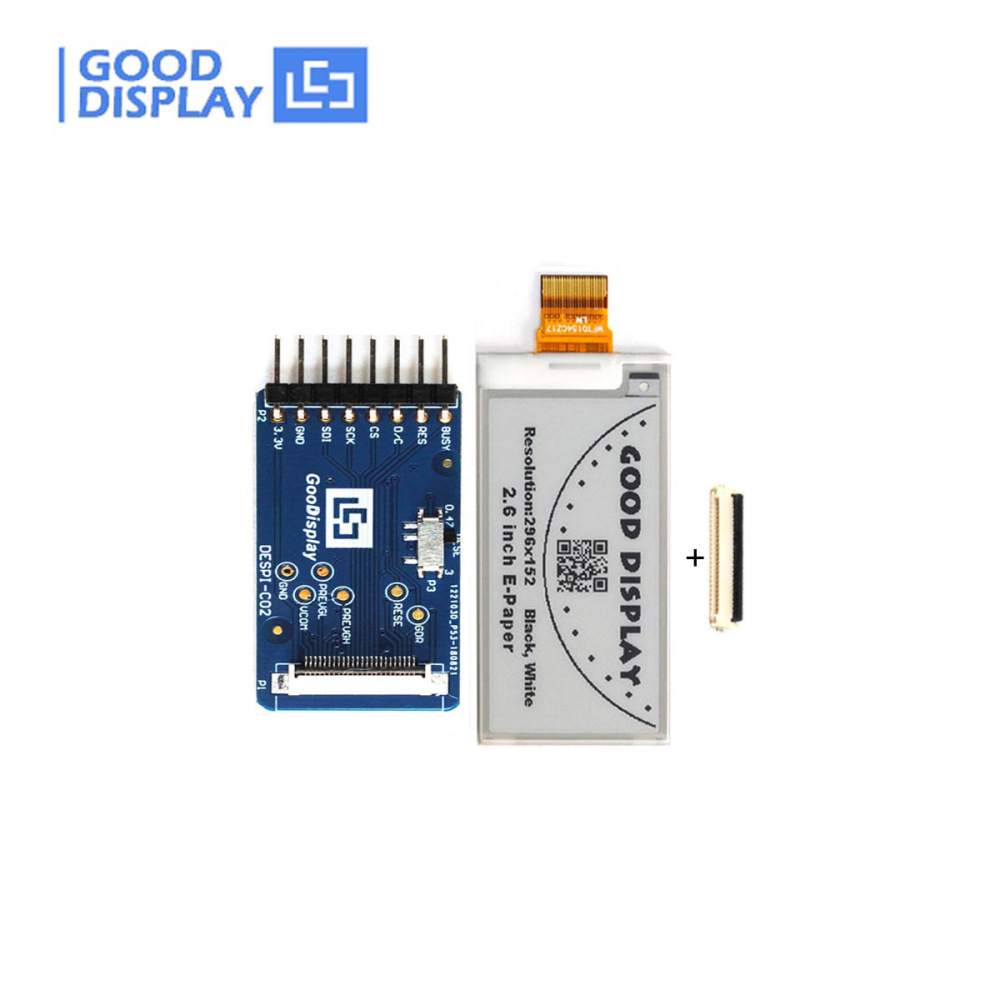

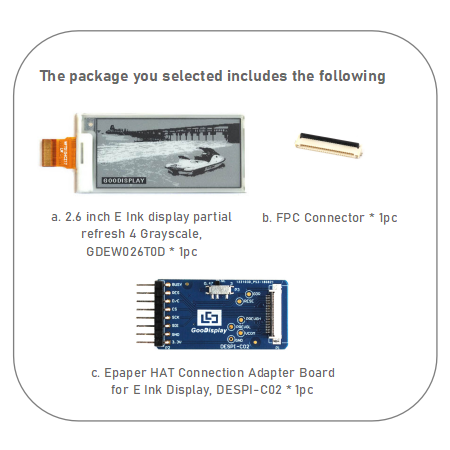

    EPD with adapter board DESPI-C02

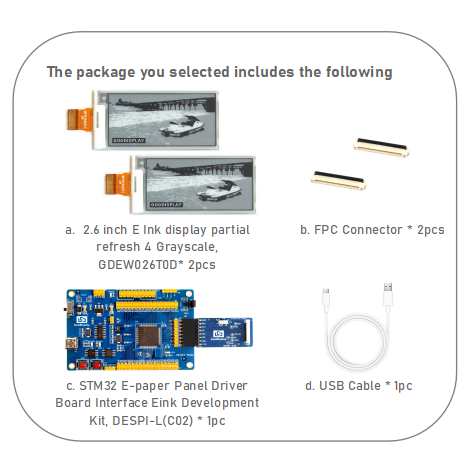

    EPD with demo kit DESPI-L(C02)

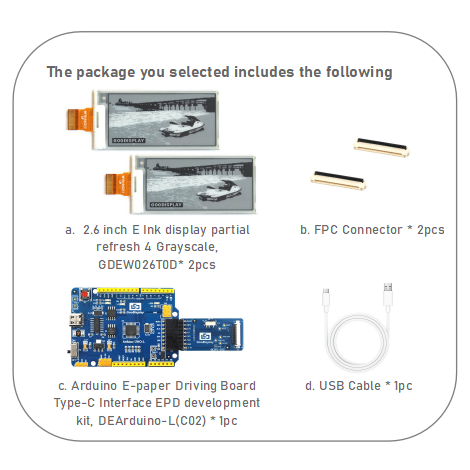

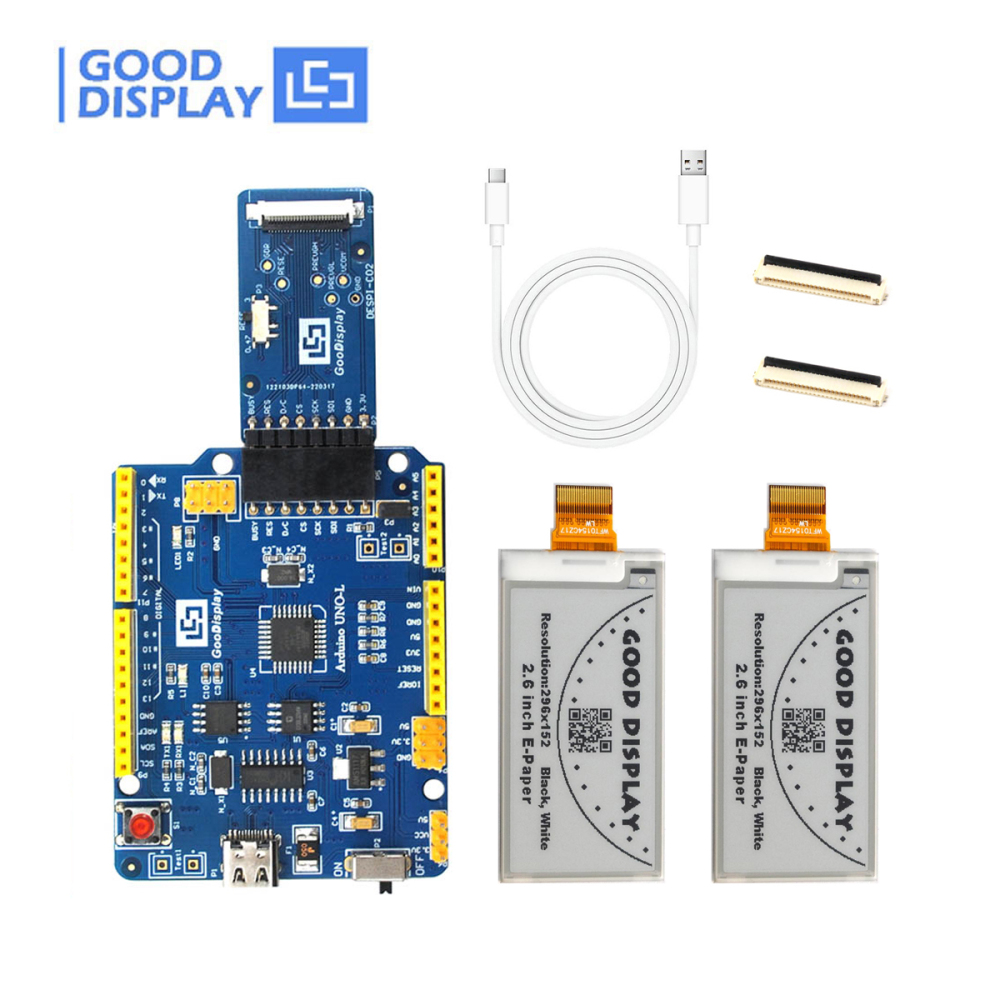

    EPD with Arduino Demo Kit

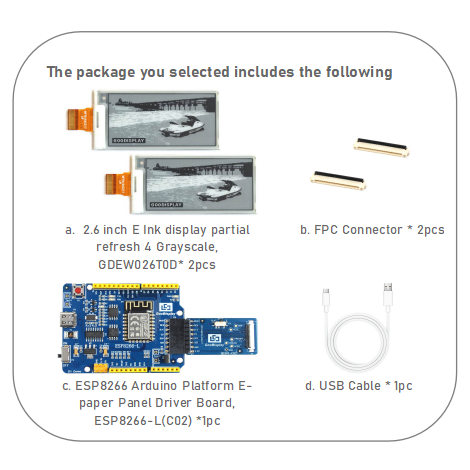

    EPD with ESP8266 Demo Kit

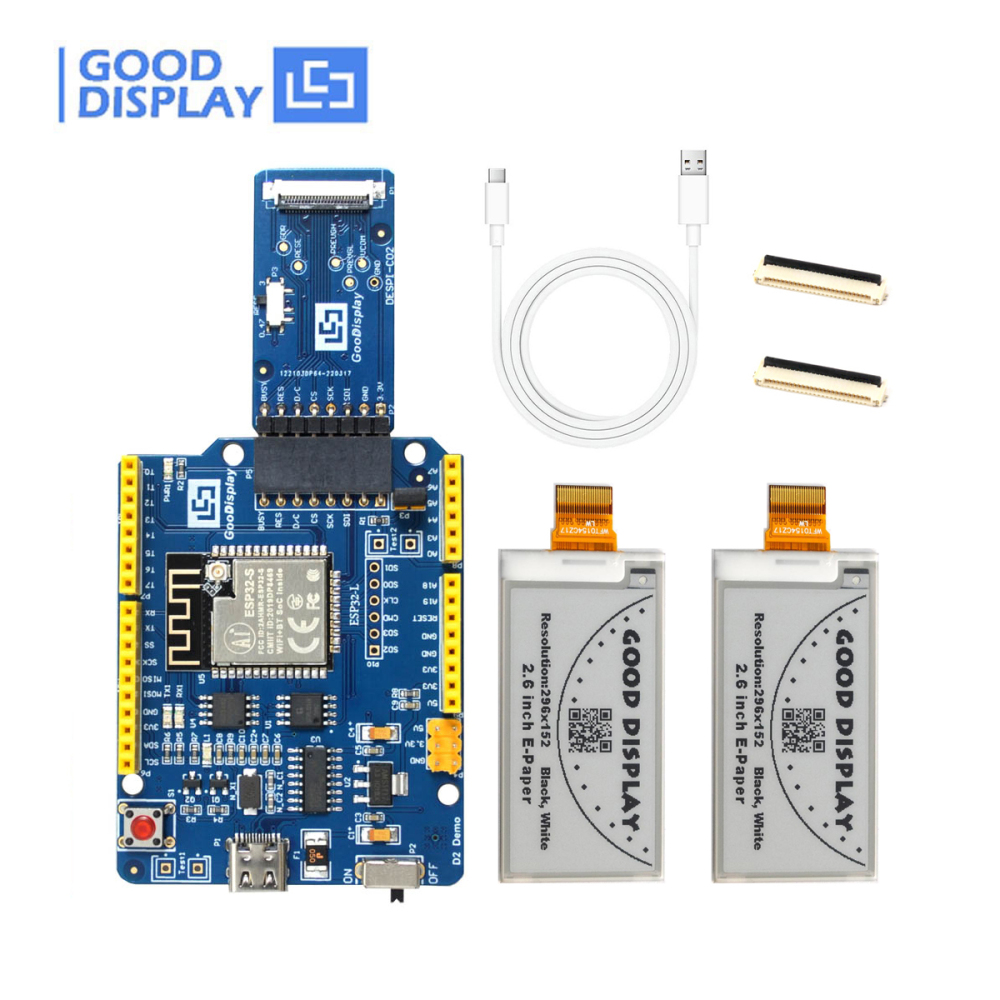

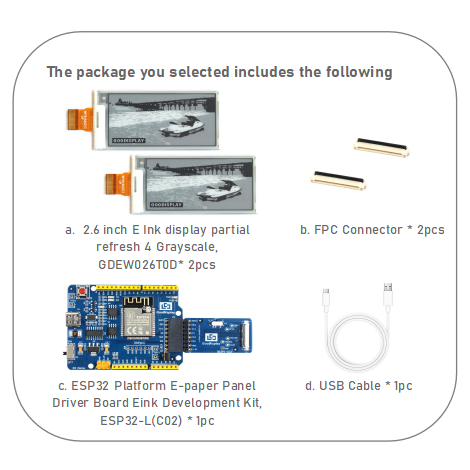

    EPD with ESP32 Demo Kit
Quantity:
-
+
(14 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
2.66-inch Upgraded Version Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(2)


2.6 Inch E Ink Display with 0.3s Partial Refresh 4 Grayscale SPI Interface




Introducing our 2.6-inch e-paper display, the GDEW026T0D. With a resolution of 296x152 and a versatile SPI interface, this e-ink screen effortlessly displays crisp black and white images. Experience the efficiency of a 3-second full refresh and a rapid 0.3-second partial refresh. One of the standout features of this e-paper display is its ability to hold images indefinitely without any power. Simply update your image, then shut down the power—your content will remain on the screen, clear and intact. Once refreshed, these e-paper modules don't require any power, allowing them to be completely disconnected while still displaying the content.

This e-ink screen is ideal for low-power applications, perfect for devices powered by solar energy or batteries. Whether you're designing smart tags, wearables, or any other low-power device, the GDEW026T0D offers the perfect blend of performance and energy efficiency.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra Low Power Consumption: This e-paper display retains its content without continuous power, ensuring your devices stay powered longer and always ready to go.
  ●  Rapid Partial Refresh: Enjoy a swift 0.3-second partial refresh, delivering quick updates for your smart tags and wearables, ensuring smooth and efficient performance.
  ●  Wide Viewing Angle: Boasting a wide 170-degree viewing angle, this display provides crystal-clear visibility from any direction, offering an immersive visual experience.
  ●  Eco-Friendly and Energy-Efficient: With near-zero power consumption when not refreshing, this e-paper display leads the way in green technology, making your devices more eco-conscious.
  ●  Eye-Friendly, No Blue Light: Free from blue light and radiation, this display is gentle on the eyes, perfect for prolonged use in smart home devices and wearables.
  ●  Durable and Reliable: Featuring a hard-coated, anti-glare surface, this display is built to last and performs flawlessly in all environments, ensuring your devices maintain top-notch display quality.







Technical Details

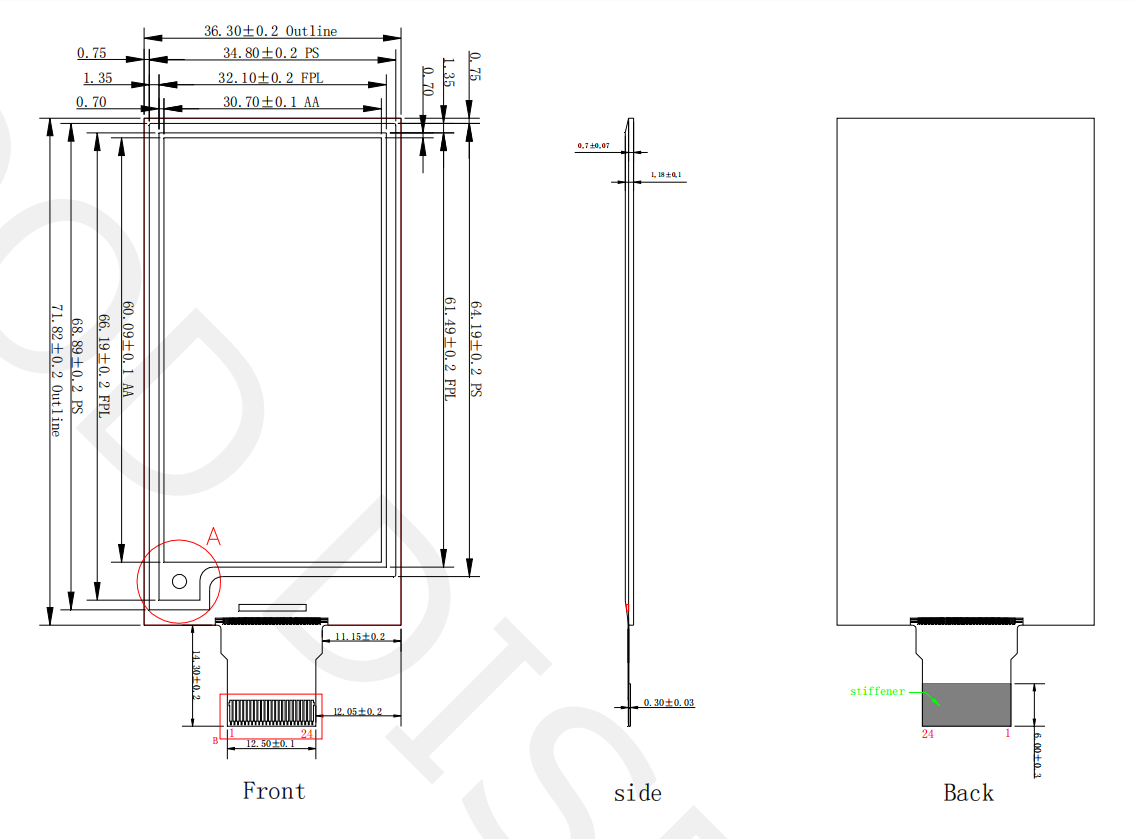

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEW026T0D CONNECTOR 24 Pin FPC
SIZE 2.6 inch TYPE Dot Matrix
IC UC8151D MAX GRAYSCALE 4
RESOLUTION 296x152 COLOR Black,White
OUTLINE SIZE(mm) 71.82x36.3x1.18 INTERFACE SPI
ACTIVE SIZE(mm) 60.09x30.7 FULL REFRESH(s) 3
PIXEL PITCH(mm) 0.203x0.202 PARTIAL REFRESH TIME(s) 0.3
OPERATING TEMP. 0℃~50℃ POWER CONSUMPTION OF THE REFRESH(mW) 26.4
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.0165









Matching Driver Board


To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEW026T0D Specification ● GDEW026T0D Arduino Sample Code
  ● UC8151D Driver IC Datasheet ● GDEW026T0D ESP8266 Sample Code
  ● IC UC8151C to IC UC8151D Instructions ● GDEW026T0D ESP32 Sample Code
  ● GDEW026T0D STM32 Sample Code










Every day is Earth Day


  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.



Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

 Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.		 Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.




WE ALSO SUGGEST
Click the image below to learn more about our products

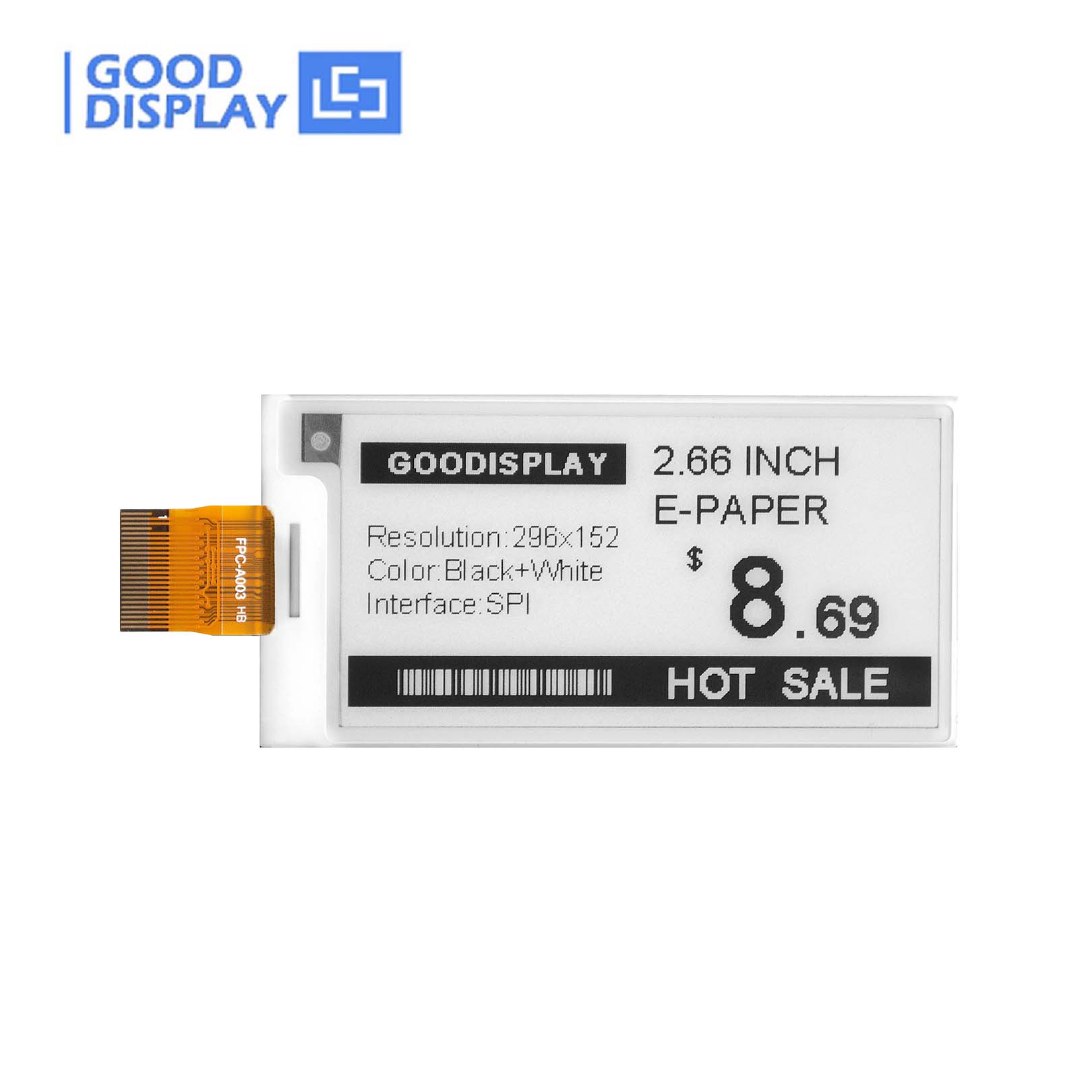

2.66 inch E ink Epaper Screen Monochrome E-paper Display, GDEY0266T90

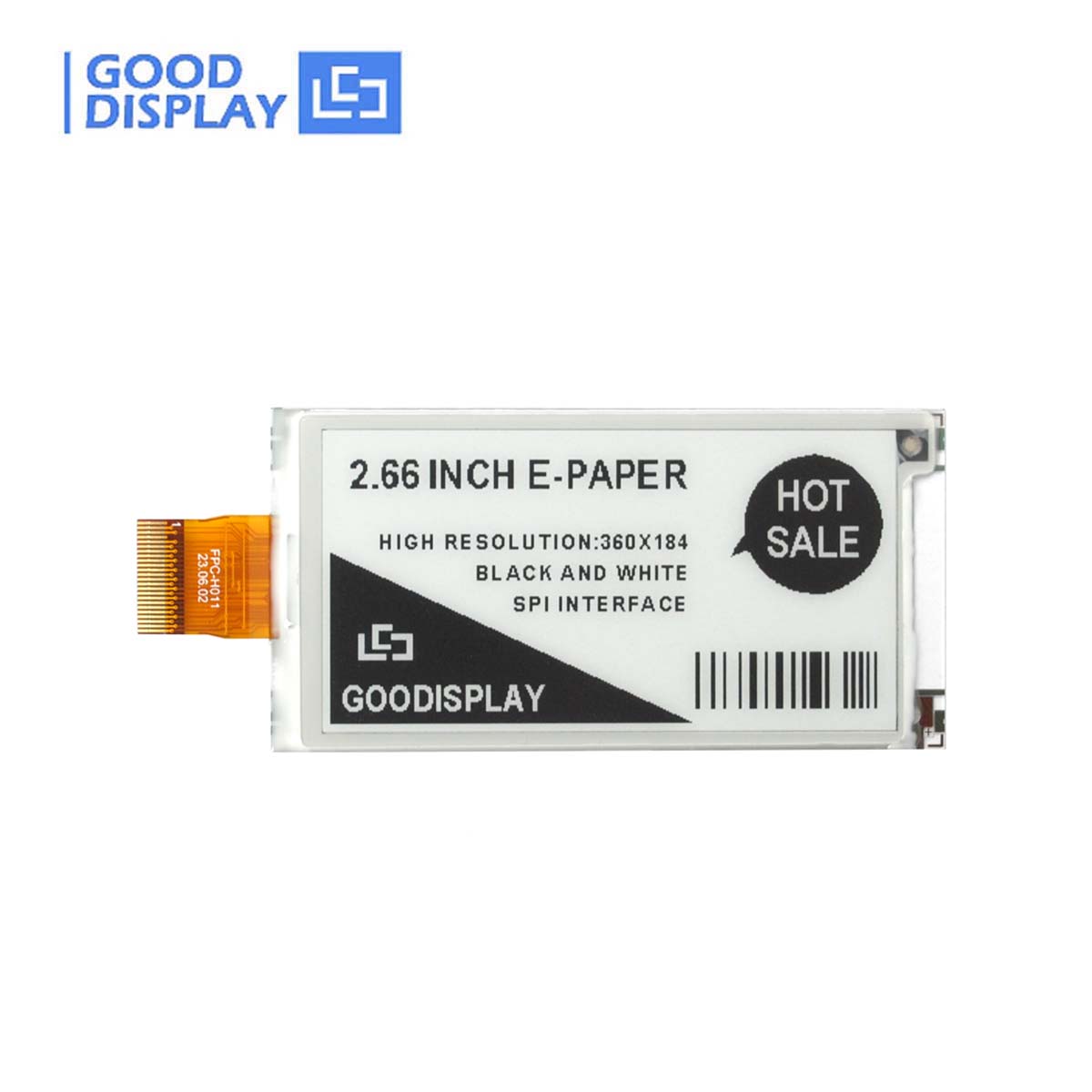

2.66-inch E-ink display with a high resolution of 360*184, GDEY0266T90H

2.66 inch Low Temperature E-Ink 296x152 E-Paper, GDEY0266D91LT

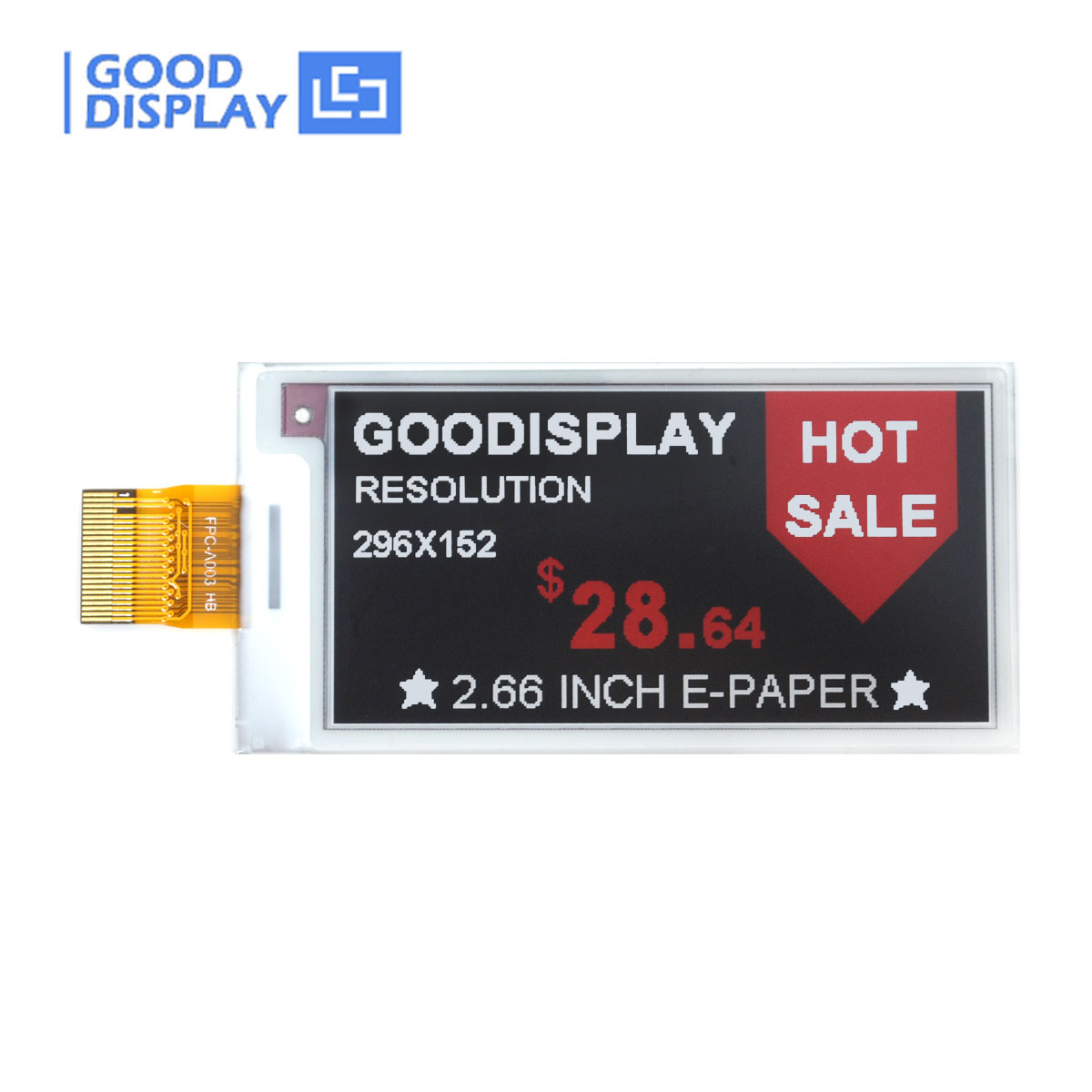

 2.66 inch E-paper E-ink Display 296x152 Color SPI Screen, GDEY0266Z90

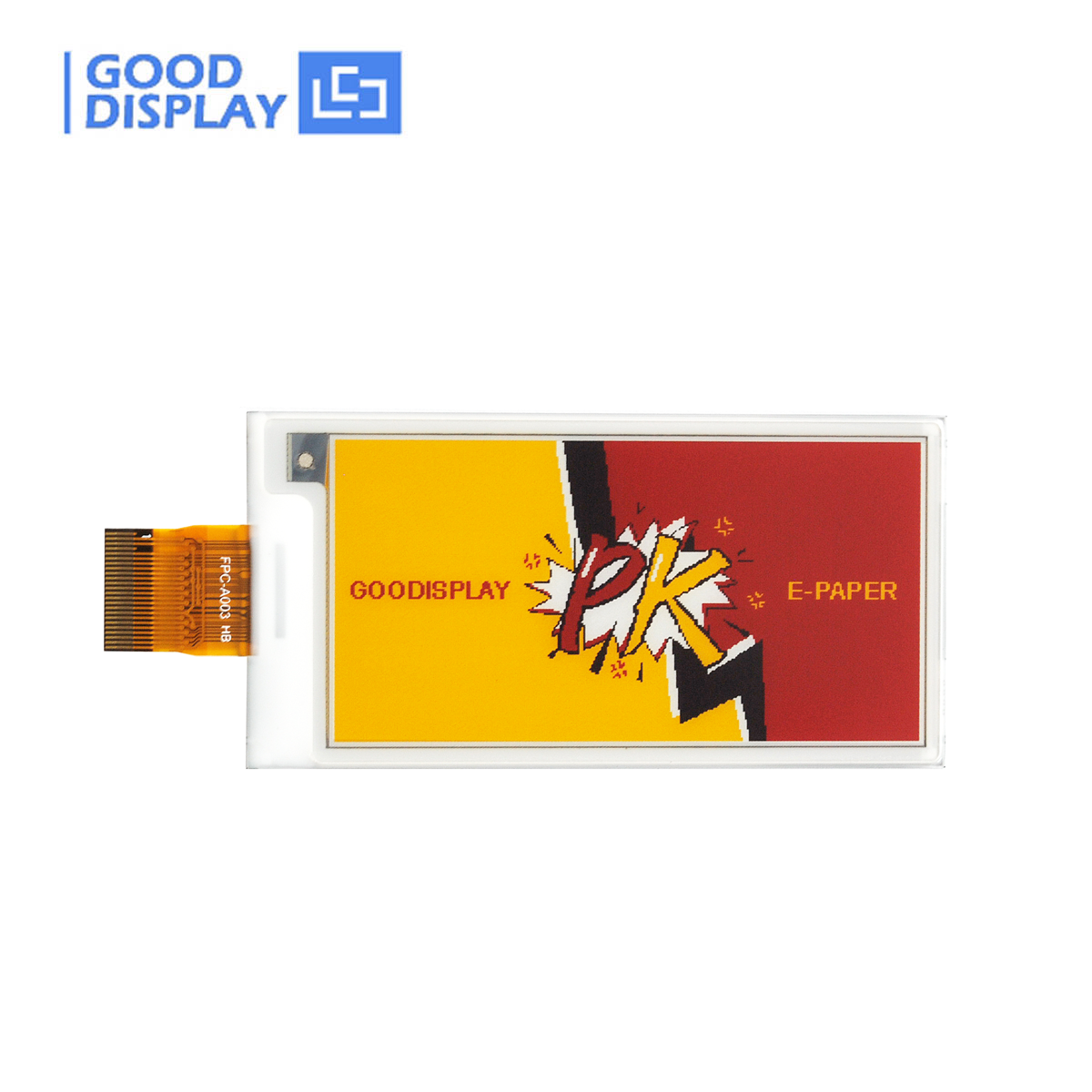

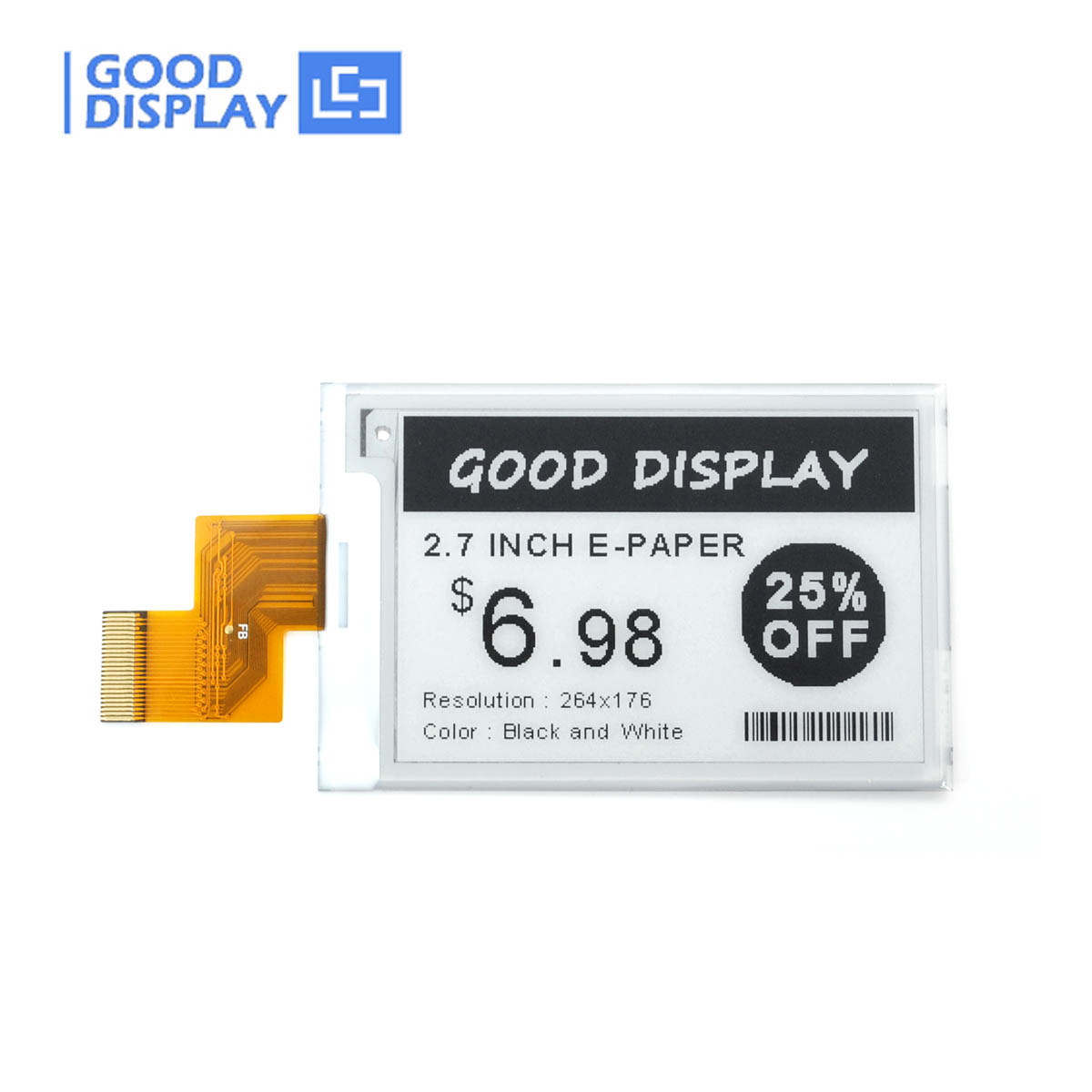

2.66" High resolution 296x152 black，white, red and yellow color epaper display, GDEY0266F51 High Solution 2.66'' 4-color E Ink Screen 384x168, GDEY0266F51H 2.7 inch E-Paper 264x176 Resolution Eink Display Communicating via SPI Interface, GDEY027T91 2.7 inch E ink Display with front light, can work at darkness GDEY027T91-FL02
