TIP: The Touch Screen is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.
| |
Goodisplay Touch ePaper Supplier
Enhance Interaction with Precision Touch
Good Display, with 17 years of expertise in e-paper technology, is dedicated to bringing the best e-paper solutions to its customers. This touchscreen e-paper panel seamlessly integrates a PET material touch sensor directly onto the top of the E Ink display, creating an advanced touch solution. This design not only reduces power consumption and costs but also improves the aesthetic appeal and visual clarity of the display. It's an ideal fit for a wide range of smart devices.
|
|
|
| |
|
|
|
|
New Generation of Touch Screen ePaper
|
|
|
|
|
|
|
|
|
|
Resolution: 264x176
|
Max Grayscale: 4
|
Low Power Consumption
|
Fast Update: 1.5s
|
Partial Update: 0.3s
|
Full Update: 2s
|
| |
|
|
|
|
|
E Ink Touch Screens for Every Need
Why We're the Best Choice for You

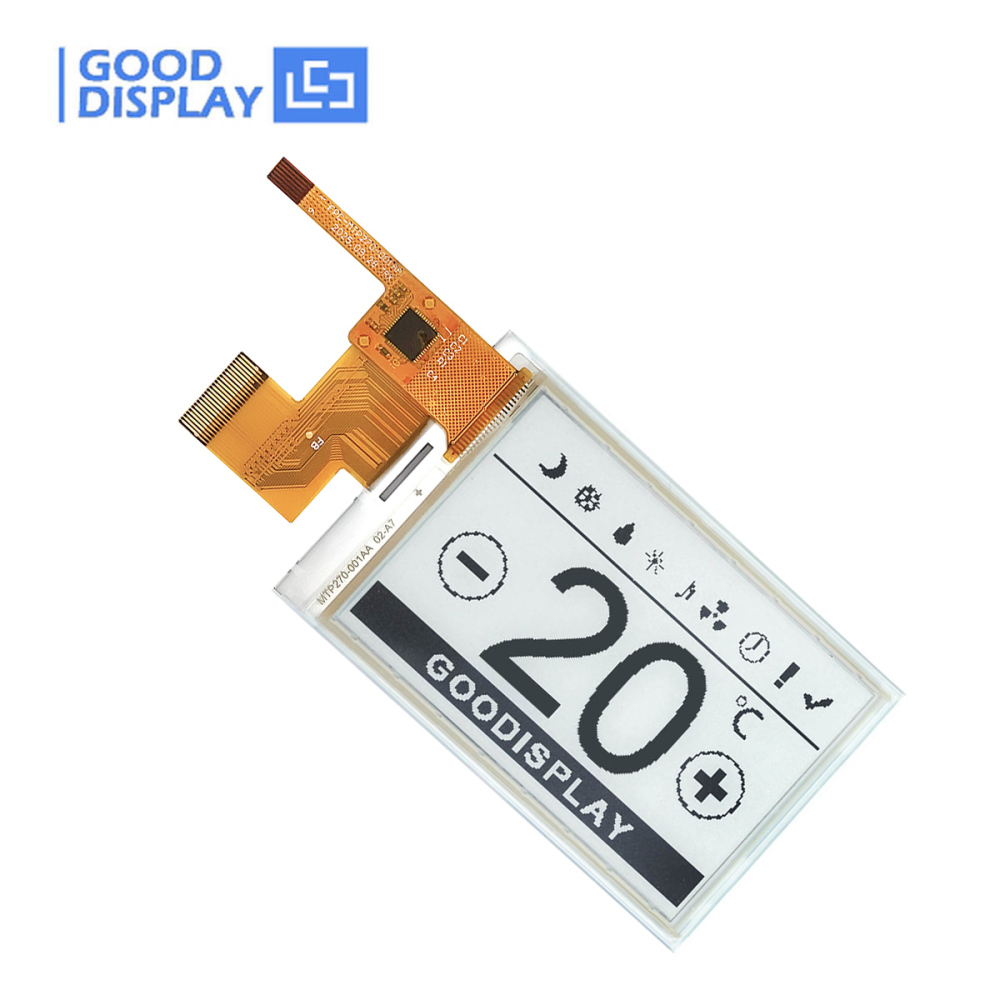

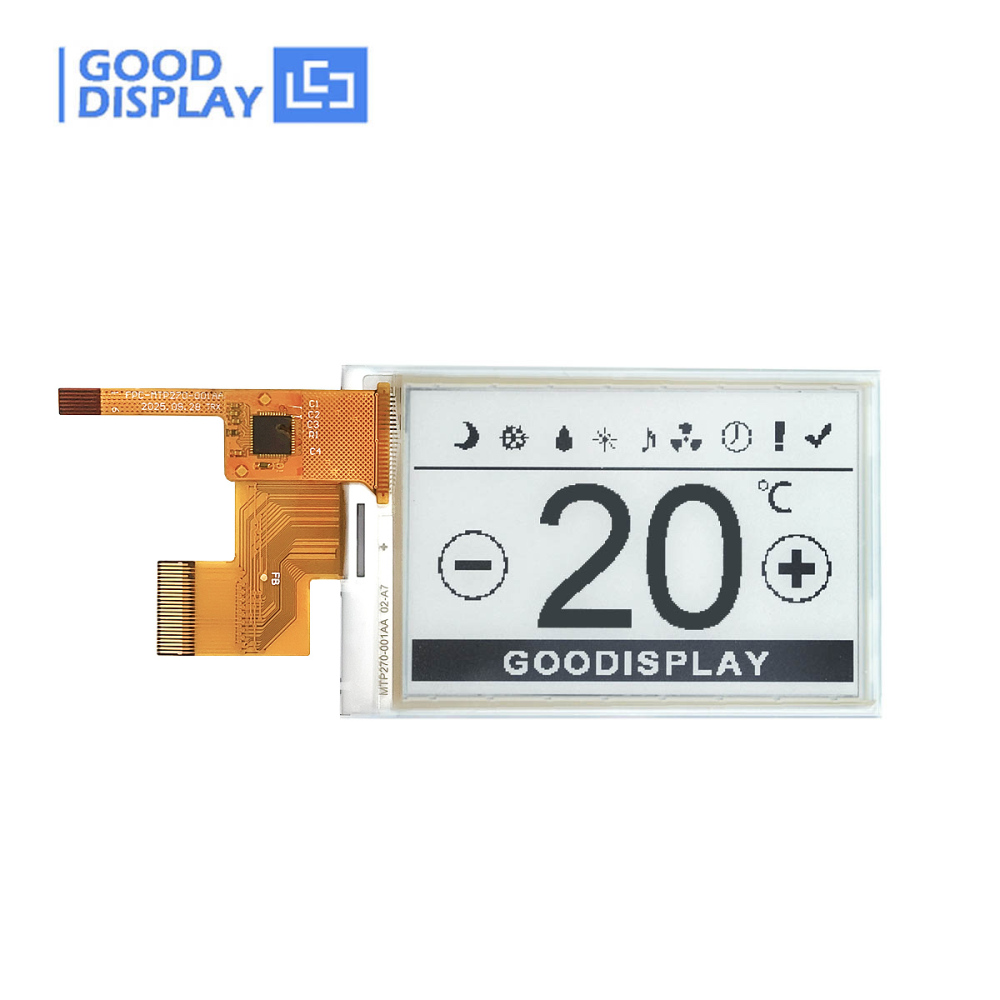

- Advanced Touch Technology: GDEY027T91-T21 is a TFT active matrix electrophoretic display with capacitive touch panel-FT6336U, Supports dual-point touch and features an I²C interface.
- Exceptional Transparency: The e-paper touchscreen offers superior light transmission, enhancing contrast and clarity.
- Ultra-Low Power Consumption: Both the e-paper display and touchscreen use minimal power.
- Fast Refresh Rate: Faster touch response thanks to improved e-paper refresh rates.
|
|
|
Custom Touch Module Solutions
● Designed to be fully compatible with any 2.7-inch E Ink display, ensuring seamless integration.
● Our dedicated quality control team guarantees the highest product standards, delivering only the best to our customers.
● Backed by comprehensive technical support from our expert team, we're here to ensure your success every step of the way.
|
|
|
Technical Details
|
|
|
|
|
|
|
|
|
|
|
Product Specifications
|
|
|
PART NUMBER
|
GDEY027T91-T21
|
CONNECTOR OF EPD
|
24 Pin FPC
|
|
TYPE
|
Dot Matrix
|
MAX GRAYSCALE
|
4
|
|
SIZE
|
2.7 inch
|
COLOR
|
Black,White
|
|
IC
|
SSD1680Z8
|
FULL REFRESH(s)
|
2
|
|
RESOLUTION
|
264x176
|
FAST REFRESH TIME(s)
|
1.5
|
|

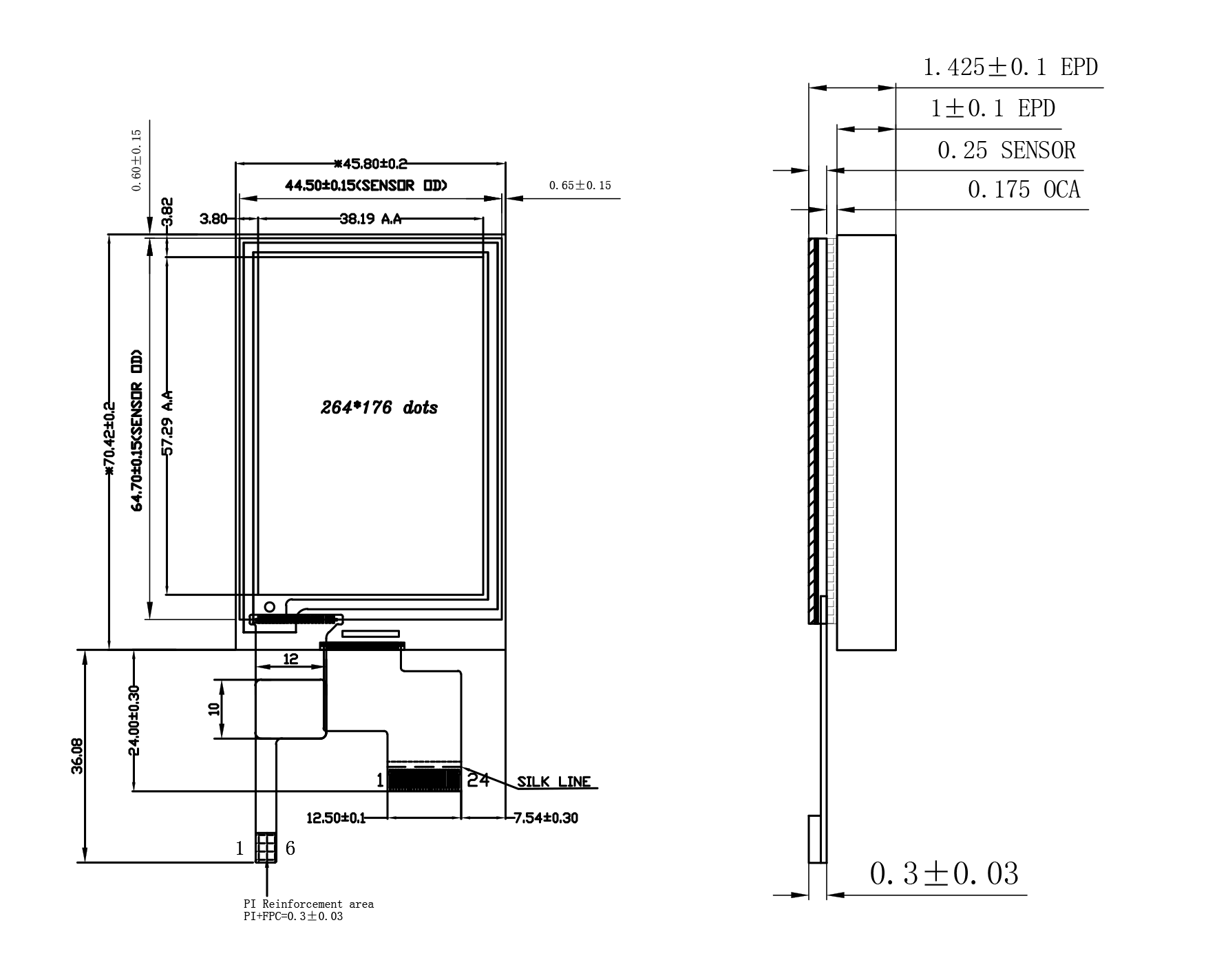

OUTLINE SIZE(mm)
|
70.42x45.8x1.425
|
PARTIAL REFRESH TIME(s)
|
0.3
|
|
ACTIVE SIZE(mm)
|
57.29x38.19
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
12
|
| PIXEL PITCH(mm) |
0.217x0.217 |
STANDBY POWER CONSUMPTION (mW) |
0.003 |
|
OPERATING ENVIRONMENT
|
0℃~50℃
|

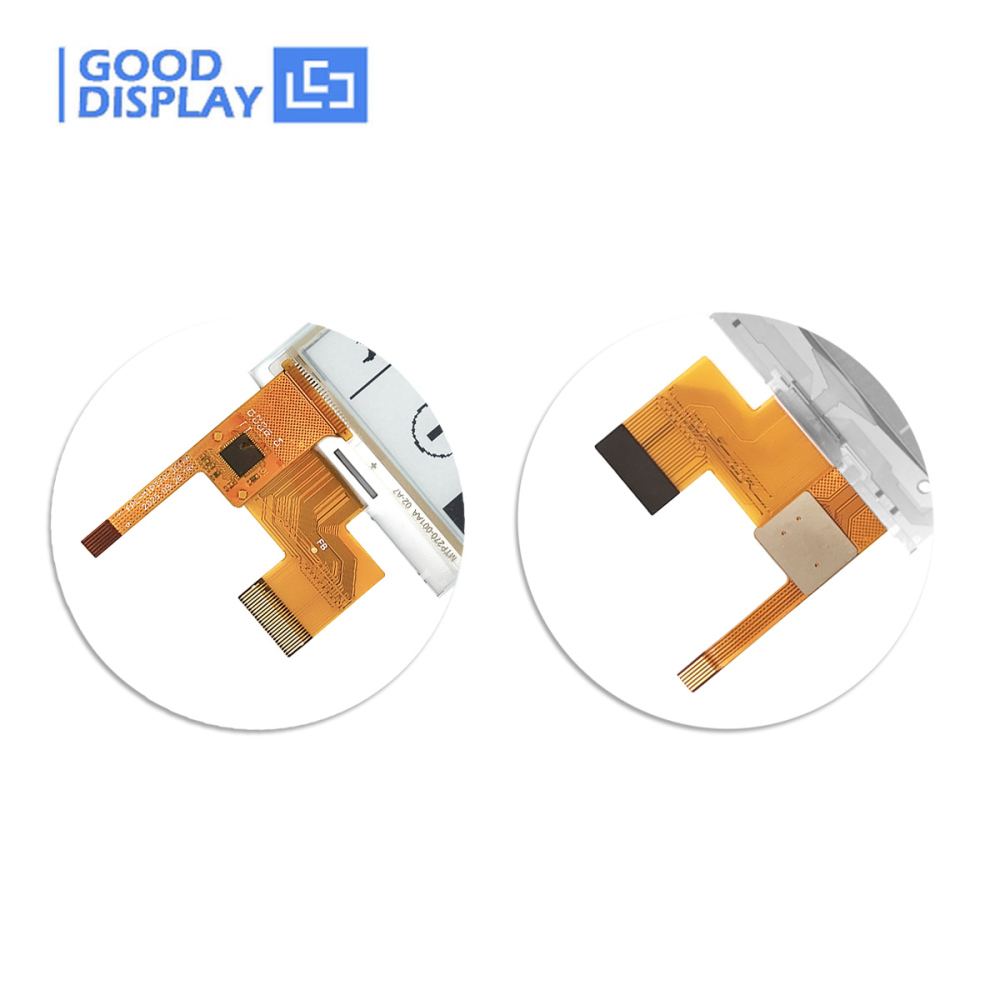

TOUCHSCREEN CONNECTOR
|
6 pin FPC
|
|
STORAGE ENVIRONMENT
|
-25℃~70℃
|
TOUCHSCREEN CONTROLLER IC
|
FT6336U
|
| INTERFACE |
SPI |
TOUCHSCREEN OPERATING VOLTAGE |
2.8V~3.6V |
|
|
|
|
|

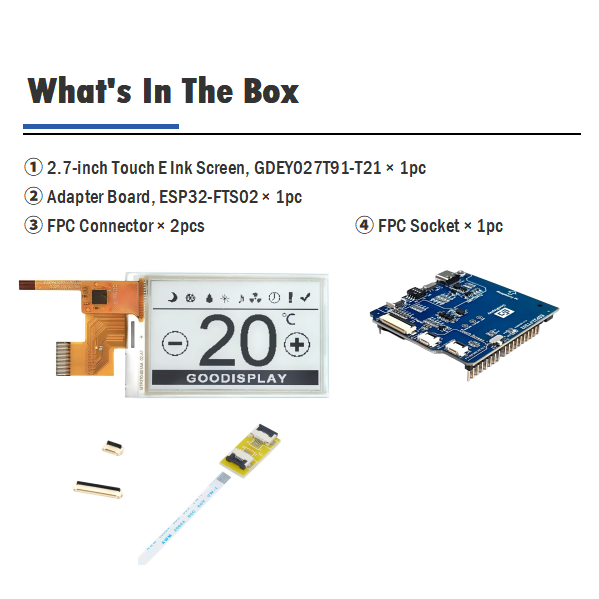

Matching Driver Boards
Product Application
|
|
|
|
|
|
|
|
Portable E-Book or Notepad
|
Portable Medical Devices
|
Wearable Devices
|
Smart Home Control Panels
|
Smart Home Control Panels
|
|
|
Every Day is Earth Day
|
|
|
|
|
You don't need to be an environmental scientist to make sustainable choices.
At GooDisplay, we passionately integrate sustainability into the production of e-paper.
|
|
|
|
|
|
|
|
|
|
|
|
Substitute for Paper Usage
Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.
|
Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.
|
Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
|
About Us
|
|
|
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
|
