Advanced 60GHz Wireless Radar Module: Precision Human Movement Tracking for Next-Gen Applications
|
|
|
| |
|

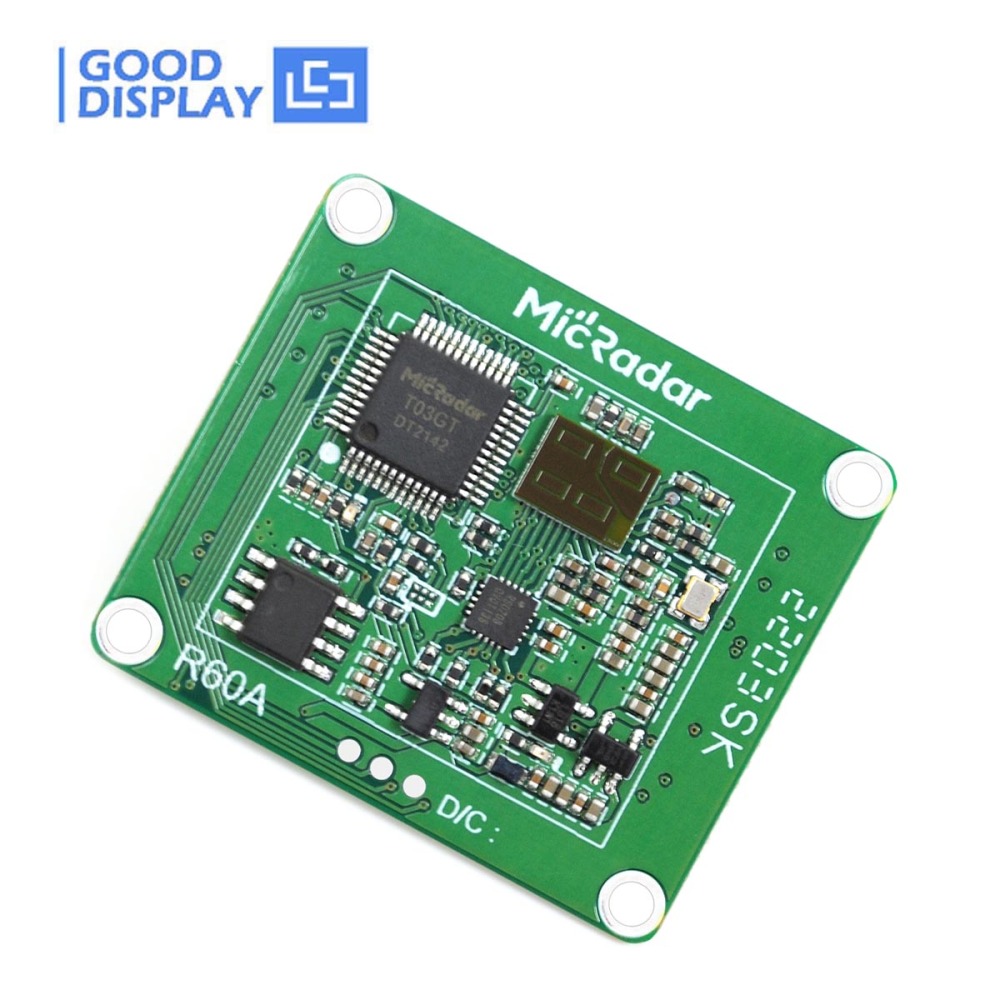

IR60TR1A radar module is a radar module that uses 60G millimeter wave radar technology to realize the functions of moving human body perception, position detection and track tracking. This module is based on FMCW radar system to realize wireless perception of personnel status in specific places. It can be tested with our radar test board.(DERADAR-24G).
|
| |
|
Special Features
|
|
|
| |
|
Our product boasts distinctive features that set it apart from the competition |
|
|
| |
|
● Precision Position Detection & Dynamic Tracking: Accurately track the movement and position of personnel with unparalleled precision.
● Human-Centric Detection: Exclusively recognizes individuals with biological characteristics, effortlessly filtering out environmental interference from inanimate objects, whether moving or stationary.
● Selective Interference Elimination: Ingeniously eliminates disturbances from non-living objects while retaining the capability to detect their movement when necessary, ensuring a tailored response to your needs.
● Customizable & Versatile: Supports seamless secondary development, making it adaptable to diverse scenarios and tailored solutions.

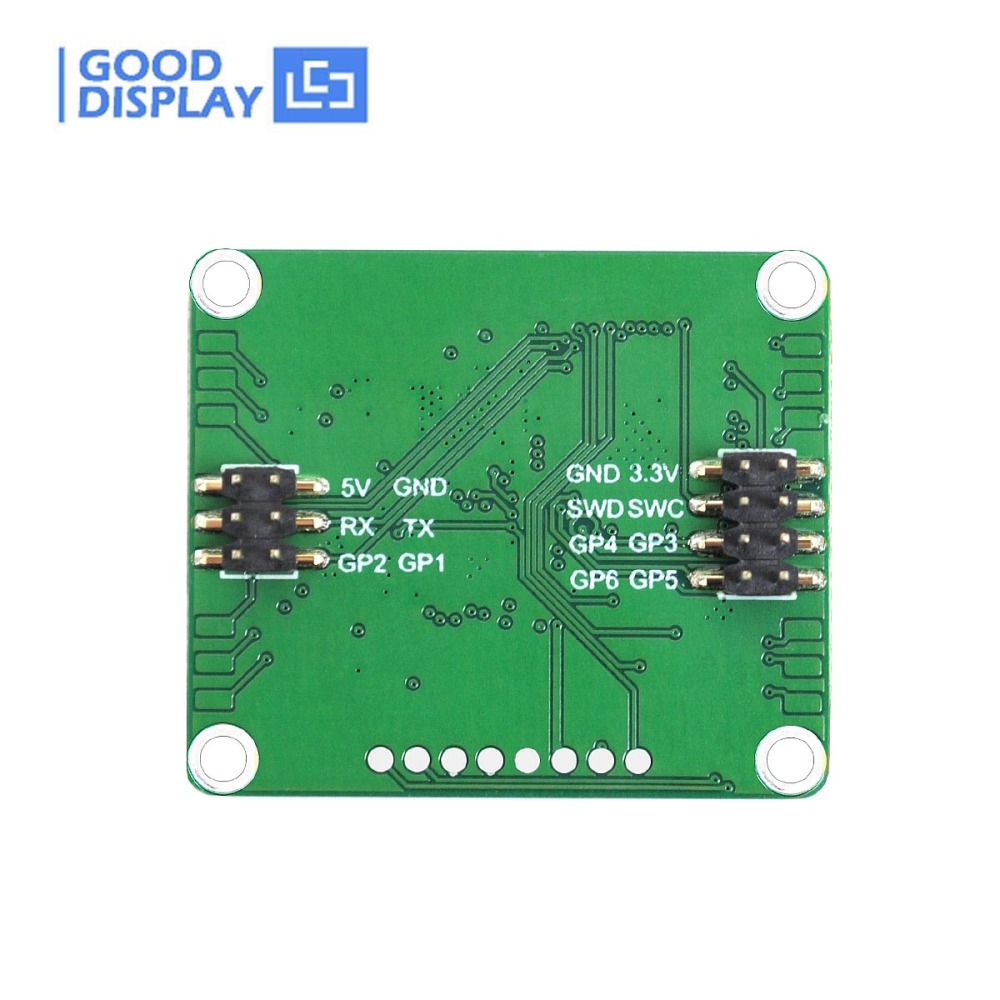

● User-Friendly Communication: Equipped with a universal UART communication interface and a flexible protocol, ensuring easy integration into various systems.
● Enhanced Flexibility: Includes four reserved I/O groups, customizable for user-defined input/output or simple interface simulations, offering unmatched versatility.
● Safe & Low Power Output: Delivers minimal output power, ensuring no harm to human health while maintaining optimal functionality.
● Uncompromised Performance: Immune to environmental factors like temperature, light, and dust, this module provides high sensitivity and reliable performance across a wide range of applications.
|
|
|
| |
|
Operating Mode
|
|
|
|

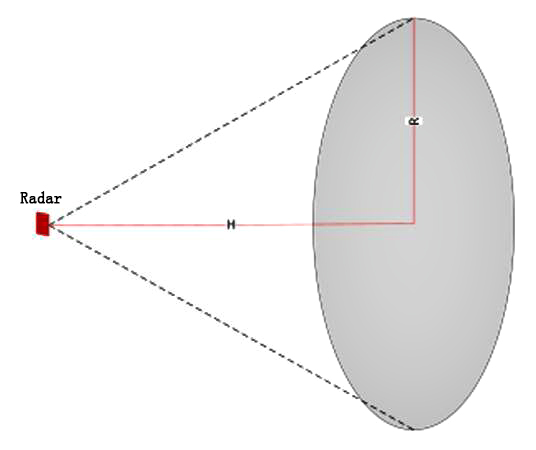

The beam coverage of radar module is shown in. The radar coverage is a three-dimensional sector area with 100 ° horizontal and 100 ° pitch.
Due to the influence of radar beam characteristics, the radar operates far in the normal direction of the antenna surface, but the operating distance deviates from the normal direction of the antenna will become shorter.
|
| |
|
Installation Method
|
|
|
| |
|
There commended installation method of this radar module is horizontal installation.
Horizontal-mounted

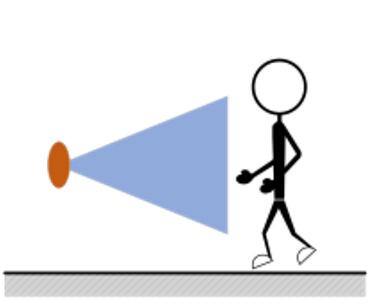

The radar is installed horizontally (as shown in the Figure), and the radar is fixed on the wall or placed on the desktop, and the radar beam irradiates the human body in a positive direction.
|
|
|
| |
|
 |
|
|
| |
