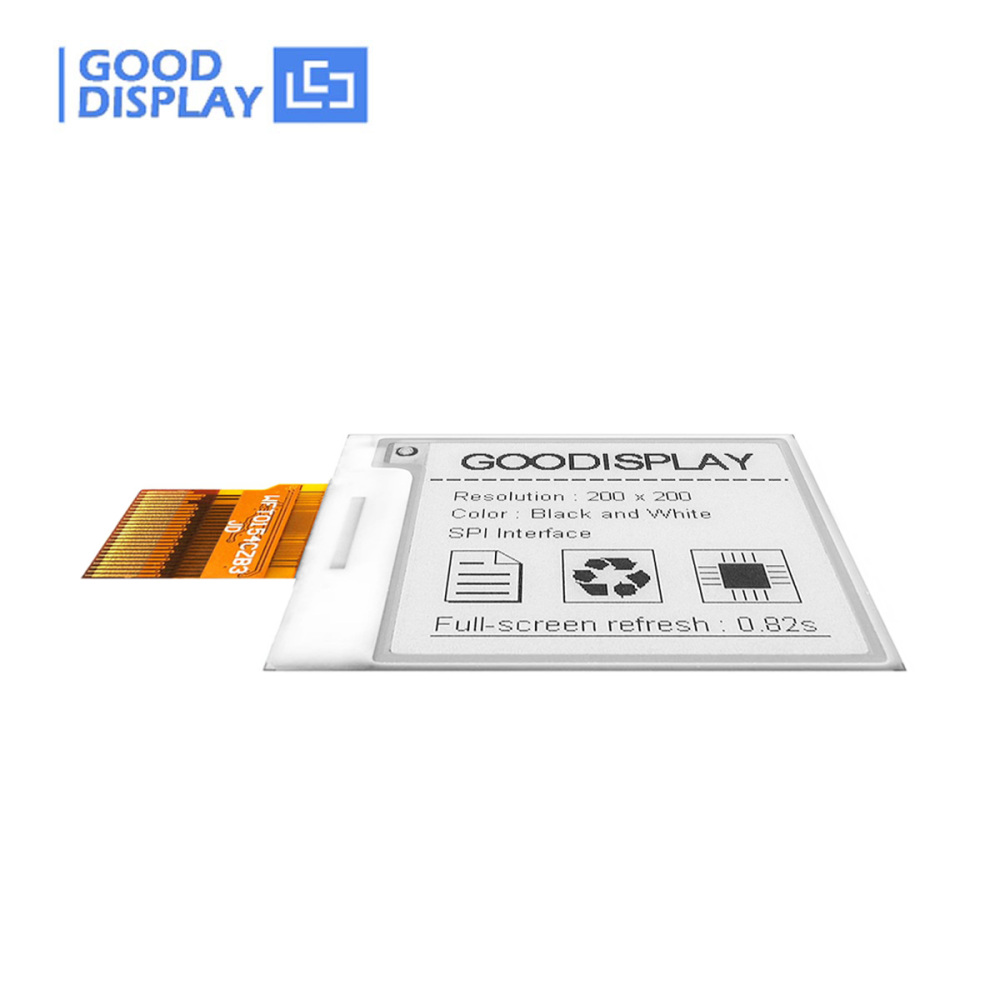

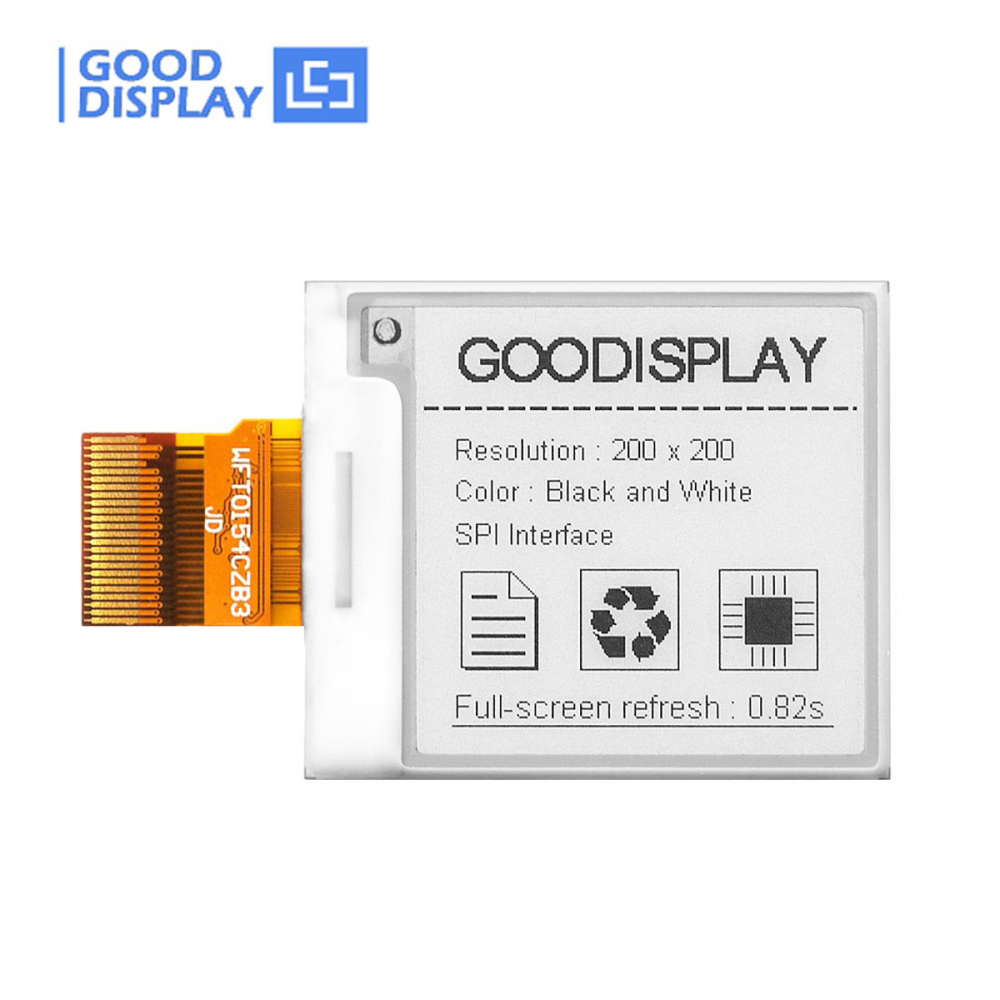

1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09

1.54 inch e-ink display with 200x200 resolution, 24 pins FPC connection, SPI interface, supports partial refresh. Fast speed, full refresh: 0.82S, partial refresh: 0.3S
4 Review(s) Sold:221
Have a question?
Price:
USD
$6.68
  • Product:

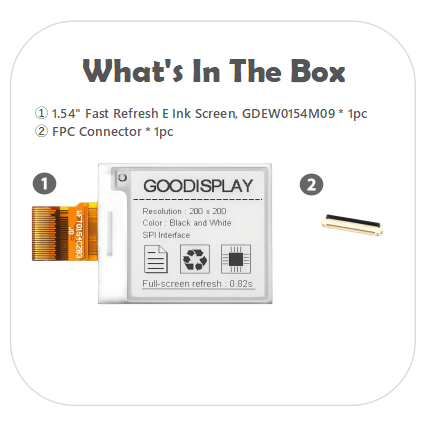

    EPD

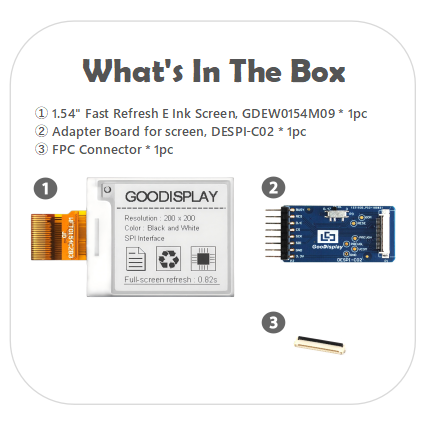

    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
    EPD with demo kit DEArduino-L(C02)
    EPD with demo kit ESP8266-L(C02)

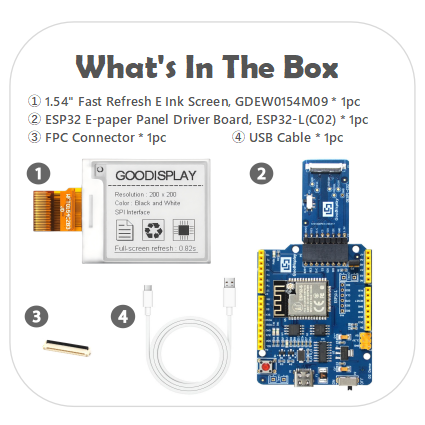

    EPD with demo kit ESP32-L(C02)
Quantity:
-
+
(300 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(4)


High-Resolution 1.54-inch E-Paper Display 200x200 Fast Refresh - GDEW0154M09 | Ideal for Smart Devices and Wearables





Introducing the 1.54-inch GDEW0154M09 E-Paper Display: With a 200x200 resolution and partial refresh capabilities, this black-and-white e-ink display retains images indefinitely without power. Perfect for low-power applications like smart home devices, wearables, electronic shelf labels, e-readers, and IoT devices, it offers excellent visibility and energy efficiency, ideal for devices powered by solar or batteries.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Lightning-fast Refresh Options: Immerse yourself in the fluidity of our ePaper Display's rapid updates—a swift 0.3s partial refresh or a full refresh in just 0.82s. Your content springs to life with seamless transitions, ensuring every detail remains vivid and captivating.
  ●  Versatile Display Orientation: Whether it's the sleek horizontal layout or the elegant vertical stance, our 1.54-inch ePaper Display adapts effortlessly to your preference. Tailor your display to match the aesthetics of any environment, enhancing both functionality and style.
  ●  Crystal-Clear Resolution: Revel in the brilliance of 200x200 resolution, where each pixel is meticulously crafted to deliver sharp contrasts and impeccable clarity. From intricate graphics to intricate texts, every detail shines through with mesmerizing precision.
  ●  Advanced Features for Efficiency: Embrace cutting-edge technology that goes beyond mere functionality. With a bistable display that retains content without power and a pure reflection mode that eliminates glare, our display ensures optimal visibility from any angle—over 170 degrees—without compromising energy efficiency.
  ●  Ideal for Diverse Applications: From enhancing shelf tags to revolutionizing wearable devices and smart home integrations, our ePaper Display sets new standards in versatility and sustainability. Experience innovation that not only meets but exceeds your expectations, transforming everyday interactions into extraordinary moments.







Product Specifications


    Please refer to the product specifications for more details

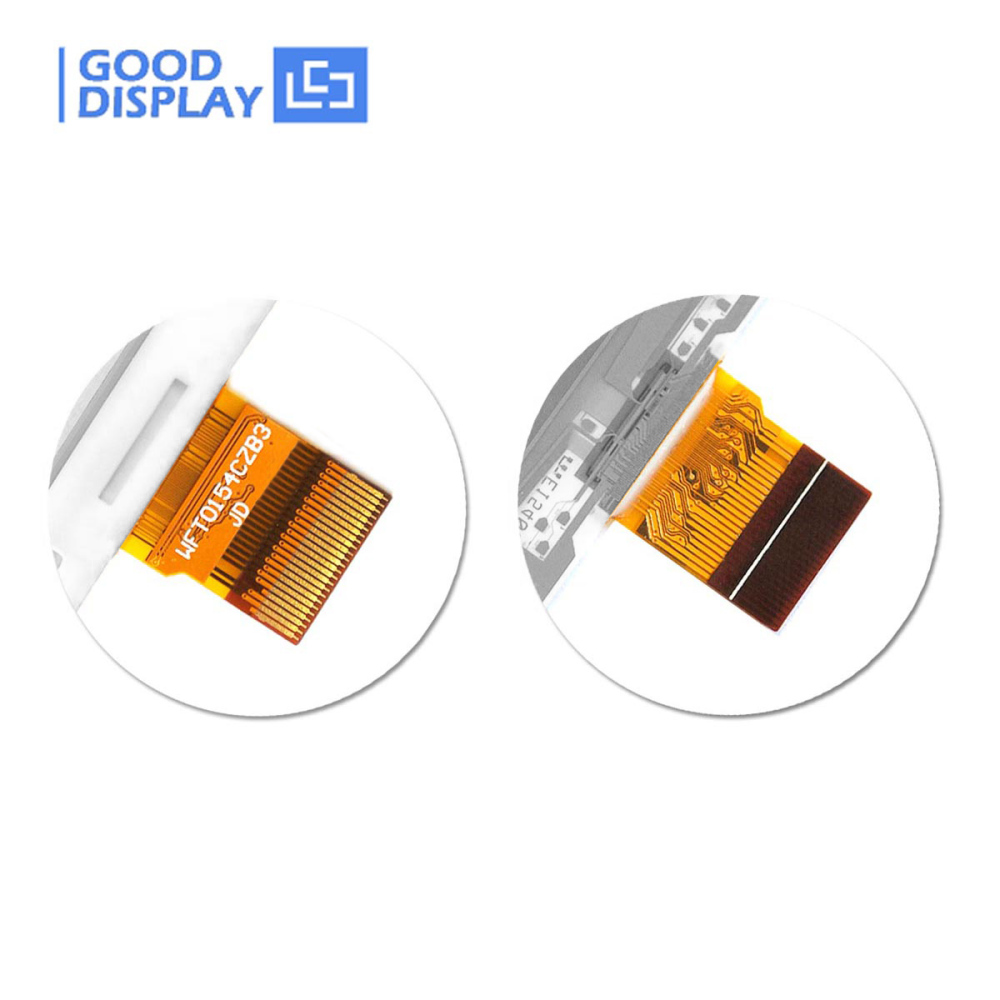

PART NUMBER GDEW0154M09 CONNECTOR 24 Pin FPC
SIZE 1.54 inch TYPE Dot Matrix
IC JD79653 MAX GRAYSCALE 2
RESOLUTION 200x200 COLOR Black,White
OUTLINE SIZE(mm) 31.8x37.32x0.98 INTERFACE SPI
ACTIVE SIZE(mm) 27.6x27.6 FULL REFRESH(s) 0.82
PIXEL PITCH(mm) 0.138x0.138 PARTIAL REFRESH TIME(s) 0.3
OPERATING TEMP. 0℃~50℃ POWER CONSUMPTION OF THE REFRESH(mW) 6.6
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.0165

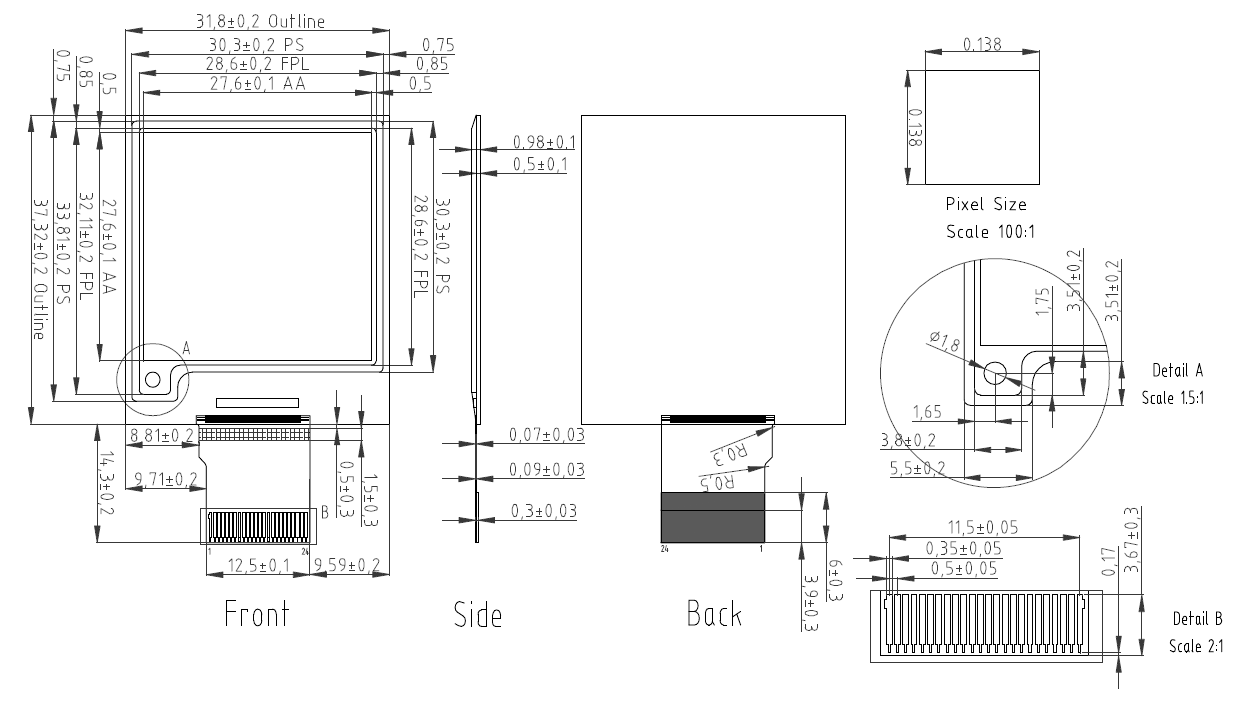

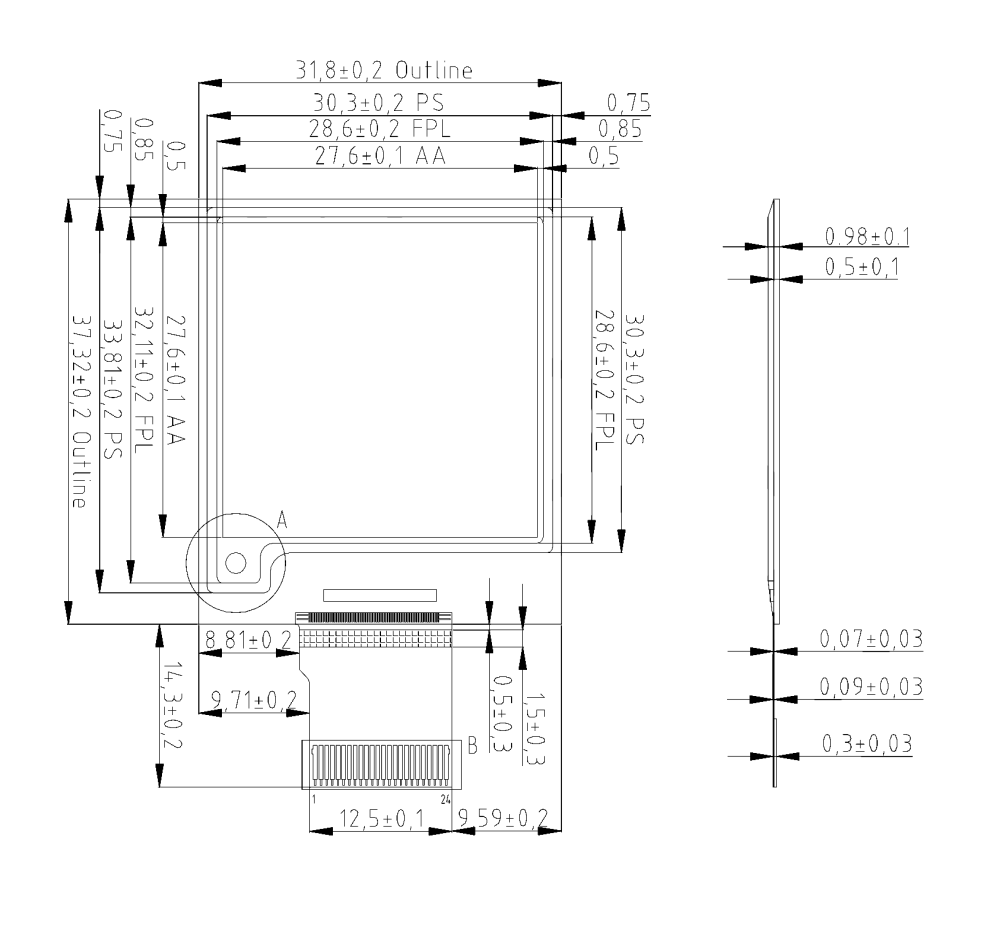

Product Drawings


    Please refer to the product drawings for detailed dimensions



Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)
d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit) f. Raspberry Pi E-paper HAT for Connecting SPI E-ink Display, DESPI-PICO





Related Information Download

Click on the subheadings below to download

  ● GDEW0154M09 Specification ● GDEW0154M09 ESP8266 Sample Code
  ● JD79653A Driver IC Datasheet ● GDEW0154M09 ESP32 Sample Code
  ● GDEW0154M09 STM32 Sample Code ● GDEW0154M09 Raspberry Pi Pico Sample Code
  ● GDEW0154M09 Arduino Sample Code ● Picture Production and Bitmap Convert for GDEW0154M09
