ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface E Ink Development Kit

ESP32-L(C02)
ESP32-L evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions.
2 Review(s) Sold:57
Have a question?
Price:
USD
$15.58
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Add to Favorite Items
  • Description
  • Reviews(2)


ESP32 is a serial port WiFi+BT module. Compared with ESP8266, it adds Bluetooth function, and its processor speed is faster and power consumption is lower




ESP32-L(C02) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's SPI e-paper display. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc. It is only for users to develop and drive electronic paper display screens. The application of WiFi, Bluetooth and other functions requires users to develop on their own according to the project.

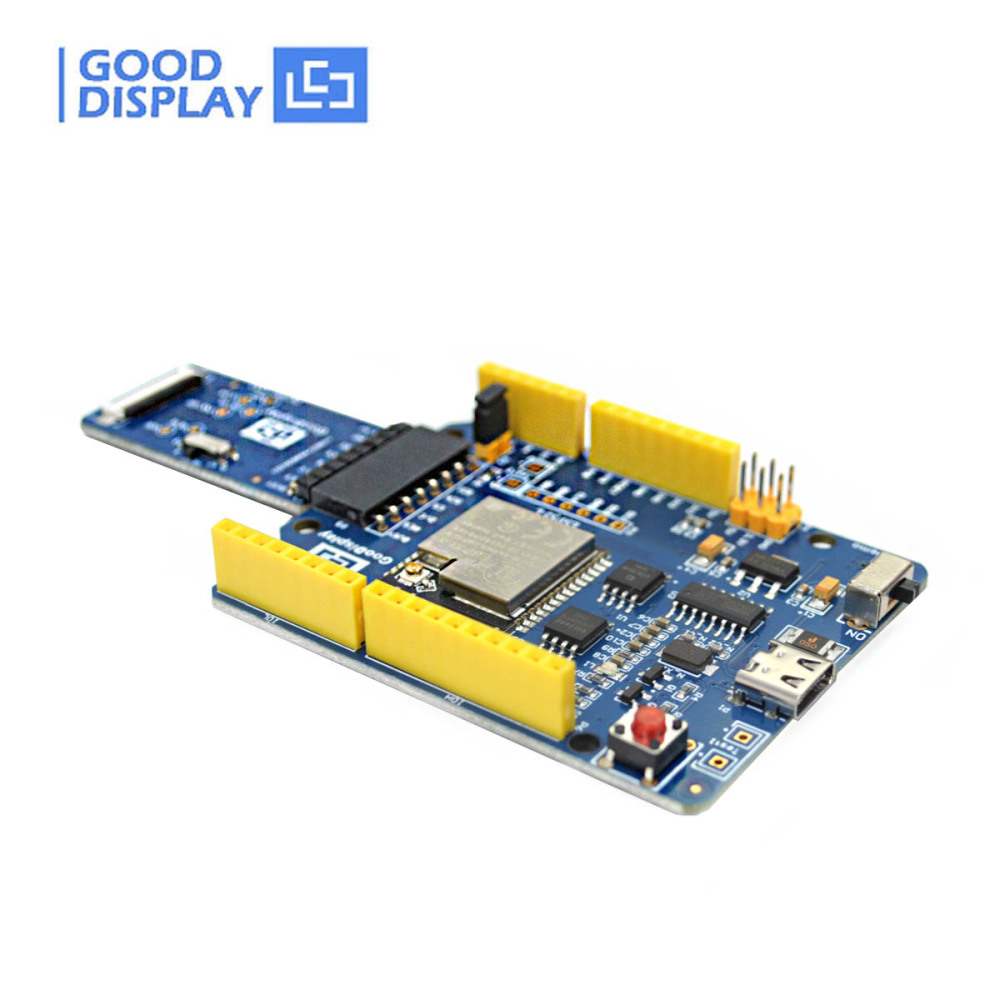

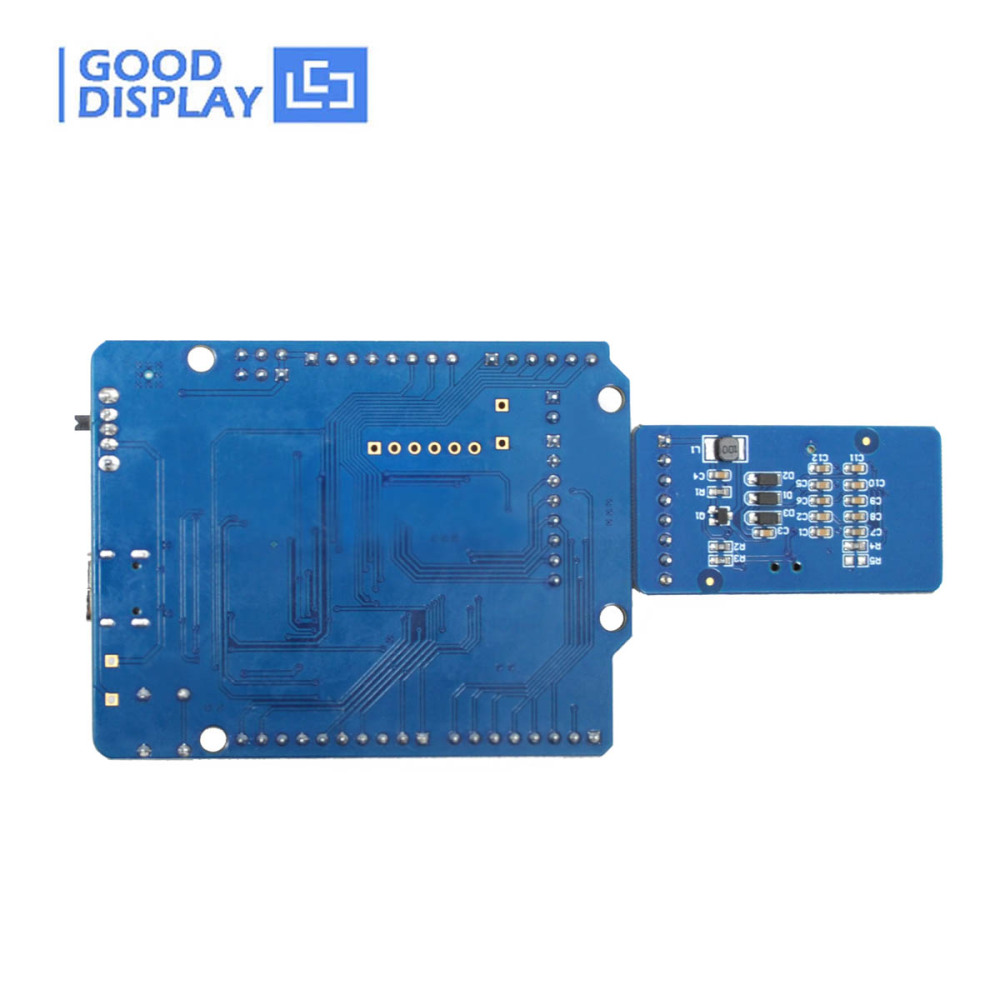

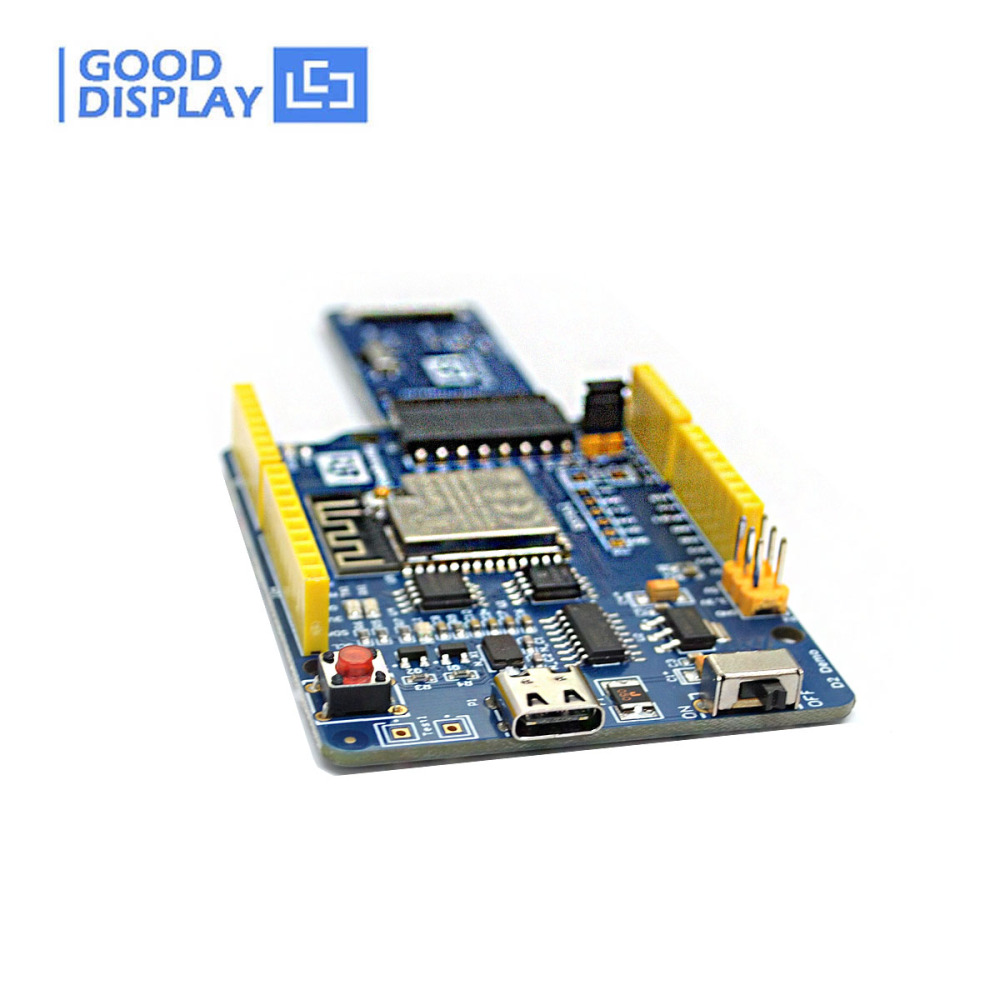

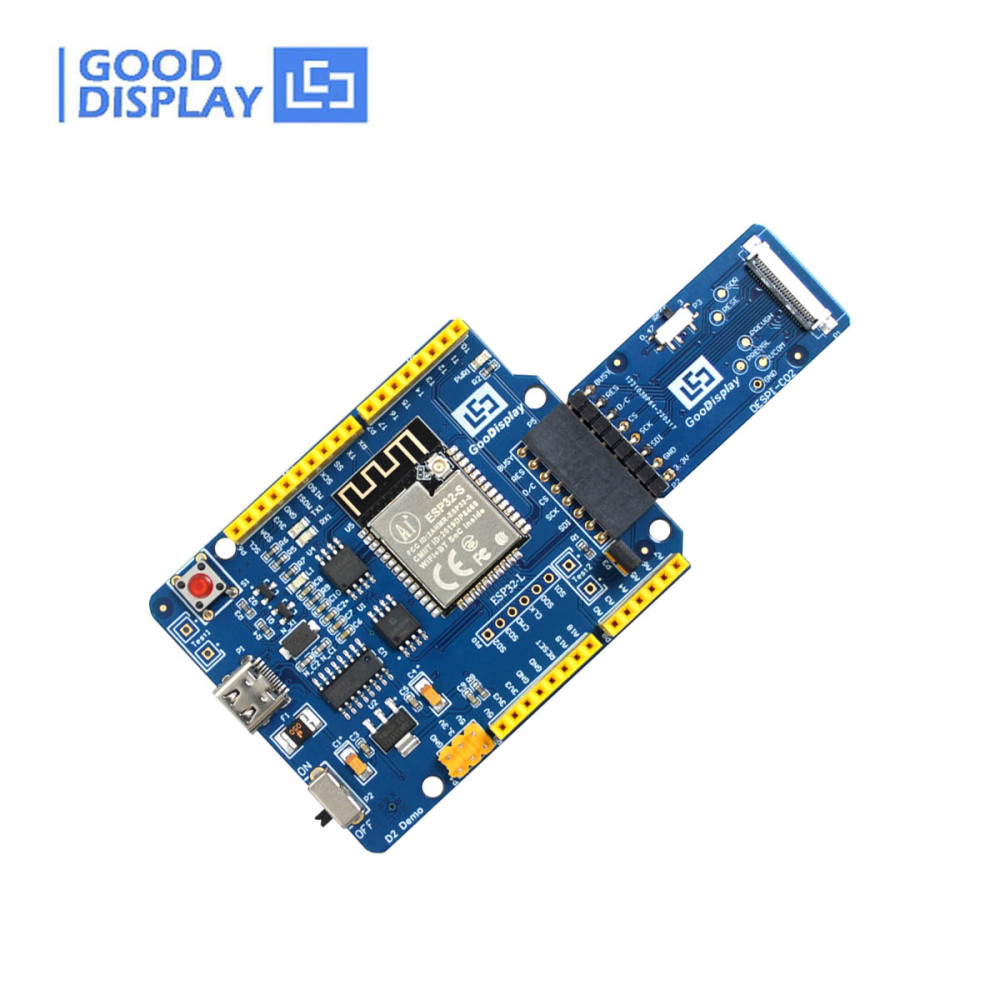

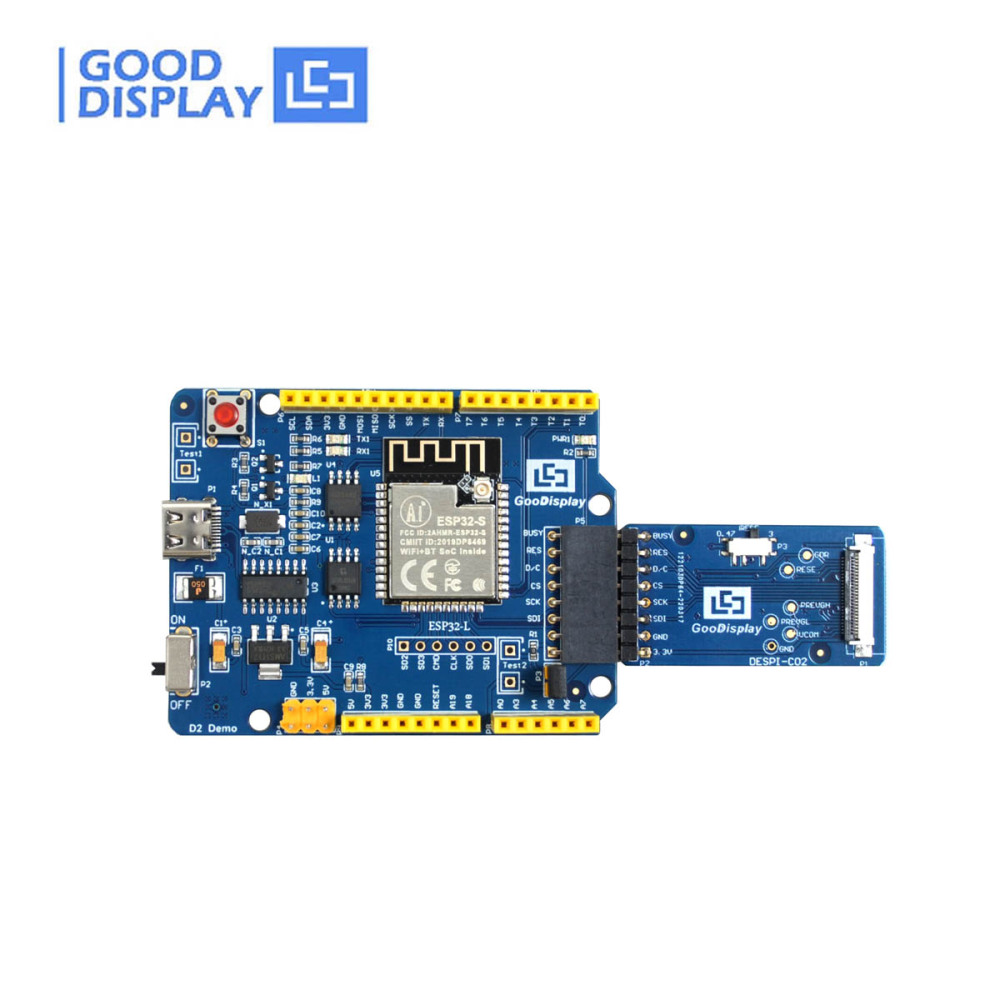

ESP32-L(C02) development kit consists of motherboard ESP32-L for EPD and connector board DESPI-C02.








Special Features


    Our product boasts distinctive features that set it apart from the competition

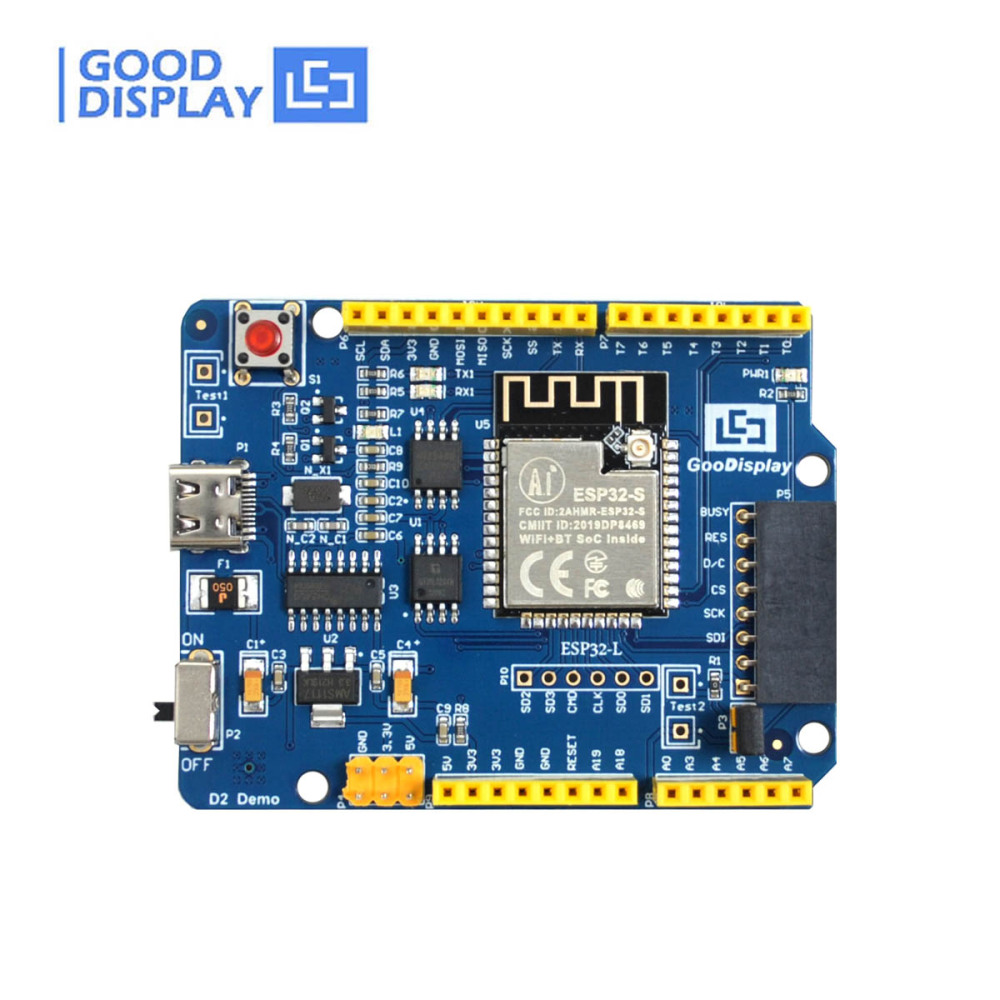

    ESP32-L is an E-Paper display driver board based on ESP32, and ESP32 is a serial port WiFi+BT module. Compared with ESP8266, it adds Bluetooth function, and its processor speed is faster and power consumption is lower. Its internal integrated MCU can realize serial communication between single-chip computers; this module is easy to learn, small in size, and convenient for embedded development. ESP32 is specially designed for mobile devices, wearable electronic products and IoT applications, and achieves ultra-low power consumption through a number of proprietary technologies.

The power saving mode of ESP32 is suitable for various low-power application scenarios. We can understand the ESP32 module as a single-chip microcomputer with WiFi and BT functions. When we use our own single-chip microcomputer to control, we only need to let the two single-chip microcomputers communicate with each other, the instructions are the same, and the corresponding operations are performed.









Technical Details


    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details


PARAMETER

ESP32-L(C02)
MCY ESP32-WROOM-32D
PLATFORM Arduino

FUNCTION

Drive E-paper Display

SUITABLE SIZE

 0.97'', 1.02'', 1.54'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'', 7.5''
OUTSIDE DIMENSION 70x54mm (ESP32-L)
41x22mm (DESPI-C02)

INTERFACE

Type-C

POWER INPUT

DC5V

FEATURE

Support fully refresh, fast refresh and partial refresh

GRAYSCALE LEVEL

Max 16 Grayscale

OPERATING TEMP.

-20℃~70℃

RESERVED FUNCTION

Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection

MAIN FUNCTION

Learn to drive E-paper display;

Test and evaluate e-paper display;

Support secondary development









Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.









Related Information Download

Click on the subheadings below to download

  ● ESP32-L(C02) Specification ● DESPI-C02 Specification
  ● ESP32-SCH ● DESPI-C02-SCH
