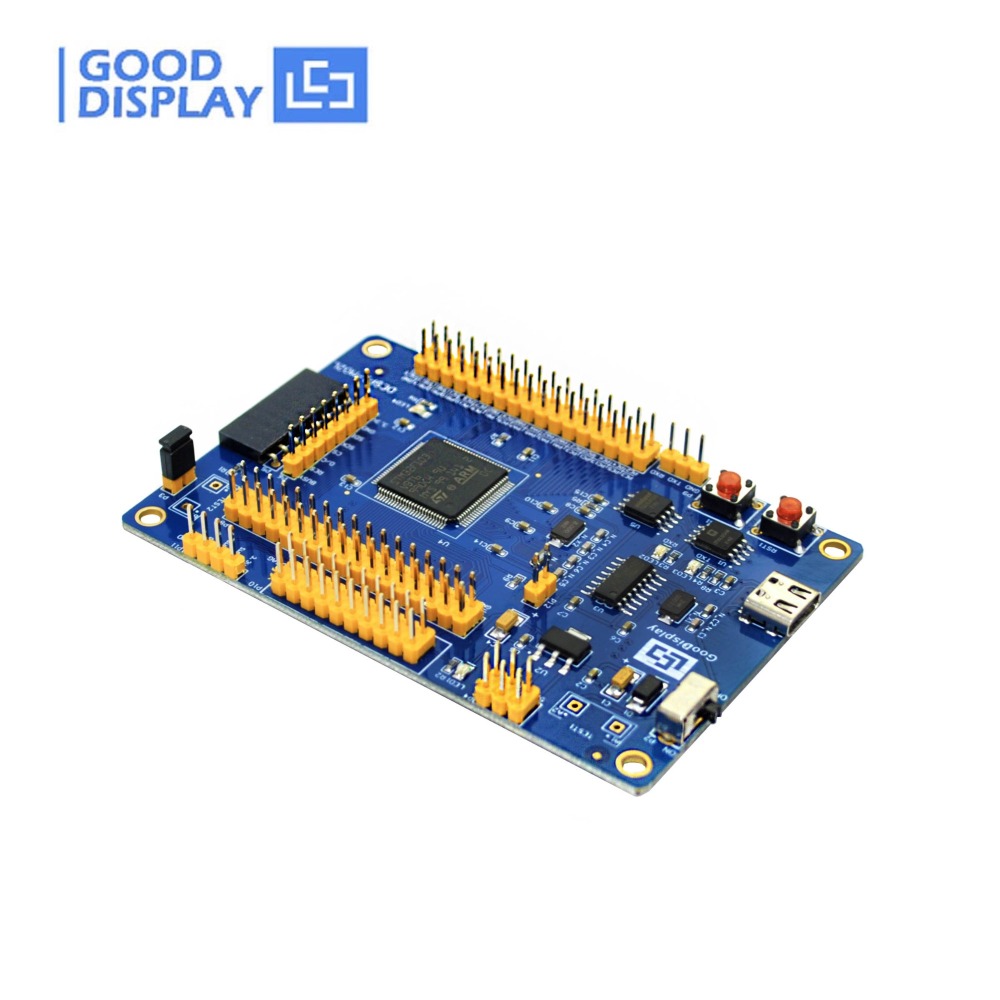

DESPI-L(C02) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 0.97'', 1.54'',2.13'', 2.66'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.

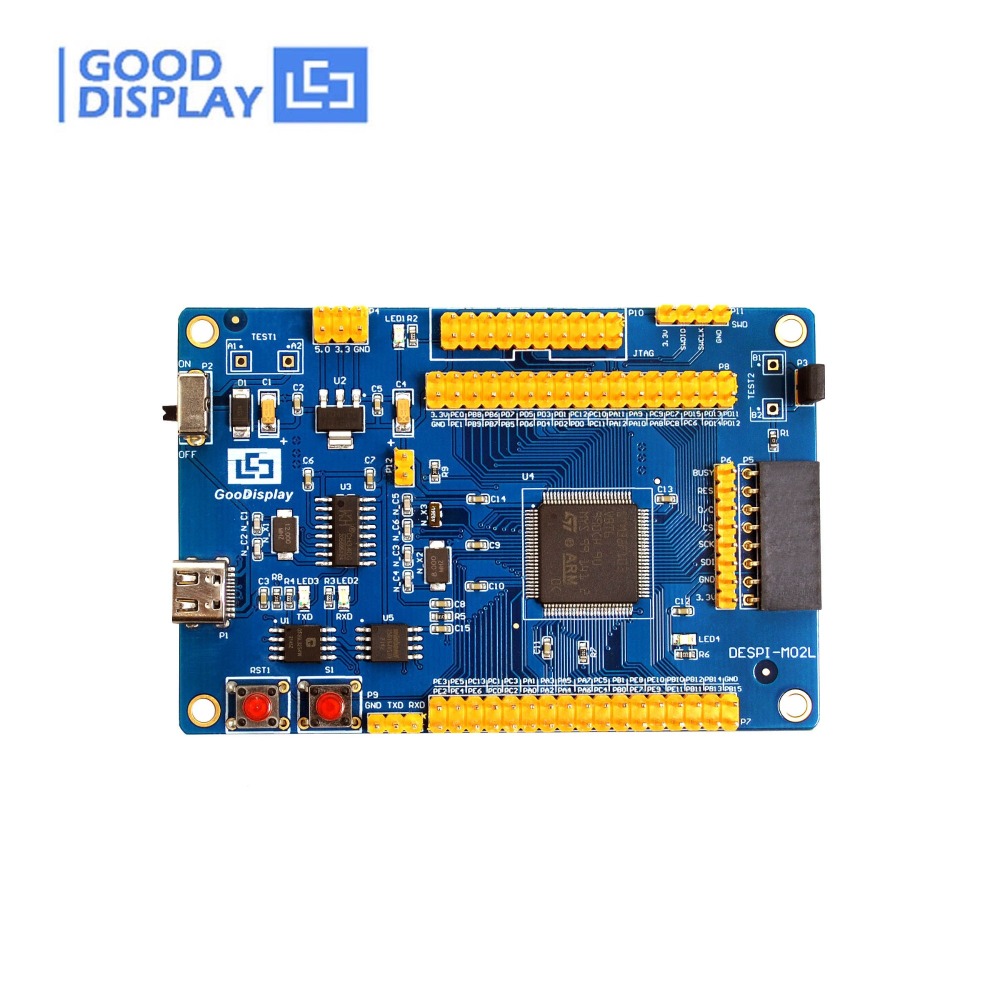

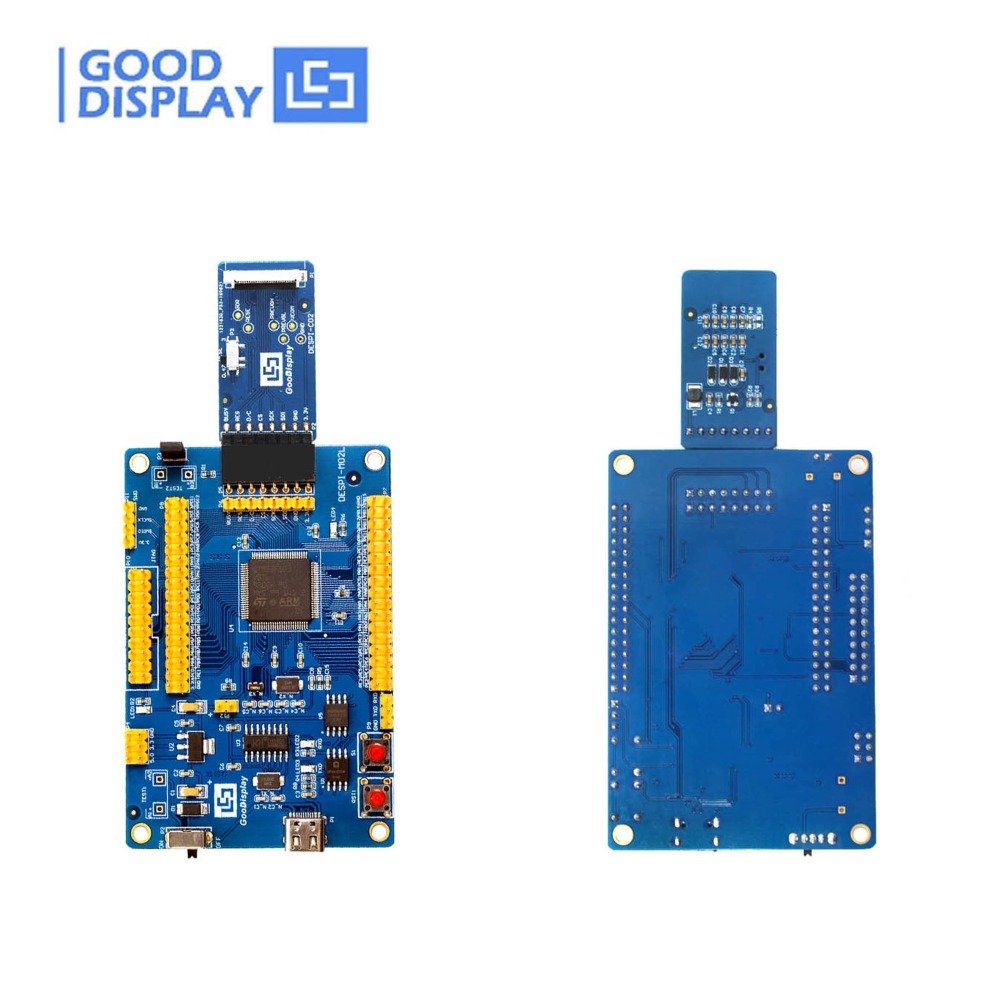

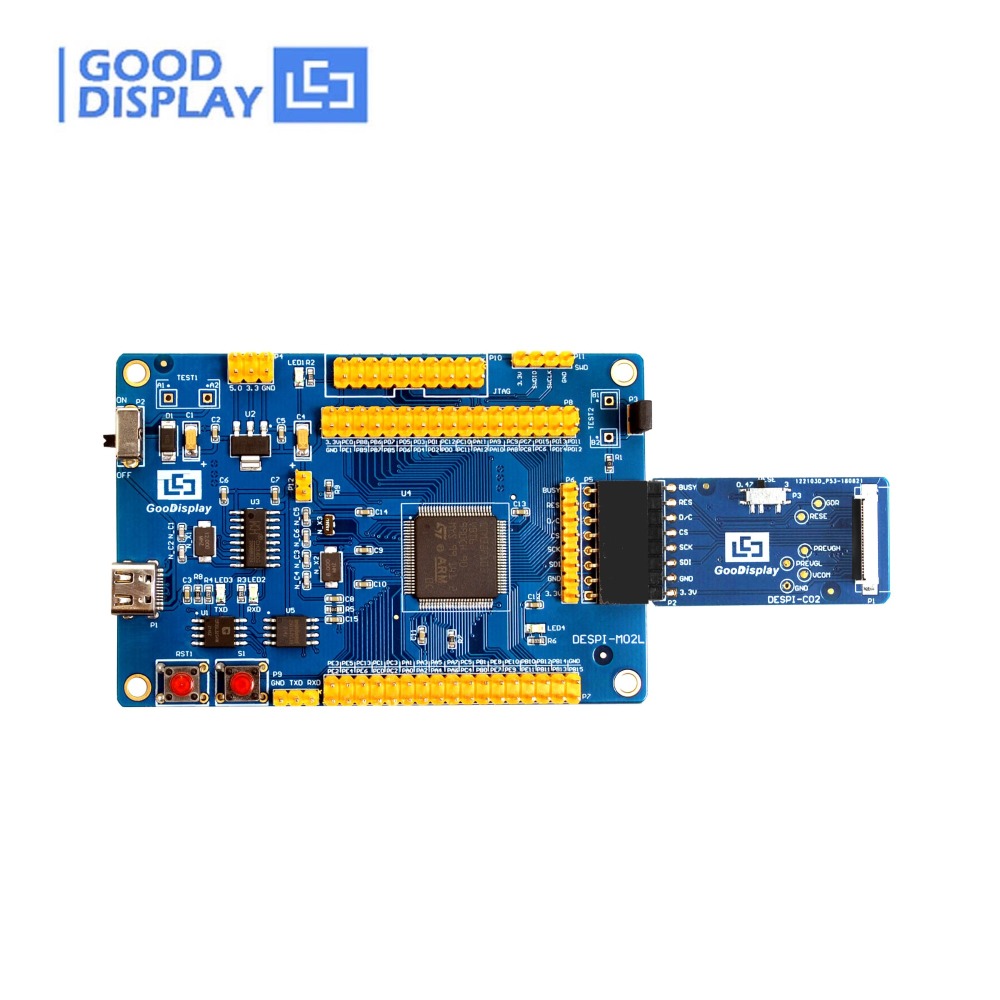

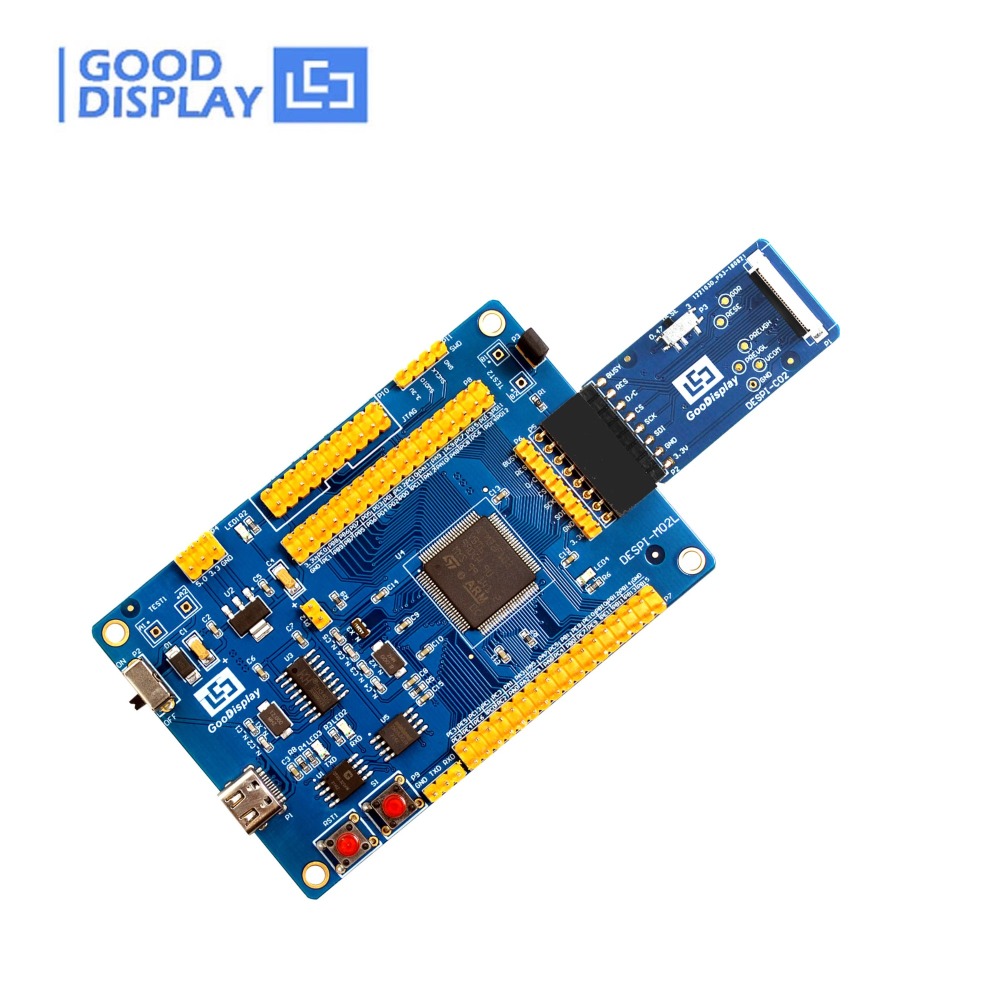

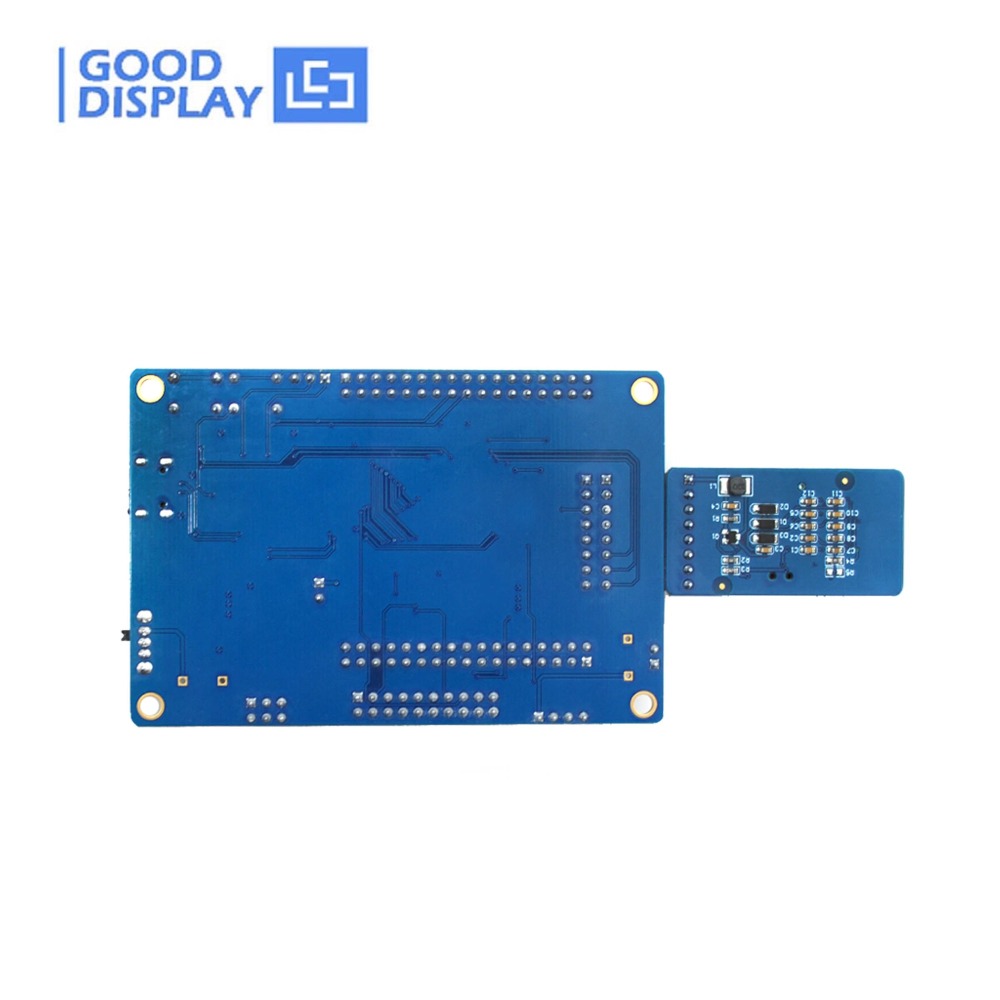

DESPI-L(C02) evaluation kit consists of motherboard DESPI-M02L and connector board DESPI-C02.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
| PART NUMBER | DESPI-L(C02) | ||
| PLATFORM | STM32 | FUNCTION | Drive E-paper Display |
| POWER INTERFACE | Type-C | OUTSIDE DIMENSION | 90x60mm (DESPI-M02L) 41x22mm (DESPI-C02) |
| GRAY SCALE LEVEL | Max 16 Grayscale | OPERATING TEMP. | -20~70℃ |
| FEATURE | Support fully refresh, fast refresh and partial refresh | ||
| SAMPLE CODE | Available (please contact sales) | ||
| MAIN FUNCTION | Learn to drive e-paper display; Test and evaluate e-paper display; Support secondary development |
||
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection | ||
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● DESPI-L(C02) Specification
● DESPI-C02 Specification
● DESPI-M02L-SCH
● DESPI-C02-SCH
