☆ INTRODUCTION

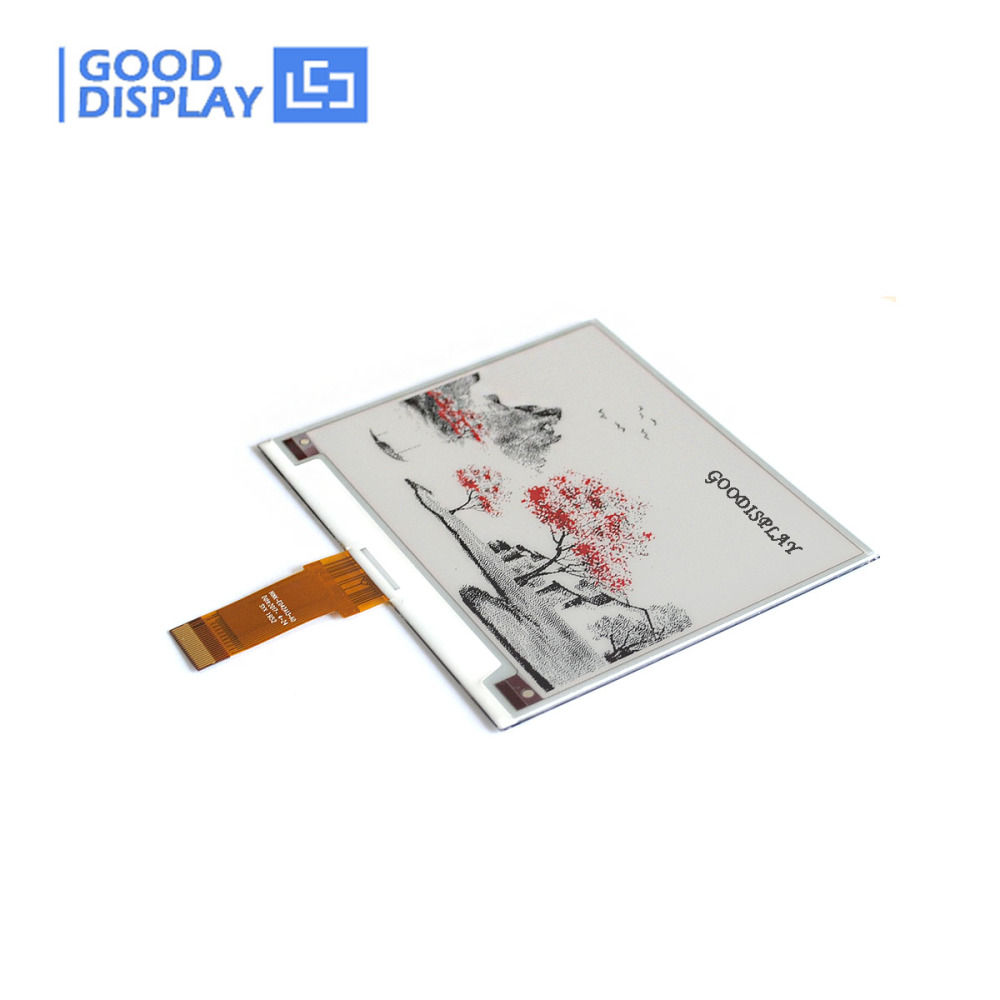

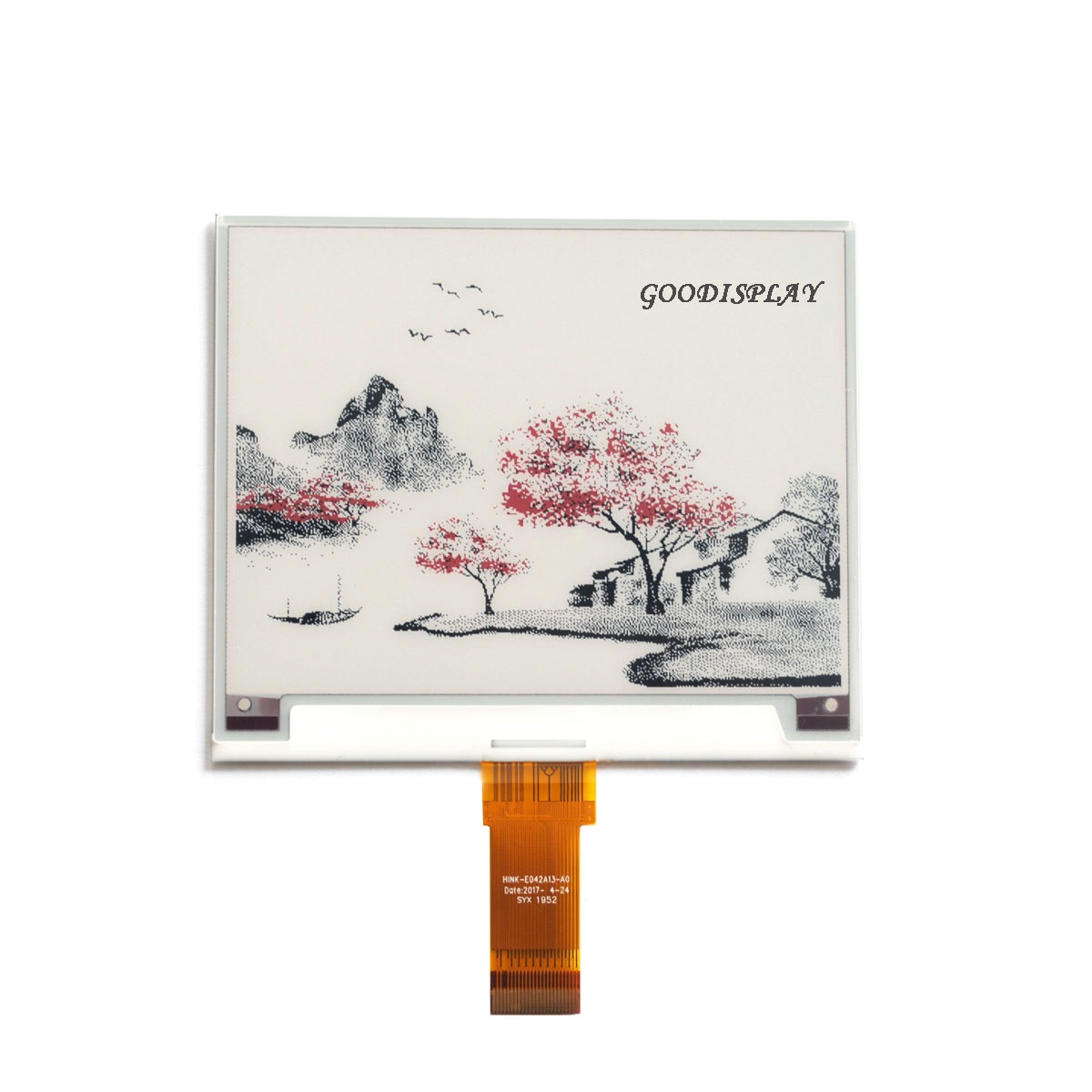

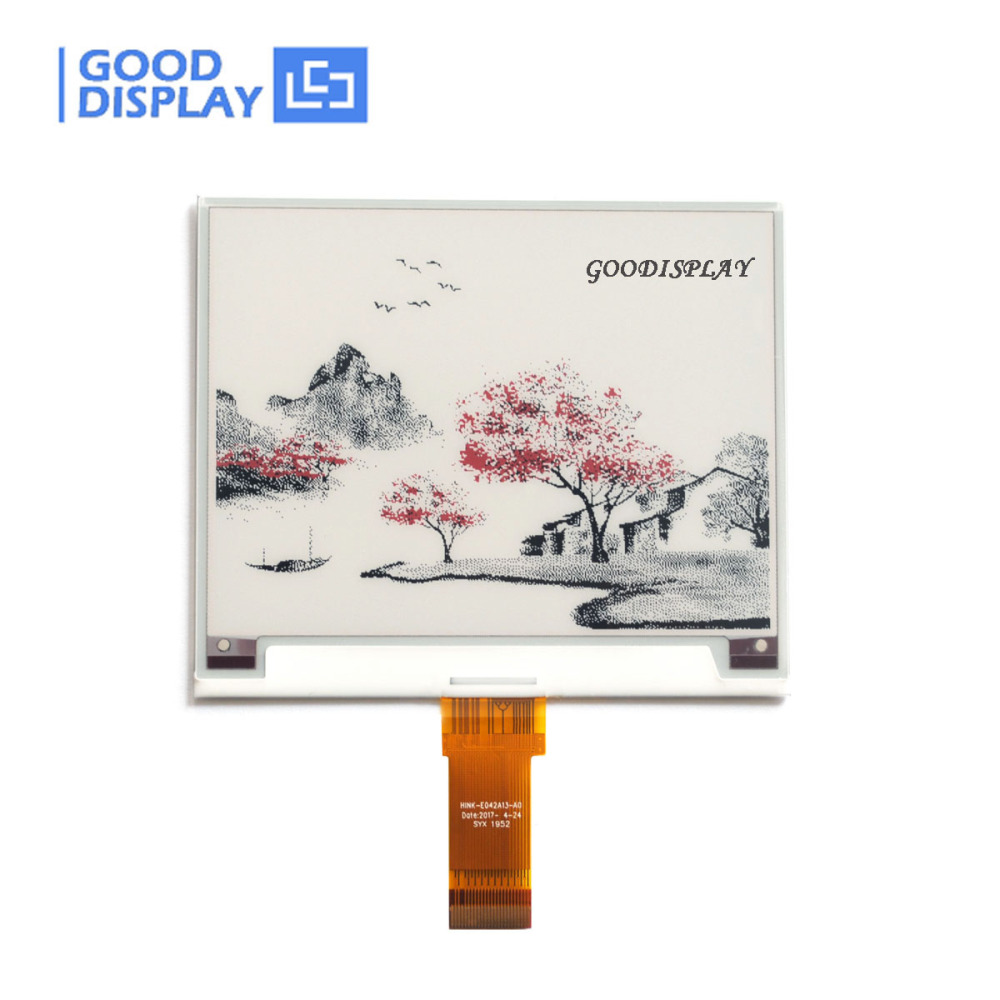

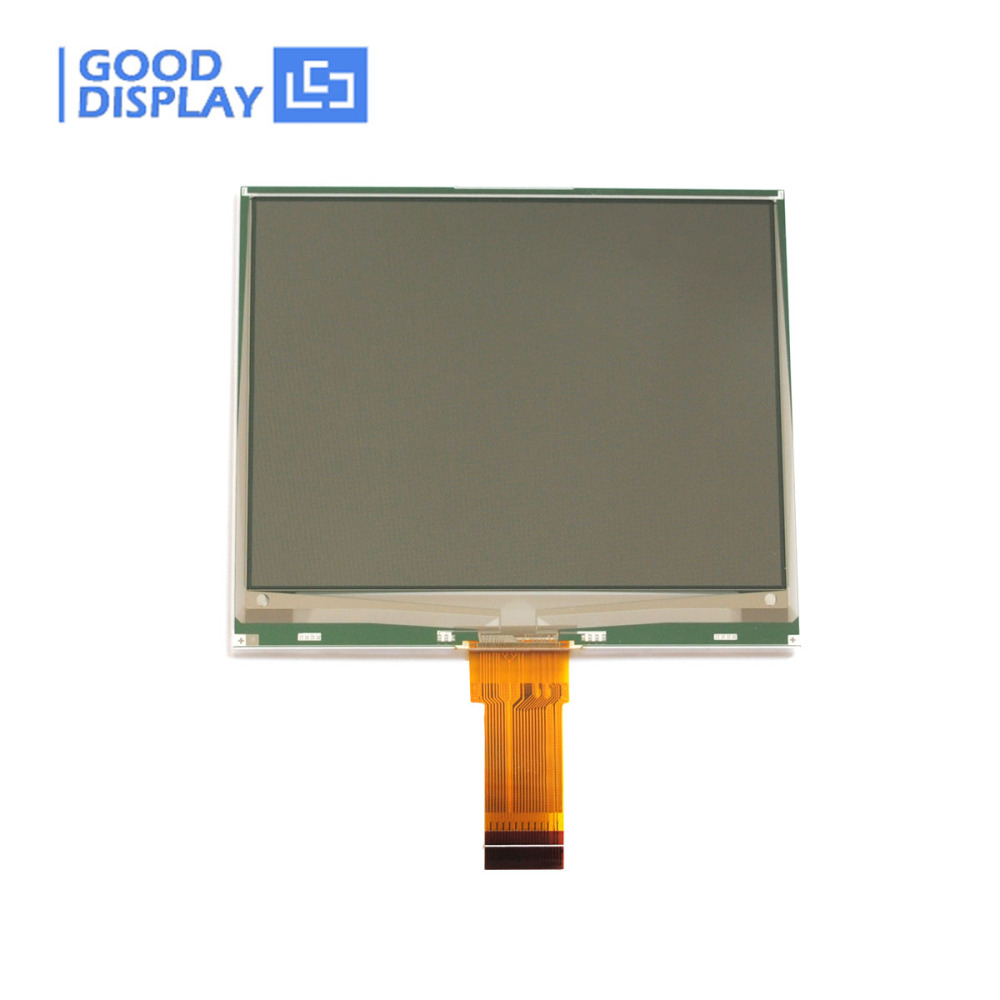

This is a 4.2 inch color e-paper display with 400x300 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 4.2 inch e-ink display GDEH042Z96 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

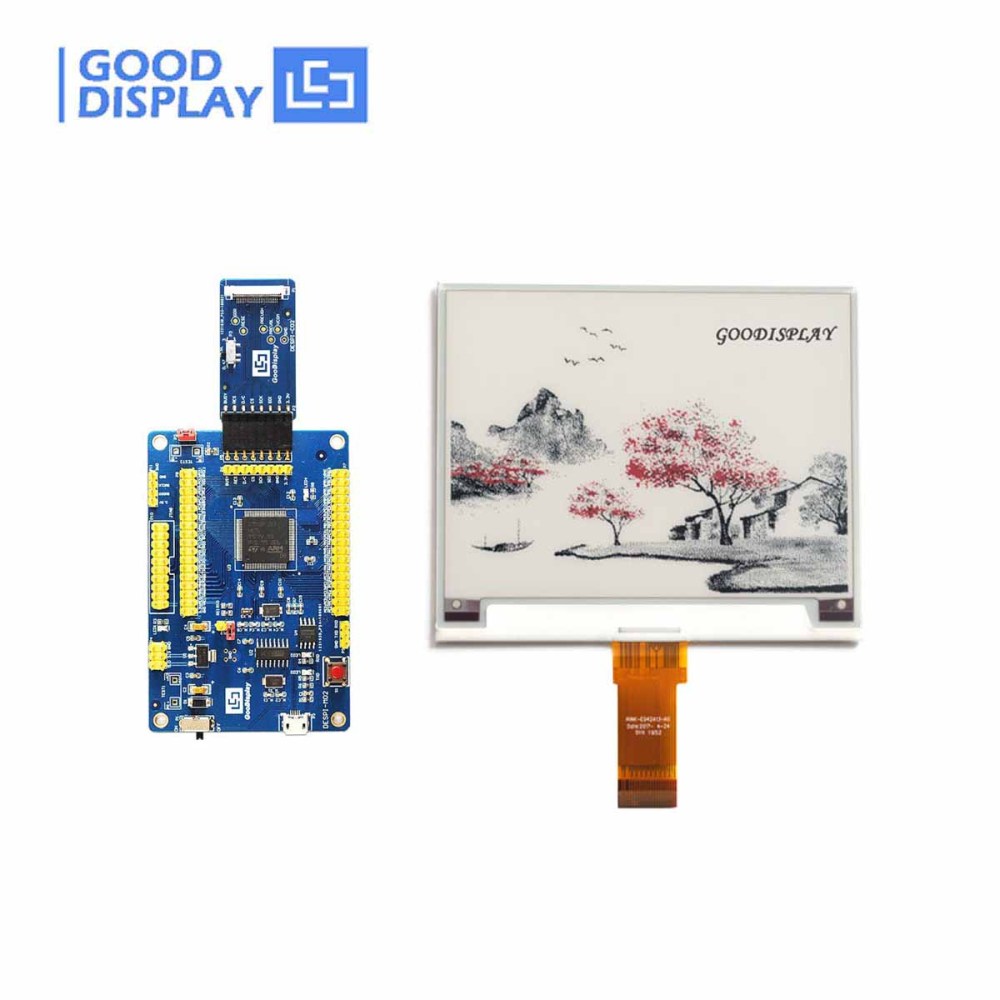

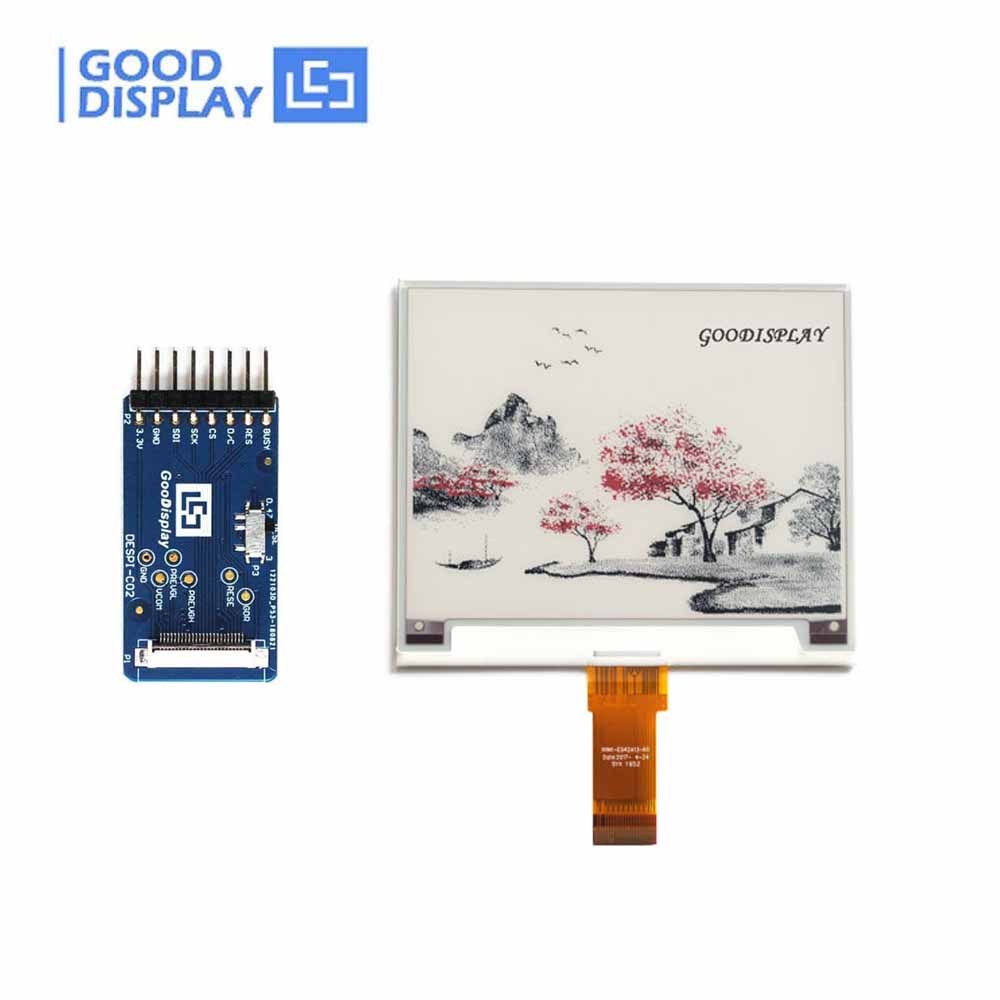

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html
* This e-ink display module DOES NOT support partial updates
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE
1) 4.2 inch three colors e-paper display red electronic paper screen module GDEH042Z96 * 1pc
2) FPC Connector * 1pc
 |
+ |
 |
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEH042Z96
|
|
SIZE
|
4.2 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
SSD1619
|
|
RESOLUTION
|
400x300
|
|

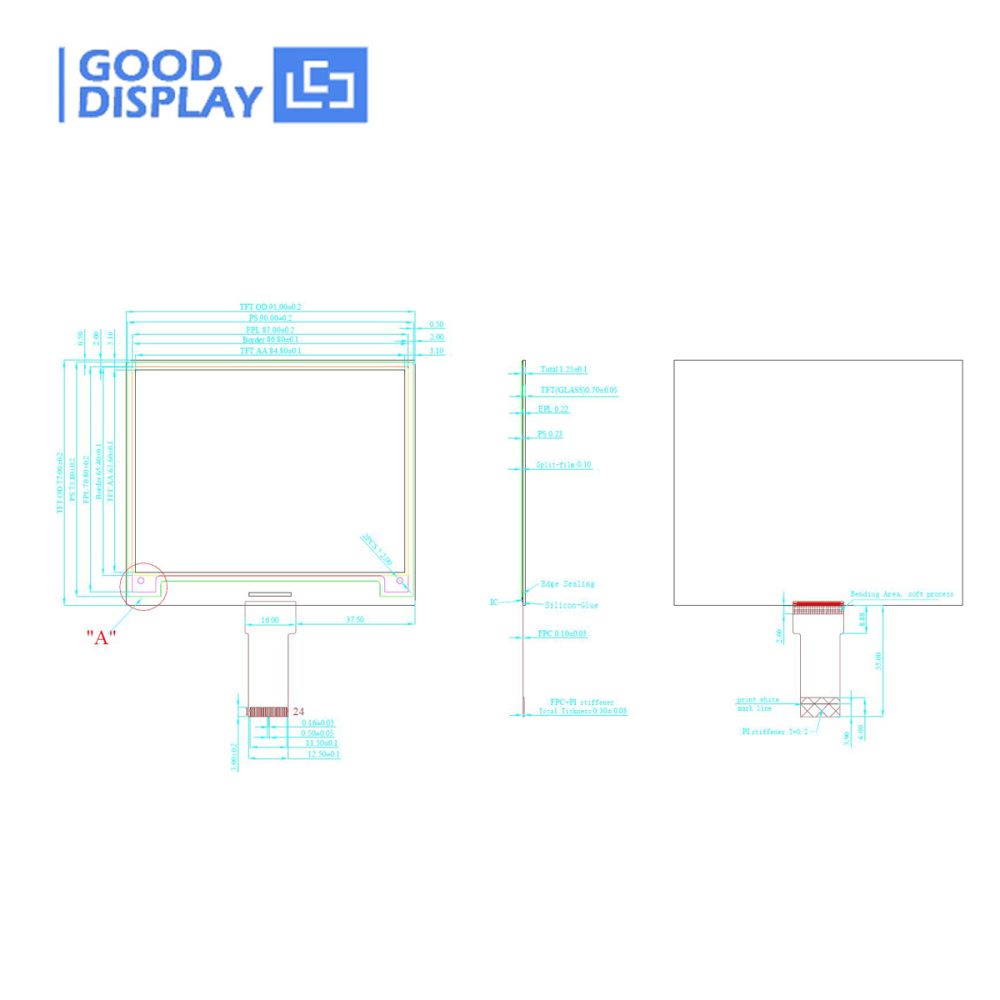

OUTLINE SIZE(mm)
|
91x77x1.25
|
|
ACTIVE SIZE(mm)
|
84.8x63.6
|
|
PIXEL PITCH(mm)
|
0.212x0.212
|
|
OPERATING TEMP.
|
0℃~40℃
|
|
STORAGE TEMP.
|
0℃~40℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
2
|
|
COLOR
|
Black, White, Red
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
16
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
