High-Resolution 5.79-Inch E-Ink Display Monochrome EPD 792x272 SPI Interface, Partial Refresh

GDEY0579T93
Experience the future of displays with our advanced 5.79-inch E-Ink screen! Perfect for low-power applications and featuring stunning 792x272 resolution, it's ideal for your next project.
Sold:5
Have a question?
Price:
USD
$23.00
$28.00
(18% OFF)

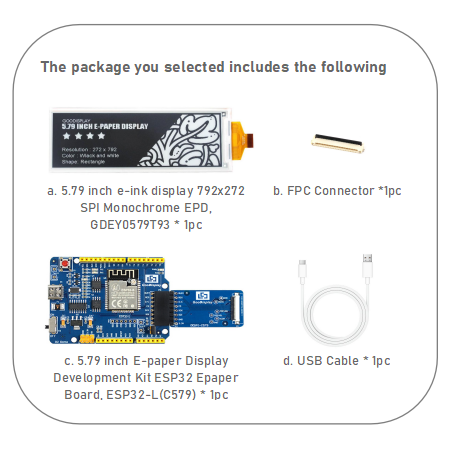

  • Product:

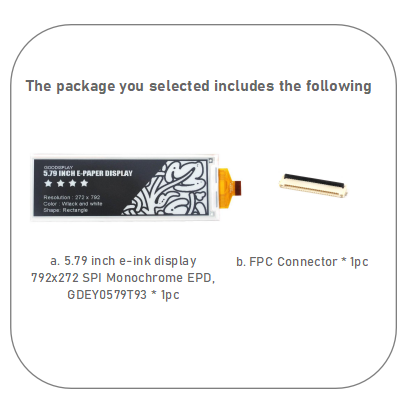

    EPD

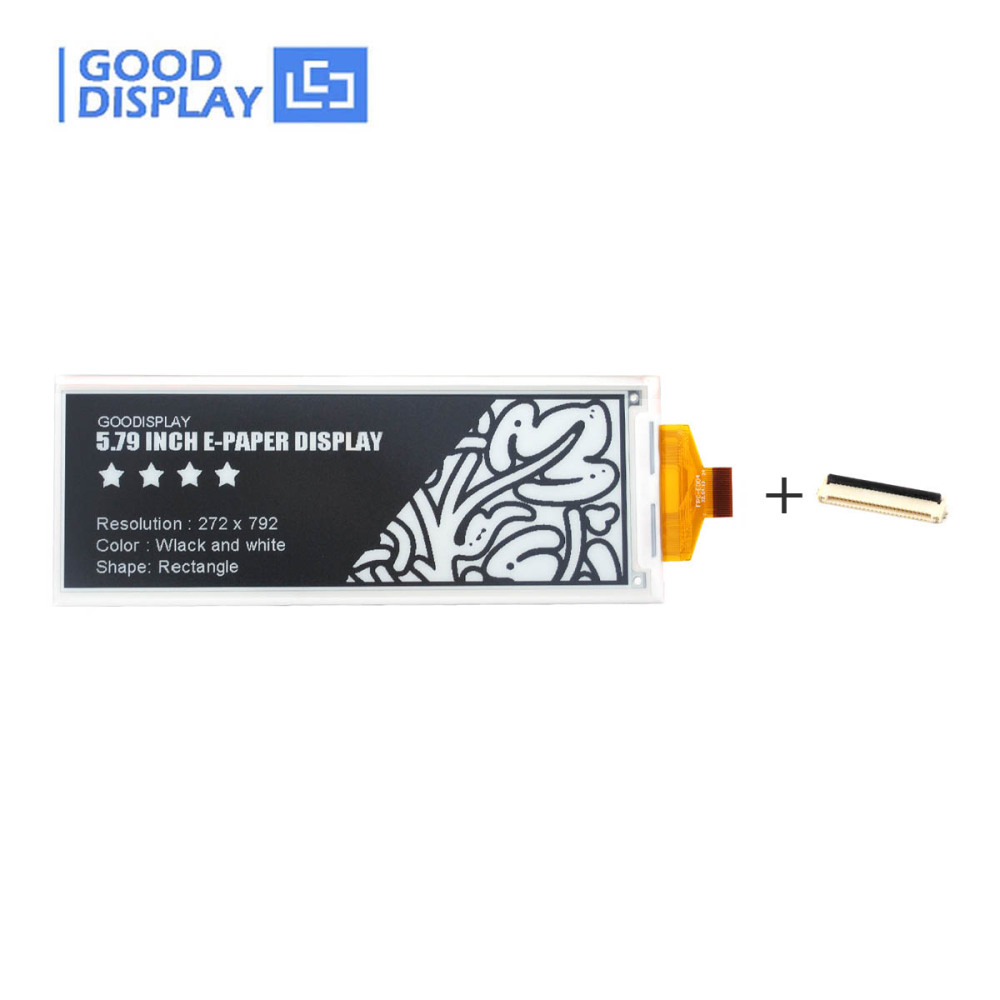

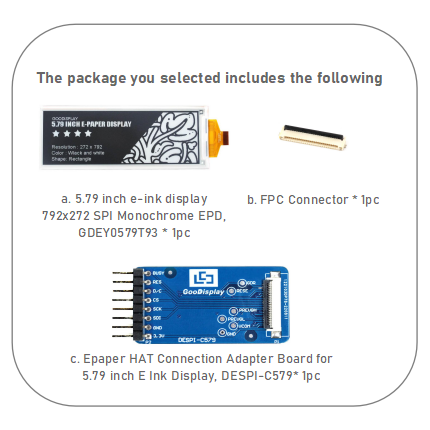

    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(150 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

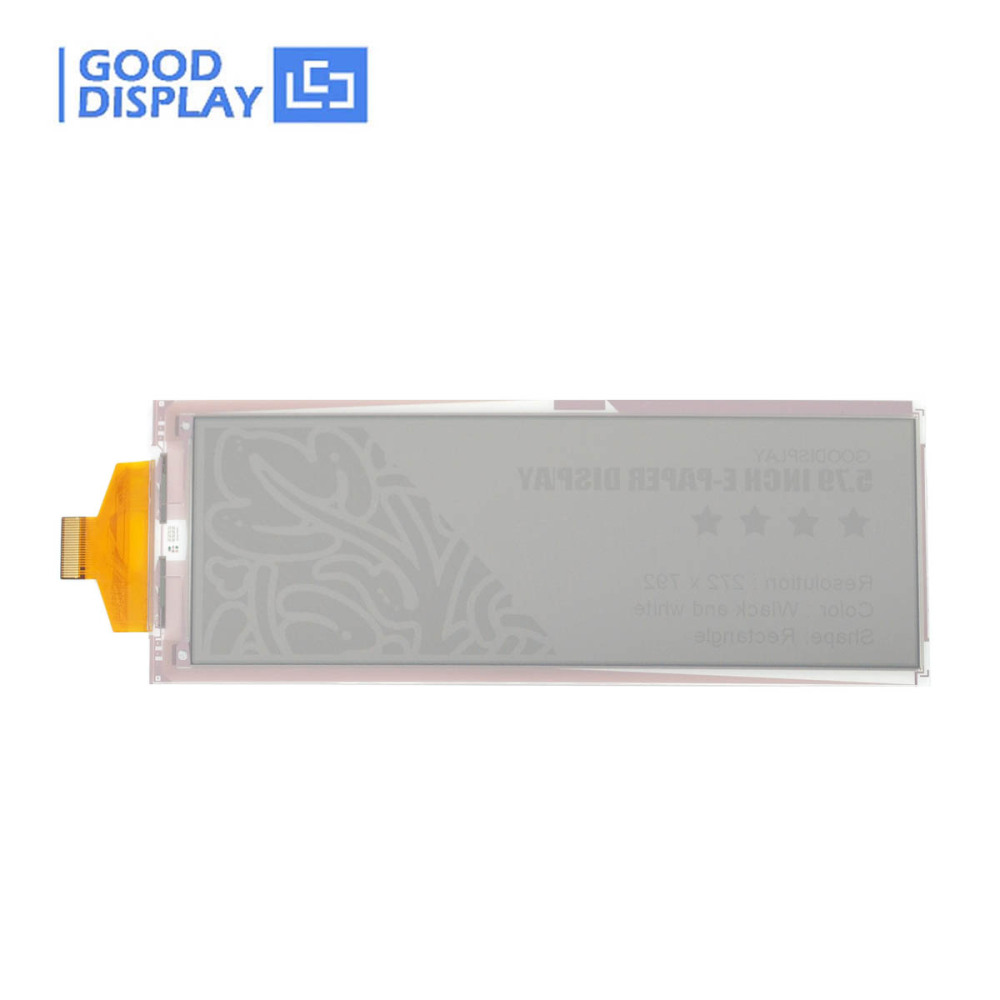

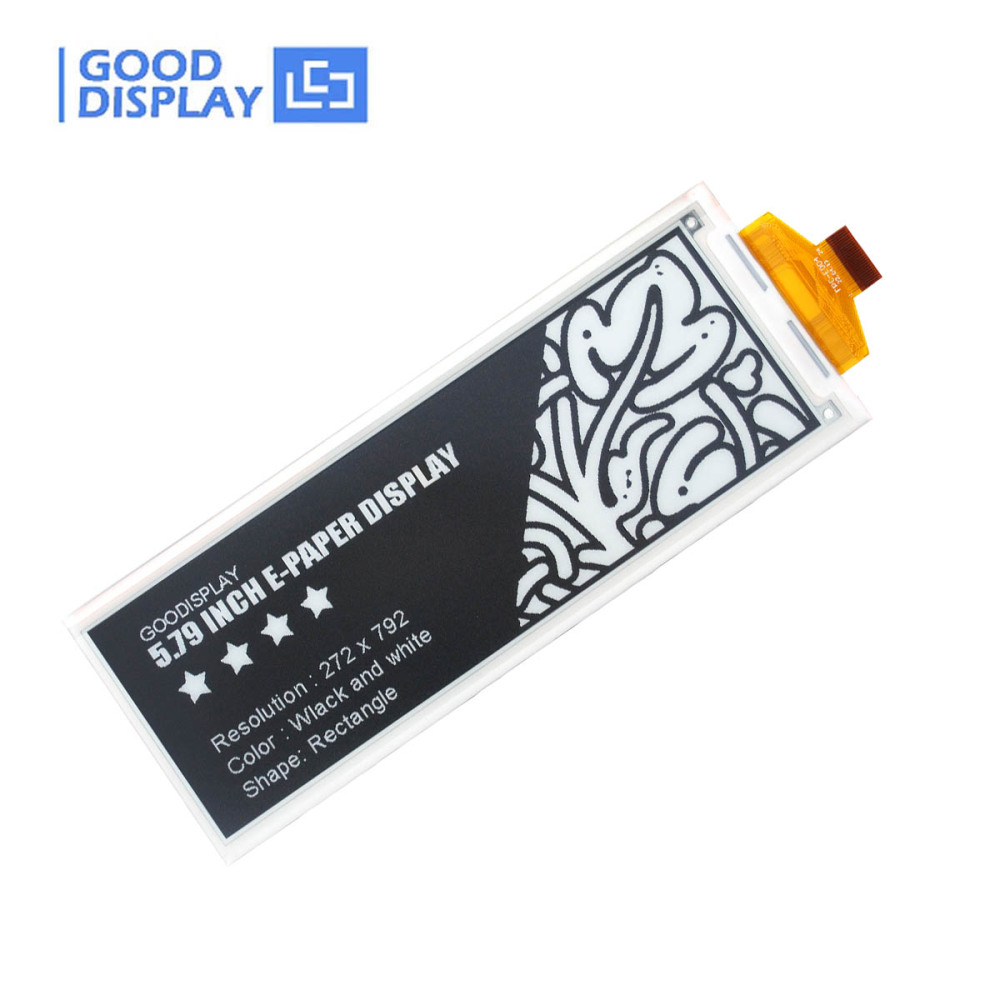

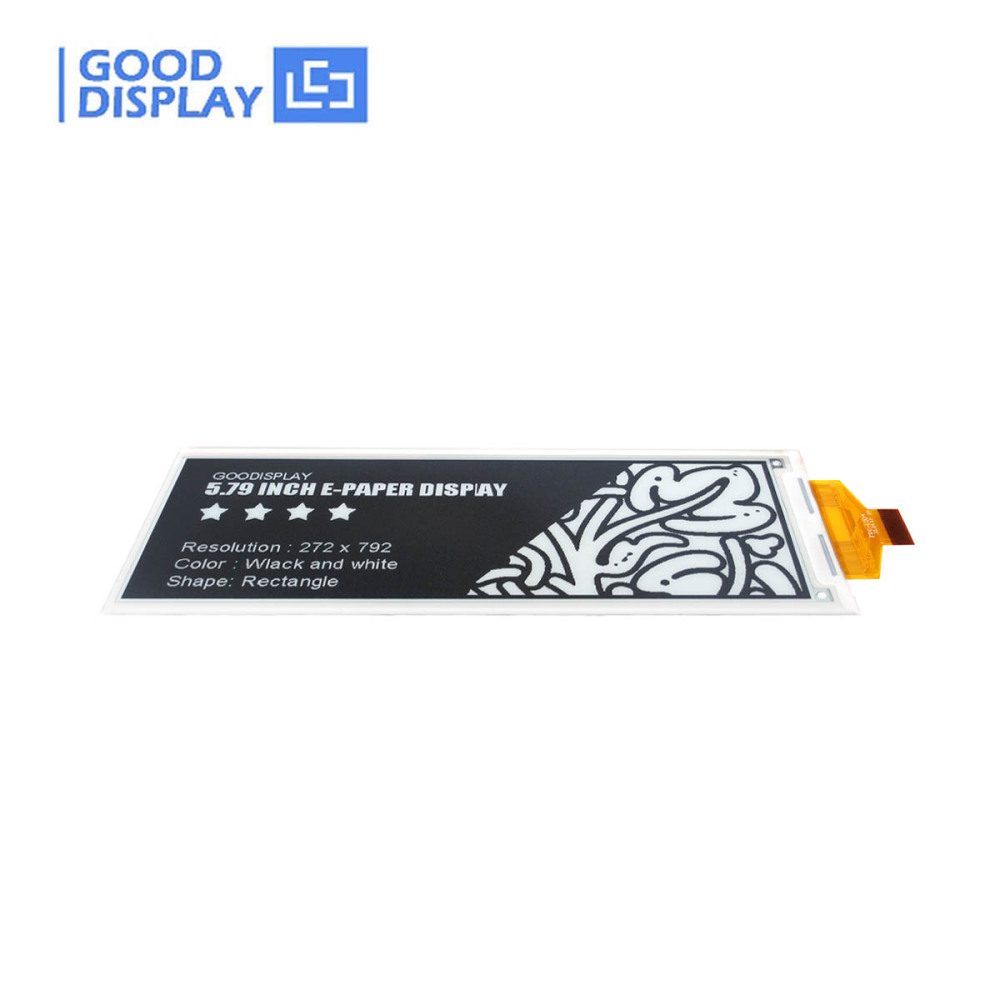

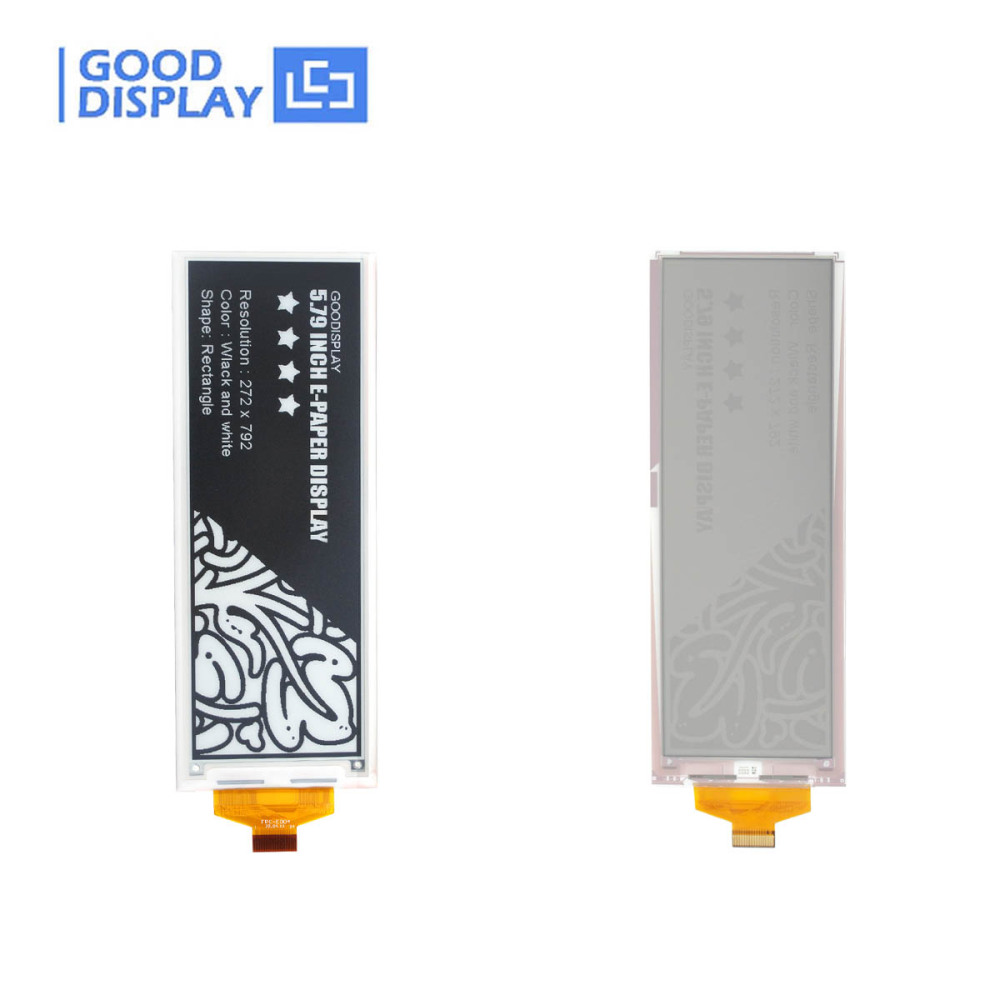

5.79-Inch E-Ink Display Monochrome EPD 792x272 SPI Interface





Introducing our 5.79-inch E-Ink Display—perfect for long-lasting, power-efficient visuals. It delivers clear, black-and-white content that stays visible without constant power. Ideal for smart signage, home displays, and industrial applications, it offers durability, energy efficiency, and unmatched clarity. Embrace the future of display technology with this reliable, low-power solution.












Special Features


● Lightning-Fast Refresh: Achieve full updates in just 3s, quick refresh in 1.5s, and partial updates in a mere 0.3s—perfect for rapid content updates.
● Wide Viewing Angle: Enjoy crystal-clear visibility from over 170 degrees, ensuring clarity from any viewing angle.
● Energy-Efficient: Save power with zero energy consumption when not refreshing, contributing to sustainable energy practices.
● Eye Protection: Safeguard your eyes with no blue light and zero radiation emissions.
● Pure Reflective Display: Opt for pure reflective mode without backlighting, ideal for diverse lighting conditions.
● Durable Anti-Glare Coating: Enhance display quality with a robust anti-glare coating, ensuring optimal visibility in any environment.











Technical Details










Product Specifications

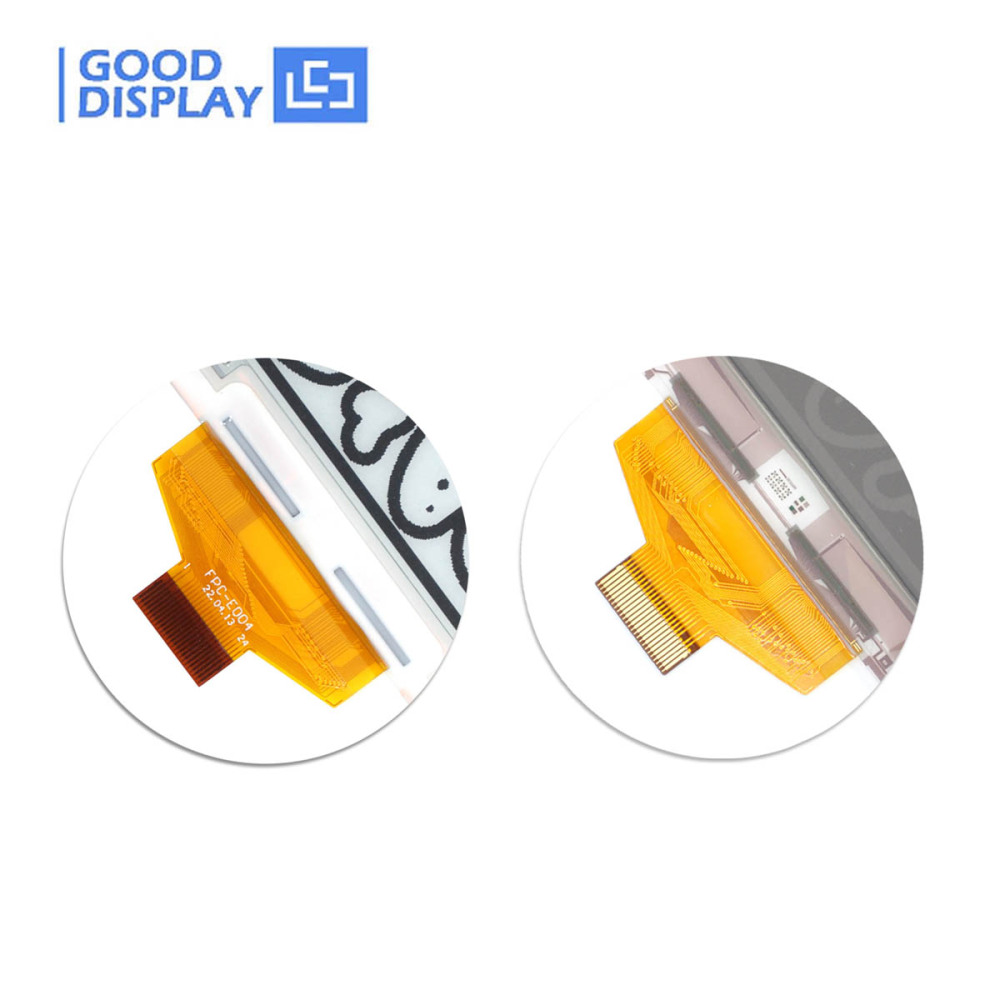

PART NUMBER GDEY0579T93 CONNECTOR 24 PIN 0.5mm
SIZE 5.79 inch COLOR Black, White
TYPE Dot Matrix MAX GRAYSCALE 4
IC SSD1683 FULL UPDATE(s) 3
RESOLUTION 792x272 PARTIAL UPDATE(s) 0.3
PPI 144.63 FAST UPDATE(s) 1.5

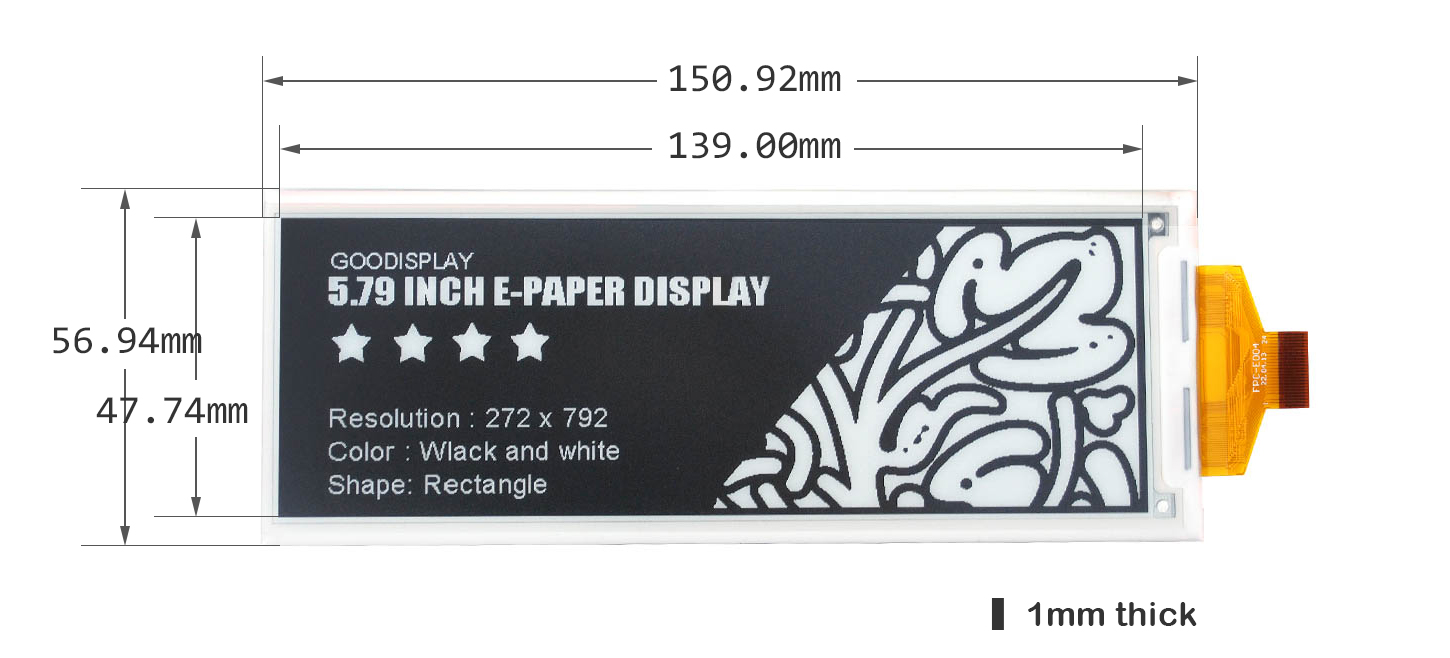

OUTLINE SIZE(mm) 150.92x56.94x1.0 POWER CONSUMPTION OF THE REFRESH(mW) 21
ACTIVE SIZE(mm) 139.00×47.74 STANDBY POWER CONSUMPTION (mW) 0.0165
PIXEL PITCH(mm) 0.1755×0.1755 INTERFACE SPI
OPERATING TEMP. 0℃~50℃ STORAGE TEMP. -25℃~70℃











Matching Driver Boards

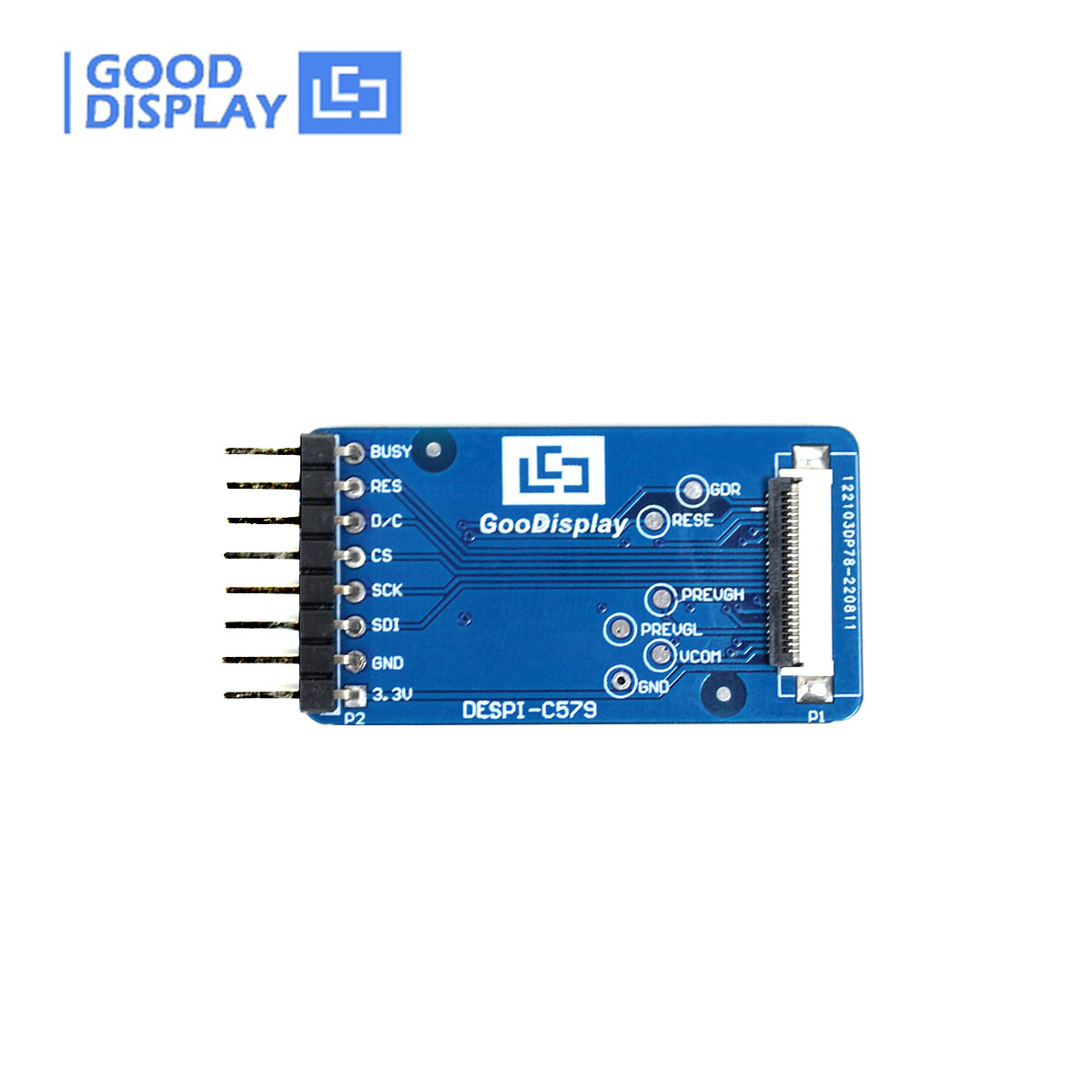

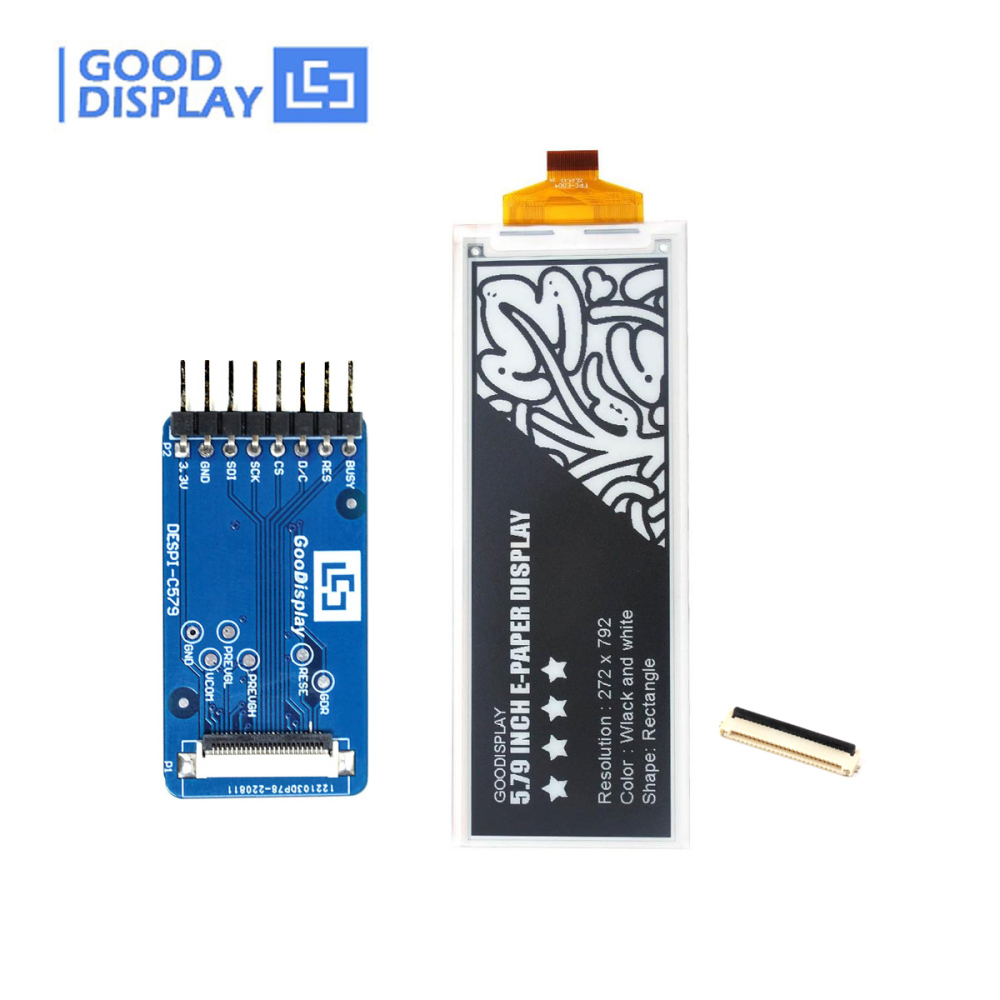

Ⅰ. DESPI-C579 (E-ink Display adapter Board)

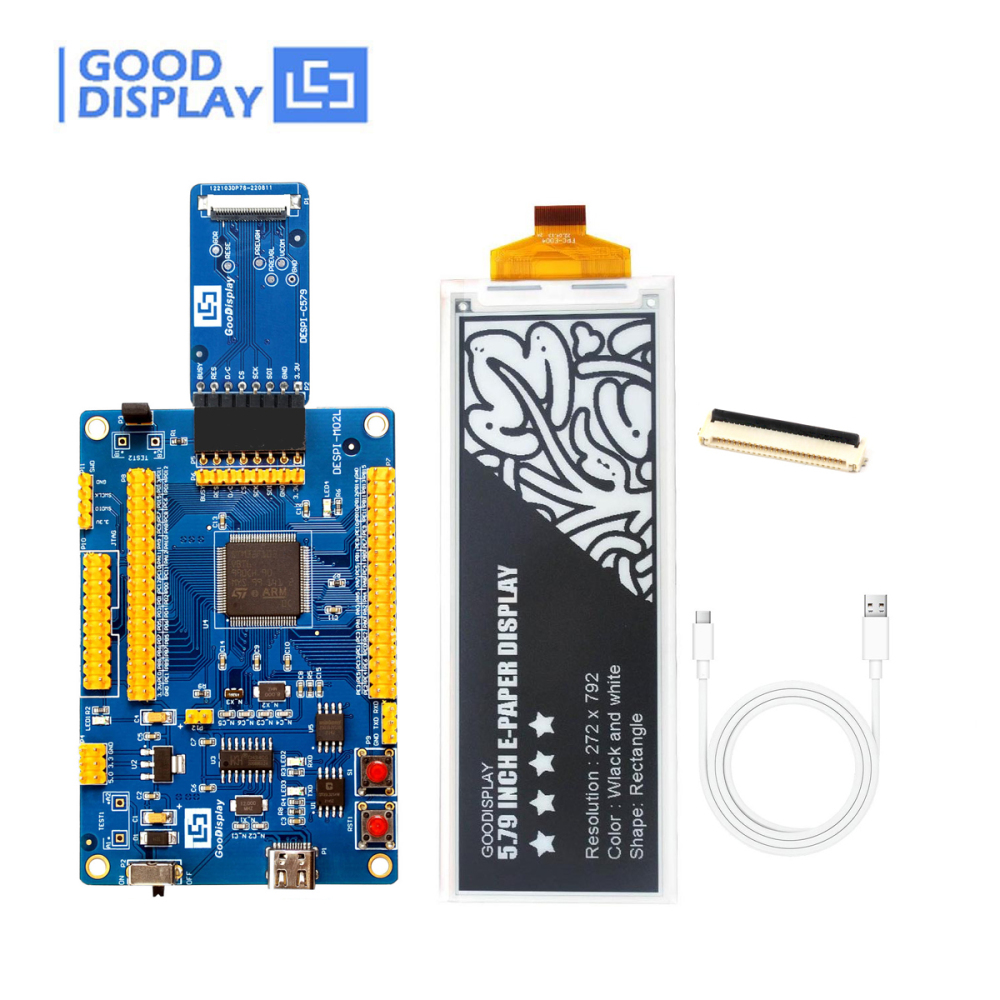

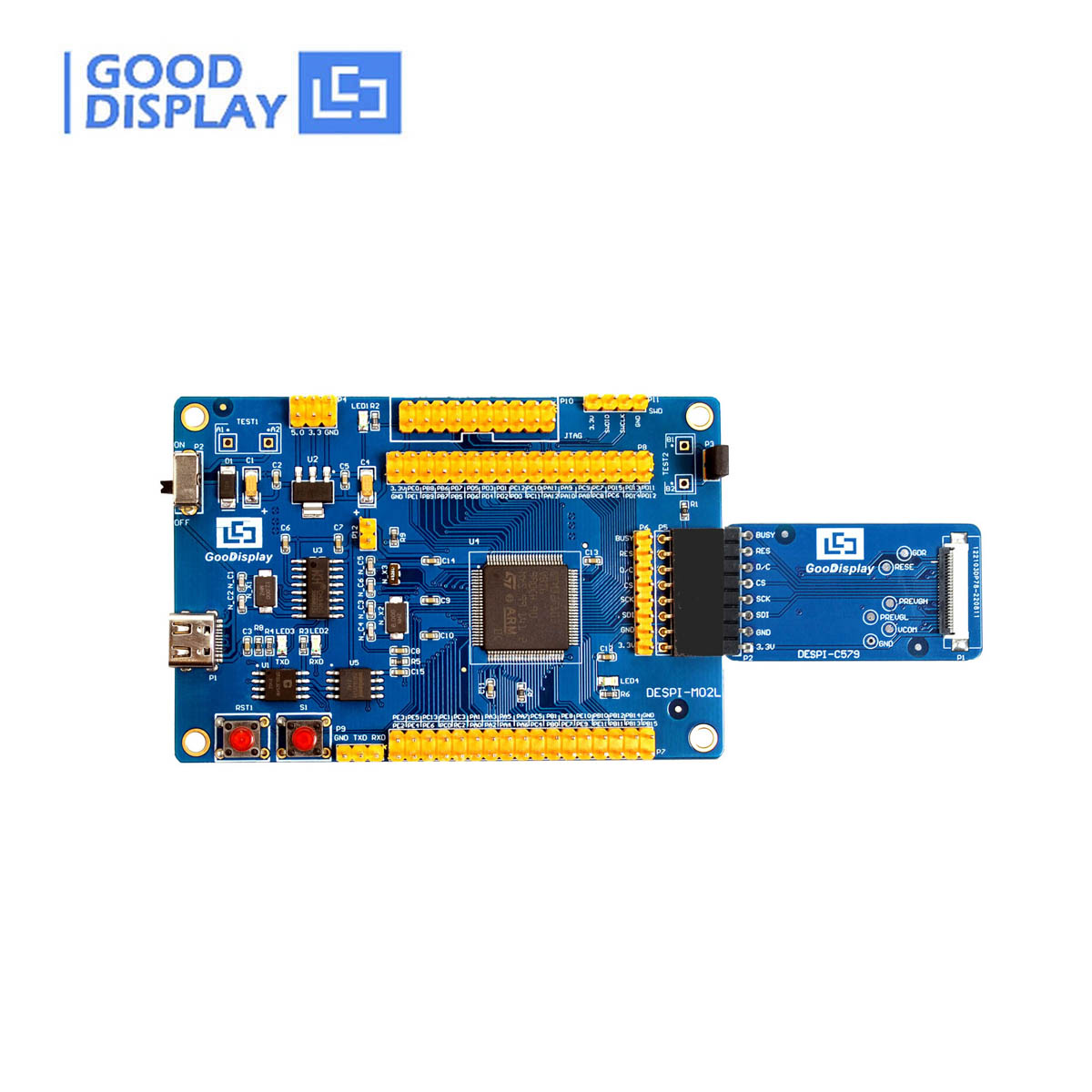

Ⅱ. DESPI-L(C579) (STM32 Demo Kit)

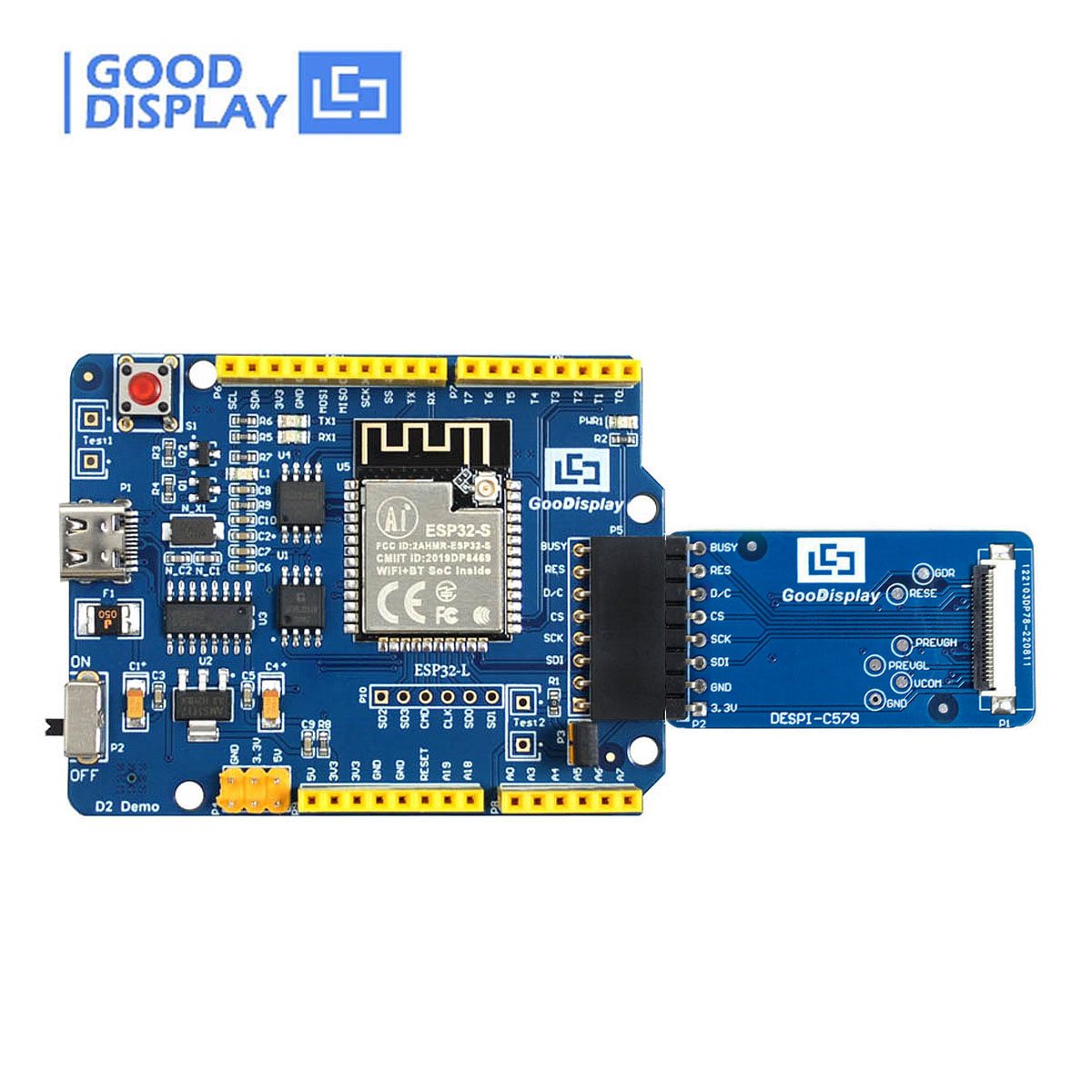

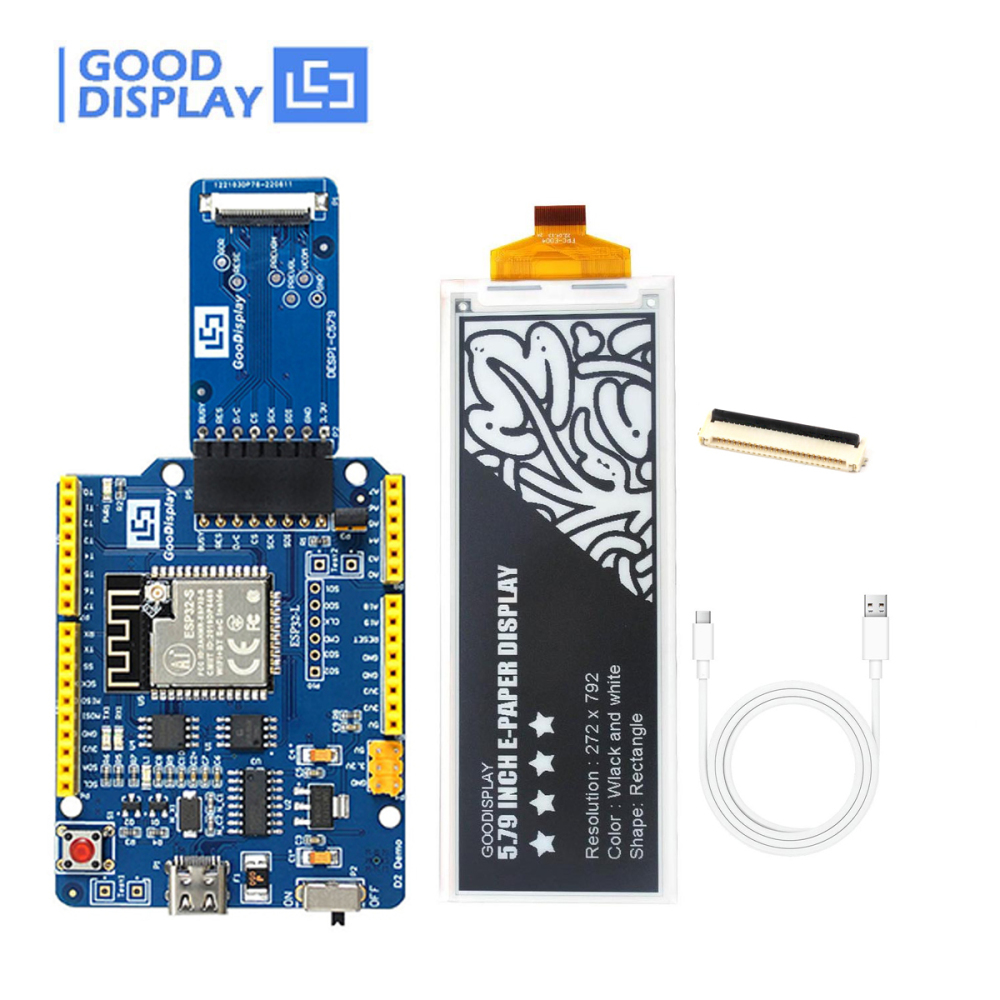

Ⅲ. ESP32-L(C579) (ESP32 Demo Kit)










Files And Download


● GDEY0579T93 Specification ● GDEY0579T93 ESP8266 Sample Code
● IC Driver SSD1683 ● GDEY0579T93 ESP32 Sample Code
● Picture Production and Bitmap Convert for GDEY0579T93 ● The Latest Catalog of ePaper Display
● GDEY0579T93 STM32 Sample Code ● Why can't I download the files(updated)?









Product Application

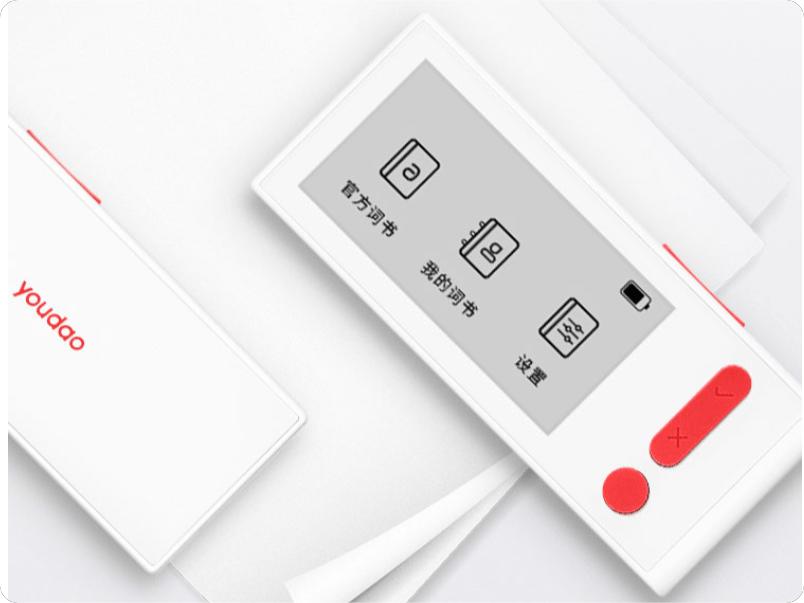

Portable e-Reader

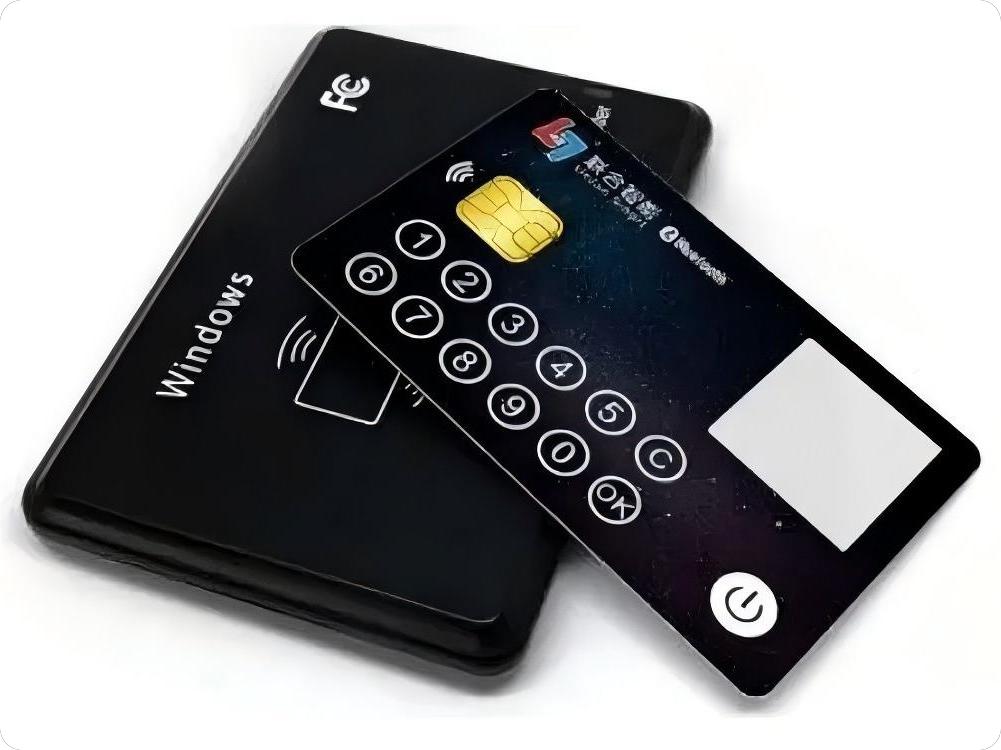

Transportation and Access Control

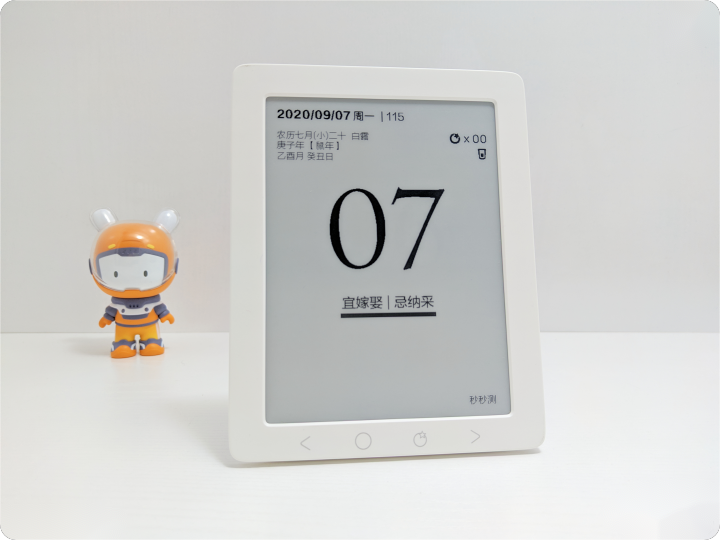

Sensors/ Smart Home Device

Industrial Instrument
